Tubular motor:
GEIGER-SOLIDline
Motor control:
GEIGER-SoftPerfection-X01 (GU45...-E03)
for rolling shutters with stoppers and anti-lift device
2
Gerhard Geiger GmbH & Co. KG | 100W0520 0219V000en
EN
EN
Index
1. GEIGER-SoftPerfection-X01: Special features ....................... 3
2. General information .................................................................. 4
3. Guarantee ..................................................................................4
4. Intended use .............................................................................. 4
5. Safety instructions .................................................................... 5
6. Safety instructions for assembly ............................................6
7. Installation instructions ...........................................................7
8. Information for the specialist electrician ................................ 8
9. Setting of end stops .................................................................8
10. Delete the end positions ..........................................................8
11. Obstacle recognition ................................................................9
12. End position correction ............................................................ 9
13. What to do if… ........................................................................... 9
14. Maintenance ..............................................................................9
15. Declaration of conformity ......................................................10
16. Technical data .........................................................................11
17. Notes on waste disposal ........................................................ 11
3
www.geiger.de
EN
EN
1. GEIGER-SoftPerfection-X01: Special features
Application range: rolling shutter systems
Precondition: anti-lift device and stoppers
Initial operation with Plug & Play
Only one operation to the upper and the lower end stop is required.
Ready! Plug & Play!
Cloth protection with the Soft-System
The Geiger soft position ensures that the hanging stops a few millime­tres before reaching the end position. The hanging is thus optimally protected. Two exceptions: the programming runs and the reference runs after 50 cycles.
During the programming or the reference runs the Geiger motor control ensures a „soft shutdown“ when reaching the end positions. Hanging and the rolling shutter system - compared to conventional torque motors – are well preserved.
Synchronous position in the upper end position
The GEIGER-SoftPerfection-X01 ensures that the bottom lath in the upper end position is always the same distance away from the upper end rail.
When rolling shutters of different sizes are mounted next to each other, the bottom laths are positioned on the same level. This is a really nice visual upgrade for the house façade: the Geiger-
synchronous position.
Obstacle detection
Protection of the rolling shutter system during retraction
Antifreeze protection
The situation «hanging frozen to the window sill», is recognized by the system and the curtain will not be damaged.
4
Gerhard Geiger GmbH & Co. KG | 100W0520 0219V000en
EN
EN
2. General information
Dear customer, By purchasing a Geiger motor you have decided on a quality product from Geiger.
Thank you very much for your decision and the condence placed in us.
Before you put this drive into operation please observe the following safety instructions. It serves for the prevention of danger and for the avoidance of personal injury and damage to property.
The installation and operating instructions contain important information for the installer, the specialist electrician and the user. Please pass on these instructions if you transfer the product. These instructions should be kept by the user.
3. Guarantee
In the case of incorrect installation contrary to the installation and operating instructions and/
or constructional modication, the legal and contractual guarantee for property damage and
product liability lapses.
4. Intended use
The tubular motors of the model range SOLIDline (GU45...-E03) are designed for the operation of rolling shutters with anti-lift device and stoppers
The motors may not be used for the operation of roller grilles, garage doors, furniture and lifting tools.
GU 45 .. . - E03
Motor control
Motor head
Torque in Nm
Motor diameter
Geiger universal drive
5
www.geiger.de
EN
EN
5. Safety instructions
I
ATTENTION: Important safety instructions. For personal safety, it is important to follow these instructions. Please keep these instructions for future reference.
f Do not allow children to play with stationary controls. Keep remote controls away
from children.
f The installation is to be checked regularly for defective balance, signs of wear or
damaged cables and springs, if relevant.
f Do observe the moving sun protection system and keep persons away until it has
closed completely.
f When operating the manual release with the sun protection system open, please be
cautious as it can fall down quickly if springs or tapes wear off or are broken.
f Do not operate the device if operations such as, for example, window cleaning are to
be carried out in the vicinity.
f Disconnect the automatic controlled device from the mains power supply if opera-
tions such as, for example, window cleaning are being carried out in the vicinity. f During operation observe the danger zone. f Do not use the installation if people or objects are in the danger zone. f Urgently shut down damaged installations until repair. f Unconditionally shut down the unit during maintenance and cleaning operations. f Pinching and shearing points are to be avoided and must be secured. f This appliance can be used by children aged 8 and above and persons whose
physical, sensorial or mental capacities are impaired, or who have no experience or
know-how if they have been supervised or been given instructions on the use of the
appliance and if they understand the possible resulting dangers. Children are not
permitted to play with the device. Cleaning and maintenance should not be carried
out by children. f The rated sound pressure level is less than 70 dB(A). f Disconnect the device from the mains power supply for maintenance and replace-
ment of parts.
If the motor is disconnected via a plug connection the operator must be able to
control - from any place to which it has access – that the plug is removed.
If this is not possible - due to design or installation - the disconnection from the
power supply must be ensured via locking in the disconnected position (e.g. isolator). f The motor tube can get very hot during prolonged use.
When working on the unit, do not touch the tube before it has cooled down.
6
Gerhard Geiger GmbH & Co. KG | 100W0520 0219V000en
EN
EN
6. Safety instructions for assembly
I
ATTENTION: Important safety instructions. Follow all installation instructions, as incorrect installation can lead to serious injuries.
f When mounting the motor without any mechanical protection of the driven parts and
of the tube which may become hot, the motor must be installed at a height of at least
2.5 m above the ground or of another level which provides access to the drive.
f Before the motor is installed, all cables which are not needed are to be removed and
all equipment which is not needed for power-operated actuation is to be put out of
operation. f The actuating element of a manual release must be mounted at a height of less than
1.8 m.
f If the motor is controlled by a switch or pushbutton, the switch or pushbutton must
be mounted within eyeshot of the motor. The switch or pushbutton must not be
located in the vicinity of moving parts. The height of installation must be at least
1.5mabovetheoor.
f Permanently installed control devices must be attached visibly. f In case of devices extending horizontally, a horizontal distance of at least 0.4 m must
berespectedbetweenthefullyextendedpartandanyotherxedelement.
f The rated speed and the rated torque of the motor must be compatible with the
device. f The mounting accessories that are used must be designed in accordance with the
selected rated torque. f Good technical knowledge and good mechanical skills are necessary for the motor
installation. Incorrect installation can lead to serious injury.
Electricalworkmustbecarriedoutbyaqualiedelectricianinaccordancewiththe
regulations in force locally. f Only use connecting cables that are suitable with the environmental conditions and
which meet the construction requirements. (see accessories catalogue) f If the device is not equipped with a connecting cable and a plug, or other means for
disconnecting from the mains with a contact opening on each pole according to the
conditions of the overvoltage category III for full disconnection, a disconnecting
device of this type must be incorporated into the permanently installed electrical
installation according to the wiring rules. f Do not mount the connecting cables near hot surfaces. f A plug for the disconnection of the motor from the power supply must be accessible
after installation. f Damaged connecting cables must be replaced by Geiger connecting cables of the
same type. f The device must be mounted as described in the installation instructions. Fixations
shall not be made with adhesives since they are regarded as unreliable.
7
www.geiger.de
EN
EN
7. Installation instructions
I
Beforexing,thestrengthofthemasonryorofthesubsurfaceistobe
checked.
I
Prior to installation please check to ensure there is no visible damage to the motor like cracks or open cables.
I
Caution: If the tube is screwed/riveted to the drive, the measure must be taken from the tube end to the center of the drive and marked on the tube.
When drilling the winding shaft never drill into the area of the tubular motor!
When inserting into the shaft, the tubular motor must not be struck and must not be allowed to fall into the shaft.

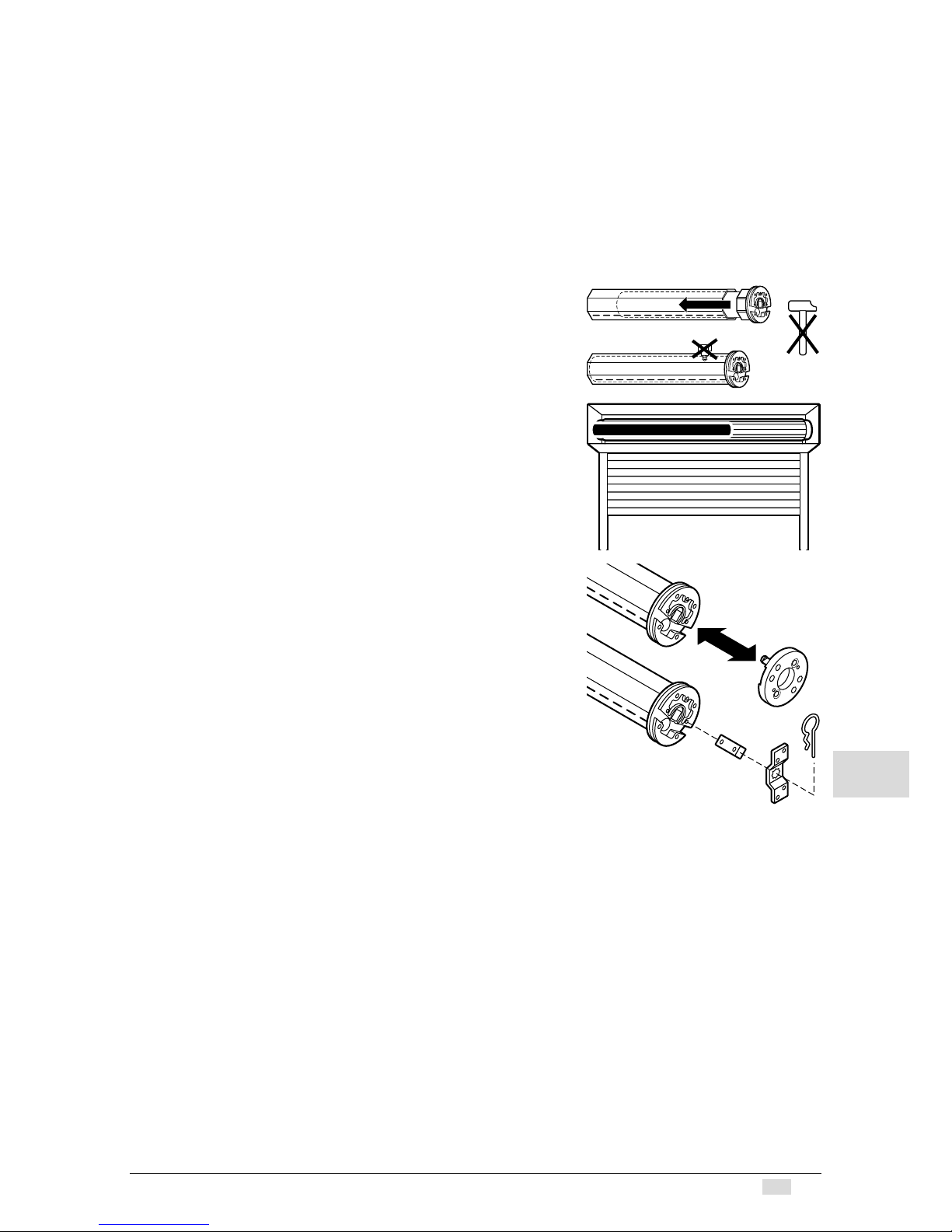

Installation into the rolling shutter:
Fix motor support to available stud bolts or in the side frame.
Insert motor into the shaft with a suitable adapter and drive up to the stop of the shaft adapter.
Insert roller capsule on the opposite side. Put shaft with motor on motor support or on pivoting
engine bearer. On the opposite side pull out roller capsule
until bolt ts into ball bearing.
Screw together roller capsule with shaft. Screw together shaft with tubular carrier. Fix rolling shutter casing to shaft.
Alternative: Use xation plates for front box units. Attach
the motor. The bearing locks into place. To loosen, turn the spring washer.
I
In order to adjust the end positions, a rolling shutter system with upper end stop and anti-lift device is required.
I
The GEIGER-SOLIDline motor is suitable for shaft diameters from 50 mm!
8
Gerhard Geiger GmbH & Co. KG | 100W0520 0219V000en
EN
EN
8. Information for the specialist electrician
H
Caution: Important installation instructions. Please follow all instructions since incorrect installation can lead to the destruction of the motor and the switching unit.
The operations with the service clamps may be accom­plished only by an electrical specialist.
Motors with electronic limit stops can be connected in parallel. In this case the maximum load of the switching unit must not be exceeded.
When changing the running direction the switchover must be effected through an off-position.
When changing the running direction the switchover time must be at least 0.5 s.
With a three-phase network, please use the same external conductor in order to control the UP and DOWN directions.
PVC cables are not suitable for equipment used outdoors or exposed to prolonged high levels of UV radiation. These cables should not be used if they are likely to touch metal parts that can heat up to temperatures exceeding 70°C.
Connecting cables with plug connectors of the Hirschmann Company are tested and approved with couplings of the Hirschmann Company.
In order to prevent a malfunction caused by coupling, the supply line (ref. NYM) from the actuator/switch to the motor must not exceed 100 m in case of motors with electronic end stops.
9. Setting of end stops
1. Connect the connecting cable to the motor
2. Move the shutter to both end positions once (any order will do)
X01version:thenalpositionsarenotlearneduntilthe5thride.
3. DONE!
10. Delete the end positions
1. Move the curtain to any position of your choice.
I
Please note: respect a distance of approximately 50 cm from the end positions
2. Operate as follows:
I
Please note: a break of at least 5 seconds must be respected between the different runs.
3. DONE!
12 3
PE N
L1
N
PE
Electronic / mechanical
limit stop
blue
brown
black
green/yellow
Mains: 230V / 50Hz
5 sec 1 sec 5 sec 1 sec 5 sec 1 sec 1 sec
breakUP ––––––breakDOWN break
5 sec
–breakUP UP
5 sec
break
9
www.geiger.de
EN
EN
11. Obstacle recognition
When, after the teaching of the rst complete, uninterrupted travel from one end position to the
other end position is carried out, the torque needed is learnt.
I
X01Version:themotorlearnstheupperendstoponthefthrun
upwards to the upper stop. Afterwards, the required torque can be programmed.
In any following complete, uninterrupted travel from end position to end position, the torque needed is automatically reset. Slow changes in the installation due to ageing, soiling, cold or heat are thus automatically taken into consideration.
If a travel movement in UP direction is blocked by an obstacle, the motor switches off and a small return motion takes place.
The running direction in which the obstacle was recognized is blocked. The block is removed if the motor has been operated in the opposite direction for a certain time.
An obstacle must thus rst be released before the motor can be operated again in the direction
of the obstacle.
12. End position correction
I
The engine needs to be taught with the end stops (stopper and anti-lift device).
Checking of the end position, and if appropriate an end position correction, takes place after 5, 20, and then every 50 cycles.
Should a hangings elongation have resulted, due to temperature changes, this is corrected at the next end position correction.
If, due to temperature changes, modied winding behaviour should arise and the hangings
should run against the stop, an immediate end position correction takes place. In addition, the
counter for the end position correction is started afresh.
13. What to do if…
Problem Solution
Motor does not run. • Motor not plugged in.
Please check the plug connection.
• Check connecting cable for possible damage.
• Check the mains voltage and allow the cause of the voltage break down to be tested by a specialist electrician.
Instead of in the upwards direction, motor runs downwards.
• The control leads are interchanged. Exchange black/brown control leads.
Motor only runs in one direction.
• Motor in the end position. Run motor in the opposite direction. Re-adjust the end positions, if necessary.
After running several times, the motor breaks down and no longer responds.
• The motor became too hot and has switched off. Try it again after a cooling time of about 15 min.
14. Maintenance
The drive is maintenance-free.
10
Gerhard Geiger GmbH & Co. KG | 100W0520 0219V000en
EN
EN
15. Declaration of conformity
Schleifmühle 6 | D-74321 Bietigheim-Bissingen Phone +49 (0) 7142 9380 | Fax +49 (0) 7142 938 230 | info@geiger.de | www.geiger.de Sitz Bietigheim-Bissingen | Amtsgericht Stuttgart HRA 300591 | USt-IdNr. DE145002146 Komplementär: Geiger Verwaltungs-GmbH | Sitz Bietigheim-Bissingen | Amtsgericht Stuttgart HRB 300481 Geschäftsführer: Roland Kraus | WEEE-Reg.-Nr. DE47902323
Gerhard Geiger GmbH & Co. KG
EU Declaration of Conformity
Bietigheim-Bissingen, 25.10.2018 Roland Kraus (General Manager)
Product designation:
Venetian blinds motor, motor for rolling shutters, motor for awnings
Type designation:
GR45.. GJ56.. GS45.. GS56.. GU45.. GSI56..
Applied directives:
2006/42/EC 2014/30/EU 2014/53/EU 2011/65/EU
Applied standards:
DIN EN 60335-1 (VDE 0700-1):2012-10; EN 60335-1:2012 DIN EN 60335-1 Ber.1 (VDE 0700-1 Ber.1):2014-04; EN 60335-1:2012/AC:2014 EN 60335-1:2012/A11:2014 DIN EN 60335-2-97 (VDE 0700-97):2017-05; EN 60335-2-97:2006+A11:2008+A2:2010 +A12:2015 DIN EN 62233 (VDE 0700-366):2008-11; EN 62233:2008 DIN EN 62233 Ber.1 (VDE 0700-366 Ber.1):2009-04; EN 62233 Ber.1:2008 DIN EN ISO 12100:2011-03; EN ISO 12100:2010
DIN EN 55014-1:2012-05; EN 55014-1:2006 + A1:2009 + A2:2011 DIN EN 55014-2:2016-01; EN55014-2:2015 DIN EN 61000-3-2:2015-03; EN 61000-3-2:2014 DIN EN 61000-3-3:2014-03; EN 61000-3-3:2013 ETSI EN 301 489-1 V1.9.2(2011-09) ETSI EN 301 489-3 V1.6.1(2013-08) ETSI EN 300 220-2 V3.1.1(2017-02)
Authorized representative for technical data:
Gerhard Geiger GmbH & Co. KG
Address:
Schleifmühle 6, D-74321 Bietigheim-Bissingen
en
Gerhard Geiger GmbH & Co. KG Antriebstechnik Schleifmühle 6 D-74321 Bietigheim-Bissingen
1018100W1518
Current declarations of conformity are available under www.geiger.de
11
www.geiger.de
EN
EN
16. Technical data
Technical data of tubular motor SOLIDline-KS (GU45..)
GU4510 GU4520 GU4530 GU4540 GU4550
Voltage 230 V~/50 Hz
Current 0,47 A 0,63 A 0,8 A 1,0 A 1,0 A
Cos Phi (cosj) >0,95
Inrush current (factor) x 1,2
Power 105 W 140 W 180 W 220 W 220 W
Torque 10 Nm 20 Nm 30 Nm 40 Nm 50 Nm
Speed 16 rpm 16 rpm 16 rpm 16 rpm 12 rpm
Protection class IP 44
Total length
1)
516,5 mm 546,5 mm 566,5 mm 586,5 mm 586,5 mm
Operating mode S2 4 min S2 5 min S2 4 min S2 4 min S2 4 min
Sound pressure level
2)
39 dB(A) 41 dB(A) 41 dB(A) 43 dB(A) -
Diameter 45 mm
Weight approx
1,90 kg
approx
2,20 kg
approx
2,40 kg
approx
2,70 kg
approx
2,70 kg
Storage temperature/ Humidity
T = -15°C .. +70°C / dry and non-condensing place
1)
SOLIDline-COM + 3,5 mm / SOLIDline-SOC: + 3 mm / SOLIDline-SIL: ± 0 mm (without trunnion)
2)
The average sound pressure level data are intended for guidance only. The values were determined by Geiger
at a distance of 1 m, with a hanging motor at idle speed and averaged over 10 seconds. There is no reference to any specific test standard.
Subject to technical modifications. Please find information to the ambient temperature range of our Geiger motors under www.geiger.de
DE
V
geprüfte Sicherheit
17. Notes on waste disposal
Recycling of packaging materials
In the interest of environmental protection, please contact your local government’s recycling or solid waste management department to learn more about the services it provides.
Waste disposal of electric and electronic equipment
Electrical and electronic equipment must be collected and disposed of separately in accordance with EU regulations.
12
Gerhard Geiger GmbH & Co. KG | 100W0520 0219V000en
EN
EN
For technical questions, please call our service team at: +49 (0) 7142 938 333. They will be happy to assist you.
Gerhard Geiger GmbH & Co. KG
Schleifmühle 6 | D-74321 Bietigheim-Bissingen T +49 (0) 7142 9380 | F +49 (0) 7142 938 230 info@geiger.de | www.geiger.de
Loading...
