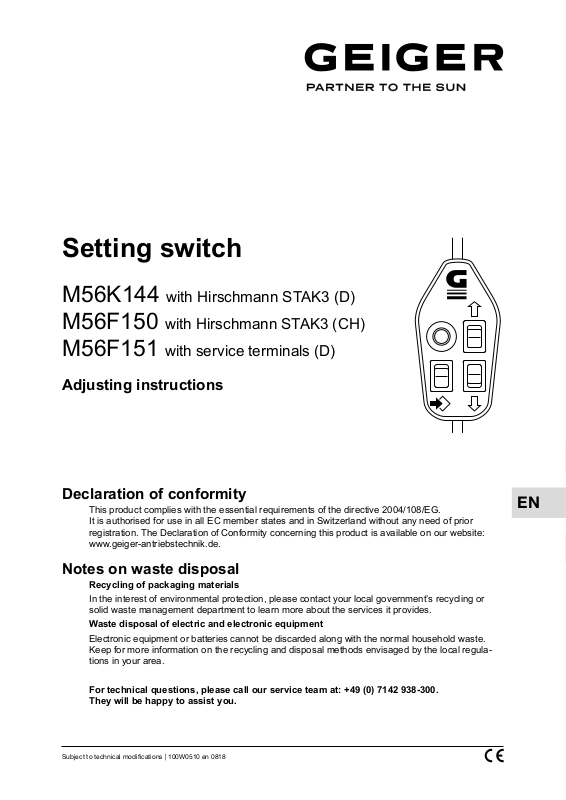

Setting switch
M56K144 with Hirschmann STAK3 (D)
M56F150 with Hirschmann STAK3 (CH)
M56F151 with service terminals (D)
Adjusting instructions
DE
Declaration of conformity
This product complies with the essential requirements of the directive 2004/108/EG.
It is authorised for use in all EC member states and in Switzerland without any need of prior
registration. The Declaration of Conformity concerning this product is available on our website:
www.geiger-antriebstechnik.de.
Notes on waste disposal
Recycling of packaging materials
In the interest of environmental protection, please contact your local government’s recycling or
solid waste management department to learn more about the services it provides.
Waste disposal of electric and electronic equipment
Electronic equipment or batteries cannot be discarded along with the normal household waste.
Keep for more information on the recycling and disposal methods envisaged by the local regulations in your area.
For technical questions, please call our service team at: +49 (0) 7142 938-300.
They will be happy to assist you.
Subject to technical modifications | 100W0510 en 0818
EN
FR
1
Setting switch …
For technical questions, please call our service team at: +49 (0) 7142 938-333.
They will be happy to assist you.
...for Venetian blind motors (GJ56..e) and the motors MODULARline Easy (GR45..E01), SOLIDline
Easy (GU45..E01), SoftPlus/SoftZero/SoftPlus-DG (GU45..E02), SoftReverse (GU45..E06) and
SoftLock (GU45..E07).
Connection of the setting switch
To realise the required setting procedures, the setting switch M56K144/M56F150/M56F151 must
be used. If necessary do use the adaptation cable with the service terminals M56B265.
The work with the service terminals may be accomplished only by an
H
electrical specialist.
Connection with setting switch M56K144/M56F150 (when required with adaptation cable M56B265)
DE
EN
Programming key
Mains
230 V~
Connection with setting switch M56F151 with service terminals
Programming key
Mains
230 V~
SECURITY NOTE: This setting cable is protected against damage with a fuse type
H
T 1,6 A 250V. This fuse must be replaced by a fuse of the same type. Other types of
fuse might damage the setting cable.
Please disconnect the device before opening the housing. The device may only be
opened by a qualied electrician.
LED Hirschmann coupling
(M56K144/M56F150)
2/UP Setting switch
1/DOWN
LED
2/UP Setting switch
1/DOWN
M56K144/M56F150
M56F151
Adaption cable
M56B265
Service
terminals
Service
terminals
cabel to limit stop
cabel to limit stop
Connecting
Connecting
GEIGER motors GJ56..e, MODULARline and SOLIDline
FR
2
Note: please refer to the installation and operating instructions of the respective
I
motors to adjust the end positions and to modify the power levels.
Gerhard Geiger GmbH & Co. KG
Schleifmühle 6
D-74321 Bietigheim-Bissingen
Telephone: +49 (0) 7142 938-0
Telefax: +49 (0) 7142 938-230
E-Mail: info@geiger.de
Internet: www.geiger.de
Subject to technical modifications | 100W0510 en 0818
