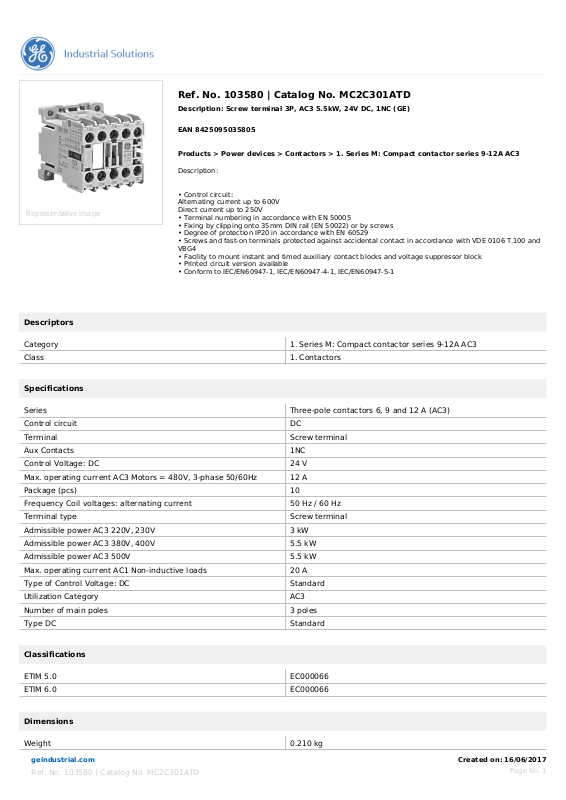

GE - General Electric MC2A310ATJ Data Sheet

Ref. No. 103580 | Catalog No. MC2C301ATD

Description: Screw terminal 3P, AC3 5.5kW, 24V DC, 1NC (GE)

EAN 8425095035805

Products > Power devices > Contactors > 1. Series M: Compact contactor series 9-12A AC3

Description:

•Control circuit:
Alternating current up to 600V

Representative Image

Descriptors

Category 1. Series M: Compact contactor series 9-12A AC3

Class 1.Contactors

Direct current up to 250V

•Terminal numbering in accordance with EN 50005

•Fixing by clipping onto 35mm DIN rail (EN 50022) or by screws

•Degree of protection IP20 in accordance with EN 60529

•Screws and fast-on terminals protected against accidental contact in accordance with VDE 0106 T.100 and
VBG4

•Facility to mount instant and timed auxiliary contact blocks and voltage suppressor block

•Printed circuit version available

•Conform to IEC/EN60947-1, IEC/EN60947-4-1, IEC/EN60947-5-1

Specifications

Series Three-pole contactors 6, 9 and 12 A (AC3)

Control circuit DC

Terminal Screw terminal

Aux Contacts 1NC

Control Voltage: DC 24 V

Max. operating current AC3 Motors = 480V, 3-phase 50/60Hz 12 A

Package (pcs) 10

Frequency Coil voltages: alternating current 50 Hz / 60 Hz

Terminal type Screw terminal

Admissible power AC3 220V, 230V 3 kW

Admissible power AC3 380V, 400V 5.5 kW

Admissible power AC3 500V 5.5 kW

Max. operating current AC1 Non-inductive loads 20 A

Type of Control Voltage: DC Standard

Utilization Category AC3

Number of main poles 3 poles

Type DC Standard

Classifications

ETIM 5.0 EC000066

ETIM 6.0 EC000066

Dimensions

Weight 0.210 kg

geindustrial.com Created on: 16/06/2017

Ref. No. 103580 | Catalog No. MC2C301ATD

Page No. 1

Dimensions

Weight 0.210 kg
