GE

Grid Solutions

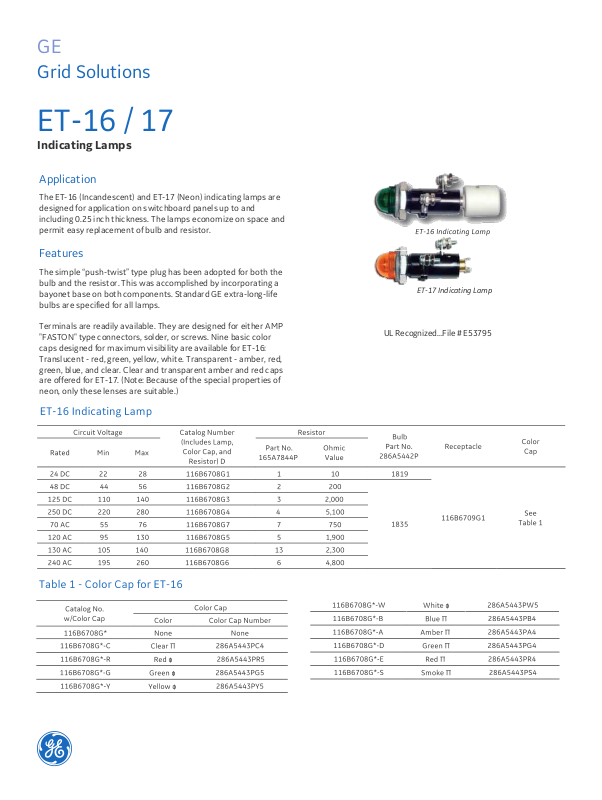

ET-16 / 17

Indicating Lamps

Application

The ET-16 (Incandescent) and ET-17 (Neon) indicating lamps are
designed for application on switchboard panels up to and
including 0.25 inch thickness. The lamps economize on space and
permit easy replacement of bulb and resistor.

Features

The simple “push-twist” type plug has been adopted for both the
bulb and the resistor. This was accomplished by incorporating a
bayonet base on both components. Standard GE extra-long-life
bulbs are specified for all lamps.

ET-17 Indicating Lamp

Terminals are readily available. They are designed for either AMP
"FASTON" type connectors, solder, or screws. Nine basic color
caps designed for maximum visibility are available for ET-16:
Translucent - red, green, yellow, white. Transparent - amber, red,
green, blue, and clear. Clear and transparent amber and red caps
are offered for ET-17. (Note: Because of the special properties of
neon, only these lenses are suitable.)

UL Recognized...File # E53795

Note: Hole size (metal up to 0.25 inches thick) = 0.66 inch diameter

* = Group Number Per Voltage Selected

 = Transparent
 = Translucent

How To Order

Order by complete catalog number and
specify color cap.

Must add cap color code suffix from
Table 1 (ex. 116B6708G5-R for red
translucent cap)

Must add cap color code suffix from
Table 2 (ex. 116B6734G5-E for red
transparent cap)

GEGridSolutions.com

ITI-Model-ET16-17-Spec-EN-2020-02-Grid-PQP-1528. © Copyright 2020. General Electric
Company and Instrument Transformers LLC reserve the right to change specifications of described
products at any time without notice and without obligation to notify any person of such changes.
