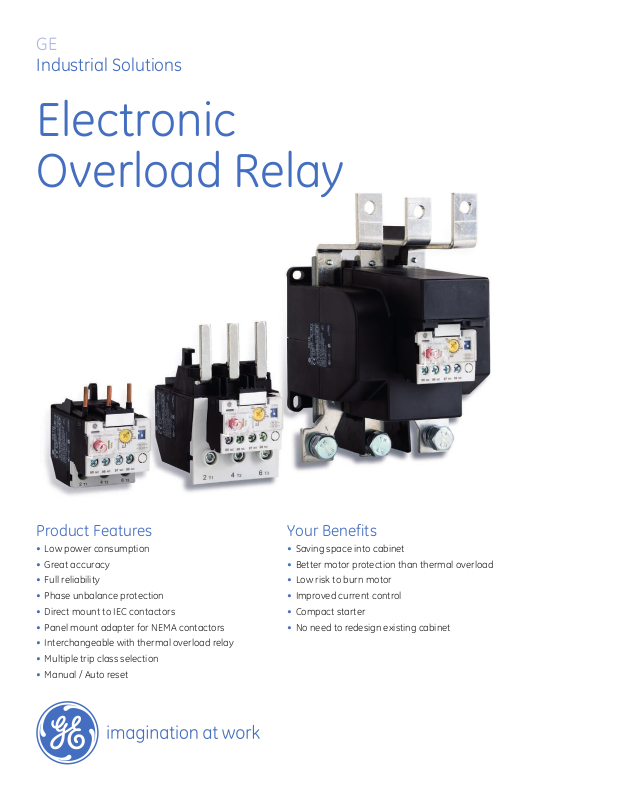

GE - General Electric Electronic Overload Relay Data Sheet
GE
Industrial Solutions
Electronic
Overload Relay
Product Features
• Low power consumption
• Great accuracy
• Full reliability
• Phase unbalance protection
• Direct mount to IEC contactors
• Panel mount adapter for NEMA contactors
• Interchangeable with thermal overload relay
• Multiple trip class selection
• Manual / Auto reset
Your Benefits
• Saving space into cabinet
• Better motor protection than thermal overload
• Low risk to burn motor
• Improved current control
• Compact starter
• No need to redesign existing cabinet
Electronic Overload Relay
Frame 1 Frame 2 Frame 3
Features
• Setting range from 0.1 up to 150A
• Self powered
• Thermal memory
• Phase loss protection
• Phase unbalance protection
• Direct mount to CL contactors
• Interchangeable with thermal overload relay
• Multiple trip class selection
• Manual / Auto reset
• Maximize inventory with wider range of
voltages available
• Trip class: 5 - 10 - 20 - 30
Order Codes
Setting Range (A)
0.1 0.5 RE1D
0.4 2 RE1H
Frame 1
Frame 2
Frame 3
1 5 RE1K
1.6 8 RE1M
6.4 32 RE1S
9 45 RE1W
15 75 RE2H
22 110 RE2M
30 150 RE3E
Accessories
Size 1
Size 2 RE2XP
Panel Mount Adapter
Remote Reset
Button Cover
Catalog
Number
RE1XP
RETC
Reference
NumberMin. Max.
101866
101867
101868
101869
101870
101871
101872
101873
101874
247302
247303
247795
* Trademark of General Electric Company
All other brands or names are property of their respective holders.
Information provided is subject to change without notice. Please verify all details with GE. All values
are design or typical values when measured under laboratory conditions, and GE makes no warranty
or guarantee, express or implied, that such performance will be obtained under end-use conditions.
DET-832 (09/14)
