WPA-S
CONTACTLESS MAGNETOSTRICTIVE LINEAR POSITION TRANSDUCER
(SYNCHRONOUS SERIAL OUTPUT)
Main characteristics
• Optimised mechanical structure
• Strokes from 50 to 4000 mm
• Fast installation by mean of steel brackets
• Sliding or floating magnetic cursor
• Synchronous Serial Interface direct to controllers
• Output data resolution available from 0.5 to 40 μm
• Data format: binary or Gray code; incremental/
decremental
• Power supply 10...32 Vdc
• Resistance to vibration (DIN IEC68T2/6 15g)
• IP67 protection
• Work temperature: -30...+90°C
• Electromagnetic compatibility EMC 2014/30/EU
• Compliant to the directive RoHS 2011/65/EU
Contactless linear position transducer with HYPERWAVE
magnetostrictive technology, with RS422-SSI digital output interface.
The absence of electrical contact on the cursor eliminates all wear
and guarantees almost unlimited life.
High performance in terms of environmental IP protection and EMC
immunity.
TECHNICAL DATA
Model from 50 to 4000 mm
Measurement taken displacement
Position read sampling time
(typical)
Shock test DIN IEC68T2-27 100g - 11ms - single shock
Vibrazioni DIN IEC68T2-6 15g / 10...2000Hz
Velocità di spostamento ≤10 m/s
Max. acceleration ≤ 100 m/s
Output data resolution available 0.5...40 μm
Cursor (see note)
Working temperature -30...+90°C
Storage temperature -40...+100°C
Coefficient of temperature 20 ppm FS / °C
Protection IP67
Note 1) For stroke > 2500mt use sliding or floating cursors with
max. distance of 4mm
1 ms
2
displacement
Sliding cursor
Floating separate cursor
ELECTRICAL DATA
Output signal
Data length 24 - 25 bit
Nominal power supply 10...32 Vdc
Max. power ripple 1Vpp
Max. input 50mA
Output load RS422/485 standard
Electrical isolation
Protection against polarity inversion
Protection against overvoltage Yes
Self-resetting internal fuse Yes
Synchronous Serial (SSI);
Binary/Gray;
Incremental/Decremental
500V (*)
(D.C. supply/earth)
Yes
High accuracy of the mesurement with reference to the non
linearity, repeatability and hysteresis. High resistance to vibrations,
mechanical shocks for use in a harsh industrial environment.
MECHANICAL DIMENSIONS
8
4
A
32
Closing force
< 1.1 Nm
16A
13
A
C.E. = Model
58 96
(*) it includes a 50V 2J voltage suppressor
ELECTRICAL / MECHANICAL DATA
Model
Electrical
stroke (E.S.)
Independent
linearity
Max.
dimensions (A)
Repeatability mm < 0,01 (limited by the resolution of the output value)
Hysteresis < ± 0,005% FS (min 0,010 mm)
Sampling time ms 1 (for stroke from 1000) 2 (for stroke from 1100 to 2000) 4 (for stroke >2000)
50 75 100 130 150 175 200 225 300 250 350 360 400 450 500 550 600 650 700 750 800 850 900 950 1000 1100 1200 1250 1300 1400 1500
1750 2000 2500 2750 3000 3250 3500 3750 4000
mm Model
±
%F.S.
mm Model + 154 mm
Typical : ≤ ± 0.02% FS with oating cursor (value depending on the distance between the cursor and the sensor
Typical : ≤ ± 0,01 %FS (min ± 0,060 mm) with sliding cursor
body)
ELECTRICAL CONNECTIONS
OUTPUT WPA-S-B OUTPUT WPA-S-C OUTPUT WPA-S-D OUTPUT WPA-S-H OUTPUT WPA-S-F/R
Function WPA-S-B WPA-S-C WPA-S-D WPA-S-H WPA-S-F WPA-S-R CAV00X
6-pin M16 8-pin M16 7-pin M16 8-pin M12 Cable output PUR cable
output
Data - 1 5 1 5 Orange Pink Green
Data + 2 2 2 2 Orange / White Blue Gray
Clock + 3 1 3 3 Green / White Gray Pink
Clock - 4 3 4 1 Green Yellow Yellow
Power supply + 5 7 5 7 Blue / White Green Brown
Power supply GND 6 6 6 6 Blue Brown Blue
n.c. - 8 7 8 - - White
n.c. - 4 - 4 - - Red
The transducer case must be grounded with the cable sheathing on the control system side only.
Optional 8-pin
cable

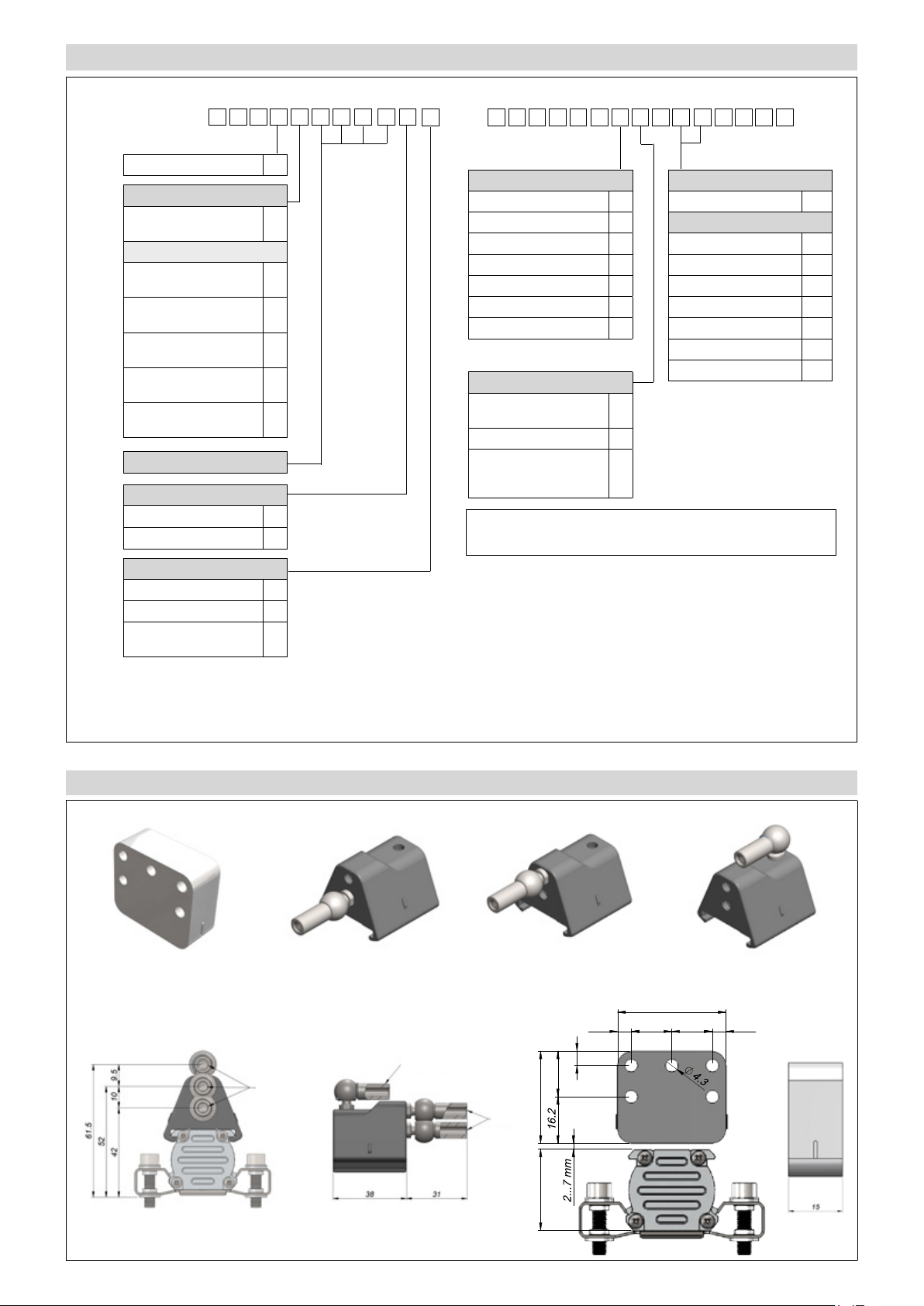

ORDER CODE
37.6
32 28.3
Position
transducer
SSI digital output S
Connector
DIN45322 6-pin
connector output
Available on request
DIN45326 8-pin
connector output
DIN45329 7-pin
connector output
M12 8-pin
connector output
Cable output PVC 6-pin
(1 meter)
Cable output PUR high
flexibility 7-pin 7x0,14
Model
Output
Binary data code output
Gray data code output G
W P A S
0 0 0 0 X X X X 0 X X
Data resolution
0.002 mm 0
B
C
D
H
F
R
B
0.005 mm (standard) 1
0.010 mm 2
0.020 mm 3
0.040 mm 4
0.001 mm 5
0.0005 mm 6
Scale orientation
Ascending
(standard)
Descending 2
Ascending
(over sampling refresh
output 4 KHz)
Mechanical and/or electrical characteristics differing from those in the
standard version may be arranged on request
1
4
Outputs
Outputs B, C, H 00
F outputs cables length
1 meter (standard) 00
2 meters 02
3 meters 03
4 meters 04
5 meters 05
10 meters 10
15 meters 15
Data length
Data length 24 bit 3
Data length 25 bit 4
Data length 21+1 bit
(FM357)
5
Ex.: WPA-S-B-0400-B-3 0000-X-X-1-1-X-00-X-0-XX
Transducer model WPA, SSI output, connector B, model 400, binary data code output, data length 24 bit, system resolution
0.005mm, scale orientation ascending.
CURSORS ON REQUEST
PCUR202 PCUR210 PCUR211 PCUR212
Floating Cursor
Sliding cursor,
axial joint low
Sliding cursor,
axial joint high
Sliding cursor,
axial joint angle
M5 holes
x 10 mm
Angle joint
Axial
joints
4.8 14 14 4.8
5
15.8

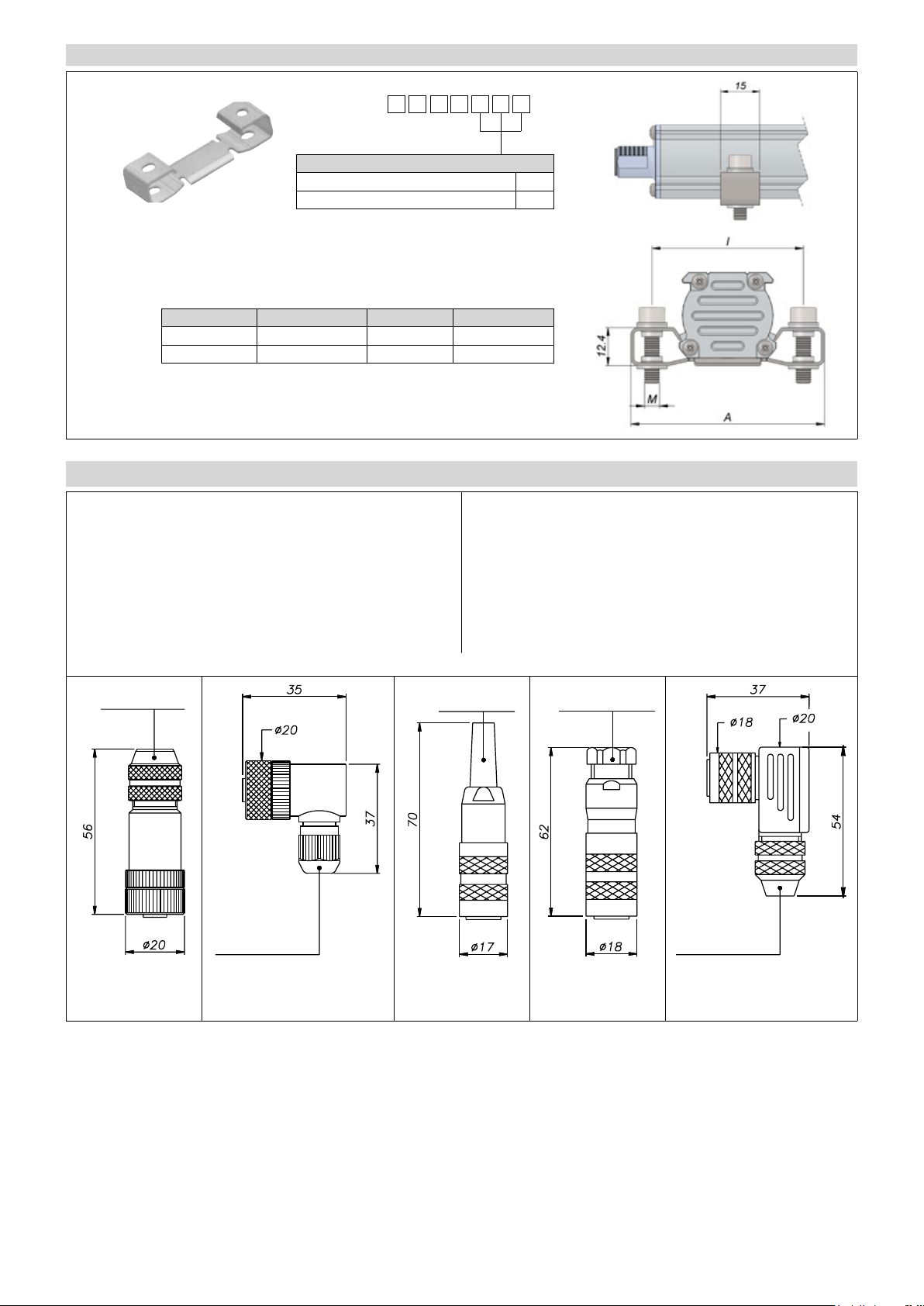

BRACKETS ON REQUEST
Cable camp
P K I T
Brackets (2 brackets for every kit)
Steel bracket, center distance 42.5mm 090
Steel bracket, center distance 50mm 091
Brackets code Center distance (i) Screw (V) Dimensions (A)
PKIT090 42.5 M4 56
PKIT091 50 M5 63.5
OPTIONAL CONNECTORS
For output H, M12 connector thread For outputs B-C-D, M16 connector thread
Codes
: CON035 for 8-pin output (WPA-S-H) Codes: CON021 for 6-pin output (WPA-S-B)
CON042 for 8-pin output (WPA-S-H) CON022 for 6-pin output (WPA-S-B)
CON023 for 6-pin output (WPA-S-B)
CON026 for 7/8-pin output (WPA-S-C/D)
CON027 for 7/8-pin output (WPA-S-C/D)
CON028 for 7/8-pin output (WPA-S-C/D)
Connector extraction length 10 mm
for ø6.5 cable
Cable camp
for ø5 cable
Serracavo
per cavo ø6 - ø8
Cable camp
for ø6 - ø8 cable
CON035
IP67 - IEC 48B
Note: 1. The IP rating specified in this document normally applies with the suitable female connector plugged-in and properly wired..
CON042
IP67
CON021
CON026
IP40 - EMC
CON022
CON027
IP67 - EMC
Cable camp
for
ø5 - ø8
cable
CON023
CON028
IP67 - EMC
OPTIONAL CABLES OUTPUT H
The cable sheathing is
connected to the connector
Approx 50
The cable sheathing is
connected to the connector
Approx 36
8-pin cable code WPA-S-H
CODE
Length “L”
Straight cable
2 mt CAV002 CAV005
5 mt CAV003 CAV006
10 mt CAV004 CAV007
15 mt CAV009 CAV008
PREWIRED CABLE WITH STRAIGHT CONNECTOR PREWIRED CABLE WITH 90° CONNECTOR
90° cable
GEFRAN spa reserves the right to make aesthetic or functional changes at any time and without notice
DTS_WPA-S_02-2019_ENG
