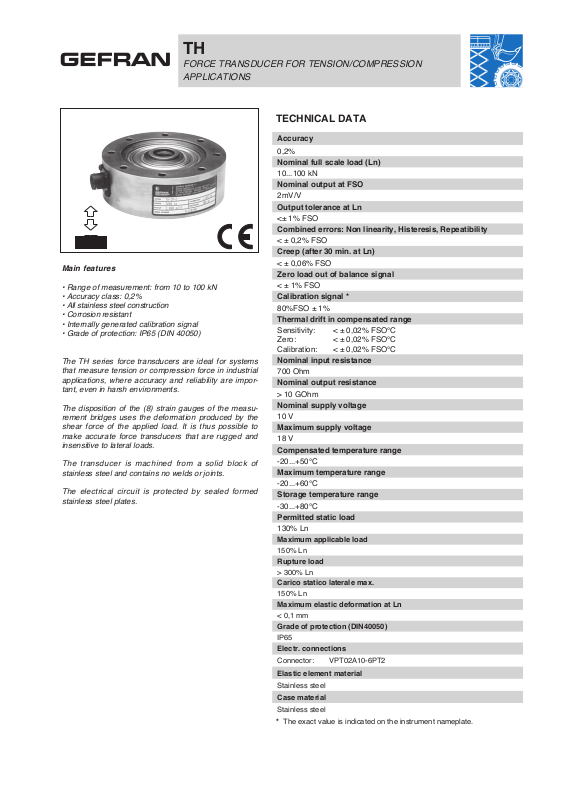

TH
FORCE TRANSDUCER FOR TENSION/COMPRESSION
APPLICATIONS
Main features
• Range of measurement: from 10 to 100 kN
• Accuracy class: 0,2%
• All stainless steel construction
• Corrosion resistant
• Internally generated calibration signal
• Grade of protection: IP65 (DIN 40050)
The TH series force transducers are ideal for systems
that measure tension or compression force in industrial
applications, where accuracy and reliability are important, even in harsh environments.
The disposition of the (8) strain gauges of the measurement bridges uses the deformation produced by the
shear force of the applied load. It is thus possible to
make accurate force transducers that are rugged and
insensitive to lateral loads.
The transducer is machined from a solid block of
stainless steel and contains no welds or joints.
The electrical circuit is protected by sealed formed
stainless steel plates.
TECHNICAL DATA
Accuracy
0,2%
Nominal full scale load (Ln)
10...100 kN
Nominal output at FSO
2mV/V
Output tolerance at Ln
<± 1% FSO
Combined errors: Non linearity, Histeresis, Repeatibility
< ± 0,2% FSO
Creep (after 30 min. at Ln)
< ± 0,06% FSO
Zero load out of balance signal
< ± 1% FSO
Calibration signal *
80%FSO ± 1%
Thermal drift in compensated range
Sensitivity: < ± 0,02% FSO°C
Zero: < ± 0,02% FSO°C
Calibration: < ± 0,02% FSO°C
Nominal input resistance
700 Ohm
Nominal output resistance
> 10 GOhm
Nominal supply voltage
10 V
Maximum supply voltage
18 V
Compensated temperature range
-20...+50°C
Maximum temperature range
-20...+60°C
Storage temperature range
-30...+80°C
Permitted static load
130% Ln
Maximum applicable load
150% Ln
Rupture load
> 300% Ln
Carico statico laterale max.
150% Ln
Maximum elastic deformation at Ln
< 0,1 mm
Grade of protection (DIN40050)
IP65
Electr. connections
Connector: VPT02A10-6PT2
Elastic element material
Stainless steel
Case material
Stainless steel
* The exact value is indicated on the instrument nameplate.
ELECTRICAL CONNECTIONS
SHUNT BOX
CABLE
OUTPUT
Red
Black
White
Green
Blue-Orange
SIGNAL +
SIGNAL -
EXCITATION +
EXCITATION -
CALIBRATION SHUNT
CONNECTOR
OUTPUT
VPT02A10-6PT2 CONNECTOR
If the transducer is supplied complete with prewired connection cable,
the colour code is that indicated in the table.
Cells connected in parallel
Red
Yellow or Black
White
Green
Yellow-Green
Yellow-Green
Red
Yellow or Black
White
Green
Red
Yellow or Black
White
Green
Yellow-Green
In systems that use several cells, the parallel connection automatically sums the loads on each individual cell.
Using this method of measurement, the maximum load will be the sum of the loads on the individual cells and the sensitivity will be the
average value of these cells.
It is important that the user ensures that no cell is stessed beyond its maximum rating under any load condition.
MECHANICAL DIMENSIONS
PREFERENTIAL LOAD
INTRODUCTION DIRECTION
FOR POSITIVE OUTPUT
CONVERSION TABLE
Kg N Lb
1 9.807 2.205
0.102 1 0.225
0.454 4.448 1
VPT02A10-6PT2
CONNECTOR
NR. 8 HOLES
EQUIDISTANTS
NR 12 HOLES
EQUIDISTANTS
Ln (kN)
ø A
ø B
ø C
D
ø E
I
ø J
ø K
Screws nr.
Nm*
116
79
28
40
20
M18x1,5
98
6,5
8xM6
20
Dimensions mm. (± 0,1)
* Recommended torque with UNI 5931 screws of resistance class 10.9
according to UNI 3740.
10 20
30 50 100
154
110
59
45
35
M30x2
130
11
12xM10
90
OPTIONAL ACCESSORIES
Female cable connector
Grade of protection IP65 CON 300
6-pin connector with 8m (25ft) cable C08W
6-pin connector with 15m (50ft) cable C15W
6-pin connector with 25m (75ft) cable C25W
6-pin connector with 30m (100ft) cable C30W
Other lengths consult factory
ORDER CODE
Force transducer TH
MEASUREMENT RANGE (kN)
0 - 10
0 - 20
0 - 30 KN3D
0 - 50 KN5D
0 - 100 KN1C
If request, it is possible to supply models with non-standard
mechanical and/or electrical
features.
EX: TH - KN5D
TH force transducer, with measurement range
0 - 50 kN.
KN1D
KN2D
GEFRAN spa reserves the right to make any kind of design or functional modification at any moment without prior notice.
