IK4S (with ONDA technology)
CONTACTLESS MAGNETOSTRICTIVE LINEAR POSITION
TRANSDUCER (SYNCHRONOUS SERIAL OUTPUT)
Main characteristics
• ONDA technology
• Optimized mechanical structure
• Strokes from 50 to 4000 mm
• Wide range of connectors for the electrical connection
• Rod, nipple, exagonal flange AISI 316
• Power supply 10....32 Vdc
• Resistance to vibration (DIN IEC68T2/6 12g)
• Protection IP67
• Work temperature: -30°…+90°C
• Synchronous Serial Interface direct to controllers
• Output data resolution available from 1 to 40mm
• Data format: binary or Gray code; incremental/decremental
Contactless linear position transducer with ONDA magnetostrictive
technology with RS422-SSI digital output interface.
The absence of electrical contact on the cursor eliminates all wear
and guarantees almost unlimited life.
The IK4 line’s new mechanical structure offers improved features for
in-cylinder use, including a series of new multi-connector models, free
rotation of the connector head, and replacement of internal electronics
without removal of the transducer.
TECHNICAL DATA
ELECTRICAL DATA
Model from 50 to 4000 mm
Measurement taken Displacement
Position read sampling time
(typical)
1 ms
Shock test DIN IEC68T2-27 100g - 11ms - single shock
Vibrations DIN IEC68T2-6 12g / 10...2000Hz
Displacement speed ≤ 10 m/s
2
Max acceleration ≤ 100 m/s
displacement
Output data resolution available 1,2,5,10,20,40 mm
Cursor (see note) Floating magnet
Working temperature -30...+90°C
Storage temperature -40...+100°C
Coefficent of temperature 20ppm F.S./°C
Protection IP67
Operative pressure 350 bar (pic max. 500 bar)
Note: For multi-cursor versions, the cursors have to work under the same distance and temperature conditions
Output signal
Data length 24 - 25 bit
Nominal power supply 10... 32 Vdc
Max. power ripple 1Vpp
Max. input 50mA
Output load RS422/485 standard
Electrical isolation
Protection agains polarity
inversion
Protection against
overvoltage
Self-resetting internal fuse Yes
(*) it includes a 50V 2J voltage suppressor
ELECTRICAL / MECHANICAL DATA
150 175 200 225 250 300 350 360 400 450 500 550 600 650 700 750 800 850 900
Model
Electrical stroke
(E.S)
mm Model
1301007550
950
1750 2000 2250
Synchronous Serial (SSI);
Binary/Gray;
Incremental/Decremental
500 V (*)
(D.C. supply / earth)
Yes
Yes
1100
1000
2750 3000 3250 3500
2500
1250 1300 1400
1200
3750 4000
1500
Independent
linearity
Max. dimensions
(A)
Repeatability mm < 0,01 (limited by the resolution of the output value)
Hysteresis < ± 0,005% FS (min 0,010 mm)
Sampling
time
± %F.S. ≤ ± 0,02 %FS (min ± 0,060mm)
mm < 1250 mm = Model + 178.2mm ; ≥ 1250mm = Model +183.2mm
ms 1 (for stroke from 1000) 2 (for stroke from 1100 to 2000) 4 (for stroke >2000)
MECHANICAL DIMENSIONS
Strokes from 50 to 1000 mm
no active
zone
Strokes from 1250 to 4000 mm
no active
zone
no active
Floating magnet
Floating magnet
zone
Installation surface
no active
zone
M4 thread
prof. 6
IK4-S-F/R cable output IK4-S-B/D connector output
MOUNTING INSIDE A CYLINDER
no active
zone
*
Installation surface
no active
zone
Non-magnetic spacer
Floating magnet
* for stroke up to 1000 mm (included) – over 1000 mm, the non-active zone becomes 60 mm because the tip includes a M4 threaded
hole

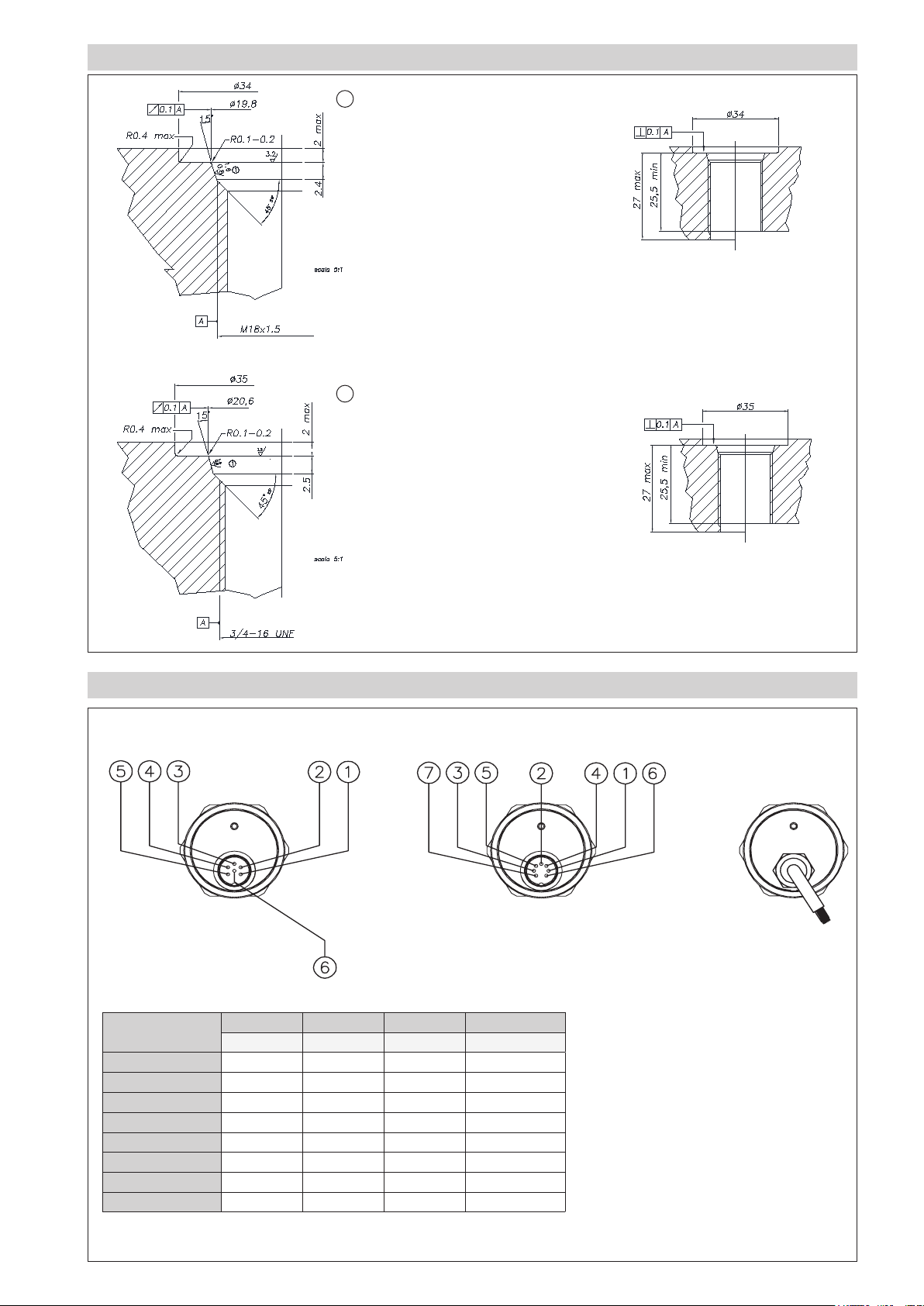

INSTALLATION INSIDE A CYLINDER
1
THREAD M18x1,5
The sealing surface must be free from scratches
longitudinal or spiral
Ro 1.6 μm for sealing with NON-pulsating pressure
Ro 0.8 μm for seals with pulsating pressure
Suggested o-ring:
PARKER 6-349 15,4x2,1
Material: Viton 90° Shore-A
Mixes: PARKER N552-90
1
THREAD 3/4”-16UNF
The sealing surface must be free from scratches
longitudinal or spiral
Ro 1.6 μm for sealing with NON-pulsating pressure
Ro 0.8 μm for seals with pulsating pressure
Suggested o-ring:
PARKER 3-908 16,36x2,21
Material: Viton 90° Shore-A
Mixes: PARKER N552-90
ELECTRICAL CONNECTIONS
Function
Data -
Data +
Clock +
Clock -
Power supply +
Power supply GND
n.c.
n.c.
IK4S B IK4S D IK4S F IK4S R
6-pin M16 7-pin M16 Cable output PUR cable output
1 1 Orange Pink
2 2 Orange / White Blue
3 3 Green / White Gray
4 4 Green Yellow
5 5 Blue / White Green
6 6 Blue Brown
- 7 - -
- - - -
OUTPUT IK4S DOUTPUT IK4S B OUTPUT IK4S F/R
GROUNDING IK4
Connector ouput IK4-S-B/D Wire output IK4-S-F/R
Cable shield
Metallic connector
(machine ground)

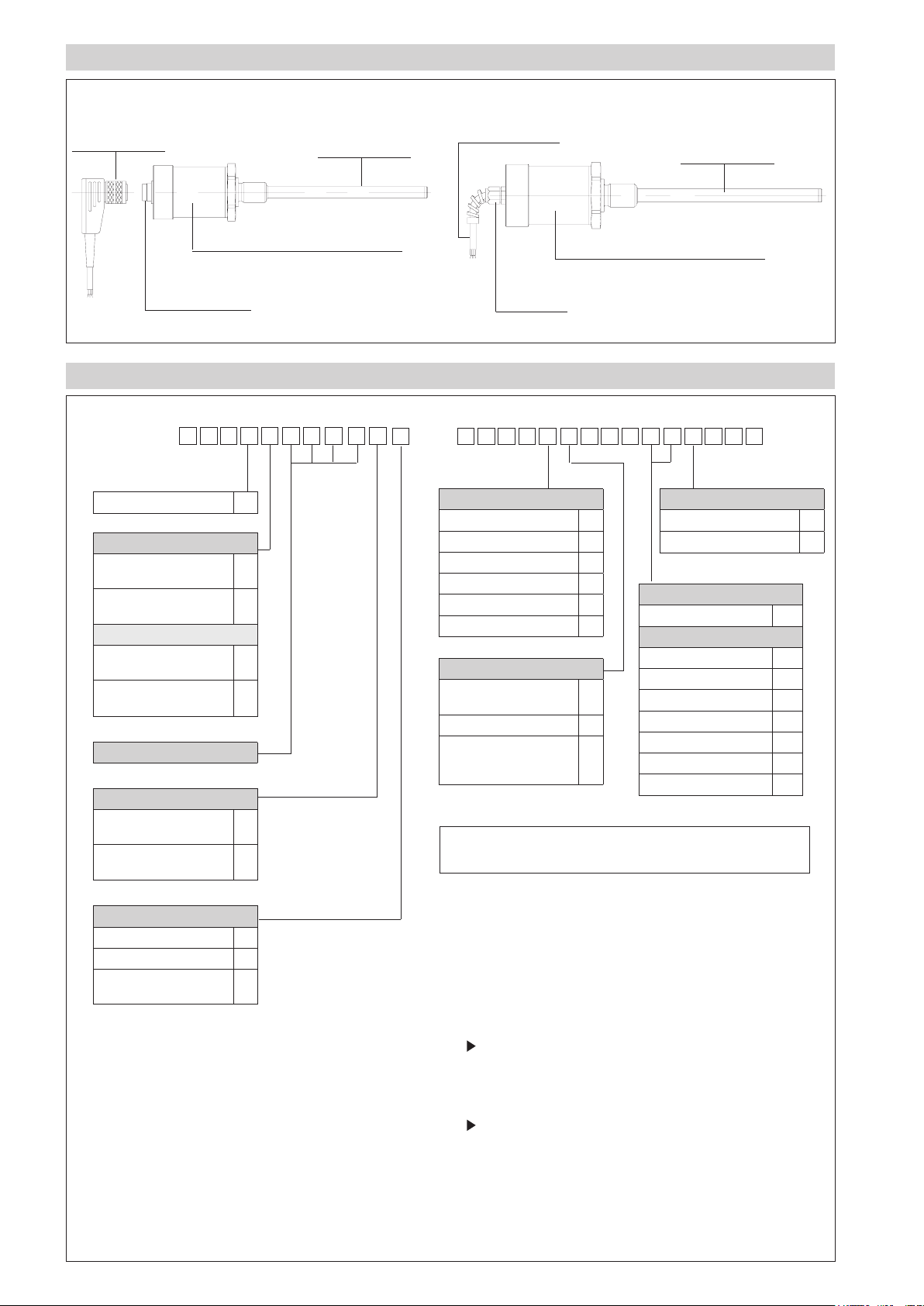

ORDER CODE
Position
transducer
SSI digital output S
Connector
DIN45322 6-pin
connector output
DIN45322 7-pin
connector output
Available on request
Cable output PVC 6-pin
(1 meter)
Cable output PUR
flexibility 7-pin 7x0,14
Model
Output
Binary data code
output
Gray data code
output
Transducer element
(machine ground)
Internal electronic cover
(DC ground, isolated from the machine group)
I K 4 S B
B
D
F
high
R
B
G
Cable shield
(machine ground)
Internal electronic cover
(DC ground, isolated from the machine group)
Cable holder
(isolated)
0 0
0 0
Data resolution
0.002 mm 0
0.005 mm (standard) 1
0.010 mm 2
0.020 mm 3
0.040 mm 4
0.001 mm 5
Scale orientation
Ascending
(standard)
Descending 2
Ascending (over sampling refresh output
4 KHz)
X X X 0 X X
1
4
Transducer element
(machine ground)
Thread
M18x1,5 (standard)
3/4” 16UNF I
Outputs
Output B 00
F-R outputs cables length
1 meter (standard) 00
2 meters 02
3 meters 03
4 meters 04
5 meters 05
10 meters 10
15 meters 15
Mechanical and/or electrical characteristics differing from those in
the standard version may be arranged on request
M
Data length
Data lenght 24 bit 3
Data lenght 25 bit 4
Data lenght 21+1 bit
(FM357)
5
Included in the supply
- Series IK position transducer
- OR 15.4x2.1 thread M18x1.5 code: GUA064
- OR 16.36x2.21 thread 3/4” - 16 UNF code: GUA065
Magnetic cursors must be ordered separately
Ex.: IK4-S-B-0400-B-3 000011XXX00M0XX
Transducer model IK4, SSI output, connector B, model 400mm, thread M18x1,5, binary data code output, data length 24 bit, system
resolution 0.005mm, scale orientation ascending.

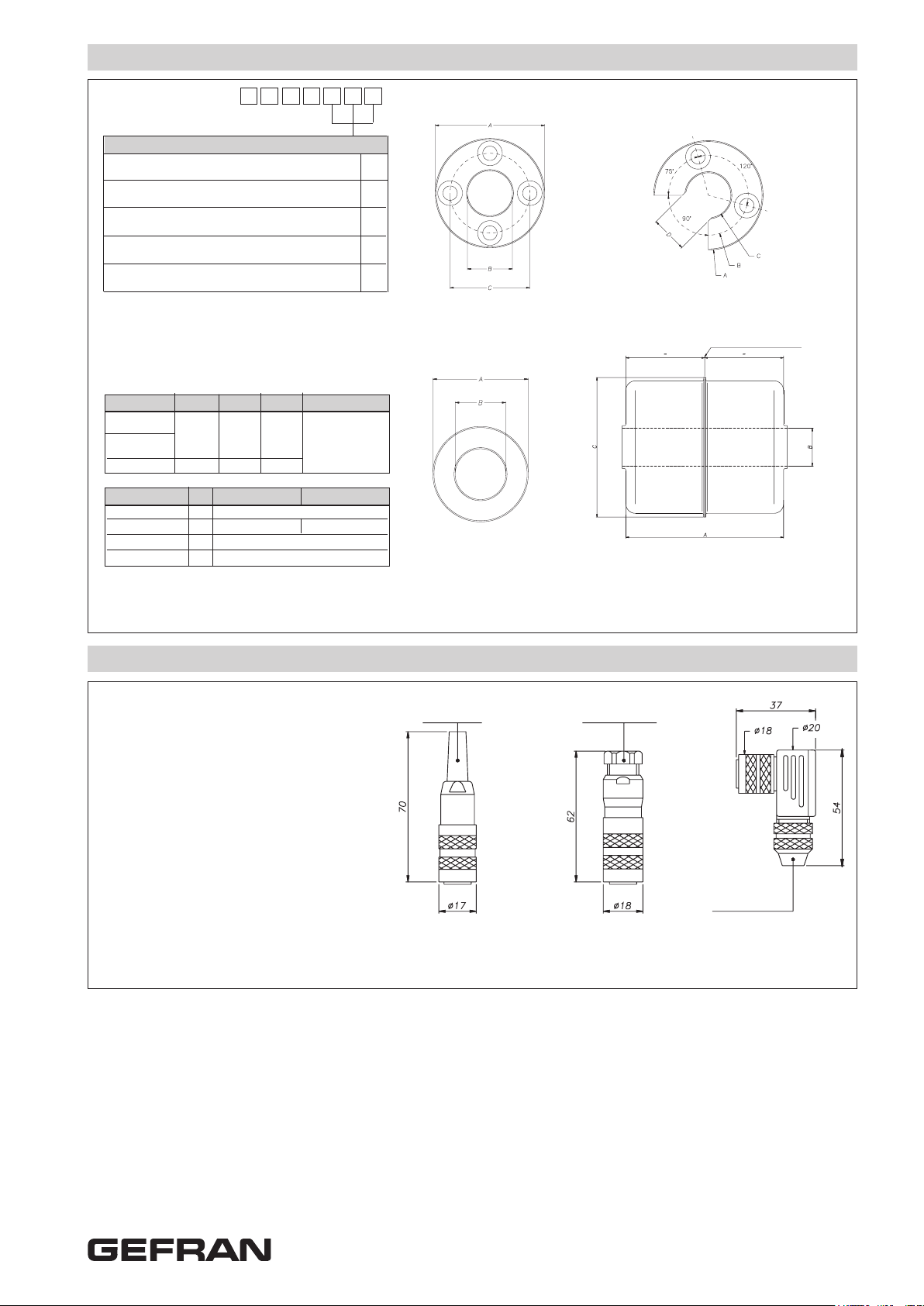

FLOATING CURSOR
P C U R
Cursors
Cursor Diameter 32.8
Cursor Diameter 32.8 with 90° slit
Cursor Diameter 25.4
Floating cursor for liquids with hole diameter 12
Floating cursor for liquids with hole diameter 15
The PCUR022 is supplied with: The PCUR023 is supplied with:
N° 8 Brass nuts M4 N° 4 Brass nuts M4
N° 8 Brass washers D4 N° 4 Brass washers D4
N° 4 Brass screws M4x25 N° 2 Brass screws M4x25
Dimensions A B C Thickness
PCUR022
32.8 13.5 23.9
PCUR023 7.9
PCUR024 25.4 13.5 -
Model PCUR026 PCUR027
Length A mm 52.4
Diameter B (hole) mm 12 15
Diameter C mm 42
Material AISI 316
Note:
PCUR026 and PCUR027 is supplied with kit PKIT036 for
Floating cursor for liquids.
022
023
024
026
027
PCUR022
PCUR024
PCUR023
HEIGHT DETECTION POSITION
OPTIONAL CONNECTORS
For IK4-S-B M16 thread connector
Codes: CON021 6-pin
CON022 6-pin
CON023 6-pin
Connector extraction length: 10mm
Sensors are manufactured in compliance with:
- EMC 2014/30/EU compatibility directive
- RoHS 2011/65/EU directive
Cable camp
for ø6.5 cable
CON021
IP40 - EMC
Cable camp
for ø6 - ø8 cable
CON022
IP67 - EMC
Cable camp
for ø5 - ø8 cable
CON023
IP67 - EMC
GEFRAN spa reserves the right to make aesthetic or functional changes at any time and without notice
DTS_IK4S-ONDA_04-2016_ENG
