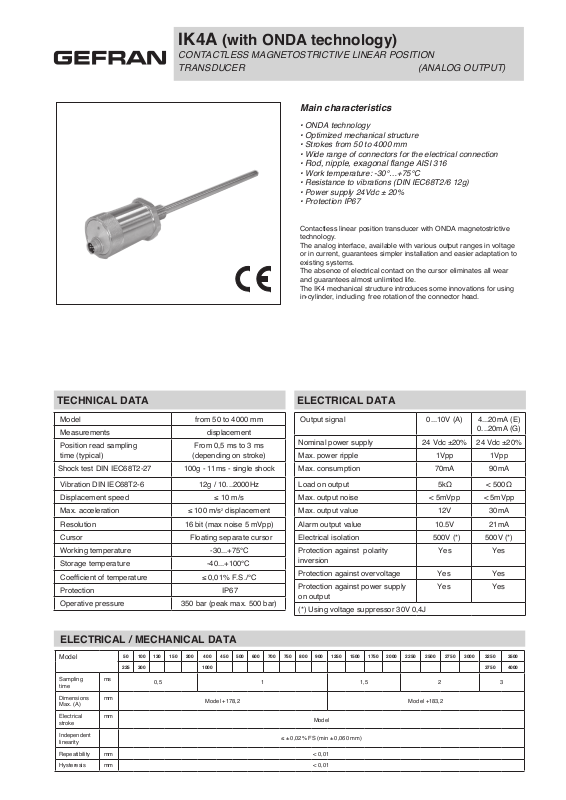

IK4A (with ONDA technology)
CONTACTLESS MAGNETOSTRICTIVE LINEAR POSITION
TRANSDUCER (ANALOG OUTPUT)
Main characteristics
• ONDA technology
• Optimized mechanical structure
• Strokes from 50 to 4000 mm
• Wide range of connectors for the electrical connection
•
Rod, nipple, exagonal flange AISI 316
• Work temperature: -30°…+75°C
• Resistance to vibrations (DIN IEC68T2/6 12g)
• Power supply 24Vdc ± 20%
• Protection IP67
Contactless linear position transducer with ONDA magnetostrictive
technology.
The analog interface, available with various output ranges in voltage
or in current, guarantees simpler installation and easier adaptation to
existing systems.
The absence of electrical contact on the cursor eliminates all wear
and guarantees almost unlimited life.
The IK4 mechanical structure introduces some innovations for using
in-cylinder, including free rotation of the connector head.
TECHNICAL DATA
Model from 50 to 4000 mm
ELECTRICAL DATA
Output signal 0...10V (A) 4...20mA (E)
Measurements displacement
Position read sampling
time (typical)
From 0,5 ms to 3 ms
(depending on stroke)
Shock test DIN IEC68T2-27 100g - 11ms - single shock
Vibration DIN IEC68T2-6 12g / 10...2000Hz
Displacement speed ≤ 10 m/s
2
Max. acceleration ≤ 100 m/s
displacement
Resolution 16 bit (max noise 5 mVpp)
Cursor Floating separate cursor
Working temperature -30...+75°C
Storage temperature -40...+100°C
Coefficient of temperature ≤ 0,01% F.S./°C
Protection IP67
Operative pressure 350 bar (peak max. 500 bar)
Nominal power supply 24 Vdc ±20% 24 Vdc ±20%
Max. power ripple 1Vpp 1Vpp
Max. consumption 70mA 90mA
Load on output 5kΩ < 500Ω
Max. output noise < 5mVpp < 5mVpp
Max. output value 12V 30mA
Alarm output value 10.5V 21mA
Electrical isolation 500V (*) 500V (*)
Protection against polarity
inversion
Protection against overvoltage Yes Yes
Protection against power supply
on output
(*) Using voltage suppressor 30V 0,4J
ELECTRICAL / MECHANICAL DATA
Model
Sampling
time
Dimensions
Max. (A)
Electrical
stroke
Independent
linearity
Repeatibility mm < 0,01
Hysteresis mm < 0,01
50 100 130 150 200 400 450 500 600 700 750 800 900 1250 1500 1750 2000 2250 2500 2750 3000 3250 3500
225 300 1000 3750 4000
ms
mm
mm
0,5 1 1,5 2 3
Model +178,2 Model +183,2
Model
≤ ± 0,02% FS (min ± 0,060 mm)
0...20mA (G)
Yes Yes
Yes Yes
MECHANICAL DIMENSIONS
Strokes from 50 to 1000 mm
no active
zone
Strokes from 1250 to 4000 mm
no active
zone
no active
Floating magnet
Floating magnet
zone
Installation surface
no active
zone
M4 thread
prof. 6
IK4-A-F/R cable output IK4-A-A/B/C/H connector output
MOUNTING INSIDE A CYLINDER
no active
zone
*
Installation surface
no active
zone
Non-magnetic spacer
Floating magnet
* for stroke up to 1000 mm (included) – over 1000 mm, the non-active zone becomes 60 mm because the tip includes a M4 threaded
