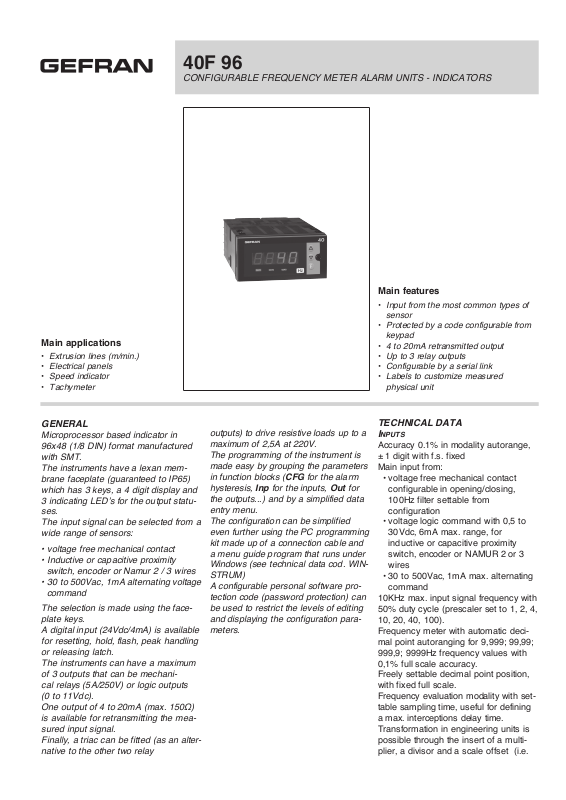

Gefran 40F 96 Data Sheet

Main applications

• Extrusion lines (m/min.)

• Electrical panels

• Speed indicator

• Tachymeter

40F 96

CONFIGURABLE FREQUENCY METER ALARM UNITS - INDICATORS

Main features

• Input from the most common types of
sensor

• Protected by a code configurable from
keypad

• 4 to 20mA retransmitted output

• Up to 3 relay outputs

• Configurable by a serial link

• Labels to customize measured

physical unit

GENERAL

Microprocessor based indicator in
96x48 (1/8 DIN) format manufactured
with SMT.
The instruments have a lexan mem­brane faceplate (guaranteed to IP65)
which has 3 keys, a 4 digit display and
3 indicating LED’s for the output statu­ses.
The input signal can be selected from a
wide range of sensors:

• voltage free mechanical contact

• Inductive or capacitive proximity
switch, encoder or Namur 2 / 3 wires

• 30 to 500Vac, 1mA alternating voltage
command

The selection is made using the face­plate keys.
A digital input (24Vdc/4mA) is available
for resetting, hold, flash, peak handling
or releasing latch.
The instruments can have a maximum
of 3 outputs that can be mechani­cal relays (5A/250V) or logic outputs
(0 to 11Vdc).

One output of 4 to 20mA (max. 150Ω)

is available for retransmitting the mea­sured input signal.
Finally, a triac can be fitted (as an alter­native to the other two relay

outputs) to drive resistive loads up to a
maximum of 2,5A at 220V.
The programming of the instrument is
made easy by grouping the parameters
in function blocks (CFG for the alarm
hysteresis, Inp for the inputs, Out for
the outputs...) and by a simplified data
entry menu.
The configuration can be simplified
even further using the PC programming
kit made up of a connection cable and
a menu guide program that runs under
Windows (see technical data cod. WIN­STRUM)
A configurable personal software pro­tection code (password protection) can
be used to restrict the levels of editing
and displaying the configuration para­meters.

TECHNICAL DATA

Inputs

Accuracy 0.1% in modality autorange,
± 1 digit with f.s. fixed
Main input from:

• voltage free mechanical contact
configurable in opening/closing,
100Hz filter settable from
configuration

• voltage logic command with 0,5 to
30Vdc, 6mA max. range, for
inductive or capacitive proximity
switch, encoder or NAMUR 2 or 3
wires

• 30 to 500Vac, 1mA max. alternating
command
10KHz max. input signal frequency with
50% duty cycle (prescaler set to 1, 2, 4,
10, 20, 40, 100).
Frequency meter with automatic deci­mal point autoranging for 9,999; 99,99;
999,9; 9999Hz frequency values with
0,1% full scale accuracy.
Freely settable decimal point position,
with fixed full scale.
Frequency evaluation modality with set­table sampling time, useful for defining
a max. interceptions delay time.
Transformation in engineering units is
possible through the insert of a multi­plier, a divisor and a scale offset (i.e.

for visualisation, RPM interception).

Digital input

Ri = 5,6KΩ (24V, 4mA) isolated to

1500V.
Function is configurable as alarm or
memory reset, hold, flash, zero, display
of the peak value (max., min. or peak
to peak).

Outputs

Relay

NO (NC) contacts rated at 5A/250V at
cosj = 1.

Logic (only for Out1, Out2)
Type D 11Vdc, Rout = 220Ω
(6V/20mA).

pOwer supply

Standard:
100 to 240Vac/dc ± 10% max 11,5VA
optional:
11 to 27Vac/dc ± 10% max 9VA
50/60Hz, Protected by an internal fuse
(not replaceable by the operator).

pOwer supply
transmItter

5Vdc, max 120mA
12Vdc, max 50mA
24Vdc ±10% unstabilised, max 50mA

ambIent cOndItIOns

Working temperature range: 0 to 50°C
Storage temperature range: -20 to 70°C
Humidity: 20 to 85%Ur non-condensing

Triac (for Out1, disabled Out2)
24 to 240Vac ±10%, max 3A

2

Snubberless, I

t = 128A2sec

A maximum of three trip points can be
set as absolute, deviation or symmetri­cal deviation alarms.
The hysteresis of each alarm is indivi­dually configurable.
Alarm masking with exclusion on power
up, memory and configurable delay and
minimum intervention time.
The trip point may be set at any point
on the scale.

Analogue retransmission

4 to 20mA on max. 150Ω load.

FACEPLATE DESCRIPTION

weIght

320g. in the complete version

A - PV display: indication of process variable
B - Label for engineering units
C - “Function” key
D - “Raise” and “Lower” keys
E - Indication of the states of the outputs

Red LED display
IP65 faceplate protection

A

E

B

D

C
