• CAT-7 cables should not exceed 100 feet (30 meters).
• Resolutions up to 1920 x 1200 (WUXGA) or 1080p Full HD plus USB are supported
when using two CAT-7 cables. Three CAT-7 cables must be used to support
2560 x 1600 (WQXGA) plus USB. See Connecting the DisplayPort KVM Extender
over CAT-7 for details.
• The DisplayPort KVM Extender over CAT-7 only supports 8-bit color.
• This product extends DisplayPort video only. It does not support audio.
Operating Notes
DisplayPort KVM Extender over CAT-7
vi
Features
• Extends DisplayPort and USB up to 100 feet (30 meters)
• Supports resolutions up to 2560 x 1600 and USB over three CAT-7 cables,
and up to 1920 x 1200 or 1080p Full HD and USB over two CAT-7 cables
• HDCP compliant
• Supports DisplayPort 1.1a
• Supports USB 2.0 at 480 Mbps
• Backward-compatible with USB 1.1
• 16-position EQ rotary switch to compensate for cable skew
• HPD Auto-Calibration button
• Pre-emphasis switch
• Drive level switch
• Boost level switches
• Power On indicator
• Independent Video and USB Link indicators
• Locking power supplies
• Surface-mountable
• Available in Black and White
Packing List
The DisplayPort KVM Extender over CAT-7 ships with the items listed below. If any of these
items are not present in the box when you rst open it, immediately contact your dealer or
Gefen.
• 1 x DisplayPort KVM Extender over CAT-7 (Sender unit)
• 1 x DisplayPort KVM Extender over CAT-7 (Receiver unit)
• 1 x 6 ft. DisplayPort cable (M-M)
• 1 x 6 ft. USB cable (A-B)
• 2 x 5V DC power supplies
• 1 x Quick-Start Guide
DisplayPort KVM Extender over CAT-7
Features and Packing List
1080P
vii
3GSDI Audio Embedder
DisplayPort KVM Extender over CAT-7
Table of Contents
vii
01 Getting Started
Panel Layout ......................................................................................................... 2
Sender Unit (Front) ....................................................................................... 2
Sender Unit (Back) ........................................................................................ 3
Receiver Unit (Front) ..................................................................................... 4
Receiver Unit (Back) ..................................................................................... 5
Installation ............................................................................................................. 6
Connecting the DisplayPort KVM Extender over CAT-7 ............................... 6
Sample Wiring Diagram ................................................................................ 7
02 Operating the DisplayPort KVM Extender
over CAT-7
LED Indicators ..................................................................................................... 10
Sender Unit ................................................................................................. 10
Receiver Unit ............................................................................................... 11
DIP Switch Conguration .................................................................................... 12
Hot-Plug Detect (HPD) ........................................................................................ 13
Adjusting the Signal Quality ................................................................................ 14
03 Appendix
Cable Termination ............................................................................................... 18
Surface-Mounting Instructions............................................................................. 19
Specications ...................................................................................................... 20
DisplayPort KVM
Extender over CAT-7
01 Getting Started
Panel Layout ......................................................................................................... 2
Sender Unit (Front) ....................................................................................... 2
Sender Unit (Back) ........................................................................................ 3
Receiver Unit (Front) ..................................................................................... 4
Receiver Unit (Back) ..................................................................................... 5
Installation ............................................................................................................. 6
Connecting the DisplayPort KVM Extender over CAT-7 ............................... 6
Sample Wiring Diagram ................................................................................ 7
page | 2

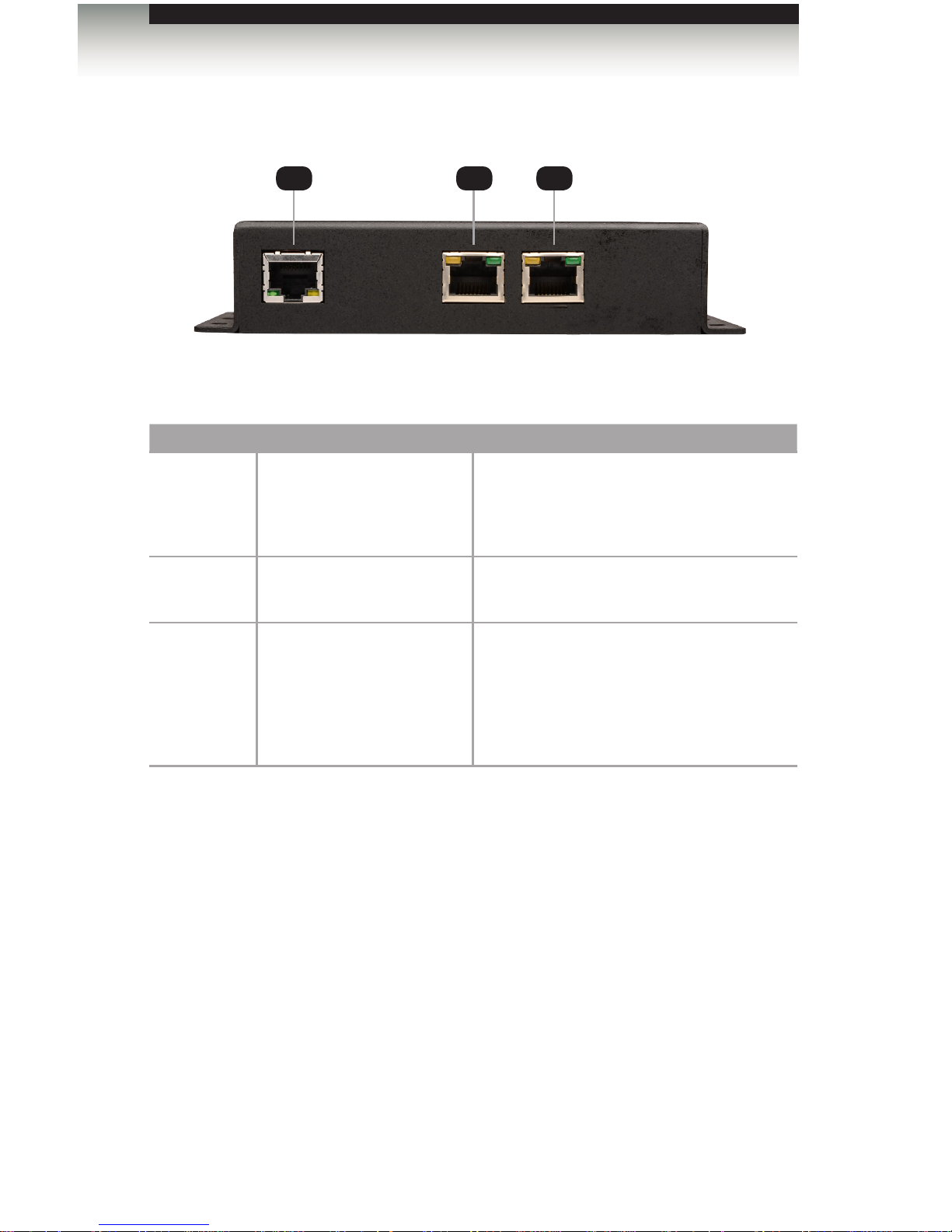

Sender Unit (Front)
ID Name Description
1 USB Link Connect a CAT-7 cable between this jack
and the USB Link jack on the Receiver
unit. This RJ-45 jack must be used when
extending USB.
2 Link 1 Connect a CAT-7 cable between this RJ-45
jack and the Link 1 jack on the Receiver unit.
3 Link 2 Connect a CAT-7 cable between this
RJ-45 jack and the Link 2 jack on the
Receiver unit. Both Link 1 and Link 2 jacks
(two CAT-7 cables) must be used when
extending video resolutions up to
2560 x 1600.
Getting Started
Panel Layout
1
2 3
page | 3
Sender Unit (Back)
ID Name Description
1 5V DC Connect the included 5V DC locking power
supply to this connector and plug the AC
power cord into an available electrical outlet.
Only use the power supply shipped with this
unit.
2 DP In Connect a Hi-Def source to this port using a
DisplayPort cable.
3 Power This LED indicator will glow bright blue when
the unit is powered.
4 Host This LED will glow bright green when the
host USB device is connected to the USB
In port.
5 USB In Connect the included USB cable between
this port and a computer (or other USB
host device).
Getting Started
Panel Layout
4
51 2 3
page | 4
Getting Started
Panel Layout
Receiver Unit (Front)
ID Name Description
1 Link 1 Connect a CAT-7 cable between this RJ-45
jack and the Link 1 jack on the Sender unit.
2 Link 2 Connect a CAT-7 cable between this RJ-45
jack and the Link 2 jack on the Sender unit.
Both Link 1 and Link 2 jacks (two CAT-7
cables) must be used when extending
video resolutions up to 2560 x 1600.
3 Link 2 Connect a CAT-7 cable between this jack
and the USB Link jack on the Sender
unit. This RJ-45 jack must be used when
extending USB.
4 5V DC Connect the included 5V DC locking power
supply to this connector and plug the AC
power cord into an available electrical outlet.
Only use the power supply shipped with this
unit.
1 2 3 4
page | 5
Getting Started
Panel Layout

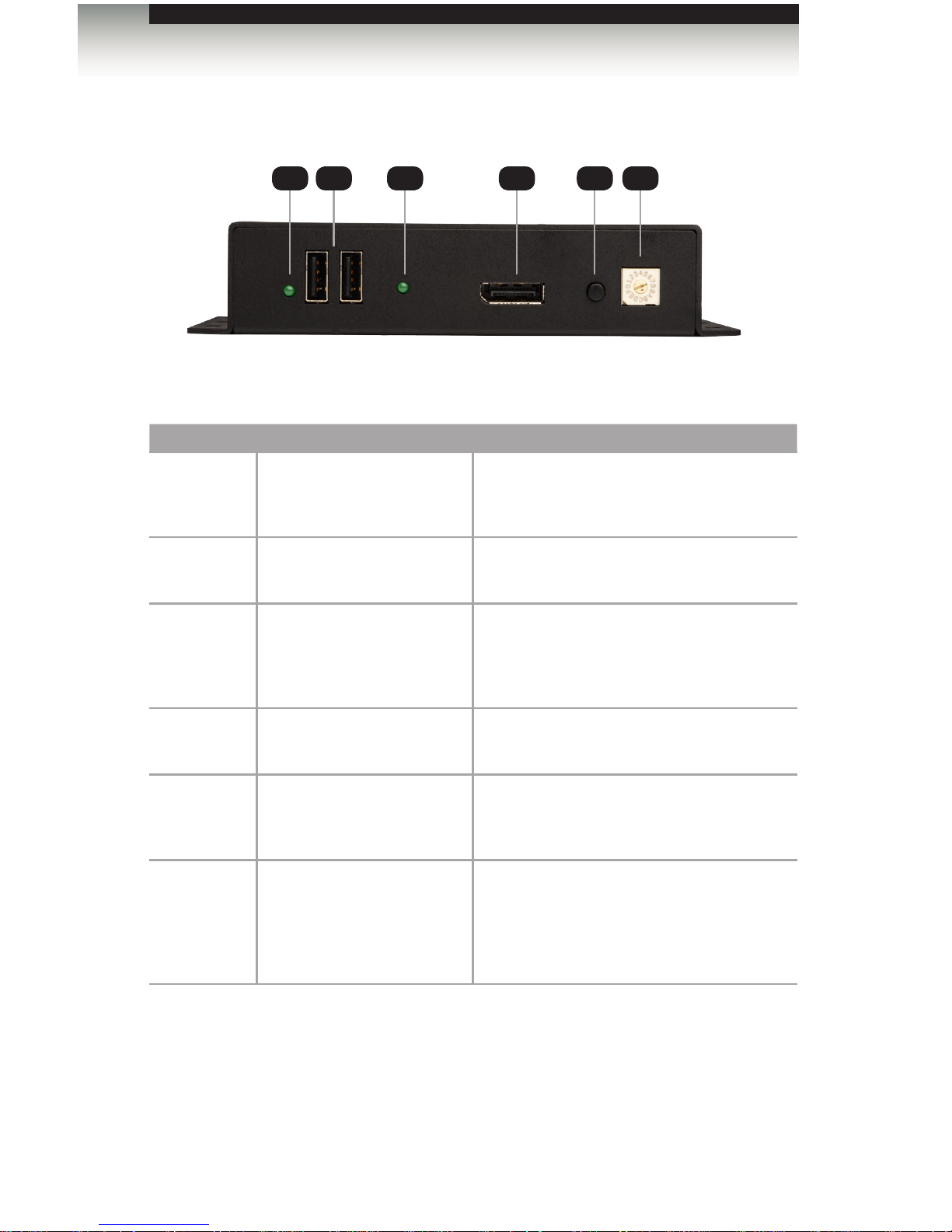

Receiver Unit (Back)
ID Name Description
1 Host This LED will glow bright green when the
host USB device is connected to the USB
In port.
2 USB Out Connect up to two USB devices (mouse,
keyboard, camera, etc.) to these ports.
3 Link This LED indicator will glow bright green
when a CAT-7 cable is connected between
the USB Link ports on both the Sender and
Receiver unit.
4 DP Out Connect a DisplayPort cable from this port
to the display.
5 HPD Press this button to cycle the HPD line on
the Receiver unit. See Hot-Plug Detect
(HPD) for details.
6 EQ Use this EQ rotary switch to adjust the
quality of the output signal, based on
the length and type of CAT-7 cable that
is being used. See Adjusting the Signal
Quality for more information.
1 2 3 4 5 6
Page Title
page | 6
Getting Started
Installation
Connecting the DisplayPort KVM Extender over CAT-7
1. Use the included DisplayPort cable to connect the DisplayPort source to the DP In
port on the Sender unit.
2. Connect the Receiver unit to the display using a DisplayPort cable.
3. Use the included USB cable to connect the USB host device to the USB In port
on the Sender unit.
4. Connect up to two USB devices (keyboard, mouse, external drive, etc) to the
USB Out ports on the Receiver unit.
5. Connect two CAT-7 cables between the Sender and Receiver units. Each connector
on the Sender and Receiver unit is identied as Link 1, Link 2, and USB Link.
When connecting the CAT-7 cables, make sure that each CAT-7 cable on the Sender
unit is connected to the corresponding jacks on Receiver unit (e.g. Link 1 → Link 1,
Link 2 → Link 2).
6. Connect a CAT-7 cable between the USB Link jack on the Sender and Receiver unit.
7. Connect the included 5V DC locking power supplies to the Sender and Receiver unit.
Do not overtighten the locking connectors.
8. Connect the AC power cords from each power supply to available electrical outlets.
NOTE: The DisplayPort KVM Extender over CAT-7 will support
resolutions up to 1920 x 1200 (WUXGA) and 1080p Full HD if a
single CAT-7 cable is used. Two CAT-7 cables must be used to
support resolutions up to 2560 x 1600.
If only a single CAT-7 cable will be used, the CAT-7 cable must be
connected between the Link 1 connectors on both the Sender and
Receiver unit.
page | 7
Getting Started
Sample Wiring Diagram
Installation
GTB-DPKVM-3CAT7
CAT-7 LINK CABLE
(Up to 100 ft)
DISPLAYPORT CABLE
Sender
Receiver
USB CABLE
DisplayPort Display
Computer
USB Mouse
USB Keyboard
DisplayPort KVM
Extender over CAT-7
02 Operating the
DisplayPort KVM Extender
over CAT-7
LED Indicators ..................................................................................................... 10
Sender Unit ................................................................................................. 10
Receiver Unit ............................................................................................... 11
DIP Switch Conguration .................................................................................... 12
Hot-Plug Detect (HPD) ........................................................................................ 13
Adjusting the Signal Quality ................................................................................ 14
page | 10
Sender Unit
The LED indicators on the Sender and Receiver unit provide basic information on the current
status of the DisplayPort KVM Extender over CAT-7.
LED Status Description
Power Solid blue • Power connected to Sender unit.
Off • No power supplied to Sender unit.
Host USB Solid green • Power connected to the Sender
unit.
• USB devices connected properly.
• USB link integrity between Sender
and Receiver unit is good.
Off • No power connected to the Sender
unit.
• No DisplayPort source connected or
source not active.
• Receiver unit not connected to
display.
Operating the DisplayPort KVM Extender over CAT-7
LED Indicators
Power Host USB Indicator
LinkUSB Link Indicator
Sender unit
Receiver unit
page | 11
Receiver Unit
LED Status Description
USB Link Solid green • Power connected to the Receiver
unit.
• USB devices connected properly.
• USB link integrity between Sender
and Receiver unit is good.
Off • No power supplied to the Receiver
unit.
• USB host not connected.
• CAT-7 cable not connected
between
USB Link jack on Sender and
Receiver unit.
• Possible defective CAT-7 cable.
Flashing
green
• USB devices not connected.
Link Solid green • Power connected to the Receiver
unit.
• Video link integrity between Sender
and Receiver unit is good.
Off • No power supplied to the Receiver
unit.
Solid red • CAT-7 cable not connected
between
Link 1 / Link 2 jack on Sender and
Receiver unit.
• Possible defective CAT-7 cable.
• Source / sink (display) not
connected.
Flashing
red
• Receiver unit is attempting to
establish a link with the Sender
unit.
Operating the DisplayPort KVM Extender over CAT-7
LED Indicators
page | 12
Operating the DisplayPort KVM Extender over CAT-7
The DisplayPort KVM xtender over CAT-7 contains four DIP switches on the bottom of
the Sender unit. Adjust the DIP switch settings based on the type and cable length that is
being used.
DIP Switch Position Differential Output Voltage
DIP 1 ON (default) 1.2 Vpp
CENTER 1.0 Vpp
OFF 600 mVpp
DIP Switch Position Pre-emphasis Select
DIP 2 ON (default) 9 dB
CENTER 6 dB
OFF 0 dB
DIP Switch Position
DIP 3
Position
DIP 4
Boost Level (dB) @ 5 GHz
DIP 3
DIP 4
OFF OFF 2.7 to 7.3 dB
OFF ON 12.2 to 16.6 dB
ON OFF 20.6 to 24.8 dB
ON ON 27.6 to 28.9
1 2 3 4
DIP Switch Conguration

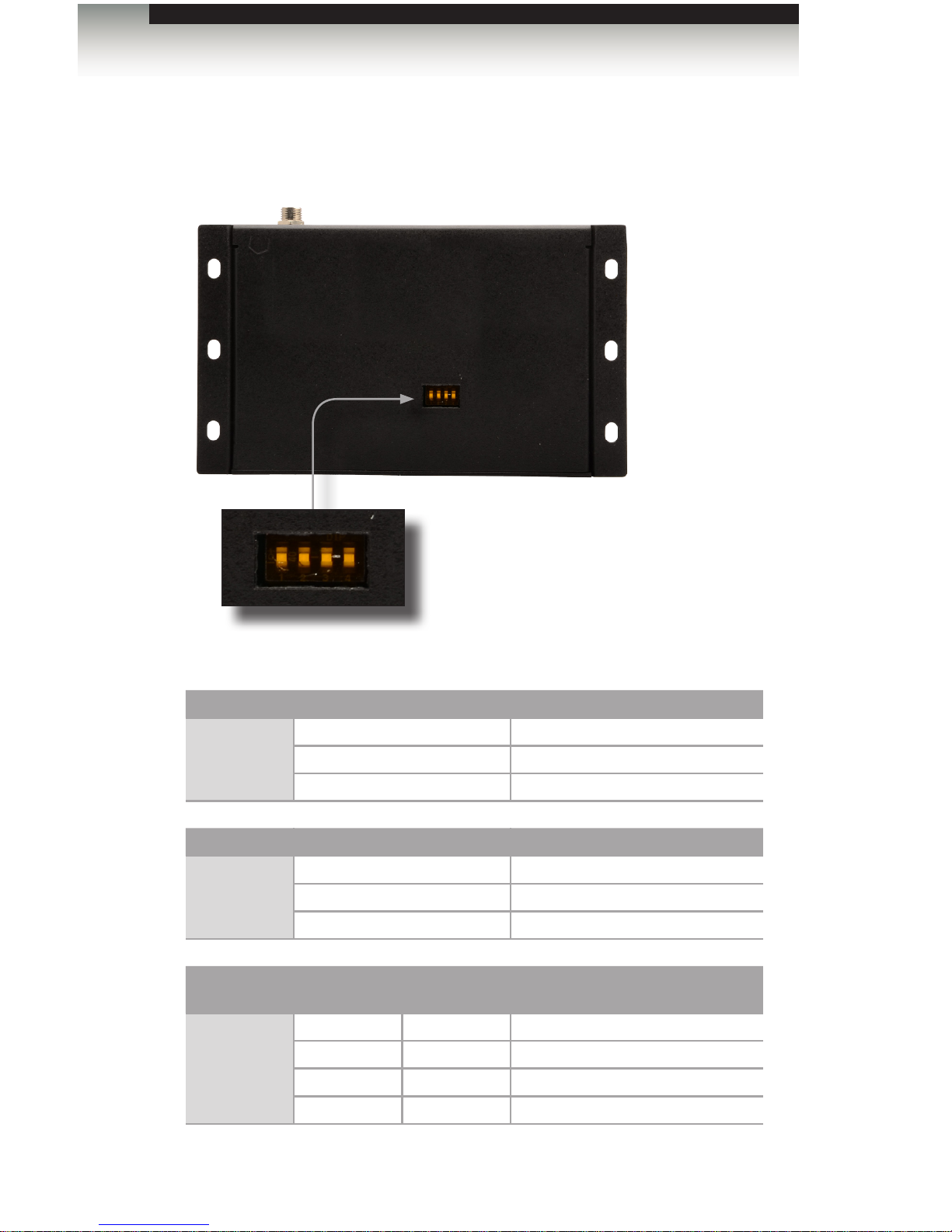

DIP switches located on the
bottom of the Sender Unit.
If the DIP switch is ON, it
will be in the “up” position.
Sender unit
page | 13
Operating the DisplayPort KVM Extender over CAT-7
Hot-Plug Detect (HPD)
The DisplayPort KVM Extender over CAT-7 has an HPD button on the front of the Receiver
unit. Pressing this button will cycle the HPD (Hot-Plug Detect) line on the display (sink)
device. This HPD button provides the same effect as disconnecting then reconnecting the
DisplayPort cable from the Receiver unit. Cycling the HPD line will cause the Receiver unit
to re-read the EDID of the display and send it back to the DisplayPort source.
HPD button
Receiver unit
page | 14
Operating the DisplayPort KVM Extender over CAT-7
Adjusting the Signal Quality
The DisplayPort KVM Extender over CAT-7 has an equalization device on the front of the
Receiver unit. This 16-position rotary switch is used to adjust the boost level depending
upon the length of the CAT-7 cable.
1. Insert a small at-headed tool into the notch on the rotary switch.
The table below provides examples of various cable types and lengths for CAT-6
cabling.
Cable type Length Rotary switch position
Belden CAT-6A, UTP,
10Gx12 - 4PR/23
100 feet (30 meters) 3 through D
Belden CAT-6A, UTP,
10Gx12 - 4PR
130 feet (40 meters) 9 through B
Teldor CAT-6A, FTP,
4x(2x26/7) - 500 Mhz
115 feet (35 meters) A through F
Draka CAT-6A, FTP
UC500 4P 09 339765
107271827
100 feet (30 meters) 7 through C
2. Turn the rotary switch clockwise or counterclockwise until it clicks to the next position.
3. Check the image. Continue adjusting the rotary switch if the issue is not resolved.
Receiver unit
Rotary Swtich
The arrow mark
indicates the position
of the rotary switch.
DisplayPort KVM
Extender over CAT-7
03 Appendix
Cable Termination ............................................................................................... 18
Surface-Mounting Instructions............................................................................. 19
Specications ...................................................................................................... 20
page | 18
Appendix
Front of RJ-45 Connector
Gefen recommends the TIA/EIA-568-B wiring option. Use the table below when
eld-terminating cable for use with Gefen products.
Pin Color Description
1 Orange / White TD+ (Transmit Data, positive differential signal)
2 Orange TD- (Transmit Data, negative differential signal)
3 Green / White RD+ (Receive Data, positive differential signal)
4 Blue Unused
5 Blue / White Unused
6 Green RD- (Receive Data, negative differential signal)
7 Brown / White Unused
8 Brown / White Unused
It is recommended to use one continuous run from one end to the other. Patch cable is
not recommended.
1 2 3 4 5 6 7 8
Cable Termination
page | 19
Appendix
Surface-Mounting Instructions
The Gefen DisplayPort KVM Extender over CAT-7 can be mounted on any horizontal or
vertical at surface (e.g. wall or inside / outside a cabinet with wood / drywall screws)
as shown in the diagram above. There should be an inch or two of clearance between
the edges of the unit and any walls or vertical surfaces to allow for enough clearance for
connection and disconnection of the DisplayPort cable.
For installation on a drywall surface, use a #6 drywall screw. When installing, it is
recommended to use the center hole on a stud.
page | 20
Appendix
Supported Formats
Resolutions (max.) • 2560 x 1600
• 1920 x 1200 (WUXGA)
• 1080p Full HD
Electrical
Video Data Rate • Up to 2.7 Gb/s
EQ Switch (Receiver) • 1 x 16-position rotary type
HPD Auto Calibration button (Receiver) • 1 x tact-type
Pre-emphasis Switch • 1 x 3-position DIP switch
Boost Level Switches (Sender) • 2 x 3-position DIP switch
Drive level Switch (Sender) • 1 x 3-position DIP switch
Power On Indicator (Sender) • 1 x LED, blue
Link Indicator (Receiver) • 1 x bi-color LED
Green: Good link, Red: No link
USB Link Indicators (Sender / Receiver) • 1 x LED, green
Connectors
Video Input (Sender) • 1 x DisplayPort, 20-pin, female
Video Output (Receiver) • 1 x DisplayPort, 20-pin, female
USB (Sender) • 1 x Type B, female
USB (Receiver) • 2 x Type A, female
Link (Sender / Receiver) • 2 x RJ-45, shielded
USB Link (Sender / Receiver) • 1 x RJ-45, shielded
Operational
Power Supply • 1 x 5V DC, locking
Operating Temperature • +32 to +104 °F (0 to +40 °C)
Physical
Dimensions (W x H x D)
(Sender / Receiver)
• 3.4” x 1.2” x 5.8”
(85mm x 30mm x 146mm)
Unit Weight (each unit) • 0.47 lbs (0.22 kg)
Specications
This product uses UL or CE listed power supplies.
20600 Nordhoff St., Chatsworth CA 91311
1-800-545-6900 818-772-9100 fax: 818-772-9120
www.gefentoolbox.com support@gefentoolbox.com
Pb
Stretch it, Switch it, Split it, Control it.
Gefen’s got it. ®
Loading...
