OPERATION NOTES
READ THESE NOTES BEFORE IN STALL ING
OR OPERATING THE 4X1 DVI/ADC SWITCHER
• If two monitors are connected to the switcher, both monitors (one DVI and one ADC)
must have the same native resolution.
• The 4x1 DVI/ADC Switcher is housed in a metal box for better RF shielding.
• The 4x1 DVI/ADC Switcher has a two port USB Hub built in. The two USB ports on
the ADC monitor are active and can be used to connect additional USB peripherals.
INTRODUCTION
Thank you for purchasing Gefen’ s ex•tend•it 4x1 DVI/ADC Switcher series. The 4x1 DVI/
ADC Switcher switches DVI/ADC, USB and audio between any combination of four computers. Now you can switch easily and reliably between any combination of four computers
using one DVI or ADC display, USB keyboard and mouse. The 4x1 DVI/ADC Switcher is
switched using the RMT-4IR. The 4x1 DVI/ADC Switcher saves space – there’s no need
to work on a desk crowded with four monitors, keyboards and mouse devices. It saves
time – there’s no need to move from one monitor to another to access different computers.
And it saves money – there’s no need to purchase additional monitors, mouse devices,
keyboards etc. The 4x1 DVI/ADC Switcher allows you to choose between any combination
of Macintosh or PC computers.
CONTENTS
The 4x1 DVI/ADC Switcher system consists of:
--- (1) 4x1 DVI/ADC Switcher
--- (1) RMT4-IR remote control
--- (2) AAA batteries
--- (1) 24 VDC power supply
--- (1) AC power cord
--- (4) DVI cables (6FT)
--- (4) USB cables (6FT)
--- (4) Audio cables (6FT)
--- (1) User Manual
1
FRONT PANEL DESCRIPTIONS
1-4Indicator LED
Power LED
Infrared Eye
2
BACK PANEL DESCRIPTIONS
REMOTE -
Remote
For RMT-4 Wired
RJ-45 Connecter
4 USB INPUTS
USB OUT
DVI IN 4
DVI IN 3
AUDIO IN 3 AUDIO IN 4 AUDIO OUT
AUDIO IN 1 AUDIO IN 2
ADC OUT
DVI OUT
DVI IN 1 DVI IN 2
INPUT
POWER
3
HOW TO CONNECT THE 4X1 DVI/ADC SWITCHER
Connect your computers DVI, USB, and audio to the 4x1 DVI/ADC Switcher inputs
1
using the supplied cables.
Connect your DVI or ADC monitor to the DVI Out or ADC Out.
2
Connect your USB and audio devices to the USB and audio outputs.
3
Connect the RMT-4 remote control (if applicable).
4
Plug the 24v power supply into the 4x1 DVI/ADC Switcher.
5
Your computers must be turned on one at a time and the switcher must be selected
6
to the computer that is booting up. After one computer completes the startup process,
you can boot up the second computer and repeat the process with the remaining
computers.
4

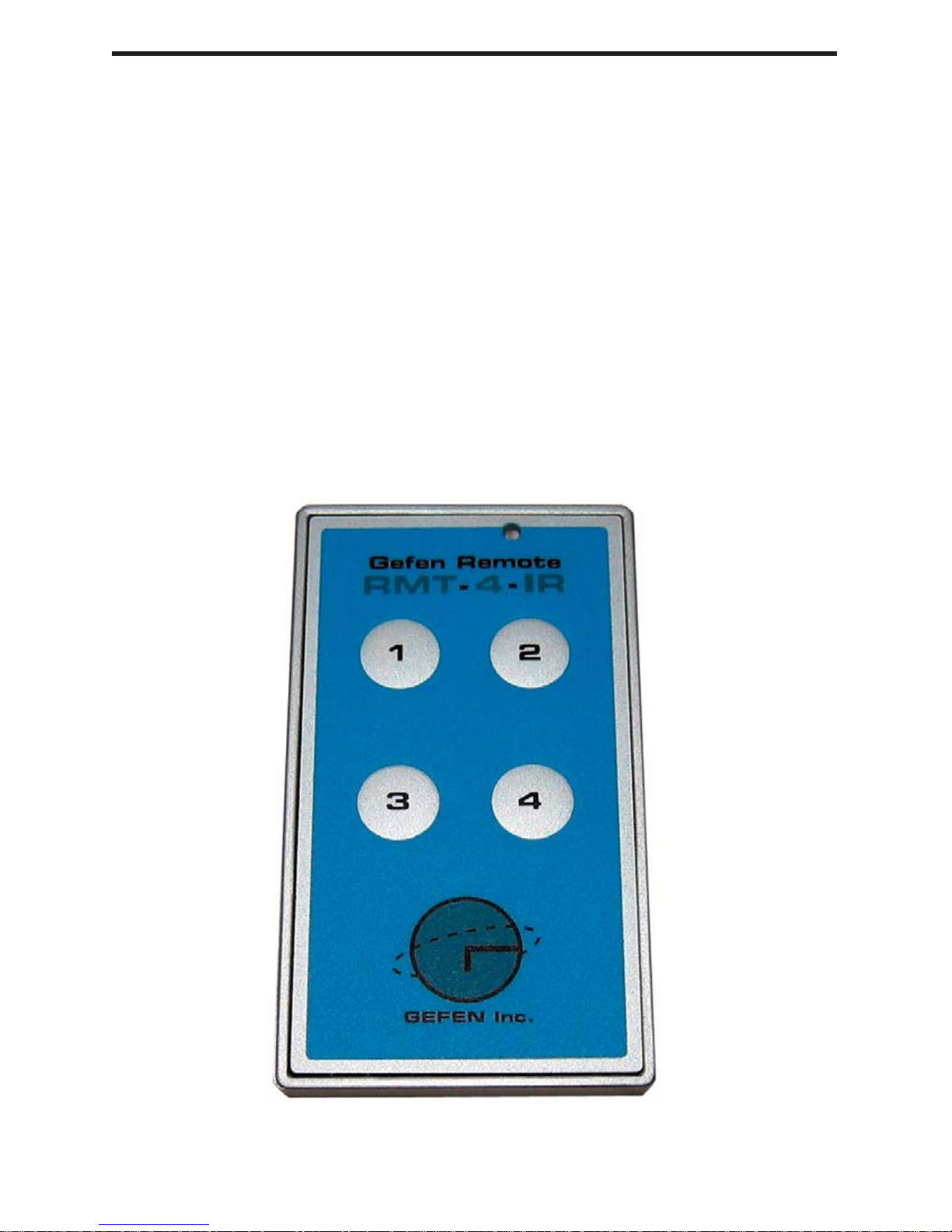

RMT-4IR
1. Remove battery cover from the back of the RMT4-IR remote.
2. Verify that dip switches 1 & 2 are in the down (OFF) position.
3. Insert the battery, hold the battery so that you can see the positive side facing up. The
side that is not marked must be facing down.
4. Test the RMT4-IR remote by pressing ONLY one button at a time. The indicator light
on the remote will fl ash once each time you press a button. WARNING: Do not press
multiple buttons simultaneously and do NOT press buttons rapidly. These actions will
cause the remote to reset and steps 1-4 will have to be repeated.
Note: The RMT4-IR ships with two batteries. One battery is required for operation, the
second battery is complimentary.
5
4X1 DVI/ADC WIRING DIAGRAM
6
SPECIFICATIONS
Video Amplifi er Bandwidth ................................................................................. 1.65 GHz
Single Link Range ......................................................................................... 1920 x 1200
Vertical Frequency Range ....................................................................................... 60 Hz
DVI Input/Output Connector Type ............................................................................. DVI-I
ADC Output Connector .................................................................................... JAE 31 pin
USB Input Connector .......................................................................................... Type “B”
USB Output Connector ........................................................................................ Type “A”
Power Consumption ................................................................................ 60 Watts (max.)
Power Supply ........................................................................................................ 24VDC
Dimensions ...................................................................................... 17”W x 1.75”H x 4”D
Rackmountable .......................................................................................... 1 Rack Space
Shipping Weight ..................................................................................................... 10 Lbs
7
WARRANTY
Gefen Inc. warrants the equipment it manufactures to be free from defects in material
and workmanship.
If equipment fails because of such defects and Gefen Inc. is notifi ed within one (1)
year from the date of shipment, Gefen System will, at its option, repair or replace the
equipment, provided that the equipment has not been subjected to mechanical, electrical
or other abuse or modifi cations.
Equipment that fails under conditions other than those covered will be repaired at the
current price of parts and labor in effect at the time of repair. Such repairs are warranted
for ninety (90) days from the day of shipment to the Buyer.
This warranty is in lieu of all other warranties expressed or implied, including without
limitation, any implied warranty or merchantability or fi tness for any particular purpose, all
of which are expressly disclaimed.
The information in this manual has been carefully checked and is believed to be accurate.
However, Gefen Inc. assumes no responsibility for any inaccuracies that may be contained
in this manual. In no event will Gefen Inc., be liable for direct, indirect, special, incidental,
or consequential damages resulting from any defect or omission in this manual, even if
advised of the possibility of such damages. The technical information contained herein
regarding the 4x1 DVI/ADC Switcher features and specifi cations is subject to change
without notice.
