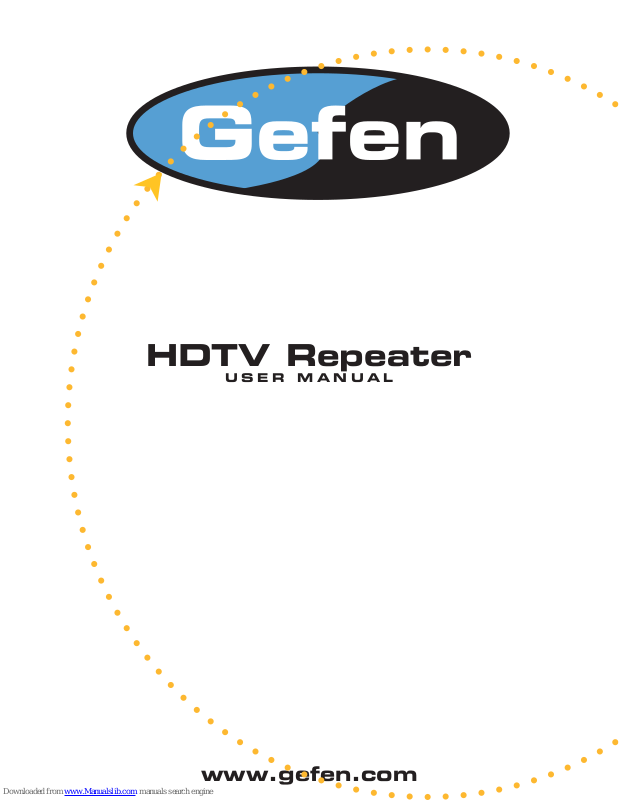

Page 1
HDTV Repeater
USER MANUAL
www.gefen.com
Page 2
ASKING FOR ASSISTANCE
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday.
Write To:
Gefen, Inc.
c/o Customer Service
20600 Nordhoff Street
Chatsworth, CA 91311
www.gefen.com
support@gefen.com
Gefen Inc. reserves the right to make changes in the hard ware, packaging and any
accompanying doc u men ta tion without prior written notice.
HDTV Repeater is a trademark of Gefen Inc.
© 2005-2007 Gefen Inc., All Rights Reserved
Notice
Page 3
TABLE OF CONTENTS
Introduction
1
Features
2
Panel Descriptions
3
Connecting and Operating the HDTV Repeater
4
Specifi cations
5
Warranty
6
Page 4
INTRODUCTION
Congratulations on your purchase of the ex•tend•it HDTV Repeater. Your complete
satisfaction is very important to us. Gefen’s line of KVM (Keyboard Video & Mouse),
DVI, ADC, USB, switches, extenders, converters and hubs is designed to make
computer use more comfortable, more productive and less expensive.
The ex•tend•it HDTV Repeater extends the length of any DVI cable by regenerating the
HDCP-DVI signal before it outputs to the HDCP-DVI monitor or projector. The HDTV
Repeater will clean out the digital noise (sparkles) in your picture. The HDTV Repeater
enables you to relocate your DVD player or satellite receiver to a safe, quiet and clutterfree environment.
1
Page 5
FEATURES
Features
• Connects HDTV devices with DVI outputs to HDTV compatible displays or projectors
• Maintains highest DVI single link video resolution
• Supports DDWG standard for DVI compliant monitors
• Supports HDCP compliant devices
• Installs in minutes
Includes:
5VDC Power Supply
HDTV Repeater
2
Page 6
PANEL DESCRIPTIONS
3
Page 7
CONNECTING AND OPERATING THE HDTV REPEATER
How to Connect the HDTV Repeater
1- Connect the long DVI cable from the source into the “DVI In” on the front of the HDTV
Repeater. The HDTV Repeater is placed next to your display to regenerate the DVI
cable.
2- Connect a short DVI cable from the “DVI Out” connection in the back of the DVI
Repeater to your display or projector.
3- Plug the 5v power supply into the HDTV Repeater.
4- Plug the 5v wallmount power supply into the wall outlet.
4
Page 8
SPECIFICATIONS
Video Amplifi er Bandwidth ................................................................................. 1.65 GHz
Input Video Signal ......................................................................................... 1.2 volts p-p
Input DDC Signal .................................................................................... 5 volts p-p (TTL)
Maximum Single Link Range ............................................................ 1920 x 1200, 1080p
DVI Input/Output Connector Type ........................................................................... DVI-D
Power Consumption ................................................................................ 15 Watts (max.)
Power Supply .......................................................................................................... 5VDC
Dimensions .......................................................................................... 6”W x 1”H x 4.7”D
Shipping Weight ....................................................................................................... 2 Lbs
5
Page 9
WARRANTY
Gefen Inc. warrants the equipment it manufactures to be free from defects in material
and workmanship.
If equipment fails because of such defects and Gefen Inc. is notifi ed within one
(1) year from the date of shipment, Gefen Inc. will, at its option, repair or replace
the equipment, provided that the equipment has not been subjected to mechanical,
electrical, or other abuse or modifi cations.
Equipment that fails under conditions other than those covered will be repaired at the
current price of parts and labor in effect at the of repair. Such repairs are warranted for
ninety (90) days from the day of reshipment to the Buyer.
This warranty is in lieu of all other warranties expressed or implied, including without
limitation, any implied warranty or merchantability or fi tness for any particular purpose,
all of which are expressly disclaimed.
The information in this manual has been carefully checked and is believed to be
accurate. However, Gefen Inc. assumes no responsibility for any inaccuracies that may
be contained in this manual. In no event will Gefen Inc., be liable for direct, indirect,
special, incidental, or consequential damages resulting from any defect or omission
in this manual, even if advised of the possibility of such damages. The technical
information contained herein regarding HDTV Repeater features and specifi cations is
subject to change without notice.
6
