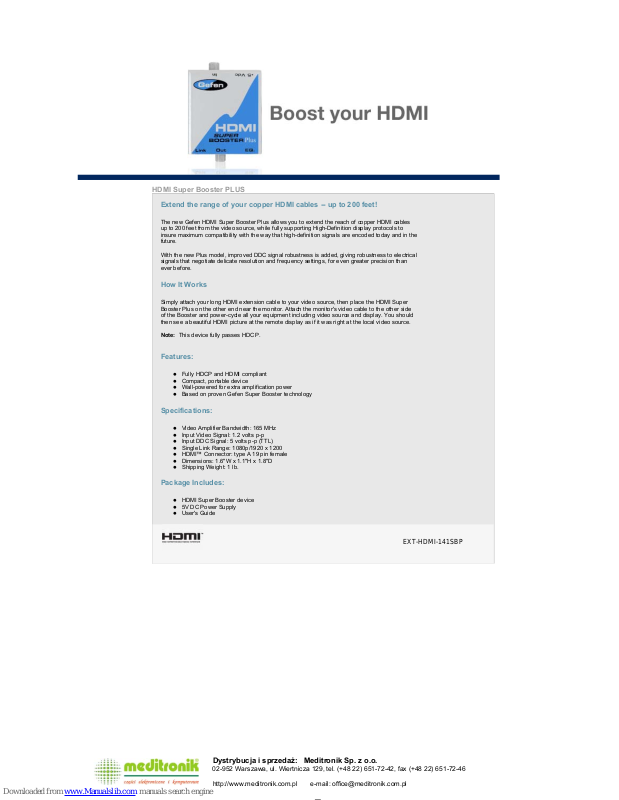

Page 1
HDMI Super Booster PLUS
Extend the range of your copper HDMI cables -- up to 200 feet!
The new Gefen HDMI Super Booster Plus allows you to extend the reach of copper HDMI cables
up to 200 feet from the video source, while fully supporting High-Definition display protocols to
insure maximum compatibility with the way that high-definition signals are encoded today and in the
future.
With the new Plus model, improved DDC signal robustness is added, giving robustness to electrical
signals that negotiate delicate resolution and frequency settings, for even greater precision than
ever before.
How It Works
Simply attach your long HDMI extension cable to your video source, then place the HDMI Super
Booster Plus on the other end near the monitor. Attach the monitor's video cable to the other side
of the Booster and power-cycle all your equipment including video source and display. You should
then see a beautiful HDMI picture at the remote display as if it was right at the local video source.
Note: This device fully passes HDCP.
Features:
z Fully HDCP and HDMI compliant
z Compact, portable device
z Wall-powered for extra amplification power
z Based on proven Gefen Super Booster technology
Specifications:
z Video Amplifier Bandwidth: 165 MHz
z Input Video Signal: 1.2 volts p-p
z Input DDC Signal: 5 volts p-p (TTL)
z Single Link Range: 1080p/1920 x 1200
z HDMI™ Connector: type A 19 pin female
z Dimensions: 1.6"W x 1.1"H x 1.8"D
z Shipping Weight: 1 lb.
Package Includes:
z HDMI Super Booster device
z 5V DC Power Supply
z User's Guide
_
Dystrybucja i sprzedaż: Meditronik Sp. z o.o.
02-952 Warszawa, ul. Wiertnicza 129, tel. (+48 22) 651-72-42, fax (+48 22) 651-72-46
http://www.meditronik.com.pl e-mail: office@meditronik.com.pl
EXT-HDMI-141SBP
Page 2
HDMI Super Booster Plus
USER MANUAL
HDMI Super Booster Plus
USER MANUAL
www.gefen.com
www.gefen.com
Page 3
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday.
Write To:
Gefen Inc.
C/O Customer Service
20600 Nordhoff St.
Chatsworth, CA 91311
support@gefen.com
www.gefen.com
Notice
Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying
doc u men ta tion without prior written notice.
The HDMI Super Booster Plus is a trademark of Gefen Inc.
© 2008 Gefen Inc., All Rights Reserved
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday.
Write To:
Gefen Inc.
C/O Customer Service
20600 Nordhoff St.
Chatsworth, CA 91311
support@gefen.com
www.gefen.com
Notice
Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying
doc u men ta tion without prior written notice.
The HDMI Super Booster Plus is a trademark of Gefen Inc.
© 2008 Gefen Inc., All Rights Reserved
ASKING FOR ASSISTANCE
Page 4
TABLE OF CONTENTS
Panel Descriptions
Connecting and Operating the HDMI Super Booster Plus
Auto Equalization
Specifi cations
Warranty
Introduction
Features
Panel Descriptions
Connecting and Operating the HDMI Super Booster Plus
Auto Equalization
Specifi cations
Warranty
3
4
5
6
7
1
2
3
4
5
6
7
Page 5
INTRODUCTION
Up to 200 feet can be easily traversed using your HDMI cable plus a HDMI Super
Booster Plus. The HDMI Super Booster Plus corrects any digital degradation that
occurs when HDMI is used to send digital audio/video signals beyond the HDMI
specifi cation of 15 feet.
How It Works
This plug and play installation takes mere seconds. You simply connect the HDMI
cable on one side of the HDMI Super Booster Plus and the display’s cable on the
other side. The HDMI Super Booster Plus sits between the end of your HDMI cable
and your display. You also have the option of connecting another HDMI cable to the
Booster, daisy chaining Boosters and cables for greater distances.
The Gefen HDMI Super Booster Plus is an attractive alternative to the traditional
sender/receiver solutions for HD extension. The HDMI Super Booster Plus enables
your standard “off the shelf” HDMI cable to transmit HDTV video plus multichannel
digital audio in a single cable way beyond the limited HDMI specifi cation of 15-feet.
Up to 200 feet can be easily traversed using your HDMI cable plus a HDMI Super
Booster Plus. The HDMI Super Booster Plus corrects any digital degradation that
occurs when HDMI is used to send digital audio/video signals beyond the HDMI
specifi cation of 15 feet.
How It Works
This plug and play installation takes mere seconds. You simply connect the HDMI
cable on one side of the HDMI Super Booster Plus and the display’s cable on the
other side. The HDMI Super Booster Plus sits between the end of your HDMI cable
and your display. You also have the option of connecting another HDMI cable to the
Booster, daisy chaining Boosters and cables for greater distances.
1
1
Page 6
FEATURES
Locate an HDMI display up to 200 feet away from any HDTV source
Supports resolutions up to 1080p, 2K, and 1920 x 1200
HDMI/HDCP compliant
Includes:
(1) HDMI Super Booster Plus
(1) 5V DC Power Supply
(1) User’s Manual
Features
Perfect digital high defi nition video sent over long stretches of HDMI cables
Locate an HDMI display up to 200 feet away from any HDTV source
Supports resolutions up to 1080p, 2K, and 1920 x 1200
HDMI/HDCP compliant
Includes:
(1) HDMI Super Booster Plus
(1) 5V DC Power Supply
(1) User’s Manual
•
•
•
•
•
•
•
2
2
Page 7
Front Panel
Back Panel
Back Panel
Manual EQ
Adjustment
Manual EQ
Adjustment
Power LED
Indicator
Power LED
Indicator
HDMI In
HDMI In
HDMI Out
HDMI Out
+5V DC In
+5V DC In
PANEL LAYOUT
3
3
Page 8
CONNECTING AND OPERATING THE
HDMI SUPER BOOSTER PLUS
Connect a short HDMI cable from the “HDMI Out” connection in the back of the 2.
HDMI Super Booster Plus to your display or projector
Plug the 5V DC power supply into the HDMI Super Booster Plus.3.
Plug the 5VDC wall mount power supply into the wall outlet.4.
Manual Equalization
By default, the HDMI Super Booster Plus is set to manual equalization. The service Dip
Switch 2, located on the underside of the unit behind a silver colored metallic sticker, must
be in the OFF position for manual EQ to be enabled. Dip Switch 1 relates to manual EQ
short and long cable settings. By default, Dip Switch 1 is in the long cable mode (OFF).
Adjust the EQ Trim Pot on the front of the unit to eliminate video noise by inserting a small
fl at-head tool into the Trim Pot port. Turn the Trim Pot in very small increments to EQ the
video signal until all video noise is eliminated. If a short cable is being used and there
is either video noise that cannot be tuned out or no image at all in the long cable mode,
change the manual EQ setting to short cable mode by turning Dip Switch 1 to the ON
position. Re-insert the adjustment tool and EQ the video signal. Use the diagram on the
next page to locate and view the location and settings of the Dip Switches.
Connect the long HDMI cable from the source into the “HDMI In” on the front of 1.
the HDMI Super Booster Plus. The HDMI Super Booster Plus is placed next to
your display to regenerate the HDMI signal.
Connect a short HDMI cable from the “HDMI Out” connection in the back of the 2.
HDMI Super Booster Plus to your display or projector
Plug the 5V DC power supply into the HDMI Super Booster Plus.3.
Plug the 5VDC wall mount power supply into the wall outlet.4.
Manual Equalization
By default, the HDMI Super Booster Plus is set to manual equalization. The service Dip
Switch 2, located on the underside of the unit behind a silver colored metallic sticker, must
be in the OFF position for manual EQ to be enabled. Dip Switch 1 relates to manual EQ
short and long cable settings. By default, Dip Switch 1 is in the long cable mode (OFF).
Adjust the EQ Trim Pot on the front of the unit to eliminate video noise by inserting a small
fl at-head tool into the Trim Pot port. Turn the Trim Pot in very small increments to EQ the
video signal until all video noise is eliminated. If a short cable is being used and there
is either video noise that cannot be tuned out or no image at all in the long cable mode,
change the manual EQ setting to short cable mode by turning Dip Switch 1 to the ON
position. Re-insert the adjustment tool and EQ the video signal. Use the diagram on the
next page to locate and view the location and settings of the Dip Switches.
4
4
Page 9
ON
ON
AUTO EQUALIZATION
Dip Switch 2 can be used to turn on the automatic equalization function. Use this
setting for ease of setup as this mode will automatically tune out unwanted video
noise. To do this, turn Dip Switch 2 to the ON position. No manual adjustments to
the EQ can be made in this mode using the EQ Trim Pot on the front of the unit.
Dip Switch 1 will not have any effect in this mode. If video noise is still present in
automatic EQ mode, return to manual EQ mode by turning Dip Switch 2 to the
OFF position and manually tune the signal using the instructions on the previous
page.
Dip Switch 2 can be used to turn on the automatic equalization function. Use this
setting for ease of setup as this mode will automatically tune out unwanted video
noise. To do this, turn Dip Switch 2 to the ON position. No manual adjustments to
the EQ can be made in this mode using the EQ Trim Pot on the front of the unit.
Dip Switch 1 will not have any effect in this mode. If video noise is still present in
automatic EQ mode, return to manual EQ mode by turning Dip Switch 2 to the
OFF position and manually tune the signal using the instructions on the previous
page.
5
5
Manual EQ Long Cable
Manual EQ Short Cable
Auto EQ ON
1
ON
2
Remove the silver
tape to expose the
Dip Switch Bank
Manual EQ Long Cable
Manual EQ Short Cable
Auto EQ ON
1
ON
2
1
ON
2
Manual EQ Long Cable
Manual EQ Short Cable
Auto EQ ON
N
1
ON
2
Remove the silver
tape to expose the
Dip Switch Bank
Manual EQ Long Cable
Manual EQ Short Cable
Auto EQ ON
N
1
ON
2
N
1
ON
2
Page 10
Input DDC Signal ............................................................................. 5 Volts p-p (TTL)
Maximum Single Link Range ....................................................... 1920 x 1200 x 60hz
HDMI Input/Output Connector Type ....................................................... HDMI Type A
Power Consumption ............................................................................. 5 Watts (max)
Power Supply…………………….. .................................................................... 5V DC
Dimensions .............................................................................. 1.75”W x 1”H x 2.25”D
Shipping Weight ................................................................................................. 2 Lbs
Video Amplifi er Bandwidth ............................................................................ 165 MHz
Input Video Signal ....................................................................................1.2 Volts p-p
Input DDC Signal ............................................................................. 5 Volts p-p (TTL)
Maximum Single Link Range ....................................................... 1920 x 1200 x 60hz
HDMI Input/Output Connector Type ....................................................... HDMI Type A
Power Consumption ............................................................................. 5 Watts (max)
Power Supply…………………….. .................................................................... 5V DC
Dimensions .............................................................................. 1.75”W x 1”H x 2.25”D
Shipping Weight ................................................................................................. 2 Lbs
SPECIFICATIONS
6
6
