Gefen GTV, HDBT, CAT5, GTV-HDBT-CAT5 User Manual

Extender for HDMI

over one CAT5

GTV-HDBT-CAT5

User Manual

1080P

®

®

gefentv.com

ASKING FOR ASSISTANCE

Rev A3

Technical Support:
Telephone [phone]
[phone]

Fax [phone]

Technical Support Hours:

8:00 AM to 5:00 PM Monday through Friday, Pacic Time

Write To:

Gefen, LLC.

c/o Customer Service
20600 Nordhoff St

Chatsworth, CA 91311

www.gefentv.com
[e-mail]

Notice

Gefen, LLC reserves the right to make changes in the hardware, packaging and

any accompanying documentation without prior written notice.

Extender for HDMI over one CAT5 is a trademark of Gefen, LLC

HDMI, the HDMI logo, and High-Denition Multimedia Interface are

trademarks or registered trademarks of HDMI Licensing in the United States and

other countries.

© 2013 Gefen, LLC. All rights reserved.

All trademarks are the property of their respective owners.

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Sender Unit Layout

5 Sender Unit Descriptions

6 Receiver Unit Layout

7 Receiver Unit Descriptions

8 Connecting the Extender for HDMI over one CAT5

8 Wiring Diagram

9 Network Cable Wiring Diagram

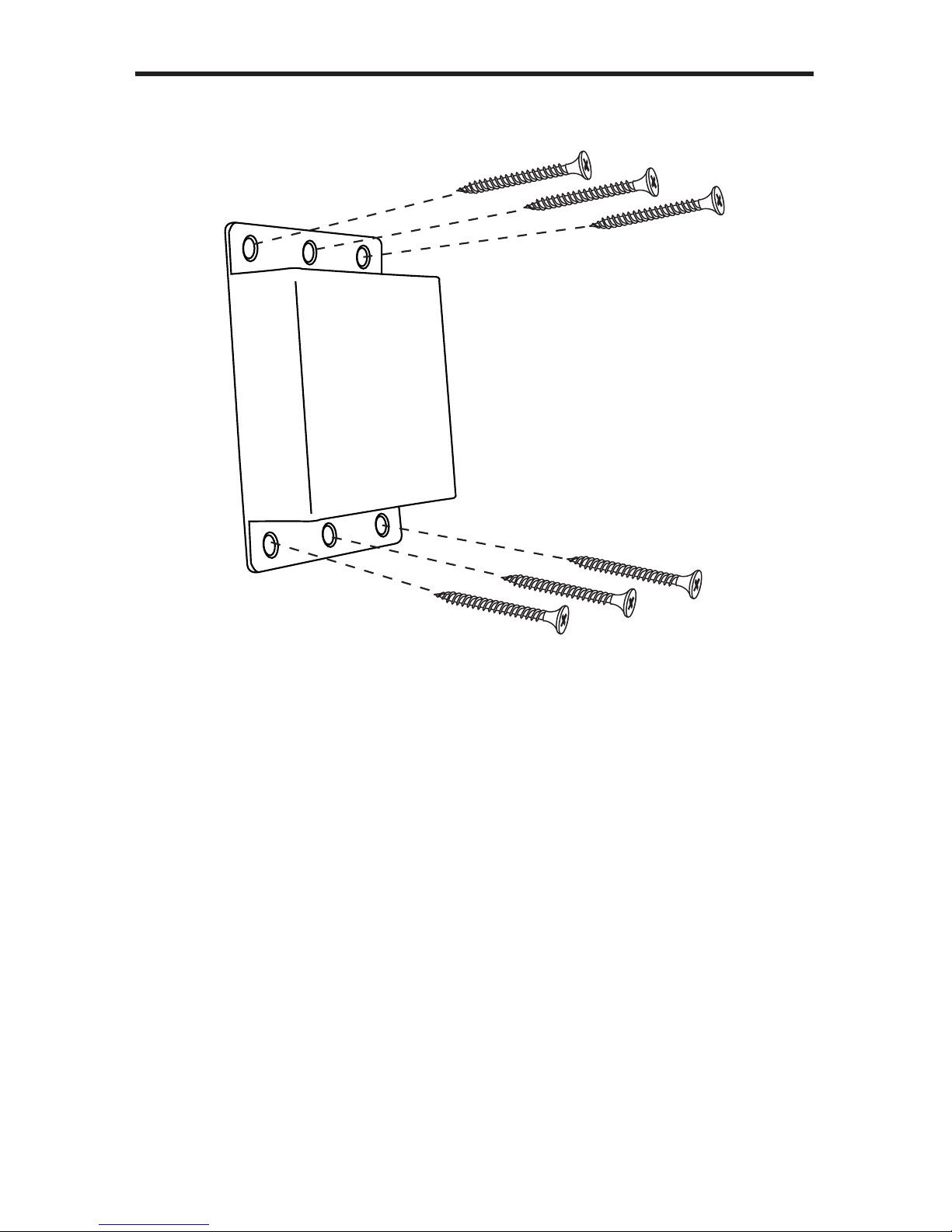

10 Wall Mounting Instructions

11 Specifications

12 Warranty

1

INTRODUCTION

Congratulations on your purchase of the Extender for HDMI over one CAT5.

Your complete satisfaction is very important to us.

GefenTV

GefenTV is a unique product line catering to the growing needs for innovative
home theater solutions. We specialize in total integration for your home theater,
while also focusing on going above and beyond customer expectations to ensure
you get the most from your hardware. We invite you to explore our distinct
product line and hope you nd your solutions. Don’t see what you are looking for
here? Please call us so we can better assist you with your particular needs.

The GefenTV Extender for HDMI over one CAT5

The GefenTV Extender for HDMI over one CAT5 uses one CAT-5e (or better)
cable to extend 1080p Full HD and 3DTV over 230 feet (70 meters) away from
its HDMI or DVI-D source. It also supports high bit-rate audio formats such as
Dolby® TrueHD and DTS-HD® Master Audio™.

3D content can be displayed when a 3D-capable display and 3D source are
connected. DVI-D is also supported when used with an HDMI to DVI Adapter,
providing greater exibility and options when integrating several home theater
components.

By using standard CAT-5e cables, it makes HDMI signal extensions easier to
install within a room or through walls. The Extender’s pure digital transmission
method insures 100% signal integrity over long distances.

How It Works

The GefenTV Extender for HDMI over one CAT5 Extender system consists of a
Sender and a Receiver unit. The HDMI source (such as a set-top box, Blu-ray
player, or gaming console) connects to the Sender unit with the supplied 6-foot
HDMI cable. The Receiver unit connects to the HDTV display, up to 230 feet (70
meters) away. One CAT-5e cable links the Sender to the Receiver unit. Power
is applied to the Sender and the Receiver with the two included 5V DC power
supplies. A crisp, awless High-Def picture appears on the HDTV display.

2

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE EXTENDER FOR HDMI OVER ONE CAT5

• CAT-5 or CAT-6 cables should not exceed 230 feet (70 meters).

• Shielded (STP) CAT-5 or CAT-6 is recommended. However, unshielded

(UTP) CAT-5 or CAT-6 is acceptable, depending on cable quality, but is not
the top choice. Care should always be given to keep these cables away from
power lines and other electromagnetic interference sources.

• This product is Ultra HD 4K x 2K compliant. 4K x 2K resolutions can be
extended up to 130 feet (40 meters) over a CAT-5e cable.

• HDBaseT ® technology allows HDMI, IR (Bi-directional), and power to be
sent on one CAT-5e/6 cable.

OPERATION NOTES

NOTE: Shielded cable has an advantage by providing immunity

to Electromagnetic Interference (EMI) from cell phones and A/C
motors.
