Gefen GTV-HT-AUDPROC User Manual

Home Theater Audio Processor

GTV-HT-AUDPROC

User Manual

www.gefentv.com

ASKING FOR ASSISTANCE

Technical Support:

Telephone [phone]
[phone]

Fax [phone]

Technical Support Hours:

8:00 AM to 5:00 PM PST Monday thru Friday.

Write To:

Gefen, LLC
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311

www.gefentv.com
[e-mail]

Notice

Gefen, LLC reserves the right to make changes in the hard ware, packaging, and

any accompanying doc u men ta tion without prior written notice.

GefenTV Home Theater Audio Processor is a trademark of Gefen, LLC

Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic”, and the double-D symbol are trademarks of

Dolby Laboratories.

© 2011 Gefen, LLC. All rights reserved.

HDMI, the HDMI Logo, and High-Defi nition Mulitmedia Interface are trademarks

or registered trademarks of HDMI Licensing LLC in the United States and other

countries.

All trademarks are the property of their respective companies.

Rev A5

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Panel Layout

5 Panel Descriptions

8 Connecting The Home Theater Audio Processor

9 GTV-AUD-IR Remote Layout

10 GTV-AUD-IR Remote Descriptions

11 GTV-AUD-IR Remote Installation

11 Home Theater Audio Processor Remote Installation

12 Operating the Home Theater Audio Processor

20 Speaker Format Table

22 Bi-Amping

23 RS-232 Serial Control Interface

24 RS-232 Commands

26 Specifi cations

27 Warranty

INTRODUCTION

Congratulations on your purchase of the GefenTV Home Theater Audio
Processor. Your complete satisfaction is very important to us.

GefenTV

GefenTV is a unique product line catering to the growing needs for innovative
home theater solutions. Gefen specializes in total integration for home theater
connectivity, while also focusing on going above and beyond customer
expectations to ensure you get the most from your hardware. Gefen invites you
to explore the distinct GefenTV product line and hope that you fi nd the solution
that fi ts your needs.

The GefenTV Home Theater Audio Processor

The GefenTV Home Theater Audio Processor is a powerful yet very compact
solution for all your audio/video needs.

The GefenTV Home Theater Audio Processor provides pass-through connection
for a Hi-Def source to two mirrored HDTV displays using HDMI features
supporting 1080p full HD, Deep Color, Lip-Sync, Dolby TrueHD, DTS-HD MA,
and 3DTV pass-through. The audio from both the HDMI and coax inputs is sent
to the coax and optical outputs as compressed AC-3 digital audio and to separate
six-channel audio on the RCA and binding post connectors. Up to 5.1 channels of
LPCM, Dolby Digital, and Dolby Pro Logic II is decoded on the output.

Speakers can be connected to the binding posts using the built-in amplifi er,
delivering 25 watts per channel RMS. The audio can also be sent to an external
power amplifi er using the RCA connectors. The front-left and front-right channels
use bi-amplifi cation to enhance the sound quality.

The Home Theater Audio Processor features an easy-to-read LCD display with
extensive features such as individual control of speaker size, distance location,
and volume up/down. Control is available using the front panel push buttons or
using the included IR remote and RS-232 control.

How It Works

Connect the GefenTV Home Theater Audio Processor to the Hi-Def source using
the supplied HDMI cable and coax cable. Connect up to two (2) HDTV displays
or AV receivers to the Audio Processor HDMI outputs. Connect an optical and
a coax cable from the Audio Processor digital audio outputs to an AV receiver.
Use the binding posts to connect up to fi ve speakers. The sub-woofer must be
a powered version and is connected to the RCA connector allocated for the sub.
Connect the included 24V power supply to the Audio Processor and push the
power button to turn on the Audio Processor. Apply power to the Hi-Def source
and HDTV Display(s) and/or AV receivers.

1

OPERATION NOTES

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE HOME THEATER AUDIO PROCESSOR

• The GefenTV Home Theater Audio Processor is designed to be used with
speakers, using fi ve full-bandwidth channels and one low frequency channel.
RCA outputs are provided for connecting the GefenTV Home Theater Audio
Processor to a separate audio amplifi er. Two (2) additional connectors, both
speaker and RCA, are available for bi-amping the front-left and front-right
channels (see page 22 for details).

• This unit provides a maximum power output of 25 Watts per channel RMS.

• This product supports the following audio formats:

LPCM (up to 6 channels)
Dolby Digital (AC-3 up to 6 channels)
Dolby Pro Logic
Dolby Pro Logic II

2

FEATURES

Supported HDMI 1.3 Features

• 225 MHz (up to 12-bit YUV 4:4:4 @ 1080p)

• Deep Color support (x.v.Color)

• Lip-Sync pass-through

• CEC pass-through

Features

• Separates digital audio from the HDMI or of S/PDIF inputs and decodes up
to 5.1 channels of digital audio

• Splits one HDMI input source into 2 mirrored HDMI outputs

• Supported audio formats:
Dolby Digital, Dolby Pro Logic, and Dolby Pro Logic II decoding

• Test tone for system diagnostics

• Outputs line-level analog audio up to 5.1 channels using RCA connectors

• Outputs amplifi ed analog audio at 25 Watts per channel RMS on external
speaker terminals

• LCD status display for full selection menu

• IR control

• RS-232 control

• Field-upgradable fi rmware

• External / Internal EDID management

• Small in size

• This product is HDMI and HDCP-compliant

Package Includes

(1) GefenTV Home Theater Audio Processor
(1) 6 ft. HDMI cable (M-M)
(1) 6 ft. S/PDIF cable
(1) IR remote control (battery included)
(1) 24V DC Power Supply
(1) User Manual

3

PANEL LAYOUT

Front

1

117891054326

12

Back

22 21 20

1917

1816151413

4

PANEL DESCRIPTIONS

1 Power Status LED Indicator

This LED will indicate the current power state. When the LED is red, the unit is
in standby mode. When the LED is green, the unit is on.

2 Infrared Sensor

This infrared sensor will accept commands from the included GTV-AUD-IR
remote control. This sensor requires line-of-sight between the unit and remote
for proper operation.

3 Mute / Right Button

This button will cycle between Mute-On and Mute-Off modes when not in the
Menu System. When the Mute-On mode is enabled, all audio output will be
ceased. While in the Menu System this button will cycle through available
options in the right direction when a feature has been selected for adjustment.

4 Input / Left Button

This button will toggle between the HDMI and Coaxial audio input sources
when not in the Menu System. When the HDMI source is selected, audio will
be extracted from the embedded audio within the incoming HDMI signal. When
the Coaxial source is selected, audio will be extracted from the incoming audio
source connected to the Coaxial (S/PDIF) input port. While in the Menu System
this button will cycle through available options in the left direction when a feature
has been selected for adjustment.

5 Volume Decrease / Down Button

This button is used to decrease the volume level of the audio outputs when
not in the Menu System. While in the Menu System this button will cycle down
through the current level’s options.

6 Volume Increase / Up Button

This button is used to increase the volume level of the audio outputs when not
in the Menu System. While in the Menu System this button will cycle up through
the current level’s options.

7 Main LCD Display

This display will show pertinent status information and will be used to make
adjustments to features in the Menu System.

8 Menu Button

This button will activate the Menu System which is where all adjustment and
settings will be made.

5

PANEL DESCRIPTIONS

9 Mode / OK Button

This button will change the Processing Mode when not in the Menu System.
While in the Menu System this will be used as a confi rmation button.

10 Exit Button

This button is used to exit the current menu level and return to the previous/
parent level. This button will exit the entire Menu System when on the top most
level.

11 Power Button

This button will toggle between the ON and STANDBY power states. An LED
status indicator will signify the current power state. A RED LED will be active
when the unit is in Standby power state. A GREEN LED will be active when the
unit is in the ON power state.

12 Front Right and Front Left Speaker Terminals

These are 5-way binding post type terminals. They will accept spade lug,
banana plug, dual banana plug, bare wire, and pin style connections. 4 pairs of
positive and negative terminals are available. 2 pairs are for front right and front
left speakers. An additional 2 pairs are also available for bi-amping the front right
and front left speakers.

13 Center, Surround Right, and Surround Left Speaker T erminals

These are 5-way binding post type terminals. They will accept spade lug,
banana plug, dual banana plug, bare wire, and pin style connections. 3 pairs of
positive and negative terminals are available. 2 each for the center, surround
right, and surround left speakers.

14 RS-232 Serial Communications Port

This port is used to control functions and features using serial communications.
For more information on this feature please see page 23.

15 Analog Audio RCA Outputs

8 RCA type audio outputs are available for connection to a separate amplifi er.
Up to 6 discrete channels can be utilized. 2 RCA audio output connectors are
available for front channel bi-amping purposes. Please see page 22 for more
information.

16 Coaxial (S/PDIF) Audio Output

This output is constantly active. Audio that is extracted from the input HDMI
source device or via the coaxial input is directly output through this connector.
Processing and features of the Home Theater Audio Processor are not applied
to the audio passing through this connector.

6

PANEL DESCRIPTIONS

17 Optical (TOSLINK) Audio Output

This output is constantly active. Audio that is extracted from the input HDMI
source device or via the coaxial input is directly output through this connector.
Processing and features of the Home Theater Audio Processor are not applied
to the audio passing through this connector.

18 Coaxial (S/PDIF) Audio Input

A coaxial audio source can be connected and used as the main audio input
source if desired. Please be aware of the limitations of audio types and quality
which can be transported over this connector type.

19 24V DC Power Receptacle

This 24V DC power supply included with the unit connects to this receptacle.
Please only use the power supply that is included with this product.

20 HDMI Input Port

This input will accept a single HDMI source device. Audio in the source’s signal
will be extracted and processed. This input will be replicated and output through
the HDMI 1 & 2 ports. Audio from this source can be bypassed by using the
audio from the coaxial input connector.

21 HDMI Output Port 1

This output will accept a single HDMI output device. The HDMI input source will
be replicated and output through this port and the HDMI output port 2.

22 HDMI Output Port 2

This output will accept a single HDMI output device. The HDMI input source will
be replicated and output through this port and the HDMI output port 1.

7

CONNECTING THE

HOME THEATER AUDIO PROCESSOR

How to Connect the Home Theater Audio Processor

1. Connect an HDMI source device to the HDMI input port of the Home Theater
Audio Processor using the included HDMI cable.

2. Optionally, connect an additional audio source to the coaxial (S/PDIF) input
using a user supplied coaxial cable.

3. Connect up to 6 speakers to the speaker terminals on the back panel of
the Home Theater Audio Processor. The following connection terminals are
available:

• Front Left

• Front Left (for bi-amping)

• Front RIght

• Front Right (for bi-amping)

• Center

• Left Surround

• Right Surround

4. Connect the Digital Audio Decoder to an amplifi er using the RCA connectors
on the rear panel. The following RCA connectors are available:

• Front Left

• Front Left (for bi-amping)

• Front RIght

• Front Right (for bi-amping)

• Center

• Left Surround

• Right Surround

• Subwoofer

5. Connect up to two HDMI output devices to the HDMI outputs using user
supplied HDMI cables. If only using a single HDMI device, connect this
device to the HDMI Output 1 port. These outputs will be mirrored.

6. Optionally, audio can also be output using the coaxial (S/PDIF) and optical
(TOSLINK) connectors. These outputs will not have any processing applied
to them.

7. External control can be accomplished using the RS-232 serial
communications port. More information on the use of this connector can be
found on page 23.

8. Connect the included 24V DC power supply to the power receptacle on the
Home Theater Audio Processor. Connect the wall plug into an empty wall
power socket.

8

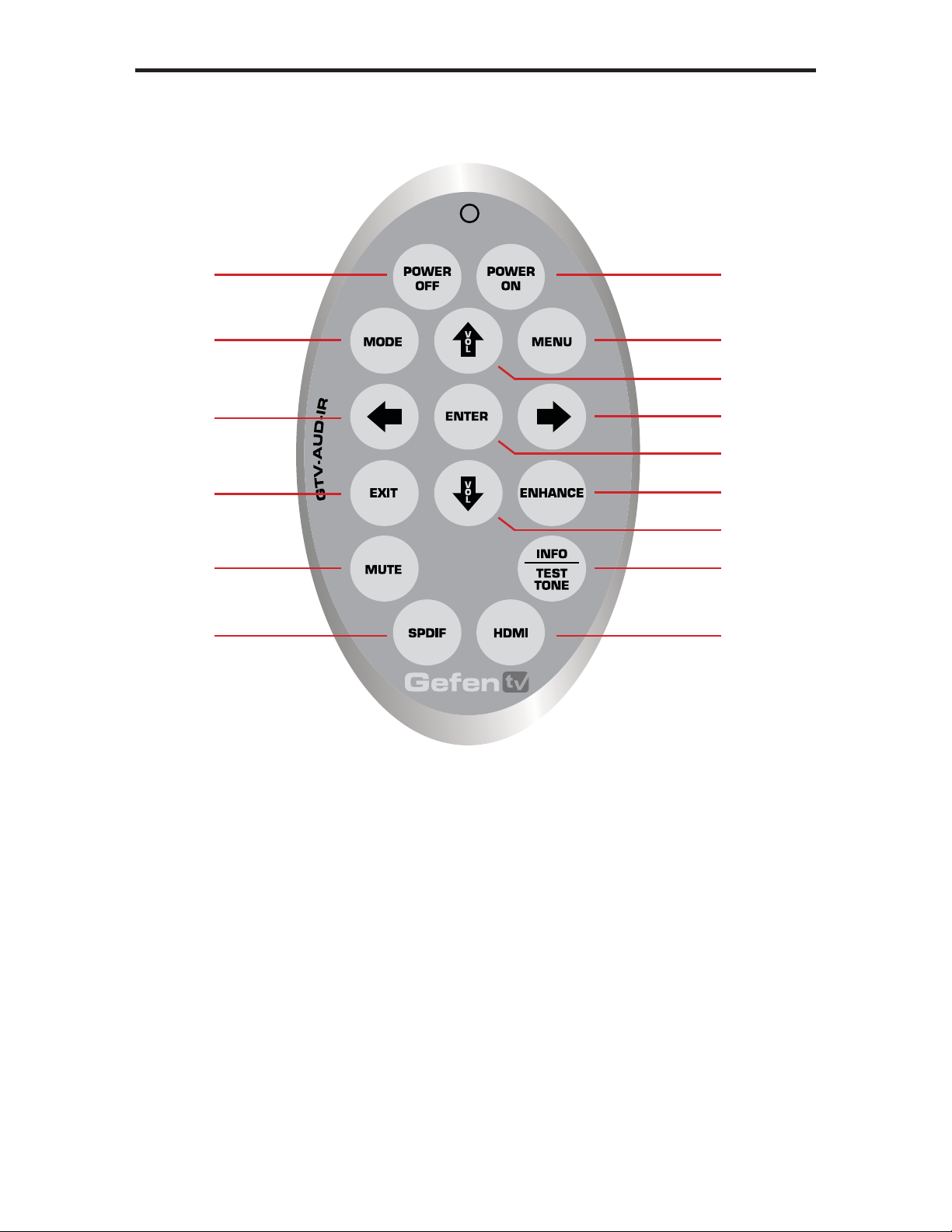

GTV-AUD-IR REMOTE LAYOUT

Home Theatre Audio Processor Remote Control

1

2

3

4

5

6

15

14
13
12
11
10
9
8

7

9

GTV-AUD-IR REMOTE DESCRIPTIONS

1 Power Off

This is a discrete power off button. Pressing this button will turn the Home
Theater Audio Processor off.

2 Mode

This button functions the same as the Mode button on the front panel.

3 Left

This button will navigate left when using the Menu System.

4 Exit

This button functions the same as the Exit button on the front panel.

5 Mute

This button cycle between mute on and mute off modes. When mute is applied
there will not be any audio output.

6 S/PDIF

This is a discrete button that will select the S/PDIF audio input source.

7 HDMI

This is a discrete button that will select the HDMI audio input source.

8 Info/Test Tone

This button will display a series of information messages on the LCD screen
when pressed. When adjusting the Speaker Level, this button will activate a test
tone that is useful for adjusting the volume level of each speaker.

9 Volume Down

This button will navigate down through options when using the Menu System
and will increase the volume when not in the Menu System.

10 Enhance

This button will cycle through the various enhancement modes. For a full
description of these modes please see page 18.

11 Enter

This button will confi rm options and changes made in the Menu System.

12 Right

This button will navigate right when using the Menu System.

13 Volume Up

This button will navigate up through options when using the Menu System and
will increase the volume when not in the Menu System.

14 Power On

This is a discrete power on button. Pressing this button will turn the Home
Theater Audio Processor on.

15 Menu

This button functions the same as the Menu button on the front panel.

10

GTV-AUD-IR REMOTE INSTALLATION

To use the GTV-AUD-IR remote, remove the battery cover on the back of the remote
to reveal the battery compartment. Insert the included battery into the open battery
slot. The positive (+) side should be facing up. Ensure that both DIP (Dual Inline
Package) switches are in the OFF position. Replace the battery cover. The remote
ships with 2 batteries. One battery is needed for operation and the other battery is
complimentary.

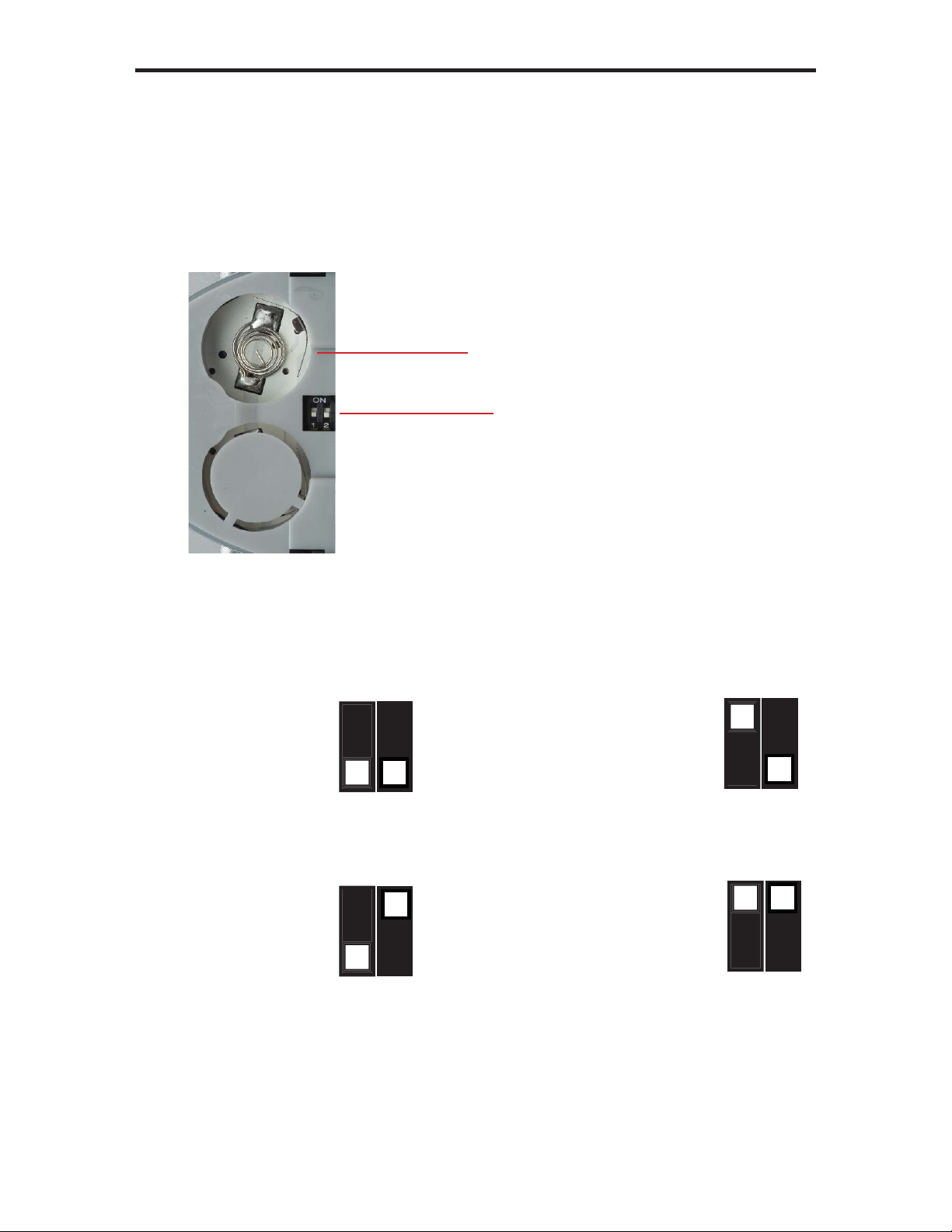

Empty Battery Slot

Dip Switches

The DIP Switches above are used to set the IR Channel. Changing channels will
alleviate issues that may occur if the unit or remote control responds or interferes
with other non-Gefen equipment. This setting must match the IR Channel setting on
the unit. Please see page 18 for setting up the IR Channel on the unit.

Remote Channel 1:

12

Remote Channel 3:

12

Remote Channel 2:

12

Remote Channel 4:

12

11

OPERATING THE HOME THEATER AUDIO PROCESSOR

NAVIGATION

The Home Theater Audio Processor uses a series of buttons, located on the front
panel, for all input selection and feature functions. All status information, such as

the input audio type, are always available on the front panel LCD Screen. User

adjustable features, such as speaker distance and processing modes, can be

navigated and adjusted by referencing the LCD Screen.

All menu navigation and adjustments are accomplished by using the front panel
buttons or the included GTV-AUD-IR remote control. Please review the front
panel buttons below.

For a full description of each of these buttons please see the descriptions on
page 5.

LCD SCREEN

The LCD Screen displays status information and can also be used to navigate

and adjust functions when using the Menu System. This display is a high contrast
2-line/16-character LCD. It will display information like in the example below.

12

OPERATING THE HOME THEATER AUDIO PROCESSOR

MAIN DISPLAY

The Main Screen will display useful information to the user. It displays the

currently selected input port and audio input format. The currently used output
format can also be displayed by pressing the ▼ button. Pressing the ◄ or ►

buttons while on this screen will have no effect. Please see below for the Main
Screen layout.

1 2

3 4

1 This section will display the currently selected audio input source.

2 This section will display the current volume level. The range is from -60dB to

+10dB

3 The section will display the current input audio format. This unit will support

LPCM (2-6) channels) and Dolby Digital (AC-3 up to 6 channels).

4 This section will display the current processing mode. Supported modes are

Direct, Stereo, Multi Channel Stereo, Mono, and Dolby Pro Logic II.

1 - INPUT SOURCE

This portion of the screen will display the currently selected input. The available
inputs and their labels are listed below:

LCD Display

Name

HDMI HDMI In Rear Panel

SPDIF (default) Coax In Rear Panel

To switch between audio input sources, use the front panel button labeled INPUT.
The IR remote control has discrete switching functions. To select the source
connected to the “Coax In” port, press the SPDIF button. To select the source
connected to the “HDMI In” port, press the HDMI button.

Actual Input Location

2 - VOLUME INDICATOR

This portion of the screen will display the current volume level. Volume control is
based on reference levels. 0.0dB on this unit is approximately 85dB (reference
level for dialog recorded in studios) with peaks of up to 105dB.

The maximum volume setting is +10dB. The minimum volume level is -60dB.

The default value is -30dB.

13

OPERATING THE HOME THEATER AUDIO PROCESSOR

3 - AUDIO FORMAT

This portion of the screen will display the current audio inputs format. Please use
the table below to determine what formats are accepted by each input type.

Input Supported Audio Formats Supported Channels

LPCM 6

HDMI

Coaxial

Dolby Digital 6

Dolby Pro Logic II 6

LPCM 2

Dolby Digital 6

Dolby Pro Logic II 6

4 - PROCESSING MODE

This portion of the screen will display the currently used processing mode.
Multiple processing modes are provided to enhance the audio experience.

The following processing modes are available:

• Direct - This mode will playback audio without any processing (default).

• Stereo - This mode will playback all audio at 2 channels. Multiple channel
audio will be down-mixed appropriately.

• Multi Channel Stereo - The front right and left channels will be mixed and
also played back through the center channel speaker. This mode is only
available when using stereo sources. If this mode is selected and a multi­channel source is detected, the mode will automatically switch to Direct
mode.

• Mono - Audio from the front right channel will be played through both the
front right and front left speakers. If a center channel speaker is available,
the front right and front left channels will be played as normal but the center
will play a mix of the two audio channels.

• Dolby Pro Logic II - Dolby Pro Logic II processes any high quality stereo
signal source into fi ve separate full frequency channels. Dolby Pro Logic II
also decodes 5 channels from stereo signals encoded in traditional four­channel Dolby Surround or fi ve-channel Dolby Pro Logic II. This mode is
only available when using stereo sources. If this mode is selected and a
multi-channel source is detected, the mode will automatically switch to Direct
mode.

Note: Not all processing modes will be available for all input audio types. For

additional information on how which modes will affect various speaker setups and
audio formats, please see page 20.

14

OPERATING THE HOME THEATER AUDIO PROCESSOR

MENU SYSTEM

NAVIGATION

The Menu System will allow the user to confi gure features of the Home Theater
Audio Processor. The front panel buttons are used to navigate the Menu
System. Feature confi guration can also be accomplished via the IR remote

control.

To enter the Menu System, press the MENU button located on the front panel.
The Main Menu will become available, The following menu options are available:

• Speaker Size

This option will set the speaker size. The size of the speaker will determine
how lower frequency material is handled by each speaker.

• Speaker Level

This option will allow the user to adjust the volume for each individual
speaker. The adjustment is designed to set each speaker’s volume for
equalizing the sound at the listening position.

• Speaker Distance

This option will allow the user to adjust the distance value for each individual
speaker. The level adjustment will set delays necessary to create the proper
audio soundstage.

• Tone Control

This option will allow the user to adjust the bass and treble levels.

• Audio Setup

This option will allow the user to adjust the favorite processing and
enhancement modes.

• Misc Setup

This option will allow the user to adjust the distance unit, EDID source, TV
System, and factory default reset.

• Exit

This option will return the user to the Main Display screen.

Use the ▼ and ▲ buttons on the front panel to cycle between the options. To
select a menu option and proceed to it’s submenu, press the OK button.

15

OPERATING THE HOME THEATER AUDIO PROCESSOR

SPEAKER SIZE

This menu option will allow the user to select the speaker size to either SMALL
or LARGE. When a speaker size is set to SMALL, all frequencies below 80Hz
are automatically routed to the subwoofer channel. When a speaker size is set to
LARGE, all frequencies will be routed to the speaker.

All speakers except the front left and right channels have an option to disable the
use of that channel. If the center, rear surround, or subwoofer channels are not
going to be used these speakers should be set to the OFF setting. Source audio
that uses these channels will be properly mixed to the other available speakers.

Use the ▼ and ▲ buttons on the front panel to select the desired speaker output.
The following selections are available:

• Front L/R - These settings will affect the front left and right channel outputs
(default is SMALL).

• Center - These settings will affect the center channel outputs (default is
SMALL).

• Surr L/R - These settings will affect the surround left and right channel
outputs (default is SMALL).

• SUB - This should be set according to the use of a subwoofer (default is
ONSUB).

Use the ◄ and ► buttons on the front panel to change options for the selected
speaker.

When fi nished, press the ▼ or ▲ to move to another selection. Alternatively, the
user can press the OK button to immediately cycle to the next option.

To return to the previous menu, press the EXIT button. To exit the entire Menu
System, press the MENU button.

SPEAKER LEVEL

This menu option will allow the user to increase or decrease the volume of a
particular speaker. This feature is useful for equalizing the sound at the listening
position. By default, each speaker’s output is set at 00dB. The output can be
adjusted in 1dB increments between -10dB and +10dB.

Once a speaker is selected for adjustment, the INFO/TEST TONE button on the
IR remote control can be used to activate a test tone which will be heard through
the selected speaker output.

Use the ▼ and ▲ buttons on the front panel to select the desired speaker output.
The following selections are available:

• Front L - These settings will affect the front left channel output (default is
+00dB).

• Center - These settings will affect the center channel output (default is
+00dB).

16

OPERATING THE HOME THEATER AUDIO PROCESSOR

• Front R - These settings will affect the front right channel output (default is
+00dB).

• Surr R - These settings will affect the surround right channel output (default
is +00dB).

• Surr L - These settings will affect the surround left channel output (default is
+00dB).

• Sub - These settings will affect the subwoofer channel output (default is
+00dB).

Use the ◄ and ► buttons on the front panel to change options for the selected
speaker.

When fi nished, press the ▼ or ▲ to move to another selection. Alternately, the
user can press the OK button to immediately cycle to the next option.

To return to the previous menu, press the EXIT button. To exit the entire Menu
System, press the MENU button.

SPEAKER DISTANCE

This menu option will allow the user to set the distance of each speaker. This
feature is necessary for providing the proper audio delay when using the various
processing modes.

The distance unit can be viewed in either feet or meters. This option is set in the
Miscellaneous Setup menu. The distance for each speaker can be set in 1.5 feet
(0.5 meter) increments between 0 feet (0 meters) to 33 feet (10 meters).

Use the ▼ and ▲ buttons on the front panel to select the desired speaker output.
The following selections are available:

• Front L - These settings will affect the front left channel (default is 3.0m).

• Center - These settings will affect the center channel (default is 2.0m).

• Front R - These settings will affect the front right channel (default is 3.0m).

• Surr R - These settings will affect the surround right channel (default is

2.0m).

• Surr L - These settings will affect the surround left channel (default is 2.0m).

• Sub - These settings will affect the subwoofer channel (default is 3.0m).

Use the ◄ and ► buttons on the front panel to change options for the selected
speaker.

When fi nished, press the ▼ or ▲ to move to another selection. Alternately, the
user can press the OK button to immediately cycle to the next option.

To return to the previous menu, press the EXIT button. To exit the entire Menu
System, press the MENU button.

17

OPERATING THE HOME THEATER AUDIO PROCESSOR

TONE CONTROL

This menu option will allow the user to adjust the bass and treble settings. These
features were designed to allow the user to adjust the sound to their taste.

Both the treble and bass settings can be adjusted in 1db increments between

-12dB and +12dB .

Use the ▼ and ▲ buttons on the front panel to select either the treble or bass
option (default for both options are +00dB).

Use the ◄ and ► buttons on the front panel to change settings for the selected
option.

When fi nished, press the ▼ or ▲ to move to another selection. Alternately, the
user can press the OK button to immediately cycle to the next option.

To return to the previous menu, press the EXIT button. To exit the entire Menu
System, press the MENU button.

AUDIO SETUP

This menu option will allow the user to set favorite processing modes for both the
S/PDIF and HDMI inputs. Additionally, audio enhancement modes can also be
set in this menu option. The following features are available in this menu system:

• SPDIF FAV PROC - This feature is used to set the default processing mode
for the S/PDIF input. Selectable processing modes can be found on page
14 (default is DIRECT).

• HDMI FAV PROC - This feature is used to set the default processing mode
for the HDMI input. Selectable processing modes can be found on page 14
(default is DIRECT).

• DRC - This feature will apply compression of loud sounds over a certain
threshold while quiet sounds remain untreated (default is OFF).

• ENHA. - This feature is used to set an enhancement mode. The following
enhancement modes are available (default is OFF):

1. Night+ Mode - This mode can be used to watch dynamic content at low

volume levels. This works by increasing the volume of quiet passages,
while decreasing the volume of load passages.

2. Voice+ Mode - This mode will isolate and enhance dialog for clearer

sounding vocals.

3. Volume+ Mode - This mode will equalize the volume level when listening

to a source that has large variation in volume level. (i.e. Television
broadcast and advertisement volume differences.)

Use the ▼ and ▲ buttons on the front panel to select the desired option.

Use the ◄ and ► buttons on the front panel to change the setting or the selected
option.

18

OPERATING THE HOME THEATER AUDIO PROCESSOR

When fi nished, press the ▼ or ▲ to move to another selection. Alternately, the
user can press the OK button to immediately cycle to the next option.

To return to the previous menu, press the EXIT button. To exit the entire Menu
System, press the MENU button.

MISCELLANEOUS SETUP

This menu option will allow the user to set miscellaneous settings. The following
options are in the menu:

• DIST. UNIT - This will set the unit of measurement when using the
Speaker Distance option. The user can use either Feet or Meters as the
measurement unit (default is METER).

• EDID ADJ. - This will control the location and type of EDID which will be
used to send to the HDMI source device. The following options are available:

• INT - This option will use an internal EDID which will list all of the

supported audio and video formats that can be used with the Home
Theater Audio Processor.

• EXT - This option will use the EDID from the HDMI device connected to

HDMI output 1.

• MIX - This option will take video capabilities form the EDID of the

display connected to the display on HDMI input 1 and the audio
capabilities from the EDID of the Home Theater Audio Processor (this is
the default mode).

• IR CHANNEL - This will set the IR channel that is used with the included
remote control. This setting must correspond with the setting on the IR
remote control. Please see page 11 for information on setting the IR channel
on the remote control.

• 1 - The unit will use IR channel 1 (this is the default setting)

• 2 - The unit will use IR channel 2

• 3 - The unit will use IR channel 3

• 4 - The unit will use IR channel 4

• DEFAULT - This will return the Home Theater Audio Processor to its factory
default settings.

Use the ▼ and ▲ buttons on the front panel to select the desired option.

Use the ◄ and ► buttons on the front panel to change the setting or the selected
option.

When fi nished, press the ▼ or ▲ to move to another selection. Alternately, the
user can press the OK button to immediately cycle to the next option.

To return to the previous menu, press the EXIT button. To exit the entire Menu
System, press the MENU button.

19

PCM2ch /

Dolby_2ch

SPEAKER FORMAT TABLE

SPEAKER AND FORMAT TABLE

Speaker Size FavProcMode

FL_R CT SL_R SUB SL_R PLII(1) Direct(2) Stereo(3)

Small Small onsub Small 5.1ch 2.1ch 2.1ch 5.1ch 1.1ch

Small Large onsub Large 5.1ch 2.1ch 2.1ch 5.1ch 1.1ch

Large Small onsub Small 5.1ch 2.1ch 2.1ch 5.1ch 1.1ch

Large Large onsub Large 5.1ch 2.1ch 2.1ch 5.1ch 1.1ch

Small

off Small onsub Small 4.1ch 2.1ch 2.1ch 4.1ch 2.1ch

off Large onsub Large 4.1ch 2.1ch 2.1ch 4.1ch 2.1ch

Small off onsub off — 2.1ch 2.1ch 3.1ch 1.1ch

Large off onsub off — 2.1ch 2.1ch 3.1ch 1.1ch

Mch

Stereo(4)

Mono(5)

PCM2ch /

Dolby_2ch

off off onsub off — 2.1ch 2.1ch 2.1ch 2.1ch

Small Small onsub Small 5.1ch 2ch 2ch 5.1ch 1.1ch

Small Large onsub Large 5.1ch 2ch 2ch 5.1ch 1.1ch

Large Small onsub Small 5.1ch 2ch 2ch 5.1ch 1.1ch

Large Large onsub Large 5ch 2ch 2ch 5ch 1.1ch

off Small onsub Small 4.1ch 2ch 2ch 4.1ch 2.1ch

off Large onsub Large 4ch 2ch 2ch 4ch 2.1ch

Small off onsub off — 2ch 2ch 3.1ch 1.1ch

Large off onsub off — 2ch 2ch 3ch 1.1ch

off off onsub off — 2ch 2ch 2ch 2.1ch

Large

Small Small none Small 5ch 2ch 2ch 5ch 1.0ch

Small Large none Large 5ch 2ch 2ch 5ch 1.0ch

Large Small none Small 5ch 2ch 2ch 5ch 1.0ch

Large Large none Large 5ch 2ch 2ch 5ch 1.0ch

off Small none Small 4ch 2ch 2ch 4ch 2ch

off Large none Large 4ch 2ch 2ch 4ch 2ch

Small off none off — 2ch 2ch 3ch 1.0ch

Large off none off — 2ch 2ch 3ch 1.0ch

off off none off — 2ch 2ch 2ch 2ch

20

PCM5.1ch /

AC3_5.1ch

SPEAKER FORMAT TABLE

SPEAKER AND FORMAT TABLE

Speaker Size FavProcMode

FL_R CT SL_R SUB SL_R PLII(1) Direct(2) Stereo(3)

Small Small onsub Small — 5.1ch 2.1ch 5.1ch 1.1ch

Small Large onsub Large — 5.1ch 2.1ch 5.1ch 1.1ch

Large Small onsub Small — 5.1ch 2.1ch 5.1ch 1.1ch

Large Large onsub Large — 5.1ch 2.1ch 5.1ch 1.1ch

Small

off Small onsub Small — 4.1ch 2.1ch 4.1ch 2.1ch

off Large onsub Large — 4.1ch 2.1ch 4.1ch 2.1ch

Small off onsub off — 3.1ch 2.1ch 3.1ch 1.1ch

Large off onsub off — 3.1ch 2.1ch 3.1ch 1.1ch

Mch

Stereo(4)

Mono(5)

PCM5.1ch /

AC3_5.1ch

off off onsub off — 2.1ch 2.1ch 2.1ch 2.1ch

Small Small onsub Small — 5.1ch 2.1ch 5.1ch 1.1ch

Small Large onsub Large — 5.1ch 2.1ch 5.1ch 1.1ch

Large Small onsub Small — 5.1ch 2.1ch 5.1ch 1.1ch

Large Large onsub Large — 5.1ch 2.1ch 5.1ch 1.1ch

off Small onsub Small — 4.1ch 2.1ch 4.1ch 2.1ch

off Large onsub Large — 4.1ch 2.1ch 4.1ch 2.1ch

Small off onsub off — 3.1ch 2.1ch 3.1ch 1.1ch

Large off onsub off — 3.1ch 2.1ch 3.1ch 1.1ch

off off onsub off — 2.1ch 2.1ch 2.1ch 2.1ch

Large

Small Small none Small — 5ch 2ch 5ch 1.0ch

Small Large none Large — 5ch 2ch 5ch 1.0ch

Large Small none Small — 5ch 2ch 5ch 1.0ch

Large Large none Large — 5ch 2ch 5ch 1.0ch

off Small none Small — 4ch 2ch 4ch 2ch

off Large none Large — 4ch 2ch 4ch 2ch

Small off none off — 3ch 2ch 3ch 1.0ch

Large off none off — 3ch 2ch 3ch 1.0ch

off off none off — 2ch 2ch 2ch 2ch

21

BI-AMPING

BI-AMPING

The Home Theater Audio Processor features 2 additional outputs, both speaker
terminals and RCA outputs, for bi-amping the front right and left audio channels.
These outputs were intended to supply an additional set of front right and left
audio channels for use with an amplifi er or bi-ampable speaker. Please refer to
your amplifi er and speaker manual for proper bi-amping connection procedures.

22

RS-232 SERIAL CONTROL INTERFACE

54321

9876

Only Pins 2 (RX), 3 (TX), and 5 (Ground) are used on the RS-232 serial interface

RS-232 Settings

Bits per second ................................................................................................. 19200

Data bits .................................................................................................................... 8

Parity .................................................................................................................. None

Stop bits .....................................................................................................................1

Flow Control ....................................................................................................... None

12345

6789

23

RS-232 COMMANDS

RS-232 Command Table

Command Code Response Description

POWER 0 > POWER OFF POWER OFF

POWER 1 > POWER ON POWER ON

VOL +10~-60 > VOL +10~-60

VOL + > VOL +10~-60 Increase audio by 1

VOL - > VOL +10~-60 Decrease audio by 1

MODE 0 > PL II

MODE 1 > DIRECT

MODE 2 > STEREO Audio FAV PROC setup to STEREO mode

MODE 3 > MCH Audio FAV PROC setup to MCH mode

MODE 4 > MONO Audio FAV PROC setup to MONO mode

ENHA 0 > ENHA NIGHT+ Audio ENHANCE effect NIGHT+

ENHA 1 > ENHA VOICE+ Audio ENHANCE effect VOICE+

ENHA 2 > ENHA VOLUME+ Audio ENHANCE effect VOLUME+

ENHA 3 > ENHA OFF Audio ENHANCE effect OFF [Default:OFF]

TESTN 0 > NOISE FL

TESTN 1 > NOISE CT

Audio volume adjust from maximum to
minimum

Audio FAV PROC setup to Dolby Pro Logic
II mode

Audio FAV PROC setup to DIRECT mode
[Default:DIRECT]

Generate pink noise for adjusting the Front
Left speaker Audio volume

Generate pink noise for adjusting the
Center speaker Audio volume

TESTN 2 > NOISE FR

TESTN 3 > NOISE SR

TESTN 4 > NOISE SL

TESTN 5 > NOISE SUB

MUTE 0 > MUTE OFF Audio MUTE OFF [Default:OFF]

MUTE 1 > MUTE ON Audio MUTE ON

INPUT 0 > INPUT SPDIF Audio input switch to SPDIF mode

INPUT 1 > INPUT HDMI Audio input switch to HDMI mode

FIRMWARE ? > FIRMWARE 1.XX Show fi rmware version format is 1.XX

Generate pink noise for adjusting the Front
Right speaker Audio volume

Generate pink noise for adjusting the
Surround Right speaker Audio volume

Generate pink noise for adjusting the
Surround Left speaker Audio volume

Generate pink noise for adjusting the
Subwoofer speaker Audio volume

24

RS-232 COMMANDS

Command Code Response Description

SIZEFLR 0 OK Front speaker Small

SIZEFLR 0 OK Front speaker Large

SIZEC 0 OK Center speaker Small

SIZEC 1 OK Center speaker Large

SIZEC 2 OK Center speaker Off

SIZELR 0 OK Surround speaker Small

SIZELR 1 OK Surround speaker Large

SIZELR 2 OK Surround speaker Off

SUB 0 OK Subwoofer Off

SUB 1 OK Subwoofer On

Audio Information

1: Source
2: Audio Type
3: Number of channels
4: Sampling Rate

INFO ? > 1 2 3 4 5 6 7 8 9 10 11

5: Volume
6: Mute Status (ON / OFF)
7: Enha (Night, Voice, Vol, Off)
8: FL (S / L / OFF)
9: C (S / L / OFF)
10: FR (S / L / OFF)
11: SUB (ON / OFF)

25

SPECIFICATIONS

Maximum Pixel Clock .............................................................................. 225 MHz

Input DDC Signal ................................................................................5V p-p (TTL)

Maximum Power Output .........................................................................25W RMS

Digital Audio Input ..................................................................... 1 x S/PDIF coaxial

HDMI Input ..................................................................... 1 x HDMI Female, 19-pin

HDMI Outputs .................................................................2 x HDMI Female, 19-pin

Digital Audio Output .................................................................. 1 x S/PDIF coaxial

Digital Audio Output ............................................................... 1 x TOSLINK optical

Speaker Outputs ................................................. 7 total (5 fi ve-way binding posts

+ 2 additional binding posts for Bi-Amp)

Analog Audio Outputs ........................................8 total (6 analog audio RCA jacks

+ 2 additional RCA jacks for Bi-Amp)

Supported Audio Formats:.................. Dolby Digital 5.1 (AC3), Dolby Pro Logic II,

LPCM up to 6 channels

Signal-to-Noise Ratio ................................ > 90dB (20 Hz - 20 kHz A-weight fi lter)

THD+N ............................................................. < 0.1% at 1 kHz at reference level

Frequency Response ................................................. < +/- 0.5 dB 20 Hz - 20 kHz

Power Supply .............................................................................................24V DC

Dimensions ....................................................................14.75” W x 2.5” H x 6.9” D

Shipping Weight .......................................................................................... 10 lbs.

26

WARRANTY

Gefen warrants the equipment it manufactures to be free from defects in material
and workmanship.

If equipment fails because of such defects and Gefen is notifi ed within two (2)
years from the date of shipment, Gefen will, at its option, repair or replace the
equipment, provided that the equipment has not been subjected to mechanical,
electrical, or other abuse or modifi cations. Equipment that fails under conditions
other than those covered will be repaired at the current price of parts and labor in
effect at the time of repair. Such repairs are warranted for ninety (90) days from
the day of reshipment to the Buyer.

This warranty is in lieu of all other warranties expressed or implied, including
without limitation, any implied warranty or merchantability or fi tness for any
particular purpose, all of which are expressly disclaimed.

1. Proof of sale may be required in order to claim warranty.

2. Customers outside the US are responsible for shipping charges to and from
Gefen.

3. Copper cables are limited to a 30 day warranty and cables must be in their
original condition.

The information in this manual has been carefully checked and is believed to
be accurate. However, Gefen assumes no responsibility for any inaccuracies
that may be contained in this manual. In no event will Gefen be liable for
direct, indirect, special, incidental, or consequential damages resulting from
any defect or omission in this manual, even if advised of the possibility of such
damages. The technical information contained herein regarding the features and
specifi cations is subject to change without notice.

For the latest warranty coverage information, refer to the Warranty and Return
Policy under the Support section of the Gefen Web site at www.gefen.com.

PRODUCT REGISTRATION

Please register your product online by visiting the Register Product page

under the Support section of the Gefen Web site.

27

Rev A5

20600 Nordhoff St., Chatsworth CA 91311

1-800-545-6900 818-772-9100 fax: [phone]

www.gefen.com [e-mail]

Pb

This product uses UL listed power supplies.
