Features and Packing List
Features
• Routes four Ultra Hi-Def sources to two Ultra HD displays
• Supports resolutions up to Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and
1080p Full HD
• Supports 12-bit Deep Color
• 3DTV pass-through
• Lip Sync pass-through
• Push button controls for Routing, FST Modes, Audio, and EDID management
• FST Technology speeds up HDCP authentication process
• Advanced EDID Management for rapid integration of sources and displays
• Supports LPCM 7.1, Dolby® TrueHD, and DTS-HD Master Audio™
• Supports the use of DVI sources and DVI displays with HDMI-to-DVI adapters (not
included)
• RS-232 Serial interface for remote control using a computer or automation control
system
• IP control via Telnet, UDP, and the built-in web server interface
• IR remote control
• Field-upgradeable rmware via Mini-USB and IP ports
• Locking Power Supply
• Surface-mountable
The 4K Ultra HD 4x2 Matrix for HDMI ships with the items listed below. If any of these
items are not present in your box when you rst open it, immediately contact your dealer or
Gefen.
• 1 x 4K Ultra HD 4x2 Matrix for HDMI
• 1 x IR Remote
• 1 x 5V DC Power Supply
• 1 x Quick-Start Guide
CINEMA
DCI, 4096 x 2160
Packing List
vii
3GSDI Audio Embedder4K Ultra HD 4x2 Matrix for HDMI
Table of Contents
01 Getting Started
Panel Layout ......................................................................................................... 2
IR Remote Control Unit ......................................................................................... 5
Front .............................................................................................................. 5
Back .............................................................................................................. 6
Installing the Battery ...................................................................................... 7
Setting the IR Channel .................................................................................. 7
Installation ............................................................................................................. 8
Connecting the 4K Ultra HD 4x2 Matrix for HDMI ......................................... 8
Sample Wiring Diagram ................................................................................ 8
02 Operating the
4K Ultra HD 4x2 Matrix for HDMI
Routing Basics .................................................................................................... 12
Determining the Current Routing State ....................................................... 12
Routing Inputs to Outputs ........................................................................... 13
Using the IR Remote Control ...................................................................... 14
Switching Modes ................................................................................................. 15
What is Fast Switching Technology? .......................................................... 15
Fast Mode vs Slow Mode ............................................................................ 15
Selecting the FST Mode .............................................................................. 15
Audio Modes ....................................................................................................... 16
Selecting the Audio Mode ........................................................................... 16
EDID Modes ........................................................................................................ 17
Available Modes .......................................................................................... 17
Selecting the EDID Mode ............................................................................ 17
03 Advanced Operation
RS-232 and IP Conguration .............................................................................. 22
RS-232 Interface ......................................................................................... 22
RS-232 Settings .......................................................................................... 22
IP / UDP Conguration ................................................................................ 23
Commands .......................................................................................................... 24
Conguration ............................................................................................... 24
IP / Telnet Conguration ............................................................................. 43
FST ............................................................................................................. 55
Masking ....................................................................................................... 58
Routing / Naming / +5V / Presets ................................................................ 60
Status .......................................................................................................... 67
Web Interface ...................................................................................................... 71
Using the built-in Web Server ..................................................................... 71

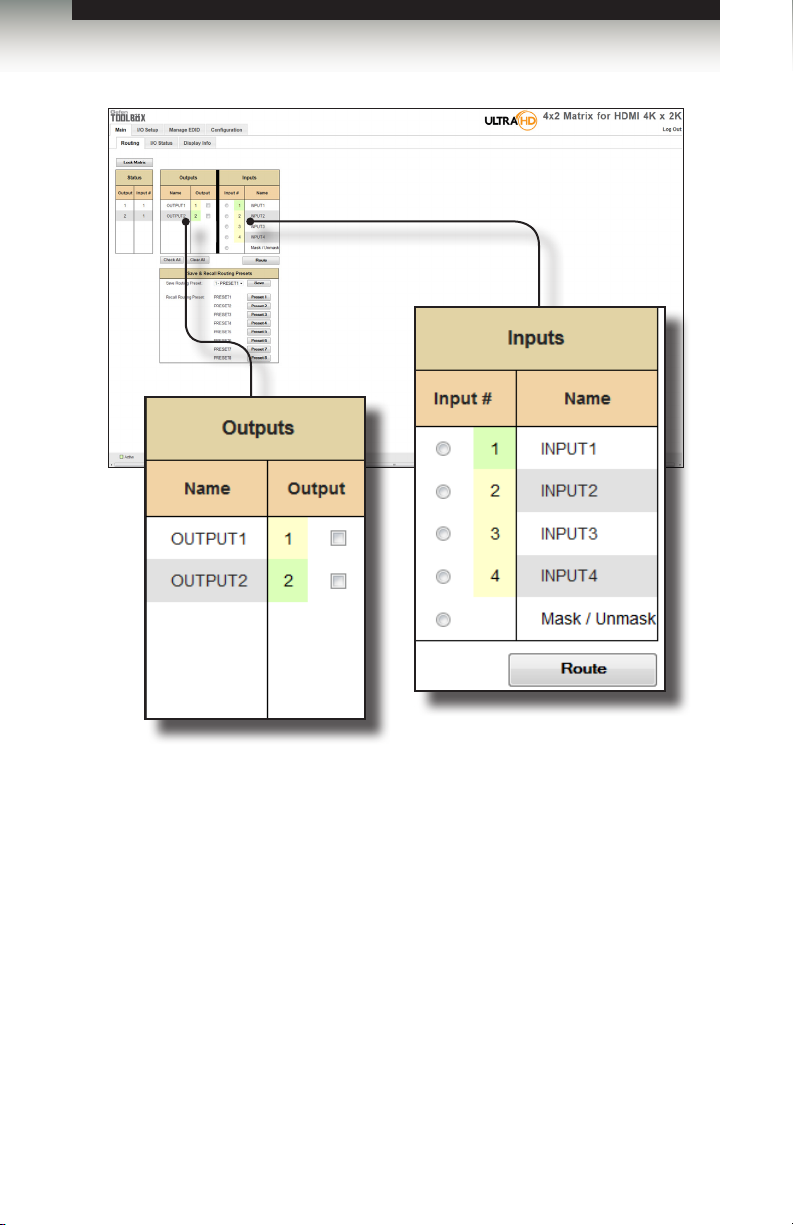

Main > Routing ............................................................................................ 72

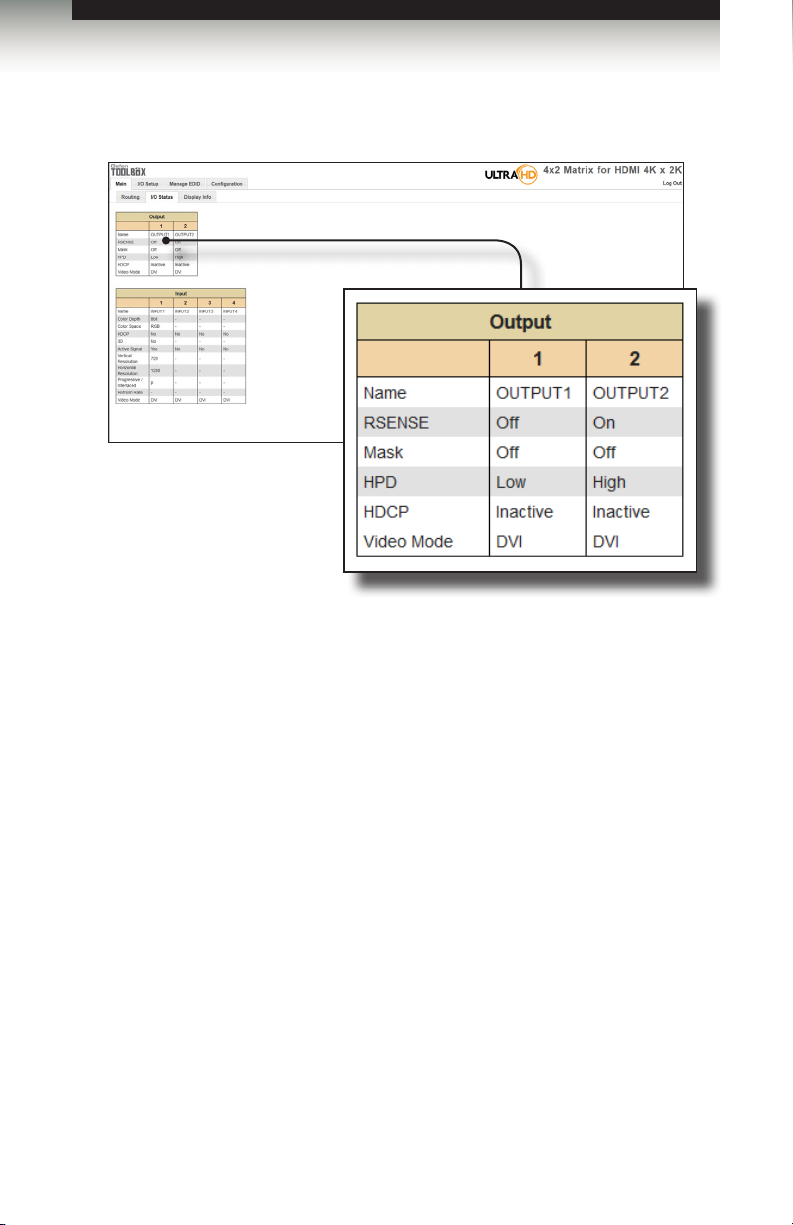

Main > I/O Status ........................................................................................ 75

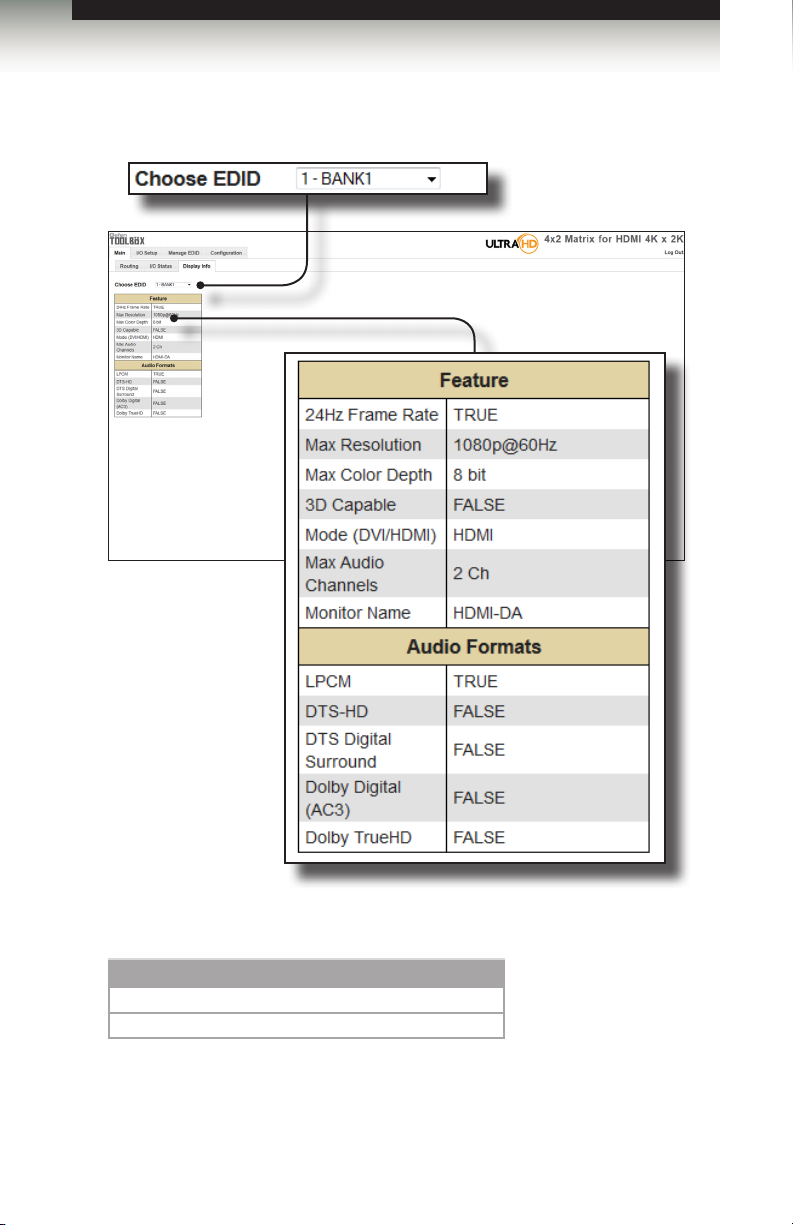

Main > Display Info...................................................................................... 77
viii
4K Ultra HD 4x2 Matrix for HDMI

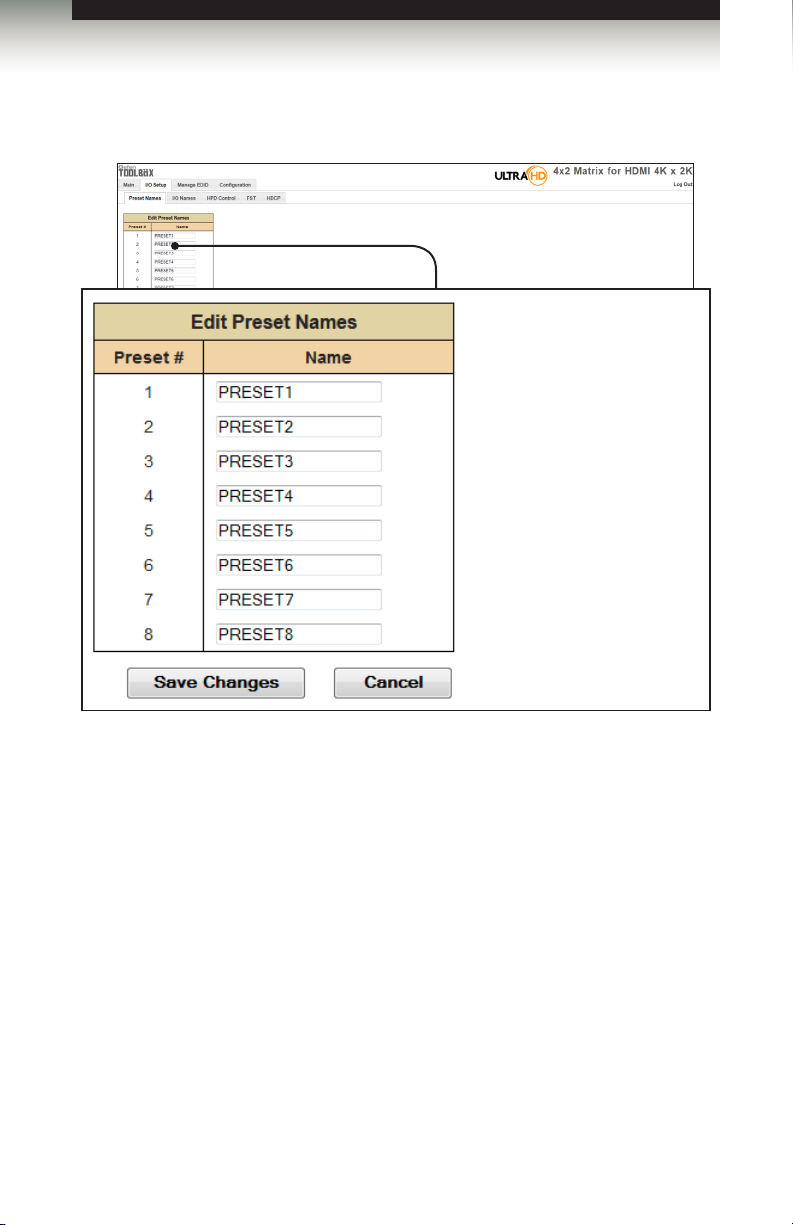

I/O Setup > Preset Names .......................................................................... 78

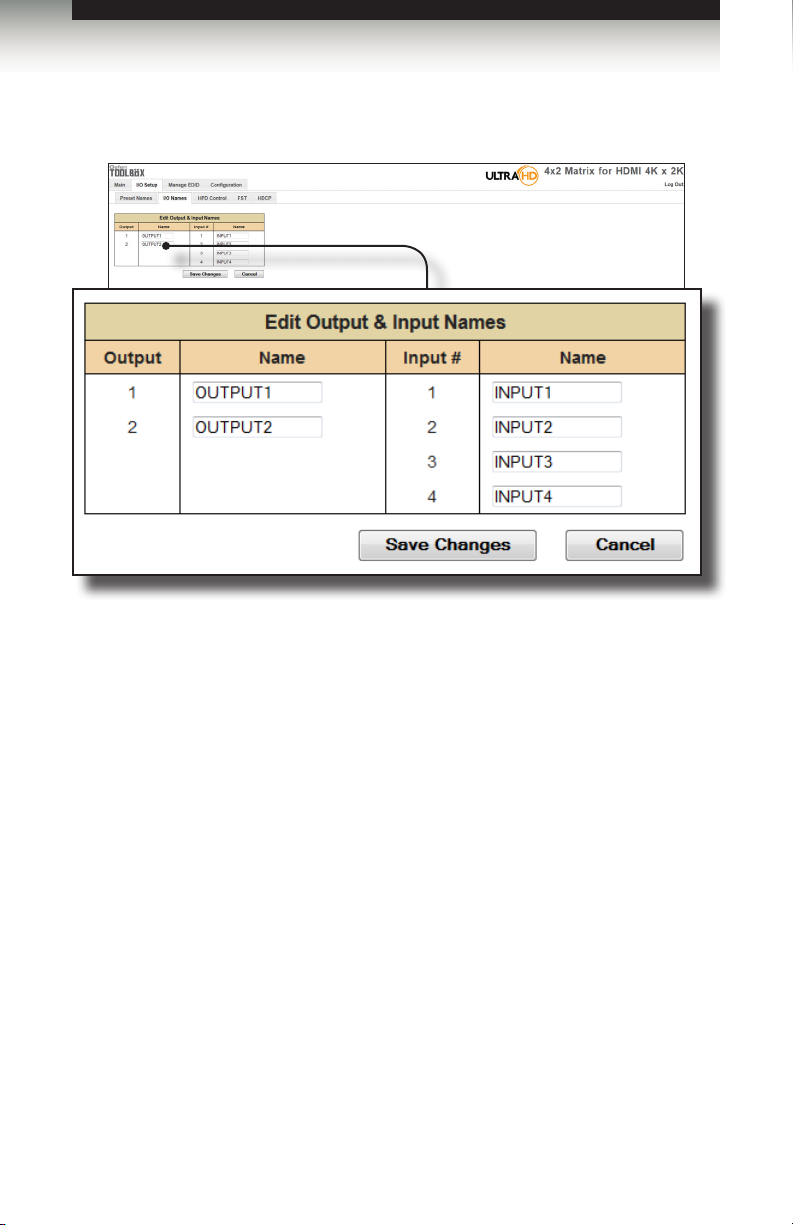

I/O Setup > I/O Names ................................................................................ 79
I/O Setup > HPD Control ............................................................................. 80
I/O Setup > FST .......................................................................................... 81
I/O Setup > HDCP ....................................................................................... 82
Manage EDID > Assign ............................................................................... 83
Manage EDID > Bank Names ..................................................................... 86
Manage EDID > Upload/Download ............................................................. 87

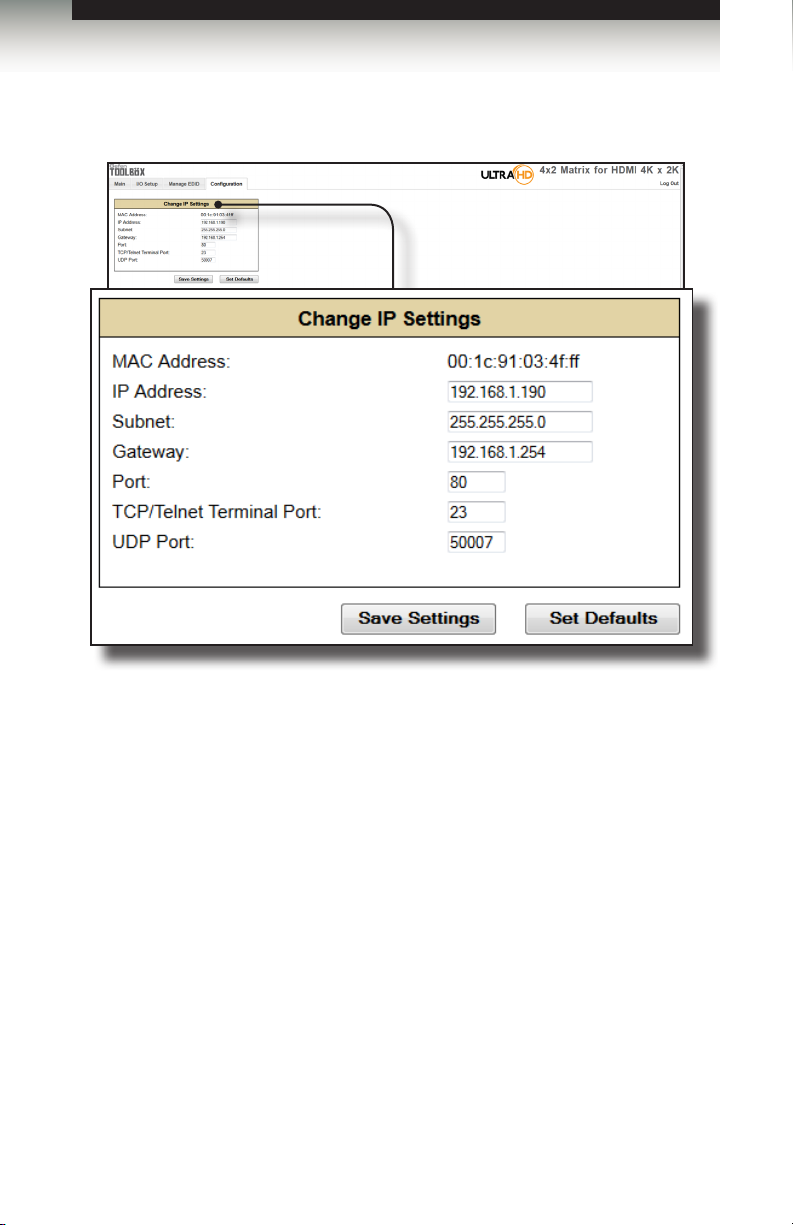

Conguration > Change IP Settings ............................................................ 89
Conguration > Telnet Login Settings ......................................................... 90
Conguration > UDP Connection Settings .................................................. 91
Conguration > Web Login Settings............................................................ 92
Conguration > System Conguration ........................................................ 93
04 Appendix
Wall Mounting Instructions .................................................................................. 98
Firmware Upgrade Procedure ............................................................................. 99
Upgrading using the Web interface ............................................................. 99
Upgrading using USB ................................................................................ 100
Specications .................................................................................................... 101
Table of Contents
ix
60Hz, 4:2:0
4x2 Matrix for HDMI
01 Getting Started
Panel Layout ......................................................................................................... 2
IR Remote Control Unit ......................................................................................... 5
Front .............................................................................................................. 5
Back .............................................................................................................. 6
Installing the Battery ...................................................................................... 7
Setting the IR Channel .................................................................................. 7
Installation ............................................................................................................. 8
Connecting the 4K Ultra HD 4x2 Matrix for HDMI ......................................... 8
Sample Wiring Diagram ................................................................................ 8
Getting Started
Panel Layout
65
1
2
3
7
84 9 10 11 12 13
page | 2
Getting Started
Panel Layout
ID Name Description
1 FST (Fast / Slow) Use this recessed button to switch between
Fast and Slow FST (Fast Switching
Technology) modes. See Fast Mode vs
Slow Mode for more information on using
FST mode. The LED indicators will display
the current mode.
2 Audio (2ch / Multi-ch) Use this recessed button to switch between
3 EDID (Int / Ext) Use this recessed button to switch between
4 Out 1 / Out 2 (selection) Consecutively press the Out 1 button
5 In (1 - 4) Connect an HDMI cable from an Ultra
6 Out 1 / Out 2 (outputs) Connect an Ultra HD display to each of
7 Power This LED indicator will glow bright blue
2CH and Multichannel audio on the output.
The LED indicators will display the current
mode. See Selecting the Audio Mode for
more information on using this feature.
internal (Int) and external (Ext) EDID
modes. The LED indicators will display
the current mode. See Selecting the EDID
Mode for more information.
to route the desired input to Out 1.
Consecutively press the Out 2 button to
select the desired input for Out 2.
See Routing Inputs to Outputs for more
information. The LED indicators will
display the current routing state.
Hi-Def source to any of these HDMI ports.
these ports using an HDMI cables.
when the included 5V DC power supply
is connected between the matrix and an
available electrical outlet.
8 RS-232 Connect an RS-232 cable from this port to
9 IR Ext Connect an IR Extender (Gefen part no.
an RS-232 device. See RS-232 and IP
Conguration for more information.
EXT-RMT-EXTIRN) to this port.
(continued on next page)
page | 3
Getting Started
ID Name Description
10 USB Used for upgrading the rmware.
See Firmware Upgrade Procedure for more
information.
Panel Layout
11 IR This IR sensor receives signals from the
12 IP Control Connect an Ethernet cable between
13 5V DC Connect the included 5V DC power supply to
included IR remote control unit.
this jack and a LAN to use IP control.
See RS-232 and IP Conguration for more
information.
this locking power receptacle.
page | 4
Getting Started
IR Remote Control Unit
1
2
Front
ID Name Description
1 Activity indicator This LED ashes bright orange when a key
2 Input Selection (1 - 8) Press these button to switch to the desired
NOTE: An Activity indicator that ashes quickly while holding down
any one of the buttons indicates a low battery. Replace the battery
as soon as possible. See Installing the Battery.
is pressed on the remote.
input (source). Buttons 1 - 4 are used to
select the input for Out 1. Buttons 5 - 8 are
used to select the input for Out 2.
page | 5
Getting Started
IR Remote Control Unit
(shown with cover removed)
Back
1
2
3
ID Name Description
1 DIP switch bank Use these DIP switches to set the IR
2 Primary battery slot
(shown without battery)
3 Alternate battery slot Allows for the installation of secondary
channel of the remote. See Setting the IR
Channel for more information.
Holds the battery for operating the remote.
Use only 3V CR2032-type batteries. Make
sure that the positive (+) side of the battery
is facing up.
(backup) battery.
page | 6
Getting Started
IR Remote Control Unit
Installing the Battery
The IR remote control unit ships with two batteries. Only one battery is required for
operation. The second battery is a spare.
1. Remove the back cover the IR Remote Control unit.
2. Insert the included battery into the primary battery slot. The positive (+) side of the
battery should be facing up.
3. Replace the back cover.
WARNING: Use only 3V CR2032-type batteries. Risk of explosion
if battery is replaced by an incorrect type. Dispose of used batteries
according to the instructions.
Setting the IR Channel
In order for the included IR remote control to communicate with the 4K Ultra HD 4x2 Matrix
for HDMI, the IR remote control must be set to the same channel as the matrix. Use the
#set_ir command to set the IR channel of the matrix.
DIP switches
page | 7
IR Channel DIP settings
0
(default)
1
2
3
ON
1 2
1 2ON1 2
ON
1 2
ON
1 2
Getting Started
Installation
Page Title
Connecting the 4K Ultra HD 4x2 Matrix for HDMI
1. Connect up to four Ultra Hi-Def sources to the In (1 - 4) ports on the matrix.
2. Connect up to two Ultra HD displays using the output ports (Out 1 and Out 2) on the
matrix.
3. OPTIONAL: Connect an RS-232 cable from the RS-232 port on the matrix to the RS-
232 connector on the serial controller (e.g. Gefen PACS, etc).
4. OPTIONAL: Connect an Ethernet cable from the IP Control port on the matrix to
a Local Area Network (LAN).
5. OPTIONAL: Connect an IR extender to the IR Ext port on the matrix.
6. Connect the included 5V DC locking power supply to the 5V DC power receptacle
on the matrix. Do not overtighten the locking power connector.
7. Connect the power supply to an available electrical outlet.
Sample Wiring Diagram
Ultra HD
Source
EXT-PACS
Ultra HD
Source
Ultra HD
Source
Ultra HD
Source
LAN
(for IP Control)
page | 8
IR Extender
Ultra HD
Matrix for HDMI
HDMI CABLE
RS-232 CABLE
CAT-5 CABLE
IR EXTENDER
Ultra HD
Display
GTB-HD4K2K-442
Ultra HD
Display
60Hz, 4:2:0
4x2 Matrix for HDMI
02 Operating the 4K Ultra HD 4x2 Matrix for HDMI
Routing Basics .................................................................................................... 12
Determining the Current Routing State ....................................................... 12
Routing Inputs to Outputs ........................................................................... 13
Using the IR Remote Control ...................................................................... 14
Switching Modes ................................................................................................. 15
What is Fast Switching Technology? .......................................................... 15
Fast Mode vs Slow Mode ............................................................................ 15
Selecting the FST Mode .............................................................................. 15
Audio Modes ....................................................................................................... 16
Selecting the Audio Mode ........................................................................... 16
EDID Modes ........................................................................................................ 17
Available Modes .......................................................................................... 17
Selecting the EDID Mode ............................................................................ 17
Operating the 4K Ultra HD 4x2 Matrix for HDMI
Routing Basics
Determining the Current Routing State
On the bottom-left portion of the matrix, there are two rows of four LED indicators.
The top row of LED indicators displays the routing state of Out 1. The bottom row displays
the routing state of Out 2. A row of numbers (1 - 4) is printed above the two rows of LED
indicators. Each LED indicator represents an input (In 1 - In 4) on the matrix. The LED
indicator for the currently selected input will glow bright green.
LED indicates that In 1
is routed to Out 1
LED indicates that In 3
is routed to Out 2
page | 12
Operating the 4K Ultra HD 4x2 Matrix for HDMI
Routing Basics
Routing Inputs to Outputs
To the left of each row of LED indicators, there are two push-buttons labeled Out 1
and Out 2. To change the routing state of an output, press and release the button of the
desired output to advance to the next input.
In the example below, the source connected to In 3 is currently routed to Out 2.
To route In 4 to Out 2, press and release the Out 2 button.
In 3 is routed to Out 2
Out 2 is now set to In 4Button for Out 2
To route the source connected to Out 1 to another input, consecutively press and release
the Out 1 button until the desired input is selected.
When an output is routed to input 4, pressing and releasing the button will return the output
to input 1.
page | 13
Operating the 4K Ultra HD 4x2 Matrix for HDMI
Routing Basics
Using the IR Remote Control
The included IR remote control unit can also be used to switch between each input.
There are two columns of four buttons each on the IR remote.
1. Point the included IR remote control unit at the IR sensor on the top panel. If an IR
extender is being used, then both IR sensors will be used to receive IR signals.
Buttons 1 - 4 control the routing for Out 1 (In 1 - In 4) and buttons 5 - 8 control
the routing for Out 2 (In 1 - In 4).
2. Press the desired button on the IR remote control to select the output and input
to be routed.
IR sensor
IR extender
LED indicates a
button was pressed
page | 14
Operating the 4K Ultra HD 4x2 Matrix for HDMI
Switching Modes
FAST SWITCHING TECHNOLOGY
What is Fast Switching Technology?
Fast Switching Technology (FST) is a Gefen software implementation for HDMI products.
FST was created to improve the lengthy HDMI authentication process, based on the HDMI
and HDCP specications.
FST provides quicker audio/video source switching and greatly improves the overall audio/
video system behavior and performance when more than one HDTV display is used in the
system setup.
FST allows connecting / disconnecting or turning ON / OFF of HDTV displays without
having these activities affect other Hi-Def sources routed to any other HDTV display in the
same system.
Fast Mode vs Slow Mode
Use fast switching mode to improve performance when connecting / disconnecting Hi-Def
sources, and powering ON / OFF HDTV displays.
Use slow mode when the source does not support multiple devices. When set to slow
switching mode, the 4K Ultra HD 4x2 Matrix for HDMI will follow the standard authentication
process, based on the HDMI and HDCP specications.
Selecting the FST Mode
1. Press and release the FST button, using a paper clip or other pointed object,
to toggle between Fast and Slow modes.
2. The LED indicator will display the current FST mode.
Press the FST button to
switch the FST mode
page | 15
Operating the 4K Ultra HD 4x2 Matrix for HDMI
Audio Modes
The 4K Ultra HD 4x2 Matrix for HDMI provides the capability to switch between 2-channel
and multichannel audio output.
Use this audio mode when all displays (and/or other sink devices) support only 2-channel
LPCM audio.
1. Press and release the Audio button, using a paper clip or other pointed object,
to toggle between 2-channel and multichannel audio modes.
2. The LED indicator will display the current audio mode.
Supported audio formats
NOTE: In order for the audio channel mode to be selected, the
EDID switch must be set to the Int position. If the EDID switch is
set to the Ext position, then the Audio switch will have no effect
on the audio output signal. See Setting the EDID Mode for more
information on using the EDID.
Selecting the Audio Mode
Press the Audio button to
switch the audio mode
Audio Format Audio Format
LPCM 2CH LPCM 8-channel
Dolby® Digital Dolby® Digital Plus
Dolby® TrueHD DTS®
DTS-HD Master Audio™ MLP (PPCM)
NOTE: When the Audio Mode is set the 2CH, the internal EDID will
restrict the audio output to 2-channel LPCM, regardless of the audio
input format.
page | 16
Operating the 1:8 Splitter for HDMI 4K x 2K
EDID Modes
The 4K Ultra HD 4x2 Matrix for HDMI features EDID Management. Before the source can
send video and/or audio to the display (sink), the source reads the EDID (Extended Display
Identication Data) from the display (sink) devices connected to the splitter. The EDID
contains information about what type of audio/video data that the source can send to each
output device. The splitter can use either the downstream EDID (from the display/sink) or
the built-in internal EDID.
Available Modes
• Internal EDID
Use this EDID mode if problems are encountered when using the external EDID.
The built-in internal EDID provides the source device with a “generic” EDID which
can be used by all display (sink) devices. The use of the internal EDID also provides
control of the audio output format.
• External EDID
When set to Ext mode, EDID data will be fetched from each display (or other sink
device) that is connected to the outputs of the matrix. Once this information is
gathered, the matrix “builds” an EDID based on the highest video and audio formats
that are supported by both sink devices. This EDID is then transmitted to each source
device.
• Custom EDID
When set to Custom mode, the matrix will use a customized EDID conguration
selected by the user. For example, each input can be individually set to different
EDID modes to suit the needs of each input.
Selecting the EDID Mode
1. Press and release the EDID button, using a paper clip or other pointed object,
to toggle between internal, external, and custom EDID modes.
2. The LED indicator will display the current EDID mode.
See Table 2.1, on the next page, for specications on the internal EDID.
page | 17
Operating the 1:8 Splitter for HDMI 4K x 2K
EDID Modes
Table 2.1 - Internal EDID Specication
Video Data Block Audio Data Block Color Prole
640 x 480p 59/60 4:3
720 x 480p 59/60 4:3
720 x 480p 59/60 16:9
1280 x 720p 59/60 16:9
1920 x 1080i 59/60 16:9
1440 x 480i 59/60 4:3
1920 x 1080p 59/60 16:9
720 x 576p 50 4:3
720 x 576p 50 16:9
1280 x 720p 50 16:9
1920 x 1080i 50 16:9
1440 x 576i 50 4:3
1920 x 1080p 50 16:9
1920 x 1080p 23/24 16:9
LPCM 2-channel
LPCM 8-channel
Dolby® Digital
DTS®
Dolby® Digital Plus
Dolby® TrueHD
DTS-HD Master Audio™
MLP (PPCM)
YCbCr 4:4:4
YCbCr 4:2:2
page | 18
60Hz, 4:2:0
4x2 Matrix for HDMI
03 Advanced Operation
RS-232 and IP Conguration .............................................................................. 22
RS-232 Interface ......................................................................................... 22
RS-232 Settings .......................................................................................... 22
IP / UDP Conguration ................................................................................ 23
Commands .......................................................................................................... 24
Conguration ............................................................................................... 24
IP / Telnet Conguration ............................................................................. 43
FST ............................................................................................................. 55
Masking ....................................................................................................... 58
Routing / Naming / +5V / Presets ................................................................ 60
Status .......................................................................................................... 67
Web Interface ...................................................................................................... 71
Using the built-in Web Server ..................................................................... 71
Main > Routing ............................................................................................ 72
Main > I/O Status ........................................................................................ 75
Main > Display Info...................................................................................... 77
I/O Setup > Preset Names .......................................................................... 78
I/O Setup > I/O Names ................................................................................ 79
I/O Setup > HPD Control ............................................................................. 80
I/O Setup > FST .......................................................................................... 81
I/O Setup > HDCP ....................................................................................... 82
Manage EDID > Assign ............................................................................... 83
Manage EDID > Bank Names ..................................................................... 86
Manage EDID > Upload/Download ............................................................. 87
Conguration > Change IP Settings ............................................................ 89
Conguration > Telnet Login Settings ......................................................... 90
Conguration > UDP Connection Settings .................................................. 91
Conguration > Web Login Settings............................................................ 92
Conguration > System Conguration ........................................................ 93
Advanced Operation
DE-9
RS-232 and IP Conguration
RS-232 Interface
564738291
RS-232 Controller Matrix
DCD
RXD
TXD
DTR
GND
DSR
RTS
CTS
R1
1
2
3
4
5
6
7
8
9
Only TXD, RXD, and GND pins are used.
RS-232 Settings
Description Setting
Baud rate
Data bits
Parity
Stop bits
Hardware ow control
IMPORTANT: When sending Telnet or RS-232 commands,
a carriage return (0d) and a line feed (0a) must be included at the
end of the command.
19200
8
None
1
None
1
2
3
4
5
6
7
8
9
DCD
RXD
TXD
DTR
GND
DSR
RTS
CTS
R1
page | 22
Advanced Operation
RS-232 and IP Conguration
IP / UDP Conguration
The 4K Ultra HD 4x2 Matrix for HDMI supports IP-based control using Telnet, UDP, or the
built-in Web-based GUI. To set up IP control, the network settings for the 4K Ultra HD 4x2
Matrix for HDMI must be congured via RS-232. The default network settings for the matrix
are as follows:
Description IP Address / Port Description IP Address / Port
IP Address
Subnet
Gateway
HTTP Port
1. Connect an RS-232 cable from the PC to the 4K Ultra HD 4x2 Matrix for HDMI.
Also make sure that an Ethernet cable is connected between the matrix and the
network.
2. Launch a terminal emulation program (e.g. HyperTerminal) and use the RS-232
settings listed on the previous page.
192.168.1.72
255.255.255.0
192.168.1.254
80
NOTE: Depending upon the network, all related IP, Telnet, and
UDP settings will need to be assigned. Consult your network
administrator to obtain the proper settings.
UDP Port
Local UDP Port
Remote UDP IP
Remote UDP Port
23
50007
192.168.1.255
50008
3. Set the IP address for the matrix using the #sipadd command.
4. Set the subnet mask using the #snetmask command.
5. Set the gateway (router) IP address using the #sgateway command.
6. Set the Telnet listening port using the #set_telnet_port command.
7. Set the HTTP listening port using the #set_http_port command.
8. Set the UDP remote IP address for the matrix using the #set_udp_remote_ip
command.
9. Set the UDP listening port for the matrix using the #set_udp_port command.
10. Set the UDP remote port for the matrix using the #set_udp_remote_port
command.
11. Reboot the matrix to apply all changes, then type the IP address that was
specied in step 3, in a Web browser to access the Web GUI. Use the same IP
address to Telnet to the matrix.
page | 23
Advanced Operation
Commands
Conguration
Command Description
#echo
#fadefault
#hdcp
#hdp_pulse
#lock_edid
#power
#reboot
#set_edid
#set_ir
#set_udp_port
#set_udp_remote_ip
#set_udp_remote_port
#show_hdcp
#show_ir
#show_out_colordpt
#show_out_res
#show_udp_port
#show_udp_remote_ip
#show_udp_remote_port
#use_udp_enable
n
s
Enables / disables RS-232 feedback
Resets the routing and masking to factory-default
settings
Enables / disables HDCP detection
Cycles with HPD line on the specied output
Locks the local EDID when the matrix is power-cycled
Toggles the power on the matrix
Reboots the matrix
Sets the specied EDID to an input or bank
Sets the IR channel for the matrix
Sets the local UDP listening port
Sets the remote UDP IP address
Sets the remote UDP listening port
Displays the HDCP status of the specied input
Displays the current IR channel of the matrix
Displays the maximum color depth supported by the
display (sink) device based on the EDID
Displays the maximum video resolution supported by
the display (sink) device, based on the EDID
Displays the current local UDP listening port
Displays the current remote UDP IP address
Displays the current remote UDP listening port
Enables / disables UDP access
Displays the routing status of the output
Routes the specied input to the output
page | 24
Advanced Operation
#echo
The #echo command enables / disables (toggles) the RS-232 feedback.
Syntax:
#echo param1
Parameters:
param1 Value [0 ... 1]
Value Description
0
1
Example:
#echo 1
LOCAL ECHO IS ON
Disable feedback
Enable feedback
Commands
page | 25
Advanced Operation
Commands
#fadefault
The #fadefault command resets the matrix to factory-default settings. Outputs are
unmasked and all IP and UDP settings are reset to default settings.
Syntax:
#fadefault
Parameters:
None
Example:
#fadefault
MATRIX WAS RESET TO FACTORY DEFAULTS.
RESET MATRIX ROUTING
RESET USER DEFINE NAME
RESET IP CONFIGURATIONS
RESET WEBGUI CONFIGURATIONS
MATRIX WILL REBOOT SHORTLY *REBOOT UNIT IN 3 SECONDS
GTB-HD4K2K-442 v0.7U
page | 26
Advanced Operation
Commands
#hdcp
The #hdcp command enables / disables HDCP detection on the selected input.
Syntax:
#hdcp param1 param2
Parameters:
param1 Input [1 ... 4]
param2 Value [0 ... 1]
NOTE: Some computers will enable HDCP if an HDCP-compliant
display is detected. Set param2 = 1 to force the computer to ignore
detection of an HDCP-compliant display. Setting param2 = 0 does
not decrypt HDCP content.
Value Description
0
1
Disable
Enable
Example:
#hdcp 2 0
HDCP ON INPUT 2 IS DISABLED
#hdcp 2 1
HDCP ON INPUT 2 IS ENABLED
page | 27
Advanced Operation
Commands
#hdp_pulse
The #hpd_pulse command cycles the HPD line on the specied input. Issuing this
command is identical to physically disconnecting and reconnecting the cable between the
source and the matrix. If param1 = 0, then all inputs will receive the HPD pulse.
Syntax:
#hpd_pulse param1
Parameters:
param1 Input [1 ... 4]
Examples:
#hpd_pulse 1
HPD PULSE HAS BEEN SENT TO INPUT 1
#hpd_pulse 0
HPD PULSE HAS BEEN SENT TO ALL INPUTS
page | 28
Advanced Operation
Commands
#lock_edid
The #lock_edid command secures the Local EDID by disabling the automatic loading of
the downstream EDID when the matrix is powered.
Syntax:
#lock_edid param1
Parameters:
param1 Value [0 ... 1]
Value Description
0
1
Examples:
#lock_edid 0
MATRIX EDID IS UNLOCKED
Disable
Enable
#lock_edid 1
MATRIX EDID IS LOCKED
page | 29
Advanced Operation
#power
The #power command toggles power on the matrix.
Syntax:
#power param1
Parameters:
param1 Value [0 ... 1]
Value Description
0
1
Examples:
#power 0
MATRIX IS OFF
Off
On
Commands
#power 1
MATRIX IS ON
page | 30
Advanced Operation
Commands
#reboot
The #reboot command reboots the matrix. Executing this command is the equivalent
of disconnecting and reconnecting the AC power cord, on the back of the matrix.
The matrix must be rebooted after changing any of the IP settings.
Syntax:
#reboot
Parameters:
None
Example:
#reboot
MATRIX WILL REBOOT SHORTLY *REBOOT UNIT IN 3 SECONDS
GTB-HD4K2K-442 v0.7U
page | 31
Advanced Operation
Commands
#set_edid
The #set_edid command sets the specied EDID type to an input or bank.
Syntax:
#set_edid param1 param2 param3 param4
Parameters:
param1 Source [STRING]
Source Description
default
dynamic
bank
output
param2 Source [0 ... 8]
Uses default (Internal) EDID
Uses dynamic EDID
Uses EDID bank
Uses EDID on Output (sink)
Source Description
0
1 ... 8
1 ... 2
param3 Target [STRING]
Target Description
input
bank
param4 Target [1 ... 8]
Value Description
1 ... 4
1 ... 8
(continued on next page)
Default EDID / Dynamic
EDID bank
Output
Species an input
Species an EDID bank
Input
EDID bank
page | 32
Advanced Operation
Notes:
If param1 = default or param1 = dynamic, then set param2 = 0.
Examples:
#set_edid default 0 input 4
COPY DEFAULT EDID TO INPUT 4
#set_edid output 2 input 3
COPY OUTPUT 2 EDID TO INPUT 3
#set_edid dynamic 0 input 2
COPY DYNAMIC EDID TO INPUT 2
#set_edid bank 3 input 4
COPY BANK 3 EDID TO INPUT 4
Commands
page | 33
Advanced Operation
Commands
#set_ir
The #set_ir command sets the IR channel for the matrix. The default IR channel setting
is 0. The IR channel for the switch can also be set under the Conguration tab within the
Web interface. See Conguration > System Conguration for more information.
Syntax:
#set_ir param1
Parameters:
param1 Channel [0 ... 3]
Channel Description
0
1
2
3
Set IR channel 0
Set IR channel 1
Set IR channel 2
Set IR channel 3
Example:
#set_ir 1
IR CHANNEL IS SET TO CHANNEL 1
page | 34
Advanced Operation
Commands
#set_udp_port
The #set_udp_port command sets the local UDP server listening port. The default port
setting is 21. The matrix must be rebooted after executing this command. Use the
#show_udp_port command to display the current local UDP listening port.
Syntax:
#set_udp_port param1
Parameters:
param1 Port [0 ... 65535]
Example:
#set_udp_port 56
UDP COMMUNICATION PORT 56 IS SET.
PLEASE REBOOT THE UNIT.
page | 35
Advanced Operation
Commands
#set_udp_remote_ip
The #set_udp_remote_ip command sets the remote UDP IP address. The IP address
must be specied using dot-decimal notation. The default UDP remote IP address is
192.168.1.255. The matrix must be rebooted after executing this command.
Syntax:
#set_udp_remote_ip param1
Parameters:
param1 UDP address
Example:
#set_udp_remote_ip 192.168.1.227
REMOTE UDP IP ADDRESS 192.168.1.227 IS SET.
#set_udp_remote_port
The #set_udp_remote_port command sets the remote UDP listening port. The default
remote UDP listening port is 50008. The matrix must be rebooted after executing this
command.
Syntax:
#set_udp_remote_port param1
Parameters:
param1 Port [0 ... 65535]
Example:
#set_udp_remote_port 50008
REMOTE UDP COMMUNICATION PORT 50008 IS SET.
page | 36
Advanced Operation
#show_hdcp
The #show_hdcp command displays the HDCP status on the specied input.
Syntax:
#show_hdcp param1
Parameters:
param1 Input [1 ... 4]
Example:
#show_hdcp 1
HDCP ON INPUT 1 IS ENABLED
Commands
#show_ir
The #show_ir command displays the IR channel of the matrix.
Syntax:
#show_ir
Parameters:
None
Example:
#show_ir
CURRENT IR CHANNEL IS: 1
page | 37
Advanced Operation
Commands
#show_out_colordpt
The #show_out_colordpt command displays the highest color depth supported by the
specied display based on the EDID. If no display is attached to the specied output,
then the command will return THERE IS NO INFORMATION FROM OUTPUT [X].
Syntax:
#show_out_colordpt param1
Parameters:
param1 Output [1 ... 2]
Example:
#show_out_colordpt 1
OUTPUT 1 HIGHEST COLOR DEPTH IS 8 BITS
#show_out_res
The #show_out_res command displays the highest resolution supported by the specied
display based on the EDID. If no display is attached to the specied output, then the
command will return THERE IS NO INFORMATION FROM OUTPUT [X].
Syntax:
#show_out_res
Parameters:
param1 Output [1 ... 2]
Example:
#show_out_res 1
OUTPUT 1 HIGHEST RESOLUTION IS 1600x900
page | 38
Advanced Operation
Commands
#show_udp_port
The #show_udp_port command displays the current local UDP listening port. Use the
#set_udp_port command to set the local UDP listening port.
Syntax:
#show_udp_port
Parameters:
None
Example:
#show_udp_port
UDP COMMUNICATION PORT IS 56
#show_udp_remote_ip
The #show_udp_remote_ip command displays the remote UDP IP address. Use the
#set_udp_remote_ip command to set the remote UDP IP address.
Syntax:
#set_udp_remote_ip param1
Parameters:
None
Example:
#set_udp_remote_ip 192.168.1.227
REMOTE UDP IP ADDRESS IS : 192.168.1.227
page | 39
Advanced Operation
Commands
#show_udp_remote_port
The #show_udp_remote_port command displays the remote UDP listening port.
Use the #set_udp_remote_port to set the remote UDP listening port.
Syntax:
#set_udp_rport param1
Parameters:
None
Example:
#show_udp_remote_port
REMOTE UDP COMMUNICATION PORT IS 50008
#use_udp_enable
The #use_udp_enable command enables or disables UDP access mode.
Syntax:
#use_udp_enable param1
Parameters:
param1 Value [0 ... 1]
Value Description
0
1
Example:
#use_udp_enable 1
UDP ACCESS IS ENABLED
Disable UDP
Enable UDP
page | 40
Advanced Operation
Commands
n
The n command displays the routing status of the output. Do not precede the n command
with the “#’ symbol. param1 must be set to 1. If param1 = 0, then the routing state for all
outputs is returned.
Syntax:
n param1
Parameters:
param1 Output [0 ... 2]
Examples:
To see how this command works, we have already routed Input 3 to Output 1.
Now, we’ll use the n command to query the routing state of Output 1:
n 1
A3
The feedback is abbreviated as: “A3”. This indicates that Input 3 is routed to Output 1.
The following command returns the routing state for all outputs:
n 0
A3B2
The feedback is abbreviated as: “A3B2”. This indicates that Input 3 is routed to Output 1
and Input 2 is routed to Output 2.
page | 41
Advanced Operation
Commands
s
The s command routes the specied input to all outputs. Do not precede this command
with the “#” symbol.
Syntax:
s param1
Parameters:
param1 Input [1 ... 4]
Example:
s 2
INPUT 2 IS ROUTED TO OUTPUT
page | 42
Advanced Operation
IP / Telnet Conguration
Command Description
#display_telnet_welcome
#ipcong
#resetip
#set_http_port
#set_telnet_pass
#set_telnet_port
#set_webui_ad_pass
#set_webui_op_pass
#sgateway
#show_gateway
#show_http_port
#show_ip
#show_mac_addr
#show_netmask
#show_telnet_port
#show_telnet_username
#show_ver_data
#sipadd
#snetmask
#use_telnet_pass
Enable / disable the Telnet welcome message
Displays the current IP conguration
Resets the IP conguration to factory-default settings
Sets the Web server listening port
Sets the Telnet password
Sets the Telnet listening port for the matrix
Sets the Administrator password for the Web GUI
Sets the Operator password for the Web GUI
Sets the IP address of the (router) gateway
Displays the current gateway address of the matrix
Displays the current HTTP listening port of the matrix
Displays the current IP address of the matrix
Displays the MAC address of the matrix
Displays the current net mask of the matrix
Displays the Telnet listening port
Displays the user name of the current Telnet session
Displays the current software and hardware version
Sets the IP address of the matrix
Sets the Net mask of the matrix
Force password during Telnet sessions
Commands
page | 43
Advanced Operation
Commands
#display_telnet_welcome
The #display_telnet_welcome command enables / disables the Telnet welcome
message during a Telnet session.
Syntax:
#display_telnet_welcome
Parameters:
param1 Value [0 ... 1]
Value Description
0
1
Example:
#display_telnet_welcome 1
TELNET WELCOME SCREEN IS ENABLED
Disable welcome message
Enable welcome message
When enabled and a Telnet session has been started, the following will appear:
Welcome to GTB-HD4K2K-441 TELNET
telnet->
page | 44
Advanced Operation
#ipcong
The #ipcong command displays the current TCP settings.
Syntax:
#ipcong
Parameters:
None
Example:
#ipcong
IP Conguration is :
IP: 192.168.2.190
NETMASK: 255.255.255.0
GATEWAY: 192.168.1.254
Commands
#resetip
The #resetip command resets the IP conguration to factory-default settings.
The matrix must be rebooted after executing this command.
Syntax:
#resetip
Parameters:
None
Syntax:
#resetip
IP CONFIGURATION WAS RESET TO FACTORY DEFAULTS
IP: 192.168.1.72
Netmask: 255.255.255.0
Gateway: 192.168.1.1
page | 45
Advanced Operation
Commands
#set_http_port
The #set_http_port command species the Web server listening port. The matrix
must be rebooted after executing this command. The default port setting is 80. Use the
#show_http_port command to display the current HTTP listening port.
Syntax:
#set_http_port param1
Parameters:
param1 Port [1 ... 1024]
Example:
#set_http_port 82
HTTP COMMUNICATION PORT 82 IS SET. PLEASE REBOOT THE UNIT.
#set_telnet_pass
The #set_telnet_pass command sets the Telnet password. The password is
case-sensitive and cannot exceed 8 characters in length. The default password is Admin.
Syntax:
#set_telnet_pass param1
Parameters:
param1 Password
Example:
#set_telnet_pass 3ver3st
TELNET INTERFACE PASSWORD IS SET
page | 46
Advanced Operation
RS-232 / IP Commands
#set_telnet_port
The #set_telnet_port command sets the Telnet listening port. The matrix must
be rebooted after executing this command. The default port setting is 23. Use the
#show_telnet_port command to display the current Telnet listening port.
Syntax:
#set_telnet_port param1
Parameters:
param1 Port [1 ... 1024]
Example:
#set_telnet_port 24
TELNET COMMUNCATION PORT 24 IS SET. PLEASE REBOOT THE UNIT.
#set_webui_ad_pass
The #set_webui_ad_pass command sets the Administrator password for the Web GUI.
The password is case-sensitive and cannot exceed 7 characters in length. The default
password is Admin.
Syntax:
#set_webui_ad_pass param1
Parameters:
param1 Password
Example:
#set_webui_ad_pass bossman
WEB UI ADMINISTRATOR PASSWORD IS SET
page | 47
Advanced Operation
Commands
#set_webui_op_pass
The #set_webui_ad_pass command sets the Operator password for the Web GUI.
The default password is Admin.
Syntax:
#set_webui_op_pass param1
Parameters:
param1 Password
Example:
#set_webui_op_pass minion
WEB UI OPERATOR PASSWORD IS SET
#sgateway
The #sgateway command sets the gateway address. The gateway must be typed using
dot-decimal notation. The matrix must be rebooted after executing this command.
The default gateway is 192.168.1.1.
Syntax:
#sgateway param1
Parameters:
param1 Gateway
Example:
#sgateway 192.168.1.5
GATEWAY ADDRESS 192.168.1.5 IS SET. PLEASE REBOOT THE UNIT.
page | 48
Advanced Operation
Commands
#show_gateway
The #show_gateway command displays the current gateway address of the matrix.
Use the #sgateway command to set the gateway address.
Syntax:
#show_gateway
Parameters:
None
Example:
#show_gateway
GATEWAY ADDRESS IS: 192.168.1.5
#show_http_port
The #show_http_port command displays the current HTTP listening port of the matrix.
Use the #set_http_port command to set the HTTP listening port.
Syntax:
#show_http_port
Parameters:
None
Example:
#show_http_port
HTTP COMMUNICATION PORT IS: 82
page | 49
Advanced Operation
Commands
#show_ip
The #show_ip command displays the current IP address of the matrix. Use the #sipadd
command to set the IP address.
Syntax:
#show_ip
Parameters:
None
Example:
#show_ip
IP ADDRESS IS: 192.168.1.239
#show_mac_addr
The #show_mac_addr command displays the MAC address of the matrix.
Syntax:
#show_mac_addr
Parameters:
None
Example:
#show_mac_addr
MAC ADDRESS IS: 00-1c-91-03-00-02
page | 50
Advanced Operation
Commands
#show_netmask
The #show_netmask command displays the current net mask of the matrix. Use the
#snetmask command to set the net mask.
Syntax:
#show_netmask
Parameters:
None
Example:
#show_netmask
NETMASK ADDRESS IS: 255.255.255.0
#show_telnet_port
The #show_telnet_port command displays the current Telnet port of the matrix.
Use the #set_telnet_port command to set the Telnet listening port.
Syntax:
#set_telnet_port param1
Parameters:
param1 Port [1 ... 65535]
Example:
#set_telnet_port 24
TELNET COMMUNCATION PORT 24 IS SET. PLEASE REBOOT THE UNIT.
page | 51
Advanced Operation
Commands
#show_telnet_username
The #show_telnet_username command displays the user name of the current Telnet
session.
Syntax:
#show_telnet_username
Parameters:
None
Example:
#show_telnet_username
USER NAME FOR TELNET IS : Admin
#show_ver_data
The #show_ver_data command displays the current software and hardware version.
Syntax:
#show_ver_data
Parameters:
None
Example:
#show_ver_data
SOFTWARE AND HARDWARE VERSION : v0.7U PCB-1979*B
page | 52
Advanced Operation
Commands
#sipadd
The #sipadd command sets the IP address of the matrix. The IP address must be
entered using dot-decimal notation. The matrix must be rebooted after executing this
command. The default IP address is 192.168.1.72. Use the #show_ip or #ipcong
command to display the current IP address of the matrix.
Syntax:
#sipadd param1
Parameters:
param1 IP address
Example:
#sipadd 192.168.2.190
IP ADDRESS 192.168.2.190 IS SET.
#snetmask
The #snetmask command sets the subnet mask. The net mask must be entered using
dot-decimal notation. The matrix must be rebooted after executing this command.
The default net mask is 255.255.255.0. Use the #show_netmask or #ipcong
command to display the current net mask of the matrix.
Syntax:
#snetmask param1
Parameters:
param1 Net mask
Example:
#snetmask 255.255.0.0
NETMASK ADDRESS 255.255.0.0 IS SET. PLEASE REBOOT THE UNIT.
page | 53
Advanced Operation
Commands
#use_telnet_pass
The #use_telnet_pass command forces the password credentials for each Telnet
session. The default setting is 0 (disabled). Use the #set_telnet_pass command to
set the Telnet password.
Syntax:
#use_telnet_pass param1
Parameters:
param1 Value [0 ... 1]
Value Description
0
1
Example:
Disable password
Enable password
#use_telnet_pass 1
TELNET INTERFACE PASSWORD IS ENABLED
page | 54
Advanced Operation
Commands
FST
Command Description
#fst_fast
#fst_slow
#show_fst
Sets the specied inputs to Fast switching mode
Sets the specied inputs to Slow switching mode
Displays the current switching mode for the specied input
#fst_fast
The #fst_fast command sets the specied inputs to fast switching mode. By default,
all inputs are set to fast switching mode. If param1 = 0, then all inputs are set to fast
switching mode.
Syntax:
#fst_fast param1 [...param4]
Parameters:
param1 Input [0 ... 4]
Examples:
#fst_fast 1
INPUT 1 IS SET TO FAST MODE
#fst_fast 0
ALL INPUTS ARE SET TO FAST MODE
page | 55
Advanced Operation
Commands
#fst_slow
The #fst_slow command sets the specied inputs to slow switching mode. By default,
all inputs are set to fast switching mode. If param1 = 0, then all inputs are set to slow
switching mode.
Syntax:
#fst_slow param1
Parameters:
param1 Input [0 ... 4]
Examples:
#fst_slow 2
INPUT 2 IS SET TO SLOW MODE
#fst_slow 0
ALL INPUTS ARE SET TO SLOW MODE
page | 56
Advanced Operation
Commands
#show_fst
The #show_fst command displays the switching mode for the specied input.
If param1 = 0, then the switching mode for all inputs are displayed.
Syntax:
#show_fst param1
Parameters:
param1 Input [0 ... 4]
Examples:
#show_fst 2
INPUT 2 FST STATUS IS SLOW
#fst_slow 0
INPUT 1 FST STATUS IS SLOW
INPUT 2 FST STATUS IS FAST
INPUT 3 FST STATUS IS SLOW
INPUT 4 FST STATUS IS SLOW
page | 57
Advanced Operation
Commands
Masking
Command Description
#mask
#show_mask
#unmask
Masks the video on the specied output(s)
Displays the current masking status of each output
Unmasks the specied outputs
#mask
The #mask command masks the video on the specied output(s). Use the #unmask
command to disable output masking. If param1 = 0, then all outputs are masked.
Syntax:
#mask param1
Parameters:
param1 Output [0 ... 2]
Example:
#mask 1
OUTPUT 1 IS MASKED
page | 58
Advanced Operation
Commands
#unmask
The #unmask command unmasks the specied output(s). Use the #mask command to
mask the specied output(s). If param1 = 0, then all outputs are unmasked.
Syntax:
#unmask param1
Parameters:
param1 Output [0 ... 2]
Example:
#unmask 2
OUTPUT 2 IS UNMASKED
#show_mask
The #show_mask command displays the mask status of the specied output.
Syntax:
#show_mask param1
Parameters:
param1 Output [1 ... 2]
Example:
#show_mask 1
OUTPUT 1(OUTPUT1) IS UNMASKED
page | 59
Advanced Operation
Routing / Naming / +5V / Presets
Command Description
#lock_matrix
#recall_preset
#save_preset
#set_bank_name
#set_input_name
#set_output_name
#set_preset_name
#show_bank_name
#show_input_name
#show_output_name
#show_preset_name
#show_r
r
Locks / unlocks the matrix
Loads the specied routing state
Saves the current routing state to a preset
Assigns a name to the specied EDID bank
Assigns a name to the specied input
Assigns a name to the specied output
Assigns a name to the specied preset
Displays the name for the specied EDID bank
Displays the name of the specied input
Displays the name of the output
Displays the name of the specied preset
Displays the routing status of the output
Routes the specied input to the output
Commands
#lock_matrix
The #lock_matrix command locks / unlocks the matrix. When the matrix is locked, all
functions are disabled including the front panel, RS-232, and Telnet.
Syntax:
#lock_matrix param1
Parameters:
param1 Value [0 ... 1]
Value Description
0
1
Example:
#lock_matrix 1
MATRIX IS LOCKED
Unlock
Lock
page | 60
Advanced Operation
#recall_preset
The #recall_preset command loads the routing preset.
Syntax:
#recall_preset param1
Parameters:
param1 Preset [1 ... 8]
Example:
#recall_preset 2
RECALLED THE ROUTING STATE SAVED TO PRESET 2
Commands
#save_preset
The #save_preset command saves the current routing state to a specied preset.
Syntax:
#save_preset param1
Parameters:
param1 Preset [1 ... 8]
Example:
#save_preset 3
CURRENT ROUTING STATE IS SAVED TO PRESET 3
page | 61
Advanced Operation
#set_bank_name
The #set_bank_name command names the specied bank.
Syntax:
#set_bank_name param1 param2
Parameters:
param1 Bank [1 ... 8]
param2 Name
Example:
#set_bank_name 5 Dell_24
Dell_24 NAME IS ASSIGNED TO BANK 5
Commands
#set_input_name
The #set_input_name command assigns a name to the specied input on the matrix.
Syntax:
#set_input_name param1 param2
Parameters:
param1 Input [1 ... 4]
param2 Name
Example:
#set_input_name 3 Blu-ray
Blu-ray NAME IS ASSIGNED TO INPUT 3
page | 62
Advanced Operation
Commands
#set_output_name
The #set_output_name command assigns a name to the output on the matrix.
The name of the output is limited to 15 characters. Names longer than 15 characters will
be truncated. To name an output, use the #set_output_name command.
Syntax:
#set_output_name param1 param2
Parameters:
param1 Output [1 ... 2]
param2 Name
Example:
#set_output_name 3 Sony_XBR
Sony_XBR NAME IS ASSIGNED TO OUTPUT 2
#set_preset_name
The #set_preset_name command assigns a name to the specied preset. The name of
the preset is limited to 10 characters. Names longer than 10 characters will be truncated.
To display the name of a preset, use the #show_preset_name command.
Syntax:
#set_preset_name param1 param2
Parameters:
param1 Preset [1 ... 8]
param2 Name
Example:
#set_preset_name 4 BR_to_Out2
BR_to_Out2 NAME IS ASSIGNED TO PRESET 4
page | 63
Advanced Operation
Commands
#show_bank_name
The #show_bank_name command displays the name for the specied EDID bank.
To name an EDID bank, use the #set_bank_name command.
Syntax:
#show_bank_name param1
Parameters:
param1 Bank [1 ... 8]
Example:
#show_bank_name 5
THE NAME FOR BANK 5 IS : Dell24
#show_input_name
The #show_input_name command displays the name of the specied input. To name an
input, use the #set_input_name command.
Syntax:
#show_input_name param1
Parameters:
param1 Input [1 ... 4]
Example:
#show_input_name 3
THE NAME FOR INPUT 3 IS : Blu-ray
page | 64
Advanced Operation
Commands
#show_output_name
The #show_output_name command displays the name of the output. To name an output,
use the #set_output_name command.
Syntax:
#show_output_name param1
Parameters:
param1 Output [1 ... 2]
Example:
#show_output_name 2
THE NAME FOR OUTPUT 2 IS : Sony_XBR
#show_preset_name
The #show_preset_name command displays the name for the specied preset.
To assign a name to a preset, use the #set_preset_name command.
Syntax:
#show_preset_name param1
Parameters:
param1 Preset [1 ... 8]
Example:
#show_preset_name 4
THE NAME FOR PRESET 4 IS : BR_to_Out2
page | 65
Advanced Operation
Commands
#show_r
The #show_r command displays the current routing status of the output. The name of the
output and input are displayed.
Syntax:
#show_r param1
Parameters:
param1 Output [1 ... 2]
Example:
#show_r 2
OUTPUT 2(Sony_XBR) IS ROUTED TO INPUT 3(Blu-ray)
r
The r command routes the specied input to the output. Do not precede this command
with the “#” symbol. Also see the s command. If param1 = 0, then the specied input will
be routed to all outputs. param3 is optional but can be used to specify another output on
the command line.
Syntax:
r param1 param2 [param3]
Parameters:
param1 Input [0 ... 4]
param2 Output [1 ... 2]
param3 Output [1 ... 2]
Example:
r 3 1 2
INPUT 3 IS ROUTED TO OUTPUT(S) 1 , 2
page | 66
Advanced Operation
Commands
Status
Command Description
#help
#show_fw
#show_hpd
#show_rsense
m
Displays a list of available RS-232 / Telnet commands
Displays the current version of rmware
Displays the HPD status of the specied input
Displays the RSENSE status of the output
Displays the current routing status of the matrix
#help
The #help command displays the list of available RS-232 / Telnet commands. Help on a
specic command can be displayed when using param1.
Syntax:
#help param1
Parameters:
param1 Command name (optional)
Example:
#help #sipadd
#SIPADD PARAM 1
SET THE IP ADDRESS
PARAM 1 = XXX.XXX.XXX.XXX
WHERE XXX: 0 - 255
page | 67
Advanced Operation
#show_fw
The #show_fw command displays the current version of matrix rmware.
Syntax:
#show_fw
Parameters:
None
Example:
#show_fw
FIRMWARE VERSION = GTB-HD4K2K-442 v0.7U
Commands
#show_hpd
The #show_hpd command displays the HPD status of the specied output. The name of
the output is included.
Syntax:
#show_hpd param1
Parameters:
param1 Output [1 ... 2]
Example:
#show_hpd 2
HPD OF OUTPUT 2(Sony_XBR) IS HIGH
page | 68
Advanced Operation
Commands
#show_rsense
The #show_rsense command displays the RSENSE status of the specied output.
Syntax:
#show_rsense param1
Parameters:
param1 Output [1 ... 2]
Example:
#show_rsense 2
RSENSE OF OUTPUT 2(Sony_XBR) IS HIGH
page | 69
Advanced Operation
Commands
m
The m command displays the current routing status of the matrix. Masking and locking
status of the matrix is also provided. Do not precede the m command with the “#’ symbol.
Syntax:
m
Parameters:
None
Example:
m
Out : 1 2
In : 1 1
OUTPUT 1 IS UNMASKED
OUTPUT 2 IS UNMASKED
MATRIX IS UNLOCKED
page | 70
Advanced Operation
Web Interface
Using the built-in Web Server
Access the built-in Web interface by entering the IP address of the matrix that was specied
in step 3 under IP / UDP Conguration. Once connected to the matrix, the login screen will
be displayed.
Username
Select the username from the drop-down list.
Options:
Operator, Administrator
Administrator login provides unrestricted access to all features and settings.
Operator login limits access to matrix routing, display information, and routing
preset features.
Password
Enter the password for the associated username. The password can also
be set using RS-232 or Telnet. See the #set_webui_op_pass and the
#set_webui_ad_pass commands. The password is masked when it is
entered.
page | 71
Advanced Operation
Web Interface

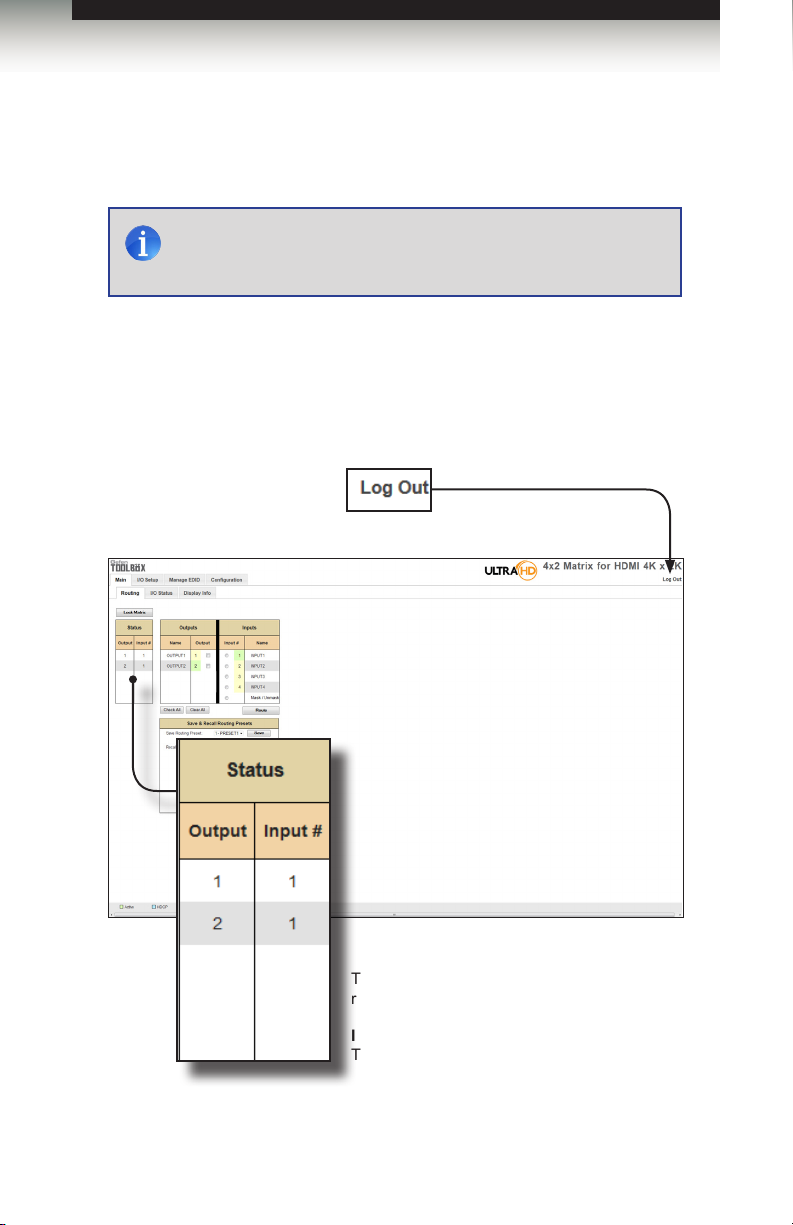

The Web GUI is divided into four main pages: Main, I/O Setup, Manage EDID, and
Conguration. Each main page is represented by a tab at the top-most portion of the
screen. The Main, I/O Setup, and Manage EDID pages have their own set of sub-tabs.
Click on the desired tab / sub-tab to open the desired page.
NOTE: In order to view all four tabs at the top of the screen, the user
must be logged in as “Administrator”. If logged-in as “Operator”,
only the Main tab will be visible.
Log Out
Click Log Out to terminate the
current Web session are return
to the login page.
Main > Routing
Output
The number of outputs that are available for
routing.
Input #
The input that is currently routed to the output.
page | 72
Advanced Operation
Name (Outputs)
The name of the output.
This name can be changed using the #set_output_name command or
through the I/O Setup > I/O Names page of the Web interface.
Web Interface
Outputs (Outputs)
Check to select the currently active output.
Input # (Inputs)
Click the radio button next to the desired input to be routed.
Name (Inputs)
Displays the current name of the input.
This name can be changed using the #set_input_name command or
through the I/O Setup > I/O Names page of the Web interface.
Route
Click the Route button to route the selected input to the select output(s).
page | 73
Advanced Operation
Web Interface
Lock Matrix
Locks / unlocks the matrix. Once the matrix is locked, settings cannot be
changed using the front-panel buttons or through the Web GUI. When the matrix
is locked, the button text will read “Unlock Matrix” and a red bar will appear
across the top portion of the screen with the text “Matrix is LOCKED”. Click the
“Unlock Matrix” button to unlock the matrix.
page | 74
Advanced Operation
Web Interface
Main > I/O Status
Output
Displays the state of each output for each of the following: Name, RSENSE,
Mask, HPD (Hot-Plug Detect), HDCP, and Video Mode.
Name
Displays the name of the output. The name of the output can be changed using
the #set_output_name command or through the I/O Setup > I/O Names page
of the Web interface.
RSENSE
Displays the current Rsense state.
Mask
Displays the masking state of each output.
HPD
Displays the Hot-Plug Detect (HPD) state of each output.
HDCP
Indicates if HDCP-detection is enabled or disabled on each output.
Video Mode
Displays the current output video mode.
page | 75
Advanced Operation
Web Interface
Input
Displays the state of each input for each of the following: Input name, Color
Depth, Color Space, HDCP, 3D, Active Signal, Vertical Resolution, Horizontal
Resolution, Progressive / Interlaced, Refresh Rate, and Video Mode.
page | 76
Advanced Operation
Web Interface
Main > Display Info
Choose EDID
Select the EDID from the drop-down list. The selected EDID will be copied from
the Output or selected EDID Bank to the desired input(s) and used by the source.
Options
Bank 1 ... Bank 8
Output 1 ... Output 2
Feature / Audio Formats
Displays the capabilities of the display (or sink device), based on the EDID.
page | 77
Advanced Operation
Web Interface
I/O Setup > Preset Names
Preset #
The number of each preset.
Name
Type the desired name of each preset in these elds.
Save Changes
Saves the current changes to the name of the preset(s).
Cancel
Restores the previous name or each preset, if a change was made.
page | 78
Advanced Operation
I/O Setup > I/O Names
Output
The number of the output.
Name (Output)
Type the desired name of each output in these elds.
Web Interface
Input #
The number of each input.
Name (Input #)
Type the desired name of each the input in these elds.
Save Changes
Saves the current changes to the name of the output and/or input(s).
Cancel
Restores the previous name or each output and/or input(s), if a change was
made.
page | 79
Advanced Operation
Web Interface
I/O Setup > HPD Control
Input #
The number of the input.
Name
The name of the input. The name of each input can be changed using the
#set_input_name command or through the I/O Setup > I/O Names page of the
Web interface.
Pulse
Click the Pulse button to cycle the HPD line on the desired input. This is the
equivalent of physically disconnecting and reconnecting the HDMI cable between
the source device and the matrix.
page | 80
Advanced Operation
Web Interface
I/O Setup > FST
FST
Displays the switching state of each input.
Input #
The name of the input.
Name
The name of the input. The name of each input can be changed using the
#set_input_name command or through the I/O Setup > I/O Names page of the
Web interface.
page | 81
Advanced Operation
NOTE: Some computers will enable HDCP if an HDCP-compliant
display is detected. Check the box under the Disable column
to force the computer to ignore detection of an HDCP-compliant
display. The Disable feature does not decrypt HDCP content.
Web Interface
I/O Setup > HDCP
Disable
Check the box under the Disable column to force the computer to ignore
HDCP-detection.
Input #
The number of the input.
Name
The name of the input. The name of each input can be changed using the
#set_input_name command or through the I/O Setup > I/O Names page of the
Web interface.
Check All
Places a check mark in all boxes under the Disable column.
Clear All
Clears all check marks from the Disable column.
Set
Click this button to save changes for all input(s).
Cancel
Cancels the current operation and ignores changes for each input, if a change
was made.
page | 82
Advanced Operation
Web Interface
Manage EDID > Assign
Lock EDID
Secures the Local EDID and disables automatic EDID loading during power-up.
If the Lock EDID button is clicked (enabled), the “EDID locked on power cycle”
message will be displayed in red. The local EDID information will now be locked
once the matrix is rebooted. Click the Unlock EDID button to disable the Lock
EDID feature.
Copy EDID From
Select the EDID from the drop-down list. The EDID will be copied from the
Output or selected EDID bank to the destination
Options
Bank 1 ... Bank 8
Output 1 ... Output 2
page | 83
Advanced Operation
Web Interface
Copy To
Place a check mark in the desired check box to select or deselect the desired
input(s). These check-boxes can only be used when the EDID Mode is set
to Custom - User.
EDID Modes
Select the EDID mode from the drop-down list.
Options
Internal - 1080p 2 ch audio
Internal - 1080p Multi ch
External - Output1
Custom - Last Output
Custom - User
(continued on next page)
page | 84
Advanced Operation
Web Interface
Input #
The number of the input.
Name
The name of the input. The name of the input can be changed using the
#set_input_name command or through the I/O Setup > I/O Names page of the
Web interface.
EDID Source
The current EDID source being used.
EDID Name
The name of the EDID.
Clear All
Clears all check marks from the Copy To column.
page | 85
Advanced Operation
Web Interface
Manage EDID > Bank Names
Bank #
Indicates the EDID bank number.
Name
Type the desired name of the EDID bank in this eld.
Save Changes
Saves the current name change to the EDID bank(s).
Cancel
Restores the previous names for each EDID bank, if changes were made.
page | 86
Advanced Operation
Web Interface
Manage EDID > Upload/Download
Browse...
Click this button to select the EDID le to be uploaded.
Select Bank Location
Click this drop-down list to select the bank to where the EDID will be uploaded.
Options
1 - Bank1 ... 8 - Bank8
Upload
Click this button to upload the EDID to the specied bank.
page | 87
Advanced Operation
Web Interface

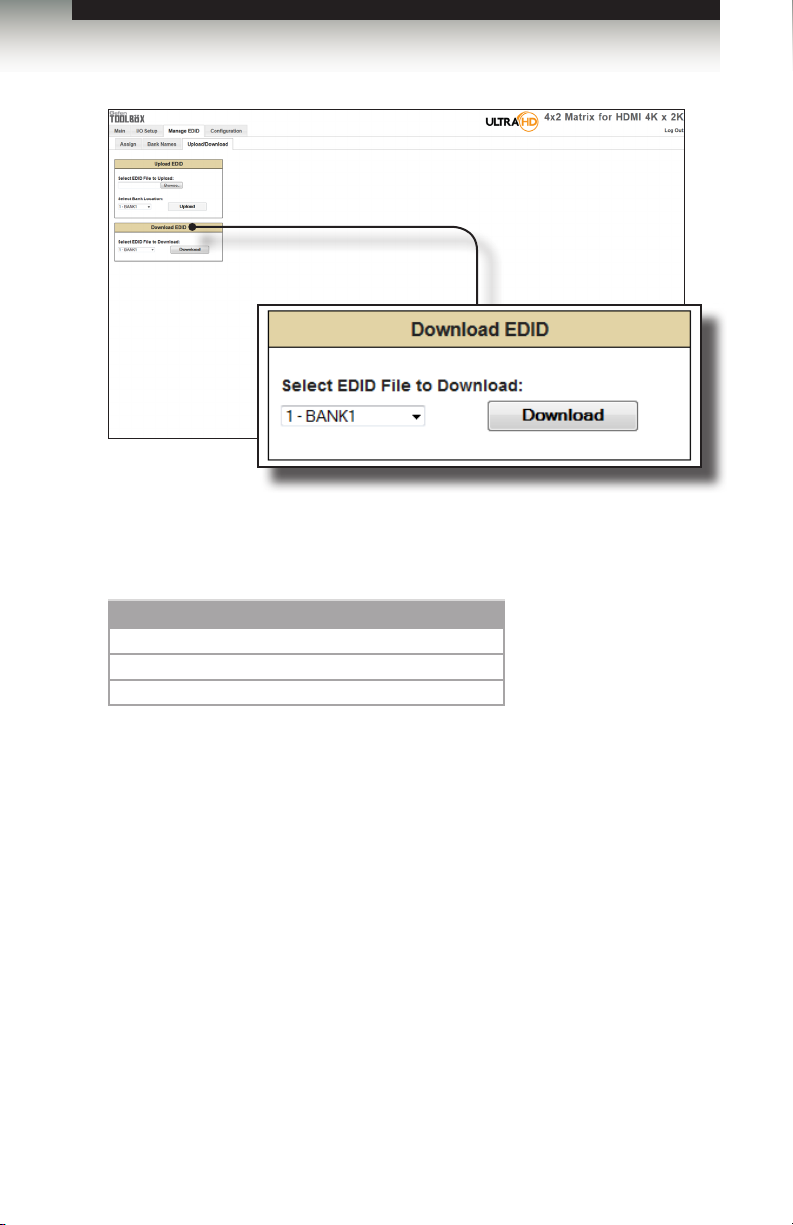

Select EDID File to Download
Click this box to select the EDID that is to be saved to a le. The EDID le will be
saved in binary (.bin) format.
Options
1 - BANK1 ... 8 - BANK8
1 - OUTPUT1 ... 2 - OUTPUT2
1 - INPUT1 ... 4 - INPUT4
Download
Click this button to download the selected EDID to a le.
page | 88
Advanced Operation
Web Interface
Conguration > Change IP Settings
Change IP Settings
Assigns the IP address, subnet, gateway, HTTP listening port, Telnet port, and
UDP port. The MAC address cannot be changed.
Save Settings
Saves the current settings for the Change IP Settings. After clicking this button,
the Web interface will display a dialog indicating that the matrix must be rebooted
for changes to take effect.
Set Defaults
Click this button to restore the factory-default IP settings. After clicking this
button, the Web interface will display a dialog indicating that the matrix must be
rebooted for changes to take effect.
page | 89
Advanced Operation
Conguration > Telnet Login Settings
Web Interface
Old Password
Type the current (old) password in this eld.
New Password
Type the new password in this eld.
Force Password on Connect
Click this check box to have the matrix prompt for a password each time a Telnet
session is started. This box must be checked in order to change the Telnet Login
credentials.
Show Login Message on Connect
Click this check box to have the matrix display the Telnet welcome message each
time a Telnet session is started. The welcome message appears as: “Welcome
to GTB-HD4K2K-442 TELNET”.
Save Settings
Saves the current changes to the Telnet Login Settings.
page | 90
