8x8 Matrix for HDMI

w/4 ELR-POL Outputs

GEF-HDFST-848-4ELR

User Manual

1080P

www.gefenpro.com

GEFEN 8x8 HDMI MAtRIX

ASKING FOR ASSISTANCE

Rev A5

Technical Support: Telephone (818) 772-9100 (800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday, Pacic Time

Write To:

Gefen, LLC.

c/o Customer Service 20600 Nordhoff St

Chatsworth, CA 91311

www.gefenpro.com support@gefenpro.com

Notice

Gefen, LLC reserves the right to make changes in the hardware, packaging, and any

accompanying documentation without prior written notice.

8x8 Matrix for HDMI w/4 ELR-POL Outputs is a trademark of Gefen, LLC

HDMI, the HDMI logo, and High-Denition Multimedia Interface are trademarks or

registered trademarks of HDMI Licensing in the United States and other countries.

All trademarks are the property of their respective owners.

CONTENTS

1 Introduction 2 Operation Notes 3 Features 4 Matrix Layout 4 Front

5 Back

6 Matrix Descriptions 6 Front

7 Back 8 ELR-POL Receiver Layout 9 ELR-POL Receiver Descriptions 10 IR Remote Control

10 Layout and Description 11 Installing the Battery

11 Setting the IR Channel

12 Connecting the 8x8 Matrix for HDMI w/4 ELR-POL Outputs

12 Wiring Diagram

13 Operating the 8x8 Matrix for HDMI w/4 ELR-POL Outputs 13 Main Display

14 Determining the Current Routing State 15 Routing Sources 18 Locking / Unlocking the Front Panel 19 Fast Switching Technology 20 Determining the Current Switching Mode 22 Changing the Switching Mode 23 Setting the IR channel on the 8x8 Matrix for HDMI w/4 ELR-POL Outputs 25 Routing Sources using the IR Remote Control 27 EDID Management 28 RS-232 / IP Control 28 RS-232 Interfacce 28 RS-232 Settings 29 IP Conguration 30 RS-232 / IP Commands 30 IP / Telnet Conguration 47 UDP Conguration 51 Routing / Naming / Presets 62 Status 68 FST 70 Masking

86 Web Interface

109 Firmware Update 109 Firmware Update Procedure (over IP) 110 Firmware Update Procedure (over USB) 112 Rack Mount Safety Features 113 Specications

114 Warranty 115 Licensing

Congratulations on your purchase of the GefenPRO 8x8 Matrix for HDMI w/4 ELR Outputs.

Your complete satisfaction is very important to us.

About GefenPRO

GefenPRO supports demanding professionals with invaluable equipment for commercial and broadcast environments. With its expanded hardware, internal power supplies, robust rack mountable enclosures, and 2 year warranty with 24/7 customer support, the GefenPRO Modular Matrix will always perform in the most technically challenging environments.

The GefenPRO 8x8 Matrix for HDMI w/4 ELR-POL Outputs

The GefenPRO 8x8 Matrix with four ELR and four HDMI outputs routes up to eight Hi-Def

sources at resolutions up to 1080p Full HD with Deep Color and multi-channel digital audio to any of eight HDTV displays, eliminating the need to disconnect and reconnect HDMI sources and displays. It features extension of four displays up to 330 feet (100 meters), using Gefen’s ELR (Extra Long Range) and POL (Power Over Link) technologies. ELR extension on four outputs allows installation of displays over a single CAT-5e cable. POL eliminates the need to externally power the four included ELR receivers. The GefenPRO 8x8 Matrix supports 3DTV and advanced digital audio formats such as Dolby® TrueHD and DTS-HD Master Audio™. Each source is accessible at all times from any display by using the included IR Remote Control, the RS-232 port, IP (Telnet or Web GUI), or by using the

front-panel push buttons.

Fast Switching Technology (FST) is a Gefen software implementation for HDMI products. FST was created to improve the lengthy HDMI authentication process, based on the HDMI and HDCP specications. FST allows connecting/disconnecting or turning any of the HDTV displays on or off without affecting other displays within the audio/video distribution system.

How It Works

Using HDMI cables, connect up to eight Hi-Def sources to the HDMI inputs on the matrix. Connect up to four HDTV displays to the HDMI outputs on the matrix and up to four HDTV displays to the supplied ELR-POL receivers. Use a single CAT-5e cable to connect each of the receivers to the matrix. An external power supply is not required because power is delivered by the matrix over the CAT-5e cables. 3D content can be displayed when connecting a 3DTV and 3D source.Connect the included AC power cord to the matrix and plug it into an available electrical outlet. Turn on the matrix by pressing the power switch. Apply

power to sources and to the displays. The Hi-Def sources can now be routed to any

display by using the IR remote control, RS-232 port, IP (Telnet or Web GUI), or by using the

front-panel push buttons.

INTRODUCTION

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE 8X8 MATRIX FOR HDMI W/4 ELR-POL OUTPUTS

• EDID contains the A/V capabilities of a display device in regards to video resolutions and audio formats supported. This information is used by the source device to determine the format of the A/V signal on the outputs. The 8x8 Matrix for HDMI w/4 ELR-POL Outputs incorporates advanced EDID management to ensure compatibility with all sources and display devices. See pages 27 for more details.

• The GefenPRO 8x8 Matrix for HDMI w/4 ELR-POL Outputs can detect the presence

of Deep Color (12-bit signal) automatically and will disable Deep Color EDID features across all other outputs if any connected device or display is not capable of processing Deep Color. This automatic behavior ensures compatibility among all output devices in a mixed-device environment. This feature cannot be disabled.

OPERATION NOTES

FEATURES

Supported HDMI Features

• Resolutions up to 1080p Full HD

• HDCP compliant

• 12-bit Deep Color

• x.v. Color

• LPCM 7.1 audio, Dolby® TrueHD, and DTS-HD Master Audio™

• 3DTV pass-through

• Lip-Sync pass-through

Features

• Routes any eight Hi-Def sources to any eight HD displays, independently

• ELR technology allows extension up to 330 feet (100 meters)

• POL feature provides power to each ELR receiver

• HDBaseT® technology

• Gefen FST speeds up the HDCP authentication process

• Fast and Slow FST Modes

• Advanced EDID Management for rapid integration of sources and displays

• Ability to save and recall presets

• Supports DVI sources and displays

• Field-upgradeable rmware via IP or RS-232

• Front Panel Switching

• IR Control of the matrix via front panel sensor or optional IR extender (EXT-RMT-

EXTIRC)

• Serial (RS-232) and IP Control via Web Server and Telnet

• Rack mountable (2U tall, rack ears included)

• Internal power supply with detachable IEC AC cord

• Back panel master power switch

Package Includes

(1) 8x8 Matrix for HDMI w/4 ELR-POL Ouputs (4) HDMI cables (M-M)

(4) Extender for HDMI ELR-POL (Receiver Units) (1) IR Remote Control (1) Set of Rack Ears (Attached)

(1) AC Power Cord

(1) Quick-Start Guide

MATRIX LAYOUT

Front

GEFEN

8x8 HDMI MATRIX

2 41 3 5 7

6 8

MATRIX LAYOUT

Back

9 10

12 15

13 16 18

MATRIX DESCRIPTIONS

Front

1 LCD Display

This is a two-line, sixteen-character display that shows status information and is also used to manage display / source routing.

2 Navigation Buttons (Input / Output)

Used for routing and adjusting settings of the 8x8 Matrix for HDMI w/4 ELR-POL Outputs. See the information beginning on page 15 for details on using these buttons.

3 Menu

Press this button to display routing, switching mode, and IP address information.

4 IR Sensor

Receives signals from the IR Remote Control.

5 Lock Indicator

This LED glows bright blue when the front panel is locked.

6 Lock Button

Pressing this button temporarily locks the front panel controls.

7 Power Indicator

This LED indicator will glow bright blue when the matrix is powered on. When the matrix is in standby mode, this LED indicator will glow bright red. The power switch, on the back of the matrix, must be switched to the the ON position in order for this LED indicator to

function.

8 Power Button

Press this button to power-on and power-off the matrix.

MATRIX DESCRIPTIONS

Back

9 IP Control

Connect an Ethernet cable to this port to control the 8x8 Matrix for HDMI w/4 ELR-POL

Outputs using IP Control. See page 29 for more information on conguring the matrix for

IP control.

10 RS-232

Connect an RS-232 cable from this DB-9 connector to the RS-232 control device. See page 28 for more information.

11 Grounding Screw Used to keep electrical current away from circuitry

12 IR EXT

Connect an IR extender (Gefen part no. EXT-RMT-EXTIRC) to this jack

13 USB

Service port for manufacturer use only.

14 HDMI Locking Connector

Used to lock the HDMI cable in place.

15 HDMI Outputs (A - D)

Connect up to four HDTV displays to each of these ports using HDMI cables.

16 HDMI Inputs (1 - 8)

Connect a Hi-Def source to each of these ports using HDMI cables.

17 ELR-POL Outputs (E - H)

Connect a CAT-5e (or better) cable from each of these jacks to the ELR-POL In jacks on the ELR-POL Receiver units.

18 Power Switch

Turn the power ON or OFF using this switch.

19 110/220 AC Power Receptacle

Connect the included AC power cord to this receptacle and connect the plug to an

available electrical outlet.

ELR-POL RECEIVER LAYOUT

Top

Front

Back

ELR-POL RECEIVER DESCRIPTIONS

Top / Front / Back

1 Power Indicator

This LED indicator will glow bright blue when the matrix is powered and the ELR-POL Receiver unit is connected to the matrix using CAT-5e (or better) cable.

2 HDMI Out

Connect an HDTV display to the HDMI Out port using an HDMI cable.

3 HDMI Locking Connector

Used to lock the HDMI cable in place.

4 ELR-POL In

Connect a CAT-5e (or better) cable from this jack to one of the ELR-POL jacks on the 8x8

Matrix for HDMI w/4 ELR-POL Outputs.

1 LED Button Press Indicator This LED will be activated momentarily each time a button is pressed.

2 Display and Source Selection Buttons These buttons are used to select which source is routed to a display.

The Source and Display buttons are mapped as follows:

Layout and Description (RMT-848IR)

NOTE: An Activity Indicator that ashes quickly while holding down

any one of the 16 buttons indicates a low battery. Replace the IR

Remote Control battery as soon as possible.

IR REMOTE CONTROL

Installing the Battery

The Remote Control unit ships with two batteries (CR2032 lithium battery). One battery is required for operation and the other battery is a spare.

1. Remove the battery cover on the back of the IR Remote Control unit.

2. Insert the included battery into the open battery slot. The positive (+) side of the battery should be facing up.

3. Replace the battery cover.

Setting the IR Channel

The IR channel on the IR Remote Control must match the IR channel used by the 8x8 Matrix for HDMI w/4 ELR-POL Outputs. For example, if both DIP switches on the IR Remote Control unit are set to IR channel 0 (both DIP switches down), then the 8x8 Matrix for HDMI w/4 ELR-POL Outputs must also be set to IR channel 0. See pages 23 and 81

for information on how to change the IR channel on the 8x8 Matrix for HDMI w/4 ELR-POL

Outputs.

Remote Channel 2: Remote Channel 3:

Channel 0 (default): Remote Channel 1:

DIP switchesBattery slot

1 2

WARNING: Risk of explosion if battery is replaced by an incorrect type. Use only 3V lithium batteries CR-2032.

How to Connect the 8x8 Matrix for HDMI w/4 ELR-POL Outputs

1. Connect up to eight Hi-Def sources to the inputs on the 8x8 Matrix for HDMI w/4 ELR-POL Outputs using HDMI cables.

2. Using HDMI cables, connect up to four HDTV displays to the HDMI outputs on the

matrix, and up to four HDTV displays to the supplied ELR-POL Receiver units.

3. Connect each ELR-POL Receiver unit to the 8x8 Matrix for HDMI w/4 ELR-POL Outputs using CAT-5e (or better) cables.

4. Connect the AC power cord to the matrix and connect the plug to an available electrical outlet.

Wiring Diagram for the 8x8 Matrix for HDMI w/4 ELR-POL Outputs

GEF-HDFST-848-4ELR

HD Display

8x8 Matrix for HDMI w/ELR POL

Extender for HDMI R ELR POL

Router

HDMI CABLE

Hi-Def Source

RS-232 Controller

RS-232 CABLE

CAT-5 CABLE

IR Extender CABLE

IR Extender

NOTE: When connected to the matrix, each ELR-POL Receiver unit is powered over the CAT-5e cable. No external power supplies are required for the ELR-POL Receiver units.

CONNECTING THE

8X8 MATRIX FOR HDMI W/4 ELR-POL OUTPUTS

Main Display

The Main Display of the 8x8 Matrix for HDMI w/4 ELR-POL Outputs is a 16 character 2

line display. This display shows the current routing status of the matrix and is also used to display additional system information. When the unit is powered on, the following screen is

displayed:

After a few moments, the status screen is displayed. The status screen is shown below:

Displaying Additional Information

Consecutively pressing the Menu button, on the front panel, will cycle through other screens such as FST mode and IP information:

OUT:ABCDEFGH IN:33334681

GEFEN 8x8 HDMI MATRIX

OUT:ABCDEFGH IN:33334681

IN:12345678 MODE:FSFSSFFF

1.IP ADDRESS

192.168.0.72

OPERATING THE

8X8 MATRIX FOR HDMI W/4 ELR-POL OUTPUTS

Determining the Current Routing State

In the example below, the rst row (OUT) represents each HDMI output on the matrix. The bottom row (IN) represents each HDMI input on the matrix. Together, these two rows

display the current routing state.

Starting on the bottom row, we can see that Input 3 has been routed to Outputs A, B, C,

and D. Continuing on, Input 4 is routed to Output E, Input 6 is routed to Output F, Input 8

is routed to Output G, and nally Input 1 is routed to Output H.

Note that each output (A - H) specied in the LCD display, corresponds to each of the HDMI inputs (1 - 8) on the matrix.

If all inputs are routed to their respective outputs, the front-panel display will appear as

follows:

This is referred to as a “1-to-1” routing state. This is the factory (default) setting for the 8x8 Matrix for HDMI w/4 ELR-POL Outputs.

OUT:ABCDEFGH IN:33334681

OUT:ABCDEFGH IN:12345678

OPERATING THE

8X8 MATRIX FOR HDMI W/4 ELR-POL OUTPUTS

OPERATING THE

8X8 MATRIX FOR HDMI W/4 ELR-POL OUTPUTS

Routing Sources

Selecting the Output

1. To select the output, press the Out - or Out + button once. The routing state for Output A will be displayed:

2. Press the Out - or Out + button to cycle through the routing state for each output.

Consecutively pressing the Out + button will cycle through each output, from left to

right.

OUT:A IN:3

OUT: C IN: 3

3. Consecutively pressing the Out - button will cycle through each output, from right to left.

Changing the Source

4. Once the desired output has been selected, press the Input + or Input - button.

Consecutively pressing the Input + button will increment the input value by a factor of 1 (within a range of 1 - 8). For example, if Input 4 was originally routed to Output D,

then pressing the Input + button will route Input 5 to Output D.

OUT: D IN: 3

OUT: D IN: 5

Source changed from from Input 4 to Input 5.

OPERATING THE

8X8 MATRIX FOR HDMI W/4 ELR-POL OUTPUTS

5. Consecutively pressing the Input - button will decrease the input value by a factor of 1 (within a range of 1 - 8). For example, if Input 3 was originally routed to Output D,

pressing the Input - button will route Input 2 to Output D.

To change the routing status of another output, press the Output + or Output - buttons to navigate to the desired output. Use the Input + or Input - buttons to change the source.

6. Press the Menu button to return to the Routing Screen.

NOTE: If the Menu button is not pressed after a routing change

has been made, then the 8x8 Matrix for HDMI w/ 4 ELR-POL Outputs will automatically return to the Routing Screen after about

20 seconds.

OUT: D IN: 2

Source changed from

Input 3 to Input 2.

OUT:ABCDEFGH IN:33254681

OPERATING THE

8X8 MATRIX FOR HDMI W/4 ELR-POL OUTPUTS

Locking / Unlocking the Front Panel

To prevent an accidental routing change or power-down (by pressing the Power button), the front-panel buttons on the 8x8 Matrix for HDMI w/4 ELR-POL Outputs can be locked. Locking the matrix also disables many RS-232 / IP commands.

1. Press the Lock button on the front-panel:

The Lock LED will glow bright blue to indicate that the front-panel buttons on the 8x8 Matrix for HDMI w/4 ELR-POL Outputs have been locked.

If any buttons (other than the Lock button) are pressed while the 8x8 Matrix for HDMI w/4 ELR-POL Outputs is Locked, the following message will be displayed:

2. To unlock the 8x8 Matrix for HDMI w/4 ELR-POL Outputs, press the Lock button a

second time.

Lock LED indicator

LOCKED

OPERATING THE

8X8 MATRIX FOR HDMI W/4 ELR-POL OUTPUTS

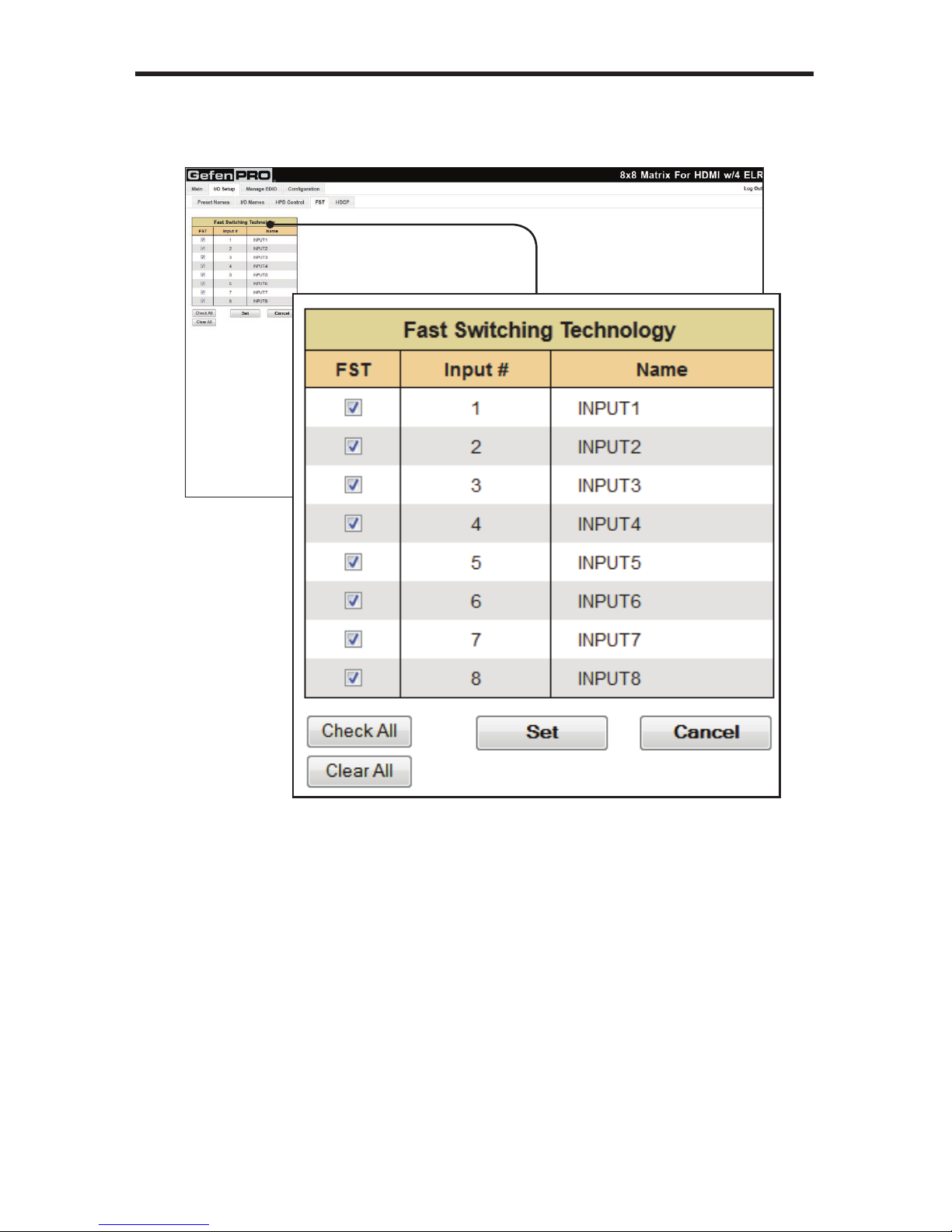

Fast Switching Technology

Fast Switching Technology (FST) is a Gefen software implementation for HDMI products. FST was created to improve the lengthy HDMI authentication process, based on the HDMI and HDCP specications.

FST provides quicker audio/video source switching and greatly improves the overall audio/ video system behavior and performance when more than one HDTV display is used in the system setup.

FST allows connecting / disconnecting or turning ON / OFF of HDTV displays without having these activities affect other Hi-Def sources routed to any other HDTV display in the same system.

Fast Mode:

Setting the 8x8 Matrix for HDMI w/4 ELR-POL Outputs to Fast Mode will improve performance when connecting / disconnecting Hi-Def sources, and powering ON / OFF

HDTV displays.

NOTE: When switching from Slow Mode to Fast Mode, the HDTV displays connected to the Matrix will blink momentarily.

Slow Mode:

When set to Slow Mode, the Matrix will follow the standard authentication process, based

on the HDMI and HDCP specications. Slow Mode is recommended when the source does not support multiple devices.

FAST SWITCHING TECHNOLOGY

OPERATING THE

8X8 MATRIX FOR HDMI W/4 ELR-POL OUTPUTS

Determining the Current Switching Mode

Each HDMI input can be set to Fast Mode or Slow Mode. It is recommended that each HDMI input be set to Fast Mode for best performance.

1. Consecutively press the Menu button on the front panel until the switching modes screen is displayed.

The rst row (IN) represents each HDMI input on the matrix. The bottom row (MODE) represents the current switching mode of each HDMI input.

Selecting the Input

2. To change the switching mode on an HDMI input, press the Output - (or Output +) button once. The switching mode for Input 1 will be displayed:

The letter F indicates that the HDMI input is using Fast Mode switching. If the HDMI input is set to Slow Mode switching, a letter S will be displayed under the input.

IN:12345678 MODE:FSFSSFFF

IN:1 MODE:F

OPERATING THE

8X8 MATRIX FOR HDMI W/4 ELR-POL OUTPUTS

3. Press the Output - or Output + button again to cycle through the routing state for

each output. Consecutively pressing the Output + button will cycle through each input, from left to right, starting with Input 1:

4. Consecutively pressing the Output - button will cycle through each output, from right to left:

NOTE: In Routing mode, the Output + and Output - buttons cycle through each output. In Switching mode, these same buttons are used to cycle through each input.

IN: 3 MODE: F

IN: 2 MODE: F

OPERATING THE

8X8 MATRIX FOR HDMI W/4 ELR-POL OUTPUTS

Changing the Switching Mode

5. Once the desired input has been selected, press the Input + or Input - button to

toggle between Fast or Slow switching mode.

To change the switching mode of another input, press the Output + or

Output - button to navigate to the desired input. Press the Input + or Input - button to toggle the switching mode between Fast (F) or Slow (S).

6. Press the Menu button to return to the Switching mode Screen.

Press the Menu button a second time to return to the Routing screen.

IN: 3 MODE: S

Switching mode changed from Fast to Slow on Input 3.

IN:12345678 MODE:FSSSSFFF

OPERATING THE

8X8 MATRIX FOR HDMI W/4 ELR-POL OUTPUTS

Setting the IR Channel on the 8x8 Matrix for HDMI

In order for the 8x8 Matrix for HDMI w/4 ELR-POL Outputs to communicate with the included IR Remote Control, both the matrix and the IR Remote Control must be set to the same IR

channel. Follow the procedure outlined below to set the IR channel on the 8x8 Matrix for HDMI w/4 ELR-POL Outputs.

1. From the Routing screen, simultaneously press the Input -, Input +, and the Output - buttons to display the IR address screen. The current IR address will be displayed along with the DIP switch settings for the IR remote control:

2. Use the Input + (or Input -) button to change the IR channel. Press the Input - button

to decrease the IR channel value. Press the Input + button to increase the IR channel value.

H 8

IR ADDRESS : 1 1-ON , 2-OFF

IR Channel

DIP switch settings

OPERATING THE

8X8 MATRIX FOR HDMI W/4 ELR-POL OUTPUTS

3. After setting the IR address, make sure that the DIP switches on the IR Remote Control are set according to the information in the LCD display. See page 11 for information on setting the IR channel for the IR Remote Control unit.

In this case, the 8x8 Matrix for HDMI w/4 ELR-POL Outputs is set to IR channel 1.

Therefore, DIP switch 1 on the IR Remote Control must be set to the ON position and DIP switch 2 must be set to the OFF position.

4. Press the Menu button to return to the Routing screen.

IR ADDRESS : 1 1-ON , 2-OFF

OUT:ABCDEFGH IN:33254681

OPERATING THE

8X8 MATRIX FOR HDMI W/4 ELR-POL OUTPUTS

Routing Sources using the IR Remote Control

Buttons 1 - 8 on the IR remote control correspond to each HDMI input (Input 1 - 8) on the Matrix. Buttons A - D correspond to each HDMI output (Output A - D) and buttons E-H correspond to each ELR-POL output (Output E-H). To route a source to a display, press the

desired output rst, then press the input.

Routing Example: Route Input 4 to Output C

1. Select Output C by pressing button C on the IR Remote Control. The number 3 will appear in the upper right-hand corner of the LCD display:

2. Select Input 4 by pressing button 4 on the IR Remote Control. The number 4 will appear in the lower right-hand corner of the LCD display:

OUT:ABCDEFGH C IN:33254681 4

Input 4 selected

OUT:ABCDEFGH C IN:33254681

Output C selected

LED indicates a button was pressed

OPERATING THE

8X8 MATRIX FOR HDMI W/4 ELR-POL OUTPUTS

3. After the input and output have been selected on the IR Remote Control, the numbers on the far right-hand of the LCD display will disappear and the new routing state will be displayed in the LCD display:

OUT:ABCDEFGH IN:33454681

Input 4 is routed to Output C

OPERATING THE

8X8 MATRIX FOR HDMI W/4 ELR-POL OUTPUTS

EDID MANAGEMENT

External EDID Management

The 8x8 Matrix for HDMI w/4 ELR-POL Outputs features EDID Management. Before the source can send video or audio signals, the source device reads the EDID (Extended Display Identication Data) from the output devices connected to the Splitter. The EDID contains information about what type of audio/video data that the source can send to each output device.

The 8x8 Matrix for HDMI w/4 ELR-POL Outputs routes multiple sources to multiple output devices. This involves reading EDID data from more than one device. Management of the EDID data is important to maintain compatibility between all devices.

The following EDID features are copied from Output A:

• Supported Resolutions

• 3D Support

• Audio Features

Display Connections:

• If a device is not connected to Output A, then no EDID changes are made, meaning that the previous EDID information will be used. This state will be in effect until a

display is connected to Output A and the Matrix is power-cycled.

• EDID is built from Output A to the Input. The audio block will be copied from Output A.

EDID-copying is performed only when the Matrix is reset or power-cycled.

RS-232 / IP CONTROL

RS-232 Interface

Only TXD, RXD, and GND are used.

RS232 Settings

Baud rate .......................................................................................................................19200

Data bits ............................................................................................................................... 8

Parity bits ....................................................................................................................... None

Stop bits ................................................................................................................................1

Flow Control ................................................................................................................... None

IMPORTANT: When sending RS-232 commands, a carriage return must be included at the end of the command. A space must be included between the command and the parameter.

DE-9

564738291

DCD

RXD

TXD

DTR

GND

DSR

RTS

CTS

DCD

RXD

TXD

DTR

GND

DSR

RTS

CTS

RS-232 Controller Matrix

RS-232 / IP CONTROL

IP Conguration

The 8x8 Matrix for HDMI w/4 ELR-POL Outputs supports IP-based control using Telnet,

UDP, or the built-in Web-based GUI. To set up IP control, the network settings must be congured via RS-232. The default network settings for the matrix are as follows:

IP Address: 192.168.1.72

Subnet: 255.255.255.0

Gateway: 192.168.1.254 HTTP Port: 80 Telnet Port: 23

1. Connect an RS-232 cable from the PC to the matrix. Also make sure to connect an Ethernet cable between the LAN and the matrix.

2. Launch a terminal emulation program (e.g. HyperTerminal) and use the RS-232 settings listed on page 28.

3. Set the IP address for the matrix using the #sipadd command (see page 44 for details).

4. Set the subnet mask using the #snetmask command (see page 45 for details).

5. Set the gateway (router) IP address using the #sgateway command (see page 39 for details).

6. Set the Telnet listening port using the #set_telnet_port command (see page 36 for details).

7. Set the HTTP listening port using the #set_http_port command (see page 34 for details).

8. Power-cycle the matrix to reboot and complete all IP setting changes.

9. Type the IP address that was specied in step 3, in a web browser to access

the Web GUI or use the same IP address to Telnet to the matrix.

UDP Conguration

1. Set the UDP remote IP address for the matrix using the #set_udp_remote_ip command (see page 48 for details).

2. Set the UDP listening port for the matrix using the #set_udp_port command (see page 47 for details).

3. Set the UDP remote port for the matrix using the #set_udp_remote_port

command (see page 48 for details).

NOTE: Depending upon the network, all related IP, Telnet, and UDP settings will need to be assigned. Consult your network administrator to obtain the proper settings.

RS-232 / IP COMMANDS

IP / Telnet Conguration

Command Description

#display_telnet_welcome Set Telnet welcome message on login

#ipcong Displays all TCP/IP settings

#resetip Resets IP conguration to factory settings

#set_http_port Sets the Web server listening port

#set_telnet_pass Prompts for password when using Telnet

#set_telnet_port Sets the Telnet listening port

#set_webui_ad_pass Sets the Web UI administrator password

#set_webui_op_pass Sets the Web UI operator password

#sgateway Sets the IP gateway address

#show_gateway Displays the gateway address

#show_http_port Displays the HTTP listening port

#show_ip Displays the IP address of the Matrix

#show_mac_addr Displays the MAC address of the Matrix

#show_netmask Displays the netmask address

#show_telnet_port Displays the Telnet listening port

#show_telnet_username Displays the Telnet user name

#show_ver_data Displays the hardware / software version

#sipadd Sets the IP address of the matrix

#snetmask Sets the IP network mask

#use_telnet_pass Use password during Telnet sessions

RS-232 / IP COMMANDS

#display_telnet_welcome Command

The #display_telnet_welcome command sets (enables/disables) the Telnet welcome message on login.

Syntax:

#display_telnet_welcome param1

Parameters:

param1 State [0 ... 1]

State Meaning

0 Do not display welcome message

Display welcome message

Example:

#display_telnet_welcome 1

#Telnet Welcome Screen is Enable

#display_telnet_welcome 0

#Telnet Welcome Screen is Disable

RS-232 / IP COMMANDS

#ipcong Command

The #ipcong command displays the current TCP/IP settings for the matrix.

Syntax:

#ipcong

Parameters:

None

Example:

#ipcong

-------------- TCP/IP settings -------------

MAC add = 00:1C:91:01:50:07

IP add = 192.168.1.72

Net Mask = 255.255.255.0

Gateway = 192.168.2.1

Web Server Port = 80

Telnet Server Port = 23

Telnet password at login is set to ON

Telnet welcome at login is set to ON

RS-232 / IP COMMANDS

#resetip Command

The #resetip command resets all TCP/IP settings to factory defaults.

Syntax:

#resetip

Parameters:

None

Notes:

The matrix must be rebooted after executing this command.

Example:

#resetip

IP Conguration Was Reset To Factory Defaults.

After rebooting the matrix, the IP settings will be cleared. Running the

#ipcong command will display the updated information:

#ipcong

IP: 0.0.0.0

SUBNET: 0.0.0.0

GATEWAY: 0.0.0.0

RS-232 / IP COMMANDS

#set_http_port Command

The #set_http_port command sets the Web server listening port. The default port setting is

80. Also see the #show_http_port on page 40.

Syntax:

#set_http_port param1

Parameters:

param1 Port [0 ... 65535]

Notes:

The matrix must be rebooted after executing this command.

Example:

#set_http_port 70

HTTP Communication Port 80 Is Set. Please Reboot The Unit.

RS-232 / IP COMMANDS

#set_telnet_pass Command

The #set_telnet_pass command sets the Telnet password. The maximum length of the password is 20 characters. The password is case-sensitive. The default Telnet password

is Admin.

Syntax:

#set_telnet_pass param1

Parameters:

param1 Password

Notes:

The matrix must be rebooted after executing this command.

Example:

#set_telnet_pass OK_Corral

TELNET Interface Password Is Set.

RS-232 / IP COMMANDS

#set_telnet_port Command

The #set_telnet_port command sets the Telnet listening port. The default port value is 23.

Syntax:

#set_telnet_port param1

Parameters:

param1 Port [0 - 65535]

Notes:

The matrix must be rebooted after executing this command.

Example:

#set_telnet_port 20

Telnet Communication Port 23 Is Set. Please Reboot The Unit.

RS-232 / IP COMMANDS

#set_webui_ad_pass Command

The #set_webui_pass command sets the Adminstrator password for the Web interface. The maximum length of the password is 8 characters. The default password is Admin.

Syntax:

#set_webui_ad_pass param1

Parameters:

param1 Password

Notes:

The matrix must be rebooted after executing this command.

Example:

#set_webui_ad_pass reindeer

Web UI Administrator Password Is Set.

#set_webui_op_pass Command

The #set_webui_pass command sets the Operator password for the Web interface. The maximum length of the password is 8 characters. The default password is Admin.

Syntax:

#set_webui_op_pass param1

Parameters:

param1 Password

Notes:

The matrix must be rebooted after executing this command.

Example:

#set_webui_op_pass reindeer

Web UI Operator Password Is Set.

RS-232 / IP COMMANDS

#sgateway Command

The #sgateway sets the IP gateway (router) address. Dot-decimal notation must be used

when specifying the IP address. The default Gateway IP address is 192.168.1.1.

Syntax:

#sgateway param1

Parameters:

param1 IP gateway

Notes:

The matrix must be rebooted after executing this command.

Example:

#sgateway 192.168.2.1

GateWay Address 192.168.2.1 Is Set. Please Reboot The Unit.

RS-232 / IP COMMANDS

#show_gateway Command

The #show_gateway command shows the current gateway address.

Syntax:

#show_gateway

Parameters:

None

Example:

#show_gateway

GATEWAY ADDRESS IS: 192.168.2.1

#show_http_port Command

The #show_http_port command shows the current HTTP listening port.

Syntax:

#show_http_port

Parameters:

None

Example:

#show_http_port

HTTP COMMUNICATION PORT IS: 80

RS-232 / IP COMMANDS

#show_ip Command

The #show_ip command shows the current IP address of the Matrix.

Syntax:

#show_ip

Parameters:

None

Example:

#show_ip

IP ADDRESS IS: 192.168.1.72

#show_mac_addr Command

The #show_mac_addr command shows the MAC address of the Matrix.

Syntax:

#show_mac_addr

Parameters:

None

Example:

#show_mac_addr

MAC ADDRESS IS: 00-12-0e-f1-7a-ea

RS-232 / IP COMMANDS

#show_netmask Command

The #show_netmask shows the netmask address.

Syntax:

#show_netmask

Parameters:

None

Example:

#show_netmask

NET MASK ADDRESS IS: 255.255.255.0

#show_telnet_port Command

The #show_telnet_port command shows the current Telnet listening port.

Syntax:

#show_telnet_port

Parameters:

None

Example:

#show_telnet_port

TELNET COMMUNICATION PORT IS: 23

RS-232 / IP COMMANDS

#show_telnet_username Command

The #show_telnet_username command returns the user name required for login.

Syntax:

#show_telnet_username

Parameters:

None

Example:

#show_telnet_username

User Name For TELNET Is : Admin

#show_ver_data Command

The #show_ver_data command displays the current hardware and rmware version.

Syntax:

#show_ver_data

Parameters:

None

Example:

#show_ver_data

SOFTWARE AND HARDWARE VERSION: v3.1A PCB-1707*B

RS-232 / IP COMMANDS

#sipadd Command

The #sipadd command sets the IP address of the matrix. Dot-decimal notation must be

used when specifying the IP address.

Syntax:

#sipadd param1

Parameters:

param1 IP address

Notes:

The matrix must be rebooted after executing this command.

Example:

#sipadd 192.168.1.72

IP Address 192.168.2.238 Is Set. Please Reboot The Unit.

RS-232 / IP COMMANDS

#snetmask Command

The #snetmask command sets the IP network subnet mask. Dot-decimal notation must be used when specifying the IP network mask. The default subnet mask is: 255.255.255.0

Syntax:

#snetmask param1

Parameters:

param1 Subnet mask

Notes:

The matrix must be rebooted after executing this command.

Syntax:

#snetmask 255.255.0.0

NetMask Address 255.255.255.0 Is Set. Please Reboot The Unit.

RS-232 / IP COMMANDS

#use_telnet_pass Command

The #use_telnet_pass command requires or disables Telnet login credentials. The default setting is disabled (param1 = 0).

Syntax:

#use_telnet_pass param1

Parameters:

param1 State [0 ... 1]

Value Meaning

0 Disable password

1 Enable (force) password

Example:

#use_telnet_pass 1

Telnet Interface Password Is Enable

#use_telnet_pass 0

Telnet Interface Password Is Disable

RS-232 / IP CONTROL

UDP Conguration

Command Description

#set_udp_port Sets the local UDP listening port

#set_udp_remote_ip Sets the remote UDP IP address

#set_udp_remote_port Sets the remote UDP port

#show_udp_port Displays the current UDP port

#show_udp_remote_ip Displays the current remote UPD IP address

#show_udp_remote_port Displays the current UDP remote port

#use_udp_enable Enables / disables UDP access

#set_udp_port Command

The #set_udp_port command sets the local UDP listening port. The default port value is 50008.

Syntax:

#set_udp_port param1

Parameters:

param1 Port [1 ... 65535]

Notes:

The matrix must be rebooted after executing this command.

Example:

#set_udp_port 10

New UDP listening port set to: 10

RS-232 / IP CONTROL

#set_udp_remote_ip Command

The #set_udp_remote_ip command sets the remote UDP IP address. The default port value is 192.168.1.80.

Syntax:

#set_udp_remote_ip param1

Parameters:

param1 IP Address

Notes:

The matrix must be rebooted after executing this command.

Example:

#set_udp_remote_ip 192.168.1.20

REMOTE UDP IP ADDRESS 192.168.1.20 IS SET.

#set_udp_remote_port Command

The #set_udp_remote_port command sets the remote UDP port. The remote port 50007.

Syntax:

#set_udp_remote_port param1

Parameters:

param1 Port

Notes:

The matrix must be rebooted after executing this command.

Syntax:

#set_udp_remote_port 4096

REMOTE UDP COMMUNICATION PORT 4096 IS SET.

RS-232 / IP CONTROL

#show_udp_port Command

The #show_udp_port command displays the current UDP port.

Syntax:

#show_udp_port

Parameters:

None

Example:

#show_ver_data

UDP COMMUNICATION PORT IS: 1024

#show_udp_remote_ip Command

The #show_udp_remote_ip command displays the current remote UDP IP address.

Syntax:

#show_udp_remote_ip

Parameters:

None

Example:

#show_udp_remote_ip

REMOTE UDP IP ADDRESS IS: 192.168.5.50

RS-232 / IP CONTROL

#show_udp_remote_port Command

The #show_udp_remote_port command displays the current remote UDP port.

Syntax:

#show_udp_remote_port

Parameters:

None

Example:

#show_udp_remote_port

REMOTE UDP COMMUNICATION PORT IS: 4023

#use_udp_enable Command

The #use_udp_enable command enables / disables UDP. Default value is disabled.

Syntax:

#use_udp_enable param1

Parameters:

param1 State [0 ... 1]

Value Meaning

0 Disable UDP

1 Enable UDP

Example:

#use_udp_enable 1

UDP ACCESS IS ENABLE

RS-232 / IP COMMANDS

Routing / Naming / Presets

Command Description

#lock_matrix Locks / unlocks the Matrix

#recall_preset Recalls a routing / mask preset

#save_preset Saves the current routing/masking state to a

preset

#set_bank_name Sets the name of the specied EDID bank

#set_input_name Species a name for an input

#set_output_name Species a name for an output

#set_preset_name Sets the name of the specied routing preset

#show_bank_name Displays the specied EDID bank name

#show_input_name Displays the specied input name

#show_output_name Displays the specied output name

#show_preset_name Displays the specied routing preset

#show_r Displays the current routing state of the

specied output

r Routes the specied inputs to the specied

outputs

s Routes all outputs are routed to the

specied input

RS-232 / IP COMMANDS

#lock_matrix Command

The #lock_matrix command locks / unlocks the Matrix. When the Matrix is locked, all functions are disabled including the front panel, RS-232, and Telnet.

Syntax:

#lock_matrix param1

Parameters:

param1 Value [0 ... 1]

Value Meaning

0 Unlock Matrix

1 Lock Matrix

Example:

#lock_matrix 1

MATRIX IS LOCKED

#lock_matrix 0

MATRIX IS UNLOCKED

RS-232 / IP COMMANDS

#recall_preset Command

The #recall_preset command recalls a routing preset. Any masked outputs will also be recalled. The underscore character (“_”) must be included when typing the command name.

Syntax:

#recall_preset param1

Parameters:

param1 Preset [1 ... 8]

Example:

#recall_preset 1

RECALLED THE ROUTING STATE SAVES TO PRESET 1

#save_preset Command

The #save_preset command saves the current routing state to the specied preset. Any masked outputs will also be saved as part of the current routing state. The underscore character (“_”) must be included when typing the command name.

Syntax:

#save_preset param1

Parameters:

param1 Preset [1 ... 8]

Example:

#save_preset 1

CURRENT ROUTING STATE IS SAVED TO PRESET/INPUT 1

RS-232 / IP COMMANDS

#set_bank_name Command

The #set_bank_name command names the specied bank. The bank name can be up to 8 characters in length. Special characters and spaces are not permitted. If needed, use

the underscore character (“_”) to separate characters.

Syntax:

#set_bank_name param1

Parameters:

param1 Bank [1 ... 8]

param2 Name

Example:

#set_bank_name 2 Dell_30

#set_input_name Command

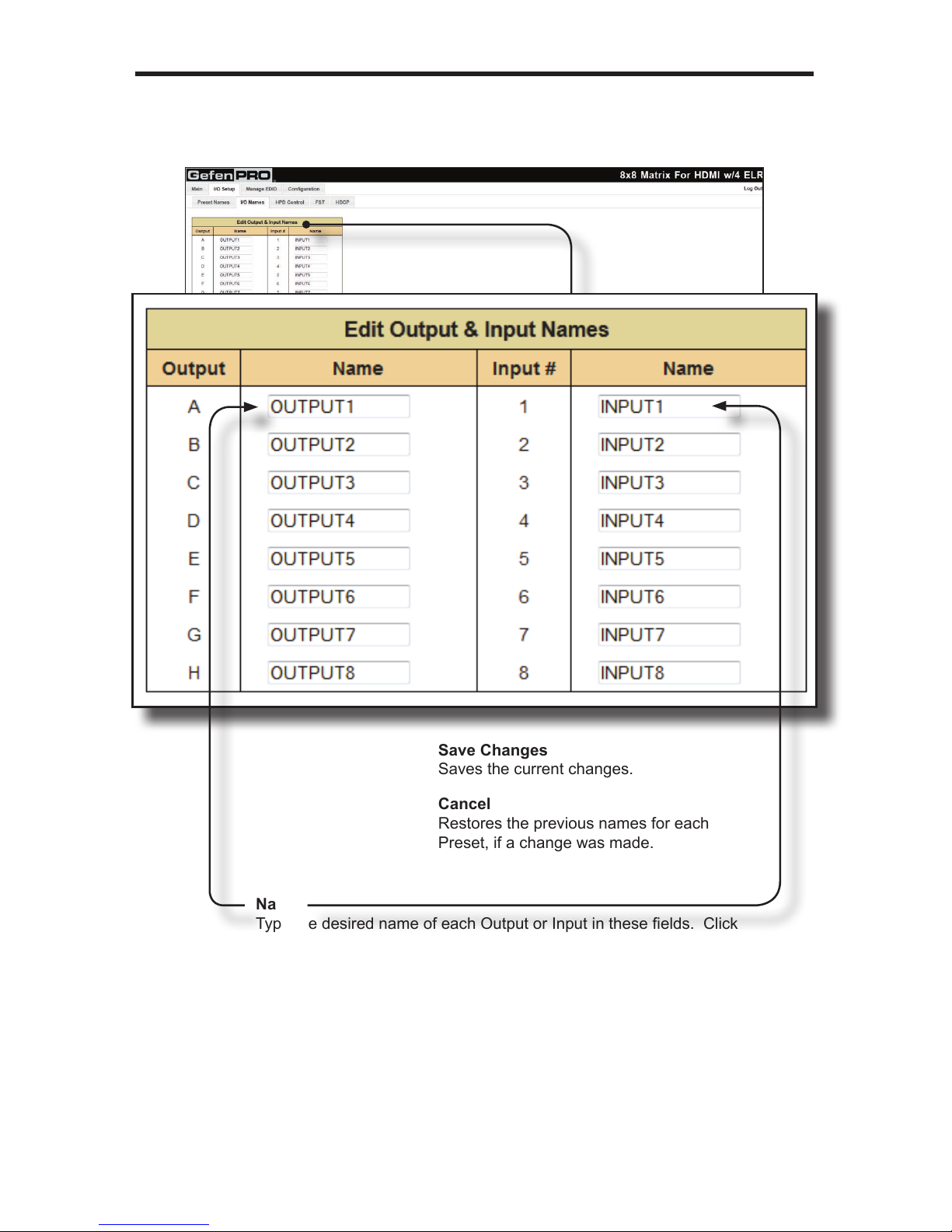

The #set_input_name command provides a name to the selected input. For example, “Input 1” could be renamed as “DVD_Player”. The maximum string length for param2 is 15 characters. Special characters and spaces are not permitted. If needed, use the

underscore character (“_”) to separate characters.

Syntax:

#set_input_name param1 param2

Parameters:

param1 Input [1 ... 8]

param2 Name

Example:

#set_input_name 5 Blu_ray

Blu_ray NAME IS ASSIGNED TO INPUT 5

RS-232 / IP COMMANDS

#set_output_name Command

The #set_output_name command provides a name to the selected output. For example, “Output 1” could be renamed as “HDDisplay”. The maximum string length for param2 is 8 characters. Special characters and spaces are not permitted. If needed, use the

underscore character (“_”) to separate characters.

Syntax:

#set_output_name param1 param2

Parameters:

param1 Output [A ... H]

param2 Name

Example:

#set_output_name C Sony_XBR7

Sony_XBR7 NAME IS ASSIGNED TO OUTPUT C

#set_preset_name Command

The #set_preset_name command names the specied preset. The preset name can be up to 8 characters in length. Special characters and spaces are not permitted. If needed, use

the underscore character (“_”) to separate characters.

Syntax:

#set_preset_name param1 param2

Parameters:

param1 Preset [1 ... 8]

param2 Name

Example:

#set_preset_name 3 B-rayAmp

B-rayAmp NAME IS ASSIGNED TO PRESET 3

RS-232 / IP COMMANDS

#show_bank_name Command

The #show_bank_name command displays the name of the specied bank.

Syntax:

#show_bank_name param1

Parameters:

param1 Bank [1 ... 8]

Example:

#show_bank_name 2

THE NAME FOR BANK 2 IS: Dell_30

#show_input_name Command

The #show_input_name command displays the name for the specied input.

Syntax:

#show_input_name param1

Parameters:

param1 Input [1 ... 8]

Example:

#show_input_name 5

THE NAME FOR INPUT 5 IS: Blu_ray

RS-232 / IP COMMANDS

#show_output_name Command

The #show_output_name command shows the name provided to the specied input using the #set_output_name command.

Syntax:

#show_output_name param1

Parameters:

param1 Output [A ... H]

Example:

#show_output_name C

THE NAME FOR OUTPUT C IS: Sony_XBR

#show_preset_name Command

The #show_preset_name command displays the name of the specied routing preset.

Syntax:

#show_preset_name param1

Parameters:

param1 Preset [A ... H]

Example:

#show_preset_name 3

THE NAME FOR PRESET 3 IS: B-rayAmp

RS-232 / IP COMMANDS

#show_input_name Command

The #show_input_name command shows the name provided to the specied input using the #set_input_name command. The underscore character (“_”) must be included when typing the command name.

Syntax:

#show_input_name param1

Parameters:

param1 Input [1 ... 8]

Example:

#show_input_name 5

THE NAME FOR INPUT 5 IS: Blu_ray

#show_output_name Command

The #show_output_name command shows the name provided to the specied input using the #set_output_name command.

Syntax:

#show_output_name param1

Parameters:

param1 Output [A ... H]

Example:

#show_output_name C

THE NAME FOR OUTPUT C IS: Sony_XBR

RS-232 / IP COMMANDS

#show_r Command

The #show_r command shows the current routing status of the specied output. The name assigned to the output and input will be included in parentheses.

Syntax:

#show_r param1

Parameters:

param1 Output [A ... H]

Example:

#show_r c

OUTPUT C(Sony_XBR) IS ROUTED TO INPUT 4 (INPUT4)

RS-232 / IP COMMANDS

r Command

The r command routes the specied input to the specied outputs. If param2 is set to 0, then the specied input is routed to all outputs. Unlike other commands, do not precede the r command with the “#’ symbol.

Syntax:

r param1 param2[...param9]

Parameters:

param1 Input [1 ... 8]

param2 Outputs [A ... H]

Examples:

r 7 A C D F G H

INPUT 7 IS SET TO OUTPUTS A, C, D, F, G, H

r 2 0

INPUT 2 IS SET TO ALL OUTPUTS.

RS-232 / IP COMMANDS

s Command

The s command routes the specied input to all outputs. Unlike other commands, do not precede the r command with the “#’ symbol.

Syntax:

s param1

Parameters:

param1 Input [1 ... 8]

Examples:

s 2

INPUT 2 IS SET TO ALL OUTPUTS.

RS-232 / IP COMMANDS

Status

Command Description

#help Displays all available commands

#show_fw Displays the Matrix rmware version

#show_hpd Displays the HPD status of the specied output

#show_rsense Displays the R

SENSE status of the specied

output

m Displays the current matrix routing status in

table format

n Displays the routing status for the specied

output

#help Command

The #help command displays help on the specied command. If param1 is not specied, then the full list of commands is displayed.

Syntax:

#help [param1]

Parameters:

param1 Command name (optional)

Example:

#help #recall_preset

RECALL A ROUTING STATE PRESET

PARAM 1 = 1 - 8 (PRESET/INPUT)

RS-232 / IP COMMANDS

#show_fw Command

The #show_fw command displays the current rmware version of the Matrix.

Syntax:

#show_fw

Parameters:

None

Example:

#show_fw

FIRMWARE VERSION = GEF-HDFST-848-4ELR v3.1A

#show_hdp Command

The #show_hpd command displays the HPD (Hot-Plug Detect) status of the specied output. The name assigned to the output will be included in parentheses.

Syntax:

#show_hpd param1

Parameters:

param1 Output [A ... H]

Examples:

#show_hpd C

HPD OF OUTPUT C(Sony_XBR) IS HIGH

#show_hpd A

HPD OF OUTPUT A(OUTPUT1) IS LOW

RS-232 / IP COMMANDS

#show_rsense Command

The #show_rsense command displays Rsense status of the specied output.

Syntax:

#show_rsense param1

Parameters:

param1 Output [A ... H]

Notes:

If the output has been renamed using the #set_output_name command, then the name assigned to the output will be included in parentheses.

Examples:

#show_rsense A

RSENSE OF OUTPUT A(OUTPUT1) IS LOW

#show_rsense C

RSENSE OF OUTPUT C(Sony_XBR) IS HIGH

RS-232 / IP COMMANDS

m Command

The m command displays the current matrix routing status in table format. Unlike other commands, do not precede the m command with the “#’ symbol.

Syntax:

Parameters:

None

Example:

Out: A B C D E F G H

In: 1 2 1 2 2 2 2 2

ALL OUTPUTS ARE UNMASKED

MATRIX IS UNLOCKED

RS-232 / IP COMMANDS

n Command

The n command displays the current input-output routing state for the specied output. Unlike other commands, do not precede the n command with the “#’ symbol.

Syntax:

n param1

Parameters:

param1 Output [A ... H]

Notes:

If param1 = 0, then the routing status for all outputs will be displayed.

Examples:

n A

n 0

A1B2C1D2E2F2G2H2

RS-232 / IP COMMANDS

FST

Command Description

#fst_fast Sets the specied inputs to Fast switching mode

#fst_slow Sets the specied inputs to Slow switching mode

#show_fst Displays the current switching mode for the specied input

#fst_fast Command

The #fst_fast command sets the specied inputs to Fast switching mode.

Syntax:

#fst_fast param1

Parameters:

param1 Input [1 ... 4]

Notes:

If param1 = 0, then all inputs will be set to Fast switching mode.

Example:

#fst_fast 1

INPUT 1 IS SET TO FST FAST MODE

NOTE: See page 19 for more information on the FST feature.

RS-232 / IP COMMANDS

#fst_slow Command

The #fst_slow command sets the specied inputs to Slow switching mode.

Syntax:

#fst_slow param1

Parameters:

param1 Input [1 ... 4]

Notes:

If param1 = 0, then all inputs will be set to Slow switching mode.

Example:

#fst_slow 1

INPUT 1 IS SET TO FST SLOW MODE

#show_fst Command

The #fst_slow command sets the specied inputs to Slow switching mode.

Syntax:

#show_fst param1

Parameters:

param1 Input [1 ... 4]

Notes:

If param1 = 0, then the switching mode status for all inputs will be displayed.

Example:

#show_fst 1

INPUT 1(INPUT1) IS IN FAST SWITCHING MODE

RS-232 / IP COMMANDS

Masking

Command Description

#echo Enables / disables RS-232 feedback

#fadefault Resets the matrix to factory defaults

#hdcp Disables HDCP on the specied input

#hpd_pulse Cycles the HPD line on the specied input

#lock_edid Locks the local EDID when powering the matrix

#mask Masks the specied outputs

#power Powers the matrix on or off

#reboot Reboots the matrix

#set_edid Copies EDID data between inputs, outputs, and banks

#set_ir Sets the IR channel of the matrix

#show_hdcp Displays the HDCP status on the specied input

#show_ir Displays the current IR channel of the matrix

#show_mask Displays the output masking status

#show_out_colordpt Shows the highest color depth supported by the display

based on the EDID

#show_out_res Shows the highest resolution supported by the display

based on the EDID

#unmask Unmasks the selected outputs

RS-232 / IP COMMANDS

#echo Command

The #echo command enables / disables serial port (terminal) echo.

Syntax:

#echo

Parameters:

param1 Value [0 - 1]

Value Meaning

0 Disable feedback

1 Enable feedback

Examples:

#echo 1

LOCAL ECHO IS ON

#echo 0

LOCAL ECHO IS OFF

RS-232 / IP COMMANDS

#fadefault Command

The #fadefault command disables the EDID lock state, sets the default routing state (1-1, 2-2, 3-3, etc.), resets the input and output names to the default names (e.g. Output 1, Input 1), and resets the IP conguration to the default settings.

Syntax:

#fadefault

Parameters:

None

Syntax:

#fadefault

MATRIX WAS RESET TO FACTORY DEFAULTS

LOCAL ECHO IS ON

ALL OUTPUTS ARE UNMASKED ALL INPUTS ARE SET TO FST FAST MODE

HTTP Communication Port 80 Is Set. Telnet Communication Port 23 Is Set. UDP Echo Server Communication Port 23 Is Set.

Remote UDP IP Address 192.168.5.50 Is Set. Remote UDP Communication Port 4023 Is Set.

UDP Access is Enable Telnet Interace Password Is Disable TELNET User Name Admin Is Set. TELNET Interface Password Is Set. Telnet Welcome Screen Is Enable Web UI Operator Password Is Set Web UI Administrator Password Is Set ALL INPUTS HDCP ENABLE.

INPUT NAME INIT....

OUTPUT NAME INIT....

CURRENT ROUTING STATE IS SAVED TO PRESET 1 CURRENT ROUTING STATE IS SAVED TO PRESET 2 CURRENT ROUTING STATE IS SAVED TO PRESET 3 CURRENT ROUTING STATE IS SAVED TO PRESET 4 CURRENT ROUTING STATE IS SAVED TO PRESET 5 CURRENT ROUTING STATE IS SAVED TO PRESET 6 CURRENT ROUTING STATE IS SAVED TO PRESET 7 CURRENT ROUTING STATE IS SAVED TO PRESET 8

BANK NAME INIT....

PRESET NAME INIT....

MATRIX WILL REBOOT SHORTLY *REBOOT UNIT IN 2 SECONDS

RS-232 / IP COMMANDS

#hdcp Command

The #hdcp command disables HDCP detection on the selected input.

Syntax:

#hdcp param1 param2

Parameters:

param1 Input [1 ... 8]

param2 Value [0 ... 1]

Value Description

0 Disable

1 Enable

Examples:

#hdcp 2 0

INPUT 2 HDCP IS DISABLE

#hdcp 0 1

ALL INPUTS HDCP ARE ENABLE

NOTE: Some computers will enable HDCP if an HDCP-compliant display is detected. Set param2 = 1 to force the computer to ignore detection of an HDCP-compliant display. Setting param2 = 0 does

not decrypt HDCP content.

RS-232 / IP COMMANDS

#hpd_pulse Command

The #hpd_pulse command cycles the HPD line on the specied input. Issuing this command is identical to physically disconnecting and reconnecting the cable between the source and the matrix.

Syntax:

#hpd_pulse param1

Parameters:

param1 Input [1 ... 8]

Notes:

Set param1 = 0 to cycle the HPD line on all inputs.

Examples:

#hpd_pulse 1

HPD PULSE HAS BEEN SENT TO INPUT 1

#hpd_pulse 0

HPD PULSE HAS BEEN SENT TO ALL INPUTS

RS-232 / IP COMMANDS

#lock_edid Command

The #lock_edid command secures the Local EDID by disabling the automatic loading of the downstream EDID after the matrix is powered.

Syntax:

#lock_edid param1

Parameters:

param1 Value [0 ... 1]

Value Description

0 Disable

1 Enable

Examples:

#lock_edid 0

Disable Lock EDID mode

RS-232 / IP COMMANDS

#mask Command

The #mask command masks the specied outputs. If param1 is set to 0, then all outputs are masked.

Syntax:

#mask param1[...param9]

Parameters:

param1 Output [A ... H]

Examples:

#mask c f

OUTPUTS C, F ARE MASKED

#mask 0

ALL OUTPUTS ARE MASKED

RS-232 / IP COMMANDS

#power Command

The #power command toggles the power state on the matrix.

Syntax:

#power param1

Parameters:

param1 State [0 ... 1]

Value Meaning

0 Power matrix OFF

1 Power matrix ON

Example:

#power 0

MATRIX IS OFF

#power 1

MATRIX IS ON

RS-232 / IP COMMANDS

#reboot Command

The #reboot command reboots the matrix.

Syntax:

#reboot

Parameters:

None

Example:

#reboot

MATRIX WILL REBOOT SHORTLY *REBOOT UNIT IN 2 SECONDS

GEF-HDFST-848-4ELR v3.1A

A1B2C3D4E5F6G7H8

RS-232 / IP COMMANDS

#set_edid Command

The #set_edid command sets the specied EDID type to an input or bank.

Syntax:

#set_edid param1 param2 param3 param4

Parameters:

param1 Source type [STRING]

String Description

default Uses default EDID

dynamic Uses Dynamic EDID

bank Uses EDID bank

output Uses EDID on Output (sink)

param2 Source number [0 ... 8]

Value Description

0 Default EDID

1 ... 8 EDID Bank

1 ... 8 Output

param3 Target type [STRING]

String Description

input Species an input

bank Species an EDID bank

param2 Target number [1 ... 8, 1 ... 8]

Value Description

1 ... 8 Input

1 ... 8 EDID Bank

RS-232 / IP COMMANDS

Notes:

If param1 = default or param1 = dynamic, set param2 = 0.

Using Dynamic EDID

When param1 = dynamic, the specied input will be set to Dynamic EDID. This can be observed by accessing the Manage EDID tab, in the Web interface (see page 100).

When an input is set to Dynamic EDID, the input will use the EDID of the last selected

output during the routing process. The order in which outputs are routed are important

when using Dynamic EDID. See the example below.

Examples:

Using Dynamic EDID:

#set_edid dynamic 0 input 4

COPY DYNAMIC EDID TO INPUT4.

In the example above, Input 4 is set to Dynamic EDID. If the following routing command is issued, then the EDID from Output 3 will be used (not Output 2) by Input 1.

r 4 2 3

INPUT 4 IS SET TO OUTPUTS 2, 3

However, if we wanted to use the EDID from Output 2, we would write the command as:

r 4 3 2

INPUT 4 IS SET TO OUTPUTS 3, 2

Since Output 2 was the last output that was specied, this will be the EDID that Input 4 will

use.

This second example does not use Dynamic EDID but uses the EDID from the specied downstream sink (display, etc):

#set_edid output 1 input 3

COPY OUTPUT1 EDID TO INPUT3.

RS-232 / IP COMMANDS

#set_ir Command

The #set_ir set the IR channel for the matrix. The associated DIP switch settings for the IR remote control unit are returned. See page 11 for details on setting the IR channel for the IR remote control.

Syntax:

#set_ir param1

Parameters:

param1 Channel [0 - 3]

Example:

#set_ir 2

IR CHANNEL IS SET TO CHANNEL 2

RS-232 / IP COMMANDS

#show_hdcp Command

The #show_hdcp command displays the HDCP status on the specied input

Syntax:

#show_hdcp param1

Parameters:

param1 Input [1 ... 8]

Notes:

Set param1 = 0 to displays the HDCP status of all inputs.

Examples:

#show_hdcp 3

INPUT 3 HDCP IS ENABLED

#show_hdcp 0

INPUT 1, 3, 4 HDCP ARE ENABLED

RS-232 / IP COMMANDS

#show_ir Command

The #show_ir displays the current IR channel for the matrix.

Syntax:

#show_ir

Parameters:

None

Example:

#show_ir

CURRENT IR CHANNEL IS: 2

#show_mask Command

The #show_mask command shows the mask status for the specied output.

Syntax:

#show_mask param1

Parameters:

param1 Output [A ... H]

Example:

#show_mask d

OUTPUT IS UNMASKED

#show_mask c

OUTPUT C(Sony_XBR) IS MASKED

RS-232 / IP COMMANDS

#show_out_colordpt Command

The #show_out_colordpt command displays the highest color depth supported by the specied display based on the EDID.

Syntax:

#show_out_colordpt param1

Parameters:

param1 Output [A ... H]

Example:

#show_out_colordpt a

12 BITS HDMI

If no display (sink) signal is detected, then the #show_out_colordpt will return the following:

#show_out_colordpt a

NO SIGNAL

RS-232 / IP COMMANDS

#show_out_res Command

The #show_out_res command displays the highest resolution supported by the specied

display based on the EDID.

Syntax:

#show_out_res param1

Parameters:

param1 Output [A ... H]

Example:

#show_out_res c

1080P 60HZ HDMI

If no display (sink) signal is detected, then the #show_out_colordpt will return the following:

#show_out_res c

NO SIGNAL

RS-232 / IP COMMANDS

#unmask Command

The #unmask command unmasks the specied outputs. If param1 is set to 0, then all outputs are unmasked.

Syntax:

#unmask param1[...param9]

Parameters:

param1 Output [A ... H]

Examples:

#unmask d

OUTPUT F IS UNMASKED

#unmask 0

ALL OUTPUTS ARE UNMASKED

WEB INTERFACE

Using the Built-in Web server

Access the built-in Web server by entering the IP address of the matrix that was specied in step 3 on page 29. Once connected to the matrix, the login screen will be displayed.

Username

Select the username from the drop-down list.

Options:

Operator, Administrator

Administrator login provides unrestricted access to all features and settings. Operator login limits access to matrix routing, display information, and routing

preset features.

Password

Enter the password for the associated username. The password can be set using the #set_webui_ad_pass or #set_webui_op_pass commands. See page 37 and 38 for details on these commands. The factory-default password for both Operator and Administrator login is Admin. See page 106 for instructions on changing the password using the Web GUI.

WEB INTERFACE

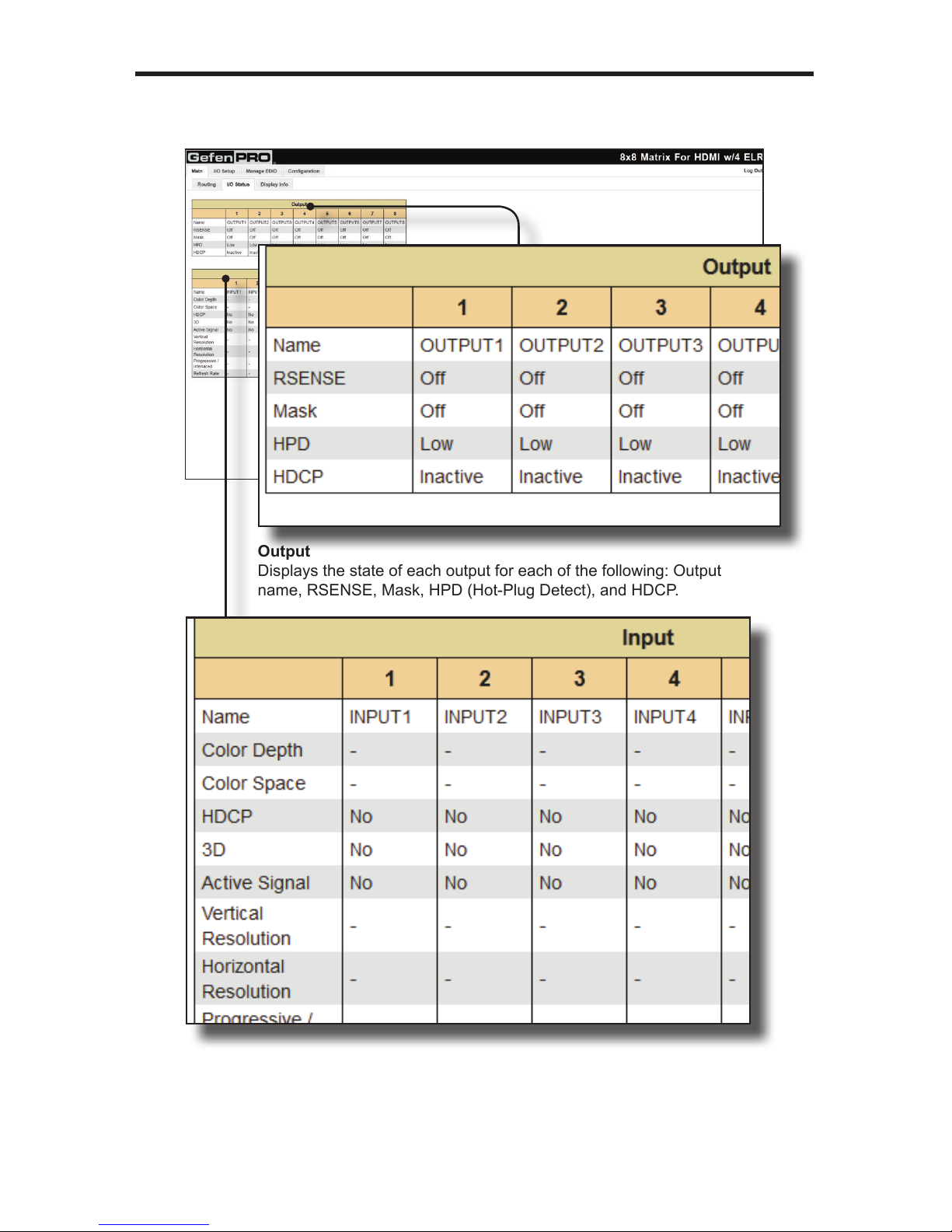

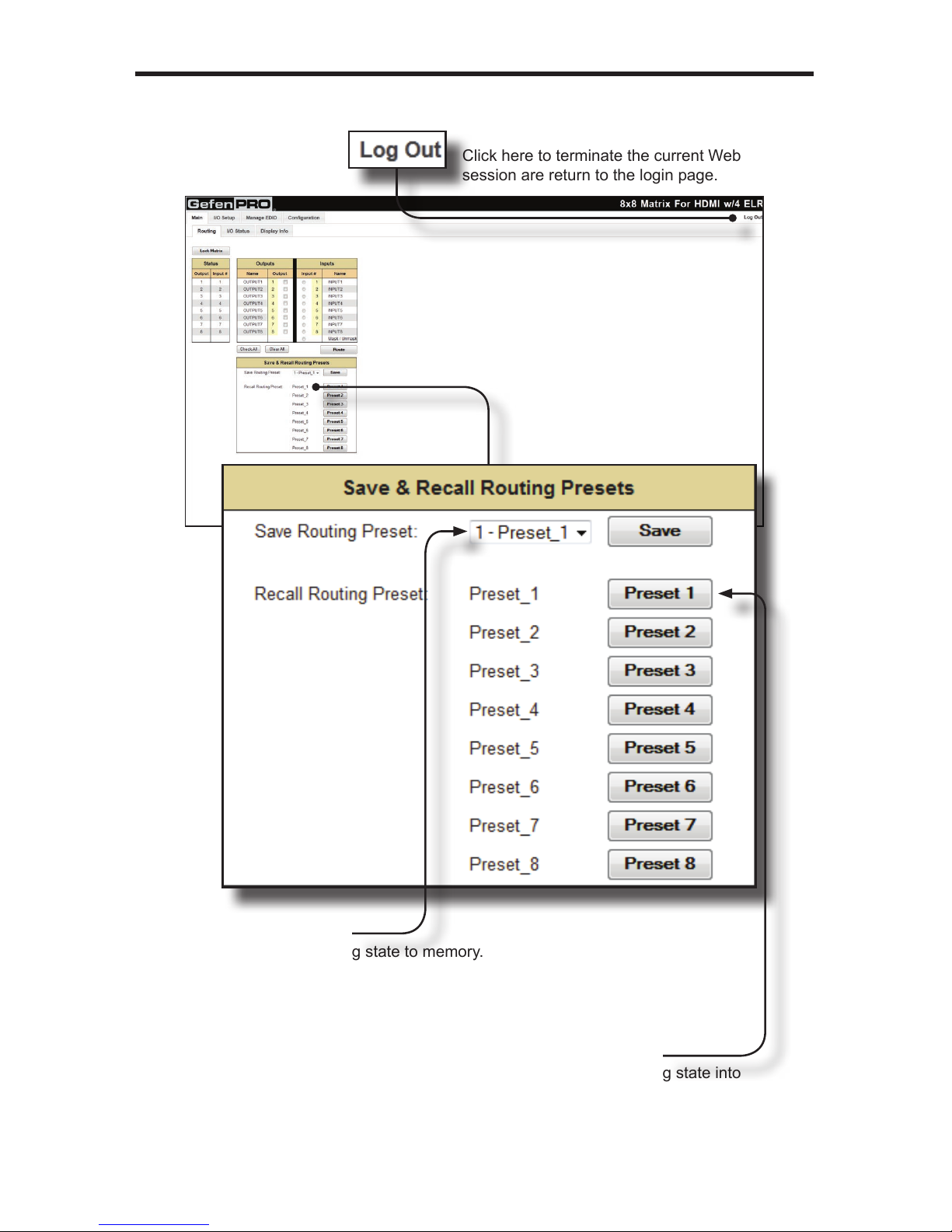

The Web GUI is divided into four main pages: Main, I/O Setup, Manage EDID, and

Conguration. Each main page is represented by a tab at the top-most portion of the

screen. The Main, I/O Setup, and Manage EDID pages have their own set of sub-tabs. Click on the desired tab / sub-tab to open the desired page.

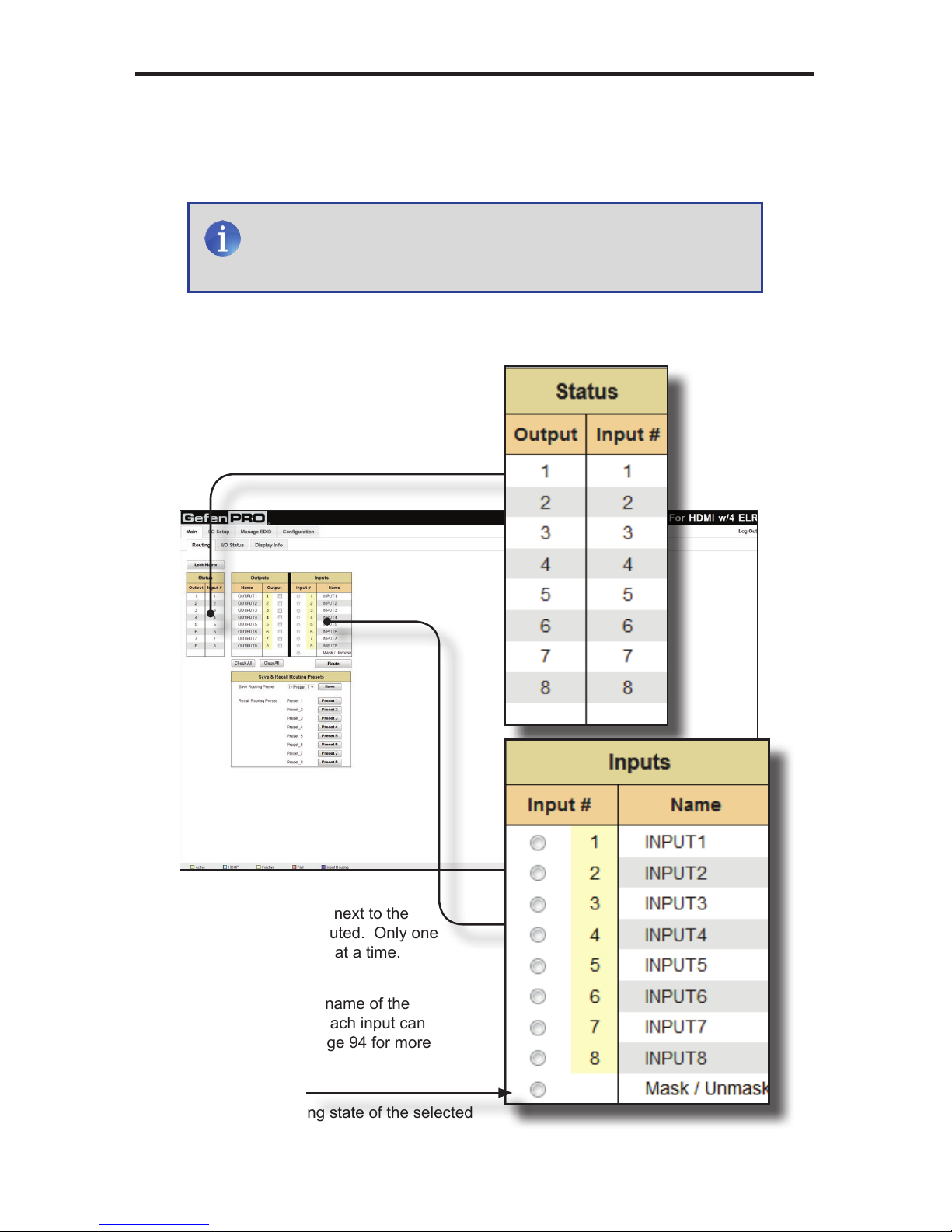

Main >> Routing

NOTE: In order to view all four tabs at the top of the screen, the user

must be logged in as “Administrator”. If logged-in as “Operator”,

only the Main tab will be visible.

Input #

Click the radio button next to the

desired input to be routed. Only one

input can be selected at a time.

Name

Displays the current name of the input. The name of each input can be changed. See page 94 for more information.

Mask / Unmask

Toggles the masking state of the selected output.

Status

Displays the current routing

status of the matrix.

WEB INTERFACE

Lock Matrix

Locks / unlocks the matrix. When the matrix is locked, no modications can be made using the Web GUI. When the matrix is locked, the button text will read “Unlock Matrix” and a red bar will appear across the top portion of the screen with the text “Matrix is LOCKED”. Click the “Unlock Matrix” button to unlock the matrix. See the illustration at the bottom of the page.

Legend

Provides color-coded information on the

status of each Input and Output.

WEB INTERFACE

Name

Displays the current name of each output. The name of each input can be changed. Refer to the #set_input_name command on page 54 for details on naming inputs.

Output

Click to place a check mark in the box and select the desired output. Multiple outputs can be selected at a time.

Check All

Places a check mark in each box under the Output # column.

Clear All

Clears all check marks from the Output # column.

Route

Click this button to route the current

input and output selection(s).

Log Out

Click here to terminate the current Web

session are return to the login page.

WEB INTERFACE

Save Routing Preset

Saves the current routing state to memory. Click the drop-down list to select the desired routing preset, then click the Save button to save the preset to memory.

Recall Routing Preset Loads the selected routing state into

memory. Click the desired button to load the desired routing preset into memory.

WEB INTERFACE

Main >> I/O Status

Output

Displays the state of each output for each of the following: Output

name, RSENSE, Mask, HPD (Hot-Plug Detect), and HDCP.

Input

Displays the state of each input for each of the following: Input name, Color Depth, Color Space, HDCP, 3D, Active Signal, Vertical Resolution, Horizontal Resolution, Progressive / Interlaces, and Refresh Rate.

WEB INTERFACE

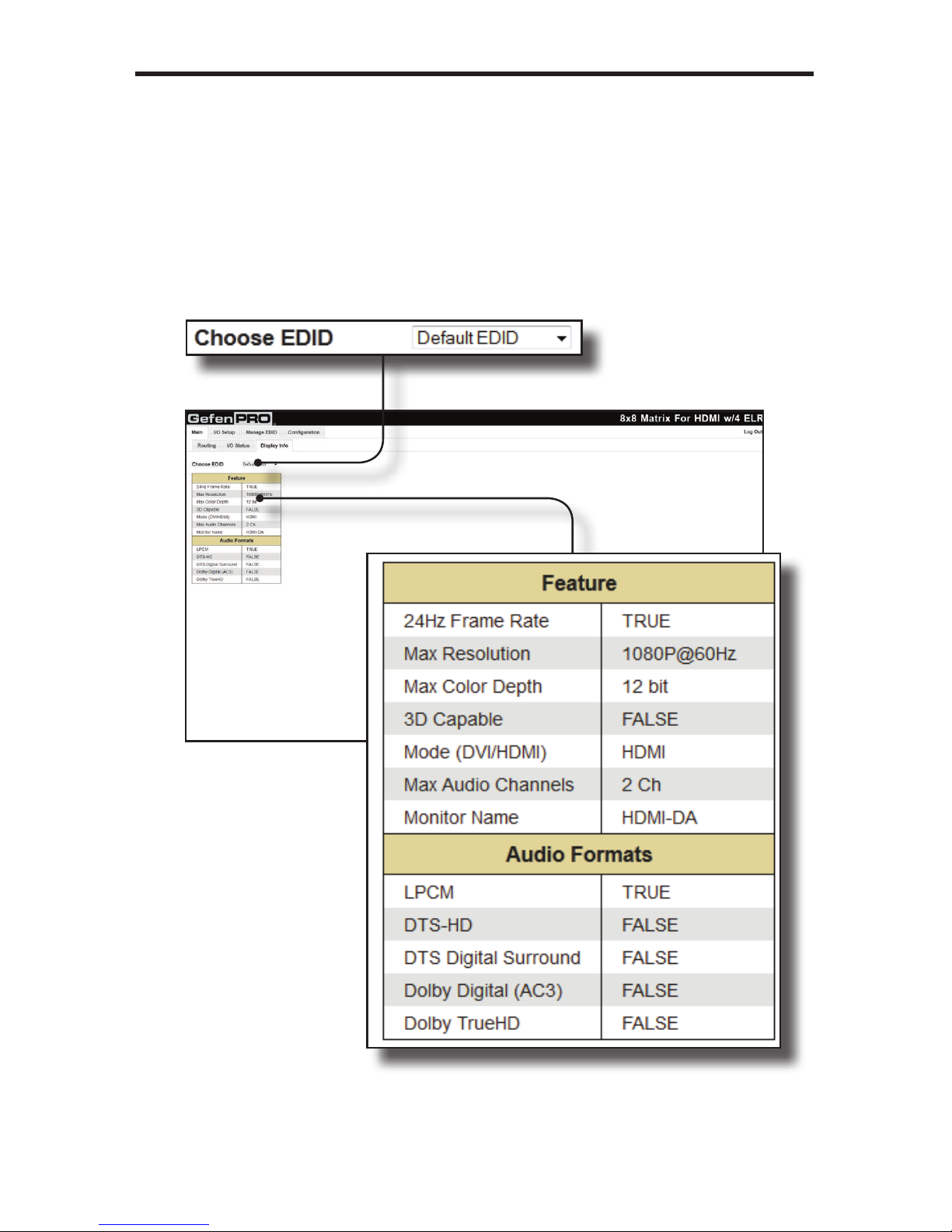

Main >> Display Info

Choose EDID

Select the EDID from the drop-down list. The selected EDID will be copied from the selected EDID Bank or

Output to the desired input(s) and used by the source.

Options:

Default EDID, Bank 1 ... Bank 8, Output 1 ... Output 8

Feature / Audio Formats

Displays the capabilities of the display (or sink device),

based on the EDID.

WEB INTERFACE

I/O Setup >> Preset Names

Name

Type the desired name of the Preset in this eld. Click the Save Changes button to save the Preset Name. Click the Cancel button to restore the previous name.

Save Changes

Saves the current changes.

Cancel

Restores the previous names for each Preset, if a change was made.

WEB INTERFACE

I/O Setup >> I/O Names

Save Changes

Saves the current changes.

Cancel

Restores the previous names for each Preset, if a change was made.

Name

Type the desired name of each Output or Input in these elds. Click the Save Changes button or click the Cancel button to restore the previous name.

WEB INTERFACE

I/O Setup >> HPD Control

Pulse

Click the Pulse button to cycle the HPD line on the desired input. This is the equivalent of physically disconnecting and reconnecting the HDMI cable between the source device and the matrix.

WEB INTERFACE

I/O Setup >> FST

FST

Click to select / deselect the desired input(s). Inputs with a check mark will

enable the FST feature. Use the Set button to save changes.

Check All

Places a check mark in each box under the FST column.

Clear All

Clears all check marks from the FST column.

Set

Click this button to save changes for all input(s). The Web GUI will display a prompt to verify the selected operation.

Cancel Cancels the current operation and ignores changes for each input, if a change

was made.

Gefen GEF-HDFST-848-4ELR, PRO GEF-HDFST-848-4ELR User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
