INTRODUCTION

Congratulations on your purchase of the 8x8 DVI KVM Dual Link Matrix. Your
complete satisfaction is very important to us.

GefenPRO

In the realm of video distribution, certain features are invaluable in a commercial
or broadcast environment. Accommodations such as a built-in power supply
and fl at black rack-mount enclosures set GefenPRO apart from our traditional
products. Complex distribution units allow for professional DVI, 3G-SDI, and
HDMI signals to be routed and converted easily and seamlessly, while being
backed up by a renowned and dependable technical support team. Gefen invites
you to explore the GefenPRO product line and hopes that you fi nd the solution
that fi ts your needs.

The GefenPRO 8x8 DVI KVM Dual Link Matrix

Easily switch eight cross-platform DVI Dual Link computers to eight DVI Dual
Link displays with our 8x8 DVI KVM Dual Link Matrix. This product provides a
simple, reliable and highly effective method of creating multiple computer work­stations, with each workstation capable of accessing any one of the computers
or sources at any time by remote control. Eight stations can be set up locally or
extended with a Gefen extender. When used with computers, USB and Audio
matrix control signals follow the DVI Dual Link input for organized signal routing.

How It Works

The 8x8 DVI KVM Dual Link Matrix has eight Dual Link DVI inputs and eight Dual
Link DVI outputs. Simply connect eight computers’ DVI Dual Link video ports
to the Matrix’s inputs, then connect eight DVI Dual Link displays to the Matrix’s
outputs. USB keyboard and mouse signals and analog audio, once connected,
follow the selected DVI Dual Link input for each computer.

1

OPERATION NOTES

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE 8X8 DVI KVM DUAL LINK MATRIX

• The 8x8 DVI KVM Dual Link Matrix will not pass HDCP content.

• There is no internal scaling in the 8x8 DVI KVM Dual Link Matrix. All of the
attached monitors must be able to display the resolutions output by the
source devices. For maximum compatibility it is recommended that only one
compatible/common resolution be used by all of the source devices.

• Advanced EDID features and IP confi guration features are accessible via the
RS-232 serial communication port. See page 16 for more information.

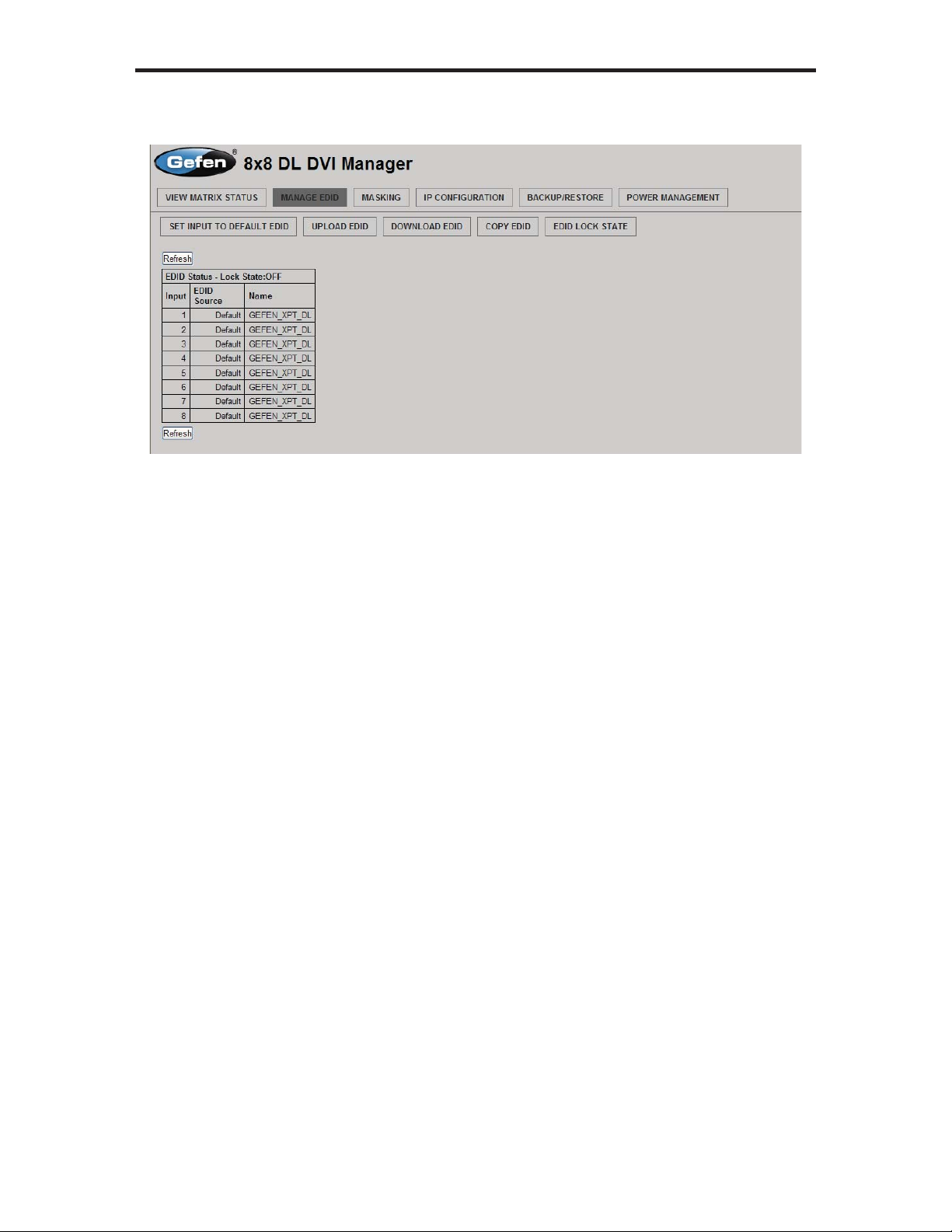

• Routing and EDID features can be accessed via a web browser using the IP
control feature, built into the 8x8 DVI KVM Dual Link Matrix.

• IMPORTANT: If the unit is installed in a closed or multi-rack assembly, do

not block the ventilation holes of the enclosure.

2

FEATURES

Features

• Increases productivity by providing access to 8 displays, from any 8
computers.

• Web-based control switching

• Maintains beautiful, sharp resolutions up to 2560x1600.

• Serial RS-232 port for remote control via a computer or control automation
device.

• Supports DDWG standards for DVI monitors

Package Includes

(1) GefenPRO 8x8 DVI KVM Dual Link Matrix
(8) 6 ft. DVI Dual Link cables (M-M)
(8) 6 ft. USB cables (A-B)
(1) AC Power Cord
(1) Set of Rack Ears
(1) User Manual

3

PANEL LAYOUT

Front Panel

4 5

6

3

2

1

4

PANEL DESCRIPTIONS

Front Panel

1 Control Buttons

These buttons are used to navigate the LCD menu system. See pages 9 and
10 for more information.

◄ - Left
► - Right

Select - Select

2 Cancel Button

This button is used to cancel a routing change in progress.

3 IR Window

Receives signals from the IR Remote Control unit.

4 Power Indicator

This LED indicator will glow bright red when the power is turned on.

5 Power Switch

Turn the power on or off using this switch.

6 LCD Display

Displays the current routing status of the Matrix and is also used to manage
source routing.

5

PANEL LAYOUT

Back Panel

6

7891011

3 421 5

6

PANEL DESCRIPTIONS

Back Panel

1 RS-232 Serial Port

Connects to the RS-232 control device. The 8x8 DVI KVM Dual Link Matrix
may be switched remotely using this port. See page 16 for more information.

2 AC 110/220V (50/60 Hz) Power Cable Receptacle

Connect the included AC power cord from this receptacle to an available
electrical outlet.

3 Fuse Drawer
Each power receptacle houses a fuse drawer. Within each fuse drawer are two

(2) 250 V fuses. One fuse is active and the other is a spare.

4 DVI Input Ports (1 - 8)

Connect DVI source devices to these ports.

5 IP Control Interface

Connect to this port to control the 8x8 DVI KVM Dual Link Matrix using IP
Control. See page 31 for more information.

6 IR Extender Port

Connect an IR extender cable to this port.

7 USB Output Ports (16)

Connect USB devices to these ports (two outputs per channel).

8 DVI Output Ports (1 - 8)

Connect DVI monitors to these ports.

9 USB Input Ports (1 - 8)

Connect USB source devices to these ports

10 Audio Output Connector (3.5 mm Mini-Stereo)

Connect audio devices to these ports using 3.5 mm mini-stereo cables.

1 1 Audio Input Connectors (3.5 mm Mini-Stereo)

Connect audio output devices to these ports using 3.4 mm mini-stereo cables.

7

CONNECTING THE 8X8 DVI KVM DUAL LINK MATRIX

x

How to Connect the GefenPRO 8x8 DVI KVM Dual Link Matrix

1. Connect up to 8 DVI source devices to the DVI inputs on the rear panel of
the GefenPRO 8x8 DVI KVM Dual Link Matrix using the supplied DVI cables.

2. Connect up to 8 DVI monitor to the DVI outputs on the rear panel of the
GefenPRO 8x8 DVI KVM Dual Link Matrix with user-supplied DVI cables.

3. Connect the included AC power cable to the power receptacle on the
rear panel of the GefenPRO 8x8 DVI KVM Dual Link Matrix. Connect the
opposite end of the cable into an available electrical outlet.

How to Operate the GefenPRO 8x8 DVI KVM Dual Link Matrix

The GefenPRO 8x8 DVI KVM Dual Link Matrix offers a number of control
options. The following methods can be used to control basic routing functions of
the GefenPRO 8x8 DVI KVM Dual Link Matrix:

1. Front Panel Control Buttons - Pages 9 and 10

2. IR Remote Control - Pages 11 - 13

3. RS-232 Serial Control - Pages 16 - 30

4. IP Control - Pages 31 - 38

Wiring Diagram for the GefenPRO 8x8 DVI KVM Dual Link Matrix

DVI DUAL LINK CABLE

8x

DVI Dual Link Sources
USB Sources
Audio Sources

Matrix

atri

AUDIO CABLE

USB CABLE

8x

DVI Dual Link Displays
USB Keyboards
USB Mice & Speaker

GEF-DVIKVM-848DL

Attention: This product should always be connected to a grounded

electrical socket.

8

FRONT PANEL DISPLAY

Main Display

The Main Display of the GefenPRO 8x8 DVI KVM Dual Link Matrix is a 16

character 2 line display. This display will show the standby screen and will also
be used to aid in performing routing commands. When the unit is powered on,
the following screen is displayed:

After a few moments, the Standby Screen is displayed. The Standby Screen is
shown below:

Displaying the Firmware Version

Pressing the ◄ button on the front panel will display the current firmware
version:

Displaying the Bootloader Version

Press the ◄ button to display the bootloader version:

Press the ◄ button once more to return to the Standby Screen.

NOTE: The Cancel button can be pressed at any time to return to the Standby

Screen.

9

FRONT PANEL DISPLAY

Displaying the Routing Status

From the main screen, press the Select button. When the arrow cursor is next

to OUTPUT, pressing the ◄ or ► buttons on the front panel will show the current
routing state of each input and output. The illustration below shows the routing
state of output 1.

Pressing the ► button again will display the routing state of output 2 and so on.

Note that the number displayed next to INPUT may be different than the
illustration above, depending upon the current routing state.

Routing Sources

Example:
Route the source device connected to In 2 to the monitor connected to Out 1.

1. From the Standby Screen, press the Select button on the front panel to

display the routing status screen.

2. Press the Select button again to move the cursor to INPUT.

3. Press the ► button to set the source to Input 2. The source device
connected to In 2 is now routed to the monitor connected to Out 1.

4. Press the Cancel button to return to the standby screen.

NOTE: The Cancel button can be used to return to the standby screen at

any time.

10

PANEL DESCRIPTIONS

RMT-16IR

Remote Control Unit

1

2

1 Activity Indicator

This LED will be activated momentarily each time a button is pressed.

2 Monitor and Source Selection Buttons (1 - 16)

These buttons are used to select which source is routed to a monitor.

See page 14 for information on using the IR Remote Control unit.

11

IR REMOTE INSTALLATION

Installing the RMT-16IR Battery

1. Remove the battery cover on the back of the IR Remote Control unit.

2. Insert the included battery into the open battery slot. The positive (+) side of
the battery should be facing up.

3. Replace the battery cover.

The Remote Control unit ships with two batteries. One battery is required for
operation and the other battery is a spare.

Empty Battery Slot

CAUTION: Risk of explosion if battery is replaced by an incorrect

type. Dispose of used batteries according to the instructions.
