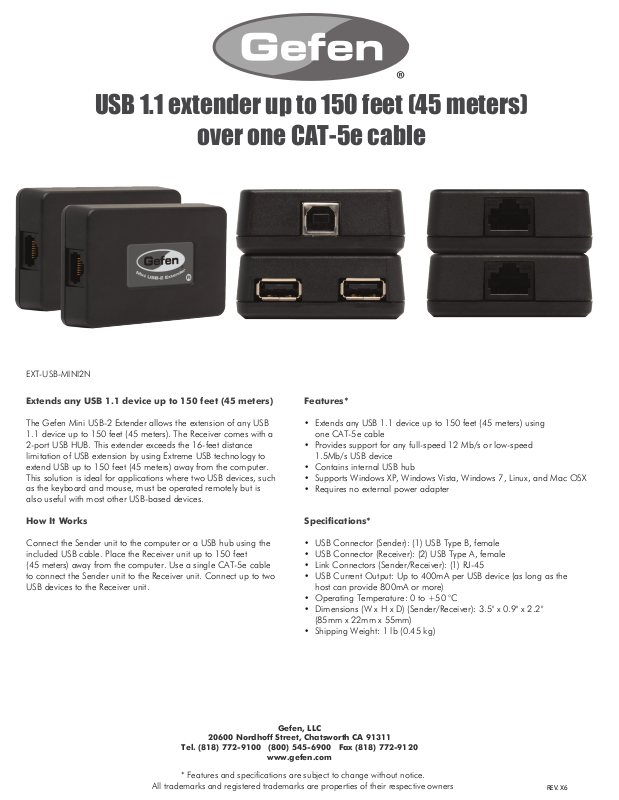

Gefen EXT-USB-MINI2N Data Sheet

EXT-USB-MINI2N

USB 1.1 extender up to 150 feet (45 meters)

over one CAT-5e cable

Extends any USB 1.1 device up to 150 feet (45 meters)

The Gefen Mini USB-2 Extender allows the extension of any USB

1.1 device up to 150 feet (45 meters). The Receiver comes with a
2-port USB HUB. This extender exceeds the 16-feet distance
limitation of USB extension by using Extreme USB technology to
extend USB up to 150 feet (45 meters) away from the computer.
This solution is ideal for applications where two USB devices, such
as the keyboard and mouse, must be operated remotely but is
also useful with most other USB-based devices.

How It Works

Connect the Sender unit to the computer or a USB hub using the
included USB cable. Place the Receiver unit up to 150 feet
(45 meters) away from the computer. Use a single CAT-5e cable
to connect the Sender unit to the Receiver unit. Connect up to two
USB devices to the Receiver unit.

Features*

• Extends any USB 1.1 device up to 150 feet (45 meters) using

one CAT-5e cable

• Provides support for any full-speed 12 Mb/s or low-speed

1.5Mb/s USB device

• Contains internal USB hub

• Supports Windows XP, Windows Vista, Windows 7, Linux, and Mac OSX

• Requires no external power adapter

Specifications*

• USB Connector (Sender): (1) USB Type B, female

• USB Connector (Receiver): (2) USB Type A, female

• Link Connectors (Sender/Receiver): (1) RJ-45

• USB Current Output: Up to 400mA per USB device (as long as the

host can provide 800mA or more)

• Operating Temperature: 0 to +50 °C

• Dimensions (W x H x D) (Sender/Receiver): 3.5" x 0.9" x 2.2"

(85mm x 22mm x 55mm)

• Shipping Weight: 1 lb (0.45 kg)

20600 Nordhoff Street, Chatsworth CA 91311

Gefen, LLC

Tel. [phone] [phone] Fax [phone]

www.gefen.com

* Features and specifications are subject to change without notice.

All trademarks and registered trademarks are properties of their respective owners

REV. X6
