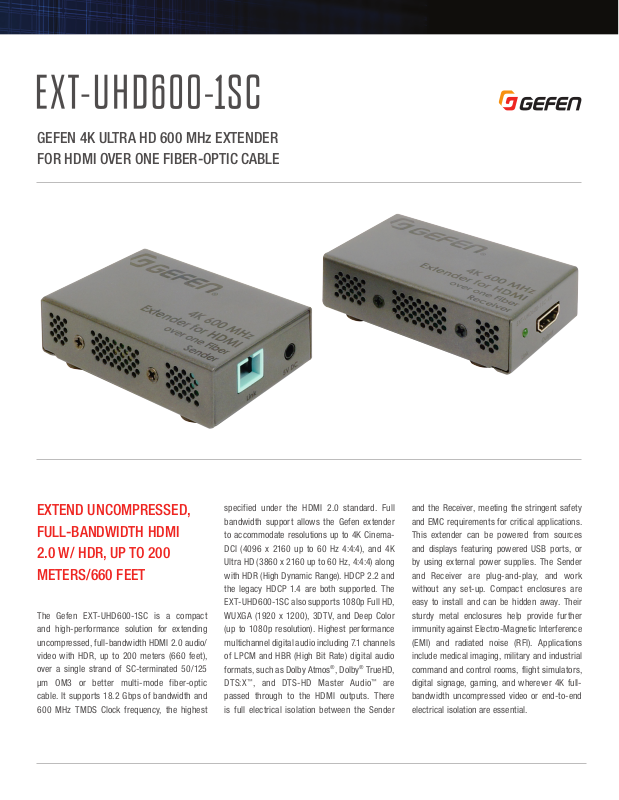

Gefen EXT-UHD600-1SC Data Sheet

GEFEN 4K ULTRA HD 600 MHz EXTENDER
FOR HDMI OVER ONE FIBER-OPTIC CABLE

EXTEND UNCOMPRESSED,
FULL-BANDWIDTH HDMI

2.0 W/ HDR, UP TO 200
METERS/660 FEET

The Gefen EXT-UHD600-1SC is a compact
and high-performance solution for extending
uncompressed, full-bandwidth HDMI 2.0 audio/
video with HDR, up to 200 meters (660 feet),
over a single strand of SC-terminated 50/125
µm OM3 or better multi-mode fiber-optic
cable. It supports 18.2 Gbps of bandwidth and
600 MHz TMDS Clock frequency, the highest

specified under the HDMI 2.0 standard. Full
bandwidth support allows the Gefen extender
to accommodate resolutions up to 4K Cinema­DCI (4096 x 2160 up to 60 Hz 4:4:4), and 4K
Ultra HD (3860 x 2160 up to 60 Hz, 4:4:4) along
with HDR (High Dynamic Range). HDCP 2.2 and
the legacy HDCP 1.4 are both supported. The
EXT-UHD600-1SC also supports 1080p Full HD,
WUXGA (1920 x 1200), 3DTV, and Deep Color
(up to 1080p resolution). Highest performance
multichannel digital audio including 7.1 channels
of LPCM and HBR (High Bit Rate) digital audio
formats, such as Dolby Atmos®, Dolby® TrueHD,
DTS:X™, and DTS-HD Master Audio™ are
passed through to the HDMI outputs. There
is full electrical isolation between the Sender

and the Receiver, meeting the stringent safety
and EMC requirements for critical applications.
This extender can be powered from sources
and displays featuring powered USB ports, or
by using external power supplies. The Sender
and Receiver are plug-and-play, and work
without any set-up. Compact enclosures are
easy to install and can be hidden away. Their
sturdy metal enclosures help provide further
immunity against Electro-Magnetic Interference
(EMI) and radiated noise (RFI). Applications
include medical imaging, military and industrial
command and control rooms, flight simulators,
digital signage, gaming, and wherever 4K full­bandwidth uncompressed video or end-to-end
electrical isolation are essential.

FEATURES

*

SPECIFICATIONS

*

§ Supports 18.2 Gbps bandwidth and 600 MHz TMDS clock

§ Extension up to 200m (660 feet) over one SC-terminated multi-mode OM3 or bet ter

(50/125um) fiber-optic cable

§ Supports resolutions up to 4K Cinema-DCI (4096 x 2160 up to 60 Hz, 4:4:4), 4K Ultra HD

(3860 x 2160 up to 60 Hz, 4:4:4) with HDR, 1080p Full HD, and WUXGA (1920x1200)

§ Supports HDCP 2.2 and 1.4

§ Supports HDR (High Dynamic Range) 10-bit Deep Color at 4K 60 Hz 4:2:0 and 4K 24 Hz

4:4:4

§ Supports 12-bit Deep Color at 1080p Full HD (60 Hz 4:4:4)

§ 3DTV pass-through

§ Lip Sync pass-through

§ Supports uncompressed LPCM digital audio up to 7.1 channels

§ Supports up to 7.1 channels of HBR (High Bit Rate) digital audio including Dolby Atmos®,

Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio

™

§ Supports the use of DVI sources and DVI displays up to 1080p Full HD and W UXGA

(1920x1200), with Gefen CAB-DVI2-HDMI-LCK DVI-to-HDMI cables (not included)

§ Sturdy metal construction of the enclosures help provide immunity against Electro-

Magnetic Interference (EMI) and radiated noise (RFI).

§ Plug & Play – no configuration or set-up required for most applications

§ Compact enclosures are easy to install and can be hidden away.

§ Maximum TMDS Clock: 600 MHz

§ Total Signal Bandwidth/Data Rate: 18.2 Gbps

§ Video Input connector: (1) HDMI Type A 19-pin female

§ Video Output connector: (1) HDMI Type A 19-pin female

§ Link connector (Sender/Receiver): (1) Type SC

§ Link Indicator (Sender/Receiver): (1) LED, green

§ Power Supply connector (Sender/Receiver):

(1) 5V DC jack, 3.5mm barrel/1.3mm pin

§ Power Consumption: Sender: 3.2W, Receiver: 2.8W

§ Optical Power Budget: 6.5 dB

§ Operating Temperature: +32 to +122 °F (0 to +50 °C)

§ Operating Humidity: 10% to 85% RH, non-condensing

§ Storage Temperature: -4 to +158 °F (-20 to +70 °C)

§ Storage Humidit y: 10% to 85% RH, non-condensing

§ MTBF: 50000 hours

§ Dimensions (W x H x D, Sender/Receiver, not including connectors):

1-3/4” x 7/8” x 3-1/8” (45mm x 22mm x 79mm)

§ Net Weight (Sender/Receiver): 3.2 oz. (0.1 kg) each

§ Shipping Weight: 2.5 lbs (1.2 kg)

Ultra HD
Source

4K 600 MHz
Extender for HDMI
(Sender unit)

®

Extender for HDMI

4K 600 MHz

over one Fiber

Sender

HDMI CABLE

FIBER OPTIC OM3 (SC-SC) CABLE

4K 600 MHz
Extender for HDMI
(Receiver unit)

®

Extender foir HDMI

4K 600 MHz

over one Fiber

Receiver

Ultra HD
Display

* Featur es and speci ficati ons are subje ct to chang e without n otice.
