Gefen EXT-CAT5-1600A User Manual

®

CAT5-1600A

Extender

EXT-CAT5-1600A

User Manual

www.gefen.com

ASKING FOR ASSISTANCE

Technical Support:

Telephone [phone]
[phone]

Fax [phone]

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday Pacifi c Time

Write To:

Gefen, LLC
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311

www.gefen.com
[e-mail]

Notice

Gefen, LLC reserves the right to make changes in the hard ware, packaging and

any accompanying doc u men ta tion without prior written notice.

CAT5-1600A Extender is a trademark of Gefen, LLC

© 2011, Gefen, LLC. All rights reserved.

All trademarks are the property of their respective owners.

Rev A6

CONTENTS

1 Introduction
2 Operation Notes
3 Features
4 Sender Unit Layout
5 Sender Unit Descriptions
6 Receiver Unit Layout
7 Receiver Unit Descriptions
8 Connecting the CAT5-1600A Extender
9 DIP Switch Configuration
12 Network Cable Wiring Diagram
13 Specifi cations
14 Warranty

INTRODUCTION

Congratulations on your purchase of the CAT5-1600A Extender. Your complete
satisfaction is very important to us.

Gefen

Gefen delivers innovative, progressive computer and electronics add-on solutions
that harness integration, extension, distribution and conversion technologies.
Gefen’s reliable, plug-and-play products supplement cross-platform computer
systems, professional audio/video environments and HDTV systems of all sizes
with hard-working solutions that are easy to implement and simple to operate.

The Gefen CAT5-1600A Extender

The Gefen CAT5-1600A extends VGA, Audio, and USB up to 330 feet (100 me­ters) using CAT-5 cables. Display resolutions up to 1920x1200 are supported. A
local monitor can be connected to the Sender unit and up to two monitors can be
connected to the Receiver unit. Four USB connectors on the Receiver unit allow
control of the computer system from a KVM workstation. Mini-stereo connectors
extend analog audio. A power-saving “Green Mode” can be set via DIP switches
on the Sender and Receiver. When activated, both units will go into low-power
Standby Mode when the Sender’s VGA input signal disappears.

How It Works

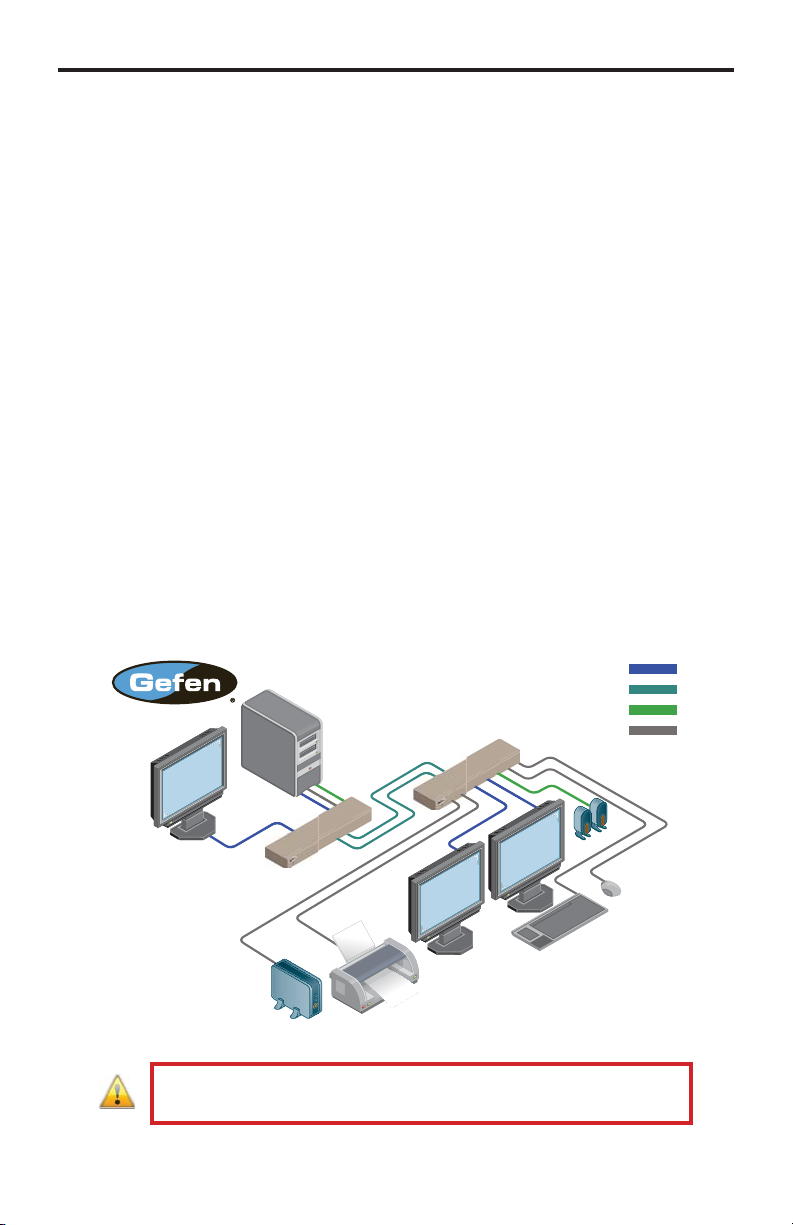

Place the Sender unit next to the VGA source. Use the included VGA cable to
connect the source to the Sender unit. Optionally connect a local monitor to the
Sender unit using another VGA cable. Connect up to two monitors to the Re­ceiver unit with VGA cables. Connect the USB devices to the input and output
connectors. For audio, connect a mini-stereo cable between the audio source
and the audio input on the Sender unit. Connect a mini-stereo cable between the
audio output on the Receiver unit and the audio device. Use two CAT-5 cables to
connect the Sender unit to the Receiver unit.

To power-on the units, connect the locking power supplies and plug them into
available electrical outlets. The computer can now be controlled from the KVM
workstation.

1

OPERATION NOTES

READ THESE NOTES BEFORE

OPERATING THE CAT5-1600A EXTENDER

• The CAT5-1600A extends VGA and Audio up to 1000 feet (300 meters).

• CAT-5 cables should not exceed 330 feet (100 meters) when extending
USB.

2

FEATURES

Features

• Extends analog video (VGA) and analog audio up to 1000 ft. (300 meters)
over two CAT-5 cables.

• Extends USB 2.0 up to 330 feet (100 meters)

• Supports resolutions up to 1920 x 1200

• Supports USB 2.0 at up to 480 Mbps transfer rate

• Reads EDID of both remote and local monitor

• Backward-compatible with USB 1.1 devices

• Green Mode saves power when VGA source is absent

• Supports any Operating System (OS)

• Color, brightness, and focus controls

• Adjustable phase-shift knob for RGB colors

• Locking power supplies

• Rack-mountable

Package Includes

(1) CAT5-1600A Extender - Sender Unit
(1) CAT5-1600A Extender - Receiver Unit
(1) 6 ft. VGA Cable (M-F)
(1) 6 ft. USB Cable (A-B)
(1) 6 ft. Mini-Stereo Cable (3.5 mm)
(2) 5V DC Locking Power Supplies
(1) Quick-Start Guide

3
