Gefen EXT-AVSCALER-PRO User Manual

Audio/Video Scaler

Pro with Amplifier

EXT-AVSCALER-PRO

User Manual

www.gefen.com

ASKING FOR ASSISTANCE

Technical Support:

Telephone [phone]
[phone]

Fax [phone]

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen Inc.
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311

www.gefen.com
[e-mail]

Notice

Gefen Inc. reserves the right to make changes in the hard ware, packaging and

any accompanying doc u men ta tion without prior written notice.

Audio/Video Scaler Pro with Amplifi er is a trademark of Gefen Inc.

© 2008 Gefen Inc., All Rights Reserved

All trademarks are the property of their respective companies

Rev X1

CONTENTS

1 Introduction
2 Operation Notes
3 Features
4 Unit Panel Layout
5 Unit Panel Descriptions
6 Unit Panel Descriptions
7 Connecting The Audio/Video Scaler Pro with Amplifi er
8 RMT-SR-IR Remote Description
9 Operating The Audio/Video Scaler Pro with Amplifi er
15 RMT-SR-IR Remote Installation
16 RMT-SR-IR Code Confi guration
17 RS-232 Serial Control Interface
18 Rack Mount Installation
19 Specifi cations
20 Warranty

INTRODUCTION

Congratulations on your purchase of the Audio/Video Scaler Pro with Amplifi er.
Your complete satisfaction is very important to us.

Gefen

Gefen delivers innovative, progressive computer and electronics add-on solutions
that harness integration, extension, distribution and conversion technologies.
Gefen’s reliable, plug-and-play products supplement cross-platform computer
systems, professional audio/video environments and HDTV systems of all sizes
with hard-working solutions that are easy to implement and simple to operate.

The Gefen Audio/Video Scaler Pro with Amplifi er

The Gefen Audio/Video Scaler Pro is an all-in-one, commercial-grade, rack­mountable AV switcher and scaler for a myriad of AV source types. Amplifi ed
20W audio outputs for external speakers save further space by removing the
need for a separate amplifi er. The Gefen Audio/Video Scaler Pro allows you to
scale video and digitally enhance key aspects such as color, aspect ratio, and AV
noise. External audio and video are digitized and combined into an HDMI output
signal along with external digital audio (S/PDIF and TOSLINK).

Video inputs can be standard defi nition or high defi nition television, computer
or High-Defi nition DVI-I (DVI-A or DVI-D), Component, Composite, S-Video,
and HDMI resolutions of up to 1080p. Outputs consist of two HDMI digital video
outputs, two digital audio outputs (S/PDIF, TOSLINK), and two 20W speaker
terminal outputs.

Anything from set-top boxes and DVD players to the next generation of gaming
consoles including the Xbox 360 and PS3 can be plugged into the Audio/Video
Scaler Pro.

Computer users will especially benefi t with the scaling of VGA and DVI video to
make better use of their viewing areas on wide screen monitors or televisions.

How It Works

Audio/Video sources are connected to free ports on the scaler (see the next
paragraph for further details). Output devices such as HD displays connect to
one of the HDMI outputs. Easy to use on-screen menus accessible through
the IR remote control allow for effortless setup and image adjustment to
accommodate different viewing modes and screen sizes.

In order for HDMI output to contain digital audio, each video input source must be
paired with a like type of analog or digital audio in order for the scaler to output
HDMI with digital audio. For example, analog video sources VGA, Component
and Composite/S-Video are input along with analog 2-channel L/R audio. For
multichannel digital results, two HDMI or DVI-D sources could be input with
external digital audio (S/PDIF or TOSLINK). The result in both cases is a single
HDMI signal emerging from the two HDMI output jacks, with both embedded and
external digital audio available on the coaxial and optical outputs.

1

OPERATION NOTES

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE AUDIO/VIDEO SCALER PRO WITH AMPLIFIER

When initially powering on HDMI or DVI-D sources, it is important to have •
the A/V Scaler Pro with Amplifi er’s input selected to that source to ensure
that the EDID (display information) is relayed properly.

Only use speakers with an impedance of 8• Ω with the A/V Scaler Pro with
Amplifi er.

Discrete switching is available using the RS-232 serial communications port. •
Please see page 17 for more information.

Only 2-channel stereo audio sources are output through the amplifi ed •
speaker terminals. Multi-channel audio will not be output through these
speaker outputs.

HDMI 1.2 compliant•

HDCP compliant.•

2

FEATURES

Features

Both digital and analog inputs are format converted and pixel re-scaled •
through the Home Audio/Video Scaler Pro with Amplifi er. It outputs a large
range of formats and resolutions that will easily match the native resolution/
format of your display to ensure highest picture quality.

DVI/HDCP/HDMI compliant input: Operates up to 165Mhz (Up to WUXGA •
@60Hz)

Supports digital HD output up to 1080p•

Integrated 8-bit triple-ADC/PLL.•

Dual high quality scaling engines.•

Dual 3-D motion adaptive de-interlacers with smooth low-angle edge.•

Automatic 3:2 pull-down & 2:2 pull-down detection and recovery.•

High performance frame rate conversion engine.•

The Proprietary Advanced Color Engine technology gives: Brilliant and fresh •
color, Intensifi ed contrast and details, Vivid skin tone, Sharp edge, Accurate
and independent color control

Option to select audio input from HDMI or TOSLINK/SPDIF audio source•

3D noise reduction on analog inputs only. •

Operates through on-screen display (OSD) menu control and remote control•

Digital Audio Delay to match audio/video timing•

Less then one frame delay allowing for gaming•

Aspect Ratio Control•

Reset Button •

Package Includes

(1) Gefen Audio Video Scaler Pro
(1) 6 Foot HDMI Cable (M-M)
(1) 24V DC Power Supply
(1) IR Remote control
(1) Set of Rack Ears
(1) User’s Manual

3

UNIT PANEL LAYOUT

5 7

4 6

21

20

Front Panel

Back Panel

23

9 11 13 15 19

1

8 10 12 14 16 17 18

4

UNIT PANEL DESCRIPTIONS

IR Receiver1

This receivers will accept commands from the included RMT-SR-IR remote
control. There must be line-of-sight between this receiver and the remote control
for successful operation to occur.

Power Indicator LED2

This LED indicator will become active once the included 5V DC power adapter
has bee properly connected between the sender unit and an open wall power
socket.

Selected Input LED3

Each input source has an LED that will become active when it is selected. All
input sources are listed below.

CV Composite input
SV S-video input
Comp Component input
HDMI 1 HDMI 1 input
HDMI 2 HDMI 2 input
DVI DVI input

RS-232 Serial Communications Port4

This port can accept commands from an RS-232 device to control the input
switching. Please see page 17 for more details on this feature.

Analog Stereo Input Port for Composite5

This input will accept audio from one pair of RCA analog stereo cables for use
with the composite input.

Composite Input Port6

This input will accept video from one RCA composite source. The composite
source will be digitally converted for output through the HDMI Output Port.

Analog Stereo Input Port for Component7

This input will accept audio from one pair of RCA analog stereo cables for use
with the component input.

24V Power Supply Input Port8

Connect the included 24V DC power supply to this input. Once properly
connected between the unit and an open wall power socket, the Power Indicator
LED should become active.

Stereo Speaker Terminals9

The stereo speaker output terminals use spring-loaded compression. These
terminals are designed to accept 8Ω speakers.

5

UNIT PANEL DESCRIPTIONS

Reset Button10

This button will reset the unit and cycle power off and on again.

Digital Audio Output Ports11

There are two digital audio output types, S/PDIF (coaxial) and TOSLINK
(optical). Both digital outputs are always active.

HDMI Output Port12

Connect the HDMI capable device to this output port. This output port supports
both audio and video.

Digital Audio Input Ports for HDMI 213

There are two digital audio input types, S/PDIF (coaxial) and TOSLINK (optical).
Both these inputs are individually selectable in the GUI for use with the HDMI 2
input.

HDMI 2 Input Port14

Connect a HDMI source device to this input port. This input port supports both
audio and video.

Digital Audio Input Ports for HDMI 115

There are two digital audio input types, S/PDIF (coaxial) and TOSLINK (optical).
Both these inputs are individually selectable in the GUI for use with the HDMI 1
input.

HDMI 1 Input Port16

Connect a HDMI source device to this input port. This input port supports both
audio and video.

Analog Stereo Input Port for DVI17

This input will accept audio from one 3.5mm analog stereo cable for use with the
DVI input.

DVI-I Input Port18

This input port will accept a DVI-A (analog) or DVI-D (digital) signal. DVI-A
signals will be digitally converted for output through the HDMI Output Port.

Analog Stereo Input Port for S-Video19

This input will accept audio from one pair of RCA analog stereo cables for use
with the s-video input.

S-Video Input Port20

This input will accept video from one s-video source. The s-video source will be
digitally converted for output through the HDMI Output Port.

Component Input Port21

This input will accept video from one 3 RCA component source. The component
source will be digitally converted for output through the HDMI Output Port.

6

CONNECTING THE AUDIO/VIDEO SCALER PRO WITH AMPLIFIER

How to Connect the Audio/Video Scaler Pro with Amplifi er

Connect source devices to the Audio/Video Scaler Pro with Amplifi er using 1.
user supplied cables. The following input options are available.

Composite - Single RCA video cable.

S-Video - Single s-video cable.

Component - 3 RCA video cables.

HDMI 1 - Single HDMI cable.

HDMI 2 - Single HDMI cable.

DVI - Single DVI-I, DVI-A, or DVI-D cable.

NOTE: All analog video sources will be converted to digital an output through the

HDMI Output Port.

Connect audio sources to the Audio/Video Scaler Pro with Amplifi er using 2.
user supplied cables. Audio input options are available for the following
source inputs.

Composite - Analog stereo using a 2 RCA analog stereo cable.

S-Video - Analog stereo using a 2 RCA analog stereo cable.

Component - Analog stereo using a 2 RCA analog stereo cable.

HDMI 1 - Embedded audio through the HDMI cable and both a digital

S/PDIF (coaxial) and digital TOSLINK (optical) using digital
audio cables.

HDMI 2 - Embedded audio through the HDMI cable and both a digital

S/PDIF (coaxial) and digital TOSLINK (optical) using digital
audio cables.

DVI - Analog stereo using a 3.5mm analog stereo cable.

NOTE: All analog sources will be converted to digital and output through the

HDMI, digital S/PDIF, and digital TOSLink outputs.

Connect a HDMI cable device to the Audio/Video Scaler Pro with Amplifi er’s 3.
HDMI Output Port using the supplied HDMI cable.

Connect a right and left speaker to the spring-loaded speaker terminals.4.

NOTE: Speaker impedance must be 8Ω or higher.

Optionally, connect the digital S/PDIF (coaxial) or digital TOSLINK (optical) 5.
audio outputs to a digital audio input device.

Connect the included 24V DC power supply to the Audio/Video Scaler Pro 6.
with Amplifi er and to an open wall power socket.

Power on the display7. fi rst and the sources second.

7

RMT-SR-IR REMOTE DESCRIPTION

1

2

4

6

8

Output - Cycles through the available output resolutions. Please see the section 1.
A/V Scaler Pro with Amplifi er CONFIGURATION / Output on page 8 for the
output resolution table.

Input - Cycles though all of input sources. The selectable inputs are 2.
Composite, S-Video, Component, HDMI 1, HDMI 2, and DVI.

Power - Turns the unit on and off (standby).3.

Exit - Exits the current menu option and menu system.4.

3

5

7

9

Menu - Displays the menu system for adjustment of options.5.

Navigation Keys - These include up, down, left, and right buttons for 6.
navigating the menu system. (When not in the GUI, up and down will control
the up and down volume for the amplifi ed speaker outputs.)

The OK button will select specifi c menu options for adjustment and will also 7.
confi rm/cycle-through selections (Output/Input). (When not in the GUI, the
OK button will mute/un-mute all audio outputs)

Reset - Resets the input and output resolutions to factory default.8.

Auto Adjust - Sets the display for optimal resolution and aspect ratio based 9.
on the display’s EDID information and the currently selected sources output
resolution.

8

OPERATING THE AUDIO/VIDEO SCALER PRO WITH AMPLIFIER

Entering the Menu System

Pressing the Menu button on the included RMT-SR-IR remote control will display the
GUI (graphical user interface) for adjustment options.

The GUI is overlaid onto the outgoing video to the display. Therefore, the selected
source must be outputting a compatible resolution for viewing on the display. If video
is not visible on the display, the GUI will also fail to be displayed. To correct this,
please follow the steps below.

Verify that the source is on and outputting a video signal.1.

Verify that the RMT-SR-IR remote channel is in the default position (page 13).2.

Verify that the 3. A/V Scaler Pro with Amplifi er is selected to the chosen source.

Press the Output button on the RMT-SR-IR remote control to cycle through 4.
output resolutions until video is displayed. Please see page 8 for a listing of the
available output resolutions and cycle order.

Navigation

Use the directional buttons to navigate the menu system. Press the OK button to
enter a sub category and also to select a menu item for adjustment. Use the Left and
Right buttons to adjust the selected menu item. Press the EXIT or OK button to return
to the previous menu. Use the LEFT and RIGHT buttons to adjust selected options.
Pressing the EXIT button while in the main menu will exit out of the menu system.

MAIN MENU

The following are the main menu options. Use the UP and DOWN buttons to choose
your desired subcategory and press OK to enter it.

VIDEO
COLOR
OUTPUT
OSD
AUDIO
INFORMATION

VIDEO

Picture Mode

Preset and user confi gurable settings for different viewing scenarios. Preset settings
will not allow user adjustment. Only the USER option will allow customized video

settings. The USER settings are saved.

Options:

Standard - useful for general content •
Movie - useful for dimly lit environments•
Vivid - useful for accentuating colors for a more vibrant image•
User - user confi gurable settings•

NOTE: User settings are saved. However, user settings for the digital inputs (HDMI
1, 2 and DVI) are linked and user settings for the analog inputs (Composite, S-Video,
and Component) are linked. i.e. adjustments to video user settings made on HDMI 1
will be refl ected in HDMI 2.

9

OPERA TING THE AUDIO/VIDEO SCALER PRO WITH AMPLIFIER

VIDEO CONTINUED

Press OK to begin adjusting settings. Use the LEFT and RIGHT buttons to change
settings. Press the OK button once the desired settings are made.

Contrast

Adjusts the contrast in increments of 1 on a scale of 1 to 100 (default 50).

Brightness

Adjusts the brightness in increments of 1 on a scale of to 100 (default 50).

Hue

Adjusts the hue in increments of 1 on a scale of 1 to 100 (default 50).

Saturation

Adjusts the saturation in increments of 1 on a scale of 1 to 100 (default 50).

Sharpness

Adjusts the sharpness in increments of 1 on a scale of 1 to 100 (default 50).

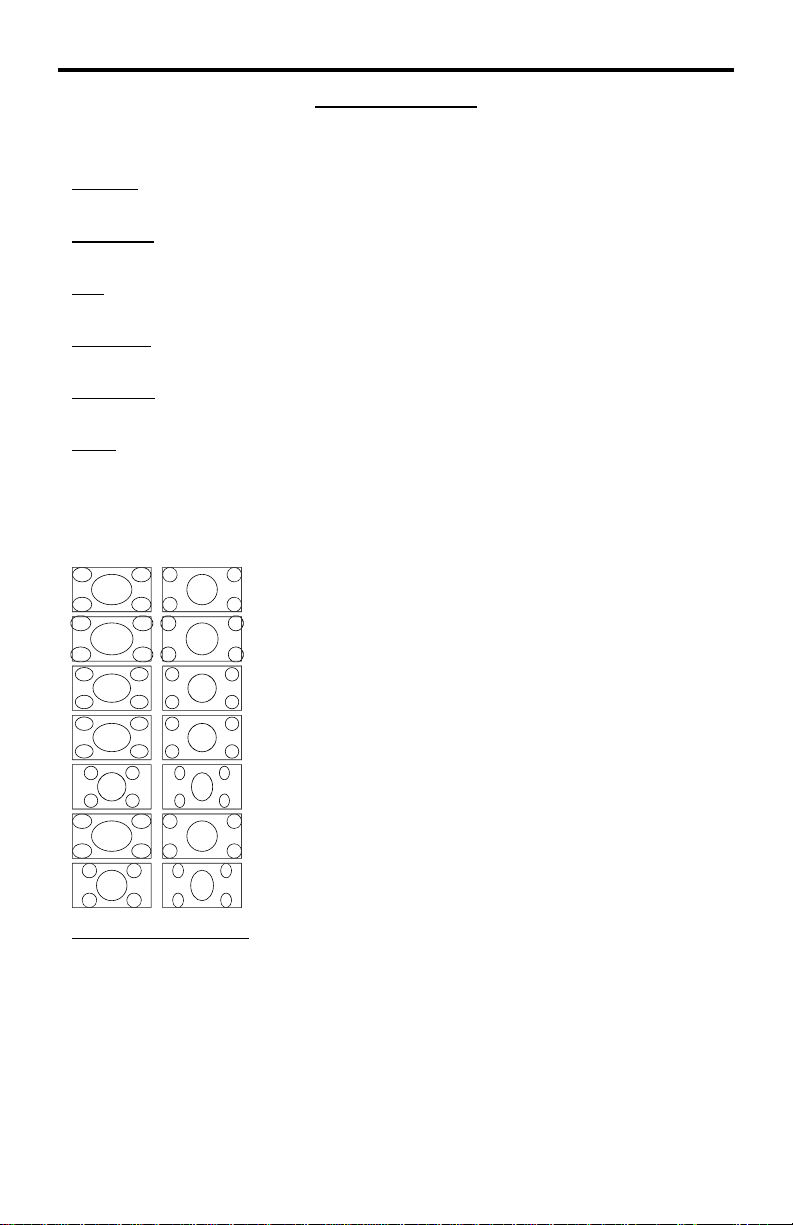

Scale

Adjusts the aspect ratio of the video.

Options: Full, Overscan, Underscan, Letterbox Underscan, Pan Scan Underscan,
Letterbox Full, Pan Scan Full

4:3 Source

Example

16:9 Source

Example

Full - Stretches the image to fi ll the screen

Overscan - Stretches the image to fullscreen and just beyond the border of the display

Underscan - Stretches the image to fullscreen and just within the border of the screen

Letterbox Underscan - Stretches the image to 16:9 aspect ratio with underscan

Pan Scan Underscan - Stretches the image to 4:3 aspect ratio with underscan

Letterbox Full - Stretches the image to 16:9 aspect ratio without underscan

Pan Scan Full - Stretches the image to 4:3 aspect ratio without underscan

N.R. (Noise Reduction) - Only for Composite and S-Video Inputs

Reduces video noise inherent in analog video signals.

Options:

Off - default•
Low•
Middle •
High•

10

OPERA TING THE AUDIO/VIDEO SCALER PRO WITH AMPLIFIER

VIDEO CONTINUED

H-Pos (Horizontal Position)

Adjusts the image’s horizontal position on the screen.

Adjusts in increments of 1 on a scale of 1 to 100 (default is 50)•

V-Pos (V ertical Position)

Adjusts the image’s vertical position on the screen.

Adjusts in increments of 1 on a scale of 1 to 100 (default is 50)•

Y/C Separation - Only for Composite Input

Selects the method in which the brightness and color are separated from the
composite video signal.

Options:

Auto - automatically selects the optimal method (default)•
2D - Separation based on single frame analysis•
3D - Motion adaptive color separation based on multiple frame analysis•

Coring - Only for Composite Input

Adjusts the threshold level for pixel noise evaluation. This relates to how much of the
image is processed in regards to noise reduction.

Adjusts in increments of ~6.5 on a scale of 1 to 100. (default is 20)•

OUTPUT

This menu sets the output resolution for all video sources. Use the directional buttons
to choose your desired output resolution and press the OK button to set it. These
outputs can be cycled through in the numbered order below when not in the menu
system by pressing the OUTPUT button on the RMT-SR-IR remote control.

VGA 480i 576i WXGA

161116

SVGA 480p 576p WSXGA

2 7 12 17

XGA 720p 60 720p 50 WUXGA

3 8 13 18

SXGA 1080i 60 1080i 50 Native

4914

UXGA 1080p 60 1080p 50

51015

Native

This option will select the native resolution of the connected display based on the
EDID from the display.

NOTE: If a resolution that is not supported by the display is selected, the menu GUI

will not longer be visible. To correct this, press the OUTPUT button on the RMT-SR­IR remote control and cycle through the output resolutions until a supported mode is
displayed.

11

OPERA TING THE AUDIO/VIDEO SCALER PRO WITH AMPLIFIER

COLOR

Press OK to begin adjusting settings. Use the LEFT and RIGHT buttons to change
settings. Press the OK button once the desired settings are made.

Color T one

Sets the color for the appearance of white. Only the USER option will allow
customized settings. The USER settings are saved.

Normal - Normal white color appearance (default)•
Warm - Slight red shift to white appearance•
Cool - Slight blue shift to white appearance•
User - User adjustments to Red, Green, and Blue•

Red

Adjust the red color in regards to the appearance of white for the USER setting.

Adjustments are in increments of 1 from 1 to 100 (default is 50)•

Green

Adjusts the green color in regards to the appearance of white for the USER setting.

Adjustments are in increments of 1 from 1 to 100 (default is 50)•

Blue

Adjusts the blue color in regards to the appearance of white for the USER setting.

Adjustments are in increments of 1 from 1 to 100 (default is 50)•

OSD (ON SCREEN DISPLA Y)

Press OK to begin adjusting settings. Use the LEFT and RIGHT buttons to change
settings. Press the OK button once the desired settings are made.

H-Pos (Horizontal Position)

Adjusts the OSD’s horizontal position on the screen.

Adjustments are in increments of 1 from 1 to 100 (default is 50)•

V-Pos (V ertical Position)

Adjusts the OSD’s vertical position on the screen.

Adjustments are in increments of 1 from 1 to 100 (default is 50)•

Time Out

Adjusts the amount of idle time, in seconds, before the OSD is automatically exited.

Adjustments are in increments of 1 from 1 to 100 (default is 10)•

Background

Sets the transparency level of the OSD background.

Adjustments are in increments of ~12.5 on a scale of 1 to 100 (default is 50)•

12

OPERA TING THE AUDIO/VIDEO SCALER PRO WITH AMPLIFIER

OSD (ON SCREEN DISPLA Y) CONTINUED

Remote Channel

Sets the remote channel for use with the RMT-SR-IR remote control. If the selected
channel in this menu and does not match the channel set in the RMT-SR-IR remote,
the unit will cease to respond to IR commands from the remote.

Selectable remote channel from 1 to 4 (default is 1)•

AUDIO

Press OK to begin adjusting settings. Use the LEFT and RIGHT buttons to change
settings. Press the OK button once the desired settings are made.

Source

Sets the audio source for current input.

Options for Composite:

L/R1 - Composite analog audio input (default)•

Options for S-Video:

L/R2 - S-Video analog audio input (default)•

Options for Component:

L/R3 - Component analog audio input (default)•

Options for HDMI 1:

HDMI1 - HDMI 1 internal audio (default)•
Optical1 - Optical input 1•
Coaxial1* - SPDIF input 1•

Options for HDMI 2:

HDMI2 - HDMI 2 internal audio (default)•
Optical2 - Optical input 2•
Coaxial2* - SPDIF input 2•

Options for DVI:

L/R4 - DVI analog audio input (default)•

Delay

Sets the audio delay for lip syncing correction.

Off - No delay (default)•
40ms - 40 millisecond audio offset•
110ms - 110 millisecond audio offset•
150ms - 150 millisecond audio offset•

Sound

Select general audio output function. Mute/Un-mute can also be accessed by using
the OK button on the included RMT-SR-IR remote control when not in the GUI.

On - Use selected audio source (default)•
Mute - No sound output •

*Coaxial is also know as SPDIF

13

OPERA TING THE AUDIO/VIDEO SCALER PRO WITH AMPLIFIER

AUDIO CONTINUED

Volume

Adjusts the amplifi ed speaker output volume. The volume can also be accessed by
using the UP (volume up) and DOWN (volume down) buttons on the included RMT­SR-IR remote control when not in the GUI.

Adjusts in increments of 1 on a scale of 1 to 100 (default is 50)•

INFORMA TION

This menu will allow the user to view general information. There are no confi gurable
options in this menu.

Source - Displays current source•
Input - Displays current input source resolution•
Output - Displays current output resolution•
Version - Displays current fi rmware revision•

14

RMT-SR-IR REMOTE INSTALLATION

Remove battery cover from the back of the RMT-SR-IR remote.1.

Verify that dip switches 1 & 2 are in the down (OFF) position. (See page 13)2.

Insert the battery, hold the battery so that you can see the positive side 3.
facing up. The side that is not marked must be facing down.

Test the RMT-SR-IR remote by pressing ONLY one button at a time. The 4.
indicator light on the remote will fl ash once each time you press a button.

WARNING:

Do not press multiple buttons simultaneously and do NOT press buttons rapidly.
These actions will cause the remote to reset and steps 1-4 will have to be
repeated.

Note: The RMT-SR-IR ships with two batteries. Only one battery is required for
operation, the other battery is complimentary.

15

RMT-SR-IR CODE CONFIGURATION

How to Resolve IR Code Confl icts

In the event that IR commands from other remote controls confl ict with the
supplied RMT-SR-IR remote control, changing the remote channel will alleviate
this issue. The RMT-SR-IR remote control has DIP SWITCHES for confi guring
the remote channel. The A/V Scaler Pro with Amplifi er must match the remote
channel set in the RMT-SR-IR remote control. Please see page 10 for instruction
on how to confi gure the channel on the A/V Scaler Pro with Amplifi er. By default,
both the A/V Scaler Pro with Amplifi er and the RMT-SR-IR remote control are set
to Channel 1.

Remote

Remote Channel 1:
Default

Remote Channel 3:

1 2

1 2

Remote Channel 2:

1 2

Remote Channel 4:

1 2

16

RS-232 SERIAL CONTROL INTERFACE

12345

6789

Only Pins 2 (RX), 3 (TX), and 5 (Ground) are used on the RS-232 serial interface

Binary Table

Corresponding

ASCII

1 1 0011 0001 Input Cycle
2 2 0011 0010 Composite
5 5 0011 0101 Component
6 6 0011 0110 HDMI 1
g 16 0110 0111 HDMI 2

RMT16-IR

Button

Binary

Corresponds to

12345

6789

Input

These commands can be used for discrete switching of the listed inputs. To
access the s-video input, use the ASCII command 2 followed by ASCII command
1 to switch to the composite input and then cycle to the s-video input. Likewise, to
access the DVI input, use the ASCII command G followed by ASCII command 1
to switch to the HDMI 2 input and then cycle to the DVI input. There are currently
no discrete commands available to immediately access the s-video and DVI
inputs.

RS232 Settings

Bits per second ................................................................................................. 19200

Data bits .................................................................................................................... 8

Parity .................................................................................................................. None

Stop bits .....................................................................................................................1

Flow Control ....................................................................................................... None

17

RACK MOUNT INSTALLATION

Rack mount ears are provided for installation of this unit into a 1U rack mount
space.

Locate the side screws on the unit.1.
Remove the front 2 screws that are located closest to the front of the unit.2.
Using the removed screws, screw the rack mounting bracket into the unit.3.
Repeat the procedure on the opposite side of the unit.4.

1

2

3

Front of unit

Rear of unit

4

18

SPECIFICATIONS

Digital Video Amplifi er Bandwidth ............................................................ 165 MHz

Component Video Bandwidth ................................................................... 350 MHz

Input DDC Signal ......................................................................... 5 Volts p-p (TTL)

Input Video Signal .............................................................................. 1.2 Volts p-p

Maximum Resolution ............................................................... 1080p/1920 x 1200

Analog Video Connector (input) ............................. 1x VGA (via DVI-I Connector)

Analog Video Connector (input) .................................. 3x RCA Component Jacks

Analog Video Connector (input) .............................................. 1x RCA Composite

Analog Video Connector (input) ........................................................... 1x S-Video

Analog Audio Connector (input) ............................................. 1x 3.5mm Mini Jack

Digital Video Connector (input) ............................ 1x DVI-D (via DVI-I Connector)

Digital Video Connector (input) ............................................................... 1x HDMI

Digital Video Connector (output) ............................................................. 2x HDMI

Digital Audio Connector (output) ............................................ 1x Optical TOSLINK

Digital Audio Connector (output) ............................................... 1x Coaxial S/PDIF

Analog Audio Connector (output) ............................... 2x Pair L+R Spring-Loaded

Speaker Terminals (Amplifi ed 20W RMS max.)

Power Supply/Power Consumption ................................... 24V DC/60 Watts max.

Dimensions ...................................................................... 17.2”W x 2.12”H x 6.8”D

Shipping Weight ............................................................................................ 6 lbs.

19
