INTRODUCTION

Thank you for purchasing Gefen’ s 2x2 DVI Switcher series. The 2x2 DVI Switcher switches
DVI, USB 1.1 and Audio between any combination of two computers.

Now you can switch easily and reliably between any combination of two computers using
two DVI displays, USB keyboard and mouse.

The 2x2 DVI Switcher saves space – there’s no need to work on a desk crowded with four
monitors, keyboards and mouse devices. It saves time – there’s no need to move from
one monitor to another to access different computers. And it saves money – there’s no
need to purchase additional monitors, mouse devices, keyboards etc.

The 2x2 DVI Switcher allows you to choose between any combination of Macintosh or PC
computers and switching two monitors side by side.

CONTENTS

The 2x2 DVI Switcher system consists of:

--- (1) 2x2 DVI Switcher

--- (1) 12V AC power supply

--- (4) DVI to DVI cables (6FT)

--- (2) USB cables (6FT)

--- (2) Audio cables (6FT)

--- (1) User Manual

1

FRONT PANEL DESCRIPTIONS

Power LED

1-2 Switch Buttons

1-2 Indicator LED

2

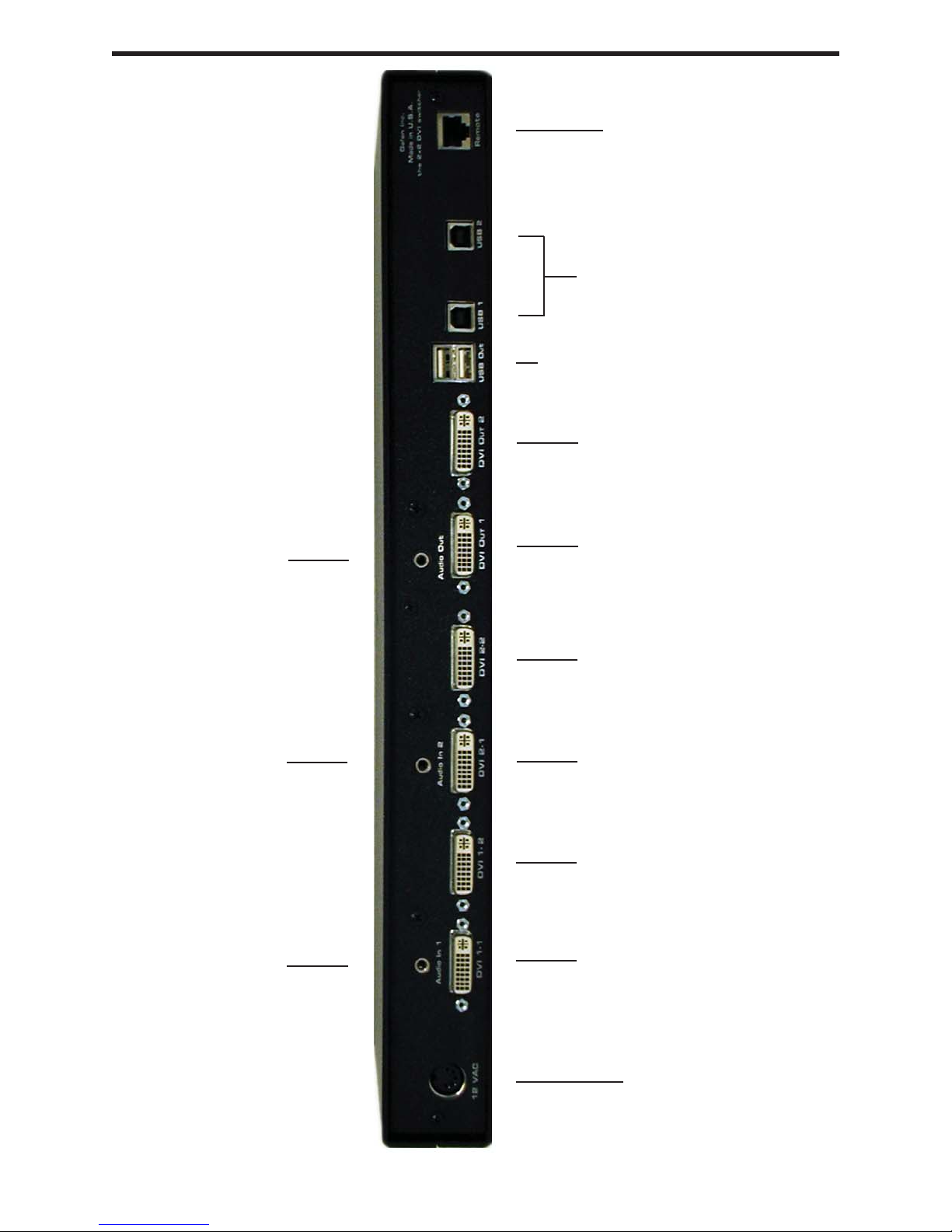

BACK PANEL DESCRIPTIONS

AUDIO OUT

REMOTE -

USB INPUTS

USB OUT

DVI OUT 2

DVI OUT 1

Remote

For RMT-4 Wired

RJ-45 Connecter

AUDIO IN 2

AUDIO IN 1

DVI IN 2.2

DVI IN 2.1

DVI IN 1.2

DVI IN 1.1

POWER INPUT

3

HOW TO CONNECT THE 2x2 DVI Switcher

1- Connect the cables from your fi rst computer into the DVI 1.1, DVI 1.2, USB and
Audio connection in the back of the 2x2 DVI Switcher.

2- Connect the cable from your second computer into the DVI 2.1, DVI 2.2, USB and
Audio connection in the back of the 2x2 DVI Switcher.

3- Connect the monitors to the DVI Out (1 and 2) connections.
4- Plug the 12v power supply into the 2x2 DVI Switcher.
5- Plug the 12v wallmount power supply into the wall outlet.
6- Start your computers only after you’ve made all the connections.
7- Press select, to switch between Computer 1 or Computer 2 or switch remotely using

the optional contact closure remote control.

4

SPECIFICATIONS

Video Amplifi er Bandwidth ................................................................................. 1.65 GHz

Input Video Signal ......................................................................................... 1.2 volts p-p

Input Sync Signal ................................................................................... 5 volts p-p (TTL)

Single Link Range ......................................................................................... 1920 x 1200

Vertical Frequency Range ....................................................................................... 60 Hz

DVI Input/Output Connector Type ............................................................................. DVI-I

USB Version ........................................................................................................ USB 1.1

USB Input Connector .......................................................................................... Type “B”

USB Output Connector ........................................................................................ Type “A”

Power Consumption ................................................................................ 18 Watts (max.)

Power Supply ........................................................................................................ 12V AC

Dimensions ...................................................................................... 16”W x 1.75”H x 4”D

Rackmountable ........................................................................................... 1 Rack Space

Shipping Weight ..................................................................................................... 12 Lbs

5

WARRANTY

Gefen Inc. warrants the equipment it manufactures to be free from defects in material
and workmanship.

If equipment fails because of such defects and Gefen Inc. is notifi ed within one (1)
year from the date of shipment, Gefen System will, at its option, repair or replace the
equipment, provided that the equipment has not been subjected to mechanical, electrical
or other abuse or modifi cations.

Equipment that fails under conditions other than those covered will be repaired at the
current price of parts and labor in effect at the time of repair. Such repairs are warranted
for ninety (90) days from the day of shipment to the Buyer.

This warranty is in lieu of all other warranties expressed or implied, including without
limitation, any implied warranty or merchantability or fi tness for any particular purpose, all
of which are expressly disclaimed.

The information in this manual has been carefully checked and is believed to be accurate.
However, Gefen Inc. assumes no responsibility for any inaccuracies that may be contained
in this manual. In no event will Gefen Inc., be liable for direct, indirect, special, incidental,
or consequential damages resulting from any defect or omission in this manual, even if
advised of the possibility of such damages. The technical information contained herein
regarding the 2x2 DVI Switcher features and specifi cations is subject to change without
notice.

6
