Gefen DVI-100 Brochure & Specs

ex

Visit our website at www.gefen.com to get the most up-to-date information on our latest products.

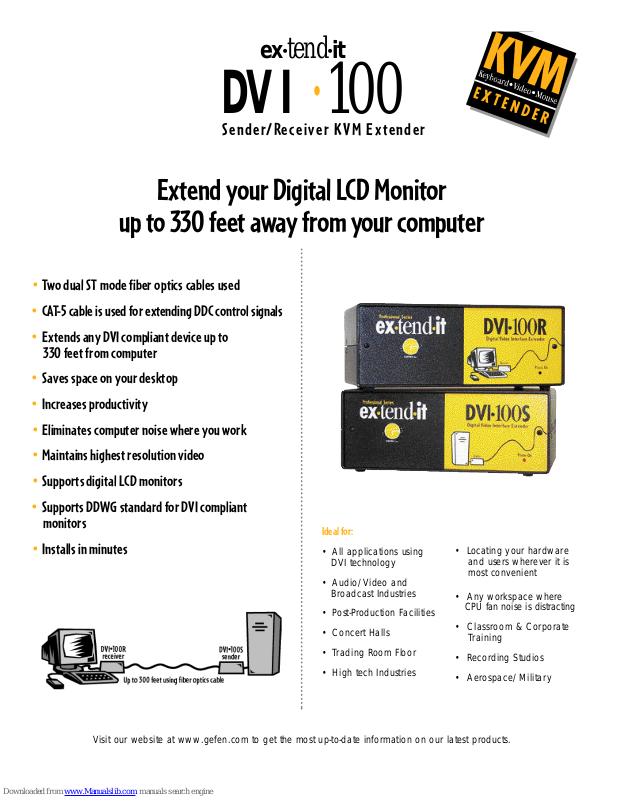

DV I

S e n d e r/ Re c eiver KVM Exte n d e r

E x t end your Digital LCD Monitor

up to 330 fe et away from your co m p u t e r

• Two dual ST mode fiber optics cables used

• C AT-5 cable is used for ex tending DDC co n t rol signals

• Extends any DVI compliant device up to

330 feet from computer

•

t e nd

•

i t

•

10 0

• Saves space on your desktop

• Increases productivity

• Eliminates computer noise where you work

• Maintains highest resolution video

• Supports digital LCD monitors

• Supports DDWG standard for DVI compliant

monitors

• Installs in minutes

Ideal for:

• All applications using
DVI technology

• A u d i o / Video and
B roadcast Industries

• P o s t - P roduction Facilities

• C o n cert Halls

• Trading Room Floor

• High tech Industries

• Locating your hard w a re
and users wherever it is
most convenient

• Any workspace where

CPU fan noise is distracting

• Classroom & Corporate
Training

• Recording Studios

• Aerospace/Military

ex

DV I

S e n d e r/ Re c ei ve r KVM Ex te n d e r

E x tend your Digital LCD Monitor

up to 330 fe e t away from your co m p u t e r

The ex•tend•it DVI•100 extends your DVI monitor
up to 330 feet away from your computer.
The DVI•100 keeps your desk clutter- f ree, re l o c a t i n g
your computer to a safe and secure area, while
allowing you to work in a quieter environment.

•

t e nd

•

i t

•

10 0

CAT5

DVI

Fiber Optics

How it works:

The DVI•100S sender unit sits next to your computer.
Cables supplied with the DVI•100 package connect
your computer to the send unit. The DVI•100R
receive unit sits next to your DVI monitor - up to 330
feet away. The DVI monitor plugs into the back of
the DVI•100 receiver unit.

One CAT5 cable and two dual ST mode fiber optic
cables connect the DVI•100S and the DVI•1 0 0 R
units to each other.

Macintosh is a registered trademark of Apple, Inc.

ex•tend•it and DVI•100 are registeredtrademarks of Gefen Inc.

Copyright © 2000 Gefen Inc. All rights reserved.

CAT5

DVI

Fiber Optics

Specifications:

DVI Amplifier Bandwidth:

2.4 GHz

Actual Bandwidth: 1.6 GHz
Input Video Signal: 1.2 volts p-p
Input DDC Signal: 5 volts p-p (TTL)
Link Connector: RJ-45
DVI Connector: Molex 24 pin

female connector

Power Consumption:

15 Watts (max.)

Power Supply:

External 5VDC-20

Dimensions: 8.5”W x 3.5”H x

4.75 ”D

Shipping Weight: 8 lbs.

G E F E N, I N C . 20600 Nordhoff Street, Chatsworth CA 91311

P h o n e : 8 0 0-5 4 5-6900 818- 772-9100 Fa x : 8 1 8-772-9120 I n te rn et : h t t p : / /www. g efe n . co m e -m a i l : support @ g e fe n . co m
