DisplayPort Extender over CAT-7
Warranty Information
Gefen warrants the equipment it manufactures to be free from defects in material and
workmanship.
If equipment fails because of such defects and Gefen is notied within two (2) years from
the date of shipment, Gefen will, at its option, repair or replace the equipment, provided
that the equipment has not been subjected to mechanical, electrical, or other abuse or
modications. Equipment that fails under conditions other than those covered will be
repaired at the current price of parts and labor in effect at the time of repair. Such repairs
are warranted for ninety (90) days from the day of reshipment to the Buyer.
This warranty is in lieu of all other warranties expressed or implied, including without
limitation, any implied warranty or merchantability or tness for any particular purpose, all of
which are expressly disclaimed.
1. Proof of sale may be required in order to claim warranty.
2. Customers outside the US are responsible for shipping charges to and from Gefen.
3. Copper cables are limited to a 30 day warranty and cables must be in their original
condition.
The information in this manual has been carefully checked and is believed to be accurate.
However, Gefen assumes no responsibility for any inaccuracies that may be contained
in this manual. In no event will Gefen be liable for direct, indirect, special, incidental, or
consequential damages resulting from any defect or omission in this manual, even if
advised of the possibility of such damages. The technical information contained herein
regarding the features and specications is subject to change without notice.
For the latest warranty coverage information, refer to the Warranty and Return Policy under
the Support section of the Gefen Web site at www.gefen.com.
PRODUCT REGISTRATION
Please register your product online by visiting the Register Product page under the
Support section of the Gefen Web site.
iii
iv
DisplayPort Extender over CAT-7
Gefen, LLC
c/o Customer Service
20600 Nordhoff St.
Chatsworth, CA 91311
Telephone: (818) 772-9100
(800) 545-6900
Fax: (818) 772-9120
Email: support@gefen.com
Visit us on the Web: www.gefen.com
Technical Support Hours: 8:00 AM to 5:00 PM Monday - Friday, Pacic Time
DisplayPort Extender over CAT-7 is a trademark of Gefen, LLC.
Important Notice
Gefen, LLC reserves the right to make changes in the hardware, packaging, and any
accompanying documentation without prior written notice.
© 2013 Gefen, LLC. All Rights Reserved.
All trademarks are the property of their respective owners.
Contacting Gefen Technical Support
v
• CAT-7 cables should not exceed 100 feet (30 meters).
• Resolutions up to 1920 x 1200 (WUXGA) or 1080p Full HD are supported
when using a single CAT-7 cable. Two CAT-7 cables must be used to support
2560 x 1600 (WQXGA).
• The DisplayPort Extender over CAT-7 only supports 8-bit color.
• This product extends DisplayPort video only. It does not support audio.
Operating Notes
DisplayPort Extender over CAT-7
vi
Features
• Extends DisplayPort video up to 100 feet (30 meters)
• Supports resolutions up to 2560 x 1600 over two CAT-7 cables, and up to
1920 x 1200 or 1080p Full HD over one CAT-7 cable
• HDCP compliant
• Supports DisplayPort 1.1a
• 16-position EQ rotary switch to compensate for cable skew
• HPD Auto-Calibration button
• Pre-emphasis switch
• Drive level switch
• Boost level switches
• Power On and Link indicators
• Locking power supply connectors
• Surface-mountable
Packing List
The DisplayPort Extender over CAT-7 ships with the items listed below. If any of these
items are not present in the box when you rst open it, immediately contact your dealer or
Gefen.
• 1 x DisplayPort Extender over CAT-7 (Sender unit)
• 1 x DisplayPort Extender over CAT-7 (Receiver unit)
• 1 x 6 ft. DisplayPort cable (M-M)
• 1 x 5V DC power supply
• 1 x Quick-Start Guide
DisplayPort Extender over CAT-7
Features and Packing List
1080P
vii
DisplayPort Extender over CAT-7
Table of Contents
vii
01 Getting Started
Panel Layout ......................................................................................................... 2
Sender Unit (Front) ....................................................................................... 2
Sender Unit (Back) ........................................................................................ 3
Receiver Unit (Front) ..................................................................................... 4
Receiver Unit (Back) ..................................................................................... 5
Installation ............................................................................................................. 6
Connecting the DisplayPort Extender over CAT-7 ........................................ 6
Sample Wiring Diagram ................................................................................ 6
02 Operating the DisplayPort Extender over CAT-7
LED Indicators ..................................................................................................... 10
DIP Switch Conguration .....................................................................................11
Hot-Plug Detect (HPD) ........................................................................................ 12
Adjusting the Signal Quality ................................................................................ 13
03 Appendix
Cable Termination ............................................................................................... 16
Surface-Mounting Instructions............................................................................. 17
Specications ...................................................................................................... 18
CAT-7
DisplayPort
Extender Over
01 Getting Started
Panel Layout ......................................................................................................... 2
Sender Unit (Front) ....................................................................................... 2
Sender Unit (Back) ........................................................................................ 3
Receiver Unit (Front) ..................................................................................... 4
Receiver Unit (Back) ..................................................................................... 5
Installation ............................................................................................................. 6
Connecting the DisplayPort Extender over CAT-7 ........................................ 6
Sample Wiring Diagram ................................................................................ 6
page | 2

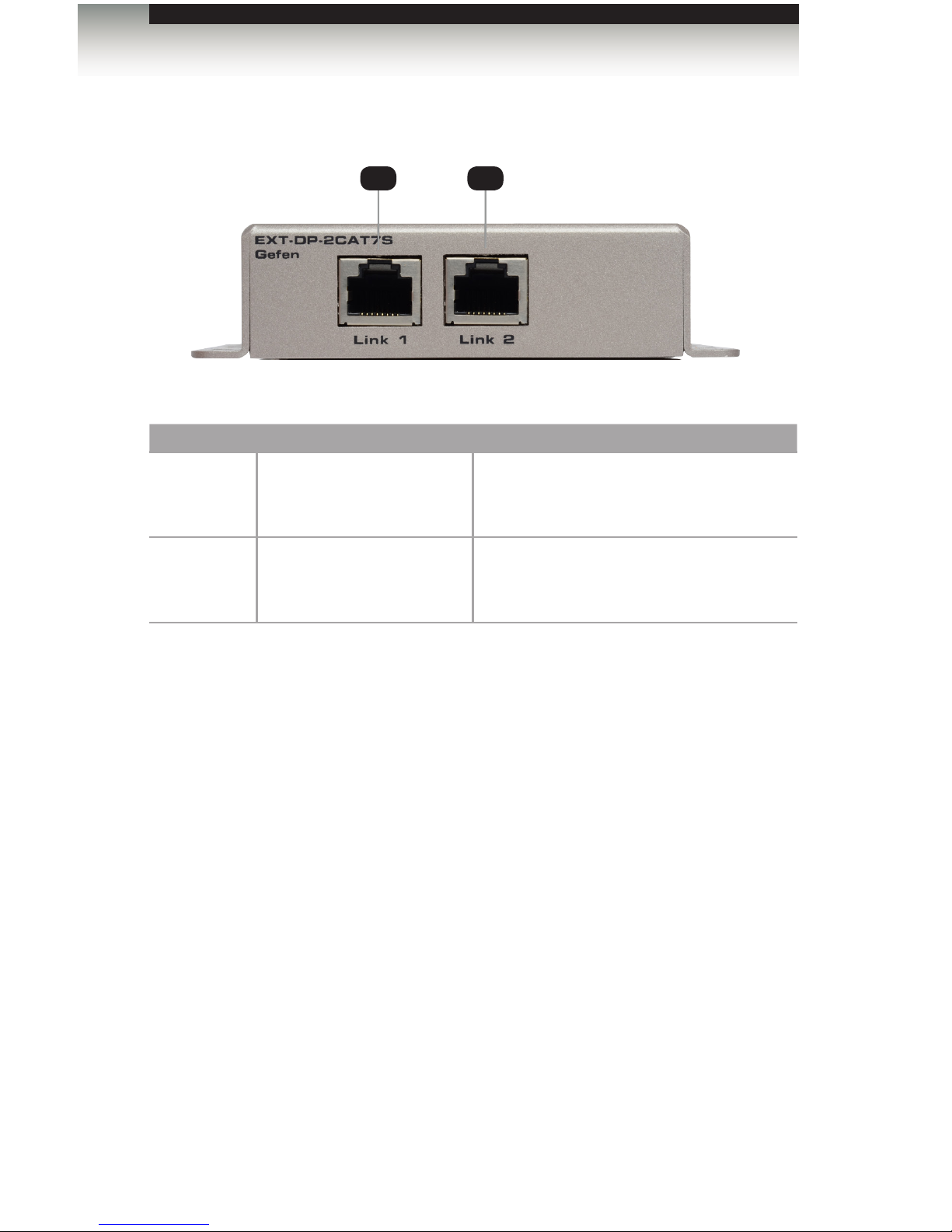

Sender Unit (Front)
ID Name Description
1 Link 1 Connect a CAT-7 cable up to 100 feet (30
meters) from this jack to the Link 1 jack on
the Receiver unit.
2 Link 2 Connect a CAT-7 cable up to 100 feet (30
meters) from this jack to the Link 2 jack on
the Receiver unit.
Getting Started
Panel Layout
1
2
page | 3
Sender Unit (Back)
ID Name Description
1 5V DC Connect the included 5V DC locking power
supply to this connector and plug the AC
power cord into an available electrical outlet.
Only use the power supply shipped with this
unit.
2 DP In Connect a Hi-Def source to this port using a
DisplayPort cable.
3 Power This LED indicator will glow bright blue when
the unit is powered.
Getting Started
Panel Layout
1 2 3
page | 4
Getting Started
Panel Layout
Receiver Unit (Front)
ID Name Description
1 Link 1 Connect a CAT-7 cable up to 100 feet (30
meters) from this jack to the Link 1 jack on
the Sender unit.
2 Link 2 Connect a CAT-7 cable up to 100 feet (30
meters) from this jack to the Link 2 jack on
the Sender unit.
1 2
page | 5
Getting Started
Panel Layout
Receiver Unit (Back)
ID Name Description
1 Link This LED indicator will glow bright green
when the Sender and Receiver unit are
connected using two CAT-7 cables.
The Sender unit must be powered.
2 DP Out Connect a DisplayPort cable from this port
to the display.
3 HPD Press this button to cycle the HPD line on the
Receiver unit
4 EQ Use this EQ rotary switch to adjust the quality
of the output signal, based on the length and
type of CAT-7 cable that is being used.
See Adjusting the Signal Quality for more
information.
1 2 3 4
Page Title
page | 6
Getting Started
Installation
Connecting the DisplayPort Extender over CAT-7
1. Use the included DisplayPort cable to connect the DisplayPort source to the DP In
port on the Sender unit.
2. Connect a DisplayPort cable from the DP Out port on the Receiver to the display.
3. Connect two CAT-7 cables between the Sender and Receiver units. Each connector
on the Sender and Receiver unit is identied as Link 1 and Link 2. When connecting
the CAT-7 cables, make sure that each CAT-7 cable that is connected to the Sender
unit is connected to the corresponding jack on Receiver unit (e.g. Link 1 --> Link 1,
Link 2 --> Link 2).
4. Connect the included 5V DC locking power supply to the Sender unit. Do not overtighten the locking connectors. Plug the AC power cord from the power supply
to an available electrical outlet.
Sample Wiring Diagram
NOTE: The DisplayPort Extender over CAT-7 will support resolutions
up to 1920 x 1200 (WUXGA) and 1080p Full HD if only a single
CAT-7 cable is used. Two CAT-7 cables must be used to support
resolutions up to 2560 x 1600.
If only a single CAT-7 cable will be used, the CAT-7 cable must
be connected between the Link 1 connectors on both the Sender
and Receiver unit. This same CAT-7 cable is used to power the
Receiver unit.
EXT-DP-2CAT7
Sender
Receiver
DisplayPort Display
CAT-7 CABLE
Computer
DISPLAYPORT CABLE
CAT-7
DisplayPort
Extender Over
02 Operating the
DisplayPort Extender over CAT-7
LED Indicators ..................................................................................................... 10
DIP Switch Conguration .....................................................................................11
Hot-Plug Detect (HPD) ........................................................................................ 12
Adjusting the Signal Quality ................................................................................ 13
page | 10
The LED indicators on the Sender and Receiver unit provide basic information on the current
status of the DisplayPort Extender over CAT-7.
LED Status Description
Power Solid blue • Power connected to Sender unit.
Off • No power supplied to Sender unit.
Link Solid green • DisplayPort Extender over CAT-7 is
operating correctly.
• Link integrity between Sender and
Receiver unit is good.
Solid red • No DisplayPort source connected or
source not active.
• Receiver unit not connected to
display.
Flashing red • Receiver is attempting to establish a
link with the Sender unit.
Operating the DisplayPort Extender over CAT-7
LED Indicators
Receiver unit
Link LED
Sender unit
Power LED
page | 11
Operating the DisplayPort Extender over CAT-7
DIP Switch Conguration
The DisplayPort Extender over CAT-7 contains four DIP switches on the bottom of the
Sender unit. Adjust the DIP switch settings based on the type and cable length that is
being used.
DIP Switch Position Differential Output Voltage
DIP 1 ON (default) 1.2 Vpp
CENTER 1.0 Vpp
OFF 600 mVpp
DIP Switch Position Pre-emphasis Select
DIP 2 ON (default) 9 dB
CENTER 6 dB
OFF 0 dB
DIP Switch Position
DIP 3
Position
DIP 4
Boost Level (dB) @ 5 GHz
DIP 3
DIP 4
OFF OFF 2.7 to 7.3 dB
OFF ON 12.2 to 16.6 dB
ON OFF 20.6 to 24.8 dB
ON ON 27.6 to 28.9
DIP switches located on
the bottom of the Sender
Unit. If the DIP switch is
ON, it will be in the “up”
position.
page | 12
Operating the DisplayPort Extender over CAT-7
Hot-Plug Detect (HPD)
The DisplayPort Extender over CAT-7 has an HPD button on the front of the Receiver
unit. Pressing this button will cycle the HPD (Hot-Plug Detect) line on the display (sink)
device. This HPD button provides the same effect as disconnecting then reconnecting the
DisplayPort cable from the Receiver unit. Cycling the HPD line will cause the Receiver unit
to re-read the EDID of the display and send it back to the DisplayPort source.
HPD button
page | 13
Operating the DisplayPort Extender over CAT-7
Adjusting the Signal Quality
The DisplayPort Extender over CAT-7 has an equalization device on the front of the
Receiver unit. This 16-position rotary switch is used to adjust the boost level depending
upon the length of the CAT-7 cable.
1. Insert a small at-headed tool into the notch on the rotary switch.
The table below provides examples of various cable types and lengths for CAT-6
cabling.
Cable type Length Rotary switch position
Belden CAT-6A, UTP,
10Gx12 - 4PR/23
100 feet (30 meters) 3 through D
Belden CAT-6A, UTP,
10Gx12 - 4PR
130 feet (40 meters) 9 through B
Teldor CAT-6A, FTP,
4x(2x26/7) - 500 Mhz
115 feet (35 meters) A through F
Draka CAT-6A, FTP
UC500 4P 09 339765
107271827
100 feet (30 meters) 7 through C
2. Turn the rotary switch clockwise or counterclockwise until it clicks to the next position.
3. Check the image. Continue adjusting the rotary switch if the issue is not resolved.
Rotary switch
CAT-7
DisplayPort
Extender Over
03 Appendix
Cable Termination ............................................................................................... 16
Surface-Mounting Instructions............................................................................. 17
Specications ...................................................................................................... 18
page | 16
Appendix
Front of RJ-45 Connector
Gefen recommends the TIA/EIA-568-B wiring option. Use the table below when
eld-terminating cable for use with Gefen products.
Pin Color Description
1 Orange / White TD+ (Transmit Data, positive differential signal)
2 Orange TD- (Transmit Data, negative differential signal)
3 Green / White RD+ (Receive Data, positive differential signal)
4 Blue Unused
5 Blue / White Unused
6 Green RD- (Receive Data, negative differential signal)
7 Brown / White Unused
8 Brown / White Unused
It is recommended to use one continuous run from one end to the other. Patch cable is
not recommended.
1 2 3 4 5 6 7 8
Cable Termination
page | 17
Appendix
Surface-Mounting Instructions
The Gefen DisplayPort Extender over CAT-7 can be mounted on any horizontal or vertical
at surface (e.g. wall or inside / outside a cabinet with wood / drywall screws) as shown in
the diagram above. There should be an inch or two of clearance between the edges of the
unit and any walls or vertical surfaces to allow for enough clearance for connection and
disconnection of the DisplayPort cable.
For installation on a drywall surface, use a #6 drywall screw. When installing, it is
recommended to use the center hole on a stud.
page | 18
Appendix
Supported Formats
Resolutions (max.) • 1080p Full HD
• 1920 x 1200 (WUXGA)
Electrical
Video Data Rate • Up to 2.7 Gb/s
EQ Switch (Receiver) • 1 x 16-position rotary type
HPD Auto Calibration button (Receiver) • 1 x tact-type
Boost Level Switches (Sender) • 2 x 3-position DIP switch
Drive level switch (Sender) • 1 x 3-position DIP switch
Power On indicator (Sender) • 1 x LED, blue
Link indicator (Receiver) • 1 x bi-color LED
Green: Good link, Red: No link
Connectors
Video Input (Sender) • 1 x DisplayPort, 20-pin, female
Video Output (Receiver) • 1 x DisplayPort, 20-pin, female
Link (Sender) • 2 x RJ-45, shielded
Link (Sender) • 2 x RJ-45, shielded
Operational
Power Supply • 1 x 5V DC, locking
Operating Temperature • +32 to +104 °F (0 to +40 °C)
Physical
Dimensions (W x H x D)
(Sender / Receiver)
• 4.3” x 1” x 3.3”
(110mm x 25mm x 83mm)
Unit Weight (each unit) • 0.3 lb (0.15 kg)
Specications
This product uses UL listed or CE compliant power supplies.
20600 Nordhoff St., Chatsworth CA 91311
1-800-545-6900 818-772-9100 fax: 818-772-9120
www.gefen.com support@gefen.com
Pb
Stretch it, Switch it, Split it, Control it.
Gefen’s got it. ®
Loading...
