OPERATION NOTES
READ THESE NOTES BEFORE IN STALL ING
OR OPERATING THE DVI AUDIO EXTENDER
• The DVI Audio Extender is housed in a metal box for better RF shielding.
• Your CAT-5 cable should not exceed 200 feet for 1280x1024/1080i.
• Your CAT-5 cable should not exceed 150 feet for 1920x1080/1080p.
• If you do not need DDC data you can use a single CAT-5 cable for the video only. The
DDC will not be connected. An additional 5V DC power supply will be needed for the
receiver side.
• If the source requires EDID present, you can use the Gefen DVI Detective to provide
EDID information.
Page 5
INTRODUCTION
The DVI Audio Extender sender unit sits next to your computer, DVD player or any set-top
box with a DVI output. The cable supplied with the DVI Audio Extender connects your DVI
source to the send unit. The DVI Audio Extender receiver unit sits next to your DVI display
- up to 200 feet at 1280x1024/1080i ( 150 feet at 1920x1200/1080p). The display plugs
into the back of the DVI Audio Extender receiver unit. Two CAT-5 cables connect the DVI
Audio Extender-S and the DVI Audio Extender-R units to each other.
CONTENTS
The DVI Audio Extender system consists of:
DVI Audio Extender-S
DVI Audio Extender-R
1x 6 ft DVI to DVI Cable M-M
2x 5V DC power supply
1x 6 ft Audio RCA Cable
1
Page 6
DVI AUDIO EXTENDER SENDER PANEL DESCRIPTIONS
Analog Audio In
SPDIF Audio In
Optical Audio In
DVI source
DVI input connects to
power supply
Connects to 5 volt
DDC/Audio Video
2
Page 7

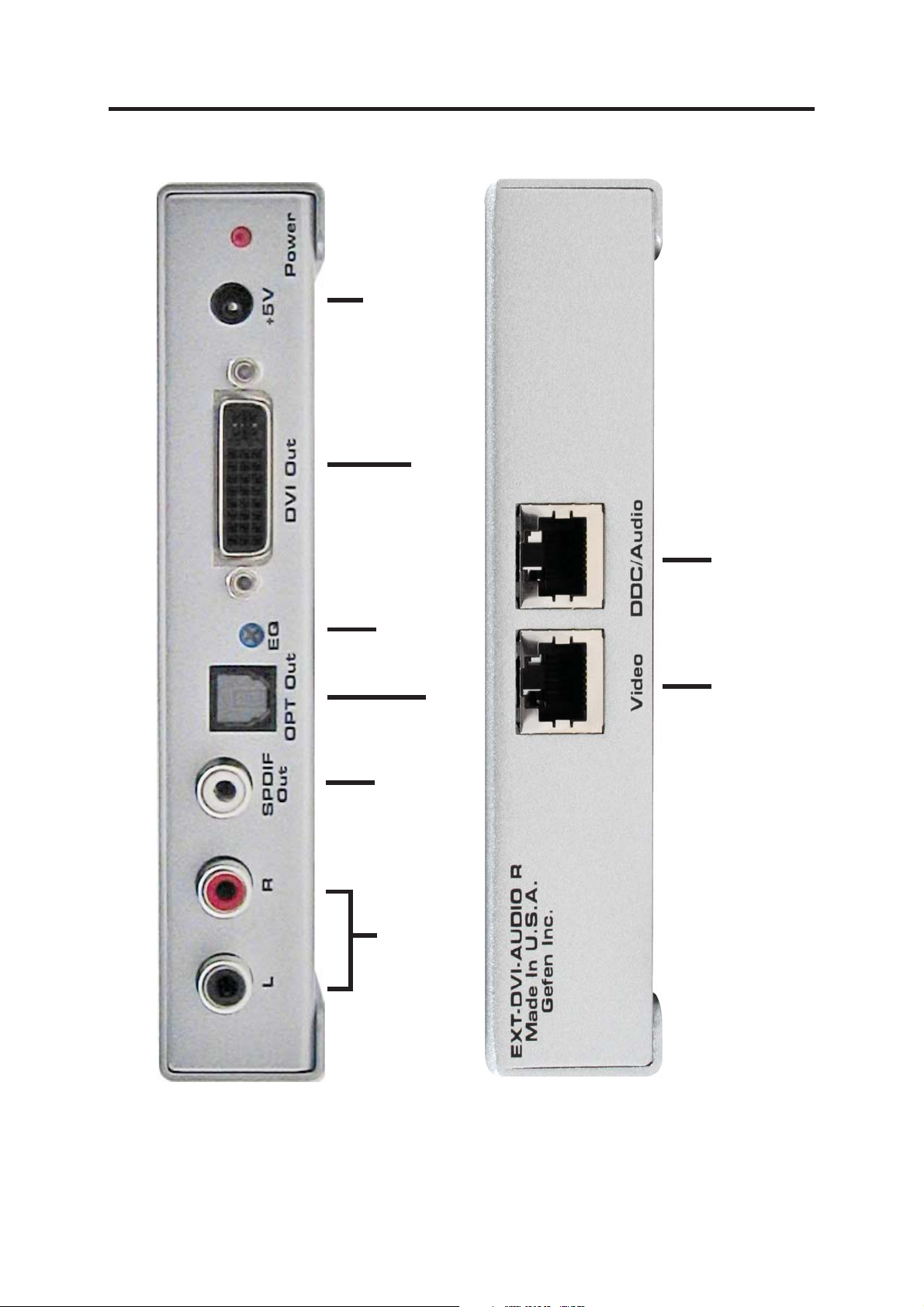

DVI AUDIO EXTENDER RECEIVER PANEL DESCRIPTIONS
power supply
Connects to 5 volt
DVI source
DVI input connects to
EQ Trim Pod
Optical Audio In
SPDIF Audio In
Analog Audio In
DDC/Audio Video
3
Page 8
HOW TO CONNECT THE DVI AUDIO EXTENDER
Connect your source to the DVI Audio Extender sender unit using the included DVI
1
Cable.
Connect the audio from your source to the DVI Audio Extender sender using the
2
included analog RCA cables or optional digital audio cable.
Connect your display to the DVI Audio Extender receiver unit using a DVI Cable.
3
Connect the audio on your display or audio receiver to the DVI Audio Extender
4
receiver unit using the analog RCA cables or optional digital audio cable.
Connect your CAT-5 cables between the sender and the receiver
5
Plug the 5V power supply into the DVI Audio Extender sender and receiver unit
6
You should now have picture and sound. If you do not see a picture, try unplugging
7
and re-plugging the DVI input on the DVI sender unit. Make sure your CAT-5 cables
are not crossed. Recycle the power on the unit.
* If problems presist try adjusting the Dip Switches by following the Dip Switch
Usage Guide.
4
Page 9
DIP SWITCH USAGE GUIDE
Gefen CAT5 Extreme products (sender and receiver) both contain a pair of dip
switches located underneath the unit. These dip switches are used to select from
sets of confi gurations that will equalize the signal to best match the conditions in your
setup.
Receiver Confi guration Sender Confi guration 10m to 33m Cables
Dip #1 Dip #2 Dip #1 Dip #2
Off Off Off Off Very Good quality cable
On Off Off Off Good quality cable
Off On Off Off Medium cable
On On Off Off Bad cable
Dip #1 Dip #2 Dip #1 Dip #2 2m to 10m Cables
On Off On Off Very Good quality cable
On / Off Off On Off Good quality cable
Off On / Off Off Off Medium cable
On On / Off Off Off Bad cable
Adjustment Guidelines:
1) Dip #1 and Dip #2 on the receiver are Equalization Controllers
a) When both are OFF Equalization is zero => Good quality cables or Bad
quality short cables.
b) When both are ON Equalization is max => Bad quality long cables.
2) Dip #1 on the sender side should be ON when a short and good quality cable is
connected
5
Page 10
CAT5 LINK CABLE - WIRING DIAGRAM
8
1
1
2
RJ-45 Jack
Orange
White/Orange
White/Green
3
4
Blue
5
6
7
Green
White/Blue
White/Brown
8
Brown
1
2
RJ-45 Jack
3
4
5
6
6
7
8
8
1
Page 11
TROUBLESHOOTING
Frequently Asked Questions
What kind of CAT-5e cable should I be using?
Solid core CAT-5e cable rated at 350 Mhz 568a or 568b is the minimum requirement.
CA T-6 cables are also a viable cable to use. Higher resolutions and transmission lengths
greater then 80 feet might require low skew cables for optimum performance.
I’m getting no video on the screens, what can I check?
First thing to check is make sure that the video CAT5 is linked to the other video CAT5
port and the same with the DDC ports. Test to make sure the units are working with short
CA T-5e cables 15-20 feet. Units shipped starting 12-2005 have the service switches inside
the unit enabled. Please refer to the Service Switch Usage Guide on page 5.
How can I fi x the fl ickering picture?
Flickering or a Blinking image is the result of a loss of sync between the display and the
source. Try lowering the resolution to see if that helps, if it does, the CAT-5 cables you are
using are unable to handle the bandwidth of the higher resolution and thus you are losing
sync. Try a shielded CAT-5e cable on the DDC to reduce interference.
Why is there a green or pink tint to my picture?
A tint of green or pink in the picture is a result of incorrect colorspace being transmitted.
This can be resolved by recycling power on your devices including the extender. If this
does not help, the DDC data containing the colorspace is not being transmitted correctly
due to loss in the CAT5 cable, try replacing the DDC cable.
7
Page 12
TERMINOLOGY
CAT-5
Category 5 cable, commonly known as Cat 5, is an unshielded twisted pair type cable
designed for high signal integrity . The actual standard defi nes specifi c electrical properties
of the wire, but it is most commonly known as being rated for its Ethernet capability of 100
Mbit/s. Its specifi c standard designation is EIA/TIA-568. Cat 5 cable typically has three
twists per inch of each twisted pair of 24 gauge copper wires within the cable.
CAT-5e
Similar to Cat 5 cable, but is enhanced to support speeds of up to 1000 megabits per
second.
DDC
Short form for Display Data Channel. It is a VESA standard for communication between
a monitor and a video adapter. Using DDC, a monitor can inform the video card about its
properties, such as maximum resolution and color depth. The video card can then use
this information to ensure that the user is presented with valid options for confi guring the
display.
DDWG
Digital Display Working Group DDWG are the creators of the DVI specifi cation.
DVI
Digital Visual Interface. Connection standard developed by Intel for connecting computers
to digital monitors such as fl at panels and DLP projectors. A consumer electronics version,
not necessarily compatible with the PC version, is used as a connection standard for HDTV
tuners and displays. Transmits an uncompressed digital signal to the display. The latter
version uses HDCP copy protection to prevent unauthorized copying.
HDCP
High-Bandwidth Digital Content Protection. Created by Intel, HDCP is used with HDTV
signals over DVI and HDMI connections and on D-Theater D-VHS recordings to prevent
unauthorized duplication of copy written material.
HDTV
High-Defi nition Television. The high-resolution subset of our DTV system. The A TSC defi nes
HDTV as a 16:9 image with twice the horizontal and vertical resolution of our existing system,
accompanied by 5.1 channels of Dolby Digital audio. The CEA defi nes HDTV as an image
with 720 progressive or 1080 interlaced active (top to bottom) scan lines. 1280:720p and
1920:1080i are typically accepted as high-defi nition scan rates.
VESA
Video Electronic Standards Association, a consortium of manufacturers formed to establish
and maintain industry wide standards for video cards and monitors. VESA was instrumental
in the introduction of the Super VGA and Extended VGA video graphics standards with
a refresh rate of 70 Hz, minimizing fl icker and helping to reduce user eyestrain and
fatigue.
8
Page 13
SPECIFICATIONS
Video Amplifi er Bandwidth ................................................................................ 1.65 Gbps
Input Video Signal ......................................................................................... 1.2 volts p-p
Input DDC Signal .................................................................................... 5 volts p-p (TTL)
Single Link Range .............................................................................1080p / 1920 x 1200
DVI Connector Type ...................................................... DVI-I 29 pin female (digital only)
Digital Audio Connectors....................................................................SPDIF and TOSLink
Analog Audio Connectors........................................................................L+R Analog RCA
Link Connector ........................................................................................................ RJ-45
Power Consumption .................................................................................. 20 watts (max)
Power Supply ......................................................................................................... 5V DC
Dimensions .................................................................................... 2.5” D x 5.5” W x 1” H
Shipping Weight ....................................................................................................... 5 lbs.
9
Page 14
WARRANTY
Gefen Inc. warrants the equipment it manufactures to be free from defects in material
and workmanship.
If equipment fails because of such defects and Gefen Inc. is notifi ed within one (1)
year from the date of shipment, Gefen System will, at its option, repair or replace the
equipment, provided that the equipment has not been subjected to mechanical, electrical
or other abuse or modifi cations.
Equipment that fails under conditions other than those covered will be repaired at the
current price of parts and labor in effect at the time of repair. Such repairs are warranted
for ninety (90) days from the day of shipment to the Buyer.
This warranty is in lieu of all other warranties expressed or implied, including without
limitation, any implied warranty or merchantability or fi tness for any particular purpose, all
of which are expressly disclaimed.
The information in this manual has been carefully checked and is believed to be accurate.
However, Gefen Inc. assumes no responsibility for any inaccuracies that may be contained
in this manual. In no event will Gefen Inc., be liable for direct, indirect, special, incidental,
or consequential damages resulting from any defect or omission in this manual, even if
advi sed of the possibility of such damages. The technical information contained herein
regarding the DVI Audio Extender features and specifi cations is subject to change without
notice.
10
