Page 1
1x3 HDMI
Splitter
USER MANUAL
www.gefen.com
Page 2
ASKING FOR ASSISTANCE
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday through Friday.
Write To:
Gefen Inc.
C/O Customer Service
20600 Nordhoff St.
Chatsworth, CA 91311
support@gefen.com
www.gefen.com
Gefen Inc. reserves the right to make changes in the hard ware, packaging and any
accompanying doc u men ta tion without prior written notice.
1x3 HDMI Splitter is a trademark of Gefen Inc.
© 2007 Gefen Inc., All Rights Reserved
Notice
HDMI is a trademark of hdmi.org
Page 3
TABLE OF CONTENTS
Introduction
1
Features
2
Panel Descriptions
3
Connecting and Operating the 1x3 HDMI Splitter
4
Specifi cations
5
Warranty
6
Page 4
INTRODUCTION
Congratulations on your purchase of the 1x3 HDMI Splitter. Your complete satisfaction
is very important to us.
Gefen Inc.’s line of HDTV switches, extenders, and splitters are designed to make your
A/V equipment use more comfortable, more productive and less expensive.
The 1x3 HDMI Splitter allows easy distribution of HDTV devices, using up to three
HDTV displays.
Gefen Inc. products offer solutions for Home Theater, AV installation, data center,
information distribution, conference room presentation, school and corporate training
environments.
Our Commitment
Gefen Inc. will always offer the fi nest quality product at the best possible price. Included
in that price is a lifetime support from a team of outstanding engineers.
The 1x3 HDMI Splitter allows one HDMI device to be distributed easily in to three HDMI
compatible monitors or projectors. Simply connect your HDTV displays to the DA’s display outputs. The 1x3 HDMI Splitter can also be placed at the end of a long HDMI cable
to regenerate the HDMI signal.
1
Page 5
FEATURES
Features
• Easily distributes HDMI HDTV devices on up to four DVI/HDMI displays with zero
signal loss
• Allows simultaneous display
• Maintains 480p, 720p, 1080i, and 1080p resolutions
• Maintains highest HDMI single link video resolution for beautiful HDTV
• Maintains highest HDMI digital audio signal
• HDMI or DVI to HDMI cables are used to connect to the inputs or outputs
• HDCP compliant
• Fully HDMI 1.2 compliant
• Installs in seconds
Includes:
(1) 1x3 HDMI Splitter
(1) 6 foot HDMI cable (M-M)
(1) 5VDC Power Supply
(1) Users Manual
2
Page 6

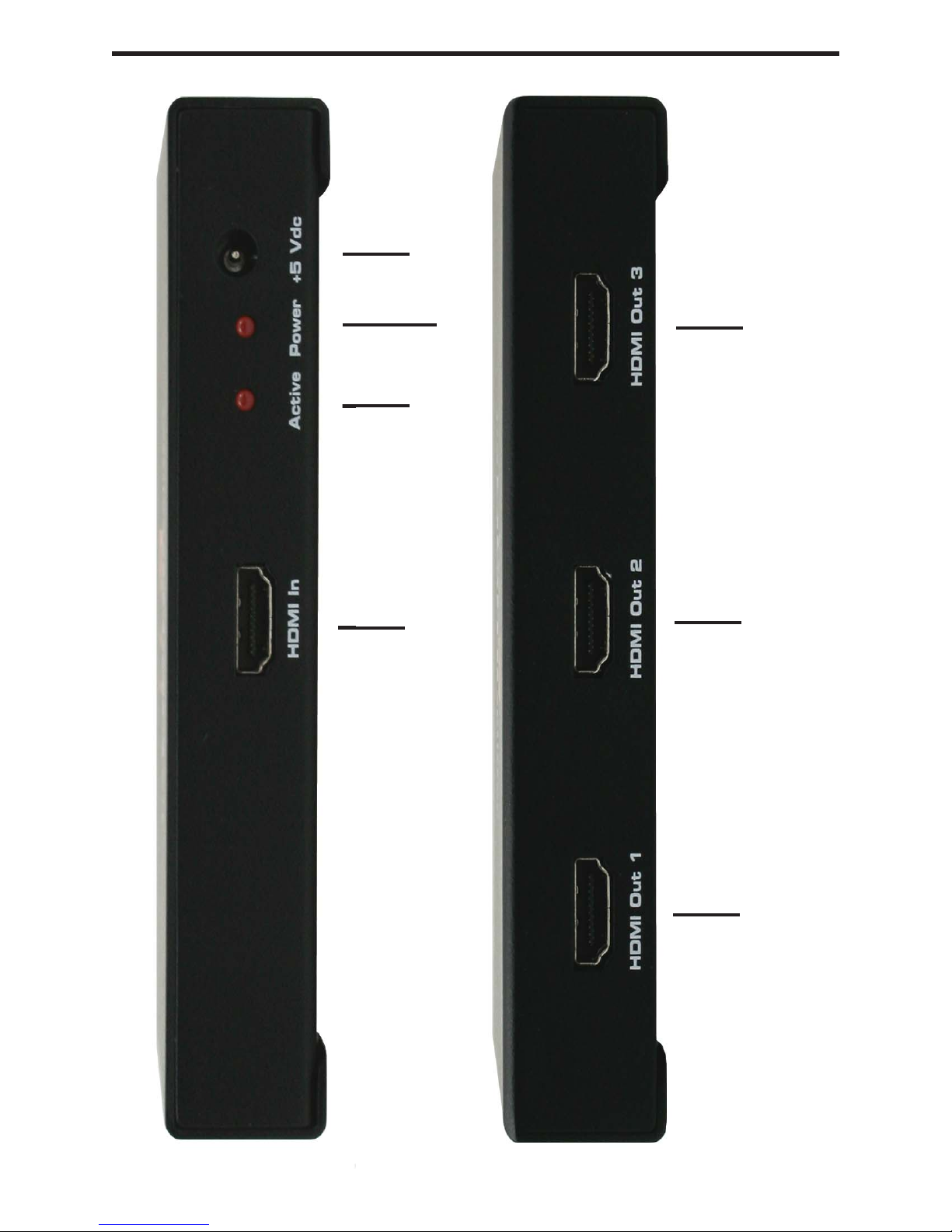

PANEL DESCRIPTIONS
5V DC Input
Power LED
Status LED
Out 3
HDMI
HDMI Input
Out 2
HDMI
Out 1
HDMI
3
Page 7
CONNECTING AND OPERATING THE 1x3 HDMI SPLITTER
How to Connect the 1x3 HDMI Splitter to your devices
1 Connect the supplied cable from the HDTV HDMI sources into the 1x3 HDMI Splitter
input. HDMI to HDMI cable for HDMI source or HDMI to DVI cable for DVI source.
2 Connect the cables from your displays (monitor or projector) into the HDMI outs of the
1x3 HDMI Splitter.
3 Plug the 5VDC power supply into the 1x3 HDMI Splitter.
4
Page 8
SPECIFICATIONS
Video Amplifi er Bandwidth ................................................................................ 1.65 Gbps
Input Video Signal ......................................................................................... 1.2 volts p-p
Input DDC Signal .................................................................................... 5 volts p-p (TTL)
Single Link Range .............................................................................1080p / 1920 x 1200
Input Connector Type ............................................................ HDMI Type A 19 pin female
Output Connector Type ..........................................................HDMI Type A 19 pin female
Power Consumption ................................................................................ 10 Watts (max.)
Power Supply ......................................................................................................... 5V DC
Dimensions ............................................................................... 12”W x 1.25”H x 4.125”D
Shipping Weight ....................................................................................................... 5 lbs.
5
Page 9
WARRANTY
Gefen Inc. warrants the equipment it manufactures to be free from defects in material
and workmanship.
If equipment fails because of such defects and Gefen Inc. is notifi ed within two
(2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace
the equipment, provided that the equipment has not been subjected to mechanical,
electrical, or other abuse or modifi cations.
Equipment that fails under conditions other than those covered will be repaired at the
current price of parts and labor in effect at the of repair. Such repairs are warranted for
ninety (90) days from the day of reshipment to the Buyer.
This warranty is in lieu of all other warranties expressed or implied, including without
limitation, any implied warranty or merchantability or fi tness for any particular purpose,
all of which are expressly disclaimed.
1. Proof of sale may be required in order to claim warranty.
2. Customers outside the US are responsible for shipping charges to and from Gefen.
3. Copper cables are limited to a 30 day warranty and cable must be free from any
scratches, markings, and neatly coiled.
The information in this manual has been carefully checked and is believed to be
accurate. However, Gefen Inc. assumes no responsibility for any inaccuracies that may
be contained in this manual. In no event will Gefen Inc., be liable for direct, indirect,
special, incidental, or consequential damages resulting from any defect or omission
in this manual, even if advised of the possibility of such damages. The technical
information contained herein regarding 1x4 HDMI Splitter features and specifi cations is
subject to change without notice.
