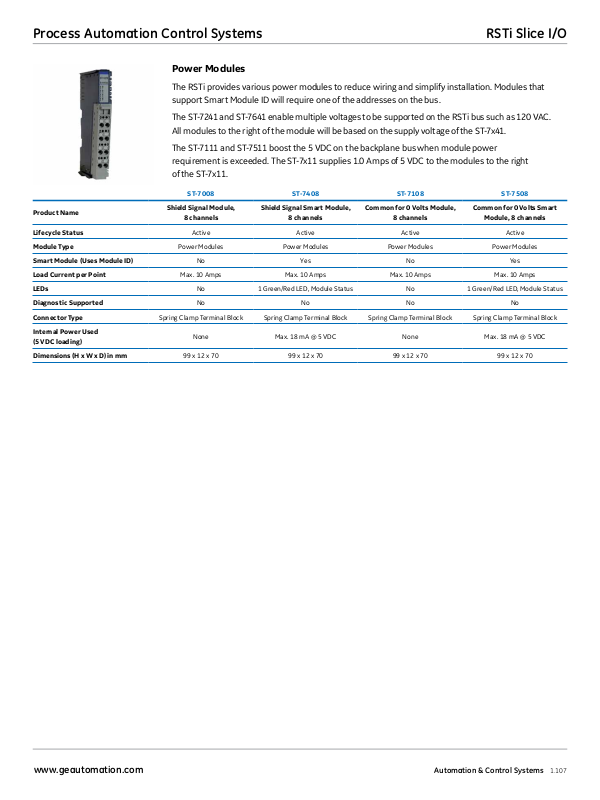

Process Automation Control Systems
RSTi Slice I/O
Power Modules
The RSTi provides various power modules to reduce wiring and simplify installation. Modules that
support Smart Module ID will require one of the addresses on the bus.
The ST-7241 and ST-7641 enable multiple voltages to be supported on the RSTi bus such as 120 VAC.
All modules to the right of the module will be based on the supply voltage of the ST-7x41.
The ST-7111 and ST-7511 boost the 5 VDC on the backplane bus when module power
requirement is exceeded. The ST-7x11 supplies 1.0 Amps of 5 VDC to the modules to the right
of the ST-7x11.
ST-7008 ST-7408 ST-7108 ST-7508
Product Name
Lifecycle Status Active Active Active Active
Module Type Power Modules Power Modules Power Modules Power Modules
Smart Module (Uses Module ID) No Yes No Yes
Load Current per Point Max. 10 Amps Max. 10 Amps Max. 10 Amps Max. 10 Amps
LEDs No 1 Green/Red LED, Module Status No 1 Green/Red LED, Module Status
Diagnostic Supported No No No No
Connector Type Spring Clamp Terminal Block Spring Clamp Terminal Block Spring Clamp Terminal Block Spring Clamp Terminal Block
Internal Power Used
(5 VDC loading)
Dimensions (H x W x D) in mm 99 x 12 x 70 99 x 12 x 70 99 x 12 x 70 99 x 12 x 70
Shield Signal Module,
8 channels
None Max. 18 mA @ 5 VDC None Max. 18 mA @ 5 VDC
Shield Signal Smart Module,
8 channels
Common for 0 Volts Module,
8 channels
Common for 0 Volts Smart
Module, 8 channels
www.geautomation.com
Automation & Control Systems
1.107
RSTi Slice I/O
Process Automation Control Systems
Power Modules
The RSTi provides various power modules to reduce wiring and simplify installation. Modules that
support Smart Module ID will require one of the addresses on the bus.
The ST-7241 and ST-7641 enable multiple voltages to be supported on the RSTi bus such as 120 VAC.
All modules to the right of the module will be based on the supply voltage of the ST-7x41.
The ST-7111 and ST-7511 boost the 5 VDC on the backplane bus when module power
requirement is exceeded. The ST-7x11 supplies 1.0 Amps of 5 VDC to the modules to the right
of the ST-7x11.
ST-7118 ST-7518 ST-7188 ST-7588
Common for 24 VDC Module,
Product Name
Lifecycle Status Active Active Active Active
Module Type Power Modules Power Modules Power Modules Power Modules
Smart Module (Uses Module ID) No Yes No Yes
Load Current per Point Max. 10 Amps Max. 10 Amps Max. 10 Amps Max. 10 Amps
LEDs No 1 Green/Red LED, Module Status No 1 Green/Red LED, Module Status
Diagnostic Supported No No No No
Connector Type Spring Clamp Terminal Block Spring Clamp Terminal Block Spring Clamp Terminal Block Spring Clamp Terminal Block
Internal Power Used
(5 VDC loading)
Dimensions (H x W x D) in mm 99 x 12 x 70 99 x 12 x 70 99 x 12 x 70 99 x 12 x 70
8 channels
None Max. 18 mA @ 5 VDC None Max. 18 mA @ 5 VDC
Common for 24 VDC
Smart Module, 8 channels
Common for (4) 24 VDC
Channels and (4) 0 VDC
Channels
Common Smart Module for
(4) 24 VDC Channels and
(4) 0 VDC Channels
Automation & Control Systems
1.108
www.geautomation.com
