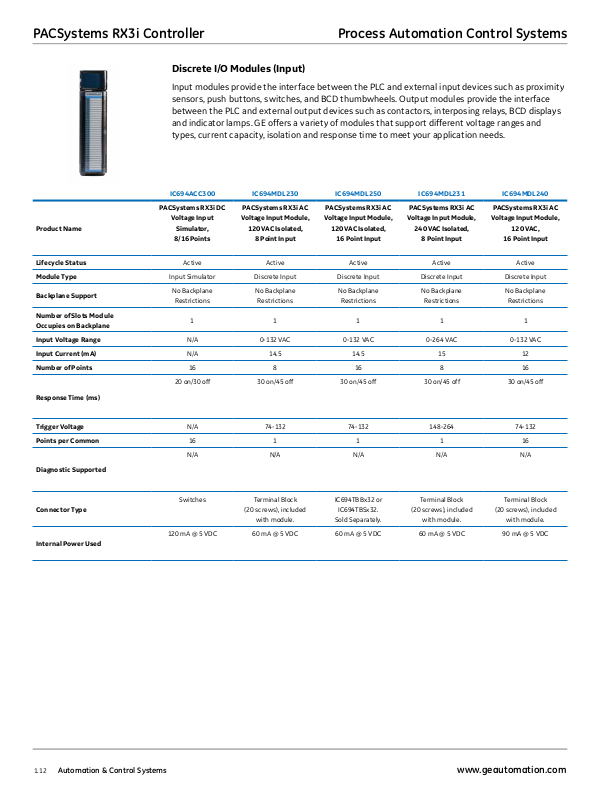

GE Digital IC694ACC300, IC694MDL230, IC694MDL250, IC694MDL231, IC694MDL240 Data sheet
...
PACSystems RX3i Controller
Process Automation Control Systems
Discrete I/O Modules (Input)
Input modules provide the interface between the PLC and external input devices such as proximity
sensors, push buttons, switches, and BCD thumbwheels. Output modules provide the interface
between the PLC and external output devices such as contactors, interposing relays, BCD displays
and indicator lamps. GE offers a variety of modules that support different voltage ranges and
types, current capacity, isolation and response time to meet your application needs.
IC694ACC300 IC694MDL230 IC694MDL250 IC694MDL231 IC694MDL240
PACSystems RX3i DC
Product Name
Lifecycle Status Active Active Active Active Active
Module Type Input Simulator Discrete Input Discrete Input Discrete Input Discrete Input
Backplane Support
Number of Slots Module
Occupies on Backplane
Input Voltage Range N/A 0-132 VAC 0-132 VAC 0-264 VAC 0-132 VAC
Input Current (mA) N/A 14.5 14.5 15 12
Number of Points 16 8 16 8 16
Response Time (ms)
Voltage Input
Simulator,
8/16 Points
No Backplane
Restrictions
1 1 1 1 1
20 on/30 off 30 on/45 off 30 on/45 off 30 on/45 off 30 on/45 off
PACSystems RX3i AC
Voltage Input Module,
120 VAC Isolated,
8 Point Input
No Backplane
Restrictions
PACSystems RX3i AC
Voltage Input Module,
120 VAC Isolated,
16 Point Input
No Backplane
Restrictions
PACSystems RX3i AC
Voltage Input Module,
240 VAC Isolated,
8 Point Input
No Backplane
Restrictions
PACSystems RX3i AC
Voltage Input Module,
120 VAC,
16 Point Input
No Backplane
Restrictions
Trigger Voltage N/A 74-132 74-132 148-264 74-132
Points per Common 16 1 1 1 16
N/A N/A N/A N/A N/A
Diagnostic Supported
Connector Type
Internal Power Used
Switches Terminal Block
(20 screws), included
with module.
120 mA @ 5 VDC 60 mA @ 5 VDC 60 mA @ 5 VDC 60 mA @ 5 VDC 90 mA @ 5 VDC
IC694TBBx32 or
IC694TBSx32.
Sold Separately.
Terminal Block
(20 screws), included
with module.
Terminal Block
(20 screws), included
with module.
Automation & Control Systems
1.12
www.geautomation.com
Process Automation Control Systems
PACSystems RX3i Controller
Discrete I/O Modules (Input)
Input modules provide the interface between the PLC and external input devices such as proximity
sensors, push buttons, switches, and BCD thumbwheels. Output modules provide the interface
between the PLC and external output devices such as contactors, interposing relays, BCD displays
and indicator lamps. GE offers a variety of modules that support different voltage ranges and
types, current capacity, isolation and response time to meet your application needs.
IC694MDL260 IC694MDL241 IC694MDL632 IC694MDL634 IC694MDL645
PACSystems RX3i AC
Product Name
Lifecycle Status Active Active Active Active Active
Module Type Discrete Input Discrete Input Discrete Input Discrete Input Discrete Input
Backplane Support
Number of Slots Module
Occupies on Backplane
Input Voltage Range 0-132 VAC 0-30 VDC 0-150 VDC 0-30 VDC 0-30 VDC
Input Current (mA) 12 7 4.5 7 7
Number of Points 32 16 8 8 16
Response Time (ms)
Voltage Input Module,
120 VAC,
32 Point Input
No Backplane
Restrictions
1 1 1 1 1
30 on/45 off 12 on/28 off 7 on/7 off 7 on/7 off 7 on/7 off
AC/DC Voltage Input
Module, 24 VAC/VDC
No Backplane
Restrictions
PACSystems RX3i DC
Voltage Input Module,
125 VDC Pos/Neg Logic,
8 Point Input
No Backplane
Restrictions
PACSystems RX3i DC
Voltage Input Module,
24 VDC Pos/Neg Logic,
8 Point Input
No Backplane
Restrictions
PACSystems RX3i DC Voltage
Input Module, 24 VDC
Pos/Neg Logic,
16 Point Input
No Backplane
Restrictions
Trigger Voltage 74-132 11.5-30 90-150 11.5-30 11.5-30
Points per Common 16 16 4 8 16
N/A N/A N/A N/A N/A
Diagnostic Supported
Connector Type
Internal Power Used
IC694TBBx32 or
IC694TBSx32.
Sold Separately.
90 mA @ 5 VDC 80 mA @ 5 VDC;
Terminal Block
(20 screws), included
with module.
125 mA @ 24 VDC
Terminal Block
(20 screws), included
with module.
40 mA @ 5 VDC 45 mA @ 5 VDC;
Terminal Block
(20 screws), included
with module.
62 mA @ 24 VDC Isolated
Isolated
Terminal Block
(20 screws), included
with module.
80 mA @ 5 VDC;
125 mA @ 24 VDC
Isolated
www.geautomation.com
Automation & Control Systems
1.13
