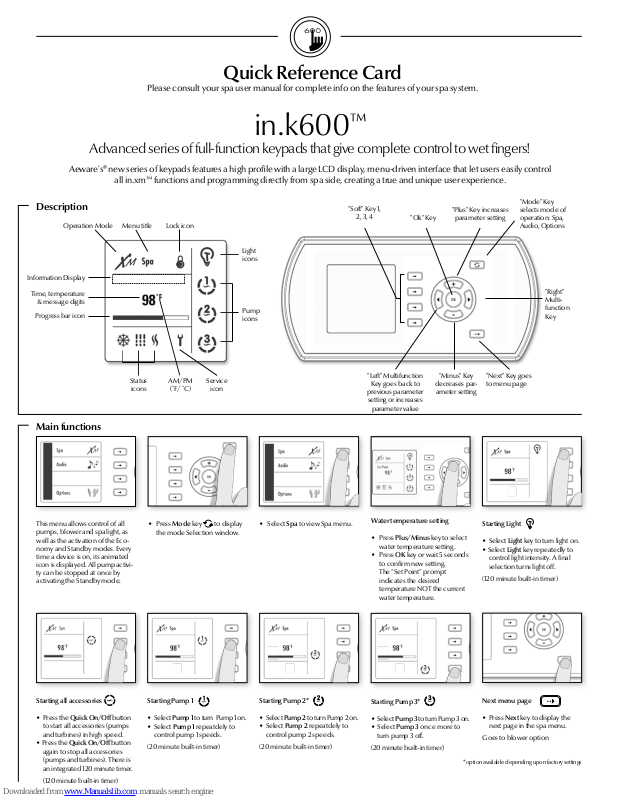

Quick Reference Card
Please consult your spa user manual for complete info on the features of your spa system.
Aeware's® new series of keypads features a high profile with a large LCD display, menu-driven interface that let users easily control

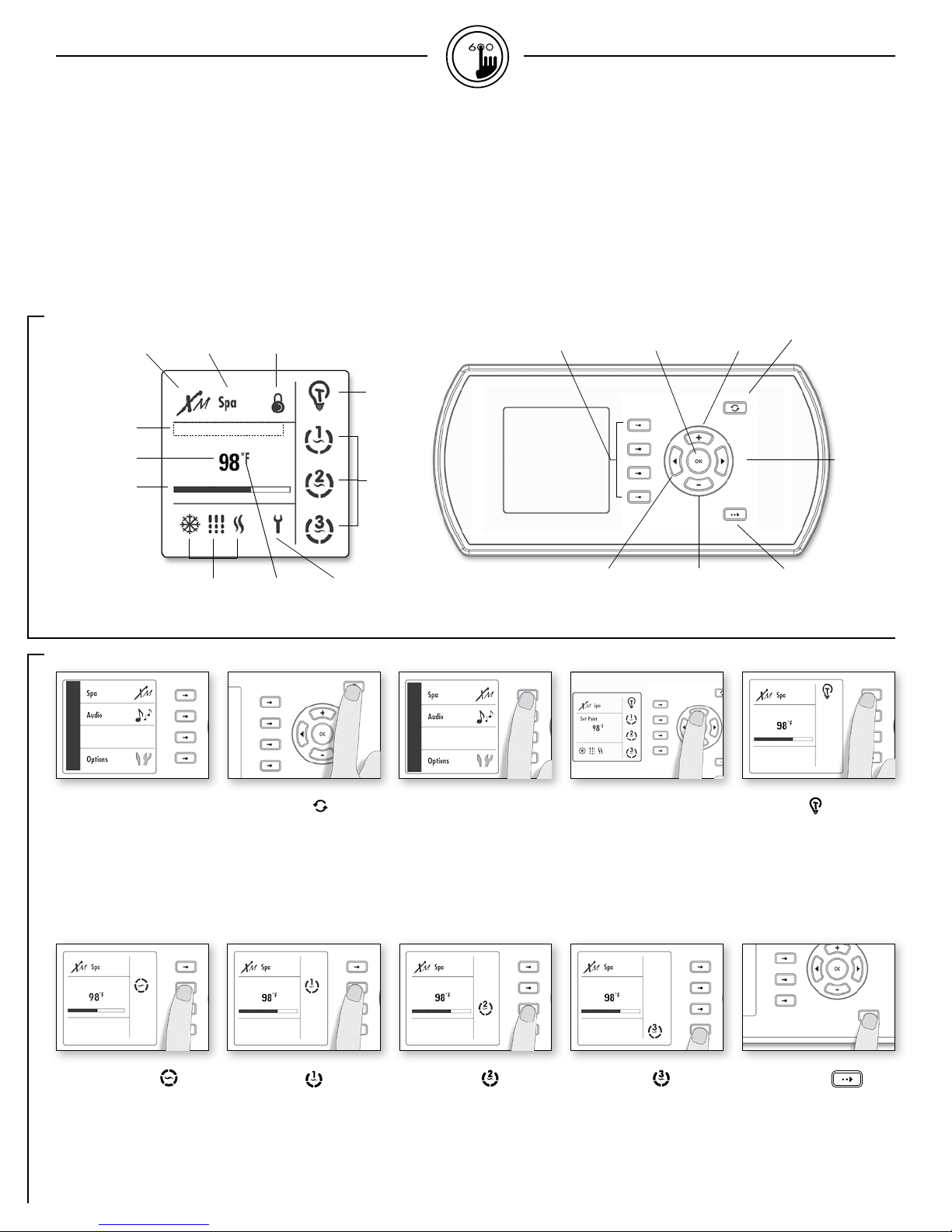

Description
Operation Mode
Information Display
Time, temperature
& message digits
Progress bar icon
in.k600
™
Advanced series of full-function keypads that give complete control to wet fingers!
all in.xm™ functions and programming directly from spa side, creating a true and unique user experience.
"Mode" Key
selects mode of
operation: Spa,
Audio, Options
Menu title
Status
icons
Lock icon
AM/PM
(˚F/ ˚C)
Service
icon
Light
icons
Pump
icons
"Soft" Key 1,
2, 3, 4
"Left" Multifunction
Key goes back to
previous parameter
setting or increases
parameter value
"Ok" Key
"Plus" Key increases
parameter setting
"Minus" Key
decreases parameter setting
"Next" Key goes
to menu page
"Right"
Multifunction
Key
Main functions
This menu allows control of all
pumps, blower and spa light, as
well as the activation of the Economy and Standby modes. Every
time a device is on, its animated
icon is displayed. All pump activity can be stopped at once by
activating the Standby mode.
Starting all accessories
• Press the Quick On/Off button
to start all accessories (pumps
and turbines) in high speed.
• Press the Quick On/Off button
again to stop all accessories
(pumps and turbines). There is
an integrated 120 minute timer.
(120 minute built-in timer)
• Press Mode key to display
the mode Selection window.
Starting Pump 1
• Select Pump 1 to turn Pump 1 on.
• Select Pump 1 repeatdely to
control pump 1 speeds.
(20 minute built-in timer)
• Select Spa to view Spa menu.
Starting Pump 2*
• Select Pump 2 to turn Pump 2 on.
• Select Pump 2 repeatdely to
control pump 2 speeds.
(20 minute built-in timer)
Water temperature setting
• Press Plus/Minus key to select
water temperature setting.
• Press OK key or wait 5 seconds
to confirm new setting.
The “Set Point” prompt
indicates the desired
temperature NOT the current
water temperature.
Starting Pump 3*
• Select Pump 3 to turn Pump 3 on.
• Select Pump 3 once more to
turn pump 3 off.
(20 minute built-in timer)
Starting Light
• Select Light key to turn light on.
• Select Light key repeatedly to
control light intensity. A final
selection turns light off.
(120 minute built-in timer)
Next menu page
• Press Next key to display the
next page in the spa menu.
Goes to blower option
*option available depending upon factory settings
Starting Blower*
• Select Blower to turn Blower on.
• Select Blower once more to turn
blower off.
(20 minute built-in timer)

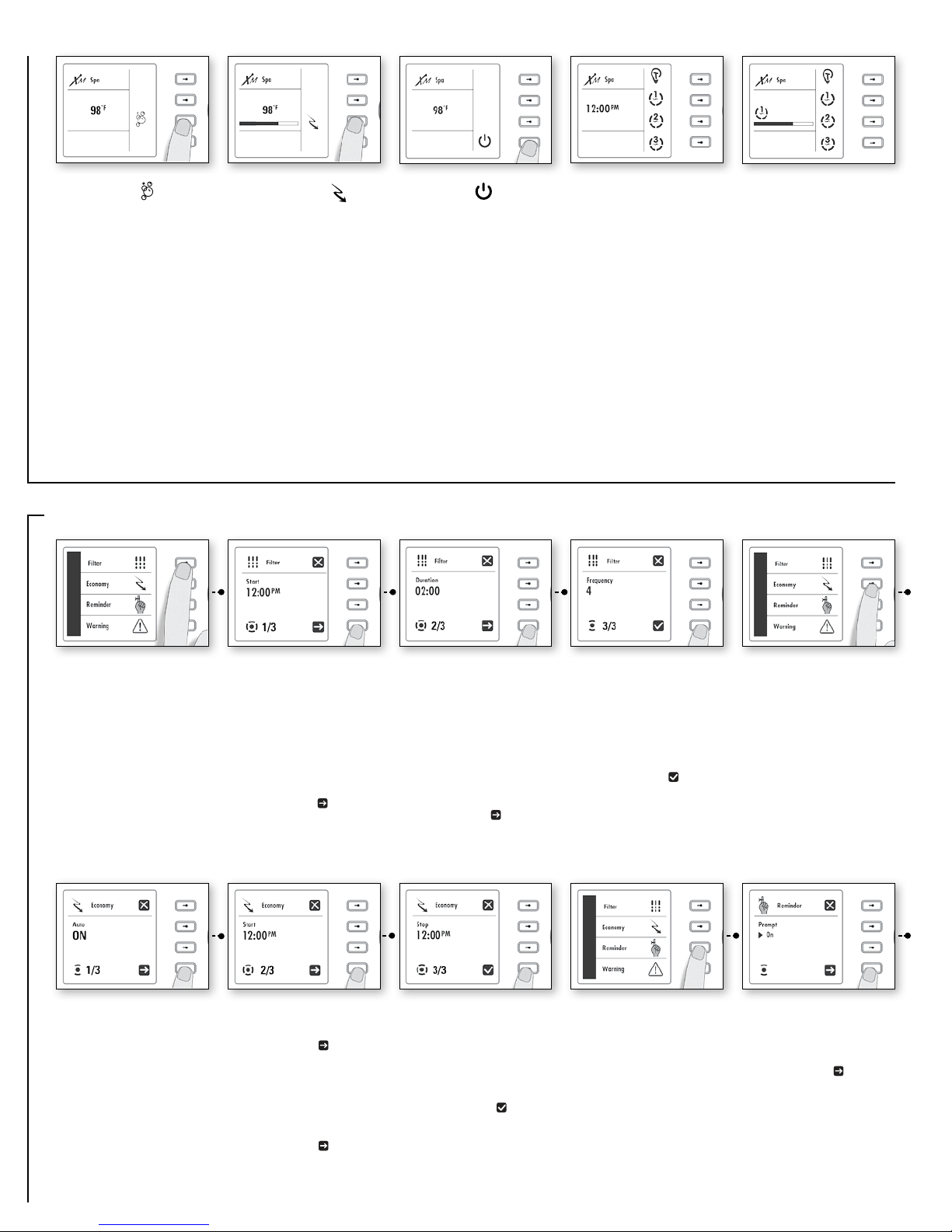

Programming
Turning Economy on
Lowers the temperature set point
of the spa by 20˚F (11˚C).
• Select Economy to activate the
Economy mode.
• Select Economy again to override economy programming
(see spa setup section).
Standby Mode
Stops all pumps at the same time
by a simple click of a button!
• Select Standby to activate
this mode.
• Select Standby to again to
resume normal operations.
System automatically returns to
Normal mode after a certain period of time, unless the Standby
mode has been reactivated. Spa
light will flash for a few seconds
before the exit of Standby mode
and restart the pumps. The
"Standby" message is also
displayed during Standby mode.
* Pump will stay turned on if there
is a request for more heat.
Displaying time
• Press Ok key to display the time.
• Press Ok key a second time to
go back to water temperature
display.
Viewing active progress bars
A progress bar is a visual indicator
of the time remaining before a
device is turned off . Only one bar
is displayed at the time.
• Use Left or Right keys to
visualize the progress bar of
each activated device.
Programming spa system
To program the filter cycle, you
must enter these parameters: start
time, duration and frequency.
During a filter cycle, pumps run
for one minute to purge the plumbing, then Pump 1 runs for the
programmed number of hours.
• Press Mode key
• Select Options menu
• Select Spa sub-menu
• Select Filter option
Setting Economy status
• Use (+) key to enable the
economy mode, the display will
show On.
• Use (-) key to disable economy
mode, the display will show Off.
Setting filter cycles start time
The display will show the starting
hour previously set.
• Use (+) or (-) key to select hour
setting.
• Use Right key to set minutes.
• Use (+) or (-) key to change
minutes.
• Select Next arrow on
screen menu to go to the next
parameter: filter cycle duration.
Setting Economy start time
• Select Next arrow on screen
menu to save changes and go to
economy cycle start hour.
• Use (+) or (-) key to set hour
setting.
• Use Left key to access minutes
option.
• Use (+) or (-) key to set minutes.
• Select Next arrow on screen
menu to save changes and
go to the next parameter stop
economy.
Setting cycle duration
Here we set a value for the filter
cycle duration, in hours and
minutes.
• Use (+) or (-) key to set hour
setting.
• Use Right key to set minutes.
• Use (+) or (-) key to change
minutes.
• Select Next arrow on screen
menu to save changes and go to
the next parameter: filter cycle
frequency.
Setting Economy stop time
• Use (+) or (-) key to set hour
setting.
• Use Left key to access minutes
option.
• Use (+) or (-) key to set minutes.
• Select Enter option on
screen menu to save changes
and go to back to spa options
menu.
Setting filter cycle frequency
Here we set the number of
filtering cycles that the system will
perfom per day.
• Use (+) or (-) key to select
frequency setting.
• Select Enter option on
screen menu to save changes
and go to back to spa options
main menu.

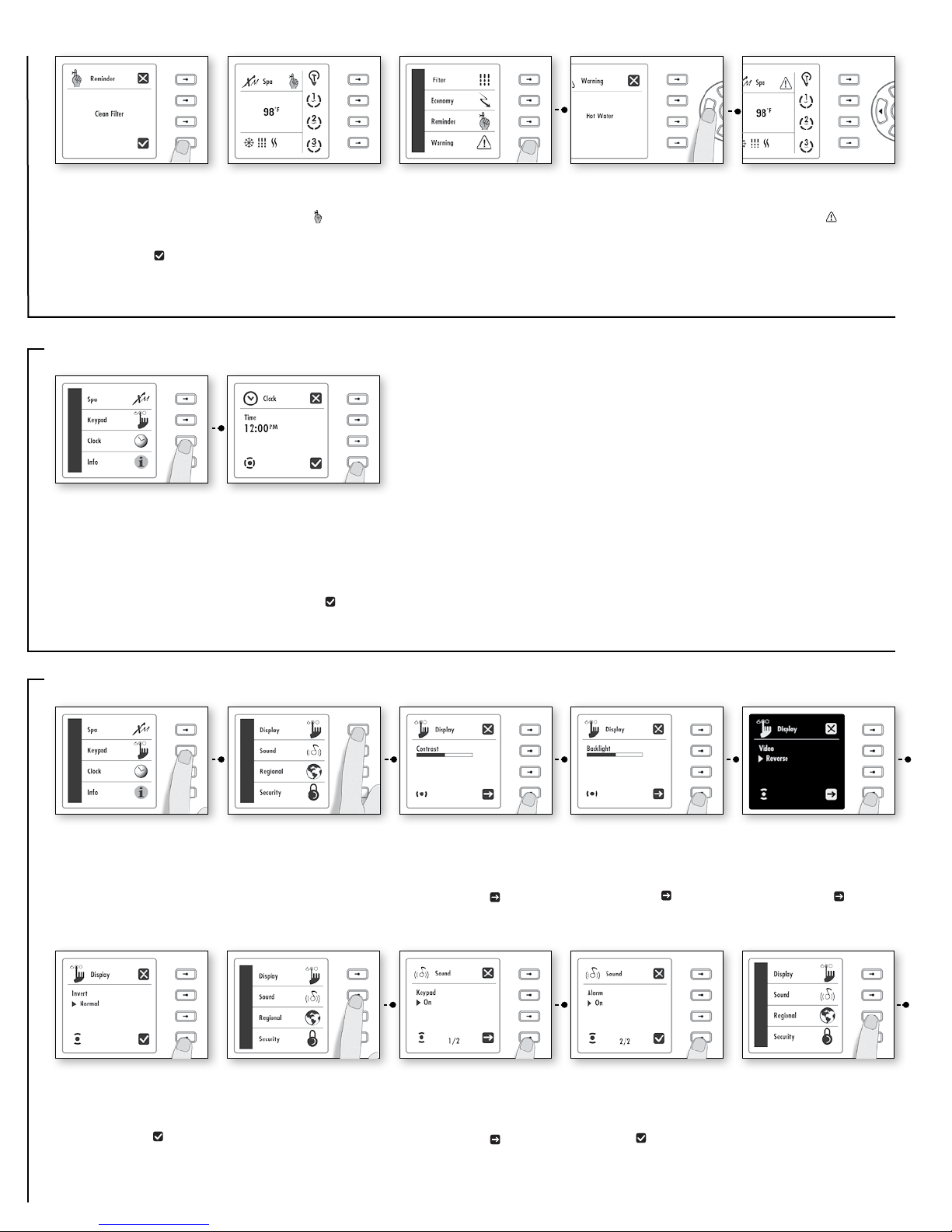

Setting maintenance reminder
prompts
This menu allows you to activate/
deactivate or simply reset the
maintenance reminder prompts.
• Select Reminder option
Setting Economy mode*
• Select Economy
Turning reminders on/off*
• Use (+) or (-) key to activate or
deactivate prompt(s).
• Select Next arrow on screen
menu to save changes and go to
next menu screen.
*option available depending upon factory settings
Resetting prompt messages
• Use Left or Right keys to
review one by one all active
maintenance messages.
• Select Enter option on
screen menu to reset message
and view next task or go back
to main menu.
Time setting
Viewing spa reminders
The reminder icon will show
up to prompt you to review active
maintenance messages.
Spa warnings
This menu allows for you to view
all active warning messages ie:.
hot water.
• Select Warning option
Turning warnings on/off
• Use Left or Right keys to review
all warning messages.
• Press Mode key again to go
back to main menu.
Viewing spa warnings
The warning icon shows up
to prompt you to review active
warning messages.
Setting the time
• Press Mode key
• Select Options menu
• Select Clock setting
Other settings
To program keypad settings
• Press Mode key
• Select Options menu
• Select Keypad sub-menu
Setting hour settings
• Use (+) or (-) key to set hour
setting.
• Use Left or Right keys to access
minutes option.
• Use (+) or (-) keyto set minutes.
• Select Enter option on
screen menu to back to keypad
main menu.
Setting keypad display options
This sub-menu is used to set
keypad display settings such as:
contrast, backlight, etc.
• Select Display options
Adjusting contrast
• Use Left or Right keys to adjust
desired level of contrast.
• Select Next arrow on
display to save changes and go
to next screen menu.
Adjusting backlight
• Use Left or Right keys to adjust
backlight brigtness.
• Select Next arrow on
display to save changes and go
to next screen menu.
Normal/Reverse display
• Use (+) or (-) key to activate or
deactivate reverse display.
• Select Next arrow on
display to save changes and
go to next screen menu.
Display orientation (inverting)
• Use (+) or (-) key to activate or
deactivate reverse display.
• Select Enter option on
screen menu to back to
keypad main menu.
Setting keypad audio options
This sub-menu is used to set
keypad audible options setting
such as: keypad on (key beep)
and alarm.
• Select Sound options
Kepad beep on/off
• Use (+) or (-) key to activate or
deactivate reverse display.
• Select Next arrow on
display to save changes and
go to next screen menu.
Turning alarm sound on
• Use (+) or (-) key to activate or
deactivate alarm sound.
• Select Enter option on
screen menu to save changes
and go back to main menu.

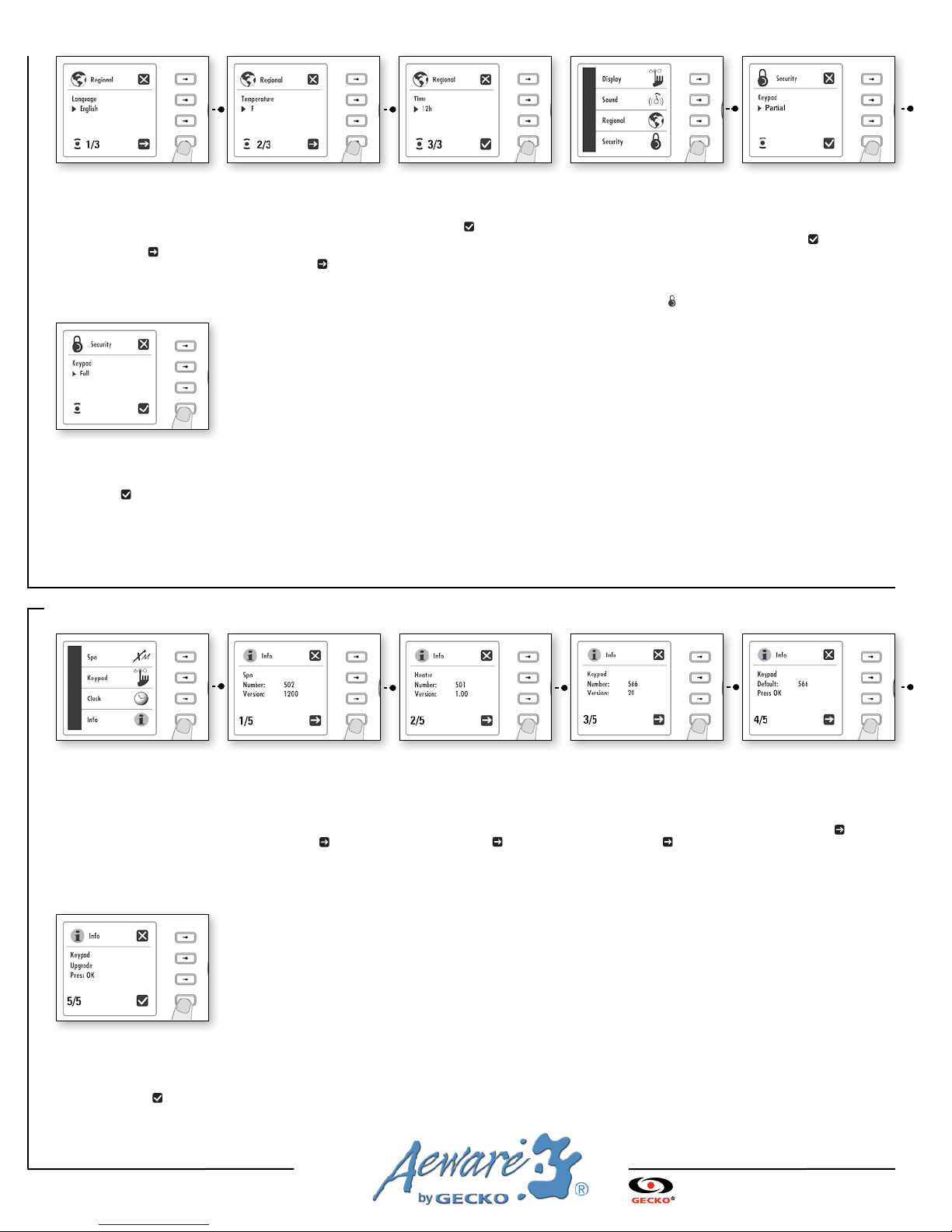

Setting regional settings
This sub-menu is used to set
keypad regional settings such
as: language, select temperature
display units and choose a
format for time display.
• Select Regional options
Setting language
• Use (+) or (-) to select from:
English, Français Spanish &
Deutsch
• Select Next arrow on display
to save changes and go to next
screen menu.
Full keypad lockout
• Use (+) or (-) key to select "Full".
• Select Enter option on
screen menu to back to keypad
main menu.
To unlock the keypad, press and
hold Light key for 5 seconds.
System info
Temperature units
Water temperature can be
displayed in °F or °C.
• Use (+) or (-) to change setting.
• Select Next arrow on display
to save changes and go to next
screen menu.
Selecting time format
• Use (+) or (-) to change setting.
• Select Enter option on
screen menu to save changes
and go back to keypad main
menu.
Security options
Partial keypad lock: basic functions of the spa remain accessible
(pump and light outputs) but
it's impossible to change the
temperature Set Point, or to enter
Programming mode. Full lock:
all keys are disabled. When the
keypad is locked, the icon will
be displayed.
• Select Security options
Partial keypad lockout
• Use (+) or (-) key to select
"Partial".
• Select Enter option on
screen menu to back to keypad
main menu.
To unlock the keypad:
• Select Mode key
• Press and hold Option key for
5 seconds
Viewing information about
the system
To view spa equipment data
such as: system, heater and
keypad software version, to
reset programmed settings and
to upgrade keypad software.
• Press Mode key
• Select Options menu
• Select Info sub-menu
Upgrading keypad software
• Use Ok key to start the upgrade
of the software of the keypad.
• Select Enter option on
screen menu to back to
keypad main menu and not
upgrade the software of the
keypad.
9919-100713-C
Viewing information about spa
Spa software ID number and
version are displayed.
• Select Next arrow on display
to next screen menu.
Viewing information on
heater software
Heater software ID number and
version are displayed.
• Select Next arrow on display
to next screen menu.
Viewing information on
keypad software
Keypad software ID number
and version are displayed.
• Select Next arrow on
display to next screen menu.
Resetting keypad programmed
values
• Press Ok to reset back to default
factory values.
• Select Next arrow on display
to next screen menu.
www.geckoalliance.com
Loading...
