GE Capacitor Motor Run Capacitors GEM III Catalog
Motor Run Capacitors – GEM III
Case Style RBC Code Generic UL Code
A P921 A10000AFC
C P923 C10000AFC
D P924 D10000AFC
P P965 P10000AFC
S P968 S10000AFC
T P969 T10000AFC
370 & 440 VAC
This capacitor series is designed specifically for the motor run applications where the capacitors are used
in conjunction with permanent split capacitor type motors. They may be used on either 50 or 60-Hertz
systems but should not be used at higher frequencies or in applications where higher frequency
harmonics are present. For those types of applications the General Purpose AC Capacitors (Catalog
#GEC 003) shown on the following pages should be used. If there are any questions regarding the
correct application of these products, please contact your RBC sales representative.
SPECIFICATIONS:
Available Capacitance Range: 2 to 120µF
Capacitance Tolerance: ±6%
Capacitance Variation with Temperature: See Chart M-3 on page 14.
Rated Voltage: See Rating Tables. Rating is the 50/60Hz RMS voltage
for a sinusoidal waveform.
Leakage Current: 30µA maximum
Frequency: 50/60 Hz. For higher frequencies use General Purpose
AC Capacitor Series.
Operating Temperature: -40ºC to +70ºC
Storage Temperature: -40ºC to +90ºC
Operating Life: 60,000 hours with 94% survival
(In accordance with the EIA-456 Industry Standard)
Dissipation Factor: 0.1% maximum
Case Material/Finish: Unpainted Aluminum case, terne plate steel cover.
Contact Regal-Beloit if material/finish to meet UL outdoor
standards is required.
Terminations: ‘Combo’ terminal: 0.250” x 0.031” quick connect blades
Dielectric Fluid: Proprietary Genteq dielectric oil
Internal Protection: UL recognized Pressure Sensitive Interrupter. See
Ratings Table for Regal-Beloit’s UL Code Number listed
under Regal-Beloit’s UL File E322597. For UL submittals
with these capacitors, use the RBC ‘Pxxx’ number not the
Catalog Number. The corresponding generic UL
designation that includes the Available Faults Current (AFC)
rating is given below. All these capacitors are capable of
interrupting available fault currents of up to 10,000 amperes.
05thecapacitorstoolbox.com

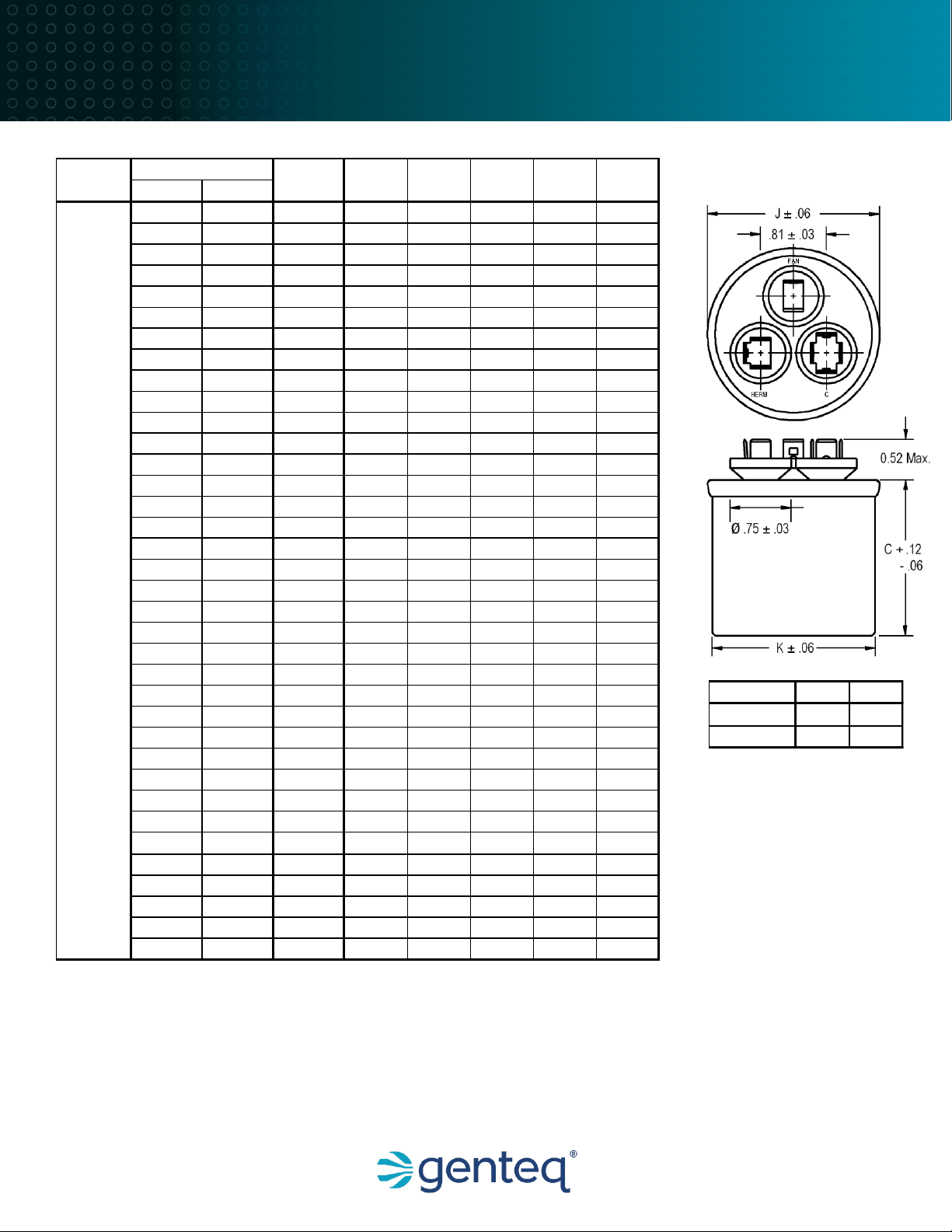

Motor Run Capacitors – GEM III
Voltage Capacitance Catalog Case Base Can Height UL
(VAC) (µF) Number Style Size (in.) Type C (in.) Code
3.0 27L987 A 1.25 Ov al 1.56 P921
4.0 27L571 A 1.25 Ov al 1.56 P921
5.0 27L570 A 1.25 Ov al 1.56 P921
6.0 97F5706 A 1.25 Ov al 2.12 P921
7.5 27L566 A 1.25 Ov al 2.12 P921
10.0 97F9002 A 1.25 Ov al 2.88 P921
12.5 27L572 A 1.25 Ov al 2.88 P921
15.0 27L567 A 1.25 Ov al 2.88 P921
20.0 97F9602 P 1.75 Round 2.88 P965
25.0 97F9606 P 1.75 Round 2.88 P965
30.0 97F9608 P 1.75 Round 3.88 P965
35.0 97F9611 P 1.75 Round 3.88 P965
40.0 97F9614 P 1.75 Round 3.88 P965
45.0 97F9884 P 1.75 Round 4.75 P965
50.0 97F9802 P 1.75 Round 4.75 P965
55.0 97F9010 S 2.00 Round 4.75 P968
60.0 97F5276 T 2.50 Round 3.88 P969
65.0 97F9011 T 2.50 Round 3.88 P969
70.0 97F9012 T 2.50 Round 4.75 P969
75.0 27L361 T 2.50 Round 4.75 P969
80.0 27L497 T 2.50 Round 4.75 P969
370
Case Style K J
P 1.75 1.88
S 2.00 2.12
T 2.50 2.62
Single Ratings – 1 Section

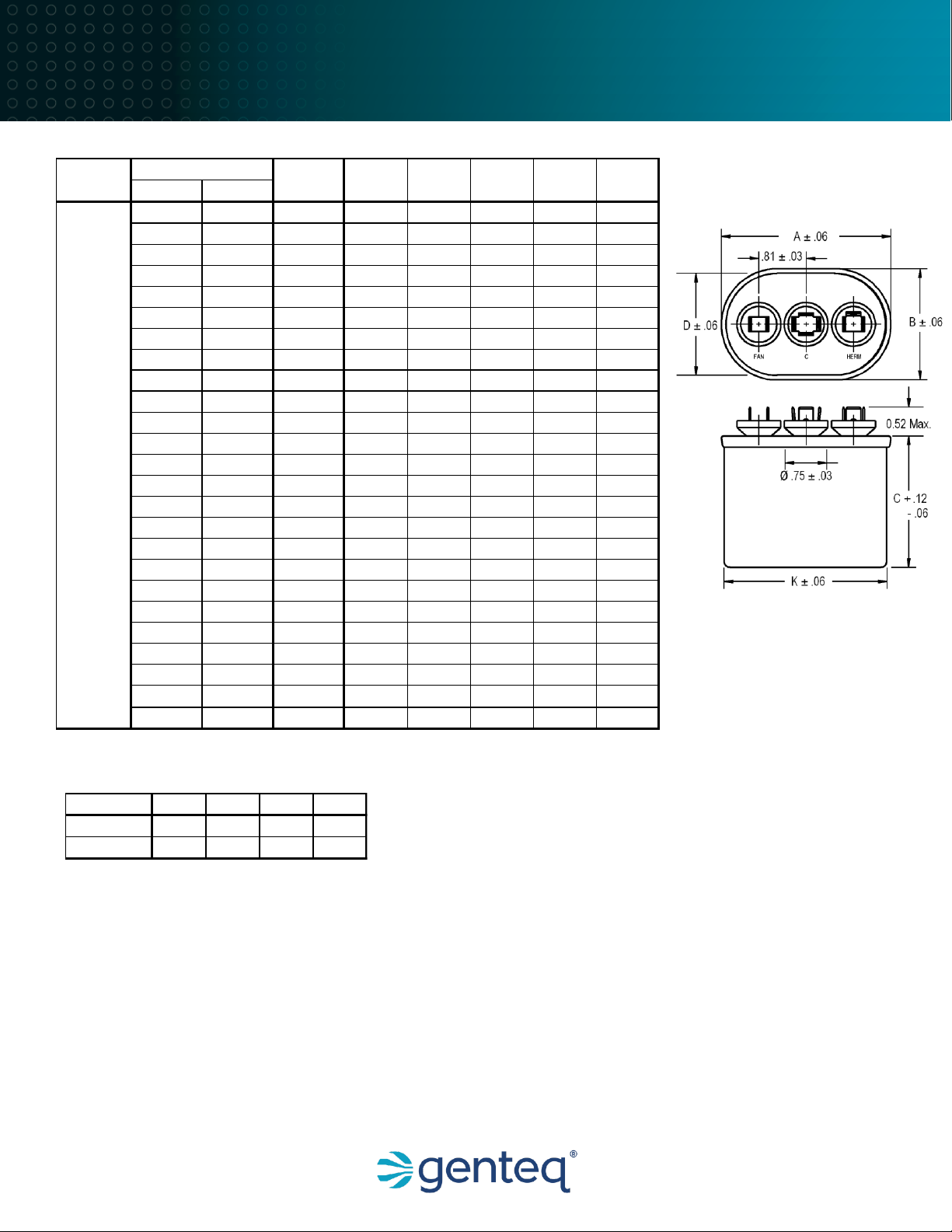

Case Style A
*It is Regal-Beloit’s goal to serve you with the most cost effective and highest quality capacitor designs.
Standardization to the catalog type shown is a major program at Regal-Beloit. However, Regal-Beloit
remains sensitive to your needs and requirements, and will continue to offer the above ratings (and
more) in case configurations to meet your application(s).
(4) .250 x .031 Blades
per terminal except (3)
on case style P
(4) .250 x .031
Blades per terminal
Case Style P, S, and T
thecapacitortoolbox.com06

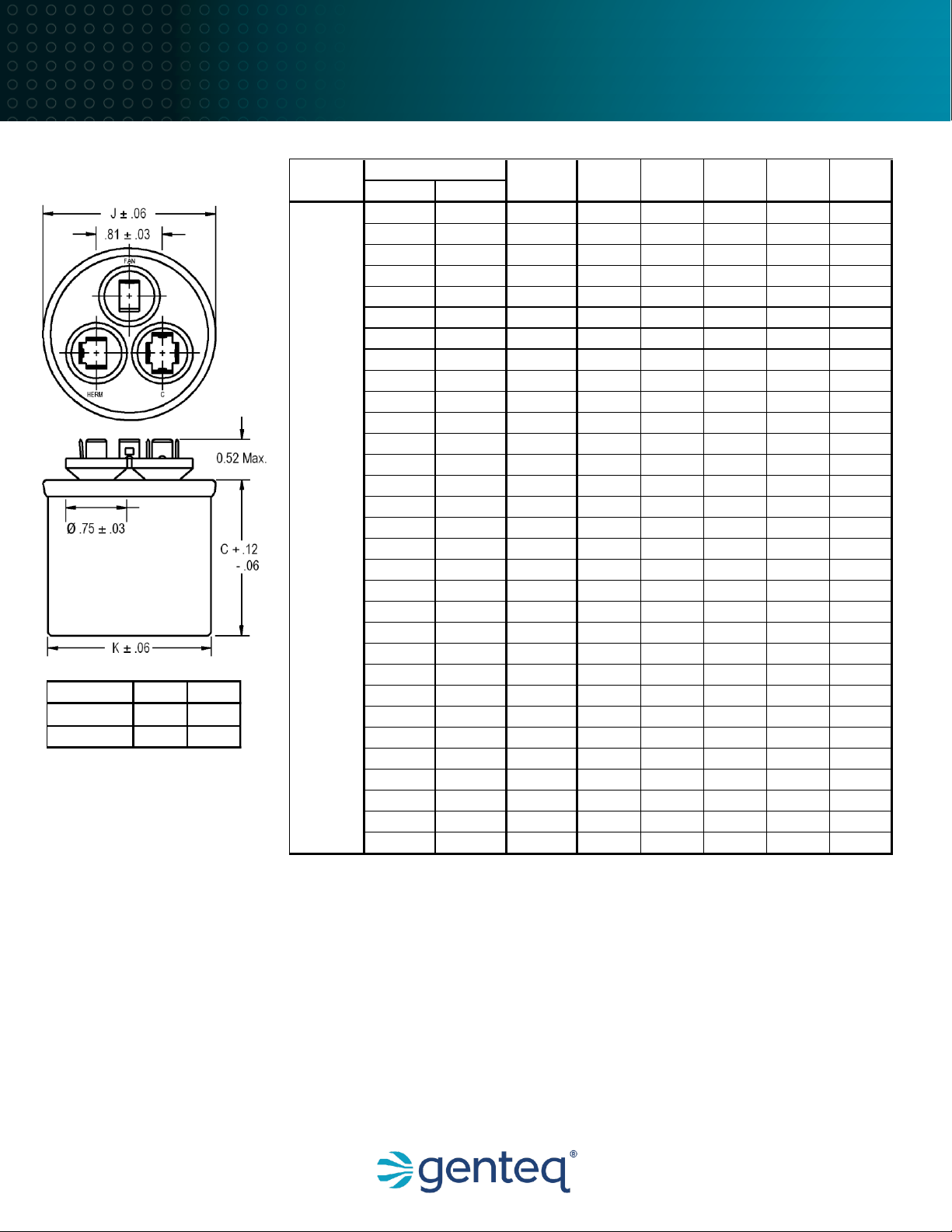

Motor Run Capacitors – GEM III
Voltage Capacitance Catalog Case Base Can Height UL
(VAC) (µF) Number Style Size (in.) Type C (in.) Code
3.0 27L1022 A 1.25 Ov al 1.56 P921
4.0 27L1023 A 1.25 Ov al 1.56 P921
5.0 27L1024 A 1.25 Ov al 2.12 P921
6.0 27L1025 A 1.25 Ov al 2.12 P921
7.5 27L695 A 1.25 Ov al 2.88 P921
10.0 27L1027 A 1.25 Ov al 2.88 P921
12.5 97F9080 A 1.25 Ov al 4.75 P921
15.0 97F9625 A 1.25 Ov al 4.75 P921
20.0 97F9630 P 1.75 Round 3.88 P965
25.0 97F9632 P 1.75 Round 3.88 P965
30.0 97F9635 P 1.75 Round 3.88 P965
35.0 97F9639 S 2.00 Round 3.88 P968
40.0 97F9642 S 2.00 Round 3.88 P968
45.0 97F9645 S 2.00 Round 4.75 P968
50.0 97F5211 T 2.50 Round 3.88 P969
55.0 97F9042 T 2.50 Round 4.75 P969
60.0 97F9043 T 2.50 Round 4.75 P969
65.0 97F5241 T 2.50 Round 4.75 P969
70.0 97F5251 T 2.50 Round 4.75 P969
75.0 27L349 T 2.50 Round 5.25 P969
80.0 27L322 T 2.50 Round 5.25 P969
440
Case Style K J
P 1.75 1.88
S 2.00 2.12
T 2.50 2.62
Single Ratings – 1 Section

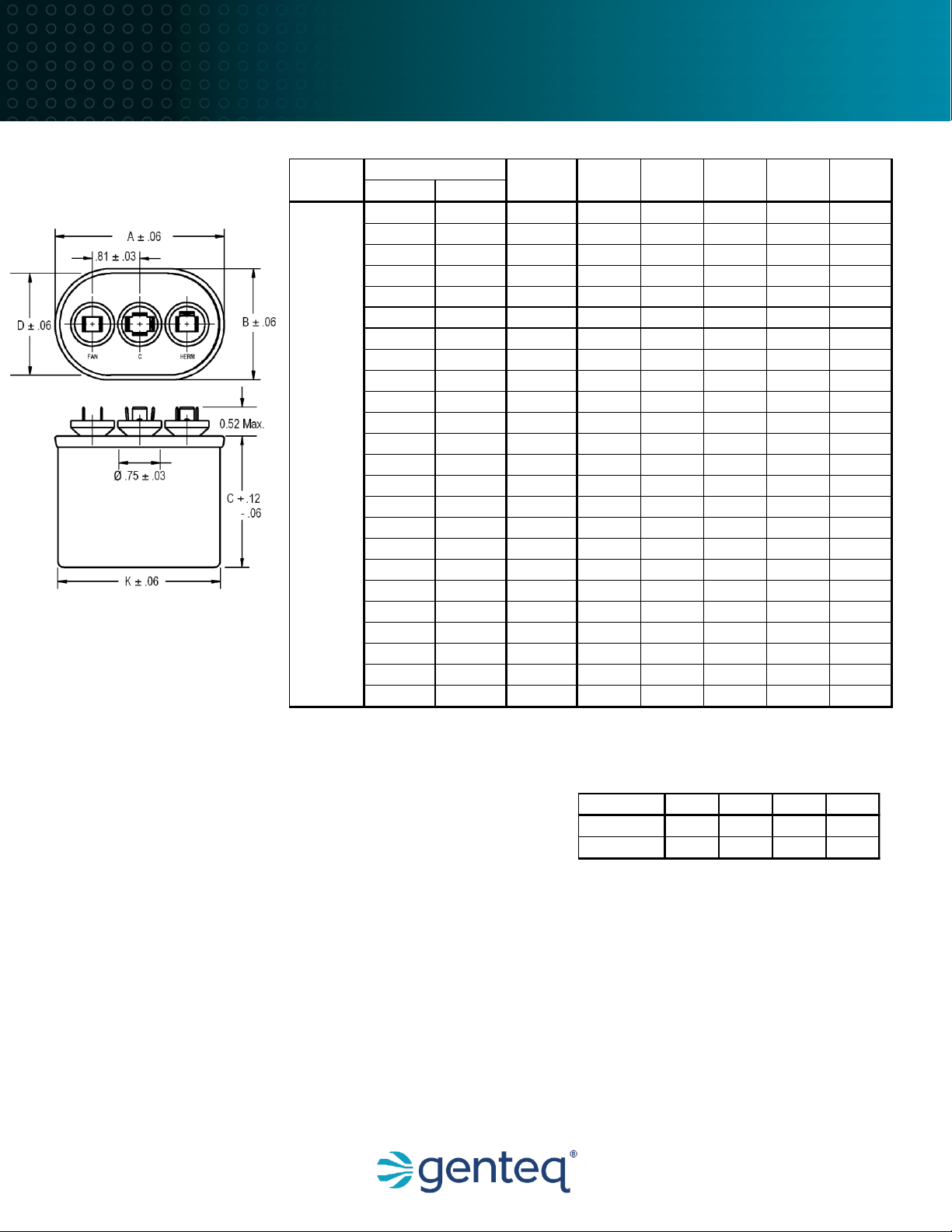

Case Style A
(4) .250 x .031
Blades per terminal
Case Style P, S, and T
*It is Regal-Beloit’s goal to serve you with the most cost effective and highest quality capacitor designs.
Standardization to the catalog type shown is a major program at Regal-Beloit. However, Regal-Beloit
remains sensitive to your needs and requirements, and will continue to offer the above ratings (and
more) in case configurations to meet your application(s).
(4) .250 x .031 Blades
per terminal except (3)
on case style P
07thecapacitorstoolbox.com
