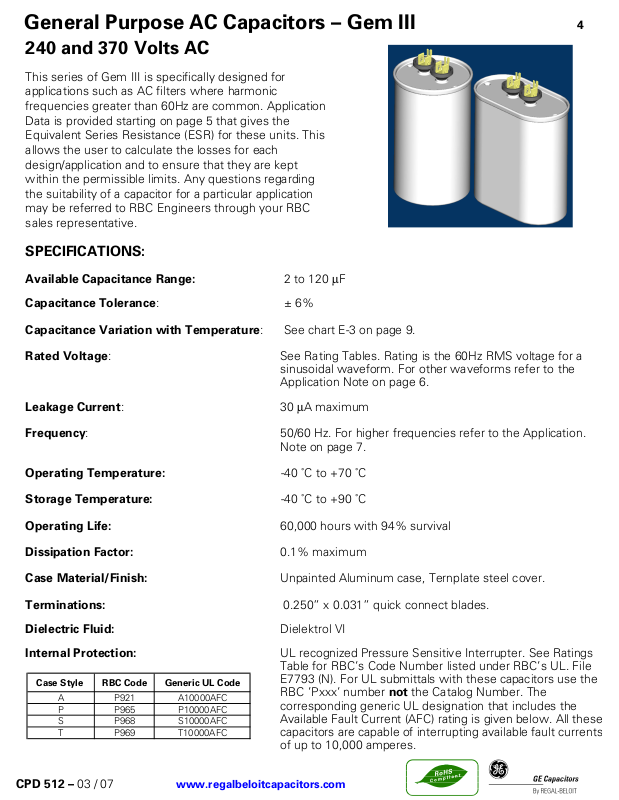

General Purpose AC Capacitors
Available Fault Current (AFC) rating is given below. All these
capacitors are capable of interrupting available fault currents
frequencies greater than 60Hz are common. Application
4
This series of Gem III is specifically designed for
applications such as AC filters where harmonic
Data is provided starting on page 5 that gives the
Equivalent Series Resistance (ESR) for these units. This
allows the user to calculate the losses for each
design/application and to ensure that they are kept
within the permissible limits. Any questions regarding
the suitability of a capacitor for a particular application
may be referred to RBC Engineers through your RBC
sales representative.
Available Capacitance Range: 2 to 120 µF
Capacitance Tolerance: ± 6%
Capacitance Variation with Temperature: See chart E-3 on page 9.
Rated Voltage: See Rating Tables. Rating is the 60Hz RMS voltage for a
Leakage Current: 30 µA maximum
Frequency: 50/60 Hz. For higher frequencies refer to the Application.
Operating Temperature: -40 ˚C to +70 ˚C
Storage Temperature: -40 ˚C to +90 ˚C
Operating Life: 60,000 hours with 94% survival
Dissipation Factor: 0.1% maximum
Case Material/Finish: Unpainted Aluminum case, Ternplate steel cover.
Terminations: 0.250” x 0.031” quick connect blades.
Dielectric Fluid: Dielektrol VI
Internal Protection: UL recognized Pressure Sensitive Interrupter. See Ratings
Case Style RBC Code Generic UL Code
www.regalbeloitcapacitors.com
sinusoidal waveform. For other waveforms refer to the
Application Note on page 6.
Note on page 7.
Table for RBC’s Code Number listed under RBC’s UL. File
E7793 (N). For UL submittals with these capacitors use the
RBC ’Pxxx’ number not the Catalog Number. The
corresponding generic UL designation that includes the
of up to 10,000 amperes.

* It is RBC’s goal to serve you with the most cost
ratings (and more) in case configurations to meet your
General Purpose AC Capacitors
www.regalbeloitcapacitors.com
Capacitance
(
F)
µµµµ
Catalog
Number
240 Volts A-C Nominal
Case
Style
Height
C (ins)
UL
Code
370 Volts A-C Nominal
effective and the highest quality capacitor designs.
Standardization to the catalog type shown is a major
program at RBC.
However, RBC remains sensitive to your needs and
requirements, and will continue to offer the above
5

may be used in AC applications
converter. Generally, there are not significant harmonic currents
6
97F8000 Series 240 and 370 Volts AC
The 97F8000 series of capacitors
where the voltage waveform is non-sinusoidal. This Application
Note is provided to assist in the correct use of the capacitors
where higher frequency harmonic currents are present. If you
need further assistance please contact RBC’s Capacitors
Operation through your normal sales channel.
Higher frequency currents are commonly encountered in the
filter circuits of Static Power Converters. These frequencies
range from 180 to 1500 Hz for a 60 Hz system in various
combinations of the odd harmonics depending on the type of
above the 25th harmonic.
These capacitors can carry a total current of up to 15 amperes
RMS (fundamental plus harmonics). The Equivalent Series
Resistance (ERS) for each Catalog Number is shown in the ESR
tables on this page. This value may be used to calculate the
expected watts loss for a particular application. The user must
determine the total RMS current (fundamental plus harmonics)
for the application. The watts loss is then calculated using the
equation:
W = I 2 x ESR
Where I = Total RMS current
And ESR= Value from ESR tables.
The calculated watts from this equation must not exceed the
allowable watts loss shown on the curve corresponding to the
particular capacitor. Two sets of curves are shown, one for
natural circulation and one for forced air circulation.
NOTES
(1) In no case should the total RMS current of 15 amperes be
exceeded for any of these capacitors.
(2) Running the capacitors at case temperatures above 70 ºC
will have a significant effect on expected life. (See chart G-1 on
page 8 )
(3) Running the capacitors at voltages above the nominal rated
voltage will also result in significantly reduced life. (See chart G2 on page 8 )
Catalog
Number
97F8036 15 0.0257 2
97F8037 25 0.0180 2
97F8038 30 0.0228 3
97F8039 35 0.0206 3
97F8040 40 0.0190 3
97F8041 45 0.0241 4
97F8042 50 0.0226 4
97F8043 55 0.0213 4
97F8044 60 0.0215 5
97F8045 65 0.0206 5
97F8046 70 0.0198 5
97F8047 75 0.0191 5
97F8048 80 0.0164 5
97F8049 85 0.0160 5
97F8050 90 0.0156 5
97F8051 95 0.0193 6
97F8052 100 0.0189 6
97F8053 120 0.0176 6
97F8054 3 0.0700 1
97F8055 4 0.0539 1
97F8056 5 0.0586 2
97F8057 6 0.0499 2
97F8058 7.5 0.0411 2
97F8059 10 0.0471 3
97F8060 12.5 0.0392 3
97F8061 15 0.0244 2
97F8062 17.5 0.0218 2
97F8063 20 0.0281 3
97F8064 25 0.0240 3
97F8065 30 0.0213 3
97F8066 35 0.0262 4
97F8067 40 0.0240 4
97F8068 45 0.0235 5
97F8069 50 0.0222 5
97F8070 55 0.0210 5
97F8071 60 0.0175 5
97F8072 65 0.0169 5
97F8073 70 0.0207 6
µ
µF
µµ
240 Volts AC Nominal
370 Volts AC Nominal
ESR
ohms
Curve
Number
www.regalbeloitcapacitors.com

Maximum Allowable
Watts Loss
Natural Circulation
Ambient Temperature (ºC) – Natural Circulation
Allowable Watts Loss - 97F8000 ( 240 and 370 Volt ) Series
Forced Circulation
Maximum Allowable
Watts Loss
Ambient Temperature (ºC) – Forced Circulation
www.regalbeloitcapacitors.com

General Purpose AC Capacitors
Life
Temperature
%
of Chart G-1
Life
Degrees ˚C
Life
Vs
Voltage
%
of Rated Chart G-2
Life
% of Rated Voltage
Application Data 8
Vs

General Purpose AC Capacitors
Application Data 9
Percent Capacitance Vs Temperature
%
Capacitance Chart E Change
Temperature ( Degrees ˚C)
www.regalbeloitcapacitors.com
