Page 1
82

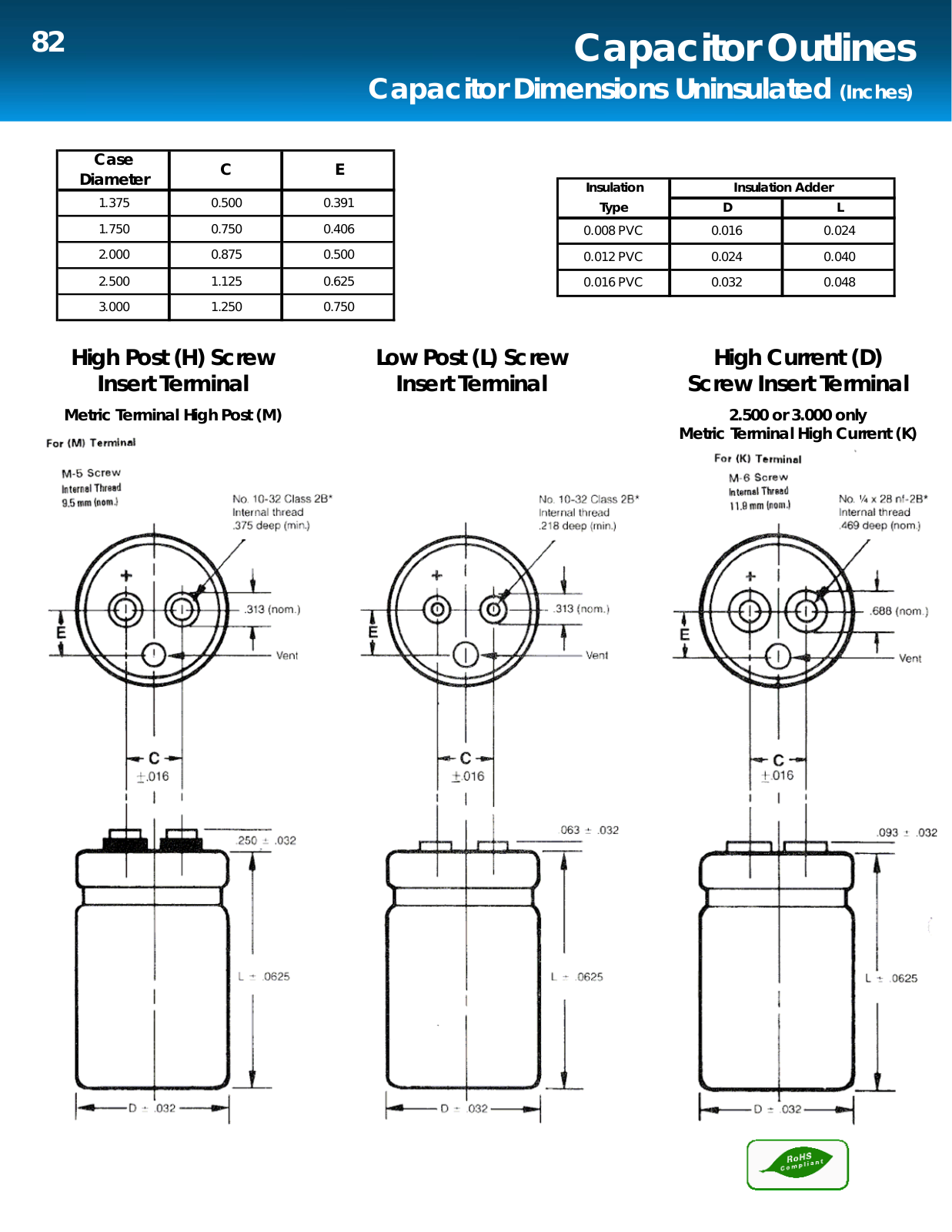

Capacitor Outlines
Capacitor Dimensions Uninsulated (Inches)
Case
Diameter
1.375
1.750
2.000
2.500
3.000
C
0.500
0.750
0.875
1.125
1.250
High Post (H) Screw
Insert Terminal
Metric Terminal High Post (M)
E
0.391
0.406
0.500
0.625
0.750
Low Post (L) Screw
Insert Terminal
Insulation
Type D L
0.008 PVC 0.016
0.012 PVC 0.024 0.040
0.016 PVC 0.032
Insulation Adder
0.024
0.048
High Current (D)
Screw Insert Terminal
2.500 or 3.000 only
Metric Terminal High Current (K)
Page 2

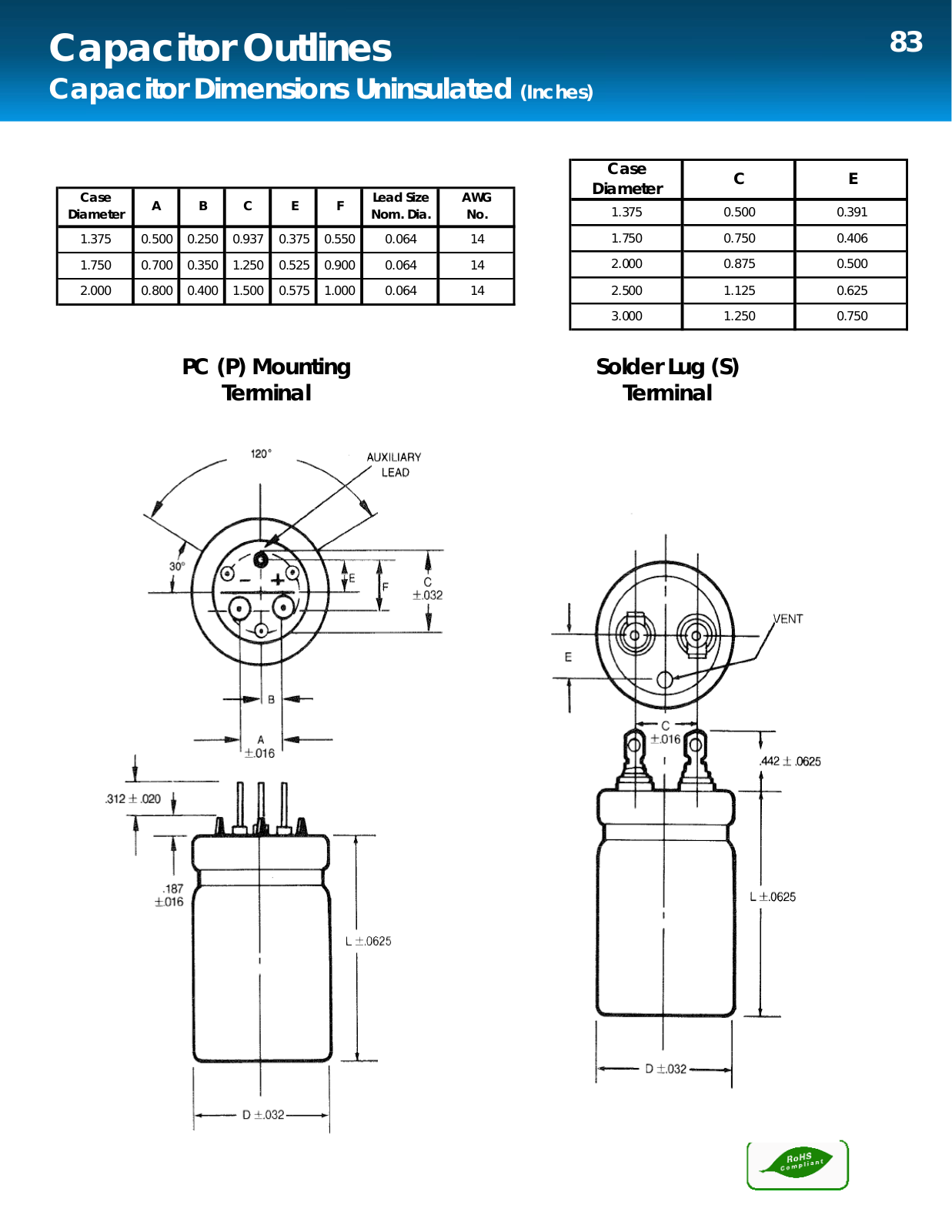

Capacitor Outlines
Capacitor Dimensions Uninsulated (Inches)
83
Case
Diameter
1.750 0.700 0.350 1.250 0.525 0.900 0.064 14
2.000 0.800 0.400 1.500 0.575 1.000 0.064 14
A
0.5001.375 0.250 0.937 0.375 0.550 0.064 14
BCE F
Lead Size
Nom. Dia.
PC (P) Mounting
Terminal
AWG
No.
Case
Diameter
1.375
1.750
2.000
2.500
3.000
0.500
0.750
0.875
1.125
1.250
Solder Lug (S)
Terminal
C
E
0.391
0.406
0.500
0.625
0.750
Page 3
84

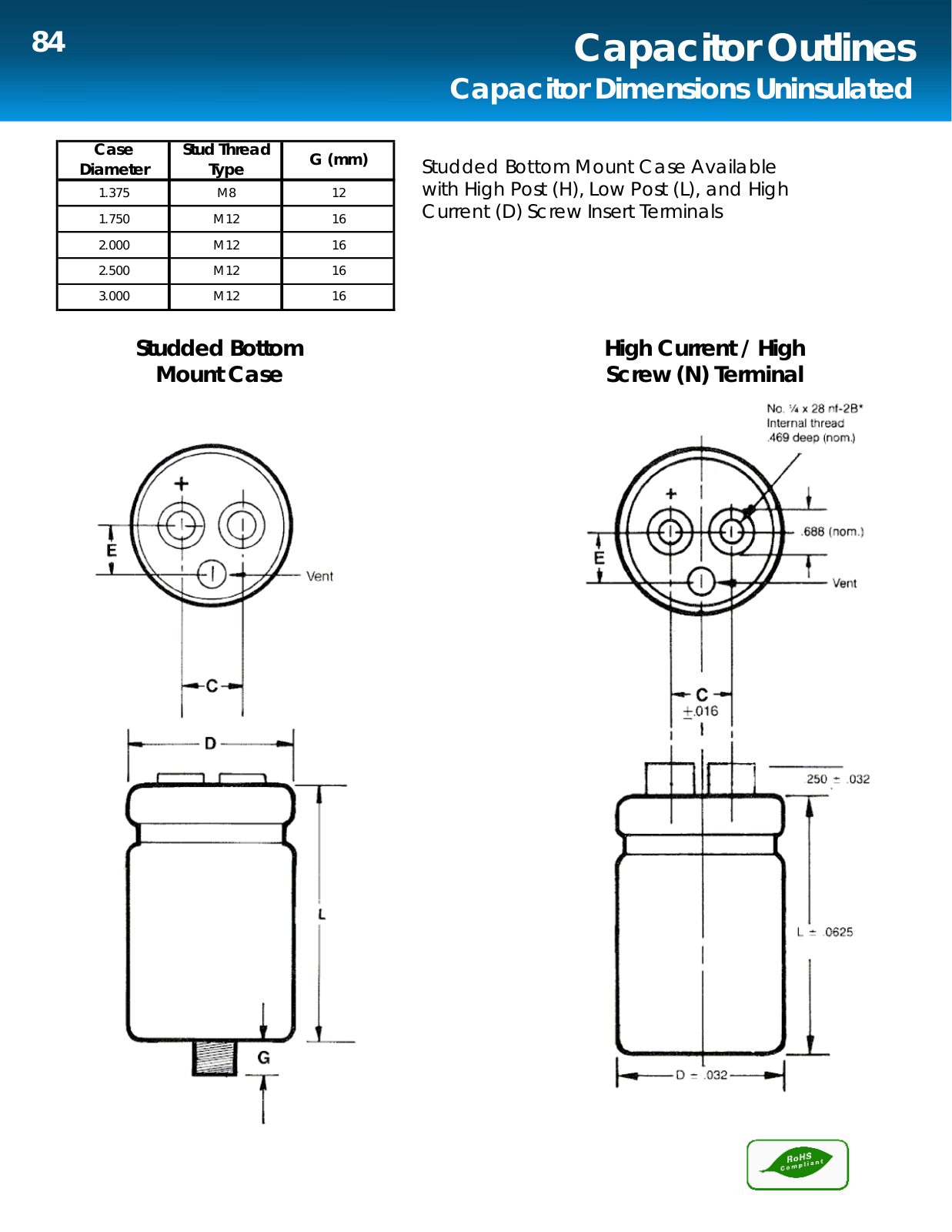

Capacitor Outlines
Capacitor Dimensions Uninsulated
Case
Diameter
1.750 M12 16
2.000 M12 16
2.500 M12 16
3.000 M12 16
Stud Thread
Type
Studded Bottom
Mount Case
G (mm)
121.375 M8
Studded Bottom Mount Case Available
with High Post (H), Low Post (L), and High
Current (D) Screw Insert Terminals
High Current / High
Screw (N) Terminal
