w
ww.regalbeloitcapacitors.com
03 / 07

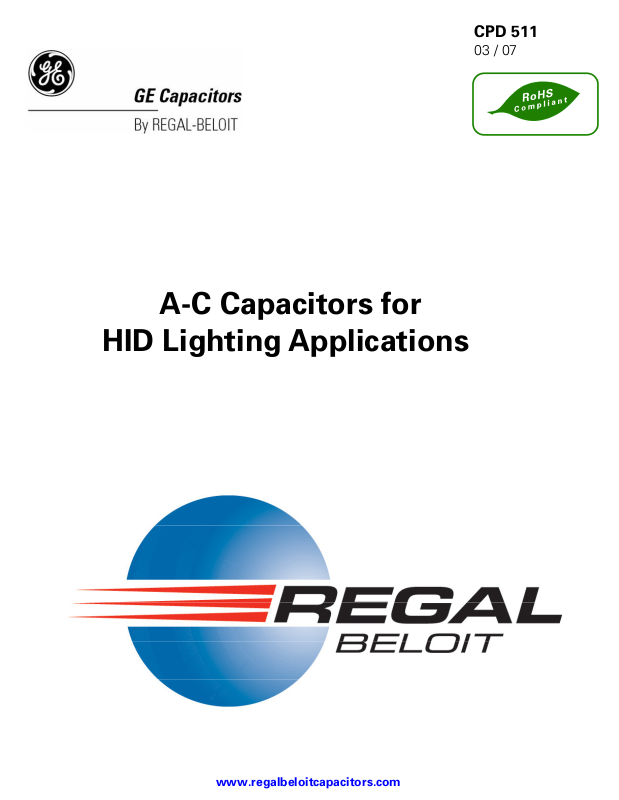

A
-
C Capacitors for
HID Lighting Applications
CPD 511
CPD 511
- 03 / 07
w
ww.regalbeloitcapacitors.com
Capacitor Application Data Sheet
PRIMARY INFORMATION
To ensure correct selectio
n of a capacitor for your application,
please provide the information indicated below. This sheet may
Send this data to your local RBC
be duplicated or additional copies may be obtained from RBC.
Of particular importance are the voltages and current
waveforms complete with values of voltage and current over
a complete cycle.
1. Application: ________________________________________________________________________________
2. Capacitance:_______________________Tolerance:_______________________________________________
3. Peak Voltage:_____________________RMS Voltage: ____________________________________________
( Essential )
4. Peak Current:____________________ RMS Current: ____________________________________________
5. Transient Voltage:________Duration:___________Freq. Of Occurrence:___________________________
6. Frequency or Repetition Rate (Hz):_________Duty Cycle:_______________________________________
7. Ambient Temperature: ________________Max.:_________________Min.:__________________________
8. Capacitor Charge Time: _________Discharge Time:____________________________________________
9. Required Operating Life (Hours): ____________________________________________________________
10. Waveforms:
Sales Representative or directly to:
GE Capacitors by Regal Beloit
11970 PELLICANO DR., SUITE 300
EL PASO,TEXAS 79936
USA
Fax: (915) 849-5799
SECONDARY INFORMATION (Provide as Appropriate)
11. Physical Size Limitations: _________________________________________________________________
12. Mounting Requirements: _________________________________________________________________
13. Applicable Specifications: ________________________________________________________________
14. Type of cooling Available: ________________________________________________________________
15. Unusual Atmospheric Conditions: ________________________________________________________
16. Other special Requirements: _____________________________________________________________
17. Number of samples Required: ____________18. Potential Usage: _____________________________
CPD 511
- 03 / 07
w
ww.regalbeloitcapacitors.com
Descriptive Information
Descriptive Information
RBC Capacitors for HID Lighting Purpose Applications
Metallized film capacitors are unsurpassed in terms of size, weight, performance, and reliability for AC
applications. RBC - Capcom brings over 60 years of capacitor manufacturing experience to the product
lines described in this publication. These capacitors represent the best in product design for long-term
reliability and safe operation. RBC’s materials, product, and process development work continue to
provide capacitor users with outstanding total value.
The Gem III HID Lighting Capacitors are designed specifically for HID Lighting applications where the
capacitors are used as part of the ballast circuit for mercury vapor, metal halide, and high-pressure
sodium lamps. The units are designed to operate at temperatures up to 90˚C, which is the normal
requirement for HID ballast capacitors. Due to advances in material technology and breakthroughs in
proprietary capacitor manufacturing processes, selected ratings are now available for operation up to
100°C for 60,000 hours.
RBC Capacitors for HID Lighting Applications
Descriptive Information 1
Metallized film capacitors are unsurpassed in terms of size, weight, performance, and
reliability for ac applications. RBC - Capcom brings its over 60 years of capacitor
Product Safety 3
manufacturing experience to the product lines described in this publication. These capacitors
represent the best in product design for long-term reliability and safe operation. RBC’s
HID Lighting Capacitors-Gem III (Single Section) 4
materials, product, and process development work continue to provide capacitor users with
outstanding total value.
HID Lighting Capacitors -Gem III (Dual Section) 8
The Gem III HID Lighting Capacitors are designed specifically for HID Lighting applications
where the capacitors are used as part of the ballast circuit for mercury vapor, metal halide,
Application Data 9
and high-pressure sodium lamps. The units are designed to operate
At temperatures up to 90˚C,which is the normal requirement for HID ballast capacitors.
Outline 11
HID Lighting Capacitors 100 °°°°C Max -Gem III 12
Mounting Hardware 13
Table of Contents
1
CPD 511
- 03 / 07
w
ww.regalbeloitcapacitors.com
2
GEM III Construction
RBC ‘s Gem III capacitor
s are manufactured with high
-
grade
metallized polypropylene film. This film is in the range of 5 to
10 microns thick, depending on the application voltage and
conditions. The metallized electrode is several hundred
angstroms thick.
The film is wound into capacitor rolls on high-speed, highprecision machines. The winding is extremely tight so that
there is not enough space between the layers for corona
(localized partial electrical discharges) to occur. The rolls are
sprayed on both ends with metal to make connection to the
extremely thin edges of the metalized electrodes. This
process is critical to the quality and performance of the
capacitors.
The rolls are assembled in metal cases, RBC’s proprietary
Dielektrol VI liquid is introduced under vacuum, and the
capacitors are sealed. They are then subjected to 100%
electrical testing for capacitance, dissipation factor, and high
potential electrical withstand, both terminal-to-terminal and
terminal-to-case.
Descriptive Information
Product Safety
A
2.00
1.00P1.62
B
2.25
1.25S1.88
C
2.50
1.62T2.38
D
3.25
1.62
CPD 511
- 03 / 07
w
ww.regalbeloitcapacitors.com
*Underwriter's Laboratories
these capacitors.
Mounting Considerations
requirements of the end application.
Cut
-
Out Clearance
3
Pressure Sensitive Interrupter
All the capacitors listed in this publication contain
RBC's Pressure Sensitive Interrupter (PSI). This
device, developed by RBC, is designed to sense the
build-up of pressure within the capacitor if a fault
occurs and to interrupt the internal electrical
connections before the case can rupture.
The PSI carries U.L. * recognition for applications
where the specified fault currents are not exceeded.
The fault current is the maximum current that is
available from the circuit to flow through the capacitor
if the capacitor were to become a short circuit with
zero impedance. It is the responsibility of the
capacitor user to determine what the available
fault current is for a particular application.
In the Catalog Number listings a four character U.L.
Code, Pxxx, is given. This number is part of the listing
for RBC in U.L. File No. E7793. When applying to U.L.
for approvals or recognition of equipment using these
capacitors refer to the Pxxx number and not the
Catalog Number of the capacitor in question.
Proper operation of the PSI requires that the cover be
able to expand without restriction. The following
mounting considerations should be noted in mounting
Vertical Clearance
There must be sufficient clearance
between the tops of the terminals (and/or
the assembled wire connectors) and a
plane perpendicular to the capacitor
terminals. This clearance must be at least
0.5 inches plus the electrical spacing
In certain instances capacitors are mounted
with the top of the capacitor case resting
against the chassis and the terminals
protruding through the chassis. Care must
be taken to see that the cutout in the
chassis is large enough. The following
dimensions are recommended.
Case Style a b Case Style a
HID Lighting Capacitors
–
Gem III
SPECIFICATIONS:
CPD 511
- 03 / 07
w
ww.regalbeloitcapacitors.com
4
280, 330, 400, 480, 540 and 580 Volts AC
This capacitor series is designed specifically for HID Lighting
applications where the capacitors are used as part of the ballast
circuit for mercury vapor, metal halide, and high-pressure
sodium lamps. The units are designed to operate at up to 90 °C
which is the normal requirement for HID ballast capacitors. Due
to advances in material technology and breakthroughs in
proprietary capacitor manufacturing processes, selected ratings
are now available for operation up to 100°C for 60,000 hrs.
Available Capacitance Range: 5 to 60 µF
Capacitance Tolerance: ± 3%
Capacitance Variation with Temperature: See chart L-3 on page 9.
Rated Voltage: See Rating Tables.
Leakage Current: 30 µA maximum
Frequency: 50/60 Hz.
Operating Temperature: -40 ˚C to +90 ˚C and up to 100 °C MAX on selected ratings
Storage Temperature: -40 ˚C to +90 ˚C
Operating Life: 60,000 hours with 90% survival
Dissipation Factor: 0.1% maximum
Case Material/Finish: Unpainted Aluminum case, Ternplate steel cover.
Terminations: ‘Combo’ terminal: 0.250” x 0.031” quick connect blades
Dielectric Fluid: Dielektrol VI
Internal Protection: UL recognized Pressure Sensitive Interrupter. The UL
code Numbers in the Ratings Table are the numbers
listed under RBC’s UL File E7793 (N). When including
( See page 12 )
plus a solderable fork on each terminal.
these capacitors in a UL submittals use this RBC ’Pxxx’
number not the Catalog Number. The generic UL
designations corresponding to the RBC numbers are
given below. This number includes the Available Faults
Current (AFC) rating. All these capacitors are capable of
interrupting available fault currents of up to 10,000
amperes.
CPD 511
- 03 / 07
w
ww.regalbeloitcapacitors.com
HID Lighting Capacitors
–
Gem III
Capacitance
(
µµµµ
F)
Catalog
Number
Case
Style
Height
C (in.)
UL
Code
6
97F6801
A
2.12
P921
8
97F6857
A
2.88
P921
10
97F6858
A
2.88
P921
10
97F6805
B
2.12
P922
12
97F6871
A
3.88
P921
15
97F6860
B
2.88
P922
17.5
97F6812
B
2.88
P922
20
97F6861
B
3.88
P922
20
97F6862
C
2.88
P923
22.5
97F6855
B
3.88
P922
24
97F6873
B
3.88
P922
24
97F6864
C
2.88
P923
26
97F6868
B
2.88
P922
28
97F6824
B
3.88
P922
28
97F6823
C
2.88
P923
29
97F6846
B
3.88
P922
34
97F6854
B
3.88
P922
35
97F6865
C
3.88
P923
40
97F6866
C
3.88
P923
42
97F6869
B
3.88
P922
45
97F6850
C
3.88
P923
48
97F6836
C
3.88
P923
48
97F6872
D
2.88
P924
52
97F6867
D
3.88
P924
22.5
97F6516
P
2.88
P965
24
97F6522
P
2.88
P965
30
97F6533
P
3.88
P965
35
97F6538
P
3.88
P965
38
97F6509
P
3.88
P965
40
97F6530
P
3.88
P965
45
97F6540
S
3.88
P968
48
97F6541
S
3.88
P968
OVAL Case
Capacitance
(
µµµµ
F)
Catalog
Number
Case
Style
Height
C (in.)
UL
Code
2.5
97F6788
A
2.12
P921
5
97F6764
A
2.88
P921
6
97F6765
A
2.88
P921
7
97F6766
A
2.88
P921
8
97F6703
A
2.88
P921
10
97F6763
A
3.88
P921
10
97F6767
B
2.88
P922
11
97F6762
B
2.88
P922
12
97F6746
A
3.88
P921
12
97F6760
B
2.88
P922
13
97F6708
B
2.88
P922
13.5
97F6749
B
2.88
P922
14
97F6768
B
2.88
P922
15
97F6758
B
3.88
P922
16
97F6769
B
3.88
P922
17.5
97F6761
B
3.88
P922
17.5
97F6770
C
2.88
P923
18
97F6771
B
3.88
P922
18
97F6779
C
2.88
P923
19
97F6715
B
3.88
P922
20
97F6716
B
3.88
P922
21
97F6745
B
3.88
P922
22.5
97F6773
C
3.88
P923
24
97F6759
B
3.88
P922
24
97F6774
C
3.88
P923
26
97F6755
B
3.88
P922
28
97F6776
C
3.88
P923
29
97F6780
C
3.88
P923
30
97F6726
C
3.88
P923
32
97F6727
C
3.88
P923
34
97F6757
C
3.88
P923
36
97F6784
C
3.88
P923
45
97F6778
D
3.88
P924
7
97F6531
P
2.88
P965
8
97F6518
P
2.88
P965
10
97F6515
P
2.88
P965
14
97F6506
P
2.88
P965
15
97F6504
P
2.88
P965
16
97F6519
P
2.88
P965
17.5
97F6505
P
2.88
P965
24
97F6537
P
3.88
P965
28
97F6521
P
3.88
P965
OVAL Case
ROUND Case
* It is RBC’s goal to serve you with the most cost
5
*STANDARD RATINGS
280 VOLTS AC
330 VOLTS AC
ROUND Case
effective and the highest quality capacitor designs.
Standardization to the catalog type shown is a
major program at RBC.
However, RBC remains sensitive to your needs
and requirements, and will continue to offer the
above ratings (and more) in case configurations to
meet your application (s).
HID Lighting Capacitors
–
Gem III
Capacitance
(
µµµµ
F)
Catalog
Number
Case
Style
Height
C(in.)
UL
Code
3
97F6676
A
2.88
P921
4
97F6677
A
2.88
P921
4.5
97F6678
A
2.88
P921
5
97F6681
A
2.88
P921
6.5
97F6695
A
3.88
P921
8.5
97F6692
B
2.88
P922
10
97F6907
B
3.88
P922
12
97F6674
B
3.88
P922
14
97F6673
B
3.88
P922
15
97F6685
B
3.88
P922
16
97F6675
C
3.88
P923
20
97F6694
C
3.88
P923
21
97F6683
C
3.88
P923
24
97F6680
C
3.88
P923
24
97F6679
D
2.88
P924
28
97F6918
C
4.75
P923
OVAL Case
Capacitance
(
µµµµ
F)
Catalog
Number
Case
Style
Height
C(in.)
UL
Code
7.5
97F6656
A
3.88
P921
10
97F6601
A
3.88
P921
10
97F6606
B
2.88
P922
12
97F6659
B
3.88
P922
12
97F6660
C
2.88
P923
13
97F6698
B
3.88
P922
14
97F6661
C
2.88
P923
15
97F6602
B
3.88
P922
15
97F6621
C
2.88
P923
18
97F6658
C
2.88
P923
24
97F6622
C
3.88
P923
24
97F6623
D
2.88
P924
26
97F6926
B
3.88
P922
10
97F6526
P
2.88
P965
14
97F6539
P
2.88
P965
15
97F6517
P
2.88
P965
24
97F6535
P
3.88
P965
26
27L709
S
3.88
P968
ROUND Case
OVAL Case
CPD 511
- 03 / 07
w
ww.regalbeloitcapacitors.com
Case Style
K
J
P
1.75
1.88
S
2.00
2.12
400 VOLTS AC
P and S
CASE
STYLES
A, B, C
and D
(2). 250 x .031
Case Style a b
A 2.16 1.31
B 2.69 1.56
C 2.91 1.91
D 3.66 1.97
Blades & fork
per terminal
6
CASE
STYLES
480 VOLTS AC
CPD 511
- 03 / 07
w
ww.regalbeloitcapacitors.com
Capacitance
(
µµµµ
F)
Catalog
Number
Case
Style
Height
C(in.)
UL
Code
7.5
27L176
B
2.88
P962
10.5
97F6935
C
2.88
P963
13
97F6924
B
3.88
P962
16
97F6919
C
3.88
P963
16
97F6920
B
3.88
P962
18
97F6933
C
3.88
P963
22.5
97F6951
C
4.75
P963
22.5
97F6956
D
3.88
P964
26
97F6921
C
4.75
P963
26
97F6934
D
3.88
P964
32
97F6923
D
3.88
P964
35
97F6940
D
4.75
P964
36
97F6952
D
4.75
P964
OVAL Case
Capacitance
(
µµµµ
F)
Catalog
Number
Case
Style
Height
C(in.)
UL
Code
8
27L791
B
3.88
P962
10
97F6930
B
3.88
P962
14.5
97F6948
B
3.88
P962
20
97F6931
C
4.75
P963
21
97F6946
C
4.75
P963
24
97F6945
C
4.75
P963
26
97F6921
C
4.75
P963
OVAL Case
HID Lighting Capacitors
–
Gem III
7
* It is RBC’s goal to serve you with the most cost
*STANDARD RATINGS
540 VOLTS AC
effective and the highest quality capacitor designs.
Standardization to the catalog type shown is a
major program at RBC.
However, RBC remains sensitive to your needs
and requirements, and will continue to offer the
above ratings (and more) in case configurations to
meet your application (s).
580 VOLTS AC
CASE STYLES A, B, C and D
Case Style a b
A 2.16 1.31
B 2.69 1.56
C 2.91 1.91
D 3.66 1.97
Case Style
a
b
C
2.91
1.91
D
3.66
1.97
HID Lighti
ng Capacitors
–
Gem III
CPD 511
- 03 / 07
w
ww.regalbeloitcapacitors.com
RBC offers a variety of dual section HID
DUAL SECTION
Lighting capacitors.
Voltage Rating: 280 thru 580 VAC
All other specifications are the same as
Single section HID product offerings.
Various capacitance combinations are
available ; limited by case base sizes.
CONTACT LOCAL SALES
REPRESENTATIVE OR FACTORY
FOR SPECIFIC REQUIREMENTS.
8
MAIN SECTION: C to A
AUXILIARY SECTION: B to C
HID Lighting Capacitors
–
Gem III
CPD 511
- 03 / 07
w
ww.regalbeloitcapacitors.com
Vs
Temperature
%
of Chart L-1
Life
Life
Vs
Voltage
%
of Rated Chart L-2
Life
Application Data 9
Life
Degrees ˚C
% of Rated Voltage
HID Lighting
Capacitors
–
Gem III
CPD 511
- 03 / 07
w
ww.regalbeloitcapacitors.com
%
Capacitance Chart L-3
Change
Application Data 10
Percent Capacitance Vs Temperature
Temperature ( Degrees ˚C)
Outlines
11
CPD 511
- 03 / 07
w
ww.regalbeloitcapacitors.
com
Round Case Style (P,S,T) Oval Case Style (A,B,C,D)
Dual Oval Case Style
Oval
Case Style
A Oval 2.16 1.31 1.21 2.06
B Oval 2.69 1.56 1.47 2.58
C Oval 2.91 1.91 1.81 2.81
D Oval 3.66 1.97 1.88 3.56
C Dual Oval 2.91 1.91 1.81 2.81
Round
Case Style
P Round 1.75
S Round 2.00
T Round 2.50
1A 1B 1D 1K
1K 1J
Dimensions
Dimensions
_____ _____
_____ _____
_____ _____
1.88
2.12
2.62
HID Lighting Capacitors
– Gem III
Single Ratings
Dual Ratings
* It is RBC’s goal to serve you with the most cost
Case Style
a
b
C
2.91
1.91
D
3.66
1.97
CPD 511
- 03 / 07
w
ww.regalbeloitcapacitors.com
Case Style
a
b
A
2.16
1.31
C
2.91
1.91
14
27L7002
A
3.12
P921
26
27L7003
C
2.88
P923
24
27L7004
C
3.12
P923
10
27L7001
C
2.88
P922
24
27L7009
C
3.12
P923
361227L7005
C
3.88
P923
11627L7008
C
3.88
P923
18827L7007
C
2.88
P923
100 °°°°C Max
12
Capacitance
(µµµµF)
48 27L7000 C 3.88 P923
Catalog
Number
280 VOLTS AC
330 VOLTS AC
360 VOLTS AC
400 VOLTS AC
Case
Style
Height
C (in.)ULCode
Oval Case Style (A,B,C,D)
effective and the highest quality capacitor designs.
Standardization to the catalog type shown is a
major program at RBC.
However, RBC remains sensitive to your needs
and requirements, and will continue to offer the
above ratings (and more) in case configurations to
meet your application (s).
Capacitance
(µµµµF) (µµµµF)
(Main) (Aux.)
MAIN SECTION: C to A
AUXILIARY SECTION: B to C
Catalog
Number
280 VOLTS AC
330 VOLTS AC
Case
Style
Height
C (in.)
UL
Code
CPD 511
- 03 / 07
w
ww.regalbeloitcapacitors.com
Mounting Hardware
UNIVERSAL WRAP AROUND BRACKETS
ROUND CASE STYLES
Case
Style
P 295A6016P31 1.75 1.12 1.31
S 295A6016P32 2.00 1.25 1.44
T 295A6016P33 2.50 1.50 1.69
Bracket
Part Number
# 6-32 screw and nut
WRAP AROUND BRACKETS
ROUND AND OVAL CASE STYLES
Case
Style
A K9827065P21 2.56 2.94 0.50 0.02
B K9827065P31 3.06 3.50 0.63 0.02
C 614A301P61 3.31 3.81 0.75 0.03
D 614A301P51 4.06 4.56 0.75 0.03
P 279A7235P24 2.50 2.88 0.75 0.04
S 279A7235P22 2.75 3.12 0.75 0.04
T 279A7235P23 3.25 3.62 0.75 0.04
Bracket
Part Number
13
a b c
UNIVERSAL WRAP AROUND BRACKETS
OVAL CASE STYLES
(2) .156 dia holes suplplied with
d e w t
Case
Style
A 128A2244ACP21 2.69 3.13
B 128A2244ABP25 3.27 3.70
C 128A2244ABP22 3.44 3.88
D 128A2244ABP23 4.19 4.63
Bracket
Part Number
d e
CPD 511
- 03 / 07
w
ww.regalbeloitcapacitors.com
Mounting Hardware
Case
Style
A
2.56
3.00
2.12
302C920P210
B
3.13
3.56
2.88
302C920P113
C
3.38
3.81
3.88
302C920P115
D
4.13
4.56
4.75
302C920P116
5.75
302C920P209
P
2.33
2.76
S
2.57
3.00
T
3.07
3.50
FOOTED BRACKETS
Case
Height
Bracket
Part Number
PROTECTIVE BOOT PROTECTIVE CAP
178A3744P21
Temperature RatingBoot Part Number
14
d e
105 0C
CPD 511
- 03 / 07
w
ww.regalbeloitcapacitors.com
Please contact your RBC Sales Representative for further information
Publication Description Replaces
RBC COMPONENT CAPACITOR PUBLICATIONS
AVAILABLE
CPD-510 AC Motor Run Capacitors CPD-501
CPD-511 AC HID Lighting Capacitors CPD-501
CPD-512 AC General Purpose Capacitors CPD-501
CPD-517 Power Electrolytic Capacitors (General) New Pub.
call or write directly to,
GE Capacitors by Regal Beloit
11970 PELLICANO DR. , SUITE 300
EL PASO ,TEXAS 79936
USA
Telephone: (915) 849-5757, (915) 849-5758
Fax: (915) 849-5799
Loading...
