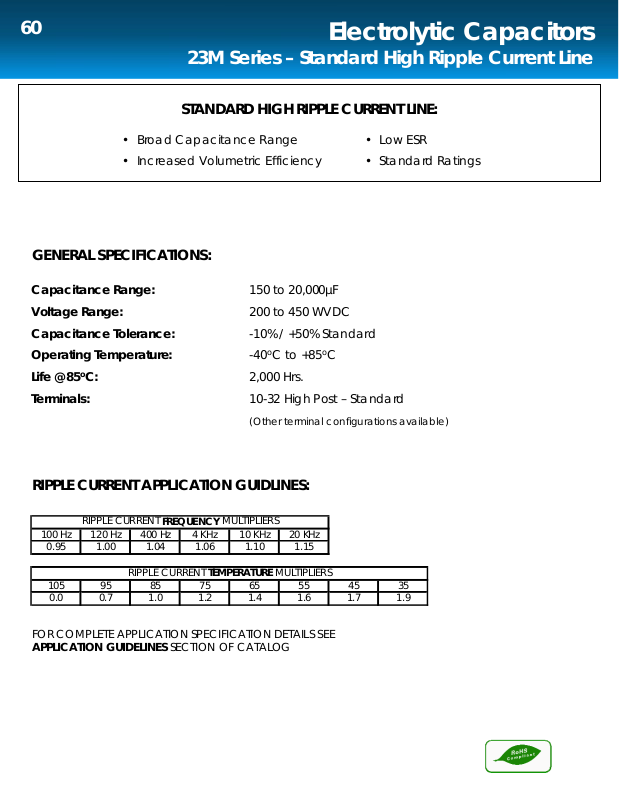

Electrolytic Capacitors

23M Series – Standard High Ripple Current Line

STANDARD HIGH RIPPLE CURRENT LINE:

• Broad Capacitance Range

• Increased Volumetric Efficiency

• Low ESR

• Standard Ratings

GENERAL SPECIFICATIONS:

Capacitance Range: 150 to 20,000µF
Voltage Range: 200 to 450 WVDC
Capacitance Tolerance: -10% / +50% Standard
Operating Temperature: -40oC to +85oC
Life @ 85oC: 2,000 Hrs.
Terminals: 10-32 High Post – Standard

(Other terminal configurations available)

RIPPLE CURRENT APPLICATION GUIDLINES:

RIPPLE CURRENT

100 Hz 120 Hz 400 Hz 4 KHz 10 KHz 20 KHz

0.95 1.00 1.04 1.06 1.10 1.15

RIPPLE CURRENT

105 95 85 75 65 55 45 35

0.0 0.7 1.0 1.2 1.4 1.6 1.7 1.9

FOR COMPLETE APPLICATION SPECIFICATION DETAILS SEE

APPLICATION GUIDELINES SECTION OF CATALOG

FREQUENCY

MULTIPLIERS

TEMPERATURE

MULTIPLIERS

Electrolytic Capacitors

23M Series – Standard High Ripple Current Line

61

Voltage Capacitance Base Height Max ESR Max Ripple
(WVDC) (µF) Size (in.) C (in.) 120 Hz@25ºC 120 Hz@85ºC

700 23M 701 F 200 BB 1H1 1.375 2.125 0.1700 2.9
1,200 23M 122 F 200 BC 1H1 1.375 2.625 0.1390 3.1
1,400 23M 142 F 200 BD 1H1 1.375 3.125 0.1190 3.2
1,600 23M 162 F 200 BE 1H1 1.375 3.625 0.1040 3.4
1,900 23M 192 F 200 BF 1H1 1.375 4.125 0.0870 3.7
2,300 23M 232 F 200 BG 1H1 1.375 4.625 0.0720 4.0
2,500 23M 252 F 200 BH 1H1 1.375 5.125 0.0660 4.2
2,900 23M 292 F 200 BI 1H1 1.375 5.625 0.0570 4.5

1,300 23M 132 F 200 CB 1H1 1.750 2.125 0.1280 3.9
1,800 23M 182 F 200 CC 1H1 1.750 2.625 0.0920 4.3
2,400 23M 242 F 200 CD 1H1 1.750 3.125 0.0690 4.8
3,000 23M 302 F 200 CE 1H1 1.750 3.625 0.0550 5.3
3,400 23M 342 F 200 CF 1H1 1.750 4.125 0.0490 5.4
4,100 23M 412 F 200 CG 1H1 1.750 4.625 0.0400 6.0
4,700 23M 472 F 200 CH 1H1 1.750 5.125 0.0350 6.3
5,200 23M 522 F 200 CI 1H1 1.750 5.625 0.0320 6.5

1,600 23M 162 F 200 DB 1H1 2.000 2.125 0.1040 4.7
2,300 23M 232 F 200 DC 1H1 2.000 2.625 0.0720 5.4
3,100 23M 312 F 200 DD 1H1 2.000 3.125 0.0530 6.0

200

3,900 23M 392 F 200 DE 1H1 2.000 3.625 0.0420 6.5
4,400 23M 442 F 200 DF 1H1 2.000 4.125 0.0370 6.7
5,200 23M 522 F 200 DG 1H1 2.000 4.625 0.0320 7.1
5,900 23M 592 F 200 DH 1H1 2.000 5.125 0.0280 7.5
6,700 23M 672 F 200 DI 1H1 2.000 5.625 0.0240 8.0

5,100 23M 512 F 200 ED 1H1 2.500 3.125 0.0320 8.7
6,400 23M 642 F 200 EE 1H1 2.500 3.625 0.0260 9.5
7,400 23M 742 F 200 EF 1H1 2.500 4.125 0.0220 9.9
8,600 23M 862 F 200 EG 1H1 2.500 4.625 0.0190 10.3
9,900 23M 992 F 200 EH 1H1 2.500 5.125 0.0160 11.0

11,000 23M 113 F 200 EI 1H1 2.500 5.625 0.0150 11.2

7,500 23M 752 F 200 FD 1H1 3.000 3.125 0.0220 11.6
9,000 23M 902 F 200 FE 1H1 3.000 3.625 0.0180 12.7

11,000 23M 113 F 200 FF 1H1 3.000 4.125 0.0150 14.0
13,000 23M 133 F 200 FG 1H1 3.000 4.625 0.0120 14.8
14,000 23M 143 F 200 FH 1H1 3.000 5.125 0.0110 14.9
16,000 23M 163 F 200 FI 1H1 3.000 5.625 0.0100 15.1
17,000 23M 173 F 200 FJ 1H1 3.000 5.875 0.0090 15.6
20,000 23M 203 F 200 FL 1H1 3.000 8.625 0.0080 15.6

Catalog
Number

*It is Regal-Beloit’s goal to serve you with the most cost effective and highest quality capacitor designs.
Standardization to th e c a ta log type shown is a majo r program a t Regal-Beloi t. However, Regal-Beloit
remains sensitive to your needs and requirements, and will continue to offer the above ratings (and

more) in case configurations to meet your application(s).

62

Electrolytic Capacitors

23M Series – Standard High Ripple Current Line

Voltage Capacitance Base Height Max ESR Max Ripple
(WVDC) (µF) Size (in.) C (in.) 120 Hz@25ºC 120 Hz@85ºC

500 23M 501 F 250 BB 1H1 1.375 2.125 0.2100 2.5

750 23M 751 F 250 BC 1H1 1.375 2.625 0.1400 3.0
1,000 23M 102 F 250 BD 1H1 1.375 3.125 0.1050 3.4
1,200 23M 122 F 250 BE 1H1 1.375 3.625 0.0900 3.7
1,400 23M 142 F 250 BF 1H1 1.375 4.125 0.0770 3.9
1,700 23M 172 F 250 BG 1H1 1.375 4.625 0.0630 4.3
1,900 23M 192 F 250 BH 1H1 1.375 5.125 0.0570 4.4
2,200 23M 222 F 250 BI 1H1 1.375 5.625 0.0490 4.8

1,000 23M 102 F 250 CB 1H1 1.750 2.125 0.1080 4.2
1,400 23M 142 F 250 CC 1H1 1.750 2.625 0.0770 4.7
1,800 23M 182 F 250 CD 1H1 1.750 3.125 0.0600 5.1
2,300 23M 232 F 250 CE 1H1 1.750 3.625 0.0470 5.6
2,600 23M 262 F 250 CF 1H1 1.750 4.125 0.0410 5.9
3,100 23M 312 F 250 CG 1H1 1.750 4.625 0.0340 6.5
3,500 23M 352 F 250 CH 1H1 1.750 5.125 0.0300 6.6
3,900 23M 392 F 250 CI 1H1 1.750 5.625 0.0270 7.1

1,200 23M 122 F 250 DB 1H1 2.000 2.125 0.0900 5.1
1,700 23M 172 F 250 DC 1H1 2.000 2.625 0.0630 5.8
2,300 23M 232 F 250 DD 1H1 2.000 3.125 0.0470 6.3

250

2,900 23M 292 F 250 DE 1H1 2.000 3.625 0.0370 6.9
3,300 23M 332 F 250 DF 1H1 2.000 4.125 0.0320 7.1
4,000 23M 402 F 250 DG 1H1 2.000 4.625 0.0270 7.6
4,500 23M 452 F 250 DH 1H1 2.000 5.125 0.0240 8.0
5,000 23M 502 F 250 DI 1H1 2.000 5.625 0.0210 8.5

3,800 23M 382 F 250 ED 1H1 2.500 3.125 0.0280 9.2
4,800 23M 482 F 250 EE 1H1 2.500 3.625 0.0220 10.2
5,500 23M 552 F 250 EF 1H1 2.500 4.125 0.0190 10.4
6,500 23M 652 F 250 EG 1H1 2.500 4.625 0.0160 11.2
7,400 23M 742 F 250 EH 1H1 2.500 5.125 0.0140 11.7
8,300 23M 832 F 250 EI 1H1 2.500 5.625 0.0130 11.9

5,600 23M 562 F 250 FD 1H1 3.000 3.125 0.0190 12.3
6,900 23M 692 F 250 FE 1H1 3.000 3.625 0.0150 13.8
8,000 23M 802 F 250 FF 1H1 3.000 4.125 0.0130 14.9
9,000 23M 902 F 250 FG 1H1 3.000 4.625 0.0120 14.5

11,000 23M 113 F 250 FH 1H1 3.000 5.125 0.0100 15.6
12,000 23M 123 F 250 FI 1H1 3.000 5.625 0.0090 15.8
13,000 23M 133 F 250 FJ 1H1 3.000 5.875 0.0080 16.2
15,000 23M 153 F 250 FL 1H1 3.000 8.625 0.0070 16.1

Catalog
Number

*It is Regal-Beloit’s goal to serve you with the most cost effective and highest quality capacitor designs.
Standardization to th e c a ta log type shown is a majo r program a t Regal-Beloi t. However, Regal-Beloit
remains sensitive to your needs and requirements, and will continue to offer the above ratings (and

more) in case configurations to meet your application(s).
