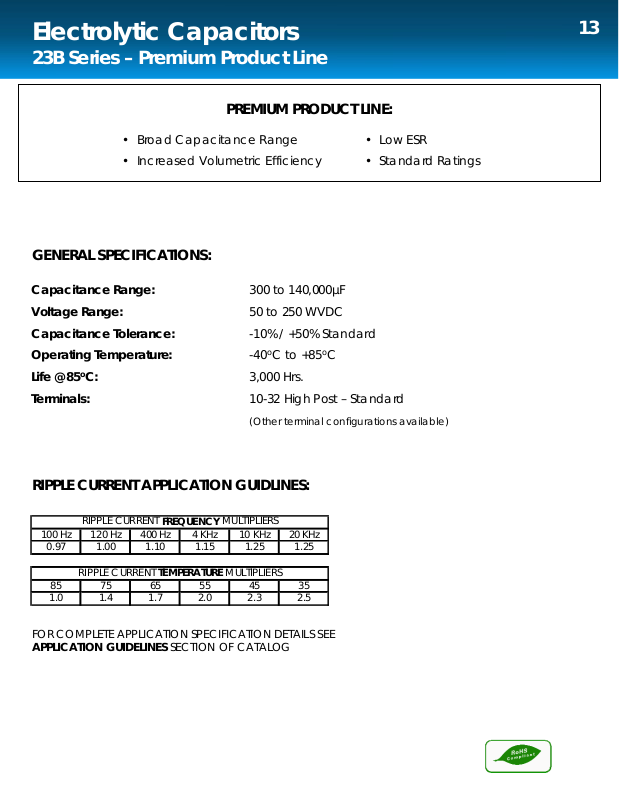

Electrolytic Capacitors
23B Series – Premium Product Line
PREMIUM PRODUCT LINE:
13
• Broad Capacitance Range
• Increased Volumetric Efficiency
• Low ESR
• Standard Ratings
GENERAL SPECIFICATIONS:
Capacitance Range: 300 to 140,000µF
Voltage Range: 50 to 250 WVDC
Capacitance Tolerance: -10% / +50% Standard
Operating Temperature: -40oC to +85oC
Life @ 85oC: 3,000 Hrs.
Terminals: 10-32 High Post – Standard
(Other terminal configurations available)
RIPPLE CURRENT APPLICATION GUIDLINES:
RIPPLE CURRENT
100 Hz 120 Hz 400 Hz 4 KHz 10 KHz 20 KHz
0.97 1.00 1.10 1.15 1.25 1.25
RIPPLE CURRENT
85 75 65 55 45 35
1.0 1.4 1.7 2.0 2.3 2.5
FOR COMPLETE APPLICATION SPECIFICATION DETAILS SEE
APPLICATION GUIDELINES SECTION OF CATALOG
FREQUENCY
TEMPERATURE
MULTIPLIERS
MULTIPLIERS
Page 2
14
Electrolytic Capacitors
23B Series – Premium Product Line
Voltage Capacitance Base Height Max ESR Max Ripple
(WVDC) (µF) Size (in.) C (in.) 120 Hz@25ºC 120 Hz@85ºC
5,000 23B 502 F 050 BB 1H1 1.375 2.125 0.0285 7.2
7,000 23B 702 F 050 BC 1H1 1.375 2.625 0.0199 9.5
9,000 23B 902 F 050 BD 1H1 1.375 3.125 0.0159 11.5
12,000 23B 123 F 050 BE 1H1 1.375 3.625 0.0129 13.6
14,000 23B 143 F 050 BF 1H1 1.375 4.125 0.0117 15.2
16,000 23B 163 F 050 BG 1H1 1.375 4.625 0.0109 16.6
18,000 23B 183 F 050 BH 1H1 1.375 5.125 0.0103 17.9
20,000 23B 203 F 050 BI 1H1 1.375 5.625 0.0099 19.1
9,100 23B 912 F 050 CB 1H1 1.750 2.125 0.0157 11.2
13,000 23B 133 F 050 CC 1H1 1.750 2.625 0.0123 13.9
17,000 23B 173 F 050 CD 1H1 1.750 3.125 0.0106 16.1
22,000 23B 223 F 050 CE 1H1 1.750 3.625 0.0095 18.1
25,000 23B 253 F 050 CF 1H1 1.750 4.125 0.0091 19.6
29,000 23B 293 F 050 CG 1H1 1.750 4.625 0.0087 21.1
33,000 23B 333 F 050 CH 1H1 1.750 5.125 0.0084 22.5
37,000 23B 373 F 050 CI 1H1 1.750 5.625 0.0082 23.8
12,000 23B 123 F 050 DB 1H1 2.000 2.125 0.0129 13.4
17,000 23B 173 F 050 DC 1H1 2.000 2.625 0.0106 16.1
22,000 23B 223 F 050 DD 1H1 2.000 3.125 0.0095 18.3
50
28,000 23B 283 F 050 DE 1H1 2.000 3.625 0.0088 20.3
32,000 23B 323 F 050 DF 1H1 2.000 4.125 0.0085 21.9
38,000 23B 383 F 050 DG 1H1 2.000 4.625 0.0082 23.5
43,000 23B 433 F 050 DH 1H1 2.000 5.125 0.0080 24.9
48,000 23B 483 F 050 DI 1H1 2.000 5.625 0.0078 26.3
37,000 23B 373 F 050 ED 1H1 2.500 3.125 0.0082 22.4
46,000 23B 463 F 050 EE 1H1 2.500 3.625 0.0079 24.4
53,000 23B 533 F 050 EF 1H1 2.500 4.125 0.0077 26.1
62,000 23B 623 F 050 EG 1H1 2.500 4.625 0.0075 27.7
71,000 23B 713 F 050 EH 1H1 2.500 5.125 0.0074 29.2
79,000 23B 793 F 050 EI 1H1 2.500 5.625 0.0073 30.7
53,000 23B 533 F 050 FD 1H1 3.000 3.125 0.0077 25.8
70,000 23B 703 F 050 FE 1H1 3.000 3.625 0.0074 27.9
80,000 23B 803 F 050 FF 1H1 3.000 4.125 0.0073 29.7
90,000 23B 903 F 050 FG 1H1 3.000 4.625 0.0072 31.3
100,000 23B 104 F 050 FH 1H1 3.000 5.125 0.0072 32.9
120,000 23B 124 F 050 FI 1H1 3.000 5.625 0.0071 34.5
120,000 23B 124 F 050 FJ 1H1 3.000 5.875 0.0071 34.8
140,000 23B 144 F 050 FL 1H1 3.000 8.625 0.0070 42.0
Catalog
Number
*It is Regal-Beloit’s goal to serve you with the most cost effective and highest quality capacitor designs.
Standardization to th e c a ta log type shown is a majo r program a t Regal-Beloi t. However, Regal-Beloit
remains sensitive to your needs and requirements, and will continue to offer the above ratings (and
more) in case configurations to meet your application(s).
Page 3
Electrolytic Capacitors
23B Series – Premium Product Line
15
Voltage Capacitance Base Height Max ESR Max Ripple
(WVDC) (µF) Size (in.) C (in.) 120 Hz@25ºC 120 Hz@85ºC
4,700 23B 472 F 060 BB 1H1 1.375 2.125 0.0255 7.6
6,600 23B 662 F 060 BC 1H1 1.375 2.625 0.0185 9.8
9,000 23B 902 F 060 BD 1H1 1.375 3.125 0.0146 12.0
11,000 23B 113 F 060 BE 1H1 1.375 3.625 0.0129 13.6
13,000 23B 133 F 060 BF 1H1 1.375 4.125 0.0118 15.1
15,000 23B 153 F 060 BG 1H1 1.375 4.625 0.0110 16.5
17,000 23B 173 F 060 BH 1H1 1.375 5.125 0.0105 17.8
19,000 23B 193 F 060 BI 1H1 1.375 5.625 0.0100 19.0
8,500 23B 852 F 060 CB 1H1 1.750 2.125 0.0152 11.4
12,000 23B 123 F 060 CC 1H1 1.750 2.625 0.0123 13.9
16,000 23B 163 F 060 CD 1H1 1.750 3.125 0.0107 16.0
20,000 23B 203 F 060 CE 1H1 1.750 3.625 0.0099 17.8
23,000 23B 233 F 060 CF 1H1 1.750 4.125 0.0094 19.3
27,000 23B 273 F 060 CG 1H1 1.750 4.625 0.0090 20.8
31,000 23B 313 F 060 CH 1H1 1.750 5.125 0.0087 22.1
35,000 23B 353 F 060 CI 1H1 1.750 5.625 0.0085 23.4
11,000 23B 113 F 060 DB 1H1 2.000 2.125 0.0129 13.4
16,000 23B 163 F 060 DC 1H1 2.000 2.625 0.0107 16.0
21,000 23B 213 F 060 DD 1H1 2.000 3.125 0.0097 18.1
60
26,000 23B 263 F 060 DE 1H1 2.000 3.625 0.0091 19.9
30,000 23B 303 F 060 DF 1H1 2.000 4.125 0.0088 21.5
35,000 23B 353 F 060 DG 1H1 2.000 4.625 0.0085 23.0
40,000 23B 403 F 060 DH 1H1 2.000 5.125 0.0083 24.4
45,000 23B 453 F 060 DI 1H1 2.000 5.625 0.0082 25.7
34,000 23B 343 F 060 ED 1H1 2.500 3.125 0.0086 21.9
43,000 23B 433 F 060 EE 1H1 2.500 3.625 0.0082 23.9
49,000 23B 493 F 060 EF 1H1 2.500 4.125 0.0080 25.5
58,000 23B 583 F 060 EG 1H1 2.500 4.625 0.0079 27.1
66,000 23B 663 F 060 EH 1H1 2.500 5.125 0.0078 28.5
74,000 23B 743 F 060 EI 1H1 2.500 5.625 0.0077 29.9
50,000 23B 503 F 060 FD 1H1 3.000 3.125 0.0080 25.2
62,000 23B 623 F 060 FE 1H1 3.000 3.625 0.0078 27.2
72,000 23B 723 F 060 FF 1H1 3.000 4.125 0.0077 28.9
84,000 23B 843 F 060 FG 1H1 3.000 4.625 0.0076 30.6
100,000 23B 104 F 060 FH 1H1 3.000 5.125 0.0075 32.2
110,000 23B 114 F 060 FI 1H1 3.000 5.625 0.0074 33.6
110,000 23B 114 F 060 FJ 1H1 3.000 5.875 0.0074 34.0
130,000 23B 134 F 060 FL 1H1 3.000 8.625 0.0074 41.0
Catalog
Number
*It is Regal-Beloit’s goal to serve you with the most cost effective and highest quality capacitor designs.
Standardization to th e c a ta log type shown is a majo r program a t Regal-Beloi t. However, Regal-Beloit
remains sensitive to your needs and requirements, and will continue to offer the above ratings (and
more) in case configurations to meet your application(s).
Page 4
16
Electrolytic Capacitors
23B Series – Premium Product Line
Voltage Capacitance Base Height Max ESR Max Ripple
(WVDC) (µF) Size (in.) C (in.) 120 Hz@25ºC 120 Hz@85ºC
3,500 23B 352 F 075 BB 1H1 1.375 2.125 0.0372 6.3
5,000 23B 502 F 075 BC 1H1 1.375 2.625 0.0239 8.7
6,700 23B 672 F 075 BD 1H1 1.375 3.125 0.0177 10.9
8,000 23B 802 F 075 BE 1H1 1.375 3.625 0.0151 12.6
10,000 23B 103 F 075 BF 1H1 1.375 4.125 0.0128 14.5
11,000 23B 113 F 075 BG 1H1 1.375 4.625 0.0120 15.8
13,000 23B 133 F 075 BH 1H1 1.375 5.125 0.0109 17.4
15,000 23B 153 F 075 BI 1H1 1.375 5.625 0.0102 18.8
6,500 23B 652 F 075 CB 1H1 1.750 2.125 0.0182 10.4
9,000 23B 902 F 075 CC 1H1 1.750 2.625 0.0138 13.1
12,000 23B 123 F 075 CD 1H1 1.750 3.125 0.0114 15.5
15,000 23B 153 F 075 CE 1H1 1.750 3.625 0.0102 17.5
18,000 23B 183 F 075 CF 1H1 1.750 4.125 0.0094 19.3
21,000 23B 213 F 075 CG 1H1 1.750 4.625 0.0089 20.9
24,000 23B 243 F 075 CH 1H1 1.750 5.125 0.0086 22.4
26,000 23B 263 F 075 CI 1H1 1.750 5.625 0.0084 23.6
8,400 23B 842 F 075 DB 1H1 2.000 2.125 0.0145 12.6
12,000 23B 123 F 075 DC 1H1 2.000 2.625 0.0114 15.5
16,000 23B 163 F 075 DD 1H1 2.000 3.125 0.0099 18.0
75
20,000 23B 203 F 075 DE 1H1 2.000 3.625 0.0091 20.0
23,000 23B 233 F 075 DF 1H1 2.000 4.125 0.0087 21.7
27,000 23B 273 F 075 DG 1H1 2.000 4.625 0.0083 23.3
31,000 23B 313 F 075 DH 1H1 2.000 5.125 0.0080 24.8
34,000 23B 343 F 075 DI 1H1 2.000 5.625 0.0079 26.1
26,000 23B 263 F 075 ED 1H1 2.500 3.125 0.0084 22.2
33,000 23B 333 F 075 EE 1H1 2.500 3.625 0.0079 24.3
38,000 23B 383 F 075 EF 1H1 2.500 4.125 0.0077 26.0
44,000 23B 443 F 075 EG 1H1 2.500 4.625 0.0075 27.7
50,000 23B 503 F 075 EH 1H1 2.500 5.125 0.0074 29.2
56,000 23B 563 F 075 EI 1H1 2.500 5.625 0.0073 30.7
38,000 23B 383 F 075 FD 1H1 3.000 3.125 0.0077 25.7
47,000 23B 473 F 075 FE 1H1 3.000 3.625 0.0075 27.8
55,000 23B 553 F 075 FF 1H1 3.000 4.125 0.0073 29.6
64,000 23B 643 F 075 FG 1H1 3.000 4.625 0.0072 31.4
73,000 23B 733 F 075 FH 1H1 3.000 5.125 0.0071 33.0
82,000 23B 823 F 075 FI 1H1 3.000 5.625 0.0071 34.5
85,000 23B 853 F 075 FJ 1H1 3.000 5.875 0.0070 34.9
100,000 23B 104 F 075 FL 1H1 3.000 8.625 0.0070 42.2
Catalog
Number
*It is Regal-Beloit’s goal to serve you with the most cost effective and highest quality capacitor designs.
Standardization to th e c a ta log type shown is a majo r program a t Regal-Beloi t. However, Regal-Beloit
remains sensitive to your needs and requirements, and will continue to offer the above ratings (and
more) in case configurations to meet your application(s).
Page 5
Electrolytic Capacitors
23B Series – Premium Product Line
17
Voltage Capacitance Base Height Max ESR Max Ripple
(WVDC) (µF) Size (in.) C (in.) 120 Hz@25ºC 120 Hz@85ºC
2,900 23B 292 F 080 BB 1H1 1.375 2.125 0.0332 6.7
4,100 23B 412 F 080 BC 1H1 1.375 2.625 0.0237 8.7
5,500 23B 552 F 080 BD 1H1 1.375 3.125 0.0187 10.6
6,900 23B 692 F 080 BE 1H1 1.375 3.625 0.0161 12.2
7,900 23B 792 F 080 BF 1H1 1.375 4.125 0.0149 13.5
9,000 23B 902 F 080 BG 1H1 1.375 4.625 0.0139 14.7
11,000 23B 113 F 080 BH 1H1 1.375 5.125 0.0127 16.1
12,000 23B 123 F 080 BI 1H1 1.375 5.625 0.0123 17.1
5,300 23B 532 F 080 CB 1H1 1.750 2.125 0.0192 10.1
7,600 23B 762 F 080 CC 1H1 1.750 2.625 0.0152 12.5
10,000 23B 103 F 080 CD 1H1 1.750 3.125 0.0132 14.4
13,000 23B 133 F 080 CE 1H1 1.750 3.625 0.0119 16.2
14,000 23B 143 F 080 CF 1H1 1.750 4.125 0.0116 17.4
17,000 23B 173 F 080 CG 1H1 1.750 4.625 0.0110 18.9
19,000 23B 193 F 080 CH 1H1 1.750 5.125 0.0106 20.1
22,000 23B 223 F 080 CI 1H1 1.750 5.625 0.0103 21.3
6,900 23B 692 F 080 DB 1H1 2.000 2.125 0.0161 12.0
10,000 23B 103 F 080 DC 1H1 2.000 2.625 0.0132 14.4
13,000 23B 133 F 080 DD 1H1 2.000 3.125 0.0119 16.4
80
16,000 23B 163 F 080 DE 1H1 2.000 3.625 0.0111 18.0
19,000 23B 193 F 080 DF 1H1 2.000 4.125 0.0106 19.6
22,000 23B 223 F 080 DG 1H1 2.000 4.625 0.0103 20.9
25,000 23B 253 F 080 DH 1H1 2.000 5.125 0.0100 22.2
28,000 23B 283 F 080 DI 1H1 2.000 5.625 0.0098 23.4
21,000 23B 213 F 080 ED 1H1 2.500 3.125 0.0104 19.9
27,000 23B 273 F 080 EE 1H1 2.500 3.625 0.0099 21.8
31,000 23B 313 F 080 EF 1H1 2.500 4.125 0.0096 23.3
36,000 23B 363 F 080 EG 1H1 2.500 4.625 0.0094 24.7
41,000 23B 413 F 080 EH 1H1 2.500 5.125 0.0093 26.1
46,000 23B 463 F 080 EI 1H1 2.500 5.625 0.0092 27.4
31,000 23B 313 F 080 FD 1H1 3.000 3.125 0.0096 23.0
39,000 23B 393 F 080 FE 1H1 3.000 3.625 0.0093 24.9
45,000 23B 453 F 080 FF 1H1 3.000 4.125 0.0092 26.5
53,000 23B 533 F 080 FG 1H1 3.000 4.625 0.0090 28.0
60,000 23B 603 F 080 FH 1H1 3.000 5.125 0.0089 29.5
67,000 23B 673 F 080 FI 1H1 3.000 5.625 0.0089 30.8
70,000 23B 703 F 080 FJ 1H1 3.000 5.875 0.0088 31.2
84,000 23B 843 F 080 FL 1H1 3.000 8.625 0.0087 37.7
Catalog
Number
*It is Regal-Beloit’s goal to serve you with the most cost effective and highest quality capacitor designs.
Standardization to th e c a ta log type shown is a majo r program a t Regal-Beloi t. However, Regal-Beloit
remains sensitive to your needs and requirements, and will continue to offer the above ratings (and
more) in case configurations to meet your application(s).
Page 6
18
(
C)
(µF)
Size (in.)
C (in.)120 Hz@25ºC
20 Hz@85ºC
Electrolytic Capacitors
23B Series – Premium Product Line
Voltage Capacitance Base Height Max ESR Max Ripple
WVD
1,500 23B 152 F 100 BB 1H1 1.375 2.125 0.0643 4.8
2,100 23B 212 F 100 BC 1H1 1.375 2.625 0.0454 6.3
2,800 23B 282 F 100 BD 1H1 1.375 3.125 0.0344 7.8
4,000 23B 402 F 100 BF 1H1 1.375 4.125 0.0252 10.3
4,700 23B 472 F 100 BG 1H1 1.375 4.625 0.0222 11.6
5,400 23B 542 F 100 BH 1H1 1.375 5.125 0.0199 12.9
6,000 23B 602 F 100 BI 1H1 1.375 5.625 0.0185 14.0
2,700 23B 272 F 100 CB 1H1 1.750 2.125 0.0356 7.4
3,800 23B 382 F 100 CC 1H1 1.750 2.625 0.0263 9.5
5,100 23B 512 F 100 CD 1H1 1.750 3.125 0.0208 11.5
6,400 23B 642 F 100 CE 1H1 1.750 3.625 0.0176 13.3
7,300 23B 732 F 100 CF 1H1 1.750 4.125 0.0161 14.8
8,600 23B 862 F 100 CG 1H1 1.750 4.625 0.0145 16.4
10,000 23B 103 F 100 CH 1H1 1.750 5.125 0.0133 17.9
11,000 23B 113 F 100 CI 1H1 1.750 5.625 0.0126 19.2
3,500 23B 352 F 100 DB 1H1 2.000 2.125 0.0282 9.0
5,000 23B 502 F 100 DC 1H1 2.000 2.625 0.0211 11.4
6,600 23B 662 F 100 DD 1H1 2.000 3.125 0.0173 13.6
8,200 23B 822 F 100 DE 1H1 2.000 3.625 0.0150 15.6
100
9,000 23B 902 F 100 DF 1H1 2.000 4.125 0.0141 17.0
11,000 23B 113 F 100 DG 1H1 2.000 4.625 0.0126 18.9
13,000 23B 133 F 100 DH 1H1 2.000 5.125 0.0116 20.7
14,000 23B 143 F 100 DI 1H1 2.000 5.625 0.0112 22.0
11,000 23B 113 F 100 ED 1H1 2.500 3.125 0.0126 18.1
14,000 23B 143 F 100 EE 1H1 2.500 3.625 0.0112 20.5
16,000 23B 163 F 100 EF 1H1 2.500 4.125 0.0105 22.3
18,000 23B 183 F 100 EG 1H1 2.500 4.625 0.0100 24.0
21,000 23B 213 F 100 EH 1H1 2.500 5.125 0.0094 25.9
23,000 23B 233 F 100 EI 1H1 2.500 5.625 0.0091 27.5
16,000 23B 163 F 100 FD 1H1 3.000 3.125 0.0105 22.1
20,000 23B 203 F 100 FE 1H1 3.000 3.625 0.0096 24.5
23,000 23B 233 F 100 FF 1H1 3.000 4.125 0.0091 26.6
27,000 23B 273 F 100 FG 1H1 3.000 4.625 0.0086 28.7
31,000 23B 313 F 100 FH 1H1 3.000 5.125 0.0083 30.6
34,000 23B 343 F 100 FI 1H1 3.000 5.625 0.0081 32.2
35,000 23B 353 F 100 FJ 1H1 3.000 5.875 0.0080 32.7
43,000 23B 433 F 100 FL 1H1 3.000 8.625 0.0076 40.2
Catalog
Number
1
*It is Regal-Beloit’s goal to serve you with the most cost effective and highest quality capacitor designs.
Standardization to th e c a ta log type shown is a majo r program a t Regal-Beloi t. However, Regal-Beloit
remains sensitive to your needs and requirements, and will continue to offer the above ratings (and
more) in case configurations to meet your application(s).
Page 7
Electrolytic Capacitors
23B Series – Premium Product Line
19
Voltage Capacitance Base Height Max ESR Max Ripple
(WVDC) (µF) Size (in.) C (in.) 120 Hz@25ºC 120 Hz@85ºC
710 23B 711 F 150 BB 1H1 1.375 2.125 0.1283 3.4
1,000 23B 102 F 150 BC 1H1 1.375 2.625 0.0889 4.5
1,300 23B 132 F 150 BD 1H1 1.375 3.125 0.0689 5.5
1,700 23B 172 F 150 BE 1H1 1.375 3.625 0.0528 6.7
1,900 23B 192 F 150 BF 1H1 1.375 4.125 0.0474 7.5
2,300 23B 232 F 150 BG 1H1 1.375 4.625 0.0395 8.7
2,600 23B 262 F 150 BH 1H1 1.375 5.125 0.0352 9.7
2,900 23B 292 F 150 BI 1H1 1.375 5.625 0.0318 10.7
1,300 23B 132 F 150 CB 1H1 1.750 2.125 0.0689 5.4
1,800 23B 182 F 150 CC 1H1 1.750 2.625 0.0500 6.9
2,400 23B 242 F 150 CD 1H1 1.750 3.125 0.0379 8.5
3,000 23B 302 F 150 CE 1H1 1.750 3.625 0.0308 10.1
3,500 23B 352 F 150 CF 1H1 1.750 4.125 0.0268 11.5
4,100 23B 412 F 150 CG 1H1 1.750 4.625 0.0232 12.9
4,700 23B 472 F 150 CH 1H1 1.750 5.125 0.0206 14.4
5,300 23B 532 F 150 CI 1H1 1.750 5.625 0.0186 15.8
1,700 23B 172 F 150 DB 1H1 2.000 2.125 0.0528 6.6
2,400 23B 242 F 150 DC 1H1 2.000 2.625 0.0379 8.5
3,100 23B 312 F 150 DD 1H1 2.000 3.125 0.0299 10.3
150
3,900 23B 392 F 150 DE 1H1 2.000 3.625 0.0243 12.2
4,500 23B 452 F 150 DF 1H1 2.000 4.125 0.0214 13.8
5,300 23B 532 F 150 DG 1H1 2.000 4.625 0.0186 15.6
6,100 23B 612 F 150 DH 1H1 2.000 5.125 0.0166 17.3
6,800 23B 682 F 150 DI 1H1 2.000 5.625 0.0152 18.9
5,200 23B 522 F 150 ED 1H1 2.500 3.125 0.0189 14.8
6,500 23B 652 F 150 EE 1H1 2.500 3.625 0.0157 17.2
7,500 23B 752 F 150 EF 1H1 2.500 4.125 0.0140 19.3
8,800 23B 882 F 150 EG 1H1 2.500 4.625 0.0124 21.6
10,000 23B 103 F 150 EH 1H1 2.500 5.125 0.0113 23.7
11,000 23B 113 F 150 EI 1H1 2.500 5.625 0.0105 25.6
7,600 23B 762 F 150 FD 1H1 3.000 3.125 0.0139 19.2
9,000 23B 902 F 150 FE 1H1 3.000 3.625 0.0122 21.8
11,000 23B 113 F 150 FF 1H1 3.000 4.125 0.0105 24.7
13,000 23B 133 F 150 FG 1H1 3.000 4.625 0.0094 27.5
15,000 23B 153 F 150 FH 1H1 3.000 5.125 0.0085 30.2
16,000 23B 163 F 150 FI 1H1 3.000 5.625 0.0082 32.1
17,000 23B 173 F 150 FJ 1H1 3.000 5.875 0.0079 33.0
20,000 23B 203 F 150 FL 1H1 3.000 8.625 0.0071 41.6
Catalog
Number
*It is Regal-Beloit’s goal to serve you with the most cost effective and highest quality capacitor designs.
Standardization to th e c a ta log type shown is a majo r program a t Regal-Beloi t. However, Regal-Beloit
remains sensitive to your needs and requirements, and will continue to offer the above ratings (and
more) in case configurations to meet your application(s).
Page 8
20
Electrolytic Capacitors
23B Series – Premium Product Line
Voltage Capacitance Base Height Max ESR Max Ripple
(WVDC) (µF) Size (in.) C (in.) 120 Hz@25ºC 120 Hz@85ºC
380 23B 381 F 200 BB 1H1 1.375 2.125 0.2502 2.4
540 23B 541 F 200 BC 1H1 1.375 2.625 0.1600 3.3
720 23B 721 F 200 BD 1H1 1.375 3.125 0.1137 4.3
900 23B 901 F 200 BE 1H1 1.375 3.625 0.0885 5.2
1,000 23B 102 F 200 BF 1H1 1.375 4.125 0.0790 5.8
1,200 23B 122 F 200 BG 1H1 1.375 4.625 0.0653 6.8
1,400 23B 142 F 200 BH 1H1 1.375 5.125 0.0559 7.7
1,600 23B 162 F 200 BI 1H1 1.375 5.625 0.0492 8.6
690 23B 691 F 200 CB 1H1 1.750 2.125 0.1194 4.1
1,000 23B 102 F 200 CC 1H1 1.750 2.625 0.0790 5.5
1,300 23B 132 F 200 CD 1H1 1.750 3.125 0.0602 6.7
1,600 23B 162 F 200 CE 1H1 1.750 3.625 0.0492 8.0
1,900 23B 192 F 200 CF 1H1 1.750 4.125 0.0419 9.2
2,200 23B 222 F 200 CG 1H1 1.750 4.625 0.0368 10.3
2,500 23B 252 F 200 CH 1H1 1.750 5.125 0.0329 11.4
2,800 23B 282 F 200 CI 1H1 1.750 5.625 0.0300 12.5
900 23B 901 F 200 DB 1H1 2.000 2.125 0.0885 5.1
1,300 23B 132 F 200 DC 1H1 2.000 2.625 0.0602 6.8
1,700 23B 172 F 200 DD 1H1 2.000 3.125 0.0464 8.3
200
2,100 23B 212 F 200 DE 1H1 2.000 3.625 0.0383 9.7
2,400 23B 242 F 200 DF 1H1 2.000 4.125 0.0341 10.9
2,900 23B 292 F 200 DG 1H1 2.000 4.625 0.0292 12.4
3,300 23B 332 F 200 DH 1H1 2.000 5.125 0.0264 13.7
3,700 23B 372 F 200 DI 1H1 2.000 5.625 0.0242 14.9
2,800 23B 282 F 200 ED 1H1 2.500 3.125 0.0300 11.7
3,500 23B 352 F 200 EE 1H1 2.500 3.625 0.0252 13.6
4,000 23B 402 F 200 EF 1H1 2.500 4.125 0.0229 15.1
4,700 23B 472 F 200 EG 1H1 2.500 4.625 0.0204 16.8
5,400 23B 542 F 200 EH 1H1 2.500 5.125 0.0187 18.4
6,000 23B 602 F 200 EI 1H1 2.500 5.625 0.0175 19.8
4,000 23B 402 F 200 FD 1H1 3.000 3.125 0.0229 15.0
5,000 23B 502 F 200 FE 1H1 3.000 3.625 0.0196 17.2
5,800 23B 582 F 200 FF 1H1 3.000 4.125 0.0179 19.0
6,800 23B 682 F 200 FG 1H1 3.000 4.625 0.0163 20.9
7,800 23B 782 F 200 FH 1H1 3.000 5.125 0.0151 22.7
8,700 23B 872 F 200 FI 1H1 3.000 5.625 0.0142 24.3
9,100 23B 912 F 200 FJ 1H1 3.000 5.875 0.0139 24.8
11,000 23B 113 F 200 FL 1H1 3.000 8.625 0.0128 31.1
Catalog
Number
*It is Regal-Beloit’s goal to serve you with the most cost effective and highest quality capacitor designs.
Standardization to th e c a ta log type shown is a majo r program a t Regal-Beloi t. However, Regal-Beloit
remains sensitive to your needs and requirements, and will continue to offer the above ratings (and
more) in case configurations to meet your application(s).
Page 9
Electrolytic Capacitors
r
23B Series – Premium Product Line
21
Voltage Capacitance Base Height Max ESR Max Ripple
(WVDC) (µF) Size (in.) C (in.) 120 Hz@25ºC 120 Hz@85ºC
300 23B 301 F 250 BB 1H1 1.375 2.125 0.3374 2.1
420 23B 421 F 250 BC 1H1 1.375 2.625 0.2398 2.7
560 23B 561 F 250 BD 1H1 1.375 3.125 0.1789 3.4
700 23B 701 F 250 BE 1H1 1.375 3.625 0.1424 4.1
810 23B 811 F 250 BF 1H1 1.375 4.125 0.1227 4.7
1,000 23B 102 F 250 BG 1H1 1.375 4.625 0.0989 5.5
1,100 23B 112 F 250 BH 1H1 1.375 5.125 0.0897 6.1
1,200 23B 122 F 250 BI 1H1 1.375 5.625 0.0821 6.6
540 23B 541 F 250 CB 1H1 1.750 2.125 0.1857 3.3
770 23B 771 F 250 CC 1H1 1.750 2.625 0.1292 4.3
1,000 23B 102 F 250 CD 1H1 1.750 3.125 0.0989 5.3
1,300 23B 132 F 250 CE 1H1 1.750 3.625 0.0757 6.4
1,500 23B 152 F 250 CF 1H1 1.750 4.125 0.0655 7.3
1,700 23B 172 F 250 CG 1H1 1.750 4.625 0.0577 8.2
2,000 23B 202 F 250 CH 1H1 1.750 5.125 0.0491 9.3
2,200 23B 222 F 250 CI 1H1 1.750 5.625 0.0448 10.2
700 23B 701 F 250 DB 1H1 2.000 2.125 0.1424 4.0
1,000 23B 102 F 250 DC 1H1 2.000 2.625 0.0989 5.3
1,300 23B 132 F 250 DD 1H1 2.000 3.125 0.0757 6.5
250
1,700 23B 172 F 250 DE 1H1 2.000 3.625 0.0577 7.9
1,900 23B 192 F 250 DF 1H1 2.000 4.125 0.0517 8.9
2,200 23B 222 F 250 DG 1H1 2.000 4.625 0.0448 10.0
2,600 23B 262 F 250 DH 1H1 2.000 5.125 0.0382 11.4
2,900 23B 292 F 250 DI 1H1 2.000 5.625 0.0346 12.5
2,200 23B 222 F 250 ED 1H1 2.500 3.125 0.0448 9.6
2,700 23B 272 F 250 EE 1H1 2.500 3.625 0.0369 11.2
3,100 23B 312 F 250 EF 1H1 2.500 4.125 0.0327 12.6
3,700 23B 372 F 250 EG 1H1 2.500 4.625 0.0282 14.3
4,200 23B 422 F 250 EH 1H1 2.500 5.125 0.0257 15.7
4,700 23B 472 F 250 EI 1H1 2.500 5.625 0.0239 16.9
3,100 23B 312 F 250 FD 1H1 3.000 3.125 0.0327 12.5
3,900 23B 392 F 250 FE 1H1 3.000 3.625 0.0271 14.6
4,500 23B 452 F 250 FF 1H1 3.000 4.125 0.0246 16.2
5,300 23B 532 F 250 FG 1H1 3.000 4.625 0.0224 17.8
6,100 23B 612 F 250 FH 1H1 3.000 5.125 0.0211 19.2
6,800 23B 682 F 250 FI 1H1 3.000 5.625 0.0205 20.3
7,100 23B 712 F 250 FJ 1H1 3.000 5.875 0.0203 20.5
8,500 23B 852 F 250 FL 1H1 3.000 8.625 0.0202 24.7
Catalog
Numbe
*It is Regal-Beloit’s goal to serve you with the most cost effective and highest quality capacitor designs.
Standardization to th e c a ta log type shown is a majo r program a t Regal-Beloi t. However, Regal-Beloit
remains sensitive to your needs and requirements, and will continue to offer the above ratings (and
more) in case configurations to meet your application(s).
Loading...
