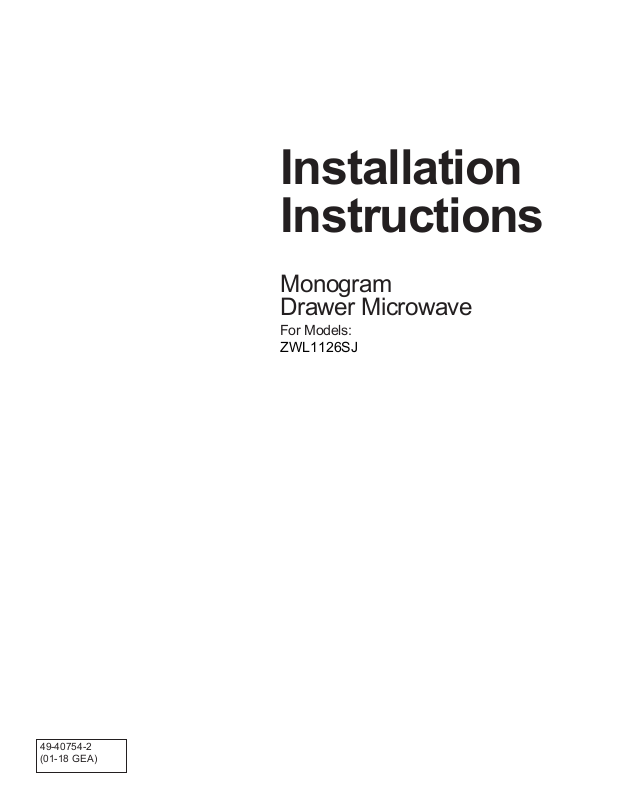

Installation
Instructions
Monogram
Drawer Microwave
For Models:
ZWL1126SJ
49-40754-2
(01-18 GEA)
Installation Instructions
Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: GEAppliances.com
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
IMPORTANT — Save these instructions
for local inspector’s use.
IMPORTANT — Observe all governing
codes and ordinances.
• Note to Installer — Be sure to leave these
instructions with the Consumer.
• Note to Consumer — Keep these instructions
with your Owner’s Manual for future reference.
• Skill Level — Installation of this appliance
requires basic mechanical and electrical skills.
• Proper installation is the responsibility of
the installer. Product failure due to improper
installation is not covered under the warranty.
See Owner’s Manual for warranty information.
IMPORTANT
intended purpose. Never use the oven for
warming or heating a room. Prolonged use
of the oven without proper ventilation can be
hazardous.
WARNING
is not followed exactly, a fire or electrical shock
may result that could cause property damage,
personal injury or death.
Use this oven only for its
If the information in this manual
WARNING
the drawer may result in serious injuries and can
also cause damage to the Drawer Microwave.
• Do not use the Drawer Microwave as a
storage space. This creates a potentially
hazardous situation.
• Check that the time-of-day is in the display. If
not, touch Stop/Clear to prevent unintended use.
Stepping, leaning or sitting on
UNPACK DRAWER MICROWAVE
Remove all packing materials from inside the
Drawer Microwave. DO NOT REMOVE THE
WAVEGUIDE COVER, which is located on the
top of the Drawer Microwave.
Remove the feature sticker, if there is one.
Check the drawer for any damage, such as
misaligned or bent drawer, damaged drawer
seals and sealing surfaces, broken or loose
Drawer Microwave guides and dents inside
the cavity or on the front side of the drawer. If
there is any damage, do not operate the Drawer
Microwave and contact your dealer.
Sealing Surface
Waveguide Cover
WARNING
the Drawer Microwave must be secured by a
properly installed Anti-Tip block.
• This Drawer Microwave must be electrically
grounded in accordance with local codes.
• Make sure the wall coverings and the cabinets
around the Drawer Microwave can withstand the
heat generated by the Drawer Microwave.
WARNING
or unattended in the area where a Drawer
Microwave is in use. Never leave the drawer
open when the microwave is unattended.
To reduce the risk of tipping,
Never leave children alone
Sealing Surface
Oven Cavity
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.
2
Installation Instructions
CLEARANCES AND DIMENSIONS
• Dimensions that are shown in Figure 1 (for
24”) must be used. Given dimensions provide
minimum clearance. Locate electrical outlet in
the shaded area in the upper left-hand corner
of the cutout. See Figure 4.
• Contact surface must be solid and level. Pay
special attention to the floor on which the
Drawer Microwave will sit. The floor of the
opening should be constructed of plywood
strong enough to support the weight of the
oven (about 100 pounds).
• Check location where the Drawer Microwave
will be installed for proper electrical supply.
• Your oven can be built into a cabinet or wall
by itself or under a gas, under an electric wall
oven, or under selected cook top models. See
use and care manual for list of models.
• Be sure that the clearance of the floor between
the wall oven and the drawer microwave is a
minimum of 2-inches.
• The microwave interior will easily accommodate
a 9” x 13” oblong dish or a bag of microwave
popcorn.
• The oven can also be mounted flush. Please
see instructions for flush mounting included
with the Flush Mount Deflector vent.
24” DRAWER MICROWAVE
MEASUREMENTS (Continues)
Suggested electrical
outlet location*
5”
23 1/2”
min depth
24”
4”
Allow
7
/8”
overlap
Allow 1 1/16”
overlap
14 13/16”
opening
Allow 1/16”
overlap
18 1/2” to top
of oor
36”
countertop
height
Allow
7
/8”
overlap
22 1/8”
opening
cabinet min.
(6”)
Figure 1
Anti-Tip
Block
3 1/2”
14 13/16”
to bottom
of Anti-Tip
Block
Floor must
support
100 lbs.
24” DRAWER MICROWAVE
MEASUREMENTS
Figures 1 and 2 contain many drawer microwave
measurements for reference when planning the
drawer location.
This drawer microwave can be installed below
any electric or gas wall oven or under selected
cook top models. See use and care manual for
list of models.
Can also be installed using an electrical outlet in
an adjacent cabinet within the areas where the
provided electrical cord can reach. Power cord
access hole in cabinet should be a minimum of
1 1/2” diameter hole and deburred of all sharp
edges.
IMPORTANT
Always allow sufficient power cord length to the
electrical outlet to prevent tension.
Always check electrical codes for requirements.
15 15/16”
4 11/16”
1 3/4”
4”
23 7/8”
21 5/8”
15”
auto drawer
opening
21 7/8”
1 1/4”
door thickness
Figure 2
14 19/32”
3
Installation Instructions
T
ANTI-TIP BLOCK
NORMAL INSTALLATION STEPS
Anti -Tip BLOCK Installation Instructions
To reduce the risk of tipping of the drawer, the
Anti-Tip block must be properly installed located 14
13/16-inches above the floor on which the Drawer
Microwave will sit. The anti-tip block must be provided
and pre-installed by the purchaser of the product or
builder before install can be done. The anti-tip block
is not provided by installer. See Figures 1 and 2.
The Anti-Tip block
prevents serious
injury that might
result from spilled
hot liquids.
If the Drawer
Microwave is ever
moved to a different
location, the Anti-Tip
block must also be
moved and installed.
When installed to the wall, make sure that the screws
completely penetrate the dry wall and are secured in
wood or metal so that the block is totally stable. When
fastening, be sure that the screws do not penetrate
electrical wiring or plumbing.
6”
Anti-Tip
block
3 1/2”
Figure 3
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of
an electrical short circuit, grounding reduces the risk
of electric shock by providing an escape wire for
the electric current. This appliance is equipped with
a cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is
properly installed and grounded. Consult a qualified
electrician or serviceman if the grounding instructions
are not completely understood, or if doubt exists as to
whether the appliance is properly grounded.
WARNING
Improper use of the
grounding plug can
result in a risk of
electric shock.
Do not use an
extension cord. If
the power supply
cord is too short,
have a qualified
electrician or
serviceman install
an outlet near the
appliance.
Permanent and Correct Installation
3-Prong plug
Grounding pin
3-Prong receptacle
Grounded receptacle box
ELECTRIC OUTLET
The electrical requirements are a 120 volt 60 Hz,
AC only, 15 amp. or more protected electrical
supply. It is recommended that a separate circuit
serving only this appliance be provided.
The drawer is equipped with a 3-prong grounding
plug. It must be plugged into a wall receptacle
that is properly installed and grounded. Should
you only have a 2-prong outlet, have a qualified
electrician install a correct wall receptacle.
Note: If you have any questions about the
grounding or electrical instructions, consult a
qualified electrician or service person.
* Can also be installed using an electrical outlet
in an adjacent cabinet within the area where the
provided electrical cord can reach. Always check
electrical codes for requirements.
Suggested
electrical outlet
location*
5”
4”
Figure 4
DRAWER INSTALLATION
Mounting
Flange
Figure 5
1. Place the drawer adjacent to the wall or
cabinet opening. Plug the power supply cord into
the electrical outlet.
2. Carefully guide the drawer into the prepared
opening. Avoid pinching the cord between the
oven and the wall.
3. Slide the drawer all the way until the mounting
flange is flush with the face of the cabinet. See
Figure 5.
4. Open the drawer. Using the
4 holes on the drawer as a
template, pre drill the cabinet
using a 1/16” bit. See Figure 5.
5. Secure the drawer with the 4
screws supplied.
Parts supplied
4 Screws
4
Installation Instructions
24” Flush Mount Deflector Vent
IMPORTANT NOTES TO THE
INSTALLER
PARTS INCLUDED
Qty Description
1 Flush Mount
• Read all of the Installation Manual that is
Deector Vent
included with the Drawer Microwave before
installing in the flush mount configuration.
• Observe all governing codes, ordinances, and
safety instructions.
• Be sure to leave this installation with the
consumer.
2 Mounting
Screws
1. Prepare cabinet opening as shown in Figures 6, 7, 8, and 9.
Suggested Electrical
Outlet Location*
24 3/16” min
24 1/2” max
1 3/16”
1 7/8”
4”
22”
23 1/2”
min depth
5”
6”
16 7/8”
Opening
Anti-Tip
Block
3 1/2”
14 13/16”
to bottom
of Anti-Tip
Block
Floor must
support
100 lbs
NOTE: the face of the
shelf must sit 1 7/8” back
from the face of the
cabinet.
Shelf Face
1 7/8”
Cabinet Face
Figure 6
5
