Downdraft Vent systems
36"Wide Models:
ZVB36
30"Wide Models:
ZVB30
Monogram__
We bring go_Jflthings to life,
Safetv Information
BEFORE YOU BEGIN
Read/these instructions completely
and carefully.
JMPORTANT -Savetheseinstructionsfor
local inspector's use.
iMPORTANT= Observe all governing
codes and ordinances.
Note to hstaHer - Be sure to leave these instruc-
tions with the Consumer.
Note to Consumer - Keep these instructions for
future reference.
Skill Level -Installation of these vents require basic
mechanical and electrical skills.
Completion _me - 1to 3 hours.
, Proper installation is the responsibility of the installer.
Product failure due to improper installation is not
covered under the Warranty.
If you received a damaged vent, you should
immediately contact your dealer or builder.
For Monogram local service in your area,
1=800-444-1845.
For Monogram service in Canada,
1=888-880-3030.
For Monogram Parts and Accessories, call
1=800-626-2002.
This appliance must be properly
grounded.
Cet appareiJ doit @re
correctement misa la terre.
WARNING
To reduce the risk of fire, electric
shock, or injury to persons, observe the
following.
A. Use this unit only in the manner intended bythe
manufacturer. Ifyou have questions, contact the
manufacturer.
B. Before service or cleaning unk, switch power off at
service panel and Iockthe service disconnecting
means to prevent power from being switched on
accidentafly. When the service disconnecting
means cannot be locked, securely fasten a promi-
nent warning device, such as a tag, to the service
panel
AVERTJSSEMENT
IIfaut observer Jesprecautions suivantes
pour r6duire les risques d'incendie, de choc _lectrique
ou de Nessures.
A. UtiJiser cet appareiJ uniquement de Jamani@re
pr_vue par le constructeur. Contacter le
constructeur pour toute question concernant cet
appareil.
B. Avant une intervention ou le nettoyage de J'appareil,
couper I'alimentation 61ectrique au panneau
@Jectrique et verrouiJJer Jecoupe-circuit pour
emp@cher Jaremise accNenteJJe sous tension.
Quand iJn'est pas possible de verrouiJJer Je coupe-
circuit, mettre fermement en place un dispositif
d'avertissement, une 3ancarte par exemple, sur le
panneau _Jectrique.
Do not attempt to repair or replace any part of the
down@aft system unless it is specifically recom-
mended in this book. All other servicing should be
performed by a qualified technician.
For general ventilating use only. Do not use the
exhaust hazardous or explosive materials and vapors.
_, TO REDUCETHE RiSK OFFIRE,
USE ONLY METAL DUCTVVORK.
UTiLISER DES CONDUITS
Mi_TALLIQUES POUR Ri_DUIRE LES
RISQUES D'INCENDIE.
Installation work and electrical wiring must be done
by a qualified person(s). In accordance with all
applicable codes and standards including fire-rated
construction,
To reduce the risk of fire and to properly exhaust air, be
sure to duct air outdoors. Do not vent exhaust air into
spaces within walls or ceilings or into attics, crawl
spaces or garages.
2
Design information
Design Information
Models Available ...............................................................3
Accessories .......................................................................3
Product Dimensions ..........................................................3
Advance Planning .........................................................4, 5
Installation Preparation
ZEU769 Combination Cutout ............................................6
ZEU30R Combination Cutout ............................................7
ZEU36R Combination Cutout ............................................7
ZGU36GG Combination Cutout ........................................8
ZGU375 Combination Cutout ............................................8

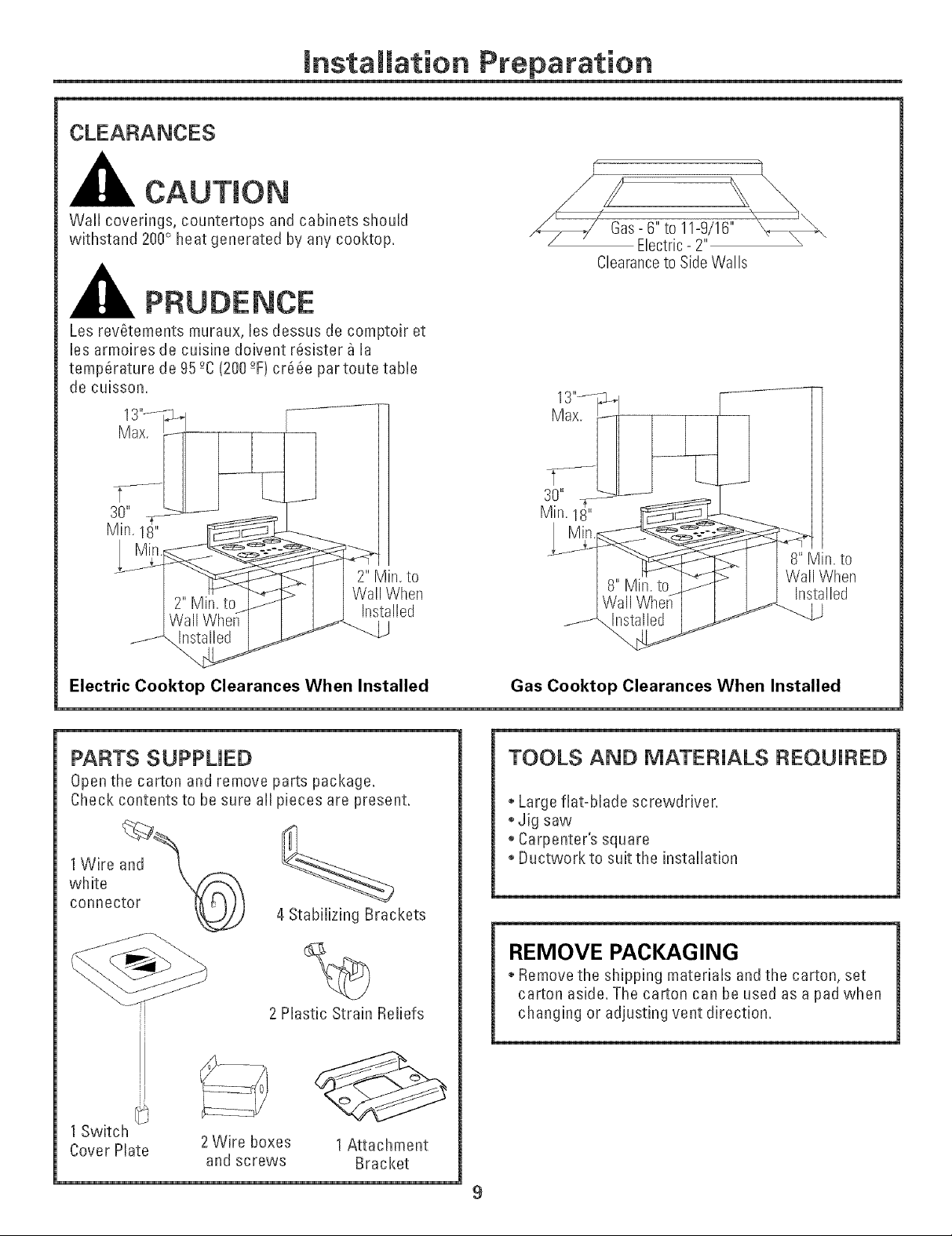

Clearances .........................................................................9
Parts Supplied ....................................................................9
MODELS AVAILABLE
Tools and Materials Required .........................................9
Remove Packaging ...........................................................9
Power Supply ...................................................................10
Venting Options ................................................................11
Ductwork
Duct Fittings .....................................................................12
Installation Instructions
Step 1, Install Downdraft Vent ...................................... 13
Step 2, Install the Ductwork ..........................................13
Step 3, Install Raise/Lower Switch .............................. 14
Step 4, Connect Power ...................................................15
Step 5, Install Filters, Check Operation ....................... 15
Cleaning ............................................................................15
PRODUCT DIMENSIONS
A B
30" Models 30" 28-1/2"
36" Models 36" 34"
ZVB36
36" Wide Downdraff Vent
in white, black and stainless steel
ZVB30
30" Wide Downdraff Vent
in white, black and stainless steel
ACCESSORIES
JXRB67 - Optional accessory for indoor remote
location of the blower/motor assembly. Use this kit
when the blower and motor assembly will be located
outside of the cabinet, such as belowthe cabinet
floor.
JXBC67 - Optional outdoor cover accessory for
remote installation of blower and motor assembly on
an outside wall.
27"
: 8-1/2
7-1/2" I 24/4"
3
ADVANCE PLANNING
Design mnformation
Remote Switch
The downdraft vent has a separate raise/lower switch.
Plan to install the switch in a convenient location
outside of the vent/cooktop cutout.
Downdraft Vent and Cooktop Cutout
The installation of these downdraft vents wkh any
Monogram cooktop requires careful consideration. For
accurate planning, this book provides individual
dimension drawings for the vent and the Monogram
cooktop combined instaIBtion.
Countertop Requirements:
The countertop must have adeep flat surface to
accommodate the cooktop and the vent. Countertops
with a rolled front edge and backsplash may not
provide the flat surface area required.
Base Cabinet Requirements:
The base cabinet must be deep enough to accommo =
date the minimum clearance to the front of the
countertop, the cooktop burner box and the vent.
Creative Solutions
When the kitchen design callsfor an against the
wall installation, move the base cabinet forward, 3"
to 5". Filler panels or complimentary moldings can
be added to exposed cabinet sides.
Before you begin, you must:
1. Review countertop dimension illustrations to be
sure you will have enough flat countertop surface.
2. Checkto be sure that the total countertop depth
required (including minimum cutout to front edge
depth) allows enough space for a backsplash.
3. Reviewthe cabinet illustration. Checkto be sure
the interior cabinet depth will house the cooktop
burner box, the vent and the cutout clearance from
the front.
4. When countertop and cabinet depth present a
problem, review Creative Solutions.
5. Read this book completely to accurately plan the
installation location, clearances and ductwork
requirements.
With careful planning you can achieve a custom look
with minimal adjustments.
Maintain CutoutClearances
to Front Edgeas Specified
* In an island or peninsula, use an extra deep
countertop. The countertop overhang at the
front can be adjusted to meet setbackto cutout
requirements.
*When the cutout to front edge of the countertop
requirement is more than 2", add a bullnose trim to
the front edge of the countertop. Include the trim
thickness when measuring front edge to cutout
requirement. By adding the trim, the cooktop can be
moved forward, providing additional countertop
depth and interior cabinet space.
per Cooktop
Clearances
Must be
Maintained
End
Panel
J
Panel
Base
Filler Panel
Cabinet
Add a Bullnose Trim
or Other Decorative
Molding to Increase[=
CountertopDepth
andto Maintain
RequiredClearance
FromFrontEdgeto
Cutout,
Filler Panel
BaseSink
1-7/8"
Downdraft
4
Design mnformation
Clearances
• The downdraft system with blower, motor and duct
work will occupythe cabinet below the countertop
and cooktop.
,The blower!motor assembly can be located below
the cabinet floor. The assemNywill fit between 16"
floor joists. Order JXRB67 for indoor remote
locations.
• The blower motor assembly can also be installed
outdoors. Order JXBC67 for remote blower installa-
tions outdoors.
, Refer to "Cooktop Clearances" for information on
appropriate placement and necessary clearances
when planning installation.
• Refer to your specific cooktop installation instruc-
tion for other appropriate clearances.
, Avoid placing cabinetry directly above the cooking
surface when possible.
If cabinetry is used above the cooking surface:
• Use cabinets no more than 13" deep.
• Maintain 30" minimum clearance between cooktop
and unprotected cabinets directly above cooktop.
, If clearance is less than 30", protect cabinet bot-
toms with fiame-retardant millboard at least 1/4"
thick or gypsum board at least 3/16" thick covered
with 28 gauge sheet steel or .02" thick copper.
, Clearance between cooktop and protected
cabinetry must not be less than 24."
EXCEPTION: Installation of a listed microwave oven
or cooking appliance over the cooktop shall conform
to the installation instructions packed with that
appliance.
,Working areas adjacent to the cooktop should 18"
minimum clearance between countertop and
cabinet bottom.
• Installation must conform with local codes.
Ductwork
Prepare ductwork to vent to the outdoors.
• Use the shortest and straightest duct run possible.
, The maximum permissible length for duct run is 150
feet.
, Refer to "Duct Fittings" chart to calculate equivalent
length for various duct configurations.
• The downdraft blower system is designed to use
3-1/4" x 10" ductwork. It can be transitioned to
6" round.
, Ductwork MUST be vented to the outside-never into
a crawl space, attic or other enclosed space.
• Determine the need for a wall cap or roof cap. Order
the cap in advance.
Electrical and Gas Locations
Plan the placement of the electrical outlet and gas
(if used) carefully. Gas or electrical outlets cannot be
placed on the back wall of the cabinet because it may
interfere with the downdraft plenum.
, Install a standard electrical outlet within reach of the
vents' two foot long power cord.
,The vent and a Monogram gas cooktop combination
can operate from the same 120volt standard duplex
outlet.
, Electric cooktops must operate from a separate
240 volt junction box.
5
mnstaJiation Preparation
CUTOUTS AND CLEARANCES
* Measure carefully when cutting the countertop.
Make sure sides of the opening are parallel and rear
and front cuts are exactly perpendicuBr to sides.
* Measure to be sure there is room for clearances to
the front edge of the countertop.
* Refer to cooktop installation instructions to be sure
that models fit into the base cabinets being used.
ZEU769 ELECTRIC COOKTOPS WITH 36" VENT
1-3/4" Min. CooktopCutout to Rear
Vertical Combustible Surface
I_ 36" ___/1/4" Overlap
t
21-3/4"
Cutout
Depth
_34" Cool<topand Vent Cutout_ Total Flat
5/8" Cool<topOverlap
2-1/2" Min. Clearanceto Cutout
f
FrontEdge
of Countertop 2" Min. Cutout
22-1/2"
' Surface
i
,,Required
i
i
to Side Walls
* Identify the cutout illustration for the cooktop model
you are installing.
* Draw Binesonthe countertop to follow as a cutting
guide, Measure and marl<cooktop and vent overBaps
to be sure there is enough flat countertop depth,
2-1/2" to
Gap
_22" to Support Rail_
I
* 24-3/4" *1
Countertop Cutout: Requires 22-1/2" flat countertop surface
and 24-3/8" total countertop depth.
6
Cabinet: Requires 22-1/2" inside
cabinet depth. Remove rear
support rail,
Installation Preparation
ZEU30R DIGITAL COOKTOPS WITH 30" VENT
1-3/4" Min. Cool<topCutout to Rear
Vertical Combustible Surface
29-7/8" (SS)
23-1/2" (SS)
22-1/4"
Cutout
Depth
i E
t
FrontEdge
of Countertop
28-1/2"
Cool<topArea Cutout
5/8" Cool<topOverlap
_ (1-1/8" at Center)
I
2-1/2" Min. _
Clearanceto Cutout 2" Min. Cutout
23-3/8" (B,W)
Total Flat
Surface
Required
at Center
to SideWalls
2-1/2" to
Cutout
Thick
Support
Rail
_22" to Support Rail_
I
24-3/4"
Countertop Cutout: Requires 23-3/8" (B,W) 23-1/2" (SS) flat
countertop surface. Requires 24-3/4" (B,W) and 24-7/8" (SS) total
countertop depth.
ZEU36R DIGITAL COOKTOPS WITH 36" VENT
1-3/4" Min. Cool<topCutoutto Rear
Vertical Combustible Surface
36-1/8" (SS)
36"(B,W)
. jN/4" Overlap
1` "
,,2-3/4 Gap
21-3/4 _ 23"
Cutout | 34" (SS)
Depth19-1/8" CooktopandVent Cutout 22-7/8" (B,W)
Cooktop{ Total Flat
Cutout 5/8" Cool<topOverlap Surface
(1-1/8" at Center) Required
I' 2-1/2" Min. , _--__
FrontEdge Clearanceto Cutout 2 Min. Cuto t
of Countertop to SideWalls
Cabinet: Requires 23"inside cabinet
depth. See Creative Solutions, install in
an island or move cabinet base forward.
2-1/2" to
Cutout 1-7/8"
3/4"
Thick
Support
Rail
_22" to Support Rail_
24-3/4"
Countertop Cutout: Requires 22-7/8" (B,W) 23"
(SS) flat countertop surface. Requires 24-1/4" (B,W)
and 24-3/8" (SS) total countertop depth.
Cabinet: Requires 22-1/2" inside cabinet depth.
Remove rear support rail.
mnstaliation Preparation
ZGU36GG GAS COOKTOPS WITH 36" VENT
2-1/4" Min. Cool<topCutoutto Rear
Vertical Combustible Surface
2-1/2" to
Cutout 1-7/8"
3/4"
Thick
Support
Rail
t
21-3/4"
Cutout
Depth
36" ,-1_1/4" O_erlap
34"Cool<topand Vent Cutout ,_
13/16" Cool<topOverlap
(1-1/2" at Center)
_____f_q/8'Gap
23-1/2" (SS)
23-3/8"(B,W)
Total Fiat
Surface
Required
at Center
....;.............S.................
÷22" to Suxaort Rail_
FrontEdge
of Countertop
Countertop Cutout: Requires 23-3/8" (B,W) 23-1/2" (SS) flat Cabinet: Requires 22-11/16"inside
countertop surface. Requires 24-3/8" (B,W) and 24-1/2" (SS) total cabinet depth. Remove rear support rail.
countertop depth.
2-1/2" Min.
Clearanceto Cutout
to Side Walls
I
24-3/4" _l
ZGU375 GAS COOKTOPS WITH 36" VENT
3-3/8" Min. CooktopCutout to Rear
Vertical Combustible Surface
.9/16" 9/16" 1
_,_ 36-1/2" b_ ,,
14L_34 ''Vent Cutout f_1/4 Overlap
21-7/16"_! F_ L /
OJto_!t /i I_ s6-5,q6"Cooktop 22-s/4"
uepth18-7/8" i I Cutout " _ota! Flat
Cookton' I ............ SurTace
r,,,÷_,,÷F'iI _op Overlap Required
$ _ _o, iL(l_l/4"AtCenter)
1' 2-3/4" Min.
Front Edge Clearanceto Cutout 11-9/16" Min. Cutout
of Countertop to Side Walls
Countertop Cutout: Requires 22-3/4" flat countertop surface and
24-1/4" total countertop depth.
2-3/4" to
Cutout 1-7/8"
-3/4"
Thick
Support
Rail
to Su sortRail_
24-3/4"
Cabinet: Requires 22-5/16" inside
cabinet depth. Remove rear
support rail,
8
Installation Preparation
CAUTION
Wall coverings, countertops and cabinets shouN
wkhstand 200° heat generated by any cooktop.
PRUDENCE
Les rev_tements muraux, Jesdessus de comptoir et
les armoires de cuisine doivent r_sister a Ja
temp6rature de 95 -oC(200-°F)cr_6e par toute table
de cuisson.
Max. [-------------
2" Min. to
Wall When
Installed
JJ
/
Gas- 6" to 11-9/16"
Electric- 2"
Clearanceto Side Walls
1
Max.
8" MJn. to
Wall When
Installed
&s
Electric Cooktop Clearances When Installed Gas Cooktop Clearances When Installed
PARTS SUPPUED
Open the carton and remove parts package.
Check contents to be sure all pieces are present.
1Wire and
white
connector
4 Stabilizing Brackets
TOOLS AND MATERIALS REQUIRED
Large flat=blade screwdriver.
Jig saw
Carpenter's square
Ductwork to suit the installation
REMOVE PACKAGING
%
2 Plastic Strain Reliefs
1 Switch
Cover Plate 2 Wire boxes 1Attachment
and screws Bracket
Remove the shipping materials and the carton, set
carton aside. The carton can be used as a pad when
changing or adjusting vent direction.
9
mnstaliation Preparation
POWER SUPPLY DoNot Locate Gasor Electrical
ConnectionsWithin ShadedArea
FOR PERSONAL SAFETY:
Remove house fuse or open
circuit breaker before beginning
instaflation.
Do not use an extension cord or
adapter plug with this appliance. Follow National
electrical codes or prevailing local codes and ordi-
nances.
for 36"
28-1/2" for 30" Models
IMPORTANT
Enlever lefusible ou d_clencher le
disjoncteur du panneau de la
maison avant de commencer
FinstaIBtion,
Ne pas utiliser de rallonge ni d'adaptateur de prise de
courant avec cet appareil, IIfaut respecter les codes
nationaux de I'_lectricit_ et les r_gbmentations ou
codes Iocaux,
This downdraft vent must be supplied with 120V, 60Hz.,
and connected to an individual, properly grounded
branch circuit, protected by a 15 or 20 ampere circuit
breaker or time delay fuse.
Gas Cooktops
If this vent is installed in combination with a
Monogram gas cooktop, it may operate from the same
duplex outlet.
Electric Ceoktops
If this vent is installed in combination with a
Monogram electric cooktop, the vent must operate
from a separate 120V outlet.
(Please read carefully).
The power cord of this appliance is equipped with a
three-prong (grounding} plug which mates with a
standard three-prong grounding wall receptacle to
minimize the possibility of electric shock. The
customer should have the wall receptacle and
circuit checked by a qualified electrician to make
sure the receptacle is properly grounded and has
correct polarity.
• Where a standard two-prong wall receptacle is
encountered, it is the personal responsibility and
obligation of the customer to have it replaced with
a properly grounded three-prong wall receptacle.
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
DO NOT USE AN EXTENSION CORD.
Outlet
12"Above
Cabinet Floor
• A properly grounded 3-prong receptacle should be
located within reach of the vents' two foot power
cord.
Locate the receptacle inside the cabinet on the right
side wall. The receptacle cannot be placed on the
back of the cabinet wall where it may interfere with
the downdraft plenum. See illustration.
10
JnstaJJation Preparation
LoosenScrews
VENTING OPTIONS toAdjust
3-1/2" to
The downdraft vent is shipped with the
discharge outlet pointing straight down and
can be changed to the left or right side.
The blower outlet is sized for 3ol/4" x 10"
and can be transitioned to 6" round.
Side to side adjustments:
The entire blower mounting plate can be
adjusted 3-1/2" to the left or right. This will
help to align vent discharge to house
ductwork,
Left or Right_
DischargeDown
(AsSupplied)
Discharge direction
The blower assembly may be removed and turned
90° for a left or right side discharge.
A Jeftor right g0° direction adjustment shouJd be
performed before dropping into the countertop
opening.
FJattenthe shipping boxto use as a pad.
Lay the vent on its back and onto the pad.
To change to a left or right discharge:
Remove the 4 screws holdhlg the blower to the
mounting plate assembly. Retain screws.
Remove blower assembly, turn it over to access the
4 nuts holding the blower to the mounting plate.
Remove the nuts.
IMPORTANT: Do not lift motor by power cable.
Turn the blower to left or right discharge direction
and reinstalJ the 4 nuts,
Reinstall blower and mounting plate with original
screws.
DischargeLeft
To locate the ductwork holes in the
cabinet floor or side walls:
Temporarily, place vent into the countertop opening.
Push the vent allthe way to the back of the opening.
If you are transitioning to 6" round (obtained
locally), place transition piece over the discharge
outlet.
Markthe location and remove the assembJy.
Cut hobs and install ductwork connections.
Order JXRB67 for installation of the blower and
motor below the floor.
Order JXBC67 for installation of the blower and
motor outdoors.
11
Ductwork
Use this form to
compute maximum
permissible lengths
for duct runs to
outdoors.
Nete: Do not exceed
maximum permissible
equivalent lengthsT
Flexibme dactiag:
If flexible metal
ducting is used, aH the
equivalent feet values
in the table should be
doubled. The flexibUe
metal duct should be
straight and smooth
and extended as
much as possible.
Do NOT use flexible
plastic ducting.
I)ewndraft Vent
150' maximum
equivalent length
Nete: Any home
ventilation system,
such as a cooktop with
a downdraft exhaust
mechanism, may
interrupt the proper
flow of combustion air
and exhaust required
by fireplaces, gas
furnaces, gas water
heaters and other
naturally vented
systems. To minimize
the chance of inter°
ruption of such
naturally vented
systems, follow the
heating equipment
manufacturer's
guidelines and safety
standards such as
those published by
NFPA and ASHRAE.
Equivalent Quantity Equivalent
Duct Piece Dimensions Length* Used Lengtb
I ft.
6" round, (per foot
straight lengtb}
I ft.
3-!/4" x I0" (per foot
straight length)
6"
96° elbow I5 ft.
45° elbow 9 ft.
3-!/4" x 16"
96° elbow I6 ft.
3-I/4" x 10"
45° elbow 5ft.
3-!/4" x I0"
96° flat elbow I8 ft.
6" round
to 3-1/4" x 10'
transition 7 ft.
3-I/4" x I6"
round to 6"
transition 5 ft.
6" round to
transition
90° elbow 20 ft.
_& 3-I/4" x I6" to 6"
_ wa,I cap
_ActuaJ length of straight duct plus duct fitting Total Duct Run
equivalent. Equivalent Jengtbof duct piecesare based
on actual tests conducted by GEEvaluation Engineer-
ing and reflect requirements for good veering
performance with any downdraft cooktop.
round transition
96° elbow I2 ft.
wall cap
6" round
with damper 21 ft.
3-I/4" x I0"
with damper 27 ft.
6" roundroof cap 20 ft.
6" round
roof vent 24 ft.
Total
12
Instamiation Instructions
[STEP llJNSTALL DOWNDRAFT
Place the downdraft vent into the countertop cutout,
against the back side.
_Upper
_r _,_\ BracketsWith
%, \ Screws Located
'\ \ on the Side of
CaseandAttach
to BackWall
of Cabinet
Securethe Lower Brackets
to Blower Housing
Secure the downdraft to the countertop supplied
brackets. See illustration.
Fasten two brackets to vent sides and secure to
cabinet back wall.
Install two brackets on the bottom of the vent.
Attach brackets to slide screws on the vent and to
the floor using wood screws (not supplied).
_When installing in a tile countertop surface, it may
be necessary to apply a locally approved caulking
to cover any gaps.
[STEP 21iNSTALL THE DUCTWORK
The downdraft blower system is designed for use
with 3-1/4" x 10"ductwork. It can be transitioned to 6"
round.
* Ductwork MUST be vented tothe outside - never in a
crawl space, attic or other enclosed space.
6"PVC duct should be used when installing under a
concrete sial
Note: Local building code must be followed for
installation in specifying approved type and schedule
of PVC duct used.
DuctTape
am and Screw
Air
DO NOT USEflexible plastic ducting.
Always use appropriate roof or wall cap with
damper. Laundry type wall caps should never be
used.
Use the straightest duct run possible.
For satisfactory performance the duct run should not
exceed 150ft. or its equivalent length when bends or
various fittings are used. Refer to the table of equiva o
lent lengths to calculate your installation.
Install ductwork so the piece of duct nearest the
downdraft unit slots INT0 the next piece of the duct.
Secure the joints with self-tapping screws and apply
duct tape around the joints to ensure an airtight seal.
13
mnstamiation mnstructions
[STEP 31 iNSTALL RAiSE/LOWER SWITCH
WARNING:
Disconnect electrical power from unit before
beginnhlg switch installation. Failure to do so could
result in personal injury or damage to the electrical
controls.
Determine the location for the RAISE/LOWER switch.
The wiring lead is 68" long.
Raise/Lower
Switch _.,
Mounting
Bracket i
i
i
i
_3/8" Hole
Connectoi
AVERTiSSEMENT
II faut d_brancher Valimentation _lectrique de
Vappareil avant de commencer I'installation de
Hnterrupteur. II faut suivre cette directive pour _viter
des Nessures ou endommager les commandes
_lectriques.
Connect Raise/Lower Wire Lead to Wire Box
Thread wire end with the connector through the
hole on the end of a wire box. Pull approximately
3" additional wire length beyond the open end of
the box.
Connect the mating wire connectors.
Install the wire box onto the bottom of the
countertop or directly behind the switch. Use
adhesive or screws appropriate for the type of
countertop.
Place plastic strain relief over the wire, just outside
ofthe hole atthe end ofthe wire box. Do not pinch
or twist the wire. Snap the strain relief closed and
press into the hole.
Strain Relief
Drill a3/8" hole into the desired location. Use the
mounting bracket as a template to locate the hole
accurately. Check for interference between the
switch cover, adjacent objects and cooktop/vent
overlaps.
If switch is mounted into a tile surface, drill the hole
between tiles. Use locally approved caulking to cover
any gaps.
Center the mounting bracket over the hole and mark
pilot holes. Remove and drill holes according to type
of countertop.
Mount the metal switch bracket with screws (not
provided). Choose screws for your type of countertop
or use locally approved adhesive.
Remove protective film from the top of the switch trim.
, Peelfilm from the adhesive strips on the back of the
switch trim. Thread the wire lead through the mount°
ing bracket and countertop. Press trim over the
mounting bracket to set the adhesive.
Control
Box
Connect Wire Lead to Control Box
Thread the long 68" wire lead through the end of the
other wire box.
Push wire leads into the white connector provided.
Push wire connector into the mating connector on
the control box. Install the wire box onto the end of
the control box with screws provided.
• Place plastic strain relief over the wire, just outside
ofthe hole atthe end in the wire box. Do not pinch or
twist the wire. Snap the strain relief closed and
press into the hole.
Coil the excess wire and position away from moving
parts and cabinet contents.
14
mnstaJiation mnstructions
ISTEP 4] CONNECT POWER
Plug power cord into properly grounded receptacle.
Cleaning a Stainless Steel Downdraft Vent
Stainless steel has some unique cleaning
characteristics. In order to keep your vent looking like
new, we suggest cleaning it with Stainless Steel Magic
or similar product.
ISTEP 5] iNSTALL RLTERS,
CHECK OPERATION
To raise the vent, press the RAISE/LOWER switch.
The switch is installed in a separate location.
Tip filter into the opening and pull slide straight
down so that the filter rests on the inside filter
supports.
Install the opposite filter.
Toturn the fan on, slide control to HIGH. Select
desired speed by sliding control between HI and
LO settings.
Note: It is not necessary to turn the fan OFFbefore
lowering the vent. The fan will automatically turn off
when the vent is lowered. When the fan is not turned
off before lowering the vent, it will automatically
come on atthe previously set speed when the vent is
fully raised.
Stainless Steel Magic is available at Ace, True Value,
Servistar, HWl and other leading stores. It is also
available through GE Parts by calling 1-800-626-2002.
Order part number WXlOX15.
To lower the vent, press the RAISE/LOWER switch
and hold until the vent begins to lower.
15
Pub.No.49-80185
Dwg.No.164D4290P341
(ND682} 2/03
959-0344-001
Note: While performing installations described inthis book,
safety glasses or goggles should be worn,
t4_ M};_zog'l-_l _/o_'_l _n, _'_i_ },_J_l_*_, _'_fl
Webringgoodthingstolife,
GEConsumer Producls
GenerM Llecm; Company
Louisvifle , KY40225
@2fir)3Gefleral ElecTril; Conlpaf?y
Loading...
