GE ZV830SM User Manual

ZV830SM

*Height

to

Ceiling

29-7/8

5-7/8

13-1/4

10-7/8

18-7/8

*The Supplied Duct Cover Fits 8' to 10' Ceiling Heights.

24” Min.

30” Max.

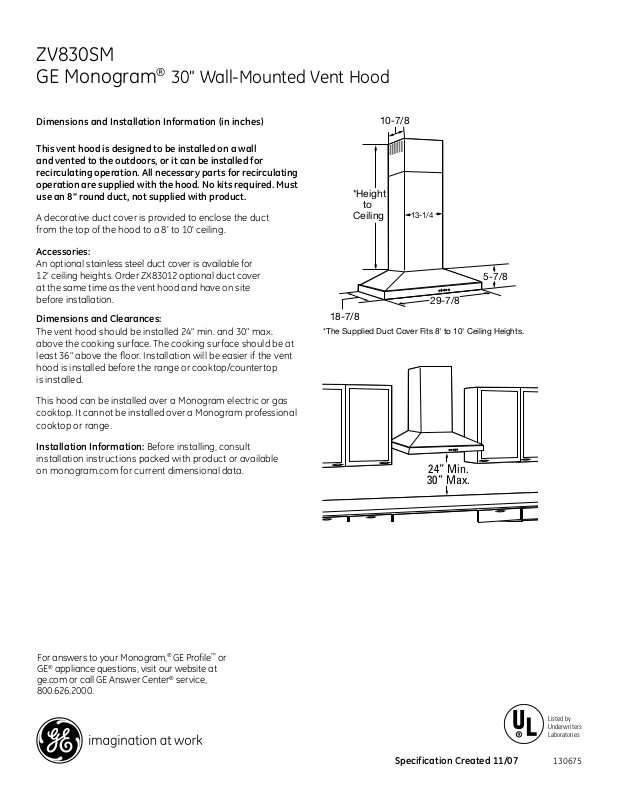

GE Monogram® 30" Wall-Mounted Vent Hood

Dimensions and Installation Information (in inches)

This vent hood is designed to be installed on a wall
and vented to the outdoors, or it can be installed for
recirculating operation. All necessary parts for recirculating
operation are supplied with the hood. No kits required. Must
use an 8" round duct, not supplied with product.

A decorative duct cover is provided to enclose the duct
from the top of the hood to a 8' to 10' ceiling.

Accessories:
An optional stainless steel duct cover is available for
12' ceiling heights. Order ZX83012 optional duct cover
at the same time as the vent hood and have on site
before installation.

Dimensions and Clearances:

The vent hood should be installed 24" min. and 30" max.
above the cooking surface. The cooking surface should be at
least 36" above the floor. Installation will be easier if the vent
hood is installed before the range or cooktop/countertop
is installed.

This hood can be installed over a Monogram electric or gas
cooktop. It cannot be installed over a Monogram professional
cooktop or range.

Installation Information: Before installing, consult
installation instructions packed with product or available
on monogram.com for current dimensional data.

For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,

800.626.2000.

Listed by
Underwriters
Laboratories

Specification Created 11/07

130675

ZV830SM

FAN

LIGHT

- + -

+

GE Monogram® 30" Wall-Mounted Vent Hood

Features and Benefits

• Stainless Steel Design - Creates a striking
architectural impression with bold angles and
smoothly finished edges

• Powerful Ventilation - Offers three speeds plus
a 500-cfm boost to capture cooking fumes
produced by 30" cooktops

• Perimeter Filter System - Draws fumes and
vapors around a stainless steel center panel,
which completely and stylishly conceals filters

• Halogen Lighting - Provides four levels of
clean, brilliant illumination to suit the cooking
task or occasion

• Recirculating-Ready Design - Includes reversible
duct covers for non-vented installations,
eliminating the need for an optional kit

• Model ZV830SMSS - Stainless steel

Warranty Information:

• Parts Warranty: Limited 1-year entire appliance

• Labor Warranty: Limited 1-year entire appliance

• Warranty Notes: See written warranty for
full details

Specification Created 11/07

130675
