GE ZONELINE

Parts & Accessories Guide

Page 2

Our genuine parts & accessories deliver

RELIABLE COMFORT

Only genuine parts and accessories

from GE Appliances keep your Zoneline units running in peak condition. Our parts and accessories are constructed from high-quality materials for a guaranteed ﬁt, convenient replacement

and constant comfort.

CONTENTS

4-14 ZONELINE PARTS

AND ACCESSORIES

15 ZONELINE.COM INFO

16 VERTICAL ZONELINE

18 ORDER INFORMATION

Page 3

geappliances.com / zoneline.com 3

Page 4

ZONELINE

RAB71A (ALL ZONELINE SERIES*)

WALL CA SE

• Universal design

• Galvanized steel

• Expanded polystyrene foam insulation

• Baked-on enamel

• Protected with a sealing compound to prevent rust

• Sealing compound

Also available with extended depths

RAB7116: 16" deep | RAB7128: 28" deep RAB7124: 24" deep | RAB7131: 31" deep

RAB77A4 (ALL ZONELINE SERIES*)

SMC WALL CASE

• Universal design

• Non-corrosive

• Constructed with fiberglass-reinforced polyester compound

RAB71B

(AZ45/65 SERIES*)

WALL CA SE

• Universal design

• Galvanized steel

• Expanded polystyrene foam insulation

• Baked-on enamel

• Protected with a sealing compound to prevent rust

• Color matched for AZ45/65 series

Also available with extended depths

RAB7116B: 16" deep RAB7124B: 24" deep

RAB77B

(AZ45/65 SERIES*)

SMC WALL CASE

• Universal design

• Non-corrosive

• Constructed with fiberglass-reinforced polyester compound

• Color matched for AZ45/65 series

Page 5

RAD10 (ALL ZONELINE SERIES)

INTERNAL/EXTERNAL DRAIN KIT

• Provides positive control of condensate water

• Routes condensate to exterior or interior of the building

• Suitable provision (field applied) required for connection to drain system

• 1/2" OD copper assemblies

• Includes short right-angle tube and 6"-long straight tube

RAG61/62/63 (AZ SERIES)

ARCHITECTURAL REAR GRILLE

• Improves appearance and protection

• Molded of high-impact polycarbonate

• Slightly textured, colorfast surface blends with most walls

RAG61: Beige | RAG62: Maple | R AG63: Dark Brown

RAG60 (AZ SERIES)

STAMPED ALUMINUM EXTERIOR REAR GRILLE

• Standard size

• Protects chassis components

• Optimizes air flow

• Made of durable aluminum

A–B series: Zoneline units built before 1987 – Zoneline I, II, III, and IV; AZC series: Zoneline units built from 1987 to 1992 – Zoneline 1000, 2000, 2500, 2700, 3000, 4000, 5000; AZ series: Zoneline units built after 1992 – Zoneline 21, 31, 26, 51 / Zoneline 22, 32, 52 / Zoneline 25, 35, 55 / Zoneline 28, 29, 38, 39, 41, 45, 58, 61, 65, 75, 85.

*Available while quantities last

RAG67 (AZ SERIES)

ALUMINUM ARCHITECTURAL OUTDOOR GRILLE

• Extruded alum inum outdoor grille

• Grilles are paintable to match building décor

geappliances.com / zoneline.com 5

Page 6

ZONELINE® PARTS & ACCESSORIES

RAF452A while quantities last (AZ SERIES—25, 35 & 55 ONLY)

REPLACEMENT ROOM CABINET

• Wraparound design with textured f inish

• Injection-molded of high-impact polystyrene

• Fastens to chassis without tools or hardware

• Contains slide-out filters and 2-position reversible discharge louvers

RAF452 while quantities last (AZ SERIES—22, 32 & 52 ONLY)

REPLACEMENT ROOM CABINET

• Wraparound design with textured f inish

• Injection-molded of high-impact polystyrene

• Fastens to chassis without tools or hardware

• Contains slide-out filters and 2-position reversible discharge louvers

WP71X20960

(AZ SERIES—45 & 65 ONLY)

REPLACEMENT ROOM CABINET

• Wraparound design with textured finish

• Injection-molded with high-impact polystyrene

• Fastens to chassis without tools or hardware

• Contains slide-out filters

• Color matched for AZ45/65 series

• Available through geappliancesparts.com

RAK40 (AZ SERIES)

AIR DEFLECTOR KIT

• Adapts AZ chassis for use with older GE architectural grilles

• Aluminum deflector installed to condenser end sheet flanges to prevent condenser airflow recirculation

• Also f its custom rear grilles

RAF453A while quantities last WP71X10029 Also available through geappliancesparts.com (AZ SERIES—28, 29, 38, 39, 41, 58 & 61 ONLY)

REPLACEMENT ROOM CABINET

• Wraparound design with textured finish

• Injection-molded with high-impact polystyrene

• Fastens to chassis without tools or hardware

• Contains slide-out filters and 2-position reversible discharge louvers

7-3/32"

6-1/2"

RAK6052 (AZ SERIES—22, 25, 28, 29, 32, 35, 38, 39, 41 & 61 ONLY)

DUCT ADAPTER (Not for 45, 52, 55, 58 or 65 Series)

• Allows Zoneline unit to heat or cool an adjacent room

• Attaches to top of wall case

• Can be applied to right or left of adapter

• Zoneline 26 and 51 series not approved for ducted application

Page 7

7-3/32"

8-3/8"

6-1/2"

RAK6053

(AZ SERIES—45 & 65 ONLY)

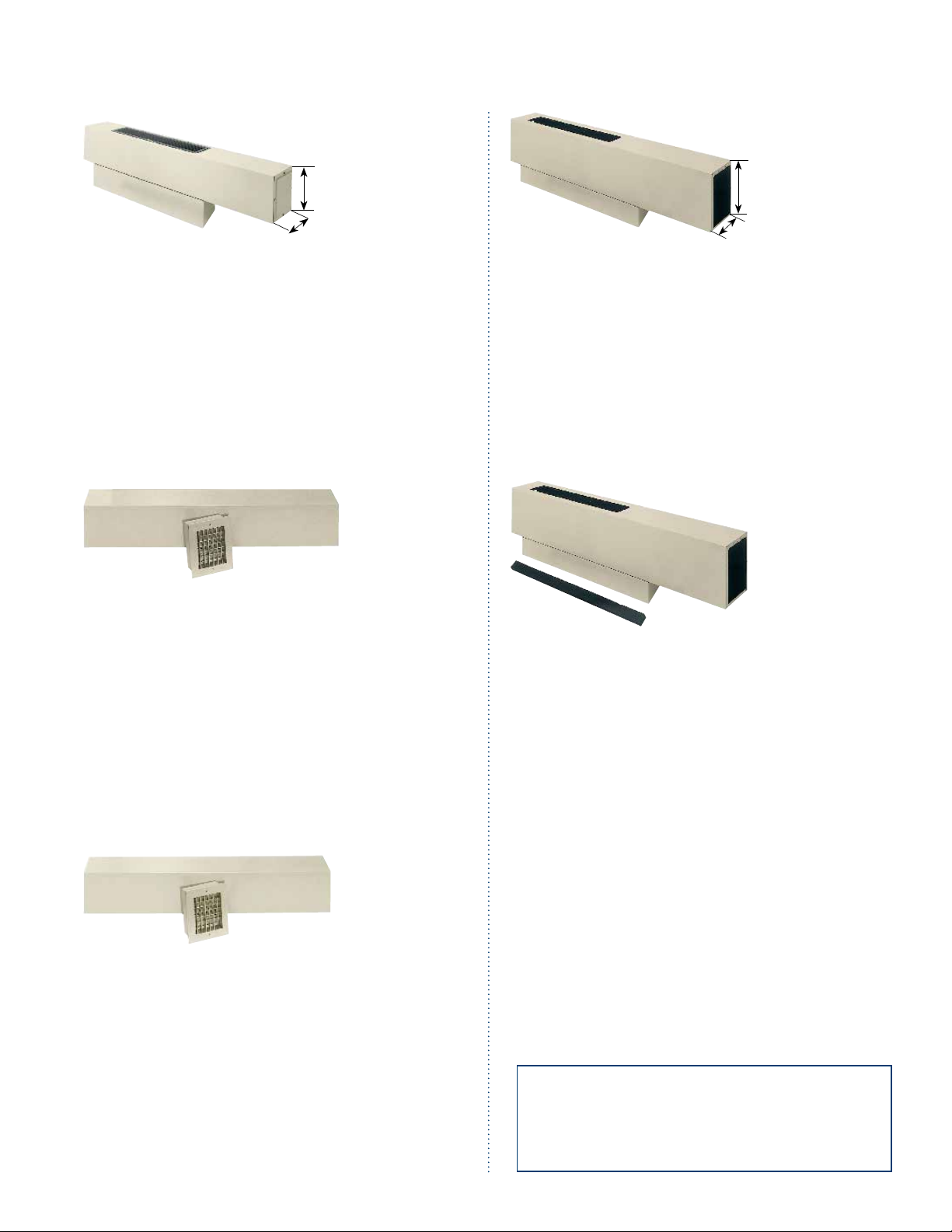

DUCT ADAPTER

• Allows Zoneline unit to heat or cool an adjacent room

• Attaches to top of wall case

• Can be applied to right or left of adapter

• Color matched for AZ45/65 series

RAK601/602 (AZC & AZ SERIES—21, 22, 25, 28, 29, 31, 32, 35, 38,

39, 41 & 61 ONLY)

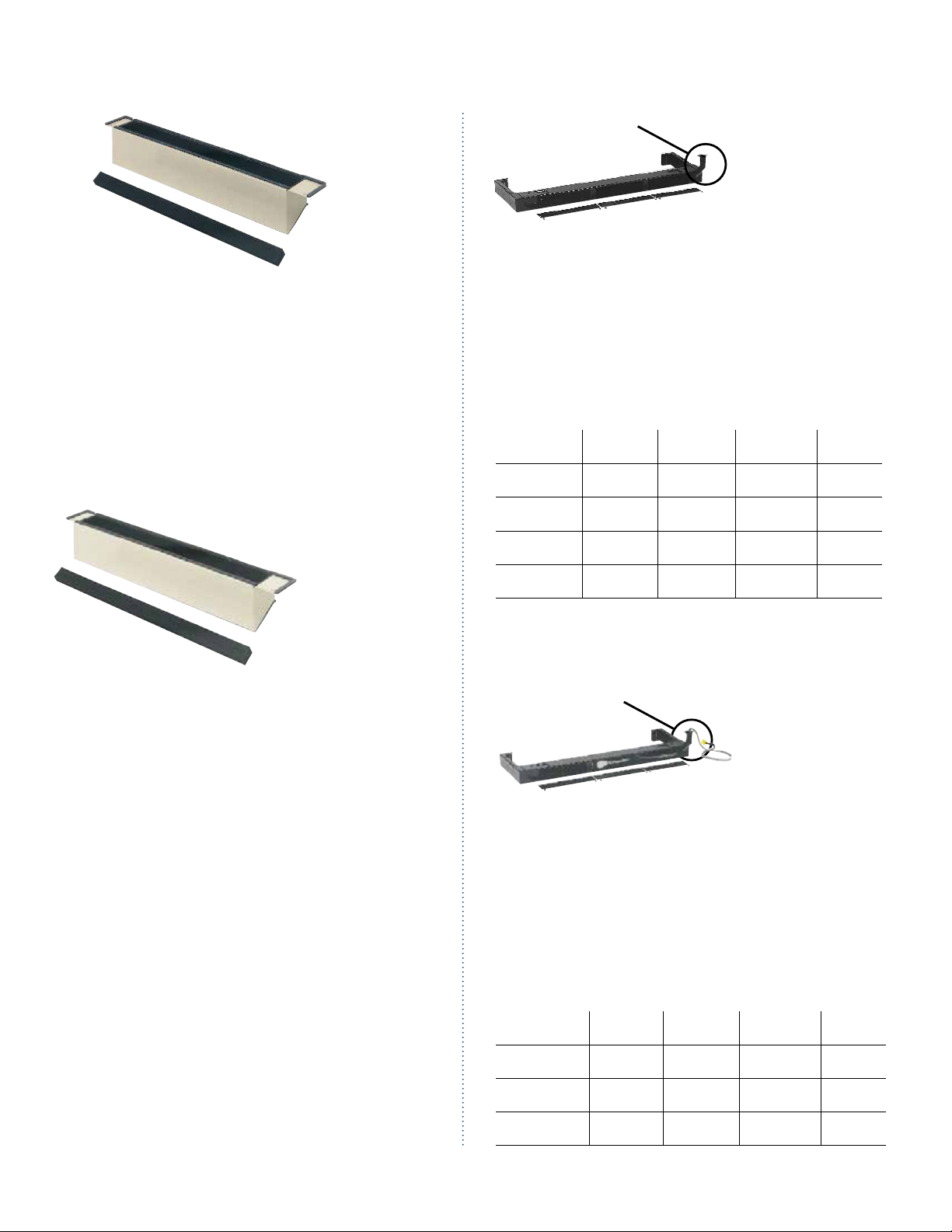

DUCT EXTENSION, REGISTER & TRIM FLANGE

• 44" long

• Includes air register and trim f lange for secondary space

• Additional air register and trim flange (RAK602) can be ordered separately if two extensions are made

• For use with RAK6052

RAK7012 (AZ SERIES—22, 25, 32, 35, 28, 29, 38, 39, 41 & 61)

6-1/2"

DUCT ADAPTER FOR REPLACEMENT OF A–B WITH ROUNDED-FRONT AZ CHASSIS

• Lines up with duct extension where original chassis was a flat-top discharge A-B series

• Allows existing duct extension to be used without requiring relocation of wall hole

• Must use discharge grille, end plate and extension mounting hardware from old duct adapter

RAK7013

(AZ SERIES—45 & 65 ONLY)

DUCT ADAPTER FOR REPLACEMENT OF A–B WITH SLANTED-FRONT AZ CHASSIS

• Lines up with duct extension where original chassis was a flat-top discharge A-B Series

• Allows existing duct extension to be used without requiring relocation of wall hole

• Must use discharge grille, end plate and extension mounting hardware from old duct adapter

• Color matched for AZ45/65 series

RAK601B/602B

(AZ SERIES—45 & 65 ONLY)

DUCT EXTENSION, REGISTER & TRIM FLANGE

• 44" long

• Includes air register and trim f lange for secondary space

• Additional air register and trim flange can be ordered separately if two extensions are made

• For use with RAK6053

• Color matched for AZ45/65 series

geappliances.com / zoneline.com 7

Page 8

ZONELINE® PARTS & ACCESSORIES

RAK7022 (AZ SERIES—22, 25, 28, 29, 32, 35, 38, 39, 41

& 61 ONLY)

DUCT TRANSITION FOR REPLACEMENT OF AZC WITH ROUNDED-FRONT AZ CHASSIS

• Allows duct installation where original chassis was a slope-front discharge chassis (AZC/AZR/AZ21/AZ31)

• Allows existing duct extension to be used without requiring relocation of wall hole

Chaseway

Power cord and junction box not included with sub-base.

RAK204 (AZ SERIES)

SUB-BASES

• Made of heavy-gauge steel

• Full base enclosure with breakaway side channels

• 4-point leveling legs

• Sub-base adapts to service conduit, circuit breakers and receptacles up to 30 amps

• May also be used as a non-electrical sub-base to support the unit

RAK7023

(AZ SERIES—45 & 65 ONLY)

DUCT TRANSITION FOR REPLACEMENT OF AZC WITH SLANTED-FRONT AZ CHASSIS

• Allows duct installation where original chassis was a slope-front discharge chassis (AZC/AZR/AZ21/AZ31)

• Allows existing duct extension to be used without requiring relocation of wall hole

• Color matched for AZ45/65 series

KIT NO. SUB-BASE

RAK204U* Standard N/A

RAK204E15

RAK204E20

RAK204E30

Sub-Base

265V

Sub-Base

265V

Sub-Base

265V

CIRCUIT

AMPACITY CH AS EWAY

Not

Included

15 Included

20 Included

30 Included

POWER

CORD

Not

Included

Not

Included

Not

Included

Not

Included

Chaseway

RAK204D (AZ SERIES —EXCLUDES 45 & 65)

SUB-BASES WITH POWER CORD INCLUDED

• Made of heavy-gauge steel

• Full base enclosure with breakaway side channels

• 4-point leveling legs

• Sub-base adapts to service conduit, circuit breakers and receptacles up to 30 amps

• May also be used as a non-electrical sub-base to support the unit

• 9-pin connector

KIT NO. SUB-BASE

RAK204D15P

RAK204D20P

RAK 204D30P

Sub-Base

230/208V

Sub-Base

230/208V

Sub-Base

230/208V

CIRCUIT

AMPACITY CH AS EWAY

15 Included Included

20 Included Included

30 Included Included

POWER

CORD

Page 9

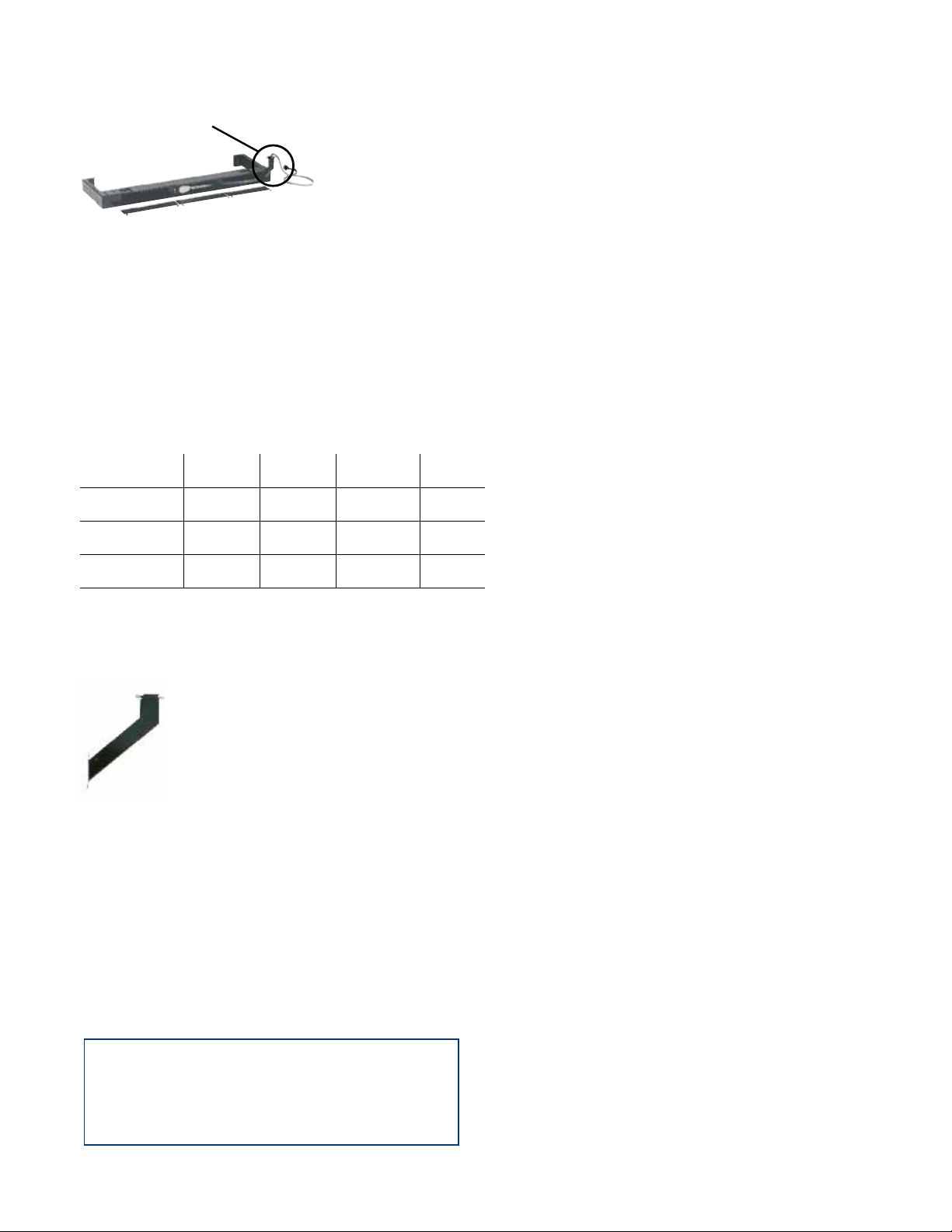

Chaseway

RAK204D

(AZ SERIES—45 & 65 ONLY)

SUB-BASES WITH POWER CORD INCLUDED

• Made of heavy-gauge steel

• Full base enclosure with breakaway side channels

• 4-point leveling legs

• Sub-base adapts to service conduit, circuit breakers and receptacles up to 30 amps

• May also be used as a non-electrical sub-base to support the unit

• 4-pin connector

KIT NO. SUB-BASE

RAK204D15C

RAK204D20C

RAK 204D30C

Sub-Base

230/208V

Sub-Base

230/208V

Sub-Base

230/208V

RAK205CW (AZ SERIES)

CHASE WAY

• For wiring contai nment between junction box on chassis and RAK204U sub-base

CIRCUIT

AMPACITY C HASEWAY

15 Included Included

20 Included Included

30 Included Included

POWER

CORD

*RAK204U May be use d with AZC and AZ 21, 31, 26 and 51.

geappliances.com / zoneline.com 9

Page 10

ZONELINE® PARTS & ACCESSORIES

RAK4157/4207/4307† (AZ SERIES—28, 29, 38, 39, 41, 55, 58

& 61 ONLY)

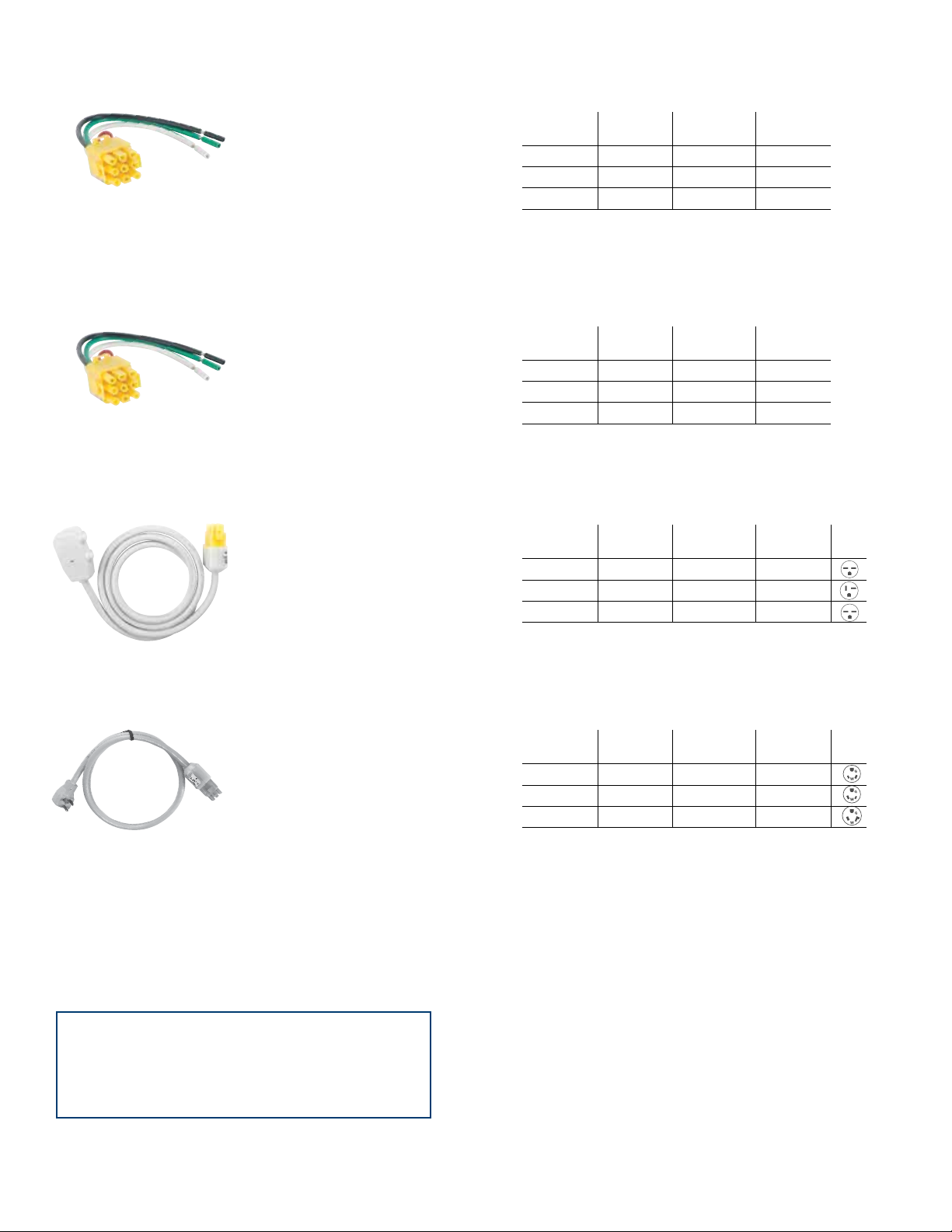

230/208-VOLT UNIVERSAL POWER SUPPLY KIT

• 9-pin connector with three 7" 12-gauge conductor wires

RAK5157/5207/5307† (AZ SERIES—28, 29, 38, 39, 41, 55, 58

& 61 ONLY)

265-VOLT UNIVERSAL POWER SUPPLY KIT

• 9-pin connector with three 7" 12-gauge conductor wires

RAK3153A/3203A/3303A† (AZ SERIES—28, 29, 38, 39, 41, 55, 58

& 61 ONLY)

15 & 20 AMP (230/208 VOLTS) UNIVERSAL POWER SUPPLY WITH LCDI

• 9-pin connector with three 7" 12-gauge conductor wires

KIT NO. VO LTS

RAK4157 230/208 2.4/2.32 kw 15

RAK4207 230/208 3.3/3.2 kw 20

RAK4307 230/20 8 4.7/4.53 kw 30

KIT NO. VO LTS

RAK5157 265 2.4 kw 15

RAK5207 265 3.4 kw 20

RAK5307 265 4.8 k w 30

KIT NO. VO LTS

RAK3153A 230/208 2.4/2.32 kw 15

RAK3203A 230/208 3.3/3.2 kw 20

RAK3303A 23 0/208 4.7/4.53 kw 30

HE ATE R

WATTAGE

HE ATE R

WATTAGE

HE ATE R

WATTAGE

CIRCUIT

AMPACITY

CIRCUIT

AMPACITY

CIRCUIT

AMPACITY

RAK5172/5202/5302† (AZ SERIES—28, 29, 38, 39, 41, 55, 58

& 61 ONLY)

15, 20, & 30 AMP (265 VOLTS) UNIVERSAL POWER SUPPLY

• Branch circuit plug to be used only in

KIT NO. VO LTS

RAK5172 265 2.4 kw 15

RAK5202 265 3.4 kw 20

RAK5302 265 4.8 kw 30

connection to appropriate sub-base

• 9-pin connector with three 7" 12-gauge conductor wires

† The power connection kit determines the heater wattage and current requirements when it is plugged into the Zoneline un it.

NOTE: 7,000 BTU models do not have 5,000-watt heaters.

††Heater wattage may vary slightly among models. 30-amp heater wattage is reduced in low fan operation.

HE ATE R

WATTAGE

CIRCUIT

AMPACITY

Page 11

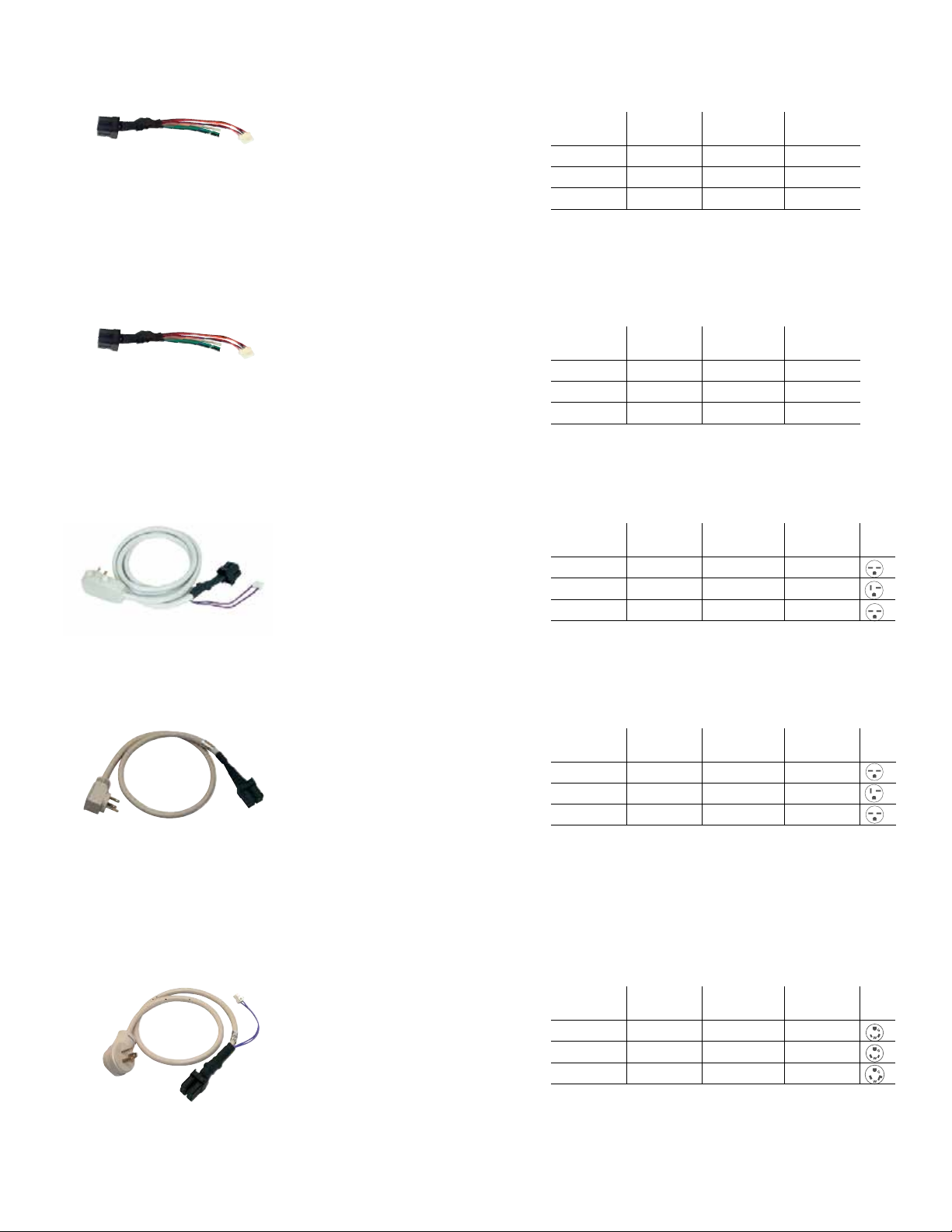

RAK315D/320D/330D††

RAK330D shown

(AZ SERIES—45 & 65 ONLY)

230/208-VOLT DIRECT CONNECT POWER SUPPLY KIT

• 4-pin connector with three 7" 12-gauge conductor wires and low-voltage personality plug on 20 amp and 30 amp kits

• Junction box included

KIT NO. VO LTS

RAK315D 2 30/208 2.4/ 1.99 kw 15

RAK320D 2 30/208 3.4/2.8 kw 20

RAK330D 23 0/208 4.8/3.99 kw 30

HE ATE R

WATTAGE

CIRCUIT

AMPACITY

RAK515D/520D/530D††

RAK530D shown

(AZ SERIES—45 & 65 ONLY)

265-VOLT UNIVERSAL DIRECT CONNECT POWER SUPPLY KIT

• 4-pin connector with three 7" 12-gauge conductor wires and low-voltage personality plug on 20 amp and 30 amp kits

RAK315P/320P/330P††

RAK320P shown

(AZ SERIES—45 & 65 ONLY)

230/208-VOLT UNIVERSAL POWER CORD KIT

• Six-foot power cord with LCDI

• 4-pin connector

• Low-voltage personality plug

on 20 amp and 30 amp kits

RAK315SP/320SP/330SP††

RAK315SP shown

(AZ SERIES—45 & 65 ONLY)

230/208-VOLT UNIVERSAL SHORT POWER CORD KIT

• Three-foot power cord WITHOUT LCDI

• 4-pin connector

• Low-voltage personality plug on 20 amp and 30 amp kits

• Only for use in existing sub-bases with new AZ45/65 units

• Junction box included

KIT NO. VO LTS

RAK515D 265 2 .4 kw 15

RAK520D 265 3.4 kw 20

RAK530D 265 4. 8 kw 30

KIT NO. VO LTS

RAK315P 230/208 2.4/1.96 kw 15

RAK320P 230/208 3.4/2.8 kw 20

RAK330P 230/2 08 4.8/3.99 kw 30

KIT NO. VO LTS

RAK315SP 230/208 2 .4/1.96 kw 15

RAK320SP 230/208 3.4/2.8 kw 20

RAK330SP 230/2 08 4.8/3.99 kw 30

HE ATE R

WATTAGE

HE ATE R

WATTAGE

HE ATE R

WATTAGE

CIRCUIT

AMPACITY

CIRCUIT

AMPACITY

CIRCUIT

AMPACITY

RAK515P/520P/530P††

RAK520P shown

(AZ SERIES—45 & 65 ONLY)

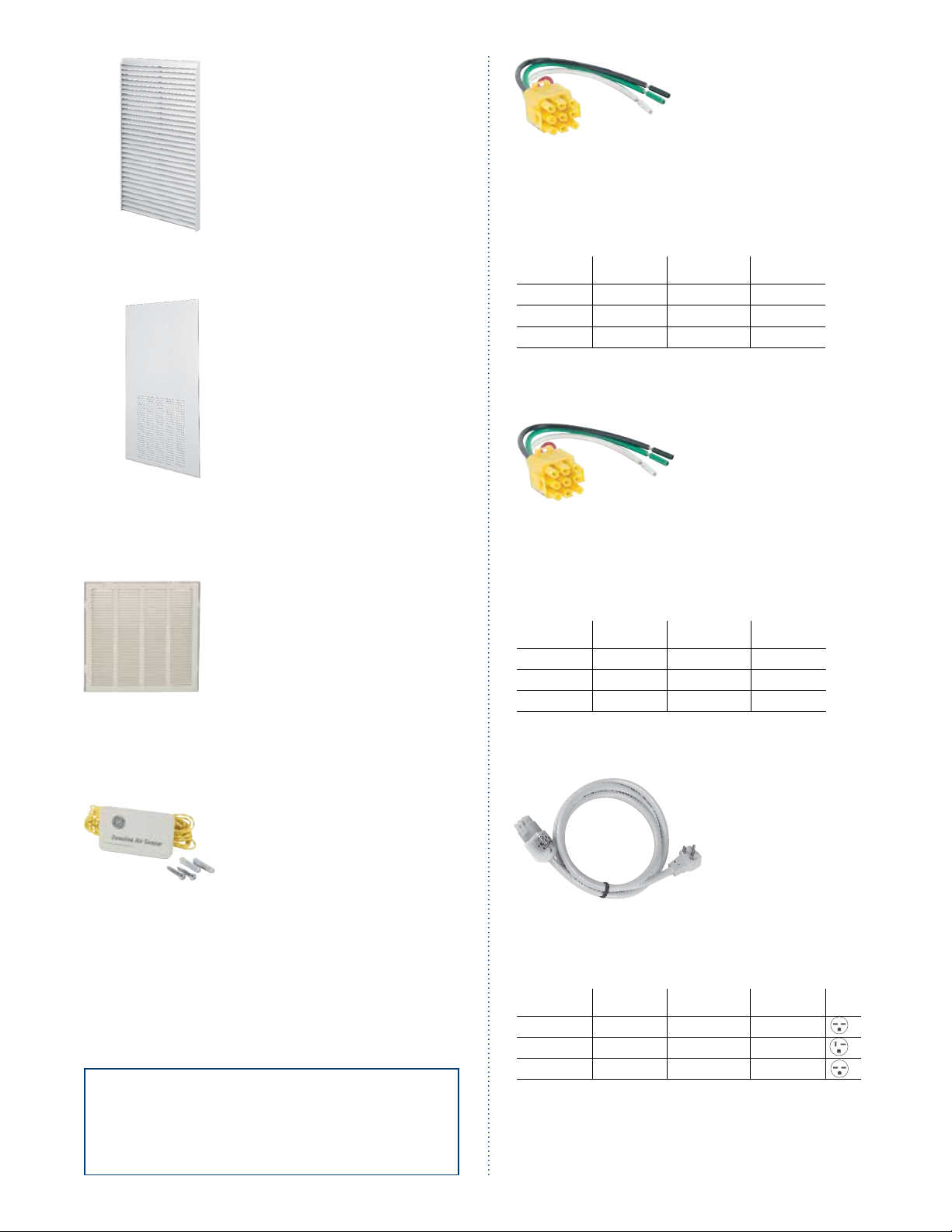

265 VOLTS UNIVERSAL POWER SUPPLY

• Three-foot power cord WITHOUT LCDI

• 4-pin connector

• Low-voltage personality plug on 20 amp and 30 amp kits

• Only for use in existing sub-bases and with new AZ45/65 units

KIT NO. VO LTS

RAK515P 265 2.4 kw 15

RAK520P 265 3.4 kw 20

RAK530P 265 4.8 kw 30

HE ATE R

WATTAGE

CIRCUIT

AMPACITY

geappliances.com / zoneline.com 11

Page 12

ZONELINE® PARTS & ACCESSORIES

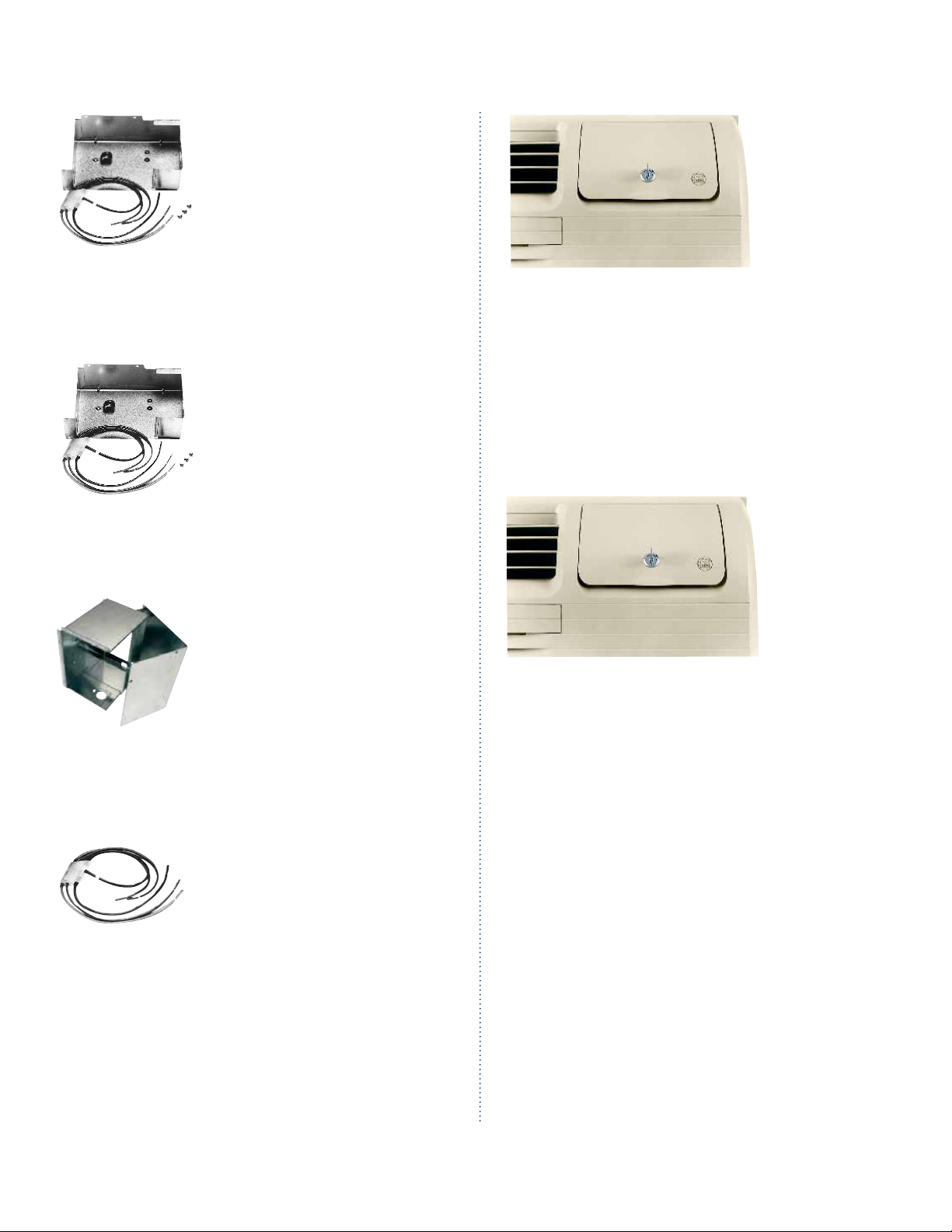

RAK4002A (AZ SERIES—25, 28, 29, 35, 38, 39, 41

& 61 ONLY)

DIRECT-CONNECT JUNCTION BOX (230/208 & 265 VOLTS)

• Kit for permanent connection of 230/208and 265-volt units to building power supply

• Includes multi-circuit connector harness for use on value line units

• Junction box is included on 265-volt units

RAK4002B while quantities last (AZ SERIES—55 & 58 ONLY)

DIRECT-CONNECT JUNCTION BOX (230/208 & 265 VOLTS)

• Kit for permanent connection of 230/208and 265-volt units to building power supply

• Includes multi-circuit connector harness for use on value line units

• Junction box is included on 265-volt units

RAK8022 while quantities last (AZ SERIES—22, 25, 32, 35, 52 & 55 ONLY)

LOCKING DOOR KIT

• Prevents access to Zoneline unit controls

• Includes key

• Provides two thumb screws for securing the room cabinet to the chassis on the lower right and left side

RAK4002C

(AZ SERIES—45 & 65 ONLY)

DIRECT-CONNECT JUNCTION BOX (230/208 AND 265 VOLTS)

• Kit for direct connection of 230/208-volt and 265-volt units to building power supply

• Junction box is included on 265-volt units

• Junction box is included with RAK315,

RAK320, RAK330, RAK315SP, RAK320SP and RAK330SP

RAK4002CW while quantities last (AZ SERIES—EXCLUDES 45 & 65)

DIRECT-CONNECT JUNCTION BOX WIRING (230/208 & 265 VOLTS)

• In-line 3-pin connector and wiring harness

• Allows easy disconnect of direct-connected applications

RAK8023 while quantities last (AZ SERIES—28, 29, 38, 39, 41, 58 & 61 ONLY)

LOCKING DOOR KIT

• Prevents access to Zoneline unit controls

• Includes key

• Provides two thumb screws for securing the room cabinet to the chassis on the lower right and left side

Page 13

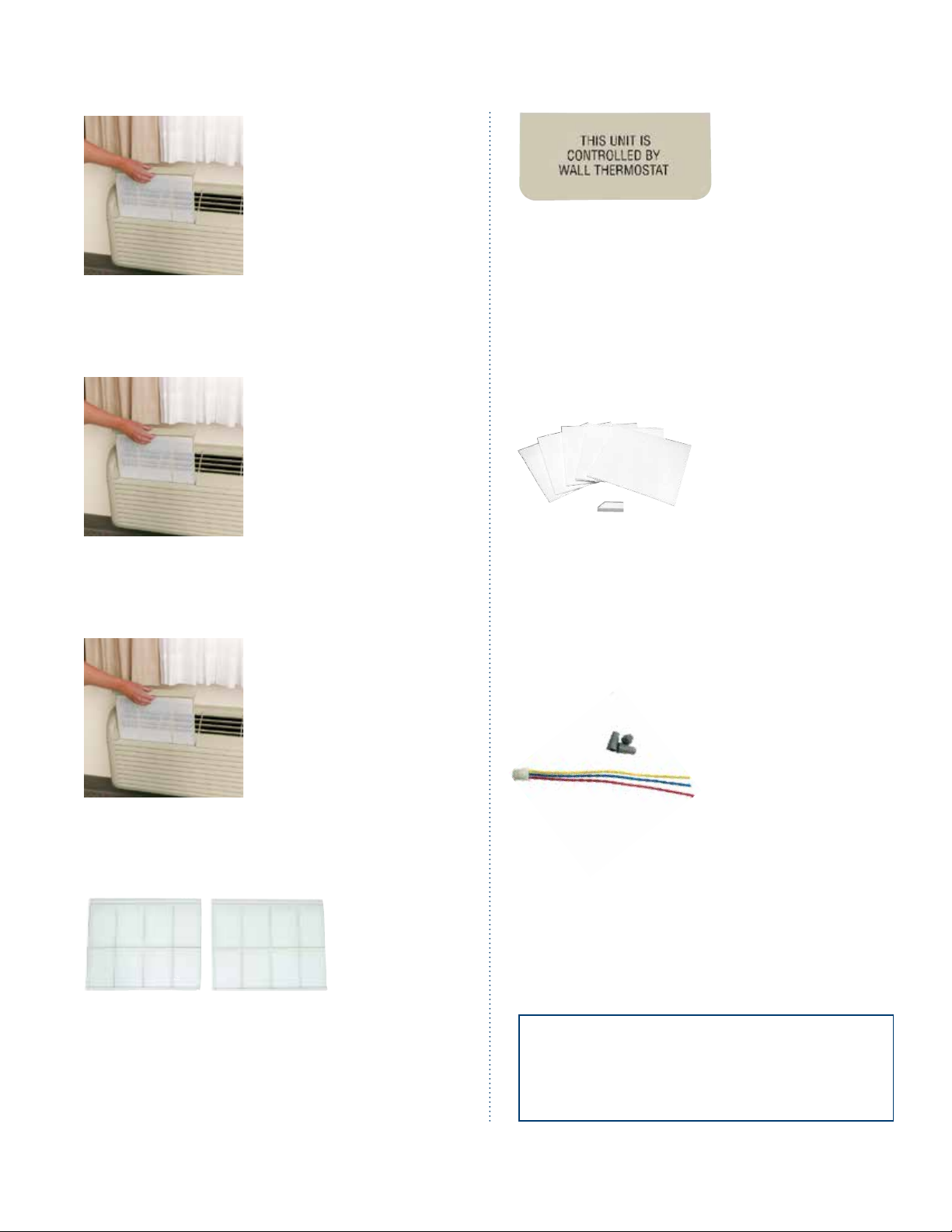

RAA62 while quantities last (AZ SERIES—22, 32 & 52 ONLY)

REPLACEMENT FILTERS FOR AZ MODELS

• 10 pairs per box

• Sold in pairs

• Conveniently accessible through the front of the unit

RAA62A while quantities last (AZ SERIES—25, 35 & 55 ONLY)

REPLACEMENT FILTERS

• 10 pairs per box

• Sold in pairs

• Conveniently accessible through the front of the unit

RAA63 (AZ SERIES—28, 29, 38, 39, 41,

58 & 61 ONLY)

REPLACEMENT FILTERS

• 10 pairs per box

• Sold in pairs

• Conveniently accessible through the front of the unit

RAK806 (AZ SERIES—EXCLUDES 45 & 65)

UNIVERSAL COVER LABEL (10 COVERS PER KIT)

• Covers control area, referring room occupant to use a remote thermostat

• Double-sided adhesive provided

RAK901L while quantities last (AZ SERIES)

WALL CASE INSULATION KIT

• Five pieces of 13" x 14" x 1/4" adhesive-backed polyethylene

• Insulates inside of RAB71A or RAB71B wall case

• Minimizes the formation of moisture on wall case exterior

RAA64

(AZ SERIES—45 & 65 ONLY)

REPLACEMENT FILTERS

• One pair per box

• Sold in pairs

• Conveniently accessible through the front of the unit

RAKCDC

(AZ SERIES—45 & 65 ONLY)

CDC WIRING CONNECTOR

• 3-wire connector

• Works with Central Desk Control system and thru wall fan option

• External fan option

A–B series: Zoneline units built before 1987 – Zoneline I, II, III, and IV; AZC series: Zoneline units built from 1987 to 1992 – Zoneline 1000, 2000, 2500, 2700, 3000, 4000, 5000; AZ series: Zoneline units built af ter 1992 – Zoneline 21, 31, 26, 51 / Zoneline 22, 32, 52 / Zoneline 25, 35, 55 / Zoneline 28, 29, 38, 39, 41, 45, 58, 61, 65, 75, 85.

geappliances.com / zoneline.com 13

Page 14

ZONELINE® PARTS & ACCESSORIES

AZ45 SERIES AZ65 SERIES

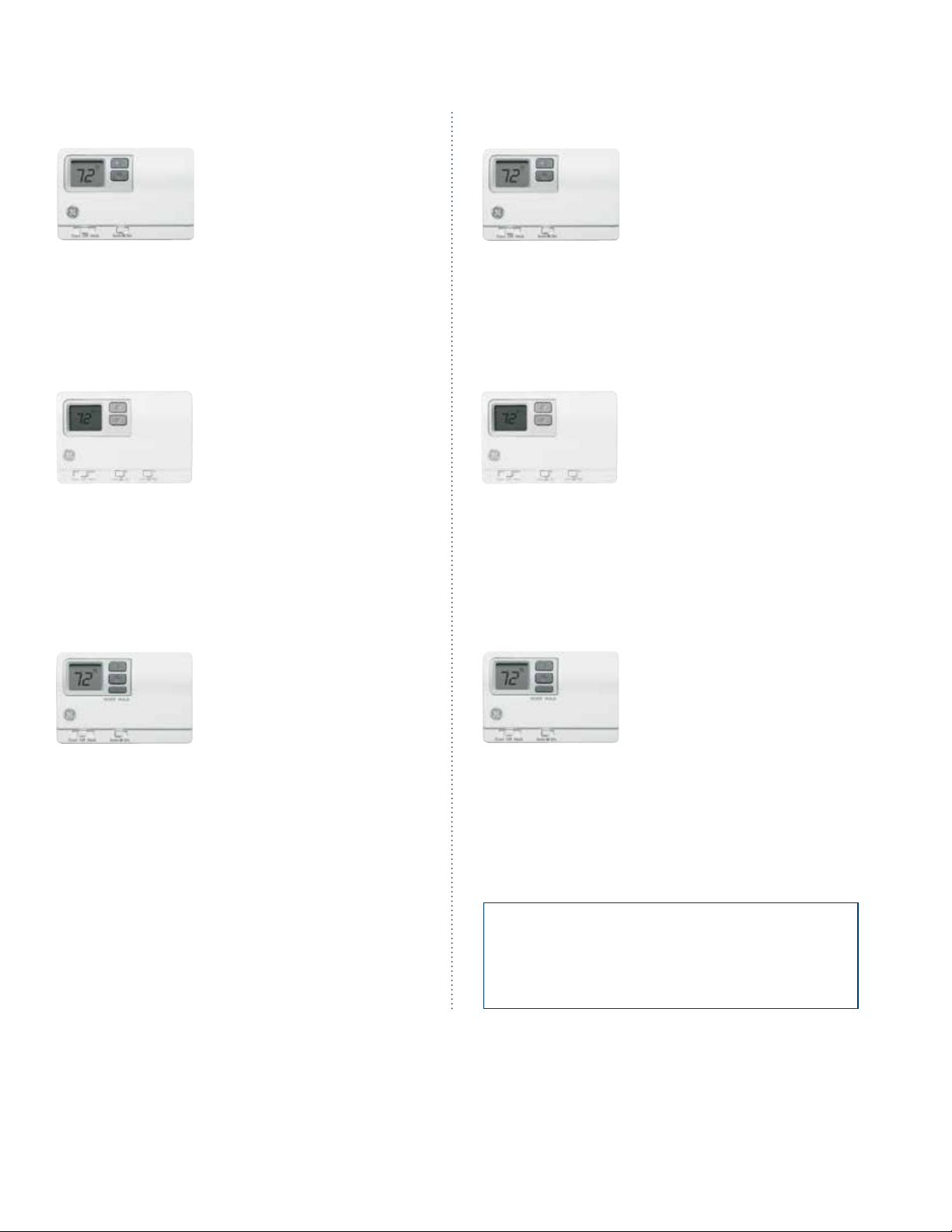

RAK164D2 (AZ 25, 28, 29, 41, 45, 75 & 85)

COOLING WITH ELECTRIC HEAT DIGITAL REMOTE TH E RMOSTAT

• 24V AC digital remote wall thermostat with single-stage cooling and single-stage heating for resistance heat models

• Requires 5-wire hookup

RAK164F2 (AZ 25, 28, 29,41,45,75 & 85)

DIGITAL TWO FAN SPEED THERMOSTAT FOR ELECTRIC RESISTANCE

• Two fan speeds

• 24V AC digital remote wall thermostat with single-stage cooling and single-stage heating for resistance heat models

• Requires 5-wire hookup

RAK148D2 (AZ 35, 38, 39, 55, 58, 61, 65, 75 & 85)

HEAT PUMP DIGITAL REMOTE TH E RMOSTAT

• 24V AC digital remote wall thermostat with single-stage cooling and 2-stage heating for heat pump models

• Requires 6-wire hookup

RAK148F2 (AZ 35, 38, 39, 55, 58, 61, 65, 75 & 85)

DIGITAL TWO FAN SPEED THERMOSTAT FOR HEAT PUMP

• Two fan speeds

• 24V AC digital remote wall thermostat

with single-stage cooling and 2-stage heating for heat pump models

• Requires 6-wire hookup

RAK164P2 (AZ 25, 28, 29, 41, 45, 75 & 85)

COOLING WITH ELECTRIC HEAT PROGRAMMABLE REMOTE THERMOSTAT

• 24V AC programmable remote wall thermostat with single-stage cooling and single-stage heating for resistance heat models

• Programmable for 7-day or 5+2-day programs

• Requires 5-wire hookup

RAK148P2 (AZ 35, 38, 39, 55, 58, 61, 65, 75 & 85)

HEAT PUMP PROGRAMMABLE REMOTE THERMOSTAT

• 24V AC programmable remote wall thermostat with single-stage cooling and 2-stage heating for heat pump models

• Programmable for 7-day or 5+2-day programs

• Requires 6-wire hookup

A–B series: Zoneline units built before 1987 – Zoneline I, II, III, and IV; AZC series: Zoneline units built from 1987 to 1992 – Zoneline 1000, 2000, 2500, 2700, 3000, 4000, 5000; AZ series: Zoneline units built af ter 1992 – Zoneline 21, 31, 26, 51 / Zoneline 22, 32, 52 / Zoneline 25, 35, 55 / Zoneline 28, 29, 38, 39, 41, 45, 58, 61, 65, 75, 85.

Page 15

GE APPLIANCES ZONELINE® WARRANTY

FOR THE PERIOD OF

ONE YEAR

From the date of the original purchase

FIVE YEARS

From the date of the original purchase

SECOND THROUGH FIFTH YEAR

From the date of the original purchase

HOW TO ORDER

GE APPLIANCES WILL REPLACE

Any part of the air conditioner which fails due to a defect in materials or workmanship. During this limited one-year warranty, GE will provide, free of charge, all labor and related service costs to replace the defective part.

Sealed Refrigerating System, if any part of the Sealed Refrigerating System (the compressor, condenser, evaporator, and all connecting tubing) should fail due to a defect in materials or workmanship. During this limited ﬁve-year warranty, GE will provide, free of charge, all labor and related service costs to replace the defective part.

Fan Motors, Switches, Thermostat, Heater, Heater Protectors, Compressor Overload,

Solenoids, Circuit Boards, Auxiliary Controls, Thermistors, Freeze Sentinel, Frost Controls, ICR Pump, Capacitors, Varistors and Indoor Blower Bearing, if any of these parts should fail

due to a defect in materials or workmanship. During this additional four-year limited warranty, the customer will be responsible for any labor and related service costs.

Call or go online to get the products, parts and accessories you need from GE Appliances.

ZONELINE.COM | GEAPPLIANCES.COM | GEAPPLIANCEPARTS.COM | 800.432.2737 – GE FACTORY SERVICE

ORDER GE APPLIANCES PARTS DIRECT

When you order GE Appliances Parts direct, you’ll be backed by quality and support you can count on:

• Original genuine parts

• Limited 1-year warranty

• Discounts and promotions

• Access to illustrated parts catalog

• Check status and availability

Apply for credit, speak to a GE Appliances Parts

YOUR PRODUCT INFORMATION:

Locate your Zoneline’s serial number:

• Remove cover

• Find the base pan, located at the bottom of the unit

• Serial number will be printed on the base pan

MY ACCOUNT NUMBER

MY SALES MANAGER

Specialist or buy genuine GE Appliances Parts at:

GECUSTOMERNET.COM | 800.851.6200

geappliances.com / zoneline.com 15

Page 16

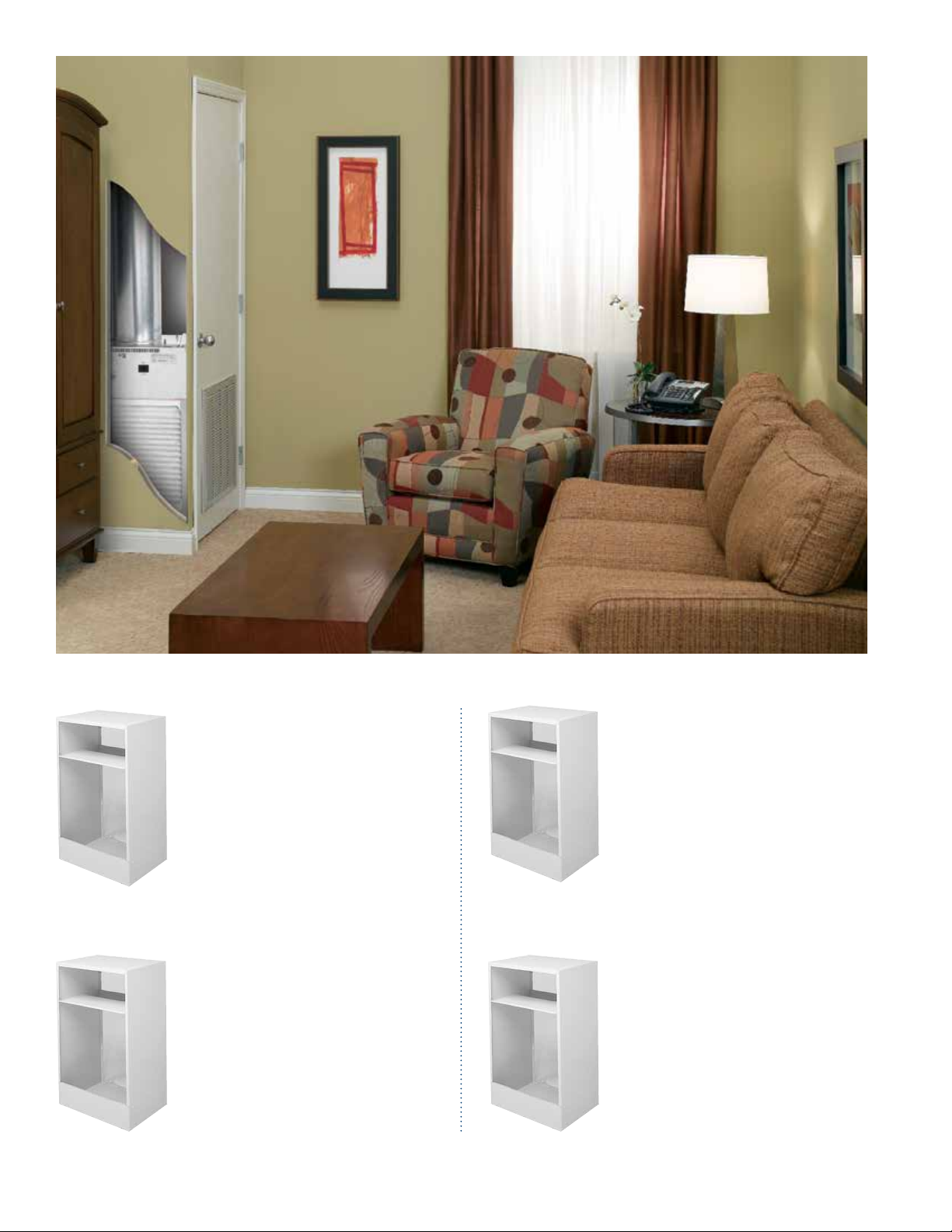

VERTICAL ZONELINE

RAVWP6 (AZ SERIES—75/85)

WALL PLENUM

• Wall plenum for installation in walls less than 6" thick

• Wall plenum 19-3/4" x 32"

• Wall cutout dimensions 20" x 32-1/4"

• Warm gray-beige color

RAVWP8 (AZ SERIES—75/85)

WALL PLENUM

• Wall plenum for installation in walls less than 8" thick

• Wall plenum 19-3/4" x 32"

• Wall cutout dimensions 20" x 32-1/4"

• Warm gray-beige color

RAVWP12 (AZ SERIES—75/85)

WALL PLENUM

• Wall plenum for installation in walls less than 12" thick

• Wall plenum 19-3/4" x 32"

• Wall cutout dimensions 20" x 32-1/4"

• Warm gray-beige color

RAVWP15 (AZ SERIES—75/85)

WALL PLENUM

• Wall plenum for installation in walls less than 15" thick

• Wall plenum 19-3/4" x 32"

• Wall cutout dimensions 20" x 32-1/4"

• Warm gray-beige color

Page 17

RAVAL1 (AZ SERIES—75/85)

ALUMINUM OUTDOOR GRILLE

• Extruded alum inum outdoor grille for installation on RAVWP series wall plenums

• Grille is 19-3/4" x 32" x 1-1/4"

• Mill finish

RAVRG1 (AZ SERIES—75/85)

ACCESS PANEL WITH RETURN AIR GRILLE

• Access panel with return air grille for installation in closet wall

• Allows access/removal of Vertical Zoneline for cleaning or service

• Outside dimensions 30" x 50"

• Wall cutout dimensions 28" x 48"

• Accepts 20" x 20" x 1" field-supplied filter

• Warm gray-beige color

RAVRG2 (AZ SERIES—75/85)

RETURN AIR GRILLE

• Return air grille for installation in closet wall

• Exterior dimensions 22-1/2" x 22-1/2"

• Wall cutout dimension 20-3/8" x 20-3/8"

• Accepts 20" x 20" x 1" field-supplied filter

• Warm gray-beige color

RAK5157/5207/5307† (AZ SERIES—75/85)

265-VOLT UNIVERSAL POWER SUPPLY KIT

• 9-pin connector with three 7" 12-gauge conductor wires

KIT NO. VO LTS

RAK5157 265 2.71 kw 15

RAK5207 265 3.55 kw 20

RAK5307 265 5.03 kw 30

HE ATE R

WATTAGE

AMPACITY

RAK4157/4207/4307† (AZ SERIES—75/85)

230/208-VOLT UNIVERSAL POWER SUPPLY KIT

• 9-pin connector with three 7" 12-gauge conductor wires

KIT NO. VO LTS

RAK4157 230/208 2,610/2,190 15

RAK4207 2 30/208 3,420/2 ,870 20

RAK7307 230/208 4,810/4,070 30

HE ATE R

WATTAGE

AMPACITY

CIRCUIT

RAVRM S while quantities last (AZ SERIES—75/85)

WALL-MOUNTED ROOM AIR SENSOR

• Wall-mounted room air sensor provides Temperature Limiting and Freeze Sentinel capability

• Includes 3-meter conductor wire for hook-up to Vertical Zoneline

• Required for Motion Sensor/Door Switch applications

A–B series: Zoneline units built before 1987 – Zoneline I, II, III, and IV; AZC series: Zoneline units built from 1987 to 1992 – Zoneline 1000, 2000, 2500, 2700, 3000, 4000, 5000; AZ series: Zoneline units built af ter 1992 – Zoneline 21, 31, 26, 51 / Zoneline 22, 32, 52 / Zoneline 25, 35, 55 / Zoneline 28, 29, 38, 39, 41, 45, 58, 61, 65, 75, 85.

RAK3152/3202/3302† (AZ SERIES—75/85)

15, 20, & 30 AMP (230/208 VOLTS) UNIVERSAL POWER SUPPLY

KIT NO. VO LTS

RAK3152 2 30/208 2,610/2,190 15

RAK3202 2 30/208 3,420/2, 870 20

RAK3302 230/208 4,810/4,070 30

† The power connection kit determines the heater wattage and current

requi rements when it is plugged into the Zoneline unit. NOTE: 7,000 BTU models do not have 5,000-watt heaters.

HE ATE R

WATTAGE

geappliances.com / zoneline.com 17

CIRCUIT

AMPACITY

Page 18

ORDER INFORMATION

ZONELINE® PARTS & ACCESSORIES

NUMBER DESCRIPTION MODEL TYPE PAG E NO.

RAA62 Replacement filters for AZ models (10 pairs per box) for 22, 32 & 52 only AZ 13 RAA62A Replacement filters (10 pairs per box) for 25, 35 & 55 only AZ 13 RAA63 Replacement filters (10 pairs per box) for 28, 38, 41, 45, 58, 61 & 65 only AZ 13 RAA64 Replacement filters (one pair per box) for 45 & 65 only AZ 13 RAB71A Wall case All Zoneline 4 RAB77A4 SMC wall case All Zoneline 4 RAB71B Wall case, 45 & 65 only AZ 4 RAB7116 Wall case, 16" 4 RAB7 124 Wall case, 24" 4 RAB7128 Wall case, 28" 4 RAB7131 Wall case, 31" 4 RAB7116B Wall case, 16", 45 & 65 only 4 RAB7124B Wall case, 24", 45 & 65 only 4 RAB77B SMC wall case, 45 & 65 only AZ 4 RAD10 Internal/external drain kit All Zoneline 5 RAF452 Replacement room cabinet (2-position louvers) for 22, 32 & 52 only AZ 6 RAF452A Replacement room cabinet (2-position louvers) for 25, 35 & 55 only AZ 6 RAF453A Replacement room cabinet (2-position louvers) for 28, 29, 38, 39, 41, 58 and 61 only AZ 6 RAF454 Replacement room cabinet (2-position louvers) for 45 & 65 only AZ 6 RAG60 Stamped aluminum exterior rear grille AZ 5 RAG61 Architectural rear grille, beige AZ 5 RAG62 Architectural rear grille, maple AZ 5 RAG63 Architectural rear grille, dark brown AZ 5 RAG67 Aluminum architectural outdoor grille AZ 5 RAK40 Air deflector kit AZ 6 RAK4002A Direct-connect junction box 230/208V for 25, 35, 28, 29, 38, 39, 41, 45, 61 & 65 only AZ 12 RAK4002B Direct-connect junction box 230/208V for 55, 58 only AZ 12 RAK4002C Direct-connect junction box, 230/208V and 265V for 45 & 65 only AZ 12 RAK4002CW Direct-connect junction box wiring, 230/208V and 265V excludes 45 & 65 AZ 12 RAK315P Universal power supply, 15 amp for 45 & 65 only AZ 11 RAK320P Universal power supply, 20 amp for 45 & 65 only AZ 11 RAK330P Universal power supply, 30 amp for 45 & 65 only AZ 11 RAK315D 230/208V Universal power supply, 15 amp for 45 & 65 only AZ 11 RAK320D 230/208V Universal power supply, 20 amp for 45 & 65 only AZ 11 RAK330D 230/20 8V Universal power supply, 30 amp for 45 & 65 only AZ 11 RAK515D 265V Universal power supply, 15 amp for 45 & 6 5 only AZ 11 RAK520D 265V Universal power supply, 20 amp for 45 & 6 5 only AZ 11 RAK530D 265V Universal power supply, 30 amp for 45 & 65 only AZ 11 RAK315SP 230/208V Universal power supply, short, 15 amp for 45 & 65 only AZ 11 RAK320SP 230/208V Universal power supply, short, 20 amp for 45 & 65 only AZ 11 RAK330SP 230/208V Universal power supply, short, 30 amp for 45 & 65 only AZ 11 RAK515P 265V Universal power supply, 15 amp for 45 & 65 only AZ 11 RAK520P 265V Universal power supply, 20 amp for 45 & 65 only AZ 11 RAK530P 265V Universal power supply, 30 amp for 45 & 65 only AZ 11 RAK41 57 230/208V Universal power supply, 15 amp for 28, 29, 38 , 39, 41, 55, 58 and 61 only AZ 10 RAK4207 230/208V Universal power supply, 20 amp for 28, 29, 38, 39, 41, 55, 58 and 61 only AZ 10 RAK4307 230/208V Universal power supply, 30 amp for 28, 29, 38, 39, 41, 55 , 58 and 61 only AZ 10 RAK5157 265V Universal power supply, 15 amp for 28, 29, 38, 39, 41 , 55, 58 and 61 only AZ 10 RAK5207 265V Universal power supply, 20 amp for 28, 29, 38, 39, 41, 55 , 58 and 61 only AZ 10 RAK5307 265V Universal power supply, 30 amp for 28, 29, 3 8, 39, 41, 55, 58 and 61 only AZ 10 RAK3153A 230/208V Universal power supply, 15 amp for 28, 29, 38, 39, 41, 55 , 58 and 61 only AZ 10 RAK3203A 230/208V Universal power supply, 20 amp for 28, 29, 38, 39, 41 , 55, 58 and 61 only AZ 10 RAK3303A 230/208V Universal power supply, 30 amp for 28, 29, 38, 39, 41, 55, 58 and 6 1 only AZ 10 RAK5172 Universal power supply, 15 amp, 265V for 28, 29, 38, 39, 41, 55 , 58 & 61 only AZ 10 RAK5202 Universal power supply, 20 amp, 265V for 28, 29, 38, 39, 41, 55, 58 & 61 only AZ 10 RAK5302 Universal power supply, 30 amp, 265V for 28, 29, 38, 39, 41 , 55, 58 & 61 only AZ 10 RAK205CW Chaseway for RAK204U sub-base AZ 9 RAK204D15P RAK204D20P RAK204D30P RAK204D15PC 230/208V, 15 amp sub-base with power cord, 45 & 65 only AZ 9 RAK204D20PC 230/208V, 20 amp sub-base with power cord, 45 & 65 only AZ 9 RAK204D30PC 230/208V, 30 amp sub-base with power cord, 45 & 65 only AZ 9

230/208V, 15 amp sub-base with power cord 230/208V, 20 amp sub-base with power cord 230/208V, 30 amp sub-base with power cord

, excludes 45 & 65 AZ 8

, excludes 45 & 65 AZ 8 , excludes 45 & 65 AZ 8

Page 19

ZONELINE® PARTS & ACCESSORIES

NUMBER DESCRIPTION MODEL TYPE PAGE NO.

RAK204E15 265V, 15 amp sub-base AZ 8 RAK204E20 265V, 20 amp sub-base AZ 8 RAK204E30 265V, 30 amp sub-base AZ 8 RAK204U Sub-base without elec trical devices or wiring AZ 8 RAK601 Duct extension AZC, AZ 7 RAK602 Air register and trim flange AZC, AZ 7 RAK601B Duct extension for 45 & 65 only AZ 7 RAK602B Air register and trim flange for 45 & 65 only AZ 7 RAK6052 Duct adapter for 22, 32, 25, 35, 28, 29, 38, 39, 41 & 61 only AZ 7 RAK6053 Duct adapter for 45 & 65 only AZ 7

RAK7012 RAK7013 Duct adapter for replacement of A-B with slated-front AZ chassis for 45 & 65 only AZ 7

RAK7022 RAK7023 Duct transition for replacement of AZC with slanted-front AZ chassis for 45 & 65 only AZ 8 RAK8022 Locking door kit for 22, 25, 32, 35 , 52 & 55 only AZ 12 RAK8023 Locking door kit for 28, 29, 38, 39, 41, 58 & 6 1 only AZ 12 RAK806 Universal cover label (10 covers per kit), excludes 45 & 65 AZ 13 RAK901L Wall case insulation kit AZ 13 RAKC DC CDC Wiring Connector for 45 & 65 only AZ 13

Duct adapter for replacement of A-B with rounded-front AZ chassis for 22, 32, 25, 35, 28 , 29, 38, 39, 41 & 61 only AZ 7

Duct transition for replacement of AZC with rounded-front AZ chassis for 22, 32, 25, 35, 28, 29, 38, 39, 41, 45, 61 & 65 only AZ 8

THERMOSTATS

NUMBER DESCRIPTION PAGE NO.

RAK148D2 Heat pump digital remote thermostat 14 RAK148F2 Heat Pup digital 2 fan speed remote thermostat 14 RAK148P2 Heat pump programmable remote thermostat 14 RAK164D2 Cooling with electric heat digital remote thermostat 14 RAK164F2 Cooling with electric heat 2 fan speeds digital remote thermostat 14 RAK164P2 Cooling with electric heat programmable remote thermostat 14

VERTICAL ZONELINE UNITS

NUMBER DESCRIPTION MODEL TYPE PAGE NO.

RAK3152 230/208V power connection kit (15 amp) for line-cord-connected units vertical series AZ 17 RAK3203 230/208V power connection kit (20 amp) for line -cord-connected units vertical series AZ 17 RAK3302 230/208V power connection kit (30 amp) for line-cord-connected units vertical series AZ 17 RAK41 57 230/208V power connection kit (15 amp) for permanently connected units AZ 17 RAK4207 230/208V power connection kit (20 amp) for permanently connected units AZ 17 RAK4307 230/208V power connection kit (30 amp) for permanently connected units AZ 17 RAK5157 265V power connection kit (15 amp) for permanently connected units AZ 17 RAK5207 265V power connection kit (20 amp) for permanently connected units AZ 17 RAK5307 265V power connection kit (30 amp) for permanently connected units AZ 17 RAVAL1 Exterior grille—19-3/4" W x 32" H AZ 17 RAVRG 1 Access panel—28" W x 4 8" H cutout AZ 17 RAVRG 2 Return air grille—20-3/8" W x 20-3/8" H cutout AZ 17 RAVRM S Freeze Sentinel/Temperature-limiting room sensor AZ 17 RAVWP 6 Wall plenum for up to 6" thick walls AZ 16 RAVWP 8 Wall plenum for up to 8" thick walls AZ 16 RAVWP 12 Wall plenum for up to 12" thick walls AZ 16 RAVWP 15 Wall plenum for up to 15" thick walls AZ 16

geappliances.com / zoneline.com 19

Page 20

GE ZONELINE®

A Story of American Invention

In 1961, the GE Zoneline® PTAC began making its way into hotels and

motels across the country, changing the face of comfort on the road.

Now, over 50 years later, GE Zoneline has been reinvented in Louisville, Kentucky, to

meet the changing needs of America’s hotel industry. The newest GE Zoneline PTACs are

engineered to be more reliable, ecient, quieter and incredibly easy to install and maintain.

RELIABLE

| With over one million units installed across the U.S. and remarkably low service

issues, GE Zoneline PTACs oer unrivaled reliability, consistent performance and constant

guest comfort.

UNMATCHED SERVICE & SUPPORT

| GE Appliances is the only manufacturer with a

dedicated factory service network and ﬁeld team. Our technicians service your Zoneline—

and any other GE appliances you have—in no time, so guest comfort is not compromised.

DISTRIBUTION

| Eight U.S. distribution centers and strategically located warehouses

mean faster delivery times

GE is a trademark of the General Electric Company. Manufactured under trademark license.

Appliance Park

Louisville, K Y 40225

geappliances.com

Pub. No. 20-S0145 PC84482
