GE ZISS420DRBSS Installation Guide

INSTALLATION

INSTRUCTIONS

Side by Side Refrigerators

With Design Guide

Pour obtenir une version française de ce manuel d’instructions,

visitez notre site monogram.com.

Para consultar una version en español de este manual de instrucciones,

visite nuestro sitio de internet monogram.com.

MONOGRAM.COM

Safety Information

BEFORE YOU BEGIN

Read these instructions completely and carefully.

IMPORTANT – Save these instructions for

• local inspector’s use. Observe all governing codes and ordinances.

Note to Installer – Be sure to leave these

• instructions with the Consumer.

• Note to Consumer – Keep these instructions with your Owner’s Manual for future reference.

If you received a damaged unit, you should immediately contact your dealer or builder.

Skill Level – Installation of this unit requires basic

mechanical, carpentry and plumbing skills. Proper installation is the responsibility of the installer. Product failure due to improper installation is not covered under the Monogram Warranty. See the Owner’s Manual for warranty information.

WARNING

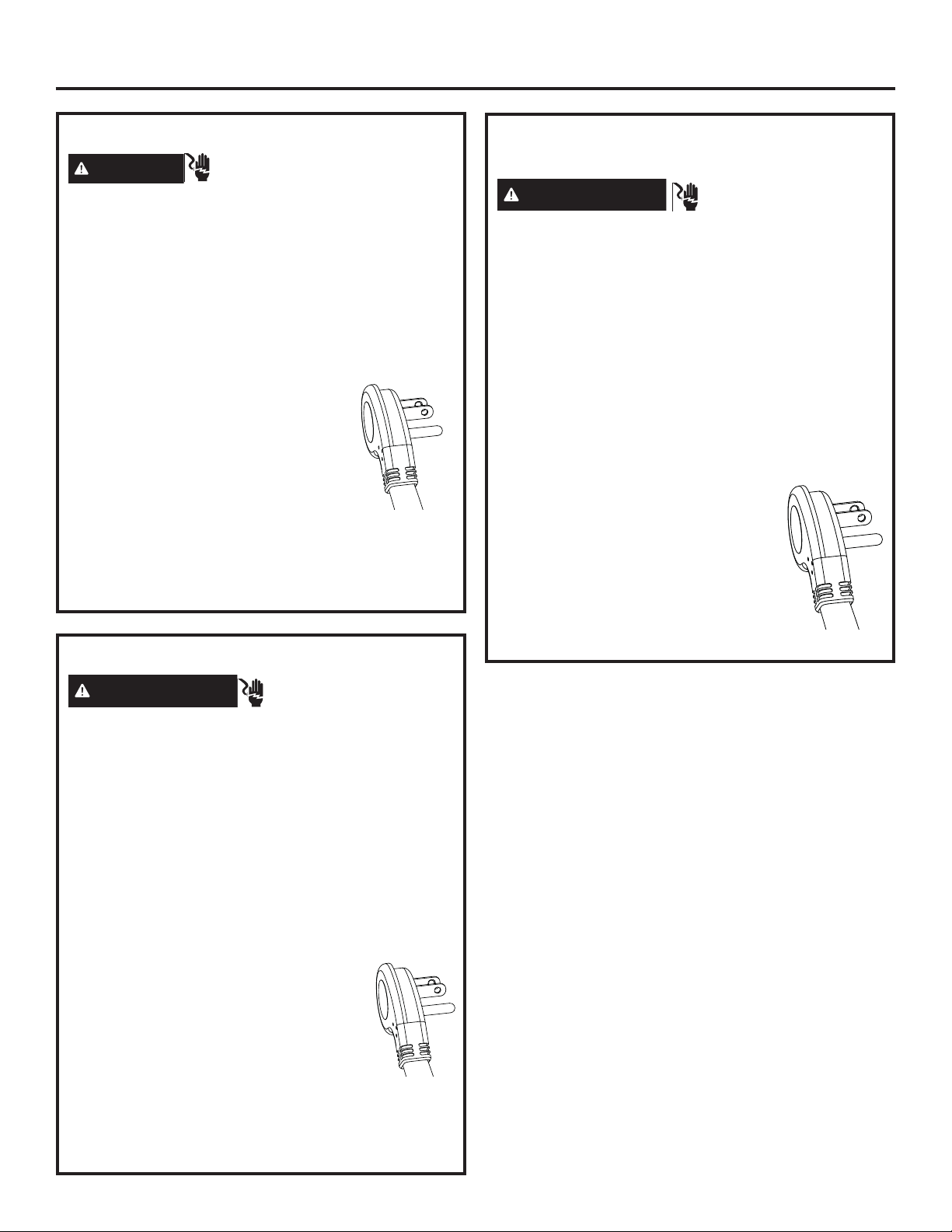

Plug into a grounded 3-prong outlet. Do not remove the ground prong. Do not use an adapter. Immediately discontinue use of a damaged supply cord.

If the supply cord is damaged it must be replaced by a qualified service professional with an authorized service part from the manufacturer.

WARNING

These appliances are top heavy, especially with any doors open, and must be secured to prevent tipping forward which could result in death or serious injury. Read and follow the entire installation instructions for securing the appliance with the anti-tip system.

WARNING

Electrical Shock Hazard.

Do not use an extension cord with this appliance. Failure to follow these instructions can result in death,

fire, or electrical shock. Follow the instructions in the section Grounding the unit. This appliance must be installed with a means in the

fixed house wiring or circuit breaker for disconnecting the appliance from the electrical supply after installation.

Tip Over Hazard.

Fire or Explosion Hazard.

Keep flammable materials and vapors away from appliance. Failure to do so can result in fire, explosion, or death.

WARNING

access to small parts during the installation of this product.

To reduce the risk associated with choking, do not allow children under 3 years of age to have

CAUTION

This refrigerator is very heavy. To reduce the risk of person injury during maneuvering and installing this refrigerator, 3 people are required for proper installation of 36” wide model and 4 people are required for proper installation of a 42” or 48” wide model.

CAUTION

and cabinet are necessarily small. Be careful closing doors when children are in the area.

For Monogram local service in your area, visit monogram.com For Monogram service in Canada, visit monogram.ca For Monogram Parts and Accessories, visit monogram.com/use-and-care/parts

Lifting Hazard

Keep fingers out of the “pinch point” areas; clearances between the doors and between the doors

31-1000450 Rev. 0

Consignes de Sécurité

AVANT DE COMMENCER

Veuillez lire toutes ces instructions attentivement.

• IMPORTANT – Conservez ces instructions à

l’usage de l’inspecteur local. Observez tous les codes et décrets en vigueur.

Note à l’installateur – Assurez-vous de laisser ces

• instructions au consommateur.

Note au consommateur - Conservez ces instructions

•

avec votre manuel d’utilisation pour

Si vous avez reçu un appareil endommagé, veuillez communiquer immédiatement avec votre revendeur ou votre

entrepreneur.

consultation ultérieure.

Niveau de compétence – L’installation de cet appareil

exige des compétences de base en mécanique, menuiserie et plomberie. La responsabilité d’une installation adéquate relève de l’installateur. La garantie Monogram ne couvre pas les défectuosités du produit causées par une installation inadéquate. Consultez le manuel d’utilisation pour des renseignements sur la garantie.

AVERTISSEMENT

Branchez l’appareil dans une prise à 3 broches mise à la terre. N’enlevez pas la broche de mise à la terre. N’utilisez pas un adaptateur. Cessez immédiatement l’utilisation d’un cordon électrique

endommagé. Si le cordon électrique est endommagé, son remplacement doit être exécuté par un technicien en réparation qualifié au moyen d’un cordon de rechange autorisé par le fabricant.

AVERTISSEMENT

Ces électroménagers sont lourds du haut, notamment lorsqu’une porte est ouverte, de sorte qu’ils doivent être fixés pour prévenir un basculement vers l’avant susceptible d’occasionner des blessures graves ou la mort. Lisez et observez la totalité des instructions d’installation pour connaître la façon de fixer l’électroménager sur le dispositif antibasculement.

AVERTISSEMENT

Gardez les matériaux et les vapeurs inflammables à l’écart de l’appareil. L’omission de prendre cette précaution peut entraîner un incendie, une explosion ou la mort.

AVERTISSEMENT

à la portée des enfants âgés de moins de 3 ans.

Risque d’électrocution.

N’utilisez pas un cordon de rallonge avec cet électroménager. Le non-respect de ces instructions peut occasionner un décès,

un incendie ou un choc électrique Suivez les instructions de la section Mise à la terre de l’appareil. Le circuit électrique auquel cet électroménager sera raccordé

doit comporter un disjoncteur ou un autre dispositif permettant de couper l’alimentation électrique à l’appareil après l’installation.

Risque de basculement.

Risque d’incendie ou d’explosion

Pour réduire le risque d’étouffement pendant l’installation de ce produit, ne pas laisser les petites pièces

ATTENTION

Ce réfrigérateur est très lourd. Pour réduire le risque de blessure lors de la manutention de ce réfrigérateur, trois (3) personnes sont nécessaires pour procéder à l’installation appropriée du modèle 36 pouces, quatre (4) pour l’installation des modèles 42 ou 48 pouces.

ATTENTION

l’armoire sont particulièrement restreints. Soyez prudent lorsque vous fermez les portes en présence d’enfants.

Pour joindre le service Monogram de votre région, visitez monogram.com Pour le service Monogram au Canada, visitez monogram.ca Pour le service des Pièces et accessoires Monogram, visitez monogram.com/use-and-care/parts.

31-1000450 Rev. 0

Risque lié à la manipulation d’un objet lourd

Gardez vos doigts éloignés des points de pincement. Les espaces entre les portes et ceux entre les portes et

Información sobre Seguridad

ANTES DE COMENZAR

Lea estas instrucciones en su totalidad y atentamente.

IMPORTANTE – Conserve estas

•

instrucciones para uso del inspector local. Cumpla con todos los códigos y ordenanzas gubernamentales.

• Nota para el Instalador – Asegúrese de

entregarle estas instrucciones al Comprador.

• Nota para el Consumidor – Guarde estas

instrucciones con su Manual del Propietario para referencia futura.

Si la unidad que recibió está dañada, se deberá comunicar de inmediato con su vendedor o fabricante.

Nivel de habilidad – La instalación de esta unidad

requiere un nivel básico de habilidades mecánicas, de carpintería y plomería. La correcta instalación del producto es responsabilidad del instalador. Si se producen fallas en el producto debido a una instalación inadecuada, la Garantía de Monogram no cubrirá las mismas. Para obtener información sobre la garantía, consulte el Manual del Propietario.

ADVERTENCIA

Enchufe en un tomacorriente con conexión a tierra de 3 cables.

No elimine el cable de conexión a tierra. No use un adaptador. Inmediatamente interrumpa el uso de un cable de

suministro de corriente dañado. Si el cable de corriente se encuentra dañado, su reemplazo deberá ser realizado por un profesional calificado del servicio técnico, utilizando una pieza del servicio técnico autorizada por el fabricante.

ADVERTENCIA

Estos electrodomésticos son inestables, especialmente cuando una puerta se encuentre abierta, y deben estar asegurados a fin de evitar caídas hacia adelante que podrían resultar en la muerte o en lesiones graves. Lea y siga las instrucciones de instalación en su totalidad para asegurar el electrodoméstico con el sistema anti volcaduras.

ADVERTENCIA

Mantenga cualquier material y vapores inflamables, tales como gasolina, alejados del electrodoméstico. Si no se cumple con esto, se podrá producir una explosión, un incendio o la muerte.

ADVERTENCIA

años de edad tengan acceso a las partes pequeñas durante la instalación de este producto.

Riesgo de Descarga Eléctrica

No use prolongadores con este electrodoméstico. Si no se siguen estas instrucciones, se podrá producir la

muerte, incendios o descargas eléctricas. Siga las instrucciones que figuran en la sección de

Conexión de Tierra de la unidad. Este electrodoméstico deberá ser instalado por algún

medio en el cableado fijo del hogar o en un disyuntor para desconectar el electrodoméstico del suministro eléctrico luego de la instalación.

Riesgo de Caídas

Riesgo de Explosión

A fin de reducir el riesgo asociado con descargas, no permita que los niños menores de 3

PRECAUCIÓN

Este refrigerador es muy pesado. A fin de reducir el riesgo de lesiones personales durante la maniobra e instalación de este refrigerador, se requiere contar con 3 personas para una correcta instalación del modelo de 36” de ancho y con 4 personas para una correcta instalación del modelo de 42” o 48”.

PRECAUCIÓN

las puertas y entre las puertas y el gabinete son necesariamente pequeños. Tenga el cuidado de cerrar las puertas cuando se encuentren niños en el área.

Para acceder al servicio local de Monogram en su área, visite monogram.com Para acceder al servicio de Monogram en Canadá, visite monogram.ca Para acceder a Piezas y Accesorios de Monogram, visite monogram.com/use-and-care/parts

Riesgo al levantar la puerta

Mantenga los dedos fuera de los espacios de “riesgo de lastimaduras”; los espacios entre

31-1000450 Rev. 0

Contents

Safety 2 Instructions for Standard Installation 6

Planning Guide

The Installation Space 7 Dimensions and Clearances 8 Customization Basics 9 Side Panels 9 Refrigerator Location 9 Optional Accessory Kits 9 1/4” Framed Panel Dimensions 10 3/4” Overlay Panel Dimensions 11 130° Door Swing 12 90° Door Swing 13 Dispenser Trim 14

Installation Instructions

Tools, Hardware, Materials 14 Grounding the Unit 15 Step 1. Remove Packaging 16 Step 2. Move the Refrigerator into the House 16 Step 3. Install Water Line 16 Step 4. Installation with Filtration System 17 Step 5. Install Side Panels 17 Step 6. Anti-Tip Procedures 17 Step 7. Level Refrigerator 19 Step 8. Alternate Anti-Tip Procedure 19 Step 9. Adjust Door Swing 20 Step 10. Install Grille Panel 20 Step 11. Install 1/4” Framed Panels 21 Step 11A. Install Overlay Panels 22 Step 12. Connect Water Supply 24 Step 13. Connect Power, Close Grille Panel 25 Step 14. Start Icemaker 25 Step 15. Install Toekick 26 Inspect Final Installation 26

Instructions for Flush Inset Installation 27 Instructions for Stainless Steel Installation 28

Planning Guide

The Installation Space 29 Dimensions and Clearances 30 Customization Basics 31 Side Panels 31 Refrigerator Location 31 130° Door Swing 32 90° Door Swing 33

Installation Instructions

Tools, Hardware, Materials 34 Grounding the Unit 34 Step 1. Remove Packaging 35 Step 2. Moving the Refrigerator into the House 35 Step 3. Install Water Line 36 Step 4. Installation with Water Filtration System 37 Step 5. Install Side Panels 37 Step 6. Anti-Tip Procedure 37 Step 7. Level Refrigerator 38 Step 8, Alternate Anti-Tip Procedure 38 Step 9. Adjust Door Swing 39 Step 10. Connect Water Supply 39 Step 11. Connect Power, Close Grille Panel 40 Step 12. Start Icemaker 40 Step 13. Install Toekick 41 Inspect Final Installation 41

31-1000450 Rev. 0

Instructions for Standard Installation

31-1000450 Rev. 0

Design Guide - Standard Installation

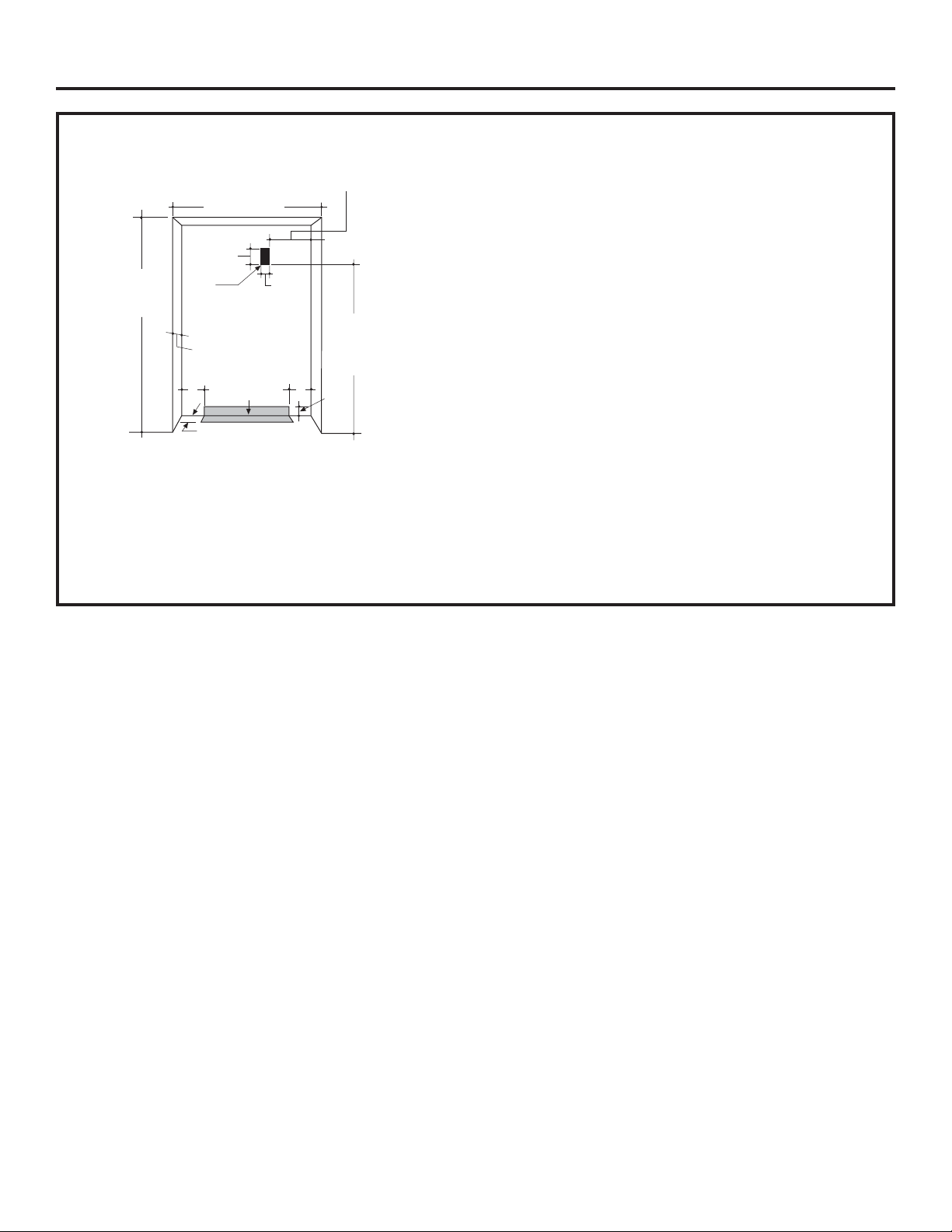

THE INSTALLATION SPACE

36" Models 12" 42" Models 18" 48" Models 20"

*Finished Width

84 1/2" max

Finished Opening

*The finished cutout width must be:

35-1/2” (90.17 cm) for 36” models 41-1/2” (105.41 cm) for 42” models 47-1/2” (120.65 cm) for 48” models

Electrical Area

24"

Water Supply

3 1/2"

75" From Floor

3 1/2"

to Bottom

of Electrical

Area

The Cutout Depth Must Be 24” (60.96 cm)

The refrigerator will project forward, slightly beyond adjacent cabinetry for standard installation.

Additional Specifications

• A 115 volt 60Hz., 15 or 20 amp power supply is required. An individual properly grounded branch circuit or circuit breaker is recommended. Install a properly grounded 3-prong electrical receptacle recessed into the back wall. Electrical must be located on the rear wall as shown.

• Water line can enter the opening through the floor

or back wall. Route SmartConnect™ kit or 1/4” O.D. copper tubing between the cold water line and the water connection location. The tubing should be long enough to extend to the front of the refrigerator. Installation of an easily accessible shut-off valve in the water line is required.

Water And Electrical Locations

The opening must be prepared with the electrical and the cold water supply located as shown.

31-1000450 Rev. 0

Design Guide - Standard Installation

DIMENSIONS AND CLEARANCES

35 1/2", 41 1/2",

or 47 1/2"

Case Width

*84 1/2” max

83-1/2" min

at Rear

36", 42" or 48"

Frame to Frame

Depth Including 3/4” panel, 25-15/16”

25-3/8" Framed Models

* Shipping height. The

refrigerator can be adjusted to fit into a

*84" From Floor

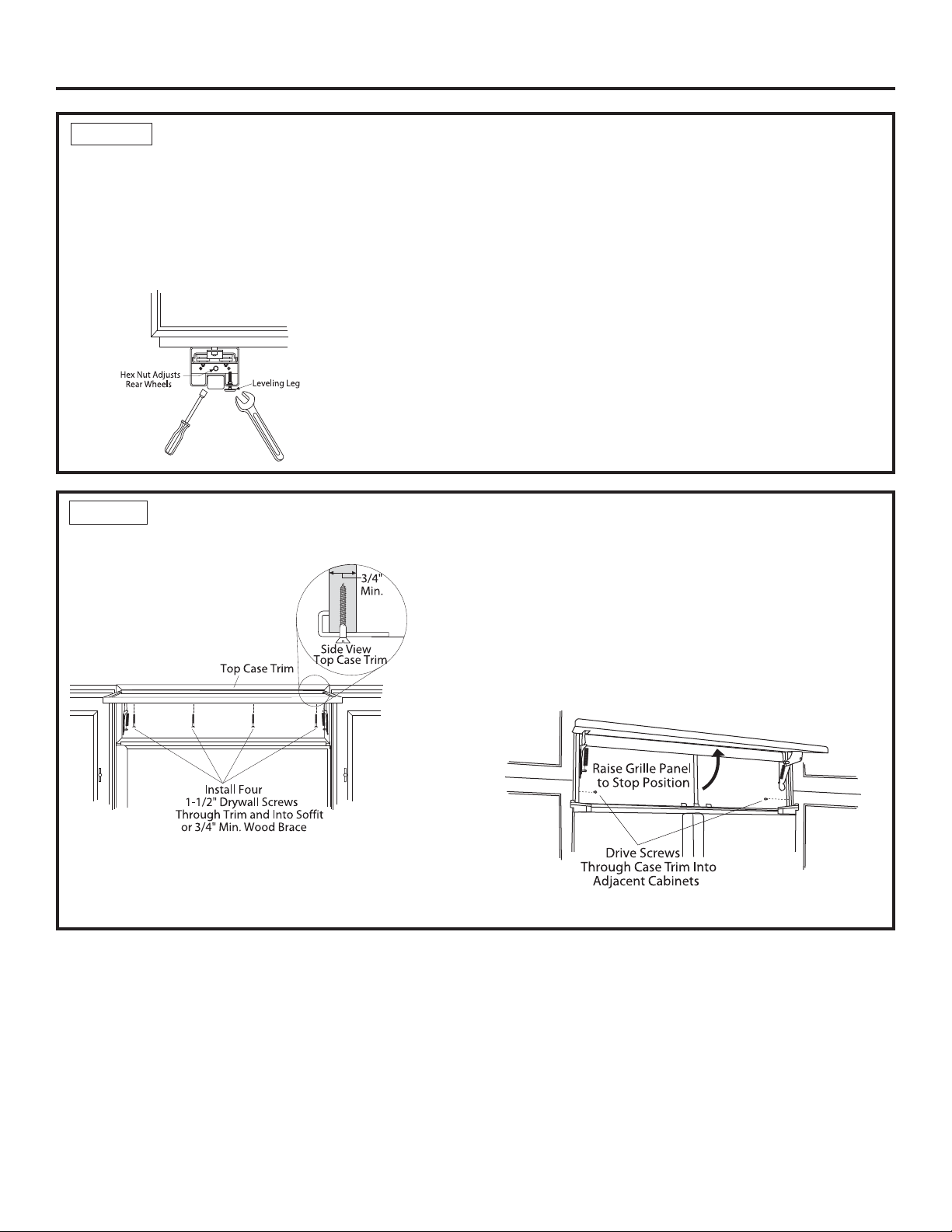

cutout that is 84-1/2” (214.63 cm) in height. Use leveling legs and wheels for a maximum 1” (2.54 cm) height adjustment.

Product Clearances

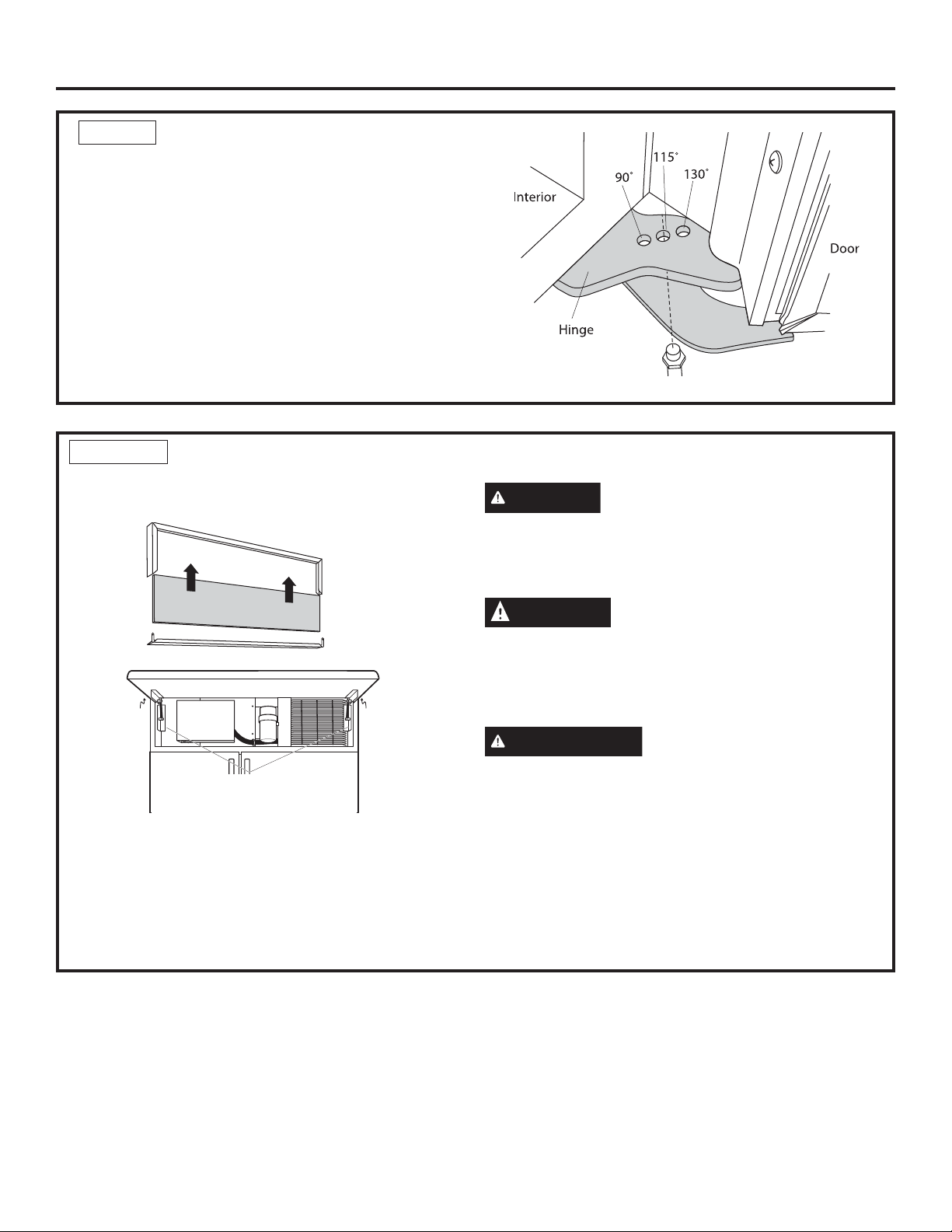

These refrigerators are equipped with a 3-position door stop. The factory-set 115° door swing can be adjusted to 130°, or to 90° on panel models or 90° on stainless steel models if clearance to adjacent cabinets or walls is restricted. Panel Models Only: Allow minimum clearances for the freezer door (Dimension A) and fresh food door (Dimension B) for a full 130° door swing and to allow for pan removal.

For a 90° door swing, allow 4 9/16” (11.59 cm) min. clearance to a wall. If the 90° door stop position is used, pan access is maintained, but pan removal is restricted.

See the illustrations on pages 12 and 13 to determine door swing interaction with adjacent cabinets or countertops.

130° Door Swing

(Panel Models Only)

Dimensions based on custom handles height of 2 9/16” ( 6.51 cm).

ZISB36 A B C

90° 4-9/16”

130° 13” (33.02 cm) 15” (38.1 cm) 20-9/16” (52.23 cm)

ZIS420

ZISB42

90° 4-9/16”

130° 13” (33.02 cm) 19” (48.26 cm) 26-9/16” (67.47 cm)

ZIS480

ZISB48

90° 4-9/16”

130° 15” (38.1 cm) 20” (52.23 cm) 28-5/8” (72.71 cm)

(11.59 cm) 4-9/16” (11.59 cm) 20-9/16” (52.23 cm)

AB C

(11.59 cm) 4-9/16” (11.59 cm) 26-9/16” (67.47 cm)

AB C

(11.59 cm) 4-9/16” (11.59 cm) 28-5/8” (72.71 cm)

115° Door Swing

90° Door Swing

23-5/8" Behind

Frame

*4 9/16” Min.

Distance to Wall

31-1000450 Rev. 0

Design Guide - Standard Installation

CUSTOMIZATION BASICS:

These refrigerators are designed to be customized with decorative panels. Field installed custom door and grille panels are required.

SIDE PANELS

Side panels must be used whenever the sides of the refrigerator will be exposed. The 1/4” (0.63 cm) side panels will slip into the side case trim. Secure the panels to the refrigerator with stick-on hook and loop fastener strips. Order the side panels from the cabinet manufacturer.

• Cut a notch in the top front corner as shown to allow clearance for corner keys in the front side trim.

24"

3/16"

1-7/8"

*84"

*3" to 4"

2-9/16"

* Depending on installation height.

REFRIGERATOR LOCATION

• Do not install the refrigerator where the temperature will go below 55°F (13°C). It will not run often enough to maintain proper temperatures.

• Do not install the refrigerator where temperatures will go above 100°F (37°C). It will not perform properly.

• Do not install the refrigerator in a location exposed to water (rain, etc.) or direct sunlight.

• Install it on a floor strong enough to support it fully loaded.

OPTIONAL ACCESSORY KITS

ZKLN: Visor handle kit for use on custom panel models in a standard installation.

31-1000450 Rev. 0

Design Guide - Standard Installation

1/4” (0.63 cm) FRAMED PANEL DIMENSIONS

If you choose to install framed panels, they must be cut to the dimensions shown. The panels will slide into the frame on the

Door

door and grille.

Non-Dispenser Models

If the custom panel is less than 1/4” (0.63 cm) thick and it fits loosely in the door frame it can be backed up with a piece of filler material or foam tape to improve the fit.

IMPORTANT NOTE: Maximum total panel weight:

• Fresh food door panel – 75 lbs.(34.0 kg)

• Freezer door panel – 53 lbs. (24.0 kg)

• Grille Panel – 18 lbs. (8.16 kg)

IMPORTANT NOTE – DISPENSER MODELS

The refrigerator is supplied with two dispenser trims, one for framed panels and one for overlay panels.

• If the panel is less than 0.250” (0.63 cm) thick, a noticeable gap may be created around the dispenser trim. Foam tape may be applied on the door to improve the fit.

• If the panel is more than 0.250” (0.63 cm) thick, the dispenser trim cannot be secured to the door.

See Dispenser Trim Fit Example, page 13.

5/16"

Trim

Reveal

1/4"

Panel

Dispenser

Freezer

Cutout

Panel

Grille Panel

Fresh Food

Panel

Dispenser Cutout

11”

The framed panel must be 1/4” (0.63 cm) nominal thickness to fit the dispenser trim.

13-5/16"

Dispenser Cutout

Side-by-Side (in inches)

ABCD E F G

Position

36” Models 33-7/8 9 68-3/8 14-9/16 18-9/16 34-3/16 1-7/8 42” Models 39-7/8 9-1/2 68-3/8 14-9/16 24-9/16 34-3/16 1-7/8 48” Models 45-7/8 9-1/2 68-3/8 18-9/16 26-9/16 34-3/16 3-7/8

31-1000450 Rev. 0

Design Guide - Standard Installation

3/4” (1.91 cm) OVERLAY PANEL DIMENSIONS

For a more custom appearance, overlay panels may be installed on trimmed models. The overlay panel must be secured to a 1/4” (0.63 cm) thick backer panel which slides into the trim. A spacer panel 0.10”

Door

3/4"

Overlay

Panel

Overlay Panel

Spacer Panel

Backer Panel

(0.25 cm) thick must be placed between the overlay and backer panel.

Assemble the panels with glue and screws:

• Center the spacer panel on the backer panel, left to right and top to bottom. Secure the panels with glue.

• Center the spacer and backer panel on the overlay panel and secure with glue and screws. Screws must be countersunk into the backer panel.

1/4"

Backer

Panel

.250” + .10” + .750” = 1.100” Total Panel Thickness

0.63 + 0.25 + 1.91 = 2.79 cm

.10"

Spacer

NOTE: Left-to-right offset is not always equal to topto-bottom offset.

IMPORTANT NOTE – DISPENSER MODELS

The refrigerator is supplied with two dispenser trims, one for framed panels and one for overlay panels. The overlay dispenser trim is designed to fit a total panel thickness of 1.100”.

• If the panel is less than 1.100” (2.79 cm) a noticeable gap may be created around the dispenser trim.

• If the panel is more than 1.100” (2.79 cm) the dispenser trim cannot be secured to the door.

See Dispenser Trim Fit Example, page 13.

• The overlay panel must be constructed according to the specifications shown to achieve the correct total thickness.

• Alternative panel construction methods such as securing a 3/4” (1.91 cm) panel to a 1/4” (0.63 cm) backer panel cannot be used. Another method, routing a 3/4” (1.91 cm) thick panel on all sides, cannot be used. These methods will not result in the required 1.100” (2.79 cm) panel thickness.

Dispenser

Freezer

Cutout

Panel

Grille Panel

Fresh Food

Panel

Dispenser Cutout

13-5/16"

*Cut the dispenser opening after the backer, spacer and overlay

panels have been assembled.

IMPORTANT NOTE: Maximum total weight for the assembled panels:

• Fresh food door panel – 75 lbs. (34.0 kg)

• Freezer door panel – 53 lbs. (24.0 kg)

• Grille Panel – 18 lbs. (8.16 kg)

11”

36” Side-by-Side (in inches)

ABCD E F G

1/4” Backer Panel 33-7/8 9 68-3/8 14-9/16 18-9/16 .10” Spacer Panel 33 8-3/8 67 13-1/4 17-1/4 3/4” Overlay Panel 34-1/8 9-1/4 68-5/8 14-13/16 18-13/16 34-5/16 2

42” Side-by-Side (in inches)

ABCD E F G

1/4” Backer Panel 39-7/8 9-1/2 68-3/8 14-9/16 24-9/16 .10” Spacer Panel 39 8-5/8 67 13-1/4 23-1/4 3/4” Overlay Panel 40-1/8 9-3/4 68-5/8 14-13/16 24-13/16 34-5/16 2

48” Side-by-Side (in inches)

ABCD E F G

1/4” Backer Panel 45-7/8 9-1/2 68-3/8 18-9/16 26-9/16 .10” Spacer Panel 45 8-5/8 67 17-1/4 25-1/4 3/4” Overlay Panel 46-1/8 9-3/4 68-5/8 18-13/16 26-13/16 34-5/16 4

Dispenser Cutout

Position

31-1000450 Rev. 0

Refrigerator

Design Guide - Standard Installation

Frameless Cabinets: The case trim

overlaps cabinets at the top and sides. Therefore, frameless cabinets may require

23-7/8" From

Rear of

Refrigerator

filler strips to prevent interference with cabinet door swing. The opening must allow for filler strips.

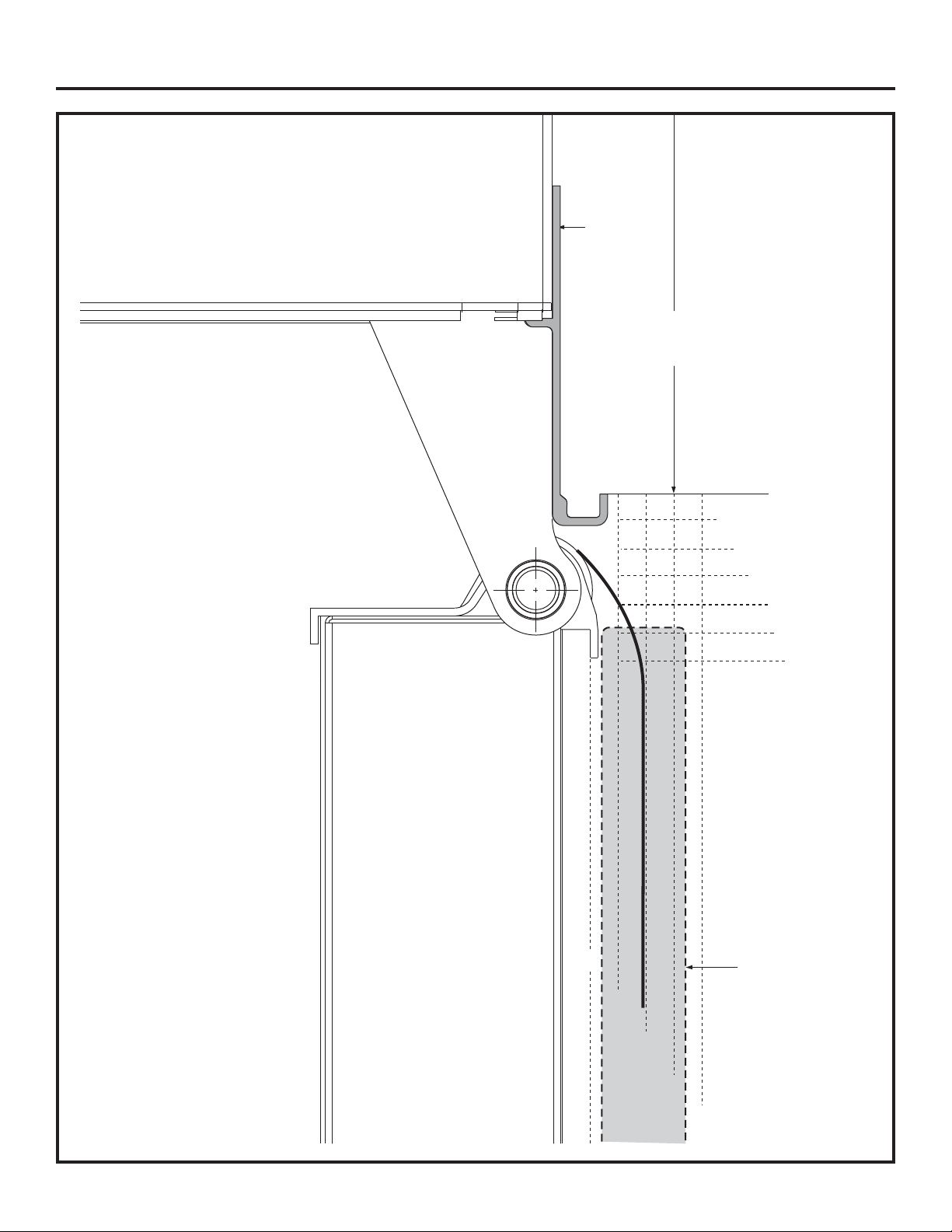

Top View 130° DOOR SWING

Scale 1:1

Case

Trim

Door

1/4"

1/2"

3/4"

1-1/4"

1-3/4"

1-1/2"

Stainless Steel

1/4"

2-1/2"

2-1/4"

3/4" Overlay

(Nominal Size)

1/2"

2-3/4"

Panel

3/4"

1/4"

1/2"

3/4"

1-1/4"

IMPORTANT NOTE – FOR DISPENSER MODELS:

Dispenser models are supplied with two dispenser trims, one to fit framed panels and one for overlay panels. Dispenser

trim fit to the custom panel depends on correct panel thickness. Framed panels

must be 1/4” (0.63 cm) nominal. Overlay panels should be constructed as shown to accomplish a total 1.100” (2.79 cm) thickness. See page 13 for details.

31-1000450 Rev. 0

Design Guide - Standard Installation

Frameless Cabinets:

The case trim overlaps cabinets at the top

Refrigerator

Case Trim

23-7/8"

From Rear of

Refrigerator

and sides. Therefore, frameless cabinets may require filler strips to prevent interference with cabinet door swing. The opening must allow for filler strips.

1/4"

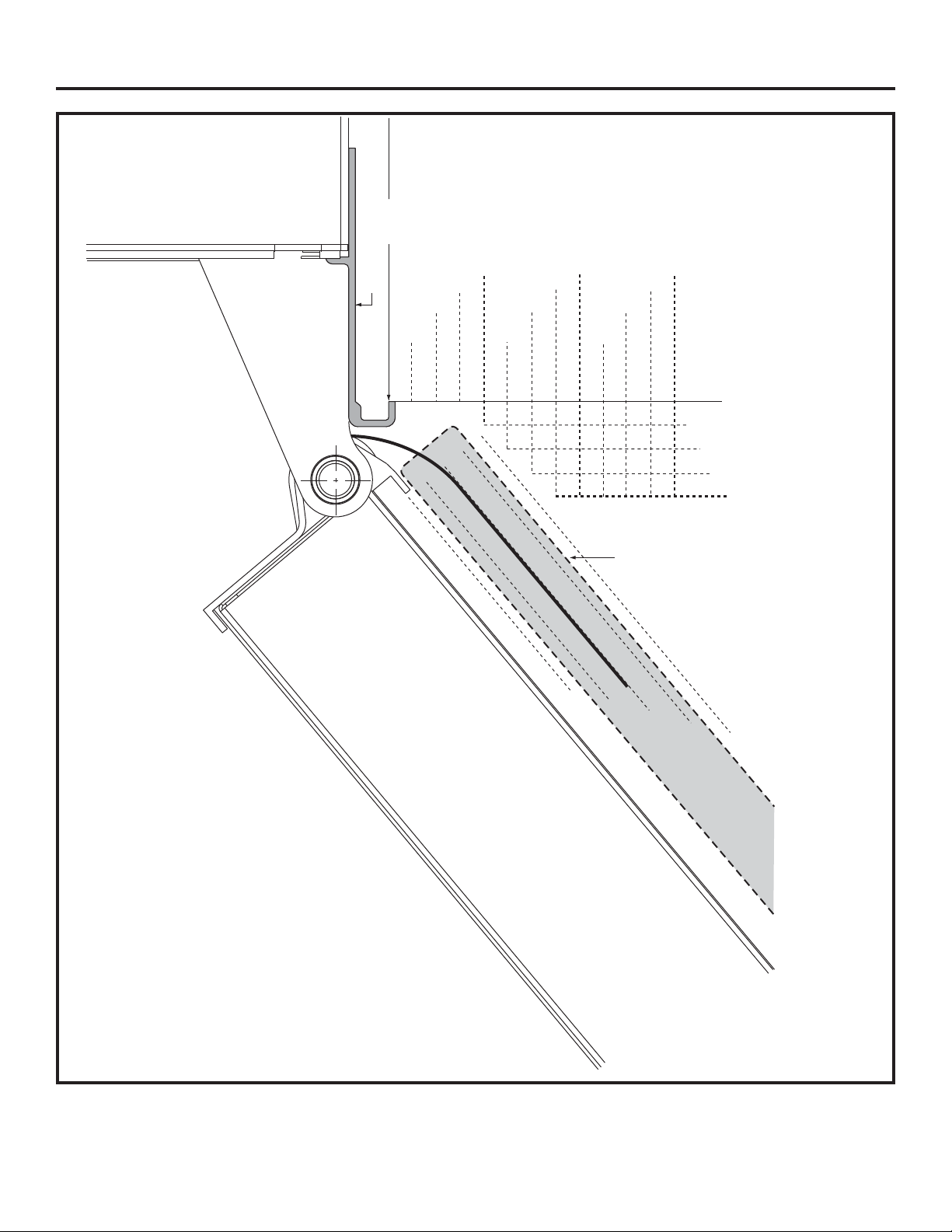

Top View 90° DOOR SWING

Scale 1:1

IMPORTANT NOTE – FOR DISPENSER MODELS:

Dispenser models are supplied with two dispenser trims, one to fit framed panels and one for overlay panels. Dispenser trim

fit to the custom panel depends on correct panel thickness.

Framed panels must be 1/4” (0.63 cm) nominal. Overlay panels should be constructed as shown to accomplish a total

1.100” (2.79 cm) thickness

page 13 for details.

. See

Door

1/4"

1/2"

3/4"

1-1/4"

1-1/2"

Stainless Steel

3/4" Overlay

Panel

(Nominal Size)

1/2"

3/4"

31-1000450 Rev. 0

1-1/4"

Installation Instructions - Standard Installation

DISPENSER TRIM FIT EXAMPLES: (NOT TO SCALE)

1/4” (0.63 cm) FRAMED PANEL

• The dispenser trim fits over the custom panel and snaps into the freezer door.

• The clips will not engage the door if the panel is more than 0.250” (0.63 cm) thick.

• If the panel is less than 0.250” (0.63 cm) thick, a noticeable gap may be created around the dispenser trim.

3/4” (1.91 cm) OVERLAY PANEL

• The dispenser trim fits over the custom panel and snaps into the freezer door.

• The clips will not engage the door if the panel is more than 1.100” (2.79 cm) thick.

• If the panel is less than 1.100” (2.79 cm) thick, a noticeable gap may be created around the dispenser trim.

1/4” Dispenser Trim

3/4” Overlay Dispenser Trim

TOOLS AND MATERIALS REQUIRED

• Tinsnips to cut banding

• Stepladder

• 1” Bit extension

• Tape measure

• Gloves

• 1/4” Drywall screws

• 5-Gal. Bucket with cover

• 6” Spirit level

• Appliance hand truck

• Tubing cutter

• 7/16” open-end wrench

• #2 Phillips screwdriver

• Drill and appropriate bits

• 5/16”, 7/16” socket

• Safety glasses

• 1-1/8” open end wrench

• Pliers

• 1/4”, 5/16” Combo Rachet

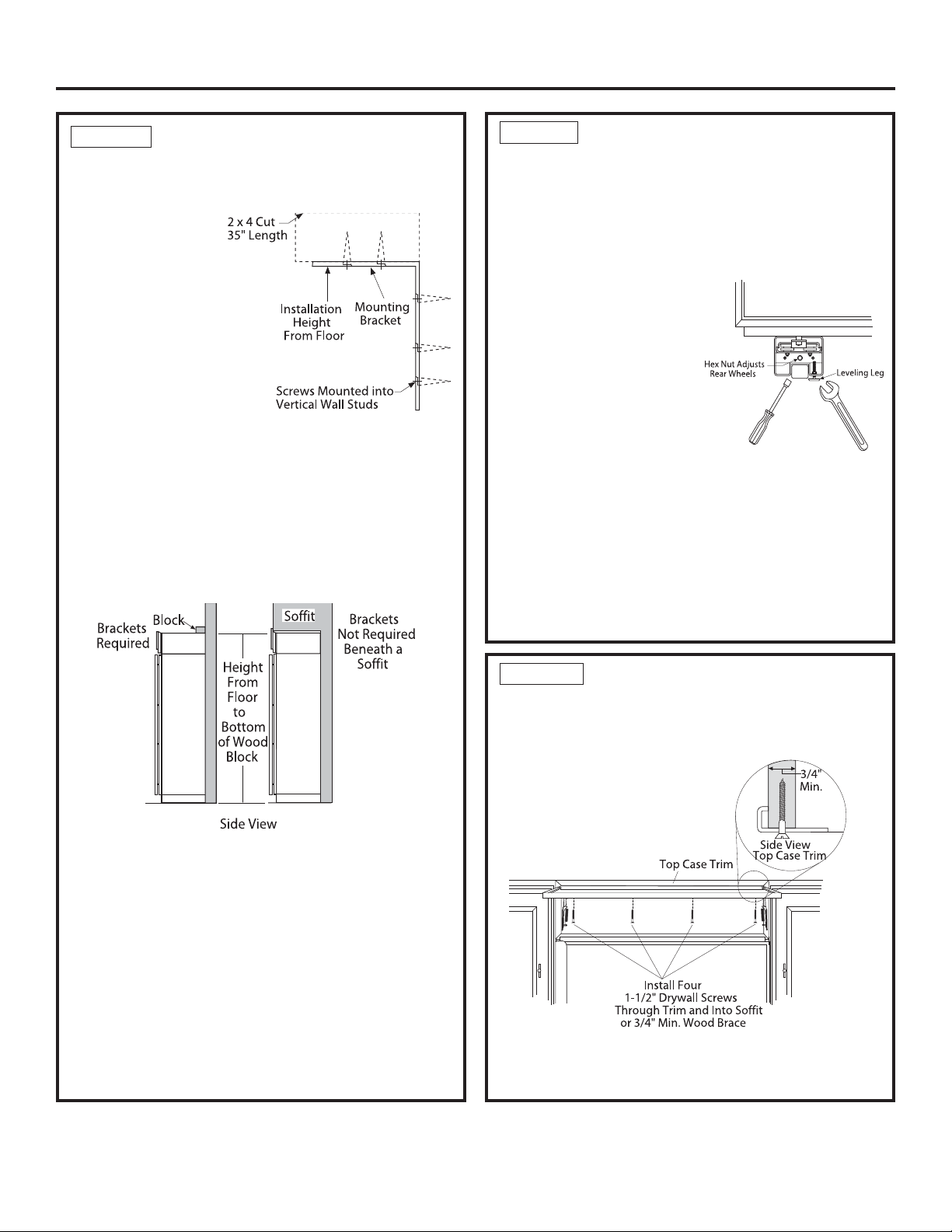

• 35” long 2x4 for Anti-Tip support

• 1/4” copper water line tubing or SmartConnect™ Refrigerator Tubing kits

• Water shut-off valve

• Custom panels for doors and grille panel

• Screws to secure refrigerator to cabinetry

• Stick-on hook and loop fastener strips for 1/4” side panels

HARDWARE SUPPLIED

• Water filter bypass plug

• Toekick

• 1/4” nut and ferrule

• Dispenser trim for overlay panels (for use with Custom Panel models).

FLOORING

For proper installation, this refrigerator must be placed on a level surface of hard material that is at the same height as the rest of the flooring. This surface should be strong enough to support a fully loaded refrigerator, or approximately 1,500 lbs.(680.39 kg).

NOTE: Protect the finish of the flooring. Cut a large section of the cardboard carton and place under the refrigerator where you are working.

31-1000450 Rev. 0

+ 30 hidden pages
