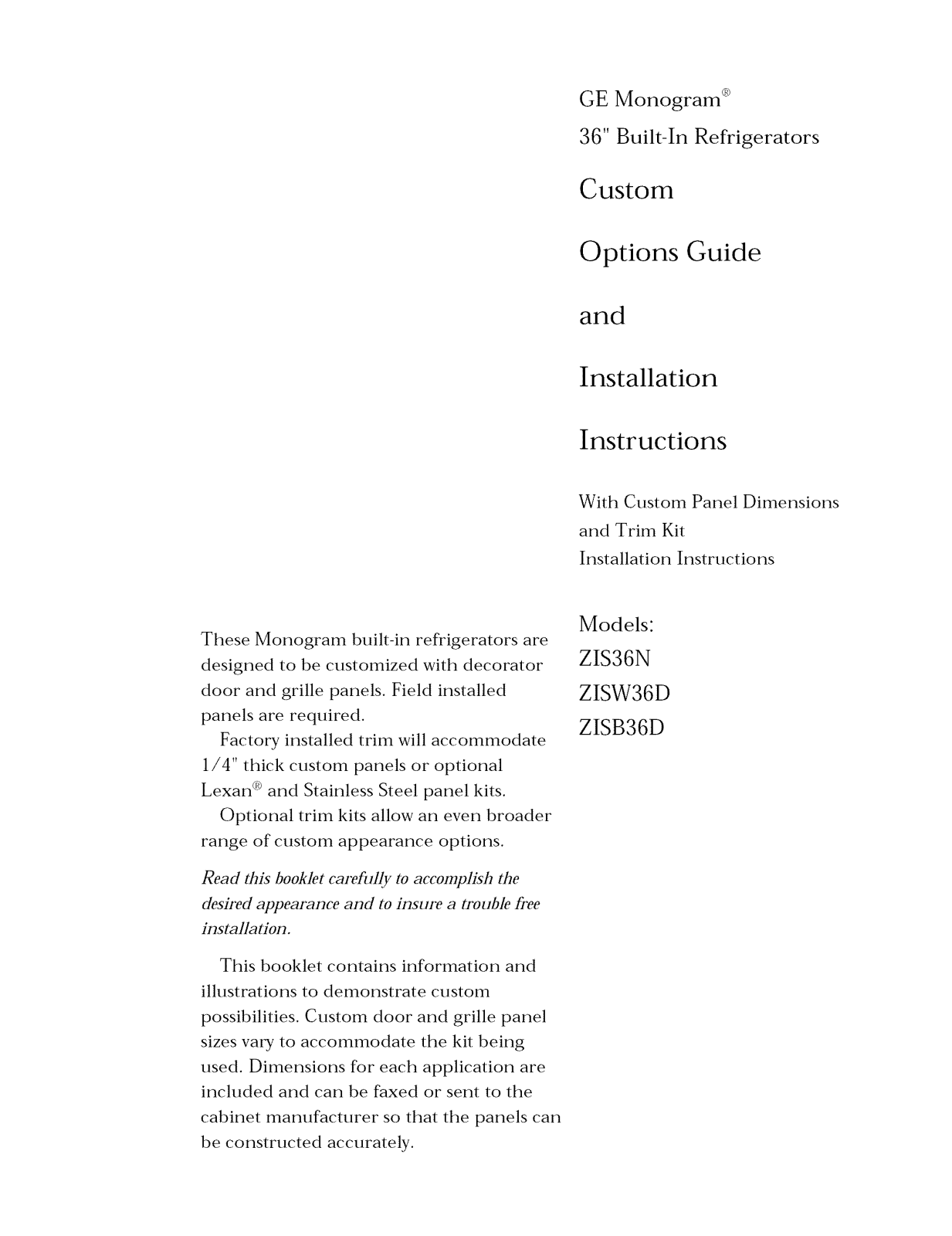

GE ZISB360DRC, ZISB36DWA, ZISW36DRC, ZISW36DWA Installation Guide
GE Monogram _
36" Built-In Refrigerators
Custom
Options Guide
and
Installation
Instructions
With Custom Panel Dimensions
and Trim Kit
These Monogram built-in refrigerators are
designed to be customized with decorator
door and grille panels. Field installed
panels are required.
Factory installed trim will accommodate
1/4" thick custom panels or optional
Lexan _ and Stainless Steel panel kits.
Optional trim kits allow an even broader
range of custom appearance options.
Read this booklet carefully to accomplish the
desired appearance and to insure a trouble free
installation.
This booklet contains information and
illustrations to demonstrate custom
Installation Instructions
Models:
ZIS36N
ZISW36D
ZISB36D
possibilities. Custom door and grille panel
sizes vary to accommodate the kit being
used. Dimensions for each application are
included and can be faxed or sent to the
cabinet manufacturer so that the panels can
be constructed accurately.

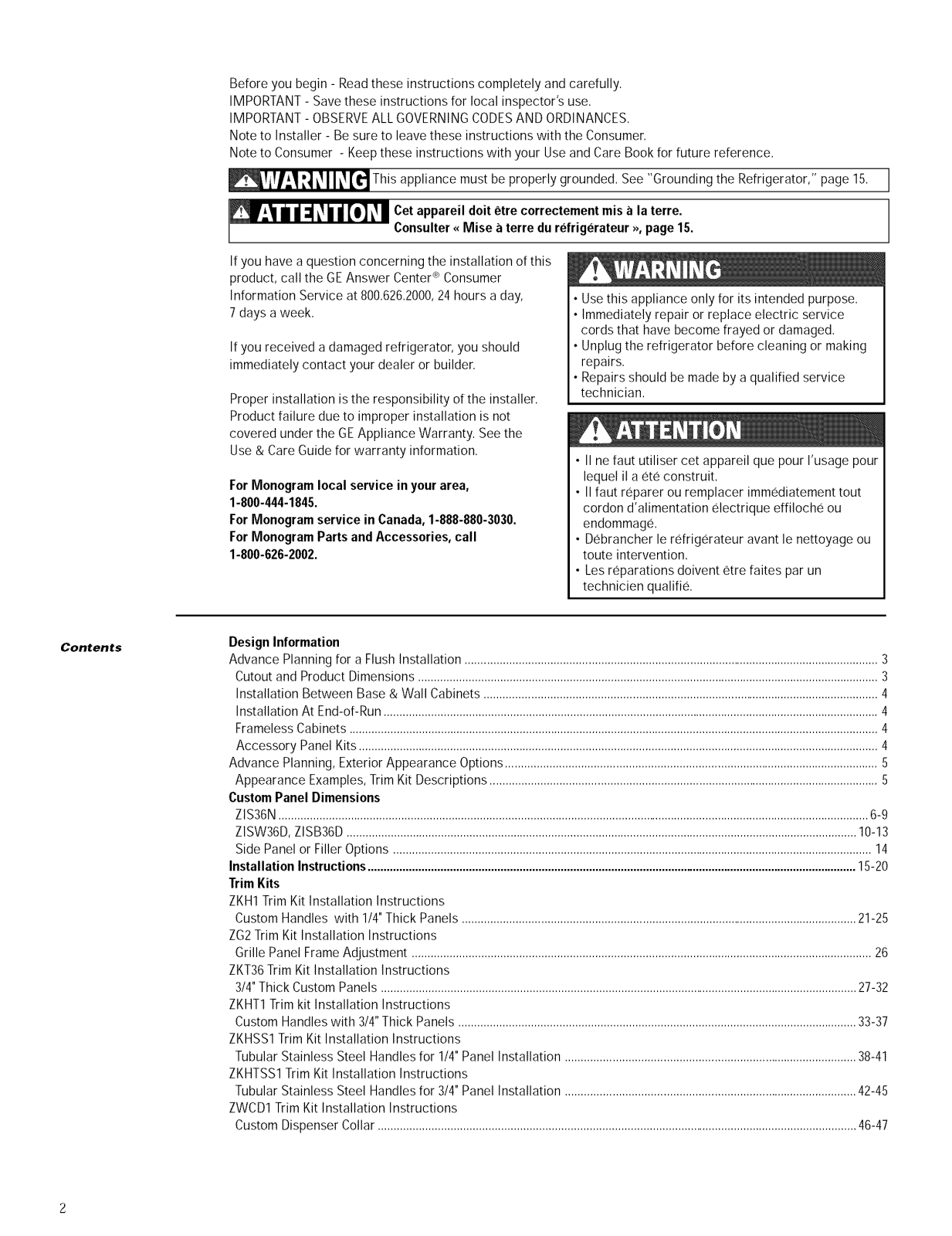

Before you begin - Read these instructions completely and carefully.
IMPORTANT - Save these instructions for local inspector's use.
IMPORTANT - OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer - Be sure to leave these instructions with the Consumer.
Note to Consumer - Keep these instructions with your Use and Care Book for future reference.
vivl_, This appliance must be properly grounded. See "Grounding the Refrigerator," page 15.
___ libIII_1i_II li [|] i_II Cet appareil dolt _tre correctement mis a la terre.
Consulter <<Mise a terre du refrigerateur >>,page 15.
Ifyou have aquestion concerning the installation of this
product, call the GEAnswer CenterCR_Consumer
Information Service at 800.626.2000,24hours a day,
7days a week.
Ifyou received a damaged refrigerator, you should
immediately contact your dealer or builder.
Proper installation is the responsibility of the installer.
Product failure due to improper installation is not
covered under the GE Appliance Warranty. See the
Use & Care Guide for warranty information.
For Monogramlocal service in yourarea,
1-800-444-1845.
ForMonogramservice in Canada,1-888-880-3030.
For MonogramParts andAccessories, call
1-800-626-2002.
• Use this appliance only for its intended purpose.
Immediately repair or replace electric service
cords that have become frayed or damaged.
• Unplug the refrigerator before cleaning or making
repairs.
Repairs should be made by a qualified service
technician.
• II ne faut utiliser cet appareil que pour I'usage pour
lequel il a ere construit,
• II faut reparer ou remplacer immediatement tout
cordon d'alimentation electrique effiloche ou
endommage.
• Debrancher le refrigerateur avant le nettoyage ou
toute intervention,
• Les reparations doivent etre faites par un
technicien qualifie.
Contents
Design Information
Advance Planning for a Flush Installation ................................................................................................................................... 3
Cutout and Product Dimensions .................................................................................................................................................. 3
Installation Between Base & Wall Cabinets ............................................................................................................................. 4
Installation At End-of-Run ............................................................................................................................................................. 4
Frameless Cabinets ........................................................................................................................................................................ 4
Accessory Panel Kits ..................................................................................................................................................................... 4
Advance Planning, Exterior Appearance Options ...................................................................................................................... 5
Appearance Examples, Trim Kit Descriptions ........................................................................................................................... 5

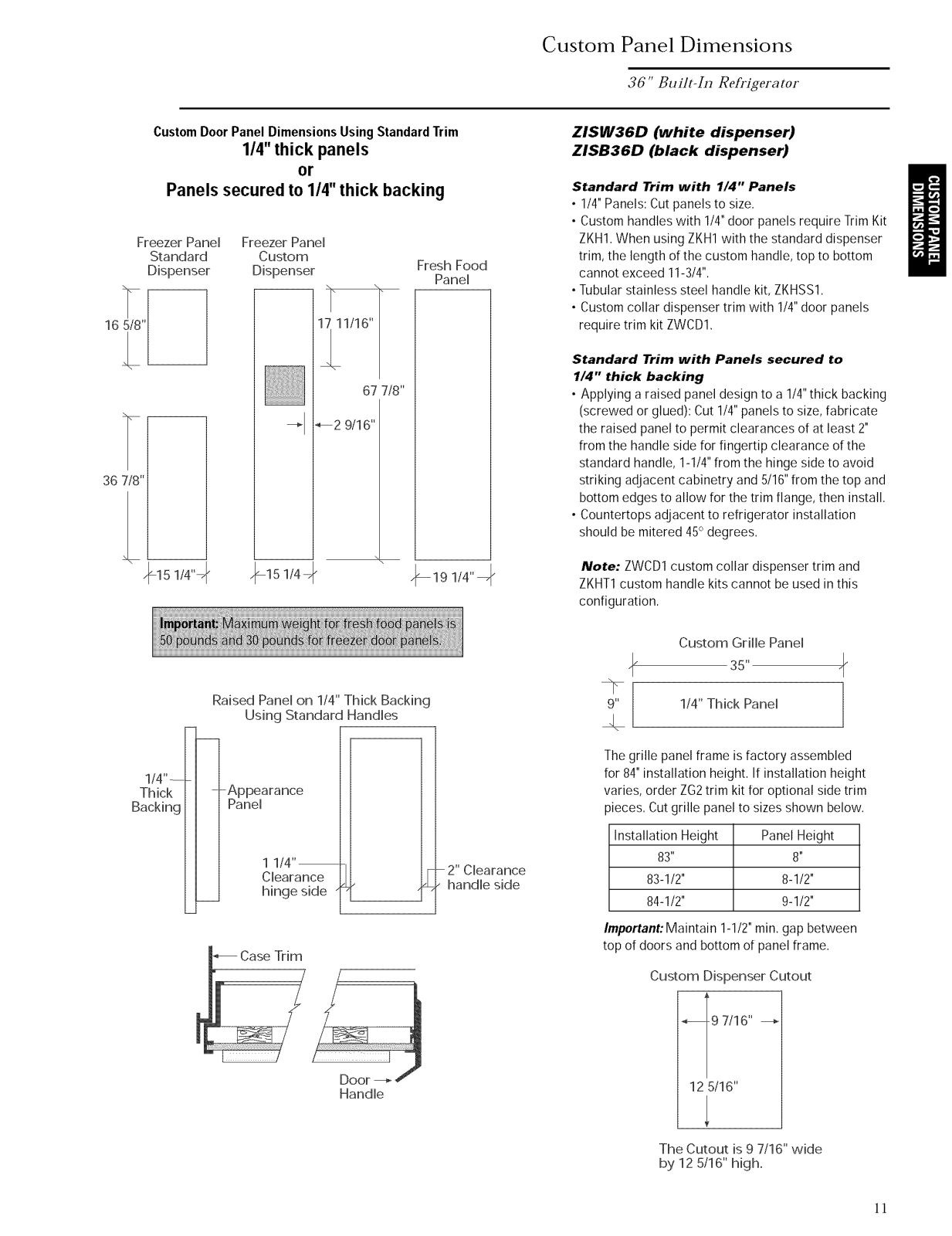

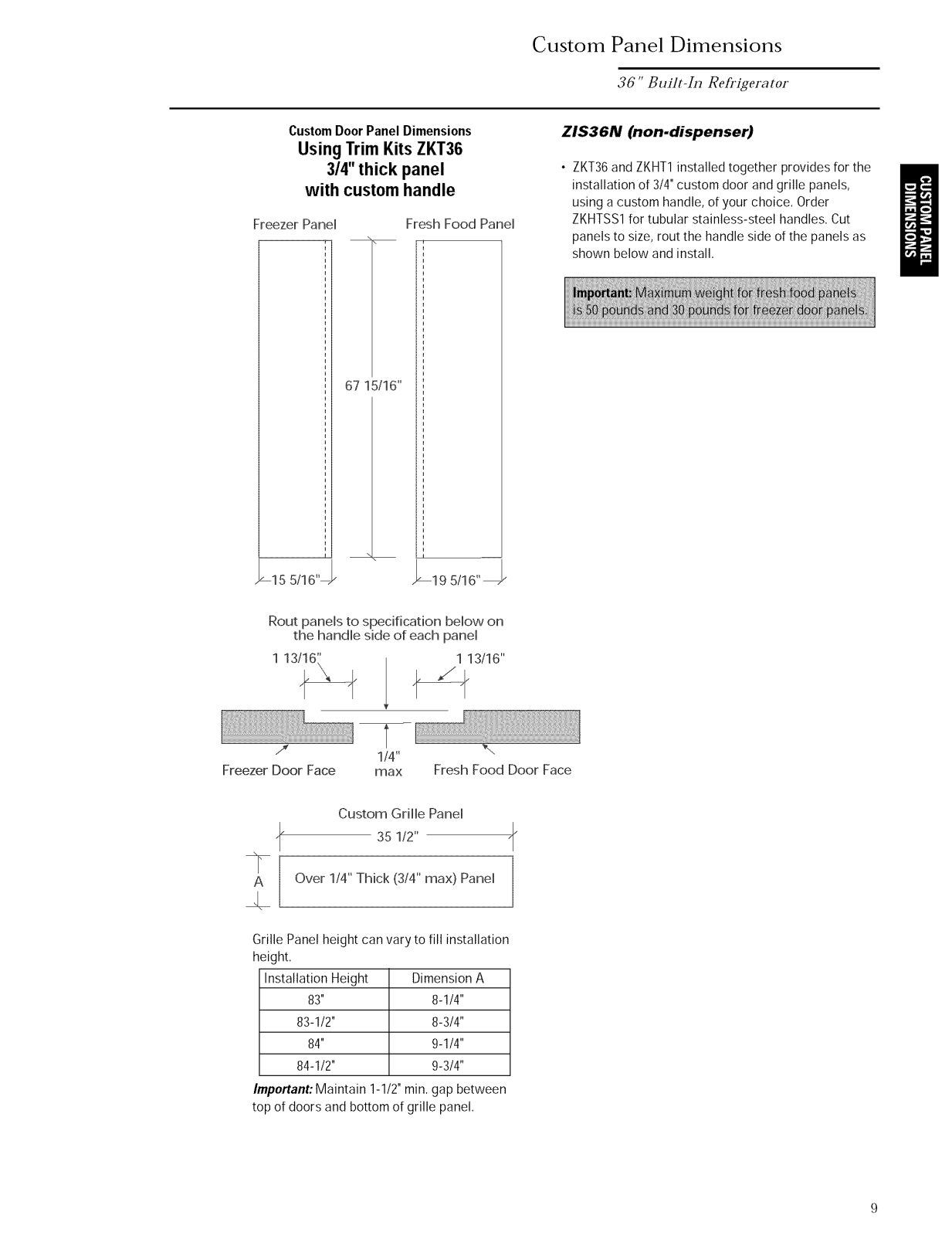

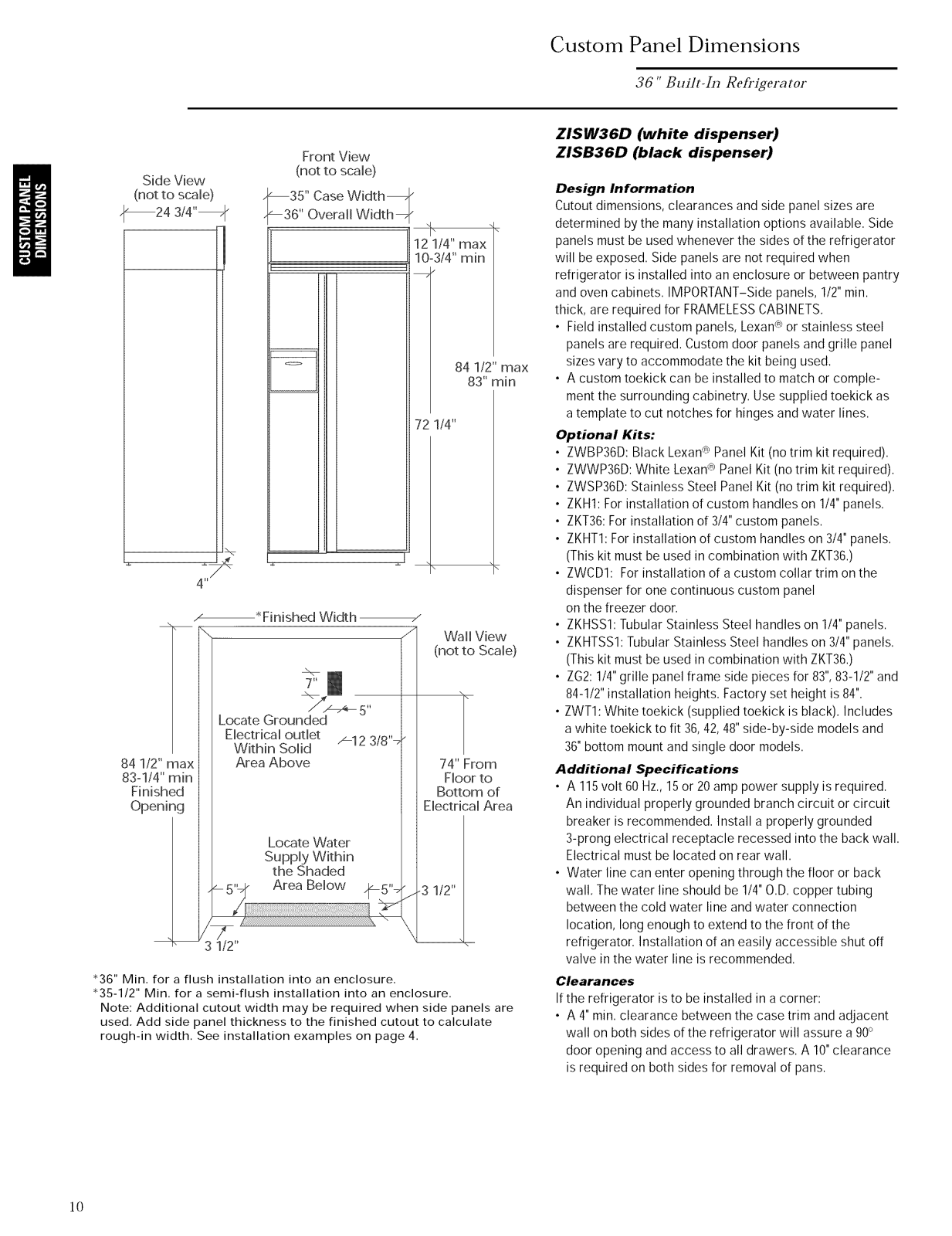

Custom Panel Dimensions
ZIS36N ............................................................................................................................................................................................ 6-9
ZISW36D, ZIBB36D .................................................................................................................................................................. 10-13
Side Panel or Filler Options ........................................................................................................................................................ 14
Installation Instructions ........................................................................................................................................................... 15-20
Trim Kits

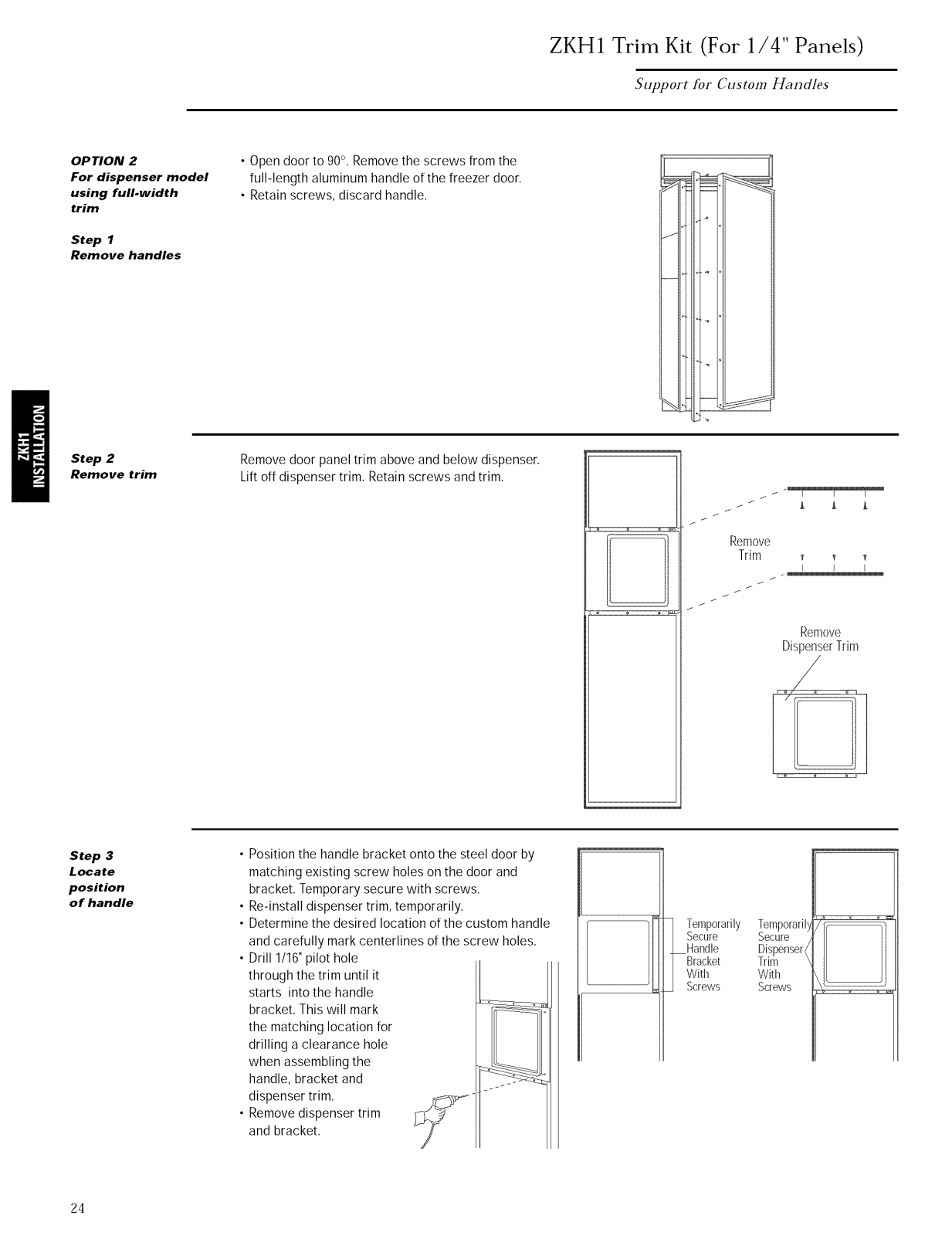

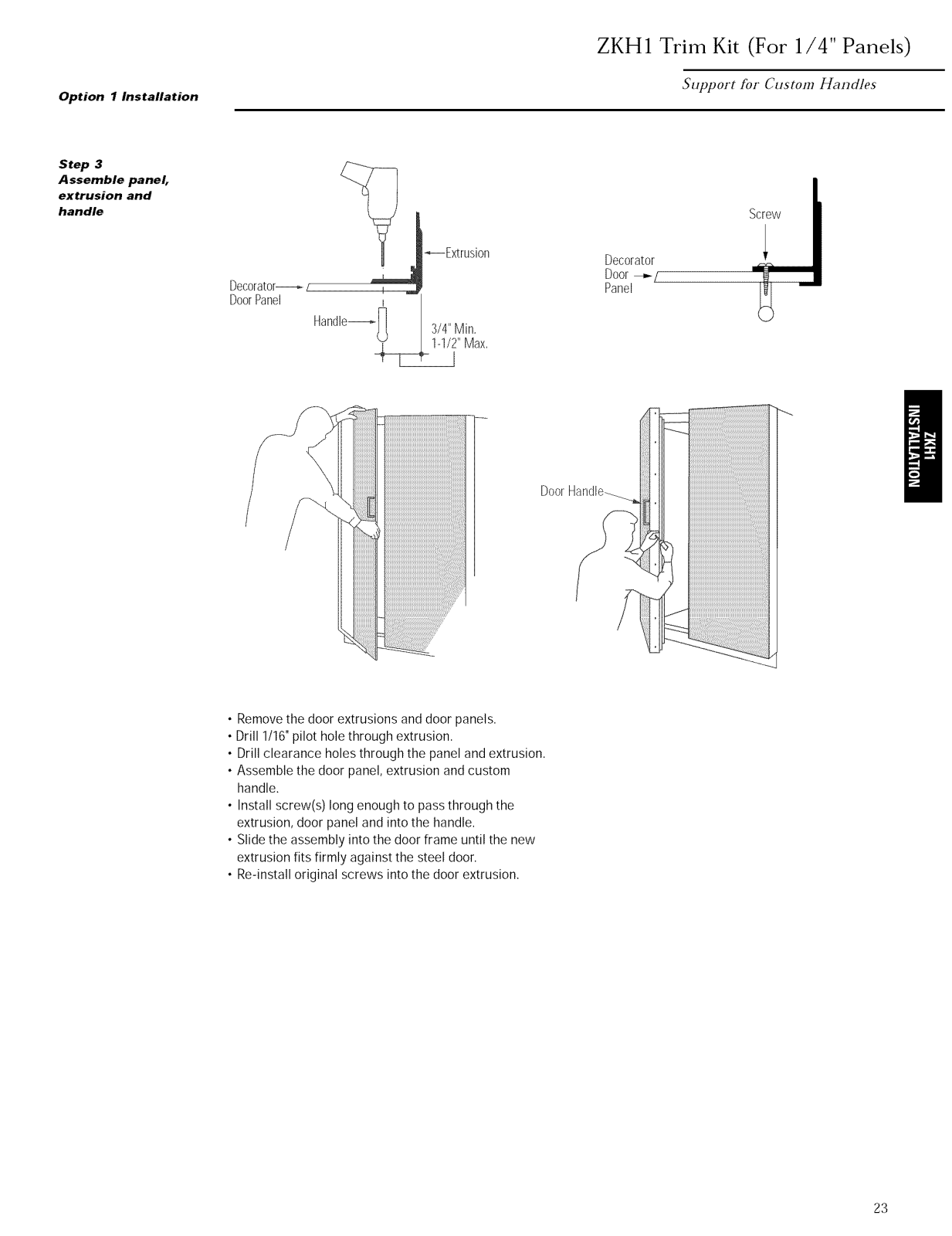

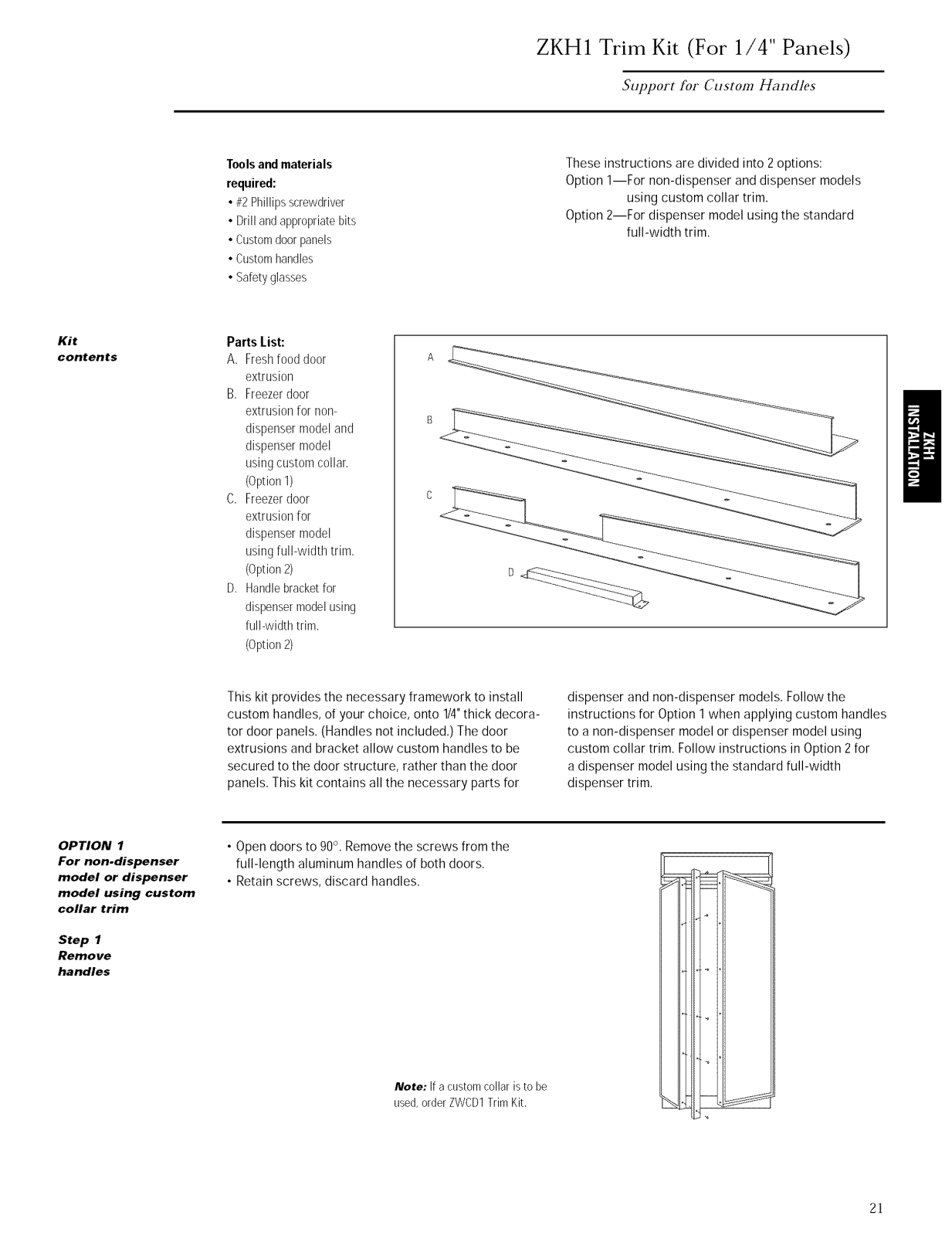

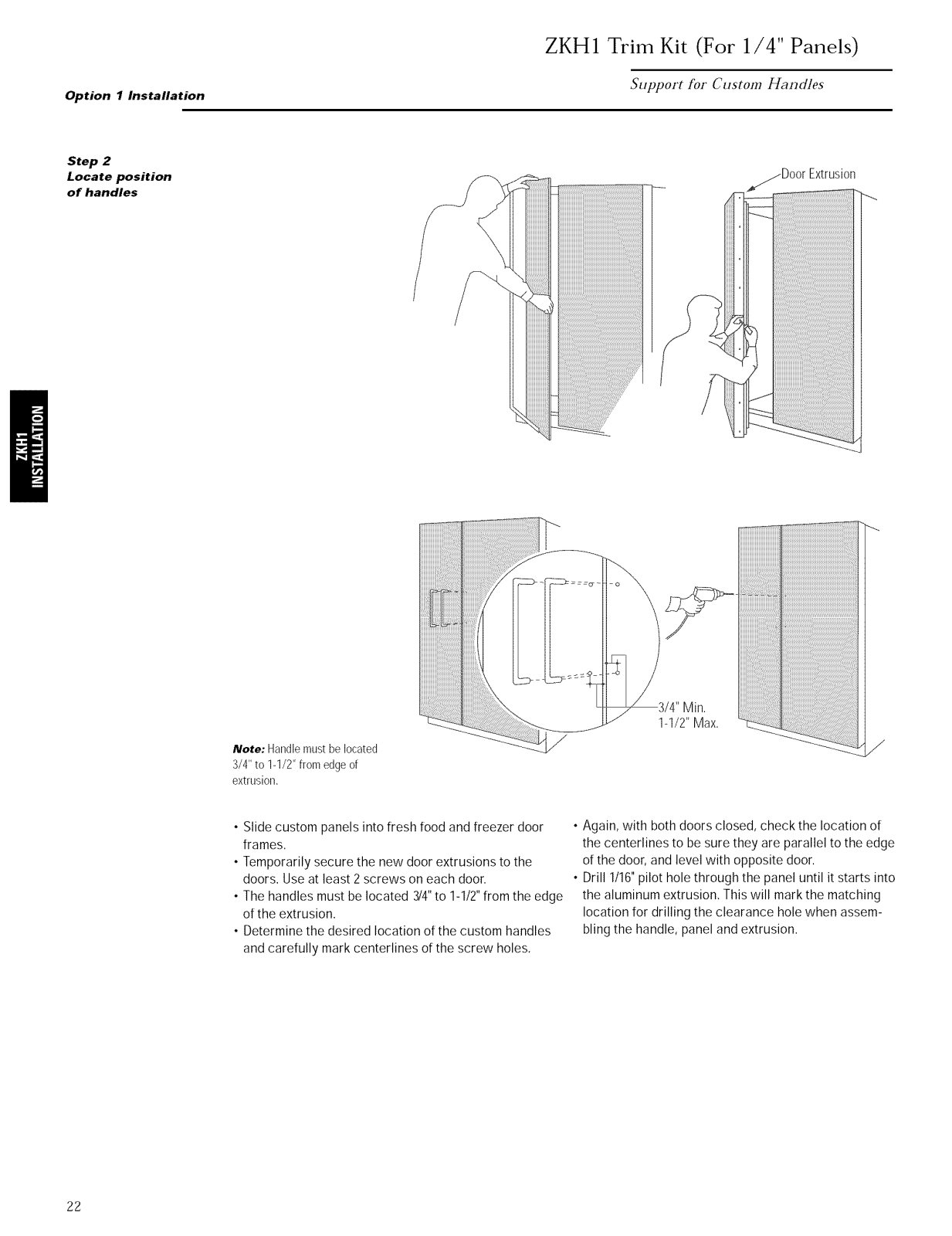

ZKH1 Trim Kit Installation Instructions
Custom Handles with 1/4" Thick Panels ............................................................................................................................. 21-25

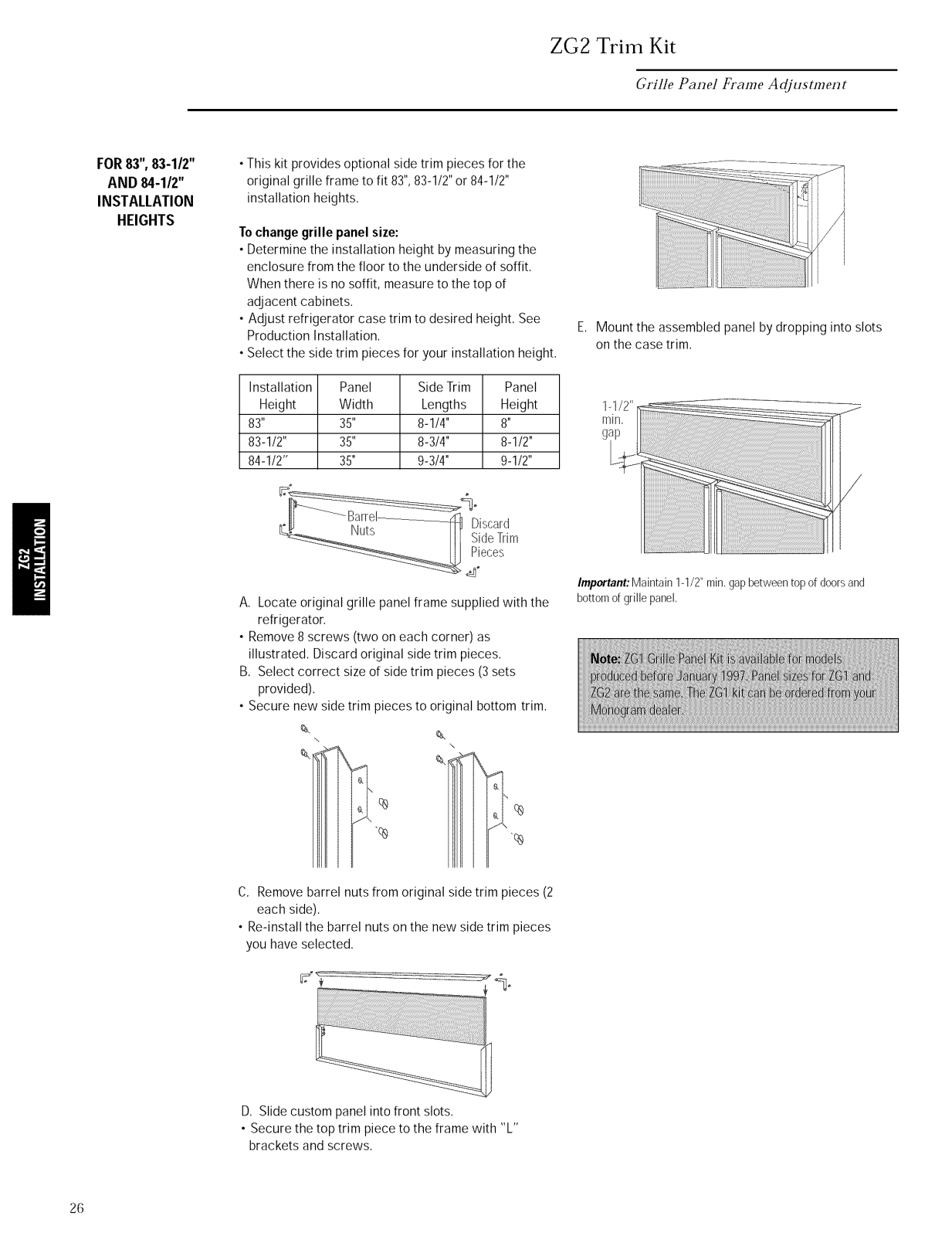

ZG2 Trim Kit Installation Instructions
Grille Panel Frame Adjustment .................................................................................................................................................. 26

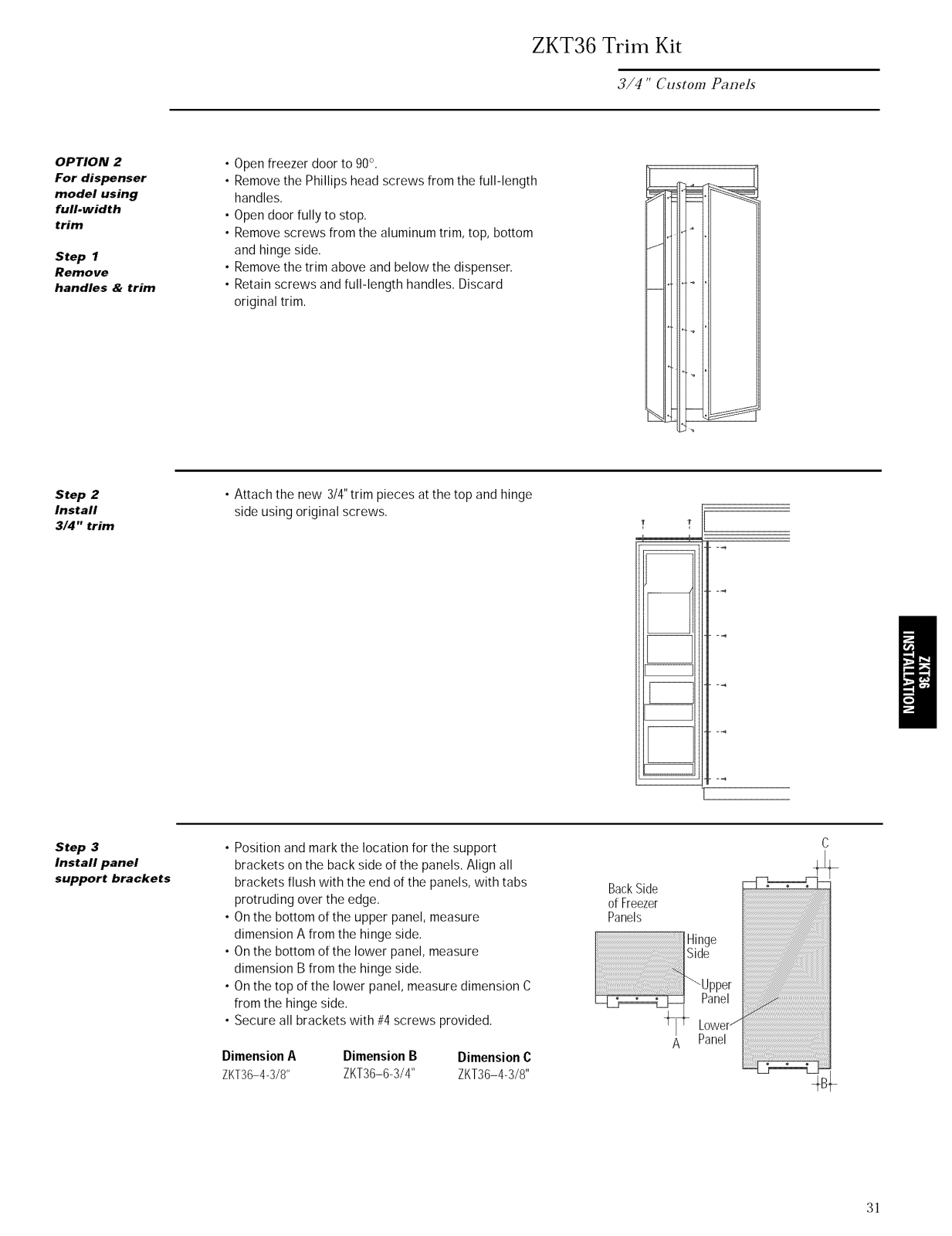

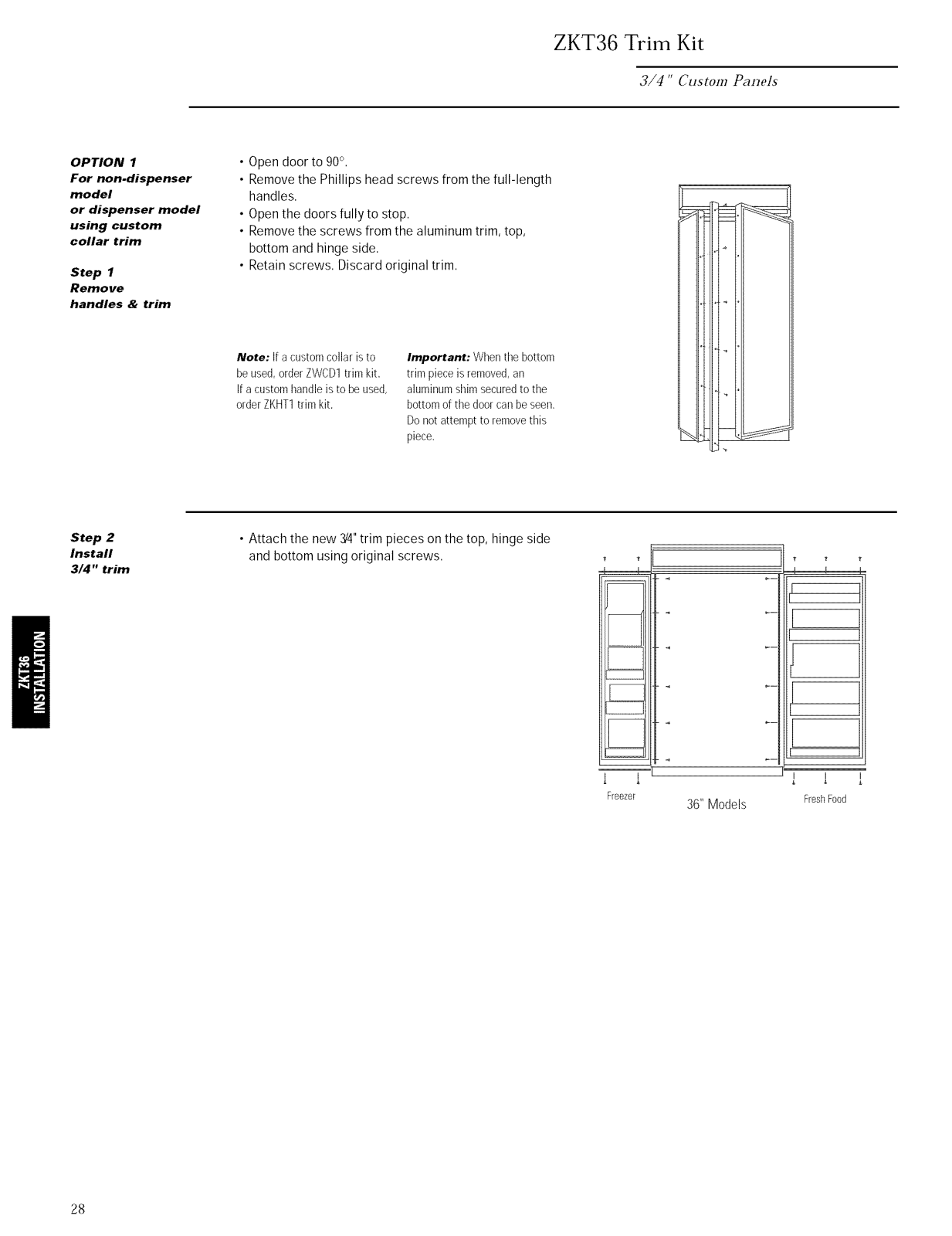

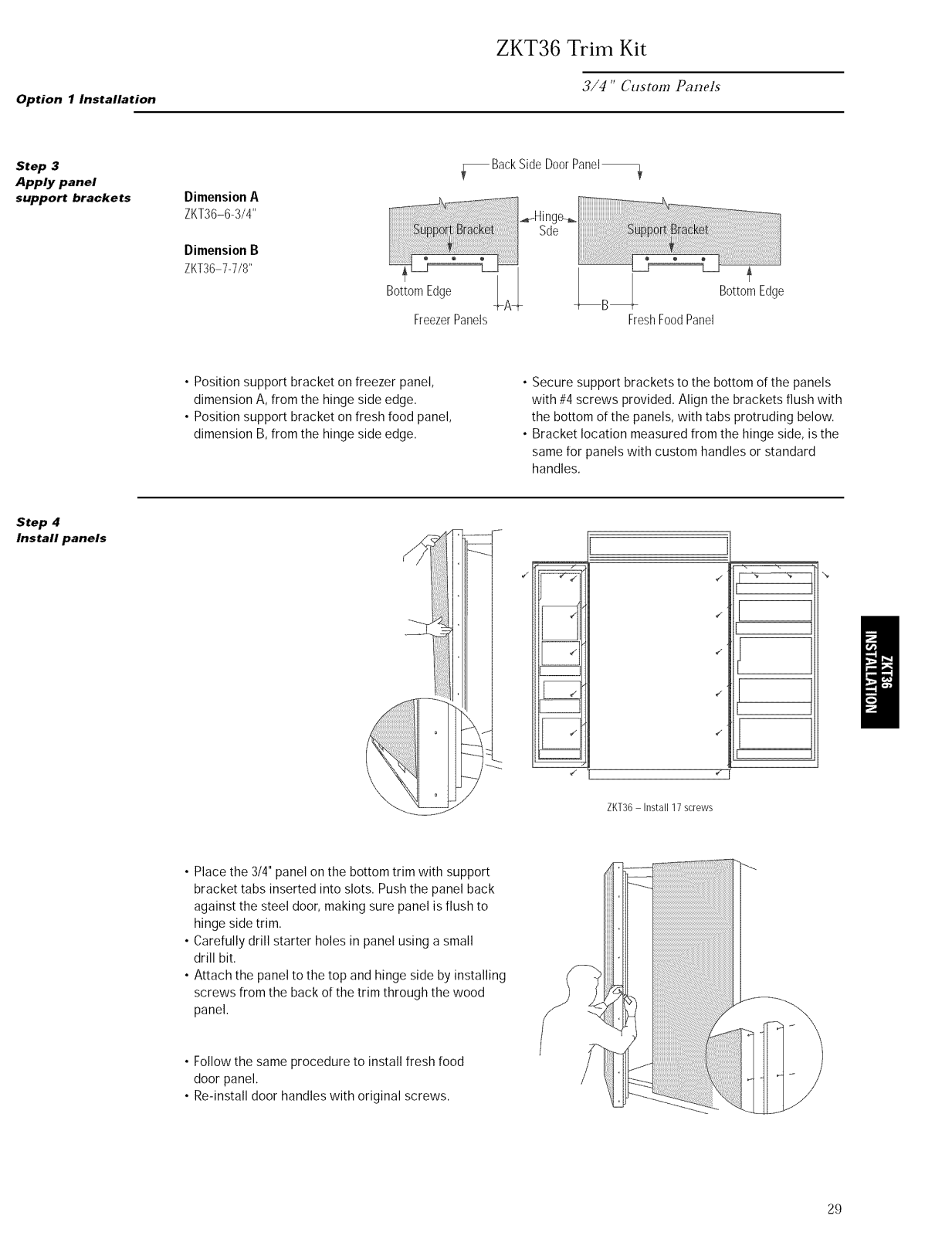

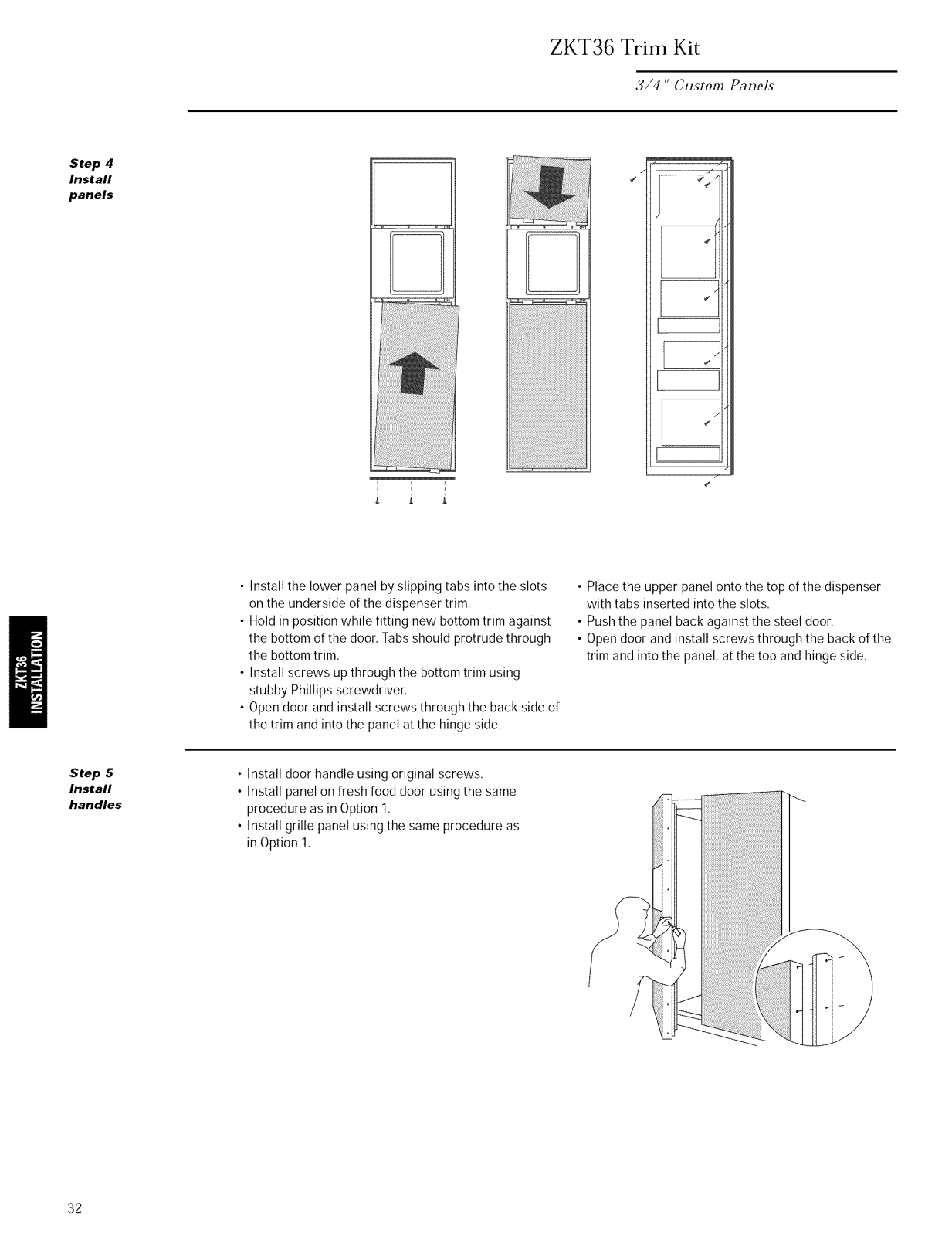

ZKT36 Trim Kit installation Instructions
3/4" Thick Custom Panels ....................................................................................................................................................... 27-32

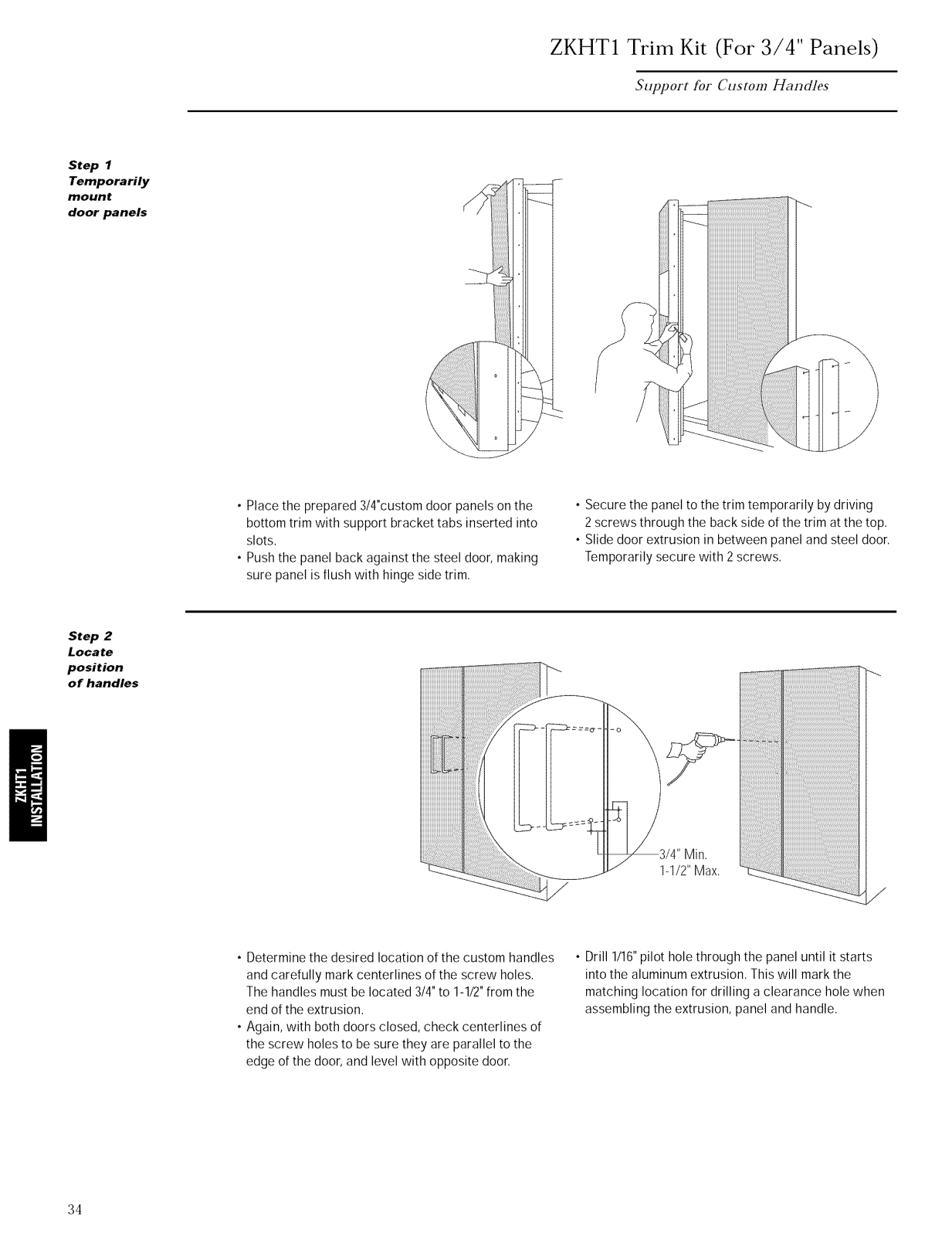

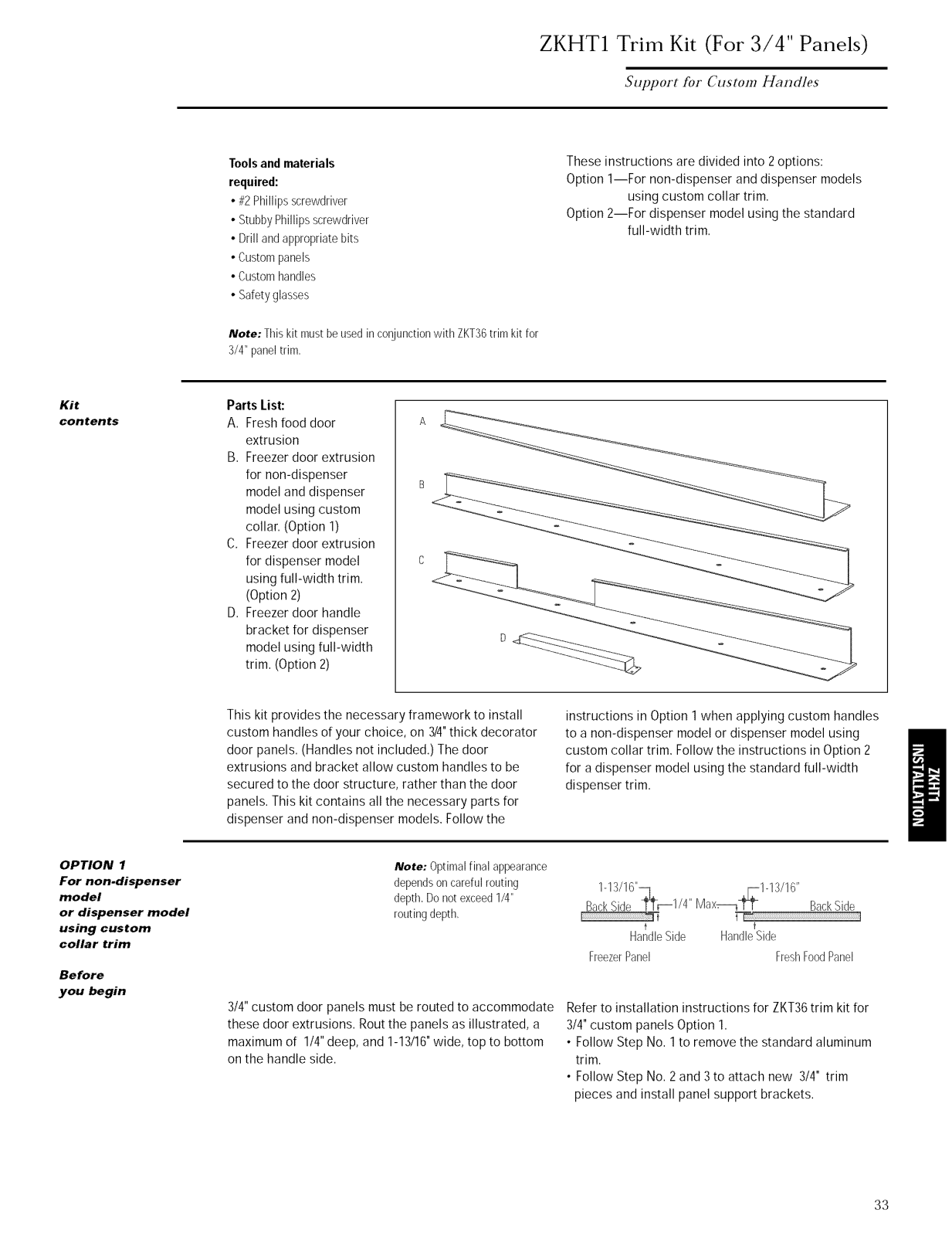

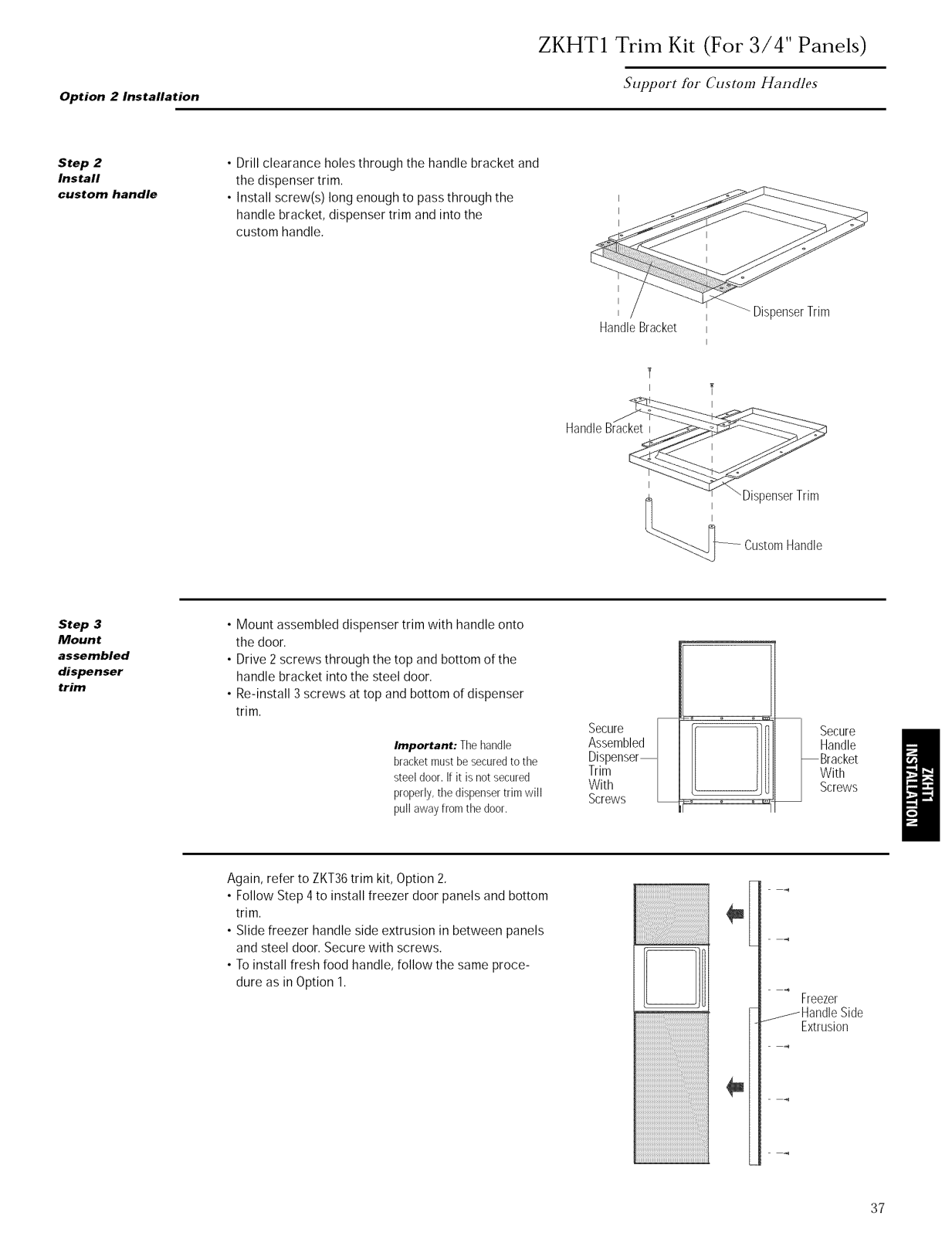

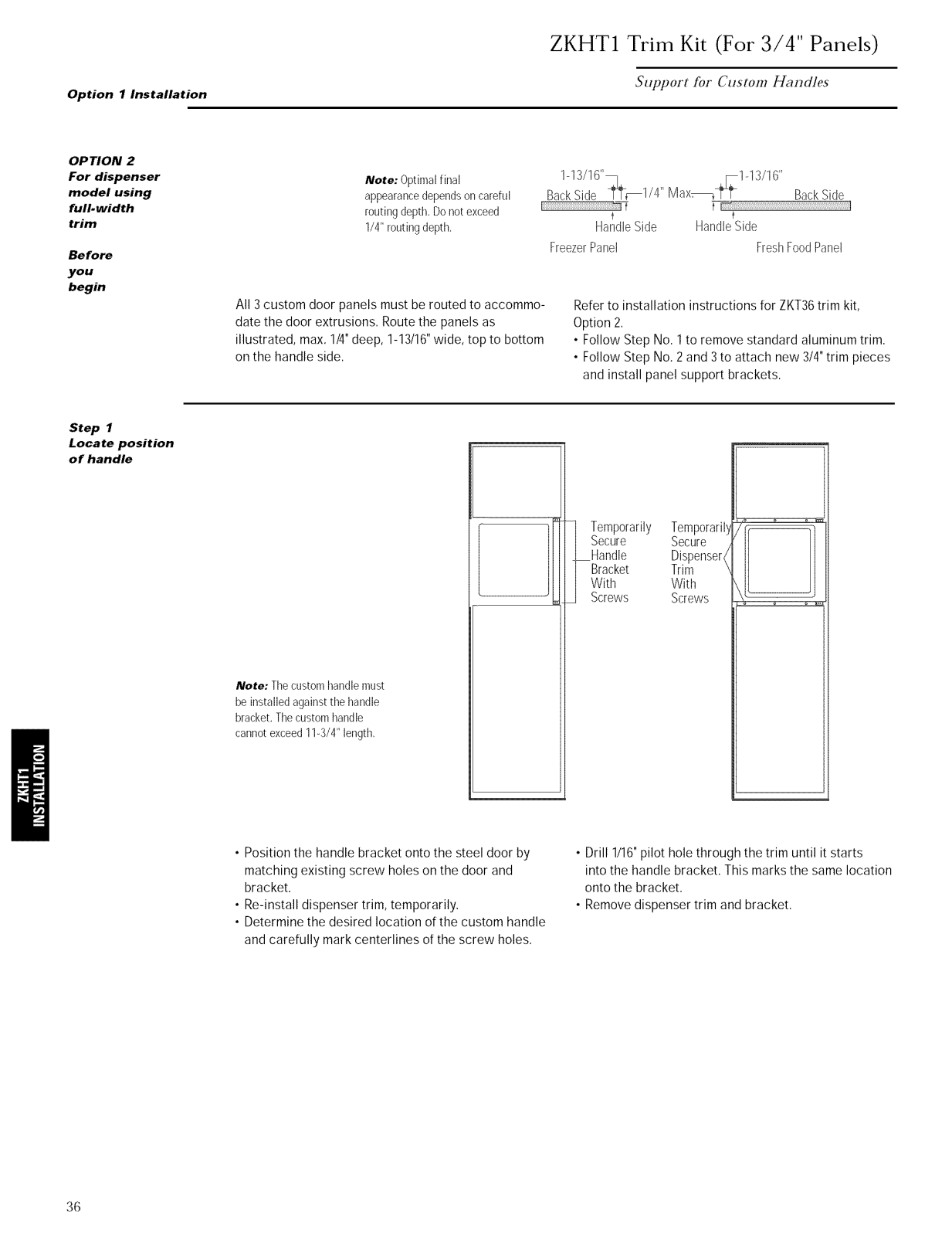

ZKHT1 Trim kit Installation Instructions
Custom Handles with 3/4" Thick Panels .............................................................................................................................. 33-37

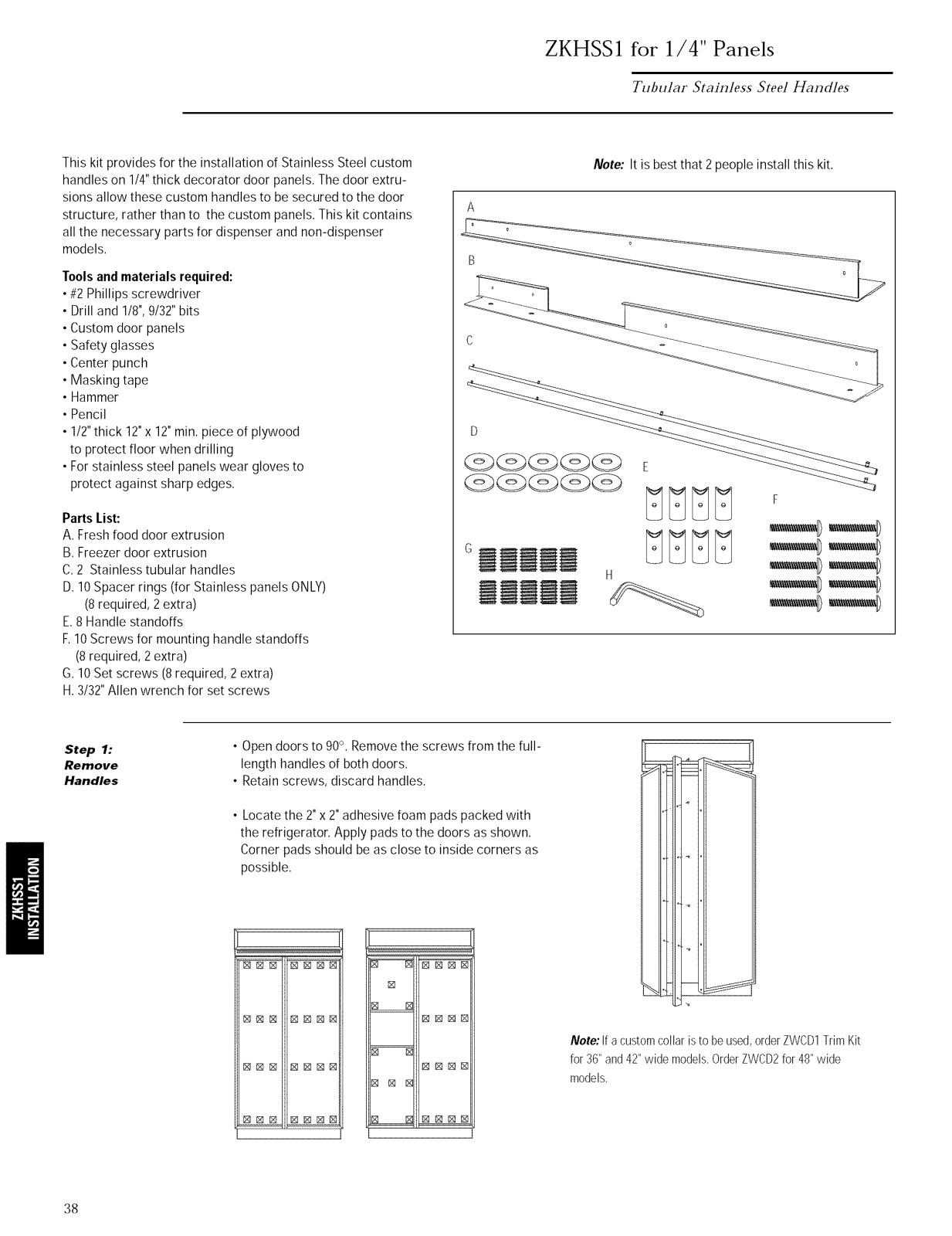

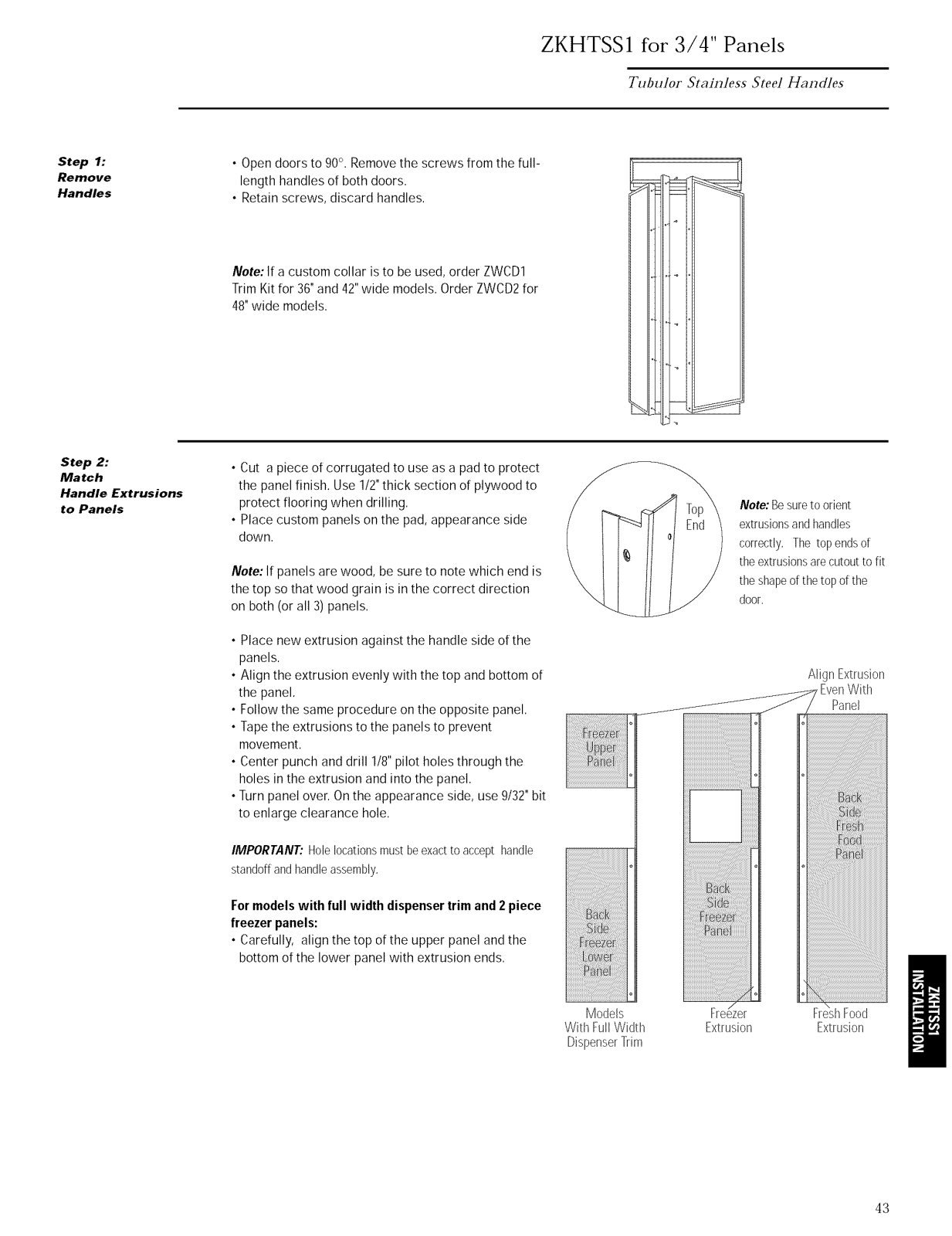

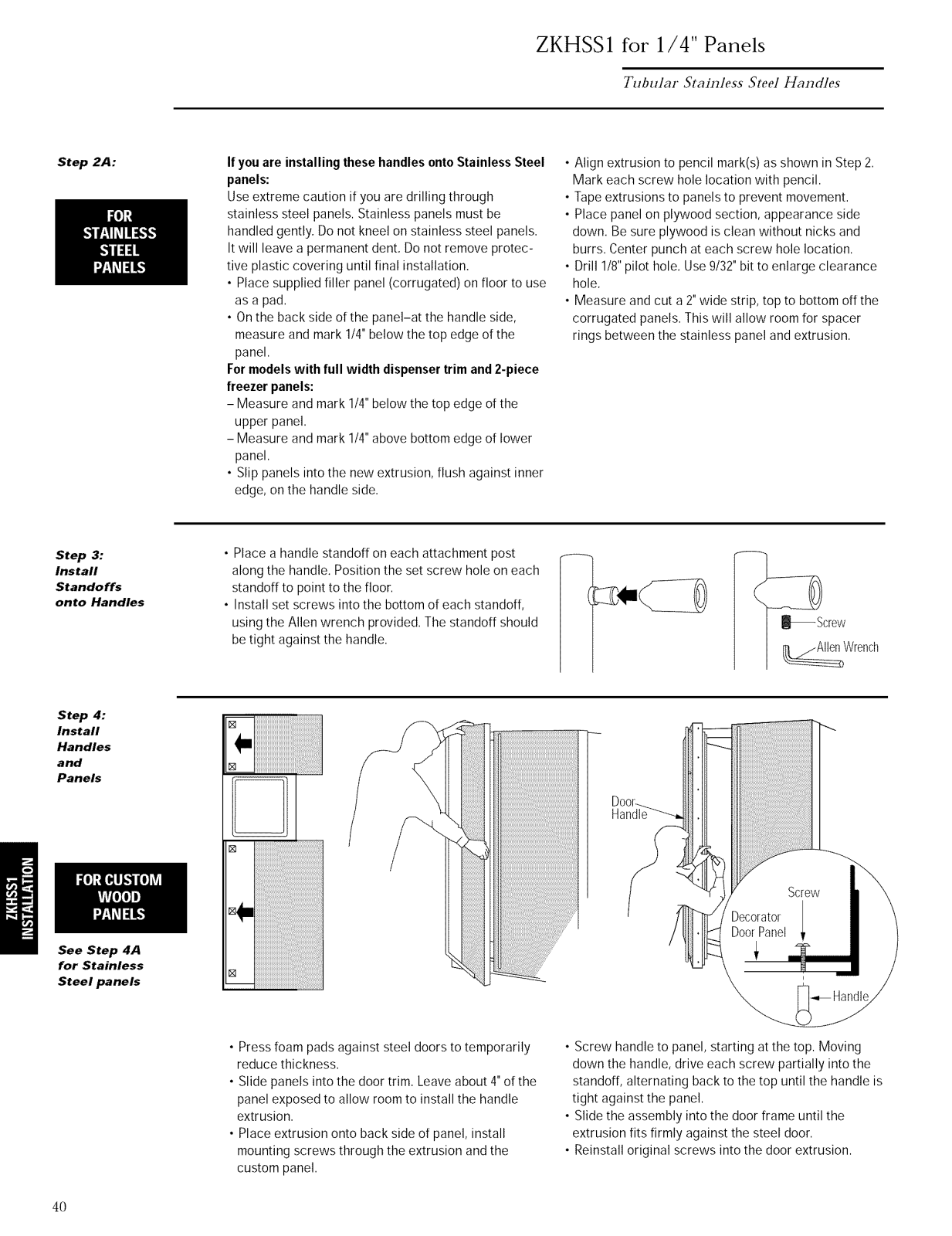

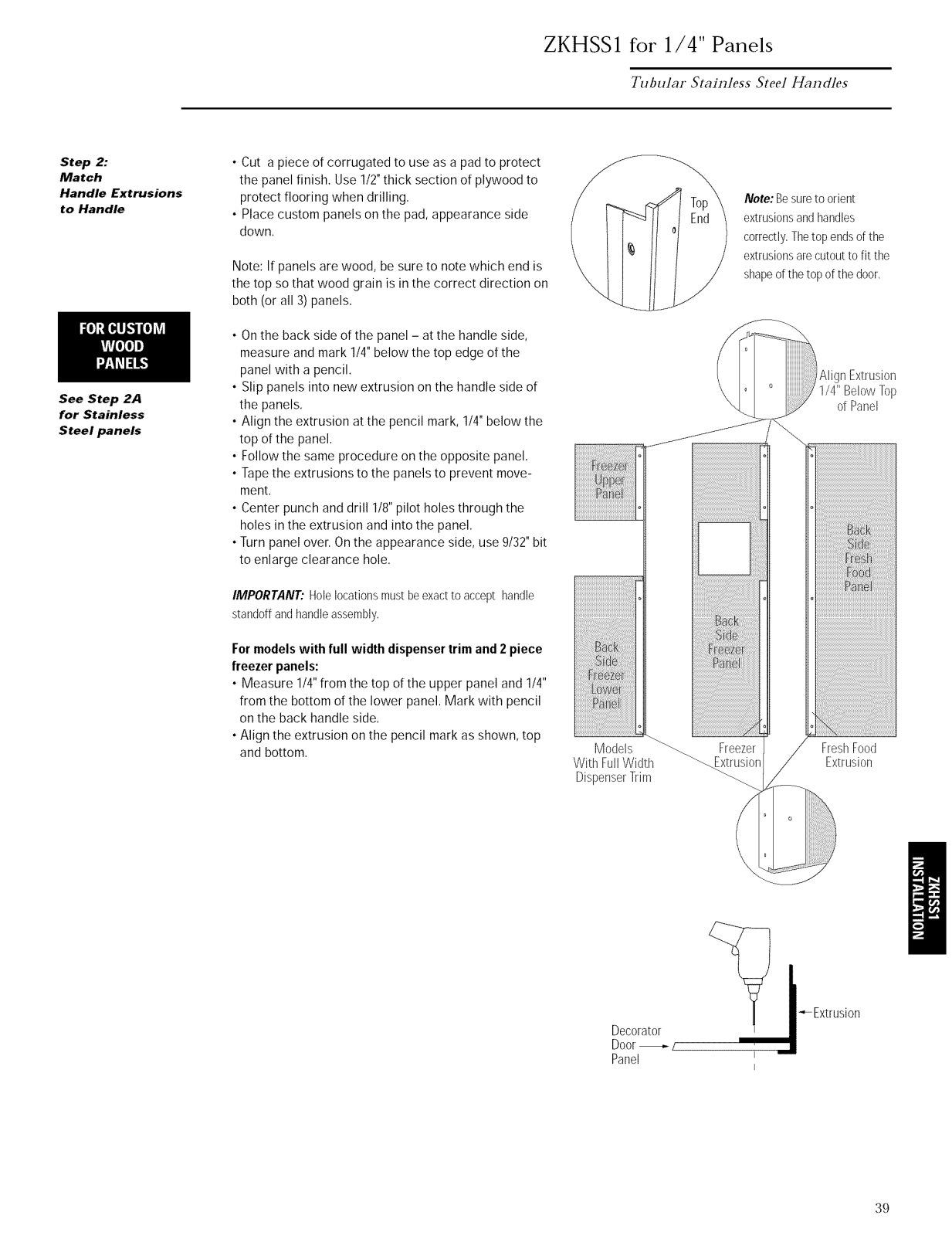

ZKHSS1 Trim Kit Installation Instructions
Tubular Stainless Steel Handles for 1/4" Panel Installation ............................................................................................ 38-41

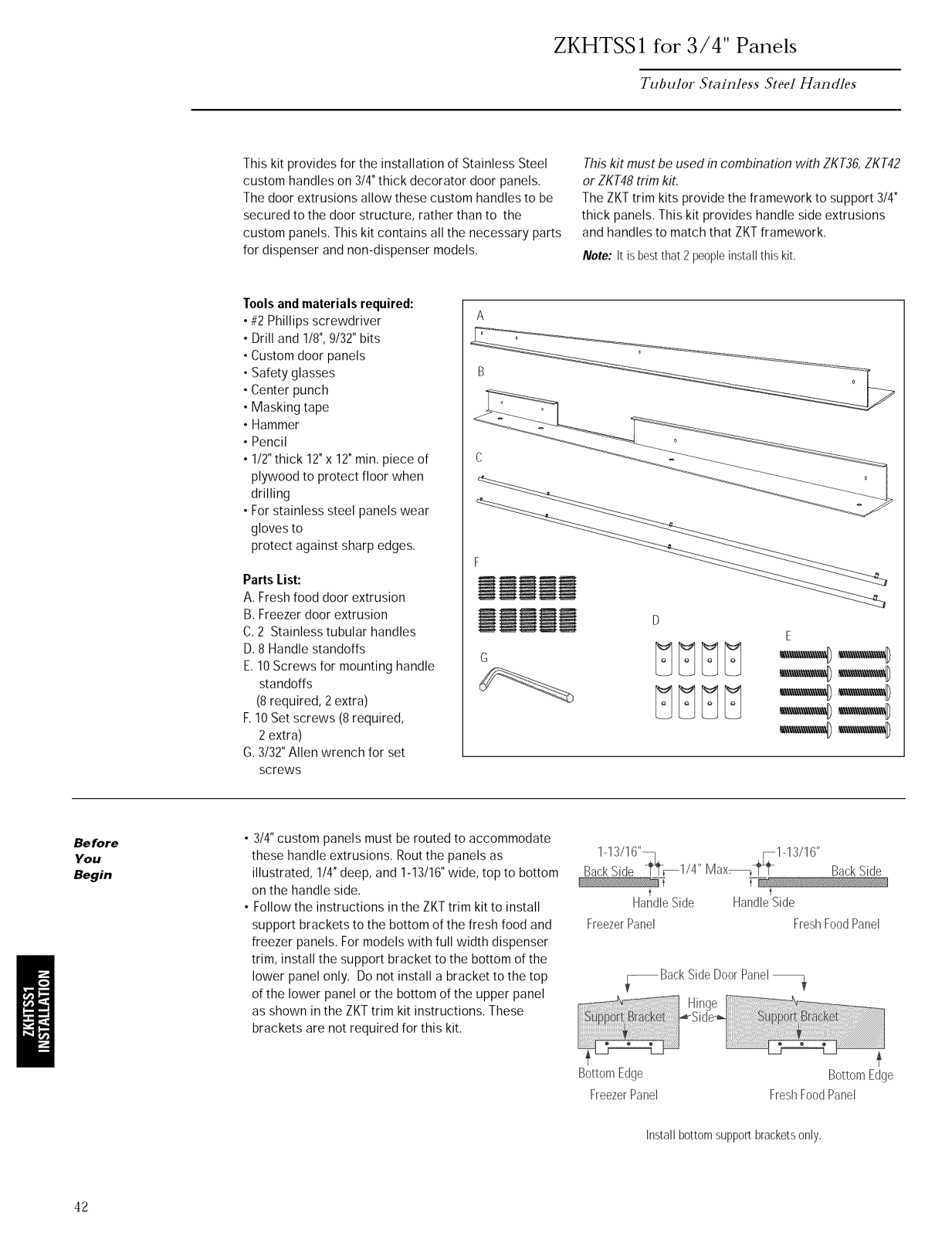

ZKHTSB1 Trim Kit Installation Instructions
Tubular Stainless Steel Handles for 3/4" Panel Installation ............................................................................................ 42-45

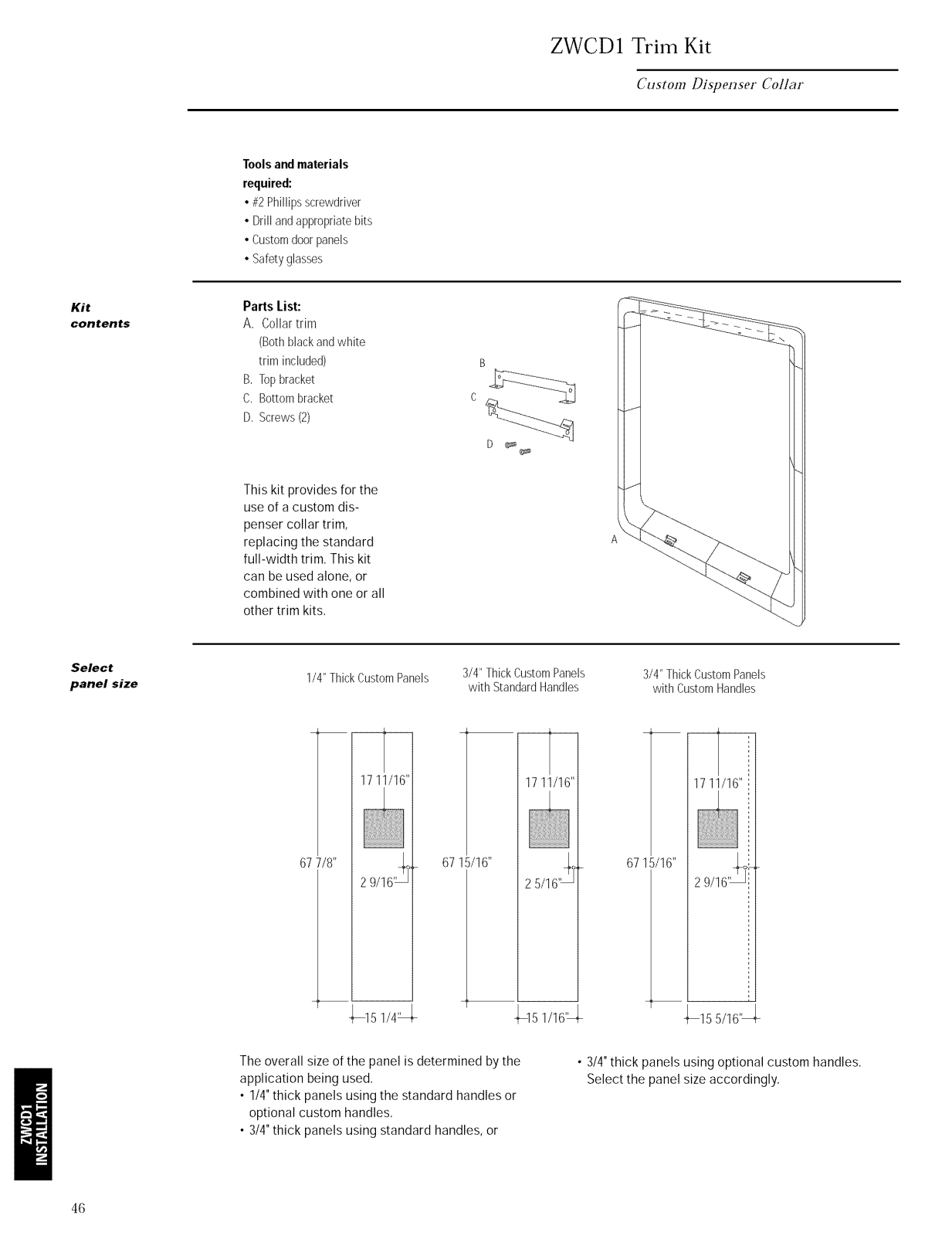

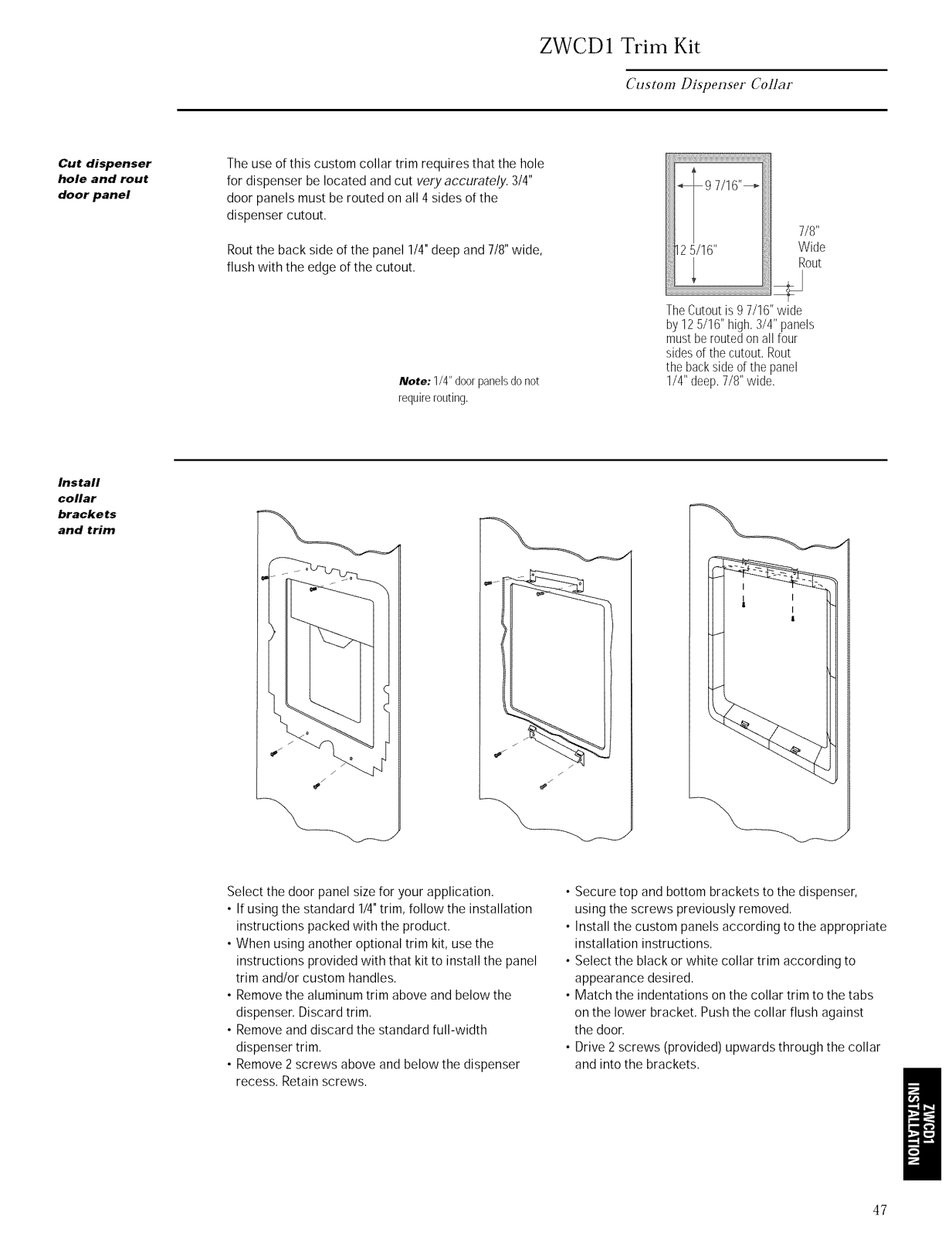

ZWCD1 Trim Kit Installation Instructions
Custom Dispenser Collar ........................................................................................................................................................ 46-47
Flush or
Semi-Flush
Enclosure
Installations

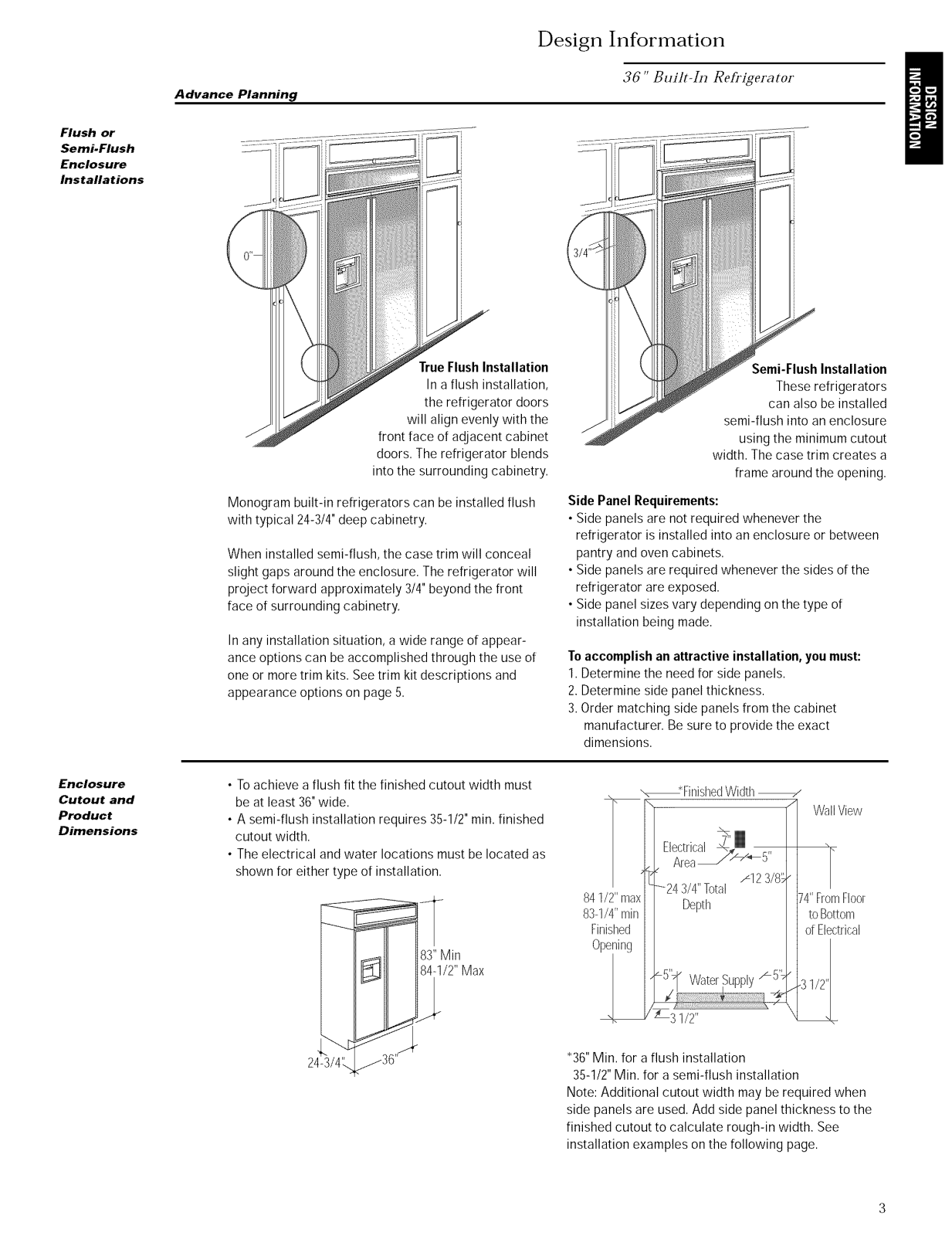

Design Information
36 " Built-In Refrigerator
Advance Planning
/
Enclosure
Cutout and
Product
Dimensions
True Flush Installation
In a flush installation,
the refrigerator doors
will align evenly with the
front face of adjacent cabinet
doors. The refrigerator blends
into the surrounding cabinetry.
Monogram built-in refrigerators can be installed flush
with typical 24-3/4" deep cabinetry.
When installed semi-flush, the case trim will conceal
slight gaps around the enclosure. The refrigerator will
project forward approximately 3/4" beyond the front
face of surrounding cabinetry.
In any installation situation, a wide range of appear-
ance options can be accomplished through the use of
one or more trim kits. See trim kit descriptions and
appearance options on page 5.
• To achieve a flush fit the finished cutout width must
be at least 36" wide.
• A semi-flush installation requires 35-1/2" min. finished
cutout width.
• The electrical and water locations must be located as
shown for either type of installation.
83"Min
84-1/2"Max
Semi-Flush Installation
These refrigerators
can also be installed
semi-flush into an enclosure
using the minimum cutout
width. The case trim creates a
frame around the opening.
Side Panel Requirements:
• Side panels are not required whenever the
refrigerator is installed into an enclosure or between
pantry and oven cabinets.
• Side panels are required whenever the sides of the
refrigerator are exposed.
• Side panel sizes vary depending on the type of
installation being made.
To accomplish an attractive installation, you must:
1. Determine the need for side panels.
2. Determine side panel thickness.
3. Order matching side panels from the cabinet
manufacturer. Be sure to provide the exact
dimensions.
_Finished Width
WallView
841/2"max
831/4"min
Finished
--24 3/4"Total
Depth
74"FromFloor
toBottom
d Electrical
Opening
31/2"
*36" Min. for a flush installation
35-1/2" Min. for a semi-flush installation
Note: Additional cutout width may be required when
side panels are used. Add side panel thickness to the
finished cutout to calculate rough-in width. See
installation examples on the following page.

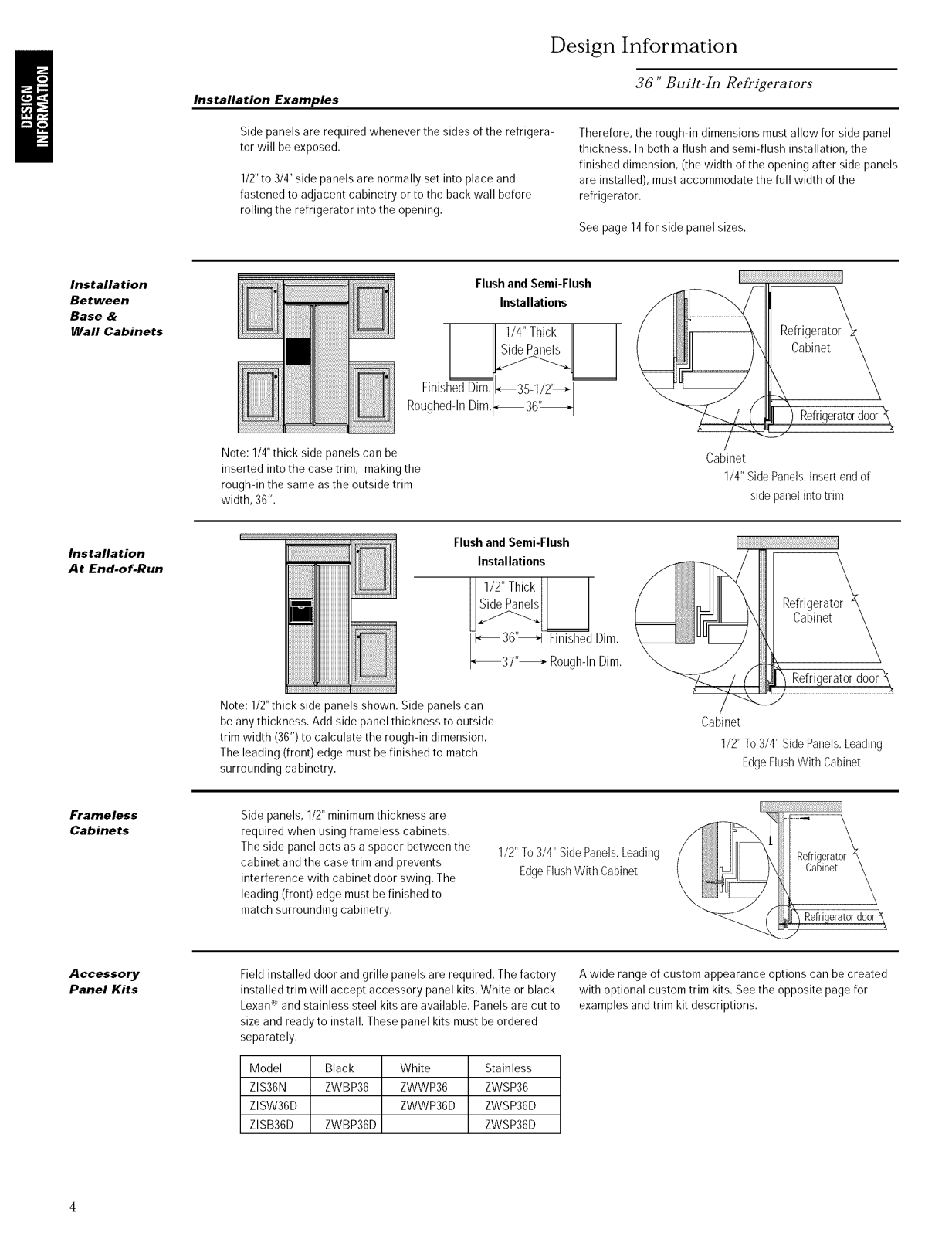

Installation Examples
Design Information
36" Built-In Refrigerators
Installa tion
Between
Base &
Wall Cabinets
Installation
At End-of-Run
Side panels are required whenever the sides of the refrigera-
tor will be exposed.
1/2"to 3/4"side panels are normally set into place and
fastened to adjacent cabinetry or to the back wall before
rolling the refrigerator into the opening.
Flushand Semi-Flush
[_ 1/4" Thick _J
Finished Dim. _35q/2'_
Roughedqn Dim., 36'_
Note: 1/4"thick side panels can be
inserted into the case trim, making the
rough-in the same as the outside trim
width, 36".
Flush and Semi-Flush
Installations
l lJ2"ThickII I
Therefore, the rough-in dimensions must allow for side panel
thickness. In both aflush and semi-flush installation, the
finished dimension, (the width of the opening after side panels
are installed), must accommodate the full width of the
refrigerator.
See page 14for side panel sizes.
Installations
cRefrigerator_
Side Panels
Cabinet
1/4" Side Panels. Insert end of
side panel into trim
I
Reffigerator_
Frameless
Cabinets
Accessory
Panel Kits
Note: 1/2"thick side panels shown. Side panels can
be any thickness. Add side panel thickness to outside
trim width (36") to calculate the rough-in dimension.
The leading (front) edge must be finished to match
surrounding cabinetry.
Side panels, 1/2"minimum thickness are
required when using frameless cabinets.
The side panel acts as a spacer between the
cabinet and the case trim and prevents
interference with cabinet door swing. The
leading (front) edge must be finished to
match surrounding cabinetry.
Field installed door and grille panels are required. The factory
installed trim will accept accessory panel kits. White or black
Lexan k and stainless steel kits are available. Panels are cutto
size and ready to install. These panel kits must be ordered
separately.
Model Black White Stainless
ZlS36N ZWBP36 ZWWP36 ZWSP36
ZlSW36D ZWWP36D ZWSP36D
ZlSB36D ZWBP36D ZWSP36D
1/2" To 3/4" SidePanels.Leading
36"_ Finished Dim.
3T'_ Rough-In Dim.
EdgeFlush With Cabinet
A wide range of custom appearance options can be created
with optional custom trim kits. See the opposite page for
examples and trim kit descriptions.
Cabinet_
_ Refrigerator door _
/
Cabinet
1/2" To 3/4" SidePanels.Leading
EdgeFlush With Cabinet

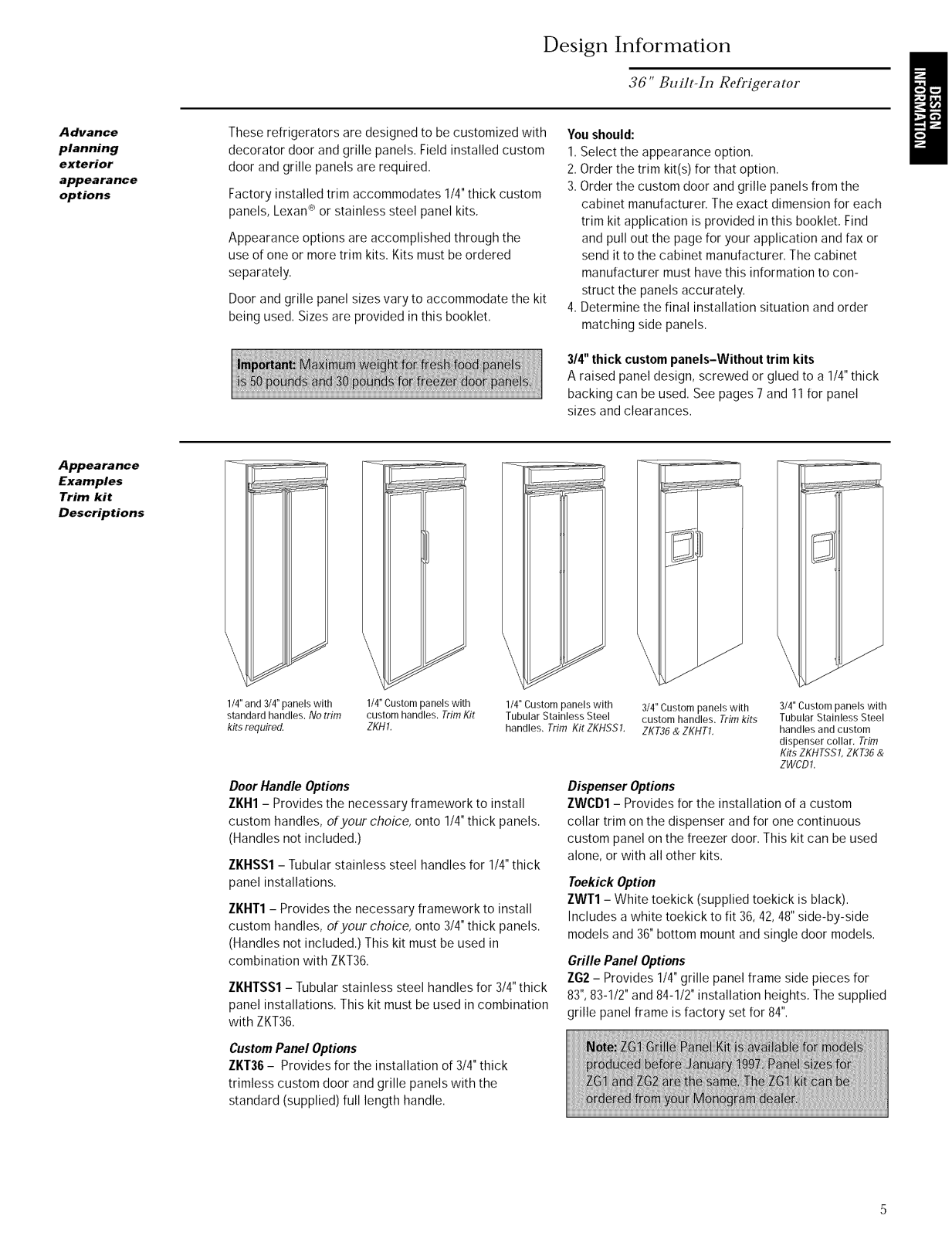

Design Information
36" Built-In Refrigerator
Advance
planning
exterior
appearance
options
Appearance
Examples
Trim kit
Descriptions
These refrigerators are designed to be customized with
decorator door and grille panels. Field installed custom
door and grille panels are required.
Factory installed trim accommodates 1/4" thick custom
panels, Lexan (R_or stainless steel panel kits.
Appearance options are accomplished through the
use of one or more trim kits. Kits must be ordered
separately.
Door and grille panel sizes vary to accommodate the kit
being used. Sizes are provided in this booklet.
You should:
1. Select the appearance option.
2. Order the trim kit(s) for that option.
3. Order the custom door and grille panels from the
cabinet manufacturer. The exact dimension for each
trim kit application is provided in this booklet. Find
and pull out the page for your application and fax or
send it to the cabinet manufacturer. The cabinet
manufacturer must have this information to con-
struct the panels accurately.
4. Determine the final installation situation and order
matching side panels.
3/4" thick custom panels-Without trim kits
A raised panel design, screwed or glued to a 1/4" thick
backing can be used. See pages 7 and 11 for panel
sizes and clearances.
1/4"and 3/4" panels with 1/4"Custompanels with 1/4" Custom panels with
standard handles. No trim custom handles. Trim Kit Tubular Stainless Steel
kits required. ZKHt. handles. Trim Kit ZKHSS1.
Door Handle Options
ZKH1 - Provides the necessary framework to install
custom handles, of your choice, onto 1/4" thick panels.
(Handles not included.)
ZKHSS1 - Tubular stainless steel handles for 1/4" thick
panel installations.
ZKH]I - Provides the necessary framework to install
custom handles, of your choice, onto 3/4" thick panels.
(Handles not included.) This kit must be used in
combination with ZKT36.
ZKHTSS1 - Tubular stainless steel handles for 3/4" thick
panel installations. This kit must be used in combination
with ZKT36.
Dispenser Options
ZWCD1 - Provides for the installation of a custom
collar trim on the dispenser and for one continuous
custom panel on the freezer door. This kit can be used
alone, or with all other kits.
ToekickOption
ZWT1- White toekick (supplied toekick is black).
Includes a white toekick to fit 36, 42,48"side-by-side
models and 36"bottom mount and single door models.
Grille Panel Options
ZG2- Provides 1/4"grille panel frame side pieces for
83",83-1/2"and 84-1/2"installation heights. The supplied
grille panel frame is factory set for 84".
Custom Panel Options
ZKT36 - Provides for the installation of 3/4" thick
trimless custom door and grille panels with the
standard (supplied) full length handle.
3/4" Custom panels with
custom handles. Trim kits
ZKT35& ZKHT1.
J
3/4" Custom panels with
Tubular Stainless Steel
handles and custem
dispenser collar. Trim
Kits ZKHTSS1, ZKT35 &
ZWCD1.

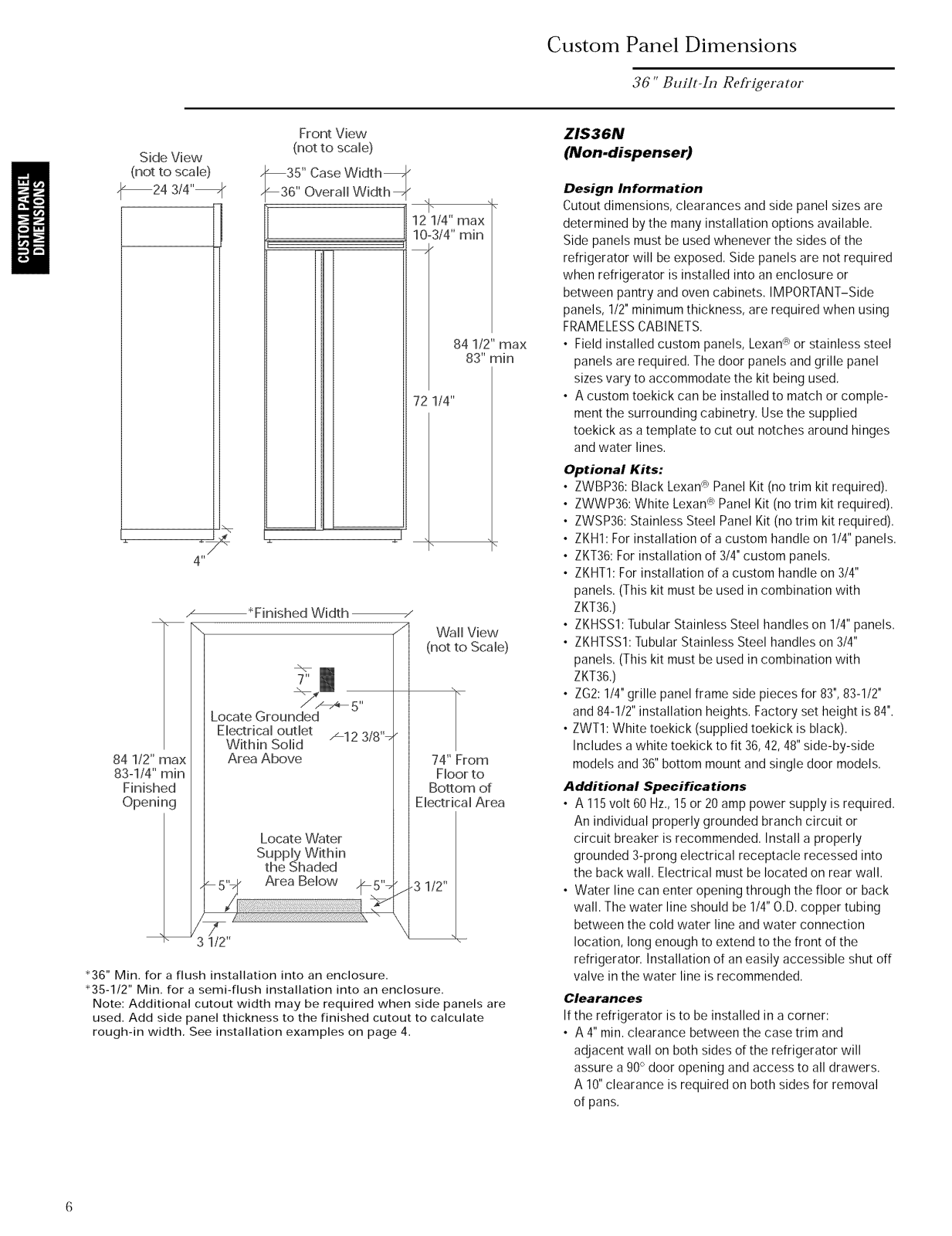

Custom Panel Dimensions
36" BzHlt-ln Refrigerator
Front View
Side View
not to scale
--24 3/4"--
(not to scale)
--35" Case Width/
--36" Overall Width
12 1/4" max
10-3/4" rrfin
84 1/2" max
83" min
72 1/4"
J
4 _
*Finished Width
Wall View
(not to Scale)
Locate Grounded
84 112"max
83-114"min
Finished
Opening
Electrical outlet
Within Solid
Area Above
Locate Water
Supply Within
the Shaded
A12 3t8"-
74" From
Floor to
Bottom of
Electrical Area
3 1/2"
1/2" --_-
*36" Min. for a flush installation into an enclosure.
"35-1/2" Min. for a semi-flush installation into an enclosure.
Note: Additional cutout width may be required when side panels are
used. Add side panel thickness to the finished cutout to calculate
rough-in width. See installation examples on page 4.
ZIS36N
(Non-dispenser)
Design Information
Cutout dimensions, clearances and side panel sizes are
determined by the many installation options available.
Side panels must be used whenever the sides of the
refrigerator will be exposed. Side panels are not required
when refrigerator is installed into an enclosure or
between pantry and oven cabinets. IMPORTANT-Side
panels, 1/2" minimum thickness, are required when using
FRAMELESS CABINETS.
• Field installed custom panels, Lexan ® or stainless steel
panels are required. The door panels and grille panel
sizes vary to accommodate the kit being used.
• A custom toekick can be installed to match or comple-
ment the surrounding cabinetry. Use the supplied
toekick as a template to cut out notches around hinges
and water lines.
Optional Kits:
ZWBP36: Black Lexan ® Panel Kit (no trim kit required).
ZWWP36: White Lexan C"_'Panel Kit (no trim kit required).
ZWSP36: Stainless Steel Panel Kit (no trim kit required).
ZKHI: For installation of a custom handle on 1/4" panels.
ZKT36: For installation of 3/4" custom panels.
ZKHTI: For installation of a custom handle on 3/4"
panels. (This kit must be used in combination with
ZKT36.)
• ZKHSSI: Tubular Stainless Steel handles on 1/4" panels.
• ZKHTSSI: Tubular Stainless Steel handles on 3/4"
panels. (This kit must be used in combination with
ZKT36.)
• ZG2: 1/4" grille panel frame side pieces for 83", 83-112"
and 84-1/2" installation heights. Factory set height is 84".
• ZWTI: White toekick (supplied toekick is black).
Includes a white toekick to fit 36, 42, 48" side-by-side
models and 36" bottom mount and single door models.
Additional Specifications
• A 115 volt 60 Hz., 15 or 20 amp power supply is required.
An individual properly grounded branch circuit or
circuit breaker is recommended. Install a properly
grounded 3-prong electrical receptacle recessed into
the back wall. Electrical must be located on rear wall.
• Water line can enter opening through the floor or back
wall. The water line should be 1/4" O.D. copper tubing
between the cold water line and water connection
location, long enough to extend to the front of the
refrigerator. Installation of an easily accessible shut off
valve in the water line is recommended.
Clearances
If the refrigerator is to be installed in a corner:
• A 4" min. clearance between the case trim and
adjacent wall on both sides of the refrigerator will
assure a 90 ° door opening and access to all drawers.
A 10" clearance is required on both sides for removal
of pans.

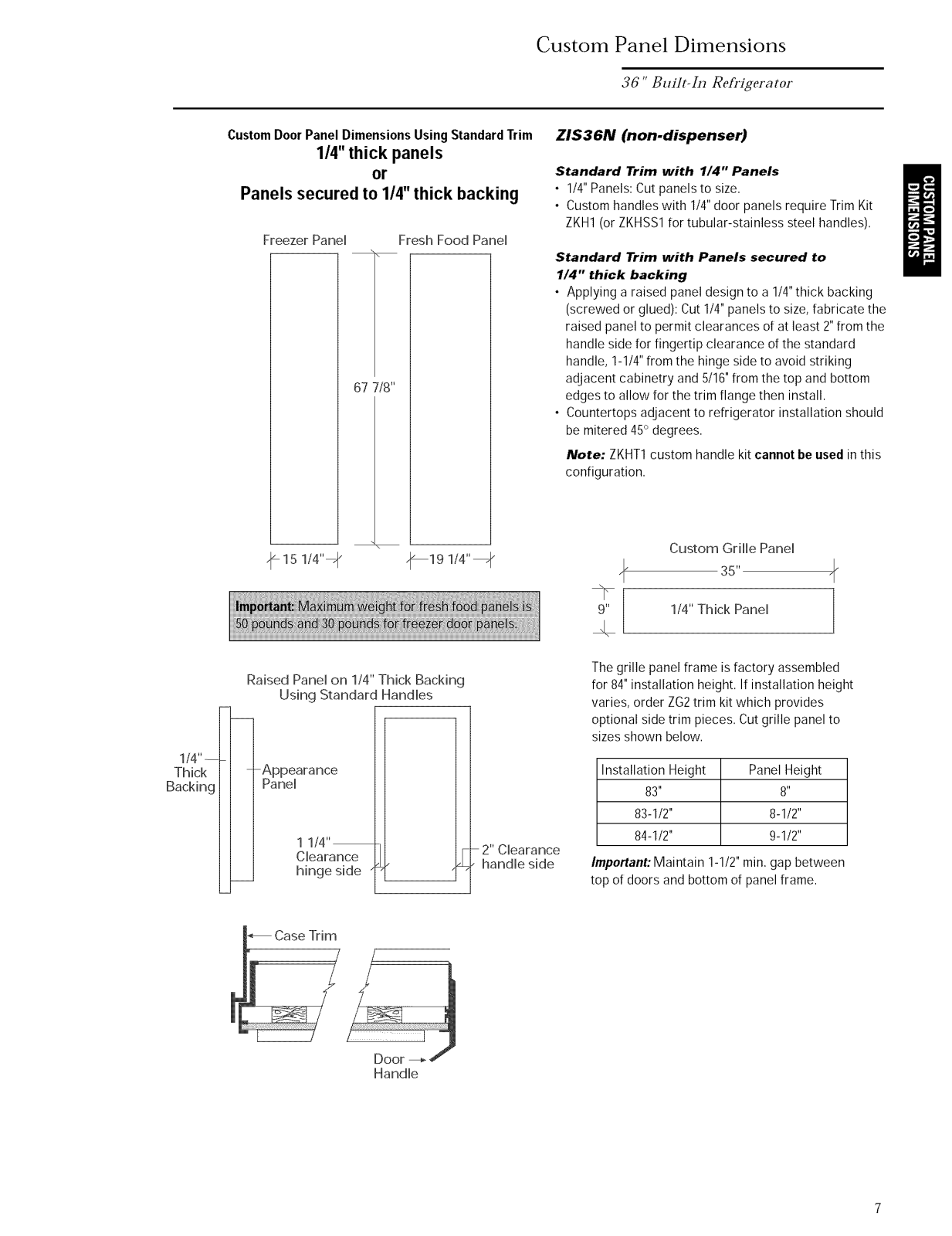

Custom Panel Dimensions
36 " Built-In Refrigerator
Custom Door Panel Dimensions Using Standard Trim
1/4" thick panels
or
Panels secured to 1/4"thick backing
Freezer Panel Fresh Food Panel
67 7/8"
-15 1/4"--
--19 1/4"--
ZIS36N (non-dispenser)
Standard Trim with 1/4" Panels
• 1/4" Panels: Cut panels to size.
• Custom handles with 1/4" door panels require Trim Kit
ZKH1 (or ZKHSS1 for tubular-stainless steel handles).
Standard Trim with Panels secured to
1/4" thick backing
• Applying a raised panel design to a 1/4" thick backing
(screwed or glued): Cut 1/4" panels to size, fabricate the
raised panel to permit clearances of at least 2" from the
handle side for fingertip clearance of the standard
handle, 1-1/4" from the hinge side to avoid striking
adjacent cabinetry and 5/16" from the top and bottom
edges to allow for the trim flange then install.
• Countertops adjacent to refrigerator installation should
be mitered 45° degrees.
Note: ZKHT1 custom handle kit cannot be used in this
configuration.
Custom Grille Panel
35"
Raised Panel on 1/4" Thick Backing
1/4" --_
Thick I I bApp earance
BacMnc[ [ [ Pand
2" Clearance
handle side
9"
1t4" Thick Panel
.b
The grille panel frame is factory assembled
for 84" installation height. If installation height
varies, order ZG2 trim kit which provides
optional side trim pieces. Cut grille panel to
sizes shown below.
Installation Height Panel Height
83" 8"
83-1/2" 8-1/2"
84-1/2" 9-1/2"
Important: Maintain 1-1/2"rain, gapbetween
top of doors and bottom of panel frame.
Handle
Custom Panel Dimensions
36" Built-In Refrigerator

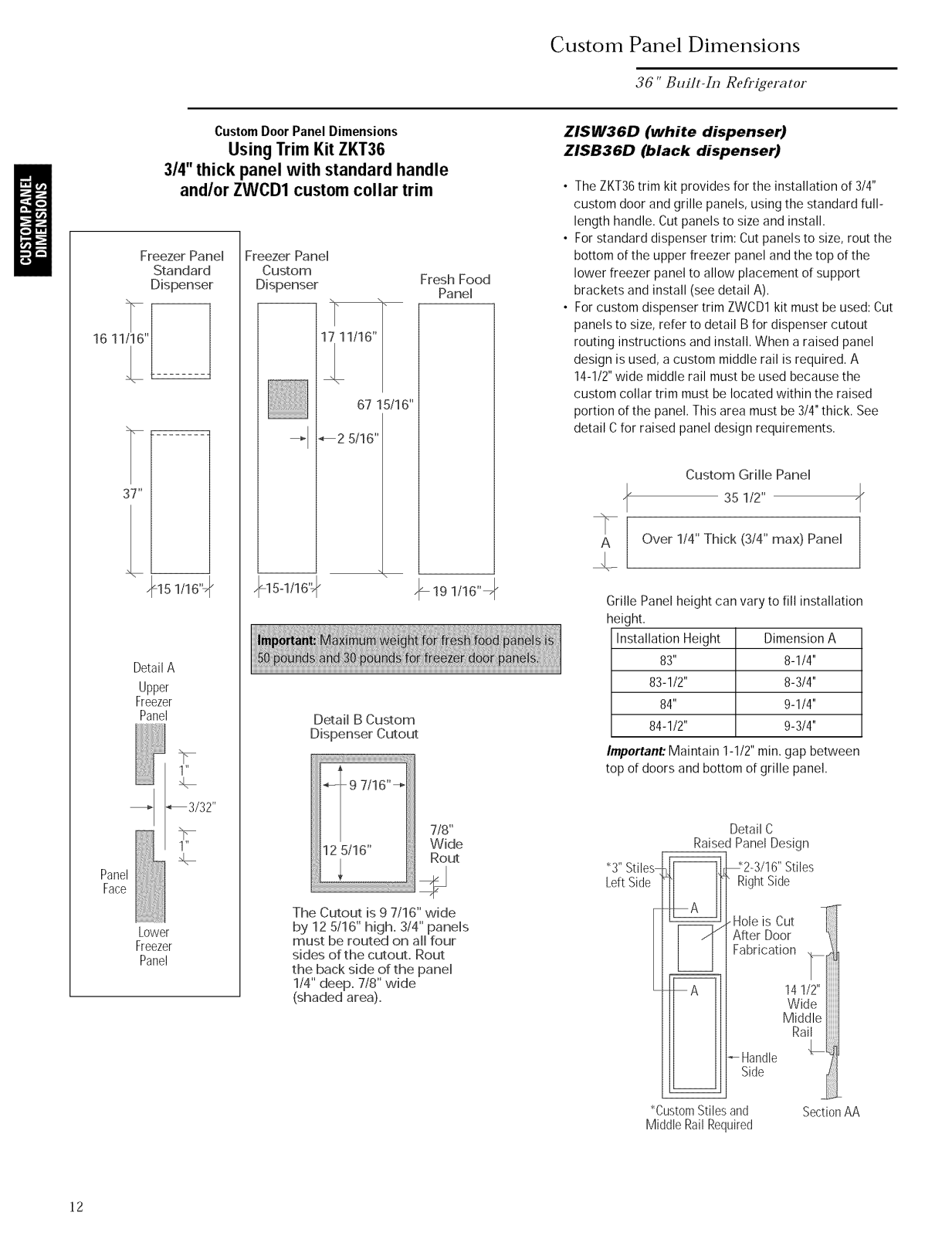

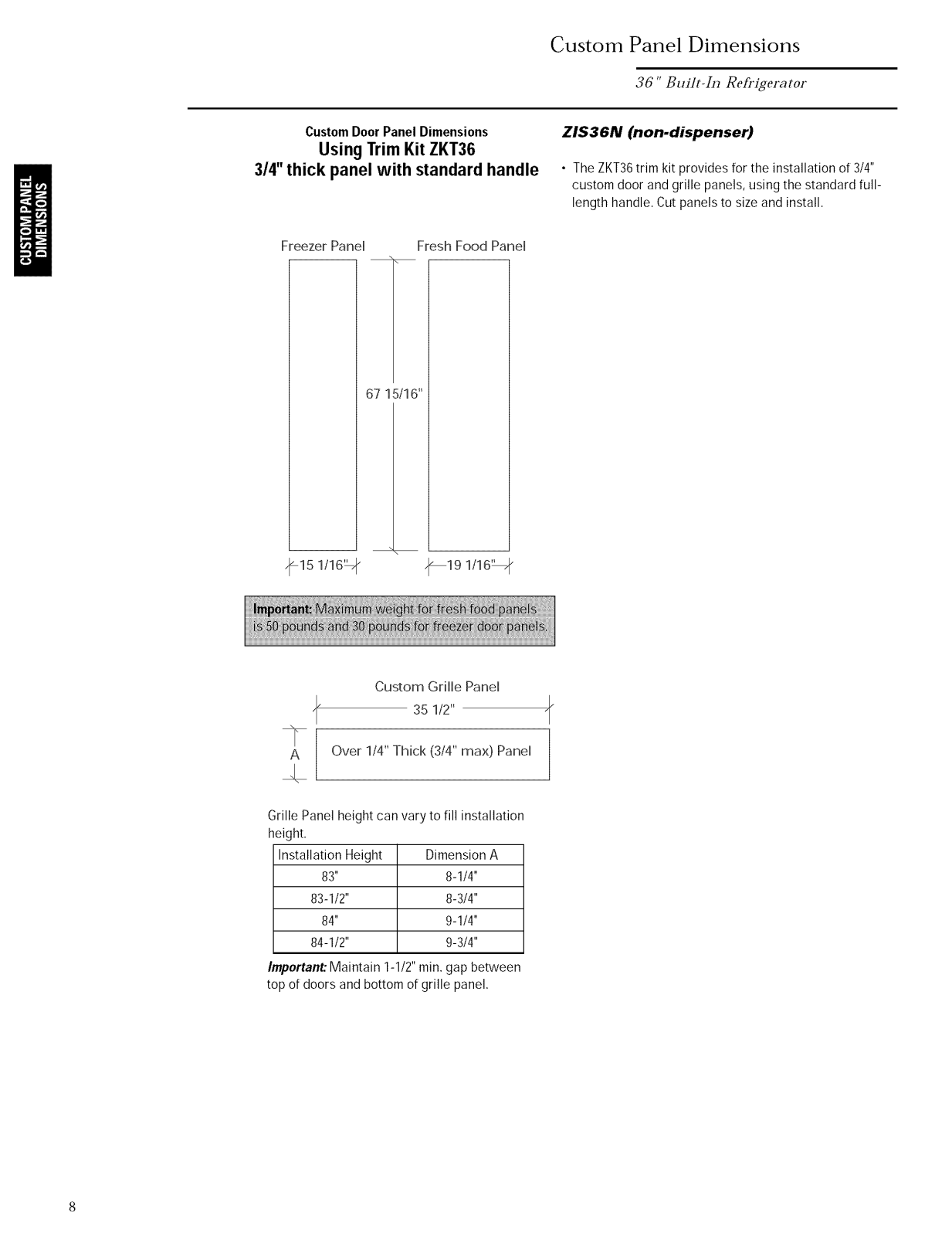

Custom Door Panel Dimensions
Using Trim Kit ZKT36
314"thick panel with standard handle
Freezer Panel Fresh Food Panel
67 15/16"
_15 1t16%
_19 1/16",
ZIS36N (non-dispenser)
• The ZKT36 trim kit provides for the installation of 3/4"
custom door and grille panels, using the standard full-
length handle. Cut panels to size and install.
Custom GriHHePaneH
35 1t2"
Over 1/4" Thick (3/4" max) Panel
Grille Panel height can vary to fill installation
height.
Installation Height Dimension A
83" 8-1/4"
83-1/2" 8-3/4"
84" 9-1/4"
84-1/2" 9-3/4"
Important.. Maintain 1-1/2" min, gap between
top of doors and bottom of grille panel,
]
Custom Panel Dimensions
36" Built-In Refrigerator
Custom Door Panel Dimensions
Using Trim Kits ZKT36
3/4"thick panel
with custom handle
Freezer Panel Fresh Food Panel
67 15/16"
_19 5/16"_
ZIS36N (non-dispenser)
• ZKT36 and ZKHT1 installed together provides for the
installation of 3/4" custom door and grille panels,
using a custom handle, of your choice. Order
ZKHTSS1 for tubular stainless-steel handles. Cut
panels to size, rout the handle side of the panels as
shown below and install.
/
Rout panels to specification below on
the handHe side of each paneH
1 13t16:' 1 13t16"
/' 1/4" \
Freezer Door Face max Fresh Food Door Face
Custom GriHHePaneH
35 1/2"
A Over 1/4" Thick (3/4" max) PaneH
Grille Panelheight can vary to fill installation
height.
Installation Height Dimension A
83" 8-1/4"
83-112" 8-314"
84" 9-1/4"
84-112" 9-314"
Important: Maintain 1-1/2" min. gap between
top of doors and bottom of grille panel.
Front View
Side View
not to scale
--24 3/4"_
(not to scale)
35" Case Width_
6" Overall Width_
12 1/4" max
10-3/4" rnin
84 1/2" max
83" rrfin
72 1/4"
_7 L
4"
*Finished Width
Wall View
(not to Scale)
Locate Grounded
84 1/2" max
83-1/4" rnin
Finished
Opening
Electrical outlet
Within Solid
Area Above
Locate Water
Supply Within
the Shaded
_12 3/8"
74" From
Floor to
Bottom of
Electrical Area
3 1/2"
3 1/2"
*36" Min. for a flush installation into an enclosure.
"35-1/2" Min. for a semi-flush installation into an enclosure.
Note: Additional cutout width may be required when side panels are
used. Add side panel thickness to the finished cutout to calculate
rough-in width. See installation examples on page 4.
Custom Panel Dimensions
36" BzHlt-ln Refrigerator
ZISW36D (white dispenser)
ZISB36D (black dispenser)
Design Information
Cutout dimensions, clearances and side panel sizes are
determined by the many installation options available. Side
panels must be used whenever the sides of the refrigerator
will be exposed. Side panels are not required when
refrigerator is installed into an enclosure or between pantry
and oven cabinets. IMPORTANT-Side panels, 1/2" min.
thick, are required for FRAMELESS CABINETS.
• Field installed custom panels, Lexan C_'or stainless steel
panels are required. Custom door panels and grille panel
sizes vary to accommodate the kit being used.
• A custom toekick can be installed to match or comple-
ment the surrounding cabinetry. Use supplied toekick as
a template to cut notches for hinges and water lines.
Optional Kits:
ZWBP36D: Black Lexan ® Panel Kit (no trim kit required).
ZWWP36D: White Lexan '_ Panel Kit (no trim kit required).
ZWSP36D: Stainless Steel Panel Kit (no trim kit required).
ZKHI: For installation of custom handles on 1/4" panels.
ZKT36: For installation of 3/4" custom panels.
ZKHTI: For installation of custom handles on 314"panels.
(This kit must be used in combination with ZKT36.)
• ZWCDI: For installation of a custom collar trim on the
dispenser for one continuous custom panel
on the freezer door.
• ZKHSSI: Tubular Stainless Steel handles on 1/4' panels.
• ZKHTSSI: Tubular Stainless Steel handles on 3/4" panels.
(This kit must be used in combination with ZKT36.)
• ZG2: 1/4" grille panel frame side pieces for 83", 83-1/2" and
84-1/2" installation heights. Factory set height is 84".
• ZWTI: White toekick (supplied toekick is black). Includes
a white toekick to fit 36, 42, 48" side-by-side models and
36" bottom mount and single door models.
Additional Specifications
• A 115 volt 60 Hz., 15 or 20 amp power supply is required.
An individual properly grounded branch circuit or circuit
breaker is recommended. Install a properly grounded
3-prong electrical receptacle recessed into the back wall.
Electrical must be located on rear wall.
• Water line can enter opening through the floor or back
wall. The water line should be 1/4" O.D. copper tubing
between the cold water line and water connection
location, long enough to extend to the front of the
refrigerator. Installation of an easily accessible shut off
valve in the water line is recommended.
Clearances
If the refrigerator is to be installed in a corner:
• A 4" rain. clearance between the case trim and adjacent
wall on both sides of the refrigerator will assure a 90°
door opening and access to all drawers. A 10" clearance
is required on both sides for removal of pans.
10
Custom Panel Dimensions
36" Built-In Refrigerator
Custom Door Panel Dimensions Using Standard Trim
Panels secured to 1/4"thick backing
Freezer Panel Freezer Panel
Standard Custom
Dispenser Dispenser
36 7/8"
1/4" thick panels
or
_1 _2 9t16"
_15 1/4 4
67 7/8"
Fresh Food
Panel
_19 1/4"
ZISLIV36D (white dispenser)
ZISB36D (black dispenser)
Standard Trim with 1/4" Panels
• 1/4" Panels: Cut panels to size.
• Custom handles with 1/4" door panels require Trim Kit
ZKH1. When using ZKH1 with the standard dispenser
trim, the length of the custom handle, top to bottom
cannot exceed 11-3/4".

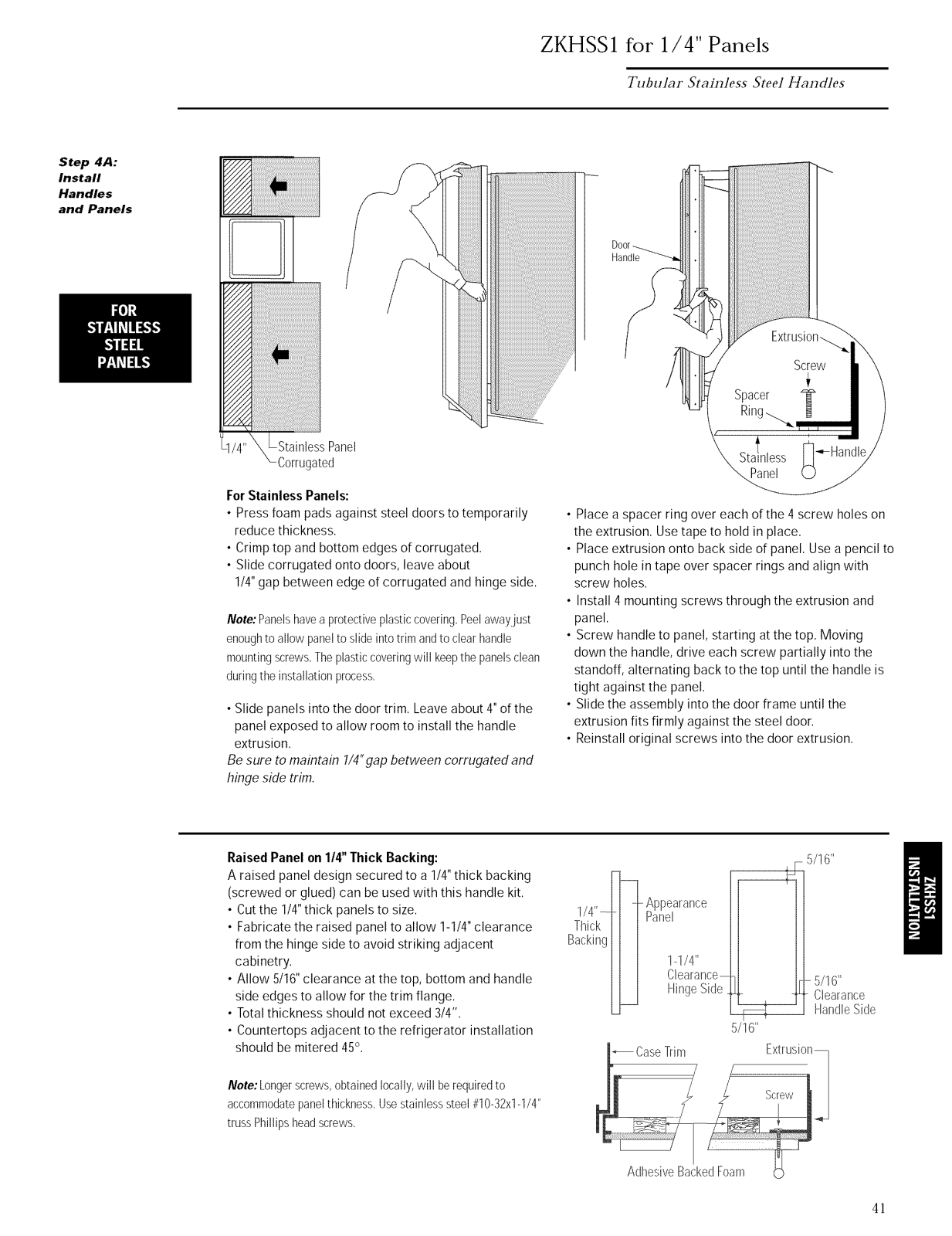

• Tubular stainless steel handle kit, ZKHSS1.
• Custom collar dispenser trim with 1/4" door panels
require trim kit ZWCD1,
Standard Trim with Panels secured to
1/4" thick backing
• Applying a raised panel design to a 1/4" thick backing
(screwed or glued): Cut 1/4" panels to size, fabricate
the raised panel to permit clearances of at least 2"
from the handle side for fingertip clearance of the
standard handle, 1-1/4" from the hinge side to avoid
striking adjacent cabinetry and 5/16" from the top and
bottom edges to allow for the trim flange, then install.
• Countertops adjacent to refrigerator installation
should be mitered 45° degrees.
Note: ZWCD1 custom collar dispenser trim and
ZKHT1 custom handle kits cannot be used in this
configuration.
mm
H
Raised Panel on 1/4" Thick Backing
Using Standard Handles
1/4"--_
Thick II pAppearance
Backing I I Panei
Handle
2" Clearance
handle side
Custom Grille Panel
35"
9"
The grille panel frame is factory assembled
for 84" installation height. If installation height
varies, order ZG2 trim kit for optional side trim
)ieces. Cut grille panel to sizes shown below.
Installation Height Panel Height
Important: Maintain 1-1/2" min, gap between
top of doors and bottom of panel frame.
1/4" Thick Panel
83" 8"
83-1/2" 8-1/2"
84-1/2" 9-1/2"
Custom Dispenser Cutout
12 5/16"
The Cutout is 9 7/16" wide
by 12 5/16" high,
11
Custom Panel Dimensions
36" Built-In Refrigerator
16 11_"_
Custom Door Panel Dimensions
Using Trim Kit ZKT36
3/4" thick panel with standard handle
and/or ZWCD1 custom collar trim
Freezer Panel
Standard
Dispenser
Freezer Panel
Custom
Dispenser
Fresh Food
Panel
ZISW36D (white dispenser)
ZISB36D (black dispenser)
• The ZKT36 trim kit provides for the installation of 3/4"
custom door and grille panels, using the standard full-
length handle. Cut panels to size and install.
• For standard dispenser trim: Cut panels to size, rout the
bottom of the upper freezer panel and the top of the
lower freezer panel to allow placement of support
brackets and install (see detail A).
• For custom dispenser trim ZWCD1 kit must be used: Cut
panels to size, refer to detail B for dispenser cutout
routing instructions and install. When a raised panel
design is used, a custom middle rail is required. A
14-1/2" wide middle rail must be used because the
custom collar trim must be located within the raised
portion of the panel. This area must be 3/4" thick. See
detail C for raised panel design requirements.
Custom Grille Panel
35 1t2"
Over 114"Thick (3/4" max) Panel
Panel
Face
DetailA
Upper
Freezer
Panel
Lower
Freezer
Panel
1 "
.J.
1 "
-- 19 1t16"-
Detail B Custom
Dispenser Cutout
_L9 7/16"_
12 5116"
The Cutout is 9 7/16" wide
by 12 5116" high. 3t4" panels
must be routed on all four
sides of the cutout. Rout
the back side of the panel
1t4" deep. 7t8" wide
(shaded area).
7/8"
Wide
Rout
Grille Panel height can vary to fill installation
height.
Installation Height Dimension A
83" 8-1/4"
83-1/2" 8-3/4"
84" 9-1/4"
84-1/2" 9-3/4"
Important.. Maintain 1-1/2" min. gap between
top of doors and bottom of grille panel.
Detail C
Raised Panel Design
..... _2-3/16" Stiles
RightSide
Holeis Cut
After Door
Fabrication ,
14 !/2"
Wide
Middle
Rail
--Handle
12
*CustomStilesand
MiddleRailRequired
SectionAA
Custom Panel Dimensions
36" Built-In Refrigerator
Freezer Pand
16 1111_6"_
DetailA
Upper
Freezer
Panel

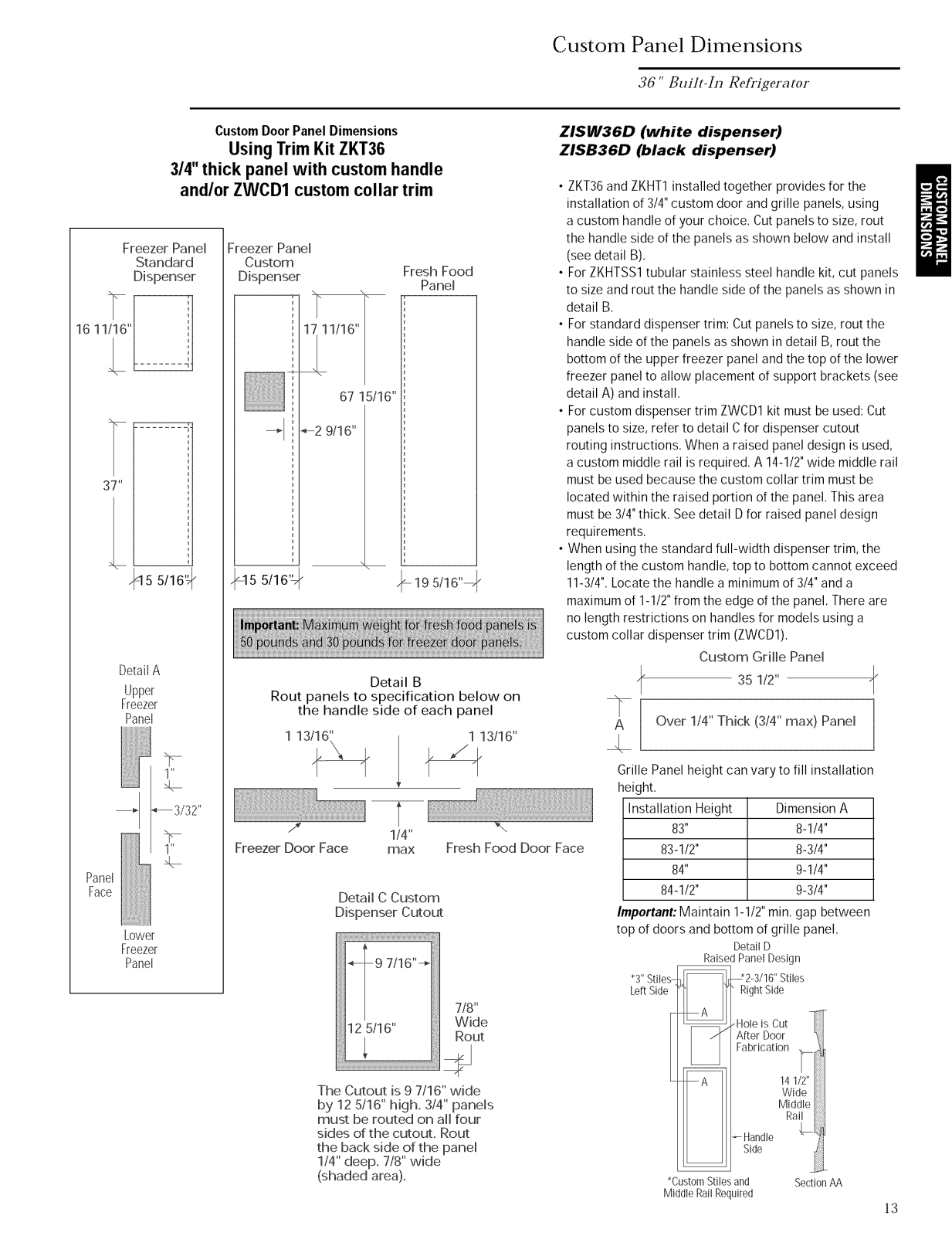

Custom Door Panel Dimensions
Using Trim Kit ZKT36
314"thick panel with custom handle
and/or ZWCD1 custom collar trim
Standard
Dispenser
r ........ i"
i I
i
/
Freezer Pand
Custom
Dispenser
67 15/16"
_1 _2 9116"
L15 5/16",
Rout panels to specification below on
the handle side of each panel
Fresh Food
Detail B
Pand
19 5t16"=
ZISW36D (white dispenser)
ZISB36D (black dispenser)
• ZKT36 and ZKHT1 installed together provides for the
installation of 3/4" custom door and grille panels, using
a custom handle of your choice. Cut panels to size, rout
the handle side of the panels as shown below and install
(see detail B).
• For ZKHTSS1 tubular stainless steel handle kit, cut panels
to size and rout the handle side of the panels as shown in
detail B.
• For standard dispenser trim: Cut panels to size, rout the
handle side of the panels as shown in detail B, rout the
bottom of the upper freezer panel and the top of the lower
freezer panel to allow placement of support brackets (see
detail A) and install.
• For custom dispenser trim ZWCD1 kit must be used: Cut
panels to size, refer to detail C for dispenser cutout
routing instructions. When a raised panel design is used,
a custom middle rail is required. A 14-1/2" wide middle rail
must be used because the custom collar trim must be
located within the raised portion of the panel. This area
must be 3/4" thick. See detail D for raised panel design
requirements.
• When using the standard full-width dispenser trim, the
length of the custom handle, top to bottom cannot exceed
11-3/4". Locate the handle a minimum of 3/4" and a
maximum of 1-1/2" from the edge of the panel. There are
no length restrictions on handles for models using a
custom collar dispenser trim (ZWCD1).
Custom Grille Panel
35 1t2"
A Over 114" Thick (314" max) Panel
1 13116"
Panel
Face
Lower
Freezer
Panel
1 "
.J
Grille Panel height can vary to fill installation
height.
Installation Height Dimension A
f 1t4" x
1"
Freezer Door Face max Fresh Food Door Face
83" 8-1/4"
83-1/2" 8-3/4"
84" 9-1/4"
DetMIC Custom
Dispenser Cutout
_19 7/16"+
12 5116"
The Cutout is 9 7/16" wide
by 12 5116" high. 3/4" panels
must be routed on all four
sides of the cutout. Rout
the back side of the panel
1/4" deep. 7/8" wide
(shaded area).
7/8"
Wide
Rout
84-1/2" 9-3/4"
Important: Maintain 1-1/2" min. gap between
top of doors and bottom of grille panel.
*3" Stiles _2-3/161' Stiles
LeftSide RightSide
*Custom Stiles and
Middle Rail Required
Detail D
Raised Panel Design
A
Hole is Cut
After Door
__ Fabrication _[
-Handle
Side
141/2"
Wide
Middle
Rail
A
Section AA
13
Custom Panel Dimensions
36 " Built-In Refriserator

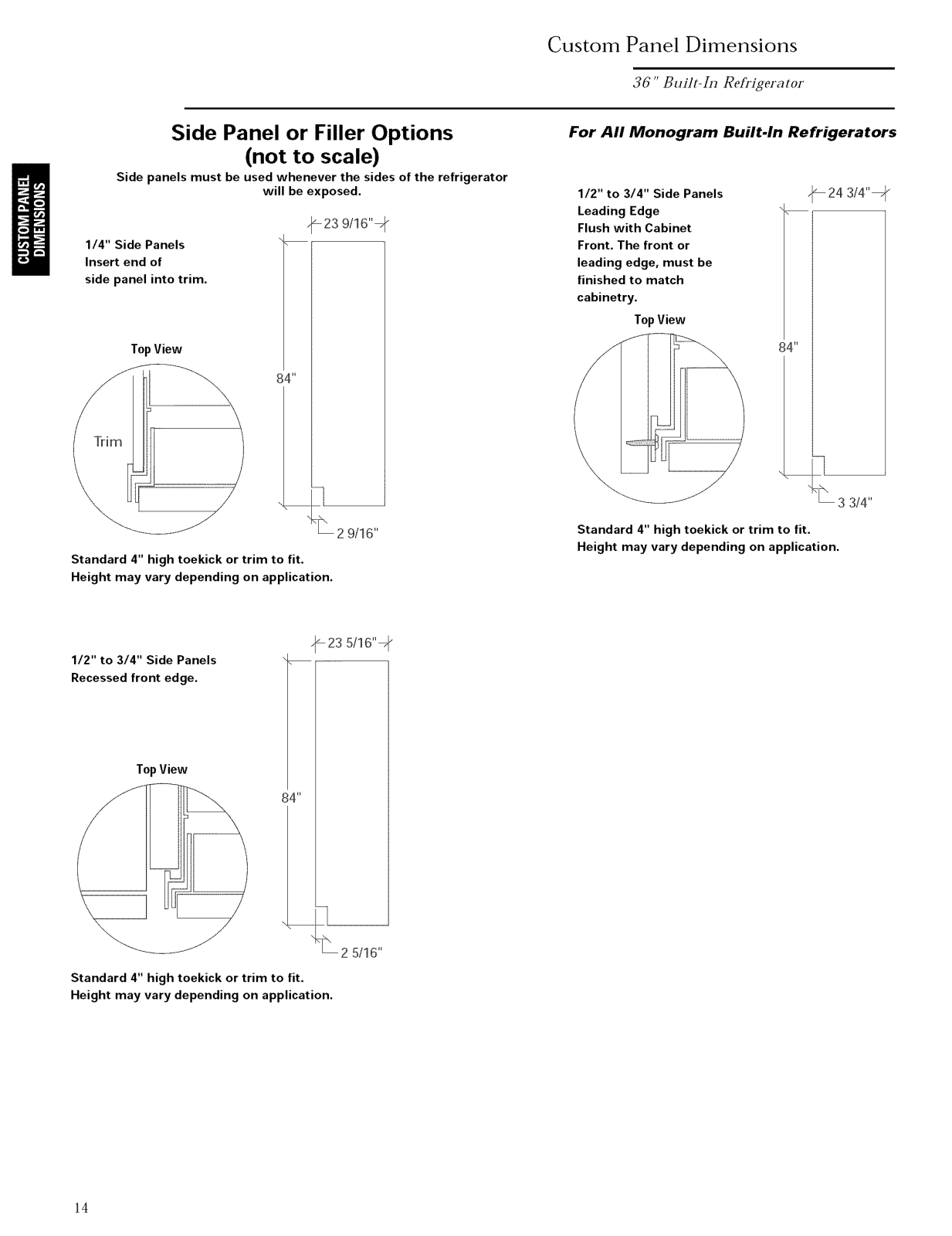

Side Panel or Filler Options
(not to scale)
Side panels must be used whenever the sides of the refrigerator
will be exposed.
-23 9/16"-
1/4" Side Panels
Insert end of
side panel into trim.
Top View
84"
\
2 9/16"
Standard 4" high toekick or trim to fit.
Height may vary depending on application.
For All Monogram Built.In Refrigerators
1/2" to 3/4" Side Panels
Leading Edge
Flush with Cabinet
Front. The front or
leading edge, must be
finished to match
cabinetry.
Top View
Standard 4" high toekick or trim to fit.
Height may vary depending on application.
_24 3/4"_
84"
\
3 3/4"
1/2" to 3/4" Side Panels
Recessed front edge.
TopView
84"
\ ]
\\
\. j
Standard 4" high toekick or trim to fit.
Height may vary depending on application.
=23 5/16"_
2 5116"
14

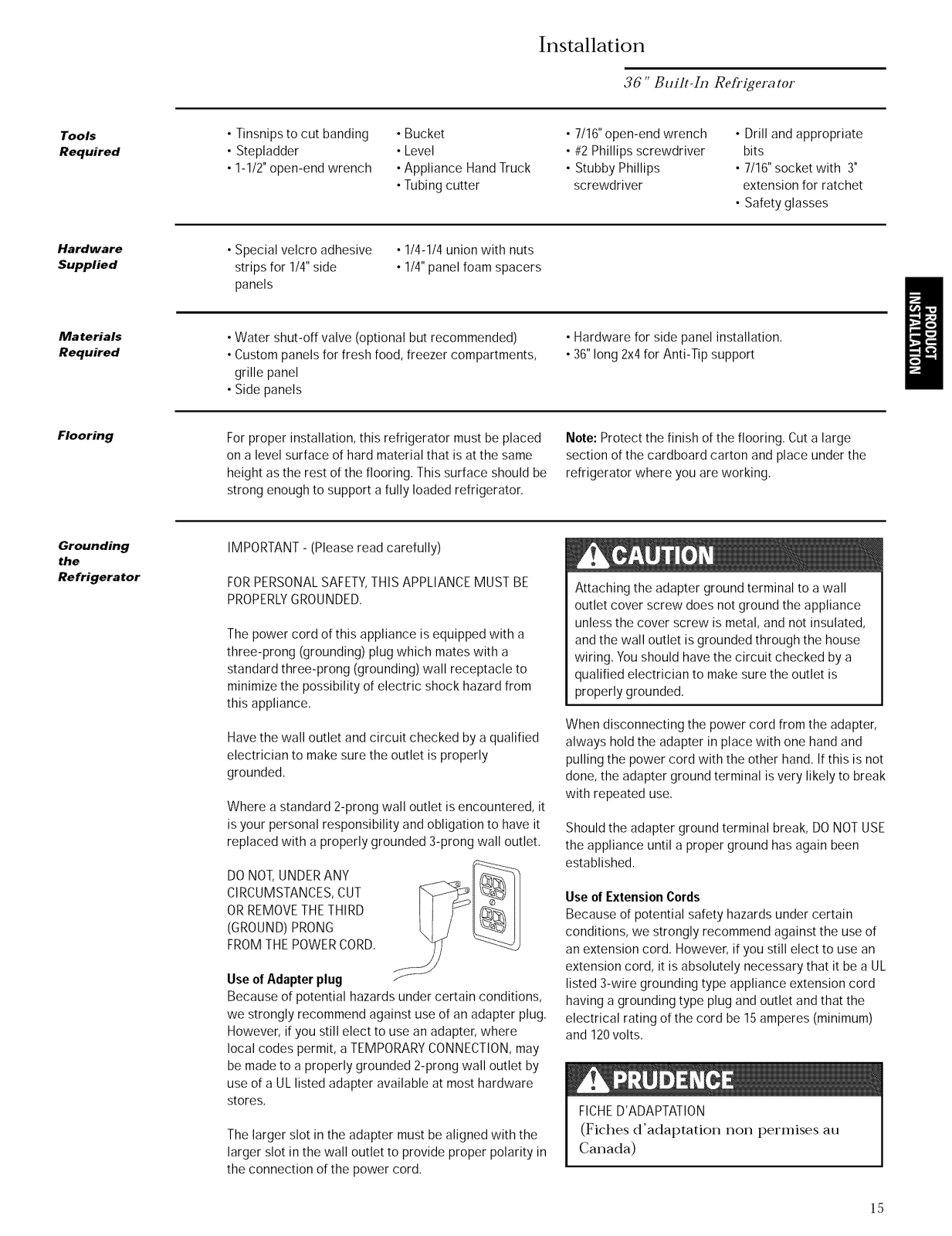

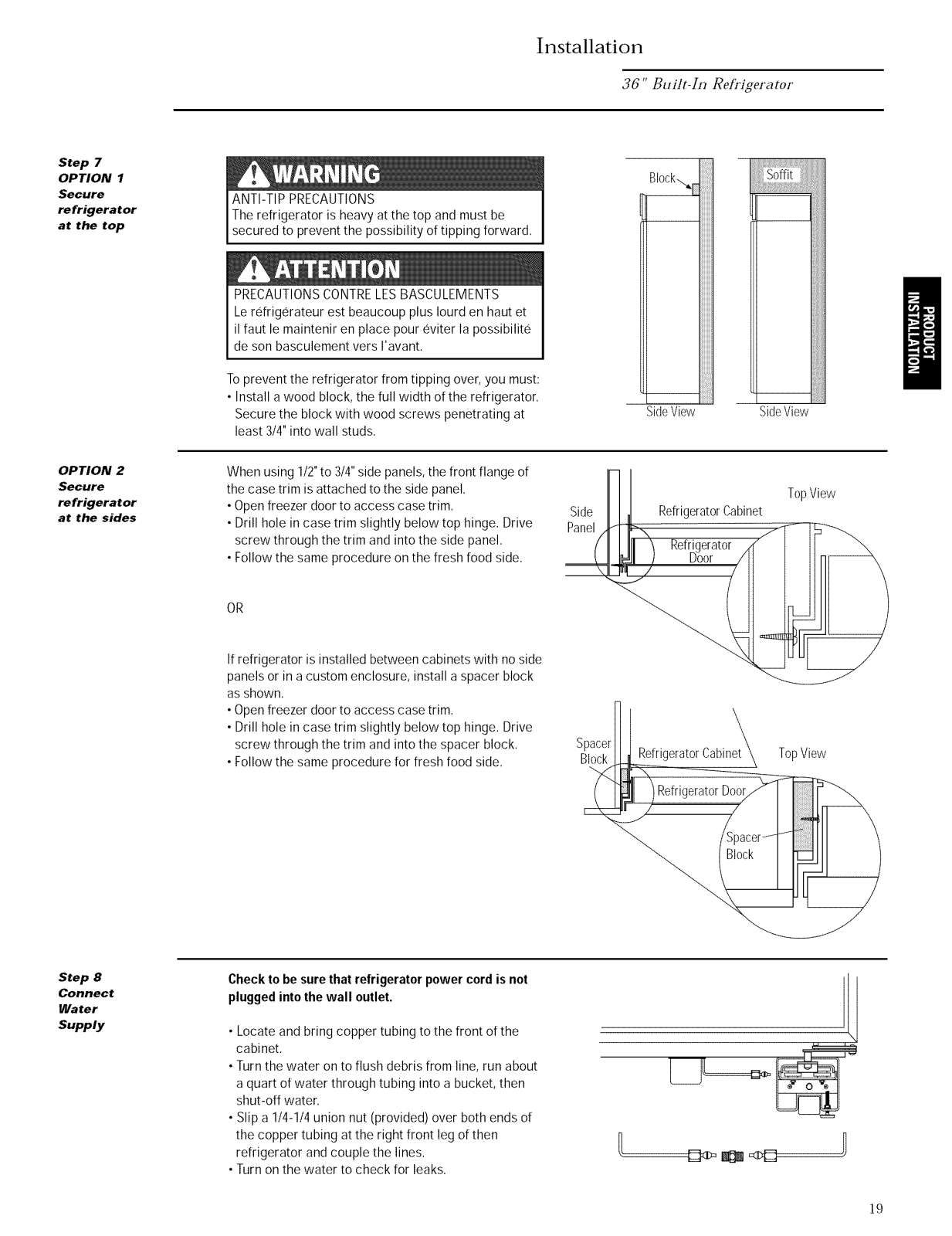

Installation
36" Built-In Refrigerator
Tools
Required
Hardware
Supplied
Materials
Required
Flooring
Grounding
the
Refrigerator
• Tinsnips to cut banding
• Stepladder
• 1-1/2" open-end wrench
• Bucket
• Level
•Appliance Hand Truck
•Tubing cutter
• Special velcro adhesive • 1/4-1/4 union with nuts
strips for 1/4" side • 1/4" panel foam spacers
panels
•Water shut-off valve (optional but recommended)
• Custom panels for fresh food, freezer compartments,
grille panel
• Side panels
For proper installation, this refrigerator must be placed
on a level surface of hard material that is at the same
height as the rest of the flooring. This surface should be
strong enough to support a fully loaded refrigerator.
IMPORTANT- (Please read carefully)
FORPERSONALSAFETY,THISAPPLIANCEMUST BE
PROPERLYGROUNDED.
The power cord of this appliance is equipped with a
three-prong (grounding) plug which mates with a
standard three-prong (grounding) wall receptacle to
minimize the possibility of electric shock hazard from
this appliance.
Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly
grounded.
Where a standard 2-prong wall outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
DONOT,UNDERANY
CIRCUMSTANCES,CUT
ORREMOVETHETHIRD
(GROUND)PRONG
FROMTHEPOWERCORD.
Useof Adapterplug f
Because of potential hazards under certain conditions,
we strongly recommend against use of an adapter plug.
However, if you still elect to use an adapter, where
local codes permit, aTEMPORARYCONNECTION,may
be made to aproperly grounded 2-prong wall outlet by
use of a UL listed adapter available at most hardware
stores.
The larger slot in the adapter must be aligned with the
larger slot in the wall outlet to provide proper polarity in
the connection of the power cord.
• 7/16"open-end wrench
• #2 Phillips screwdriver
• Stubby Phillips
screwdriver
• Drill and appropriate
bits
• 7/16" socket with 3"
extension for ratchet
• Safety glasses
• Hardware for side panel installation.
• 36"long 2x4for Anti-Tip support
Note: Protect the finish of the flooring. Cut a large
section of the cardboard carton and place under the
refrigerator where you are working.
Attaching the adapter ground terminal to a wall
outlet cover screw does not ground the appliance
unless the cover screw is metal, and not insulated,
and the wall outlet is grounded through the house
wiring. You should have the circuit checked by a
qualified electrician to make sure the outlet is
properly grounded.
When disconnecting the power cord from the adapter,
always hold the adapter in place with one hand and
pulling the power cord with the other hand. If this is not
done, the adapter ground terminal is very likely to break
with repeated use.
Should the adapter ground terminal break, DONOTUSE
the appliance until a proper ground has again been
established.
Use ofExtension Cords
Because of potential safety hazards under certain
conditions, we strongly recommend against the use of
an extension cord. However, if you still elect to use an
extension cord, it is absolutely necessary that it be a UL
listed 3-wire grounding type appliance extension cord
having agrounding type plug and outlet and that the
electrical rating of the cord be 15amperes (minimum)
and 120volts.
FICHED'ADAPTATION
(Fiches d'adaptation non permises au
Canada)
15
Loading...
