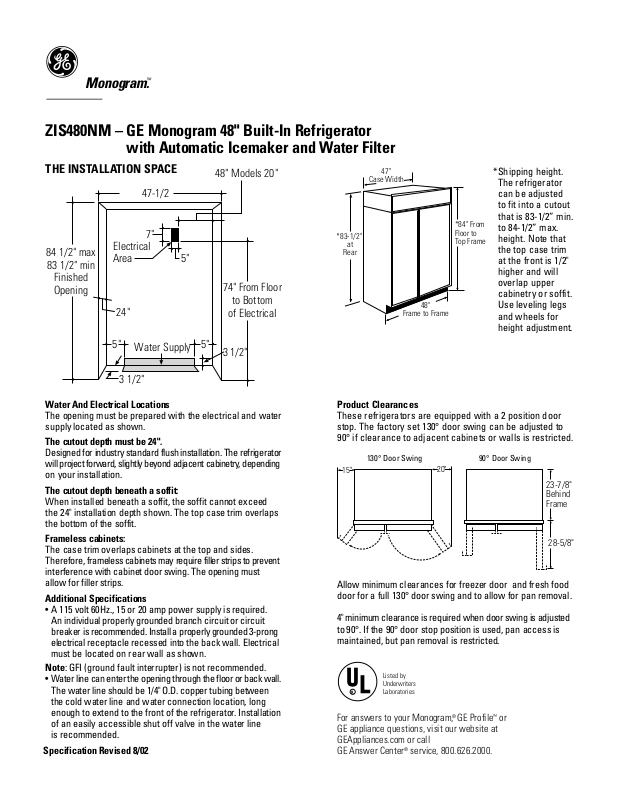

ZIS480NM – GE Monogram 48" Built-In Refrigerator
with Automatic Icemaker and Water Filter
47-1/2
7"
5"
Electrical
Area
84 1/2" max
83 1/2" min
Finished
Opening
74" From Floor
to Bottom
of Electrical
24"
5"
5"
3 1/2"
Water Supply
3 1/2"
48" Models 20"
THE INSTALLATION SPACE
20"
15"
23-7/8"
Behind
Frame
28-5/8"
130° Door Swing
90° Door Swing
*84" From
Floor to
Top Frame
48"
Frame to Frame
47"
Case Width
at
Rear
*Shipping height.
The refrigerator
can be adjusted
to fit into a cutout
that is 83-1/2” min.
to 84-1/2” max.
height. Note that
the top case trim
at the front is 1/2"
higher and will
overlap upper
cabinetry or soffit.
Use leveling legs
and wheels for
height adjustment.
Product Clearances
These refrigerators are equipped with a 2 position door
stop. The factory set 130° door swing can be adjusted to
90° if clearance to adjacent cabinets or walls is restricted.
Allow minimum clearances for freezer door and fresh food
door for a full 130° door swing and to allow for pan removal.
4" minimum clearance is required when door swing is adjusted
to 90°. If the 90° door stop position is used, pan access is
maintained, but pan removal is restricted.
Water And Electrical Locations
The opening must be prepared with the electrical and water
supply located as shown.
The cutout depth must be 24".
Designed for industry standard flush installation. The refrigerator
will project forward, slightly beyond adjacent cabinetry, depending
on your installation.
The cutout depth beneath a soffit:
When installed beneath a soffit, the soffit cannot exceed
the 24" installation depth shown. The top case trim overlaps
the bottom of the soffit.
Frameless cabinets:
The case trim overlaps cabinets at the top and sides.
Therefore, frameless cabinets may require filler strips to prevent
interference with cabinet door swing. The opening must
allow for filler strips.
Additional Specifications
• A 115 volt 60Hz., 15 or 20 amp power supply is required.
An individual properly grounded branch circuit or circuit
breaker is recommended. Install a properly grounded 3-prong
electrical receptacle recessed into the back wall. Electrical
must be located on rear wall as shown.
Note: GFI (ground fault interrupter) is not recommended.
• Water line can enter the opening through the floor or back wall.
The water line should be 1/4" O.D. copper tubing between
the cold water line and water connection location, long
enough to extend to the front of the refrigerator. Installation
of an easily accessible shut off valve in the water line
is recommended.
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
Specification Revised 8/02
Monogram.
™
ZIS480NM – GE Monogram 48" Built-In Refrigerator
with Automatic Icemaker and Water Filter
Fresh Food
Panel
Freezer
Panel
26-9/16
18-9/16
45-7/8
9-1/2
Grille Panel
68-3/8

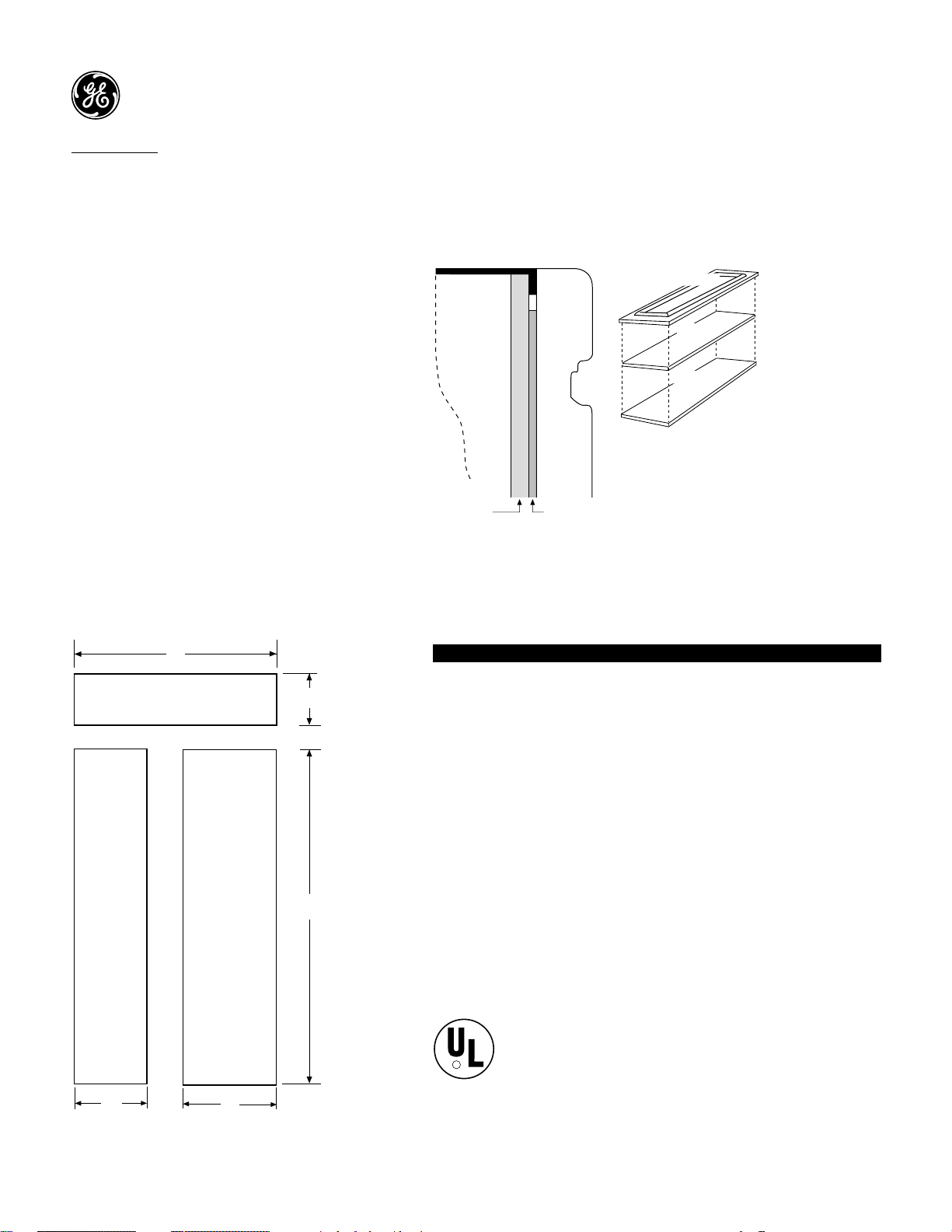

1/4" FRAMED PANEL DIMENSIONS
If you choose to install framed panels, they must
be cut to the dimensions shown. The panels will
slide into the frame on the door and grille.
If the custom panel is less than 1/4" thick and it
fits loosely in the door frame it can be backed up
with a piece of filler material or foam tape to
improve the fit.
Specification Revised 8/02
1/4"
Panel
Door
5/16"
Trim
Reveal
IMPORTANT NOTE: Maximum weight for fresh food panel is
50 pounds and 30 pounds for freezer panel.
SIDE PANELS
Side panels must be used whenever
the sides of the refrigerator will
be exposed. The 1/4" side panels
will slip into the side case trim.
Order the side panels from the
cabinet manufacturer.
*Depending on installation height.
*84"
2-9/16"
24"
*3" to 4"
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
Monogram.
™
ZIS480NM – GE Monogram 48" Built-In Refrigerator
with Automatic Icemaker and Water Filter
3/4" OVERLAY PANEL DIMENSIONS
For a more custom appearance, overlay panels may
be installed on trimmed models. The overlay panel
must be secured to a 1/4" thick backer panel which
slides into the trim. A spacer panel 0.10" thick must
be placed between the overlay and backer panel.
Assemble the panels with glue and screws.
• Center the spacer panel on the backer panel, left to
right and top to bottom. Secure the panels with glue.
• Center the spacer and backer panel on the overlay
panel and secure with glue and screws. Screws
must be countersunk into the backer panel.
3/4"
Overlay
Panel
1/4"
Backer
Panel
Door
.10"
Spacer
Spacer Panel
Overlay Panel
Backer Panel
.250" + .10" + .750" = 1.100" Total Panel Thickness
NOTE: Left-to-right
offset is not always
equal to top-to-bottom
offset.
Fresh Food
Panel
Freezer
Panel
E
D
A
B
Grille Panel
C
ABCD E
1/4" Backer Panel 45-7/8 9-1/2 68-3/8 18-9/16 26-9/16
.10" Spacer Panel 45 8-5/8 67 17-1/4 25-1/4
3/4" Overlay Panel 46-1/8 9-3/4 68-5/8 18-13/16 26-13/16
IMPORTANT NOTE: Maximum total weight for assembled fresh food
panel is 50 pounds and 30 pounds for freezer panel.
Specification Revised 8/02
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
Monogram.
™
ZIS480NM – GE Monogram 48" Built-In Refrigerator
with Automatic Icemaker and Water Filter
Specification Revised 8/02

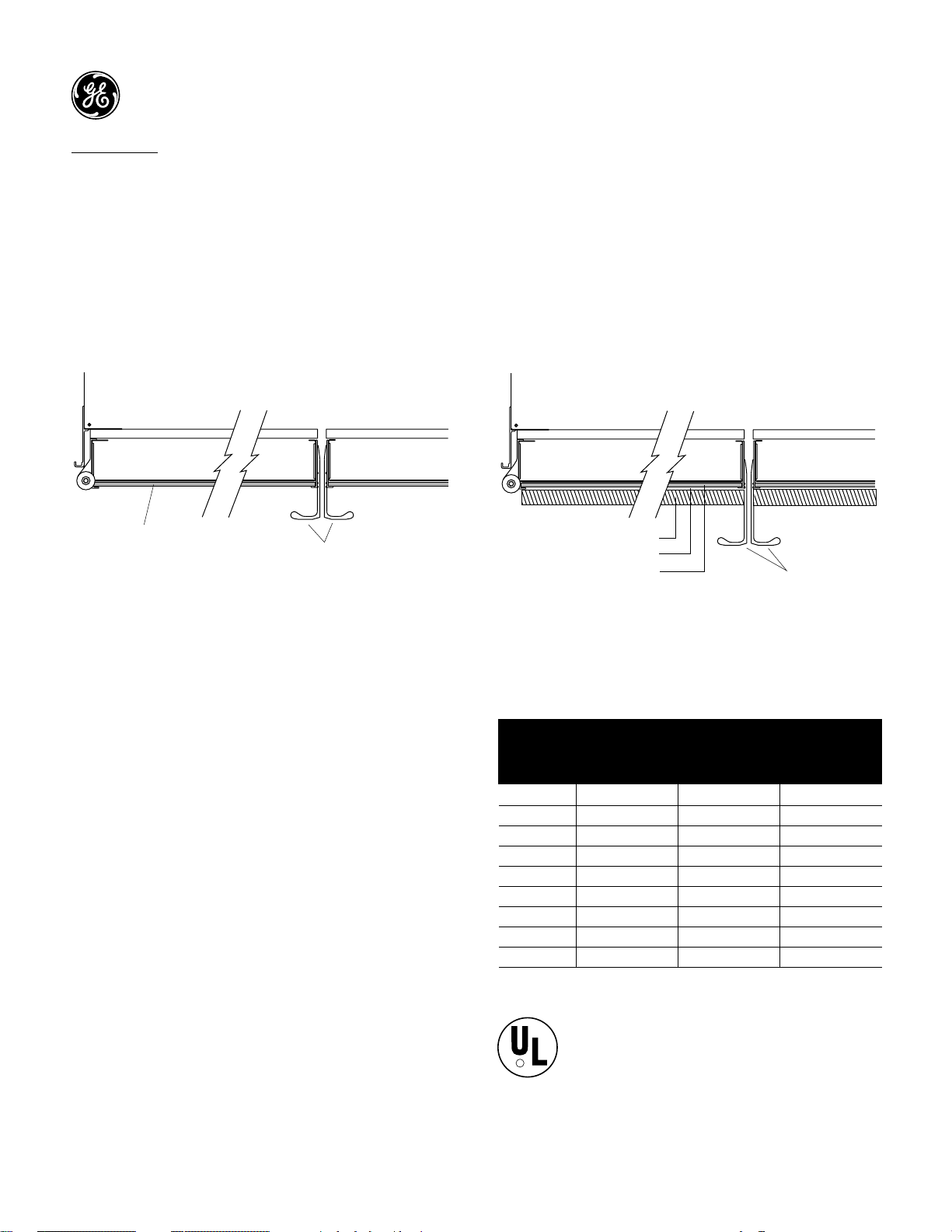

Framed panels
You may install 1/4" thick custom panels from your cabinet
manufacturer. The decorative panel slides into the factory
installed trim. Or, order black, white and stainless steel
accessory panels from your Monogram dealer.
Framed Panel
Standard Door Handles
Door Handles
The standard supplied handles can be adjusted to accommodate
both framed or overlay panels. Custom handles of your choice,
supplied by your cabinet maker can also be installed. If desired,
you may order ZKHSS2 Monogram stainless steel tubular
handle kit.
Optional Accessory Kits
ZKHSS2: Monogram Tubular Stainless Steel handles designed
to fit overlay panels.
Accessory Panels
White, black and stainless steel accessory panels are available
from your Monogram dealer. Panels are cut to size and ready
to install.

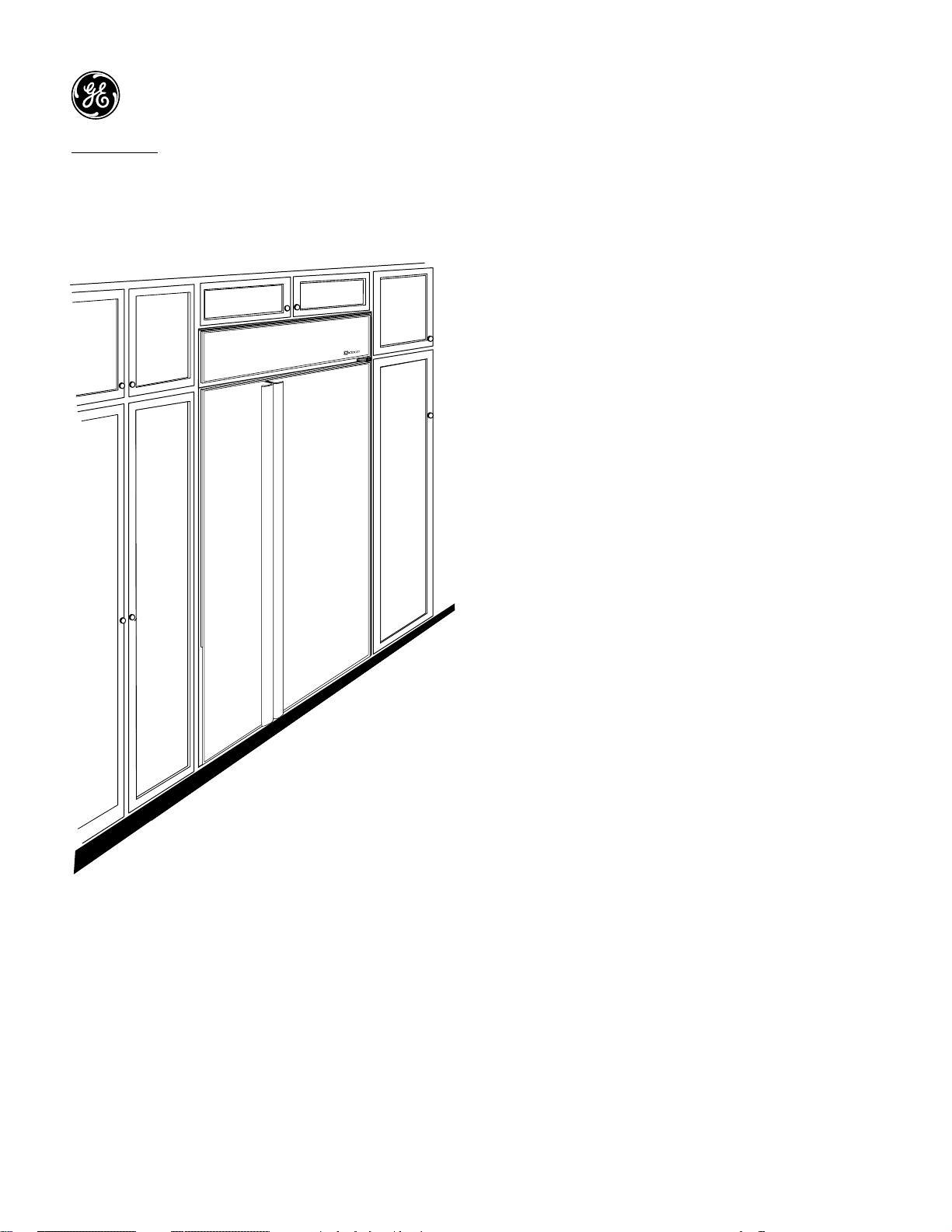

Overlay panels
You may also choose to install custom overlay panels from
your cabinet manufacturer. This design provides a seamless
appearance which integrates smoothly with surrounding cabinetry.
Standard Door Handles
3/4" Overlay Panel
.10" Thick Spacer Panel
1/4" Thick Backer Panel
Side Panels
Side panels must be used whenever the sides of the refrigerator
will be exposed.
Models White Black Stainless
Acrylic Acrylic Steel
ZISW480D ZPW480D ZPS480D
ZISB480D ZPB480D ZPS480D
ZIS480N ZPW480N ZPB480N ZPS480N
ZISW420D ZPW420D ZPS420D
ZISB420D ZPB420D ZPS420D
ZIS420N ZPW420N ZPB420N ZPS420N
ZISW360D ZPW360D ZPS360D
ZISB360D ZPB360D ZPS360D
ZIS360N ZPW360N ZPB360N ZPS360N
Standard supplied handles shown in 1/4" panel position. Standard supplied handles shown in 3/4" overlay panel position.
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
Specification Revised 8/02
Monogram.
™
Features and Benefits
• 30.6 cu. ft. Capacity (Fresh Food 17.8 cu. ft./
Freezer 12.8 cu. ft.)
• Automatic Icemaker with Removable Ice Storage Bin
• GE SmartWater
™
Filtration System
• Climate Control Drawer with Express Chill,
Express Thaw and Select Temp
• Sealed Adjustable Humidity Produce Pan with
Easy Access Lid and Full Extension Slides
• Sealed High Humidity Produce Pan with
Full Extension Slides
• Adjustable Sealed Deli Pan with Full Extension Slides
• 3 Adjustable, 1 Fixed Spill-Proof Glass Fresh Food Shelves
• Gallon Door Storage
• 4 Adjustable Door Bins
• 2 Sealed Dairy Compartments
• Wine Caddy
• Glass-Covered Butter Dish
• Freezer Multi-Shelf Halogen Light Tower
• 4 Adjustable Wire Freezer Shelves
• 2 Utility Baskets with Full Extension Slides
• 5 Adjustable Freezer Door Bins
• Model ZIS480NM – Non-Dispenser Model
