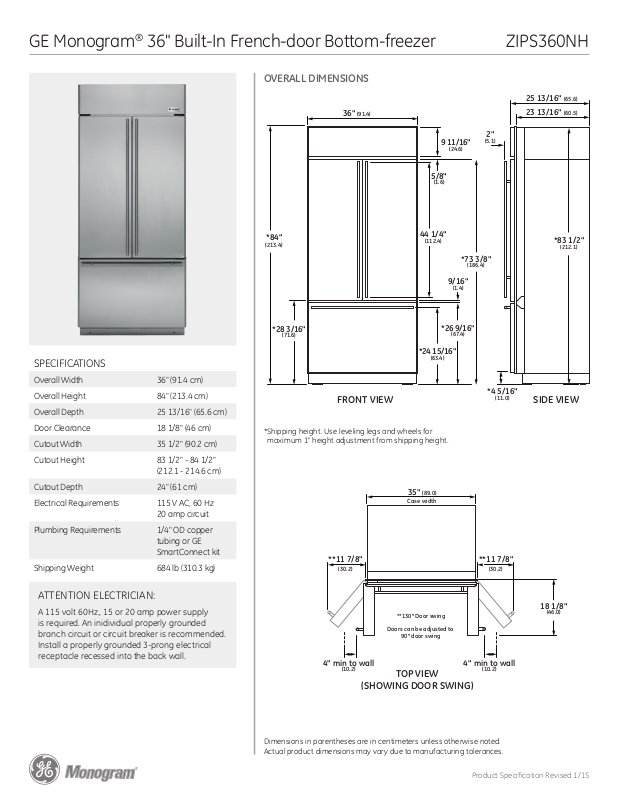

Page 1
OVERALL DIMENSIONS
36" (91.4)
9 11/16"
5/8"
(1.6)
(24.6)
2"
(5.1)
ZIPS360NHGE Monogram® 36" Built-In French-door Bottom-freezer
25 13/16" (65.6)
23 13/16" (60.5)
SPECIFICATIONS
Overall Width 36" (91.4 cm)
Overall Height 84" (213.4 cm)
Overall Depth 25 13/16" (65.6 cm)
Door Clearance 18 1/8" (46 cm)
Cutout Width 35 1/2" (90.2 cm)
Cutout Height 83 1/2" - 84 1/2"
(212.1 - 214.6 cm)
Cutout Depth 24" (61 cm)
Electrical Requirements 115 V AC, 60 Hz
20 amp circuit
Plumbing Requirements 1/4" OD copper
tubing or GE
SmartConnect kit
Shipping Weight 684 lb (310.3 kg)
*84"
(213.4)
*28 3/16"
(71.6)
44 1/4"
(112.4)
*24 15/16"
(63.4)
FRONT VIEW
* Shipping height. Use leveling legs and wheels for
maximum 1" height adjustment from shipping height.
35" (89.0)
Case width
**11 7/8"
(30.2)
*73 3/8"
9/16"
(1.4)
*26 9/16"
(67.4)
(186.4)
**11 7/8"
*4 5/16"
(11.0)
(30.2)
*83 1/2"
(212.1)
SIDE VIEW
ATTENTION ELECTRICIAN:
A 115 volt 60Hz., 15 or 20 amp power supply
is required. An inidividual properly grounded
branch circuit or circuit breaker is recommended.
Install a properly grounded 3-prong electrical
receptacle recessed into the back wall.
**130° Door swing
Doors can be adjusted to
90° door swing
4" min to wall
(10.2)
TOP VIEW
4" min to wall
(10.2)
(SHOWING DOOR SWING)
Dimensions in parentheses are in centimeters unless otherwise noted.
Actual product dimensions may vary due to manufacturing tolerances.
Product Specification Revised 1/15
18 1/8"
(46.0)
Page 2
GE Monogram® 36" Built-In French-door Bottom-freezer
24" (61.0)
1 1/2"
(3.8)
3"
(7.6)
7/16"
(1.1)
Trim overlap
35 1/2" (90.2)
SIDE VIEWFRONT VIEW
3 1/2"
(8.9)
75"
(190.5 )
From floor
to bottom
of electrical
area
ELEC.
6"
(15.2)
10"
(25.4)
WATER
5"
(12.7)
5"
(12.7)
3 1/2"
(9.0)
WATER
10" (25.4)
C
L
ZIPS360NH
STANDARD INSTALLATION
2 5/16"
(5.9)
ELEC.
10"
5"
(12.7)
(25.4)
*83 1/2" min
*84 1/2" max
*Trim will overlap
additional 7/16"
(212.1-214.6)
ANTI-TIP BRACKET
SIDE VIEW INSTALLED
WITH ANTI-TIP BRACKET
35 1/2" (90.2)
A
6"
(15.2)
B
WATER
81 1/2"
(207.0)
5"
(12.7)
3 1/2"
75"
(190.5 )
From floor
to bottom
of electrical
area
(8.9)
additional hole
locations at end
Use two
of brackets
3 15/16"
(10.1)
2"
(5.1)
24" (61.0)
SIDE VIEWFRONT VIEW
Bracket
mounted
into vertical
wall studs
centered
within the
cutout
Ensure holes
selected are
centered on
the studs
Wall
Studs
FRONT VIEW OF CUTOUT
WITH ANTI-TIP BRACKET
W
7/16
"
(1.1)
Trim overlap
3 1/2"
(8.9)
NOTES
A
Mounting the junction
box in this location will
also allow for front
accessability through
access panel.
B
Water supply area
WARNING:
The refrigerator is top
heavy and must be secured
to prevent the possibility of
tipping forward. Failure to
do so may result in death
or serious injury.
The information below is
for cabinet design only.
When installing the antitip system you must use
the product installation
instructions.
The information below
applies to all installation
constructions:
• A wall bracket, bolts and
toggles will be supplied
with the unit.
• The bolts will be used to
attach bracket to wall in
4 locations. Two of the
locations must penetrate
the center of the wall
studs.
• The toggles are used for
stability in drywall and
when metal studs are
encountered. Lag bolts
are used in wood studs.
• In installation opening,
measure 81 ½” from
floor and draw a
horizontal line.
• Locate and mark the wall
studs on horizontal line.
Verify at least two studs
have their centerlines
within the center 32.5”
of installation opening to
ensure 2 wall studs are
penetrated.
• The bracket will be
centered left to right in
opening with bottom of
bracket on the horizontal
line.
• When unit is placed in
opening, the bracket tabs
will align with openings
in back of the unit. The
unit will be secured to the
bracket using supplied
“L” bolts.
See Installation
Instructions for detailed
instructions.
Product Specification Revised 1/15
Page 3
GE Monogram® 36" Built-In French-door Bottom-freezer
FEATURES AND BENEFITS
French-door design gives you wide-open access
to every fresh food shelf and bin.
Finely crafted glass-front metal door bins
with riveted metal accents offer easy access
to beverages and quick-grab items.
LED lighting positioned throughout the interior
and under fresh food drawers spotlights food
inside the refrigerator and in the freezer
Upfront electronic controls with digital readout
offer a range of precise temperature settings, all
within easy reach.
Large full-extension freezer drawer has storage
bins that slide out independently of one another
for easy loading and unloading. An automatic
icemaker keeps plenty of filtered ice on hand.
ZIPS360NH
Precision glass-front produce and deli drawers
feature full-extension, soft-close slides.
Aluminum trimmed glass shelves allow
convenient access to contents in the fresh-food
compartment.
Product Specification Revised 1/15
