6/18/2019

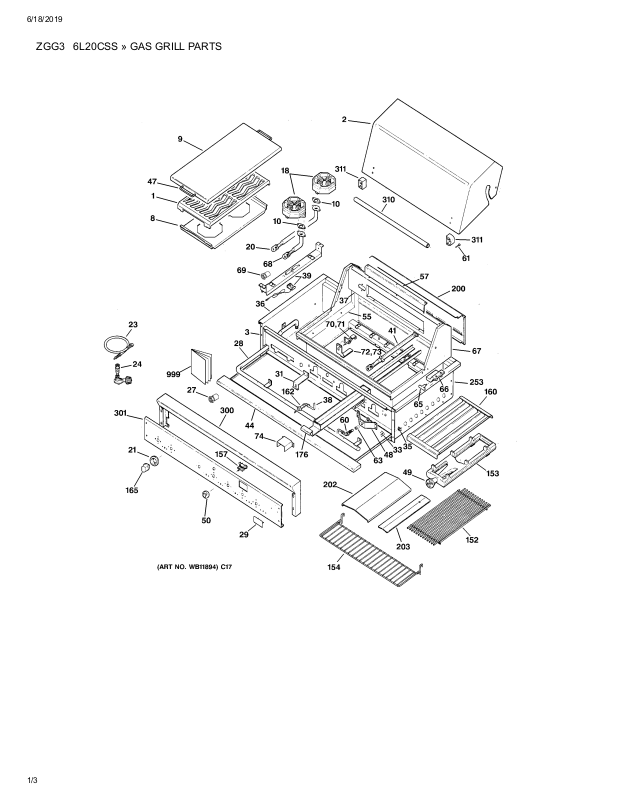

ZGG3 6L20CSS » GAS GRILL PARTS
1/3
6/18/2019
ZGG36L20CSS » GAS GRILL PARTS
# Part Number Description Qty
1 WB49X5591 TOP GRATE 1
2 WB63X10010 ROLL TOP LID 1
3 WB07X10088 COVER OPEN CORNER R/H 1
3 WB07X10089 COVER OPEN CORNER L/H 1
8 WB32X10005 AREATION PAN 1
9 WB07X10037 SIDE BURNER COVER 1
10 WB02X8600 VENTURI GASKET 1
18 WB28X10006 HEX BURNER 2
20 WB38X10006 VENTURI LONG 1
21 WB02X10383 BEZEL KNOB 1
23 WB02X10658 HOSE ASSY LP 33" 1
24 WB02X10657 REGULATOR ASSY LP 1
27 WB21X5368 ORIFICE LP GRL/GRD 1
28 WB02X10459 MANIFOLD 1
29 WB02X10349 MONOGRAM LOGO 1
31 WB07X10042 VALVE SHIELD 1
33 WB02X10381 ORIFICE ELBOW 1
35 WB01X10017 NUT WITH RETAINER 8-32 1
36 WB36X10020 SIDE BODY PANEL /H 1
36 WB36X10021 SIDE BODY PANEL 1
37 WB07X10111 ROTIS BURNER HSG 1
38 WB02X10380 STAINLESS STEEL TUBING 1
39 WB02X10377 ELECTRODE ASM 1
41 WB28X10007 SMOKER BURNER 1
44 WB49X10124 DRIP PAN HANDLE ASM 36 1
47 WB15X10062 COVER HANDLE 2
48 WB02X10382 BRACKET ORIFICE ELBOW 1
49 WB02X10376 AIR SHUTTER 1
50 WB03X10016 KNOB IGNITER ROTARY 1
55 WB02X10386 CORNER TUBING COVER L/H 1
57 WB07X10047 PROTECTION PLATE 1
60 WB21X10015 SMOKER VALVE 1
61 WB01X10018 SHOULDER BOLT 4
63 WB21X10076 SMOKER ORIFICE HOOD LP 1
65 WB03X10013 ROTIS. MOUNT KNOB 1
66 WB02X10374 ROTIS. MOUNT BASE 1
67 WB07X10104 FIREBOX ASM 1
68 WB38X10007 VENTURI SHORT 1
69 WB21X10044 SIDE BURNER ORIFICE LP 1
70 WB02X10659 GRILL ELECTRODE ASSY RH 1
71 WB02X10660 GRILL ELECTRODE ASSY LH 1
72 WB02X10662 BRACKET ANTI-FLIP LEFT 1
73 WB02X10663 BRACKET ANTI-FLIP RIGHT 1
2/3
