Installation
Instructions
If you have questions, call 800-GE-CARES or visit our website at: www.monogram.com
Free-Standing Side-by-Side
Stainless Steel Refrigerator
ZFSB23D SS
Monogram.
We bring good things to life.
®
Page 2
Safety Information
BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT - Save these instructions for
local inspector’s use.
• IMPORTANT - Observe all governing
codes and ordinances.
• Note to Installer - Be sure to leave these instruc-
tions with the Consumer.
• Note to Consumer - Keep these instructions with
your Owner’s Manual for future reference.
WARNING:
This appliance must be properly grounded. See
“Grounding the Refrigerator,” page 4.
AVERTISSEMENT
Cet appareil doit être correctement mis à la terre.
Consulter « Mise à la terre du réfrigérateur », page 4.
If you received a damaged refrigerator, you should
immediately contact your dealer or builder.
Skill Level - Installation of this refrigerator requires
basic mechanical, carpentry and plumbing skills. Proper
installation is the responsibility of the installer. Product
failure due to improper installation is not covered
under the GE Appliance Warranty. See the Owner’s
Manual for warranty information.
CAUTION:
Due to the weight and size of this refrigerator, and to
reduce the risk of personal injury or damage to the
product - TWO PEOPLE ARE REQUIRED FOR
PROPER INSTALLATION.
PRUDENCE
À cause du poids et de la taille de ce réfrigérateur et
pour réduire le risque de blessure et de dommages,
IL FAUT DEUX PERSONNES POUR FAIRE
L’INSTALLATION CORRECTEMENT.
WARNING:
• Use this appliance only for its intended purpose.
• Immediately repair or replace electric service cords
that become frayed or damaged.
• Unplug the refrigerator before cleaning or making
repairs.
• Repairs should be made by a qualified service
technician.
AVERTISSEMENT
• Il ne faut utiliser cet appareil que pour l’utilisation
appropriée.
• Réparer ou remplacer immédiatement tout cordon
électrique effiloché ou endommagé.
• Il faut débrancher le réfrigérateur avant le
nettoyage ou toute intervention.
• Les réparations doivent être faites par un
technicien qualifié.
CONTENTS
Planning Information
Product Dimensions and Clearances .............................. 3
The Installation Space...................................................... 3
Installation Instructions
Tools, Hardware, Materials .............................................. 4
Grounding the Refrigerator ............................................ 4
Step 1, Move Refrigerator Indoors ..................................5
Step 2, Install Water Line ................................................. 6
For Monogram local service in your area,
1-800-444-1845.
For Monogram service in Canada
1-888-880-3030
For Monogram Parts and Accessories, call
1-800-626-2002.
www. monogram.com
Step 2A, RO Water Line ................................................... 7
Step 3, Connect Water Supply .........................................7
Step 4, Connect Power ..................................................... 7
Step 5, Move Refrigerator Into Position ......................... 7
Step 6, Level Refrigerator ................................................ 8
Step 7, Align Doors........................................................... 8
Step 8, Start Icemaker ...................................................... 9
Step 9, Temperature Controls ......................................... 9
Step 10, Install Toekick .................................................... 9
2
Page 3
Planning Information
PRODUCT DIMENSIONS
AND CLEARANCES
27-1/2"
Case
Depth
72"
36"
29-1/2"
Including
Handles
This Monogram free-standing refrigerator requires
the following clearances for proper air circulation,
plumbing and electrical connections.
Air Circulation Clearances:
• 1/8" on each side
• 1" at the top
• 1" at the back
Installation in a corner:
• Allow 4" clearance on each side to an adjacent wall
for a 90° opening and access to drawers.
14-1/4"
160° Door Swing
19"
90° Door Swing
24"
THE INSTALLATION SPACE
The opening width must be 36-1/2".
36-1/2"
Wall View
Electrical
73" min.
Water And Electrical Locations
The opening must be prepared with the electrical and
water supply located as shown.
Additional Specifications
• A 115 volt 60Hz., 15 or 20 amp power supply is
required. An individual properly grounded branch
circuit or circuit breaker is recommended. Install a
properly grounded 3-prong electrical receptacle
recessed into the back wall.
Note: GFI (ground fault interrupter) is not recommended.
• Water line can enter the opening through the floor
or through an adjacent cabinet, as close to the back
wall as possible. The water line should be 1/4" O.D.
copper tubing between the cold water line and
water connection location at the rear of the refrigerator. Installation of an easily accessible shut off
valve in the water line is recommended.
Area
Water Supply
• On the freezer side, allow 14-1/4" min. clearance
for removal of ice bin.
• On the fresh food side, allow 19" min. clearance
to wall for removal of drawers.
22"
3
Page 4
Installation Instructions
TOOLS REQUIRED
• Tinsnips to cut banding
• Stepladder
• Bucket
• Level
• Appliance Hand Truck
• Tubing cutter
• #2 Phillips screwdriver
• Drill and appropriate bits
• 3/8", 5/16" and 7/16" socket
• Safety glasses
MATERIALS REQUIRED
• 1/4 O.D. compression nut and 2 ferrules (sleeves)
GROUNDING THE REFRIGERATOR
IMPORTANT - (Please read carefully)
FOR PERSONAL SAFETY, THIS APPLIANCE MUST
BE PROPERLY GROUNDED.
The power cord of this appliance is equipped with a
three-prong (grounding) plug which mates with a
standard three-prong (grounding) wall receptacle to
minimize the possibility of electric shock hazard from
this appliance.
FLOORING
For proper installation, this refrigerator must be placed
on a level surface of hard material that is at the same
height as the rest of the flooring. This surface should be
strong enough to support a fully loaded refrigerator.
IMPORTANT NOTE: Protect the finish of the flooring.
Cut a large section of the cardboard carton and place
under the refrigerator where you are working.
have it replaced with a properly grounded 3-prong wall
outlet.
DO NOT, UNDER ANY
CIRCUMSTANCES, CUT
OR REMOVE THE THIRD
(GROUND) PRONG
FROM THE POWER CORD.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded.
Where a standard 2-prong wall outlet is encountered,
it is your personal responsibility and obligation to
DO NOT USE AN ADAPTER PLUG TO CONNECT
THE REFRIGERATOR TO A 2-PRONG OUTLET.
DO NOT USE AN EXTENSION CORD WITH THIS
APPLIANCE.
4
Page 5
Installation Instructions
STEP 1 MOVE REFRIGERATOR
INDOORS
IMPORTANT: Door and passageways into
the installation location require a 36" min. opening. If
the opening is less than 36", the top cap and doors may
need to be removed.
NOTE: Skip this step if door removal is not required.
See instructions on next page, “To Move The
Refrigerator Indoors."
To prevent damage, leave inside
packaging, door spacer and outside
protective wrap in place until the unit
is moved to the installation location.
B

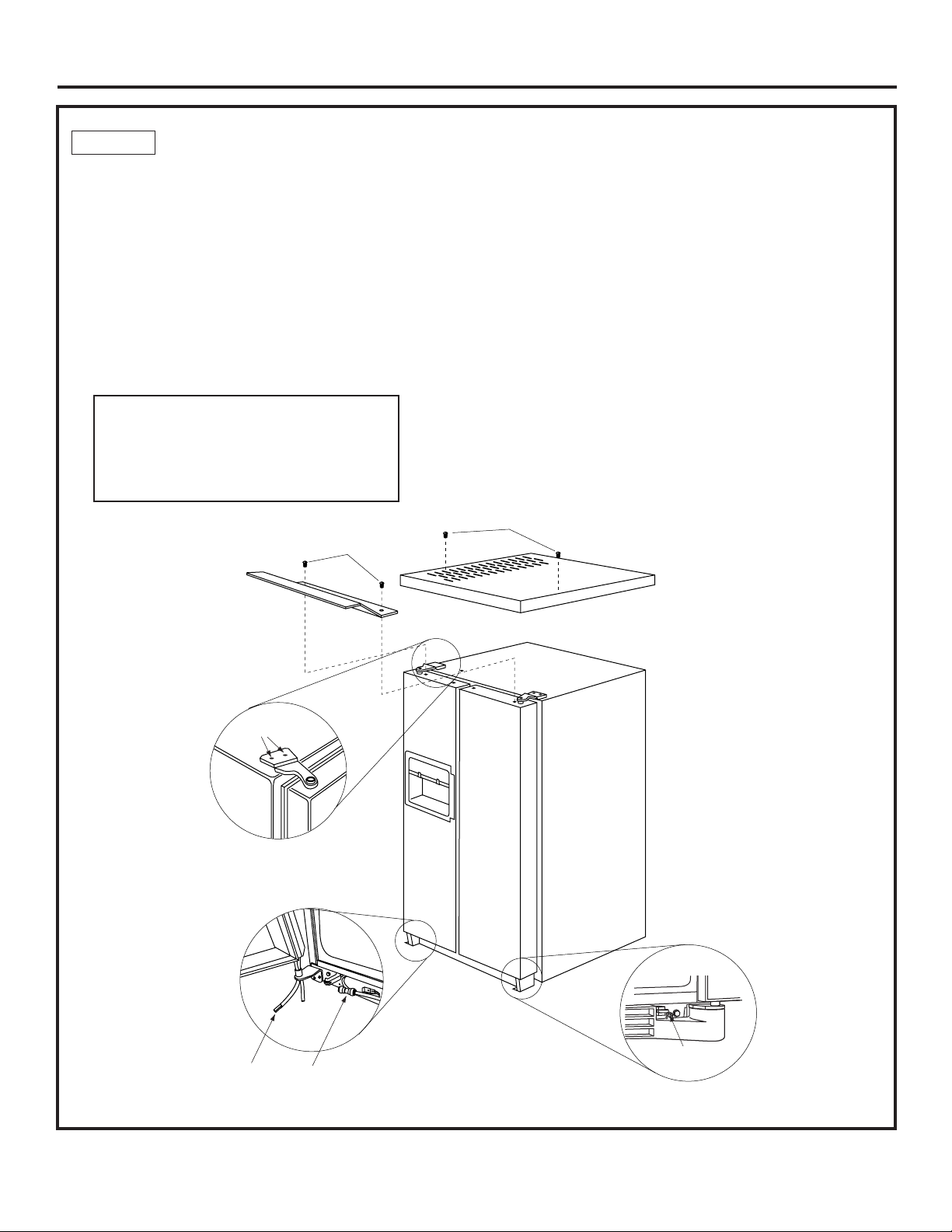

REMOVE THE DOORS
The top cap must be removed to access hinges. It is best
to remove one door at a time.
A. Remove two screws on top of the refrigerator, one on
each side.
Push the top cap forward and lift up from the rear.
B. Remove 2 screws holding the top filler strip, lift off.
C. Open both doors. Remove the 2 toekick screws and
pull forward to remove.
D. Disconnect the water line coupler by pushing against
the collar on the left side. Disconnect wire harness.
E. Remove 2 screws holding top hinge to the case.
Carefully, lift off door.
Follow the same procedure to remove the fresh food
door.
A
Hinge Screws
E
Wire Harness
D
C
Toekick Screw
Water Line Coupler
5
Page 6
Installation Instructions
STEP 1 (continued)
To move the refrigerator indoors:
• Place a piece of the carton or soft cloth against the
side panel of the refrigerator to pad and protect the
stainless steel finish.
• Place the refrigerator on the handtruck with a side
against the truck only.
• Move the refrigerator indoors.
STEP 2 INSTALL WATER LINE
• A cold water supply is required for automatic icemaker operation. The water pressure must be
between 40 and 120 p.s.i.
• Route 1/4" OD copper tubing between house cold
water line and the water connection location.
• Measure the distance from the water valve on the
back of the refrigerator to the water supply line. Add
8 foot length to allow the refrigerator to be moved
away from the wall after installation. Bend the tubing
into 3 coils of about 10".
NOTE: The only GE approved plastic tubing is supplied in GE SmartConnect™ Refrigerator Tubing kits.
Do not use any other plastic water supply line because
the line is under pressure at all times. Certain types of
plastic will crack or rupture with age and cause water
damage to your home.
GE SmartConnect™ Refrigerator Tubing Kits are
available in the following lengths:
2' (.6 m) -WX08X10002
6' (1.8 m) -WX08X10006
15' (4.6 m) -WX08X10015
25' (7.6 m) -WX08X10025
REINSTALL DOORS
Refer to the illustration on page 5.
• Carefully, route the water line tubing and electrical
through the freezer side bottom hinge. Lower the
door onto bottom hinge.
• Secure top hinge.
• Insert the tubing all the way into the coupler.
• Reconnect the wiring harness.
• Replace top filler strip.
• Replace top cap with original screws.
Follow the same procedure to reinstall the fresh food
door.

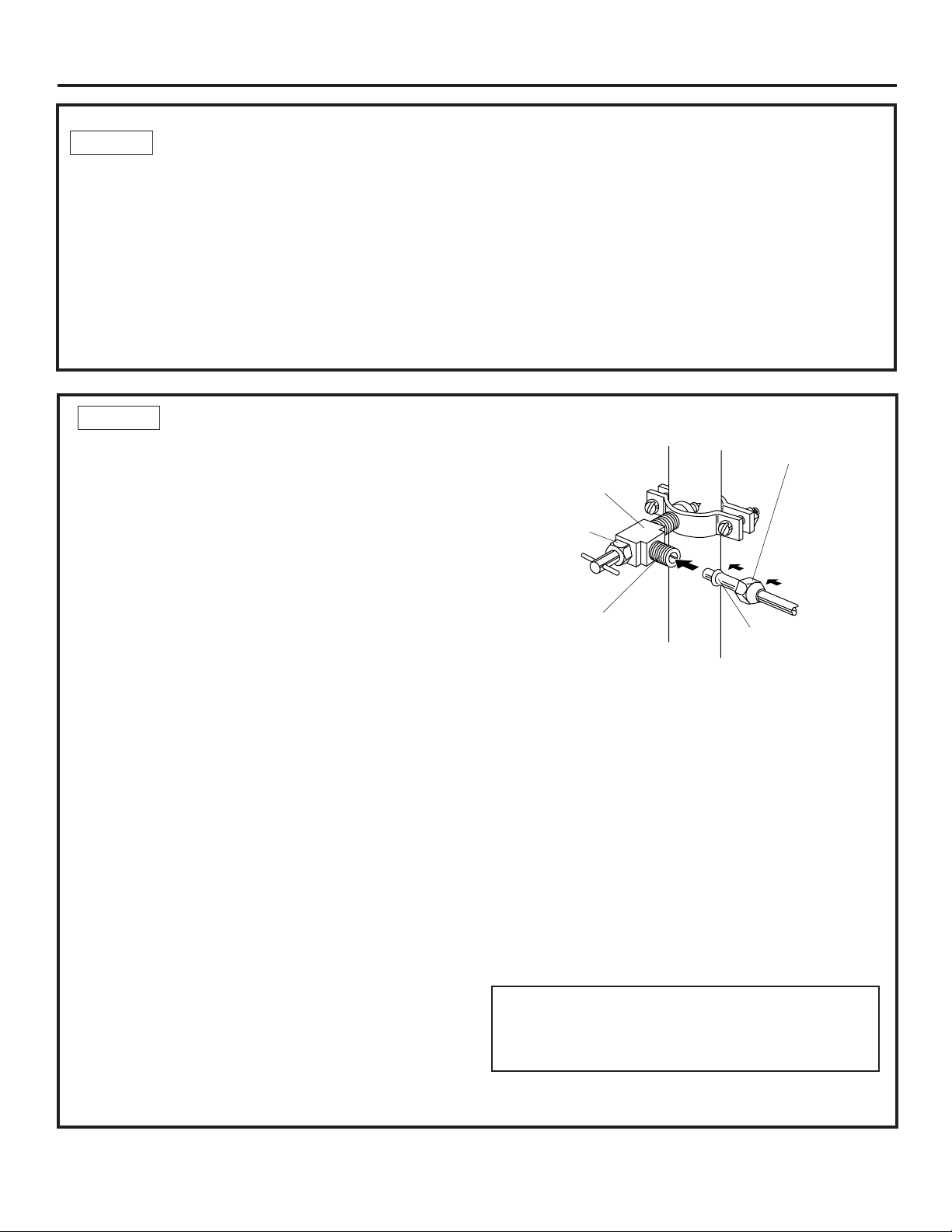

Saddle Type
Shutoff Valve
Packing Nut
Outlet Valve
• Drill a 1/4" hole in the water pipe.
• Fasten the shut-off valve to the pipe with pipe clamp.
• Tighten the clamp screws until the sealing washer
begins to swell. Do not over tighten.
• Place a compression nut and ferrule (sleeve) onto the
end of the tubing and connect it to the shut-off valve.
Make sure the tubing is fully inserted into the valve
and ferrule is tightened.
• Turn on the main water supply and flush debris. Run
about a quart of water through the tubing into a
bucket. Shut off water supply at the shut-off valve.
Compression Nut
Ferrule
(Sleeve)
Shut off the main water supply.
Turn on the nearest faucet long enough to clear the
line of water.
• Install a shut-off valve between the icemaker water
valve and cold water pipe in a basement or cabinet.
The shut-off valve should be located where it will be
easily accessible.
NOTE: It is best to install the valve into a vertical water
pipe. If you install the valve into a horizontal water
pipe, make the connection at the top or side, to avoid
drawing off any sediment from the water pipe.
NOTE: Saddle type shut-off valves are included in many
water supply kits. Before purchasing, make sure a saddle
type valve complies with your local plumbing codes.
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves are
illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
6
Page 7
Installation Instructions
Step 2A WATER LINE
INSTALLATION WITH A

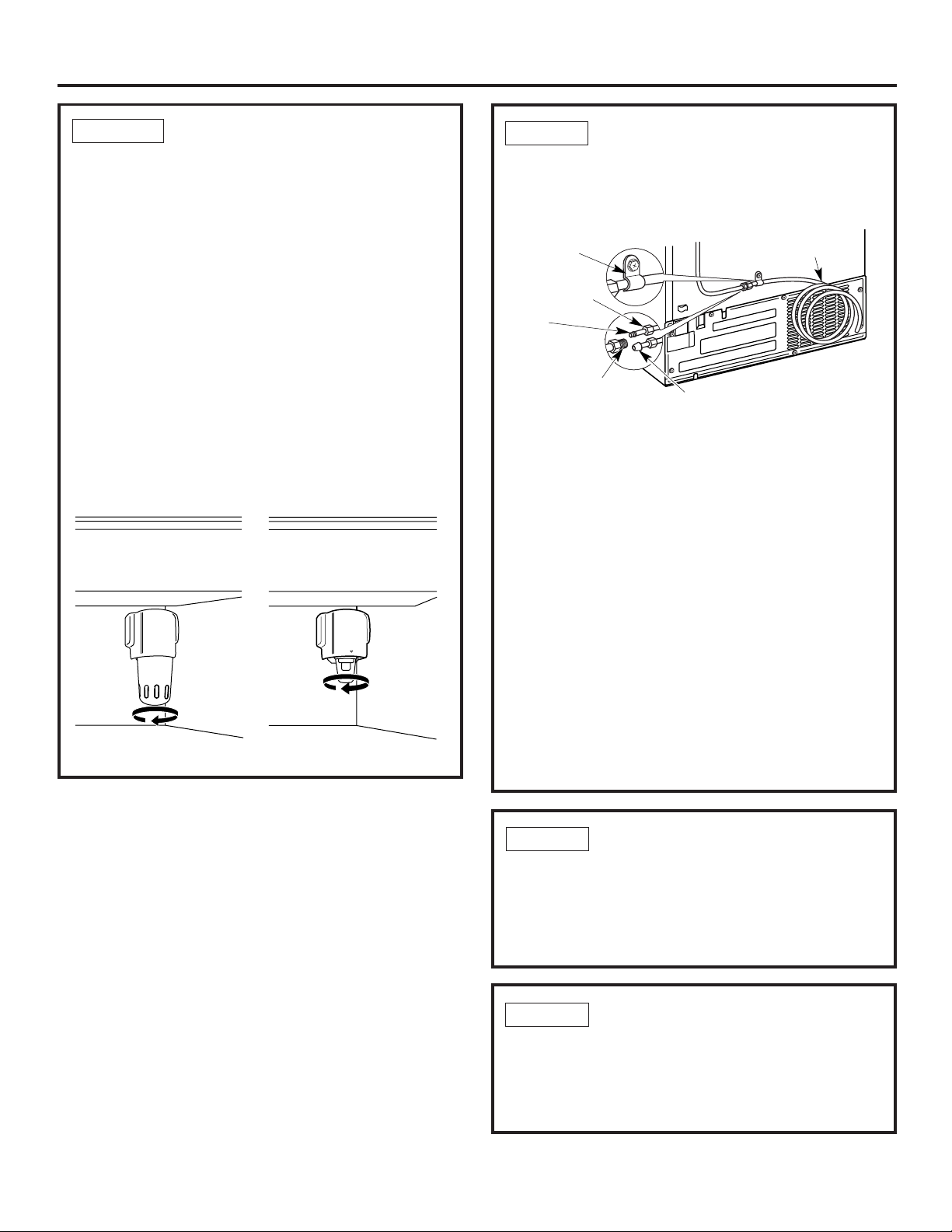

REVERSE OSMOSIS SYSTEM
Skip this step when not using RO System
IMPORTANT:
When connecting to a GE reverse osmosis water
system to your refrigerator, the GE RVKit must be
used. For other reverse osmosis water systems, follow
the manufacturer’s recommendations.
If the water supply to the refrigerator is from a
Reverse Osmosis Water System, use the refrigerator’s
filter bypass plug. Using the refrigerator’s water
filtration cartridge with the RO filter can result in
hollow ice cubes and slower water flow from the water
dispenser.
Turn left to remove Turn right to install bypass plug
STEP 3 CONNECT WATER SUPPLY
Check to be sure that refrigerator power cord is not
plugged into the wall outlet.
Tubing Clamp
1/4"
Compression Nut
Ferrule
(sleeve)
Refrigerator Connection
If you are using copper tubing:
• Place compression nut and ferrule (sleeve) onto
the end of the tubing coming from the house
water supply.
• Insert the end of the copper tubing into the
refrigerator connection at the back of the refrigerator, as far as possible. Hold the tubing in place
and tighten the fitting.
If you are using GE SmartConnect™ tubing:
• Insert the molded end of the tubing into the
refrigerator connection, at the back of the refrigerator, and tighten the compression nut until it is
hand tight.
• Then tighten one additional turn with a wrench.
Overtightening may cause leaks.
• Fasten the tubing into the clamp provided to hold
it in position. You may need to pry open the clamp.
• Turn on the water at the shut-off valve to check for
leaks.
SmartConnect™ Tubing
1/4"Tubing
STEP 4 CONNECT POWER
• Connect refrigerator power cord plug to a properly
grounded receptacle.
• Check to make sure power to refrigerator is on by
opening refrigerator door to see if interior lights
are on.
STEP 5 MOVE REFRIGERATOR
INTO POSITION
• Remove outside protective wrapping.
• Move the refrigerator into final installation position.
• Remove door spacer and all inside packaging.
7
Page 8
Installation Instructions

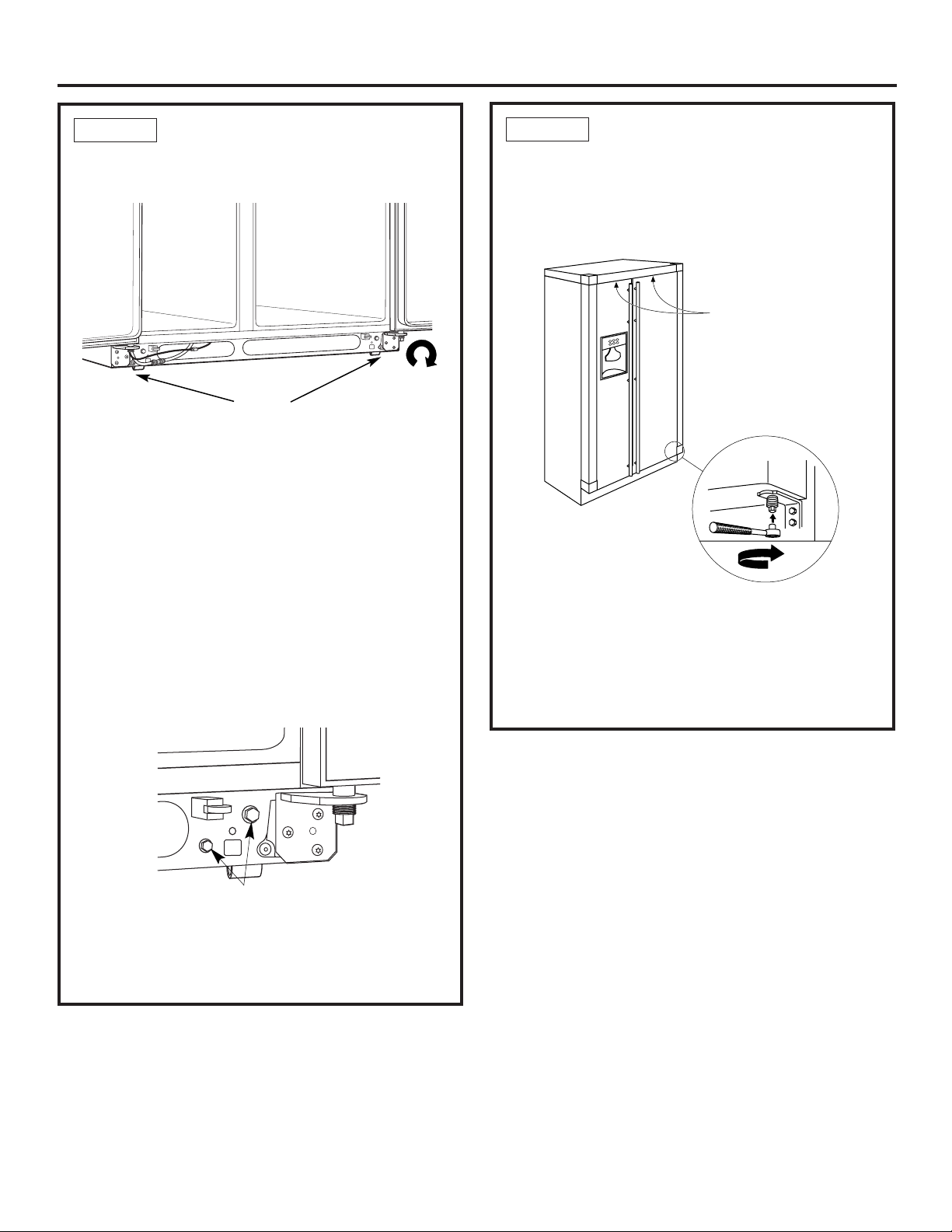

STEP 6 LEVEL REFRIGERATOR
The refrigerator can be leveled by adjusting the
rollers located near the bottom hinges.
Raise
Rollers
Rollers have three purposes:
• The rollers adjust so that the door closes easily
when opened about halfway. (Raise the front about
5/8" [16 mm] from the floor.)
• Rollers adjust so allow the refrigerator to be firmly
positioned on the floor and to prevent rocking
when the doors are opened and closed.
• The rollers allow you to move the refrigerator from
the wall for cleaning.
To level the refrigerator:
• Level the refrigerator by turning the roller adjustment screws clockwise to raise the refrigerator,
counterclockwise to lower the refrigerator.
• Use a 3/8" hex socket, wrench or adjustable
wrench.
STEP 7 LEVEL THE DOORS
If the doors are not evenly aligned at the top, the
refrigerator door can be adjusted.
• Use a 7/16" hex socket or wrench to turn the door
adjusting screw. Turn the screw to the right to raise
the door, turn left to lower the door.
Doors Should
Align at Top
Raise
NOTE: A nylon plug is imbedded in the threads of
the pin. The plug is designed to prevent the pin from
turning. A wrench must be used to turn the pin.
• Turn the wrench one or two times. Open and close
the refrigerator door to check alignment with the
freezer door at the top. Adjust again if necessary.
Roller Adjusting Screws
Rollers at the rear can also be adjusted.
• Use a 5/16" hex socket to turn the screws for the
rear rollers. Turn the screws clockwise to raise the
refrigerator, turn counterclockwise to lower it.
8
Page 9
Installation Instructions

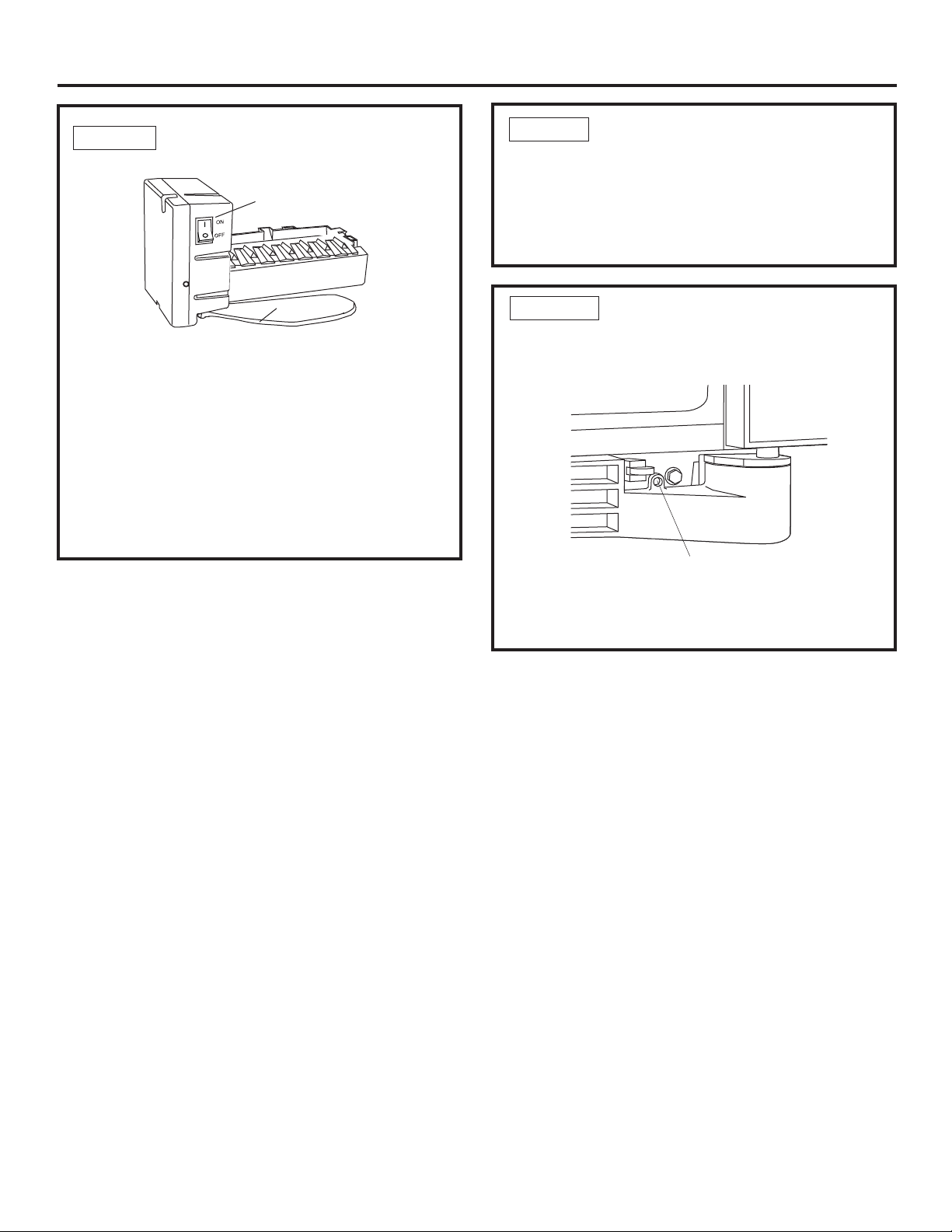

STEP 8 START ICEMAKER
Power Switch
Feeler Arm
• Flip the switch to I (ON) position. The icemaker
will not begin to operate until it reaches its operating temperature of 15°F (-9°C)or below. It will then
begin operation automatically. It will take 2 to 3
days to fill the ice bin.
• Be sure nothing interferes with the sweep of the
feeler arm. Do not place objects in the path of the
feeler arm.
• Discard the first full bucket of ice cubes.
• To turn the icemaker off, set the switch to O (OFF).
STEP 9 TEMPERATURE
CONTROLS
• The temperature controls are preset at 37° for the
refrigerator and 0°F for the freezer.
• Allow 24 hours to stabilize before making
adjustments.
STEP 10 INSTALL TOEKICK
• Press toekick into position and reinstall one screw
on each side.
Toekick Screw
Important: The vented toekick must remain unobstructed for proper air circulation.
9
Page 10
Notes
10
Page 11
Notes
11
Page 12
Note: While performing installations described in this book,
safety glasses or goggles should be worn.
For Monogram® local service in your area, call
1-800-444-1845.
Note: Product improvement is a continuing endeavor at
General Electric. Therefore, materials, appearance and
specifications are subject to change without notice.
Pub. No. 49-60227-1
Dwg. No. 197D5335P001
(N.D. 716) 3/03
Monogram.
We bring good things to life.
GE Consumer Products
General Electric Company
Louisville, KY 40225
©2003 General Electric Company
®
Loading...
