GE ZEW155N Dimensions

™
Monogram.

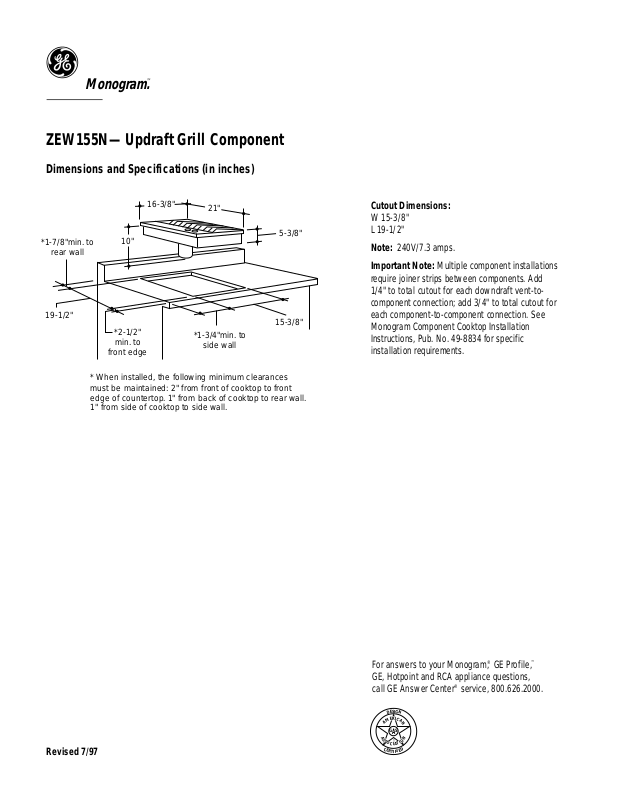

ZEW155N—Updraft Grill Component
Dimensions and Specifications (in inches)
*1-7/8"min. to
rear wall
19-1/2"
16-3/8"
21" 
10" 
5-3/8"
15-3/8" *2-1/2" min. to
front edge
*1-3/4"min. to
side wall
* When installed, the following minimum clearances must be maintained: 2" from front of cooktop to front
edge of countertop. 1" from back of cooktop to rear wall. 1" from side of cooktop to side wall.
Cutout Dimensions:
W 15-3/8" L 19-1/2"
Note: 240V/7.3 amps. Important Note: Multiple component installations
require joiner strips between components. Add 1/4" to total cutout for each downdraft vent-to­component connection; add 3/4" to total cutout for each component-to-component connection. See Monogram Component Cooktop Installation Instructions, Pub. No. 49-8834 for specific installation requirements.
Revised 7/97
For answers to your Monogram,®GE Profile,
GE, Hotpoint and RCA appliance questions, call GE Answer Center®service, 800.626.2000.
I
S
G
E
N
D
C
R
I
E
A
M
N
A
G S
A
A
S
N
O
S
C
I
O
I
T
A
C
I
E
D
R
E
I
F
T
™
Monogram.
ZEW155N—Component Cooking Surfaces Electric Location Information
Dimensions and Specifications (in inches)
Important Information: Multiple component
installations require joiner strips between components. Add 1/4" to total cutout for each
30" Radius electrical outlet area
3"
electrical power conduit location
40" Radius electrical
2"
outlet area
downdraft vent-to-component connection; add 3/4" to total cutout for each component-to-component connection. See Monogram Component Cooktop Installation Instructions, Pub. No. 49-8834 for specific installation requirements.
Revised 7/97
For answers to your Monogram,®GE Profile, GE, Hotpoint and RCA appliance questions, call GE Answer Center®service, 800.626.2000.
