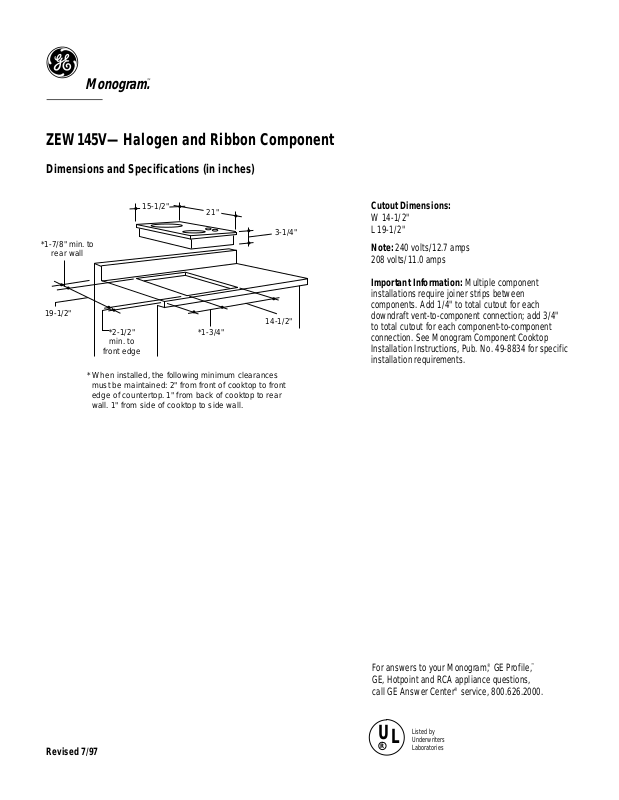

Monogram.
ZEW145V—Halogen and Ribbon Component
Dimensions and Specifications (in inches)
*1-7/8" min. to
rear wall
19-1/2"
* When installed, the following minimum clearances
must be maintained: 2" from front of cooktop to front
edge of countertop. 1" from back of cooktop to rear
wall. 1" from side of cooktop to side wall.
*2-1/2"
min. to
front edge
15-1/2"
21"
*1-3/4"
3-1/4"
14-1/2"
Cutout Dimensions:
W 14-1/2"
L 19-1/2"
Note: 240 volts/12.7 amps
208 volts/11.0 amps
Important Information: Multiple component
installations require joiner strips between
components. Add 1/4" to total cutout for each
downdraft vent-to-component connection; add 3/4"
to total cutout for each component-to-component
connection. See Monogram Component Cooktop
Installation Instructions, Pub. No. 49-8834 for specific
installation requirements.
Revised 7/97
For answers to your Monogram,®GE Profile,
™
GE, Hotpoint and RCA appliance questions,
call GE Answer Center®service, 800.626.2000.
L
Listed by
Underwriters
Laboratories
U
R
™
Monogram.
ZEW145V—Halogen and Ribbon Component Electric Location Information
Dimensions and Specifications (in inches)
Halogen and Ribbon component shown with
ZEW176Y downdraft vent. ZEW176Y (120 volts)
must operate from separate junction box.
40" Radius
Electrical
outlet area
30" Radius
Electrical
outlet area
"
2
4"
Electrical
power cord
location
Important Information: Multiple component
installations require joiner strips between
components. Add 1/4" to total cutout for each
downdraft vent-to-compmnent connection; add 3/4"
to total cutout for each compmnent-to-compmnent
connection. See Monogram Component Cooktop
Installation Instructions, Pub. No. 49-8834 for specific
installation requirements.
4-1/2" void
plenum
area for
13-1/2" total void
area including
duct pending
blower orientation
For answers to your Monogram,®GE Profile,
™
GE, Hotpoint and RCA appliance questions,
call GE Answer Center®service, 800.626.2000.
Revised 7/97
U
R
L
Listed by
Underwriters
Laboratories
