GE ZET837BYBB, ZET837DBSB, ZET837DYSB, ZET837SBSS, ZET837SYSS Installation Guide

Monogram:

ZET837WBWW- GEMonogram TM 30"Single Convection Wall Oven

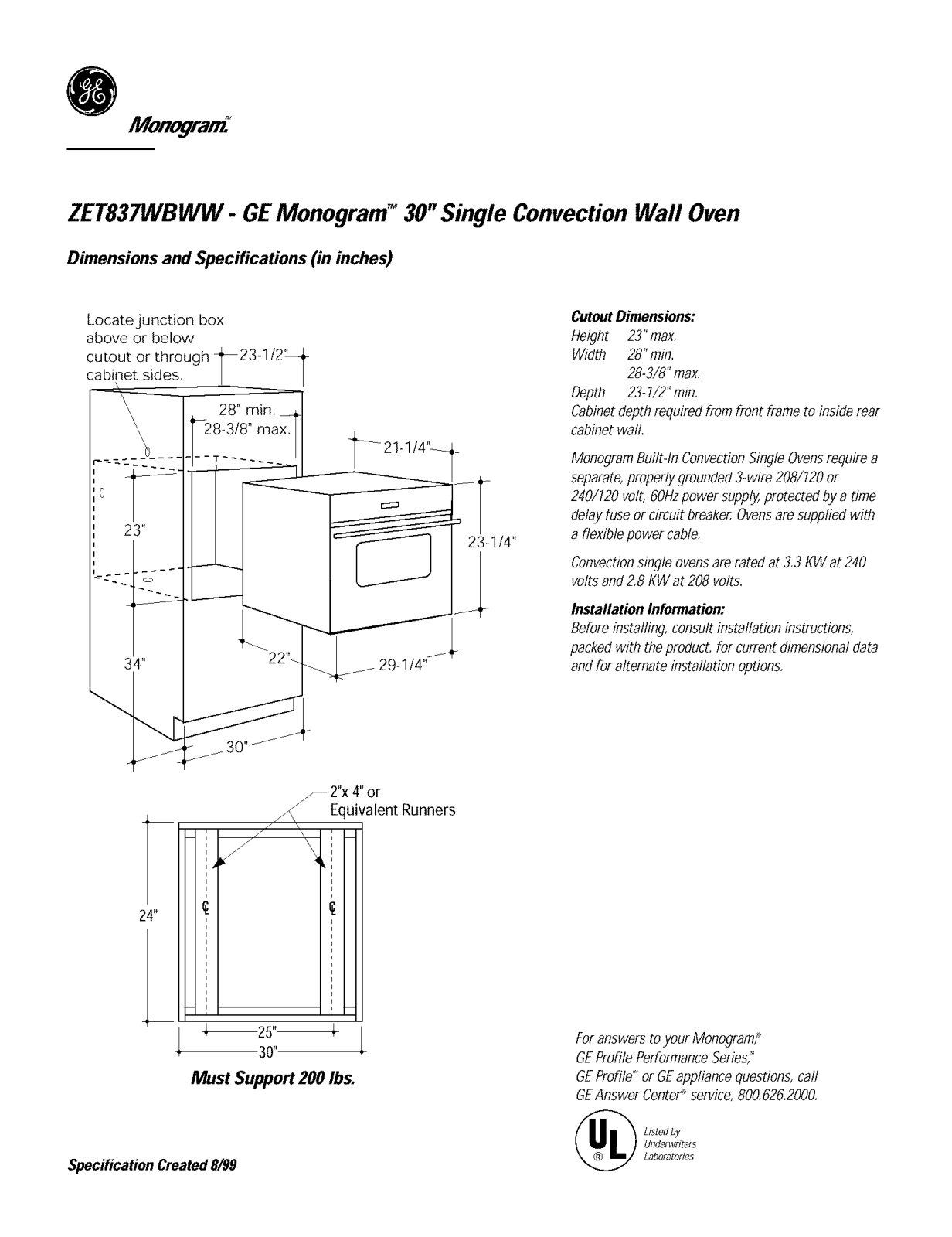

Dimensions and Specifications (in inches)

Locate junction box
above or below

cutout or through _23-1/2_
cabinet sides. | |

3O

Cutout Dimensions:

Height 23" max,

Width 28" rain.

28-3/8"max.

Depth 23-1/2" rain,
Cabinet depth required from front frame to inside rear

cabinet wafl.

MonogramBuilt-InConvectionSingleOvensrequirea
separate,properlygrounded3-wire208/120or

240/720volt, 60Hzpowersupply,protectedbyatime
delayfuseorcircuit breaker,Ovensaresuppliedwith

a flexiblepowercable,
Convectionsingleovensareratedat 3,3KWat 240

voltsand2,8 KWat208volts.

InstallationInformation:

Beforeinstalling,consultinstallationinstructions,

packedwith theproduct,for currentdimensionaldata

andforalternateinstallationoptions,

_ ; jr

14'_

-- i

4, 25"_

Must Support 200 Ibs.

Specification Created 8/99

_ 2"x4"or

Equivalent Runners

\

./

30"

i

i
i

i
i

i
i

i
i

Foranswerstoyour Monogramf
GEProfilePerformanceSeries7

GEProfile"or GEappliancequestions,carl
GEAnswerCenterRservice,800,626.2000,

_ zstedby

Underwnte_

Laborator_s

ZET837WBWW- GE Monogram TM 30"Single Convection Wall Oven

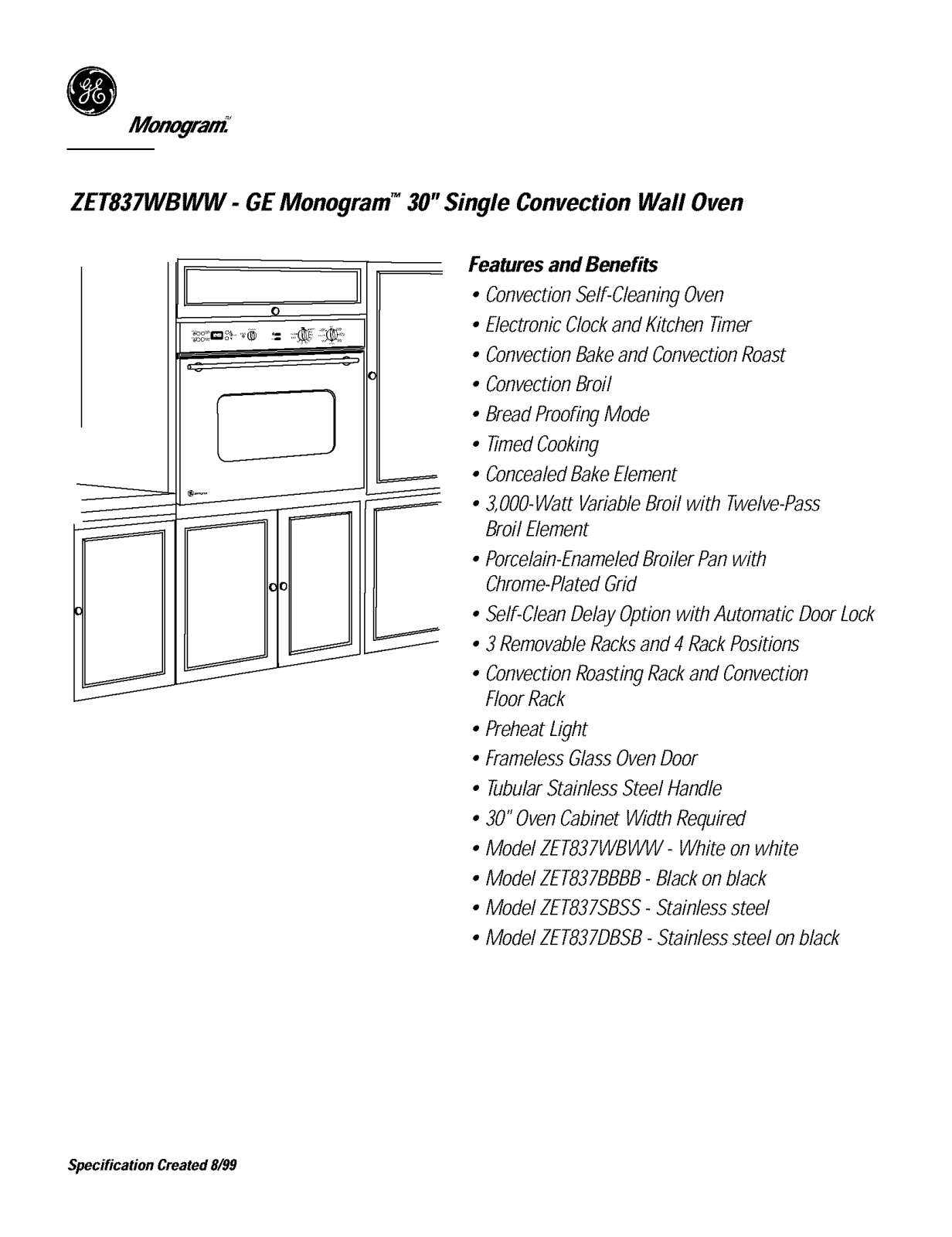

FeaturesandBenefits

o

,oo,=o,°® =

LL

• ConvectionSelf-CleaningOven

• ElectronicClockandKitchenTimer

• ConvectionBakeandConvectionRoast

• ConvectionBroil

• BreadProofingMode

• timedCooking

• ConcealedBakeElement

• 3,000-WattVariableBroil with Twelve-Pass
BroilElement

• Porcelain-EnameledBroilerPanwith
Chrome-PlatedGrid

• Self-CleanDelayOptionwithAutomaticDoorLock

• 3 RemovableRacksand4 RackPositions

• ConvectionRoastingRackand Convection
FloorRack

• PreheatLight

• FramelessGlassOvenDoor

SpecificationCreated8199

• TubularStainlessSteelHandle

• 30"OvenCabinetWidthRequired

• ModelZET837WBWW-Whiteonwhite

• Model ZET837BBBB-Blackonblack

• Model ZET837SBSS-Stainlesssteel

• ModelZET837DBSB-Stainlesssteel onblack
